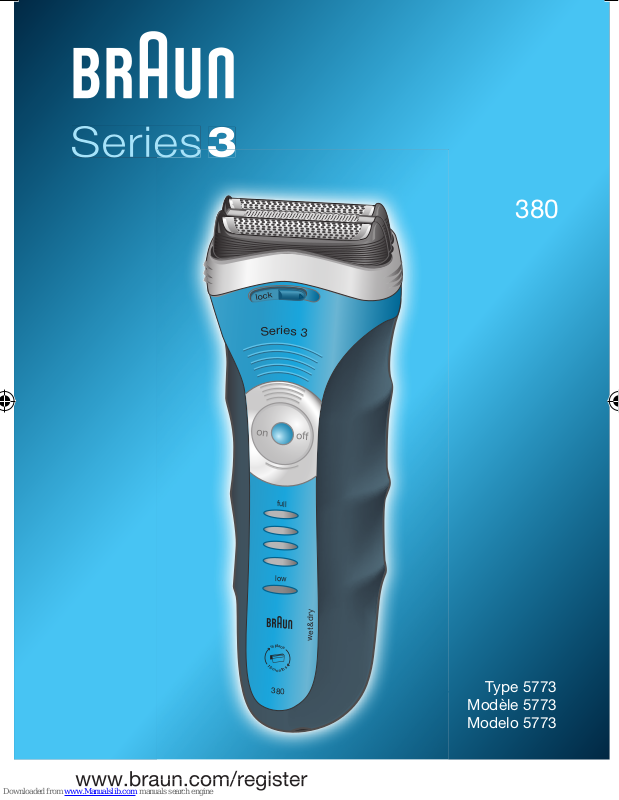

Braun 380, 5773 User Manual
lock
S
o
n
380
i
e
r
s
e
full
3
o
f
f
1
r
6
380
e
m
low
l
a
p
o
n
y
r
d
&
t
e
c
w
e
s
h
t
Type 5773
Modèle 5773
Modelo 5773
English 6
Thank you for purchasing a Braun product.
We hope you are completely satisfied with
Français 14
Español 21
your new Braun shaver.
If you have any questions, please call:
US residents 1-800-BRAUN-11
1-800-272-8611
Canadian residents 1-800-387-6657
Merci d’avoir fait l’achat d’un produit Braun.
Nous espérons que vous serez pleinement
satisfait de votre nouveau rasoir Braun.
Si vous avez des questions, veuillez appeler
Braun Canada : 1-800-387-6657
Gracias por haber comprado un producto
Braun.
Esperamos que quede completamente
satisfecho con su nueva afeitadora Braun.
Si tiene alguna duda, por favor llame al:
01(800) 508-5800
98715710/VI-08
USA / CDN / MEX
Printed in Germany
Imprimé en Allemagne
Impreso en Alemania
1
washable
lock
full
low
380
S
e
r
i
e
s
3
o
n
o
f
f
w
e
t
&
d
r
y
2
3
4
5
6
7
lock
o
i
e
r
e
s
S
3
n
o
f
f
full
low
y
r
d
&
t
e
w
l
a
p
c
e
e
r
1
6
s
m
h
t
o
n
380
10
8
9
4
11
s
e
n
s
i
t
i
v
r
e
1
p
6
l
a
m
c
e
o
n
t
h
s
e
on
off
full
low
washable
on
off
on
off
on
lock
oil
lock
90°
full
lock
full
click!
h
u
il
e
5
lock
lock
English
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this appliance.
When disconnected, the hand-held part of this shaving
appliance may be used in a bath or shower.
DANGER
To reduce the risk of electric shock:
1. The charger unit is not for immersion in water or for use in
shower.
2. Do not reach for a charger that has fallen into water. Unplug
immediately.
3. Do not place, store or charge the appliance where it can fall or
be pulled into a tub or sink. Do not place in or drop into water or
other liquid.
4. Except when charging, always unplug this appliance from the
electrical outlet immediately after using.
5. Do not use an extension cord with this appliance.
FOR HOUSEHOLD USE ONLY
6
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Close supervision is necessary when this appliance is used by,
on, or near children or invalids.
2. Use this appliance only for its intended use as described in this
manual.
Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug,
if it is not working properly, if it has been dropped or damaged,
or if the power supply has been dropped into water. Return the
appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors or operate where aerosol (spray) products
are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken shaving
system, as serious skin injuries may occur.
SAVE THESE INSTRUCTIONS
7
Caution
•
For hygienic reasons, do not share your shaving system with other
persons.
•
Periodically check the cord for damage. In case of a damaged cord, take
the charger to a Braun Service Center for replacement. A damaged or nonfunctioning unit should no longer be used.
•
Before plugging the charger into an electrical outlet, check whether the
voltage printed on the charger corresponds to your local mains voltage
supply.
Description
1 Foil & Cutter cassette
2 Long hair trimmer
3 Precision setting switch («lock»)
4 On/off switch
5 Charging lights (green)
6 Low-charge light (red)
7 Replacement light for shaving parts
8 Shaver power socket
9 Special cord set
10 Charging stand
11 Case
Charging
The best environmental temperature for charging is between 60 °F to 95 °F /
15 °C to 35 °C. Do not expose the shaver to temperatures higher than
122 °F / 50 °C for extended periods of time.
Using the special cord set (9), connect the shaver or the charging stand (10)
•
to an electrical outlet with the motor switched off.
When charging for the first time, leave the shaver to charge continuously
•
for 4 hours.
Once the shaver is completely charged, discharge the shaver through
•
normal use. Then recharge to full capacity. Subsequent charges will take
about 1 hour.
A full charge provides up to 45 minutes of cordless shaving time depend-
•
ing on your beard growth. However, the maximum battery capacity will
only be reached after several charging/discharging cycles.
5-minute quick charge is sufficient for a shave.
•
8
Charging lights
The green charging lights (5) show the charge status of the batteries. The
green charging light blinks when the shaver is being charged or switched on.
When the battery is fully charged, all green charging lights shine permanently,
provided the shaver is switched on or connected to an electrical outlet.
Low-charge light
The red low-charge light (6) flashes when the battery capacity has dropped
below 20%, provided the shaver is switched on. The remaining capacity will
then be sufficient for 2 to 3 shaves.
Shaving
Press the on/off switch (4) to operate the shaver (picture).
The flexible shaving foils automatically adjust to every contour of your face
(picture).
Long hair trimmer
To trim sideburns, moustache or beard, slide the long hair trimmer (2)
upwards.
Precision setting switch («lock»)
For precise handling in hard to shave areas (e.g. under the nose) slide the
switch (3) to the right to position «lock». The centre trimmer and one foil will
be lowered.
Tips for the perfect shave
For best results, Braun recommends you follow 3 simple steps:
1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.
This appliance is suitable for use in a bath or shower.
Cleaning
Regular cleaning ensures better shaving performance. Rinsing the shaver
head under running water after each shave is an easy and fast way to keep
it clean:
9
•
Switch the shaver on (cordless) and rinse the shaver head under hot
running water. You may use liquid soap without abrasive substances.
Rinse off all foam and let the shaver run for a few more seconds.
•
Next, switch off the shaver, remove the shaver Foil & Cutter cassette (1)
and let it dry.
•
If you regularly clean the shaver under water, then once a week apply a
drop of light machine oil onto the long hair trimmer (2) and shaver
Foil & Cutter cassette (1) (picture).
Alternatively, you may clean the shaver using a brush:
•
Switch off the shaver. Remove the shaver Foil & Cutter cassette and tap it
out on a flat surface (picture).
•
Using a brush, clean the inner area of the shaver head. However, do not
clean the shaver Foil & Cutter cassette with a brush as this may damage it
(picture).
Keeping your shaver in top shape
Replacement light for shaving parts / reset
To maintain 100% shaving performance, replace the shaver Foil & Cutter
cassette (1), when the replacement light for shaving parts (7) comes on (after
about 18 months) or when worn.
Foil & Cutter cassette: 32S
The replacement light will remind you during the next 7 shaves to replace the
Foil & Cutter cassette. Then the shaver will automatically reset the display.
After you have replaced the Foil & Cutter cassette (1), press the on/off switch
(4) for at least 5 seconds to reset the counter.
While doing so, the replacement light blinks and goes off when the reset is
complete. The manual reset can be done at any time.
Preserving the batteries
In order to maintain the optimum capacity of the rechargeable batteries, the
shaver has to be fully discharged (by shaving) every 6 months approximately.
Then recharge the shaver to full capacity.
10
