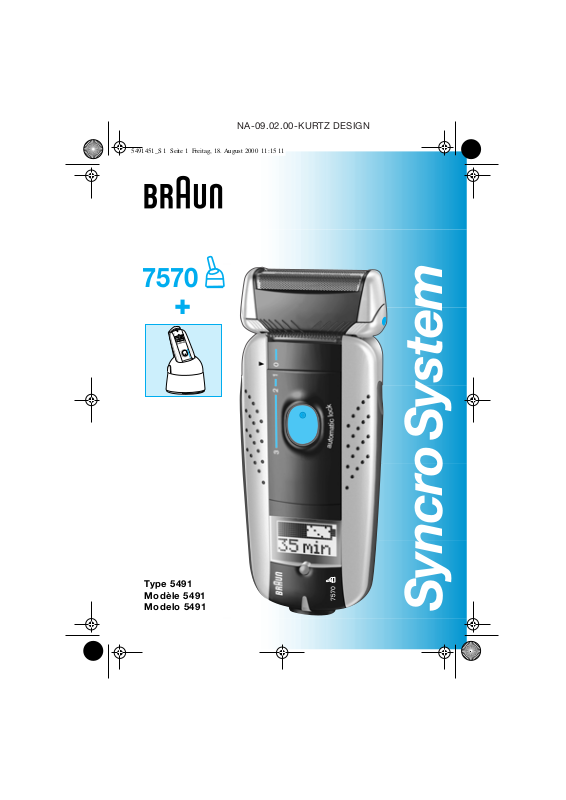

Braun 5491 User guide

7570

210

Type 5491 Modèle 5491 Modelo 5491

Syncro System

English 4

Français 14

Español 22

Thank you for purchasing a Braun product. We hope you are completely satisfied with your new Braun shaver. If you have any questions, please call: US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents (905) 712-5400

Merci d’avoir fait l’achat d’un produit Braun. Nous espérons que vous serez pleinement satisfait de votre nouveau rasoir Braun. Si vous avez des questions, veuillez appeler Braun Canada : (905) 712-5400

Gracias por haber comprado un producto Braun. Esperamos que Ud. completamente satisfecha con su nueva afeitadora Braun. Si Ud. tiene alguna duda, por favor llame al: Cd. de México 387-1941 Interior del país 01(800) 508-5800

Internet

www.Braun.com

5-491-451/01/III-00 USA / CDN / Mex. Printed in Germany Imprimé en Allemagne Impreso en Alemania

The world’s # 1 selling foil shavers

Le rasoir à grille le plus vendu au monde

Fabricante mundial # 1 en la venta de rasuradoras de lámina

Syncro 7570

Syncro

No. 7000

English

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.

2. Do not use while bathing or in a shower.

3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.

4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.

5. Unplug this appliance before cleaning.

FOR HOUSEHOLD USE SAVE THESE INSTRUCTIONS

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children.

2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

3. The shaver should never be exposed to temperatures of less than 32 ºF / 0 ºC and more than 105ºF/+40ºC for longer than a few hours. Keep the shaver and cord dry at all times. Do not handle with wet hands. Do not store in a damp environment. To avoid damage do not wind the cord around the appliance. It is important to check the cord for damage periodically particularly at each end where the cord enters the plug.

4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.

5. Keep the cord away from heated surfaces.

6. Never drop or insert any object into any opening.

7. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

8. Do not use this appliance with a damaged or broken foil, as serious facial injuries may occur.

9. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to «off», then remove plug from outlet.

210

Your Braun Syncro is supplied with a Braun Clean&Charge (please see separate use instructions).

Important

Only use the power supply cord set provided. A damaged cord must be replaced immediately.

Description

1 Foil protection cap 6 Switch 2 Shaver foil 7 Display 3 Cutter block 8 Info key 4 Foil release button 9 Pilot light 5 Long hair trimmer 10 Shaver socket

Technical specifications:

•

Wattage via cord set: 7 W

•

Power supply via cord set: 100-240 V 2/ 50 or 60 Hz (automatic adaptation)

•

Shaver input voltage: 12-24 V

Charging the shaver

•

7570

First charging: Using the power supply cord set, plug the shaver into an electrical outlet with the switch on position «0» and charge it for at least 4 hours (plug might get warm).

•

Once the shaver is completely charged, shave without the cord until fully discharged. Then recharge to full

+35°C

+15°C

capacity again (subsequent charges will take about 1 hour).

•

A full charge will give up to 50 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.

•

Best environmental temperature range for charging is 60°F to 95 °F / 15 °C to 35 °C.

Display

The pilot light shows that the shaver is plugged into the outlet properly. The display shows the operation mode and charging conditions of the shaver: During charging the display shows the battery capacity symbol increasing by 20% segments and the remaining charging time (flashing):

First charging (4 h):

The display counts down in 20 min. steps.

Subsequent chargings (1 h):

The display counts down in 5 min. steps.

The battery is fully charged.

Below 10 minutes remaining shaving time, the display shows the minutes left. The «moving» plug symbol indicates that you should charge your shaver. There is insufficient battery charge for a cordless shave. Either recharge the shaver or shave with the cord connected to the mains.

The display changes to this format when the shaver

is in the Clean&Charge.

Your shaver features an automated battery conditioning facility which monitors the charging/discharging process. If necessary, it will automatically recondition the battery with a complete discharge/recharge cycle (about every 6 months).

For additional information, press the info key:

press once: – to display the duration of the last shave

press again: – to display the key part number for shaver foil

and cutter block

hold for 3 secs: – to run a display demo

The shaver has to be cleaned (refer to paragraph «Manual cleaning» or to separate «Clean&Charge» use instructions). To reset the display, push the info key.

The shaver has to be lubricated (refer to paragraph «Manual cleaning» or to separate «Clean&Charge» use instructions). To reset the display, push the info key.

The shaver cannot be charged if the environmental temperature is too low (< 32 °F/0°C) or too high (> 130 °F/55 °C).

Allow the shaver to remain for some time at room temperature for optimal charging conditions.

No display: The rechargeable battery is completely discharged and has to be recharged.

Shaving

Switch positions

0 = Off (switch is locked)

Press and push up the switch to operate the shaver:

1 = Shaving with the pivoting head

The pivoting cutting system automatically adjusts to every contour of your face.

2 = Shaving with the pivoting head locked at an angle

(to permit shaving in difficult areas, e.g. under the nose)

3 = The long hair trimmer is activated

(for trimming sideburns, moustache and beard).

Shaving with the cord

If the rechargeable battery is discharged, you may also shave with the shaver connected to the mains via the power supply cord set.

(If the shaver does not run immediately, charge it with the switch on position «0» for approx. 1 minute.)

Tips for the perfect shave

•

It can take 14-21 days for your beard to adjust to the new shaving system.

•

We recommend that you shave before washing, as the skin tends to be slightly swollen after washing.

•

Hold the shaver at right angles (90°) to the skin.

•

Stretch your skin and shave against the direction of beard growth.

•

Replace the shaver foil and cutter block every 11/2 years, or when the parts are worn, to ensure optimum shaving performance.

Keeping your shaver in top shape

oil

Automated cleaning

The Braun Clean&Charge automatically takes care of all cleaning and lubrication needs of your shaver. Please refer to the separate use instructions. If not supplied already with your shaver, the Braun Clean&Charge is available at your dealer or Braun Service Centers.

Manual cleaning

For easy cleaning after each shave, switch the shaver off. Press the release buttons to lift the shaver foil (do not remove the foil completely). Switch on shaver for approx. 5-10 seconds so that the shaved stubbles can fall out.

For a thorough cleaning (weekly), remove the shaver foil and tap it out on a flat surface. Using the brush, clean the cutter block and the inner area of the pivoting head. About every four weeks, clean the cutter block with Braun cleaning agents.

If your skin is very dry and you notice a reduced operation time of the shaver or if the display shows «oil!», apply a drop of light machine oil onto the shaver foil.

Do not rinse the shaver in or under water.

Replacing the shaving parts

The shaver foil and cutter block are precision parts that, in time, are subject to wear. Replace your foil and cutter block every 18 months and get a 25% better shave.* (Shaver foil and cutter block: part No. 7000)

the

Syncro

*(Overall evaluation from Braun users comparing their shave with new parts and those used for 18 months.)

Accessories

available at your dealer or Braun Service Centers:

•

Shaver foil and cutter block

•

Refill cartridge (double pack) CCR 2

(part No. 7000)

(#5331)

7000
