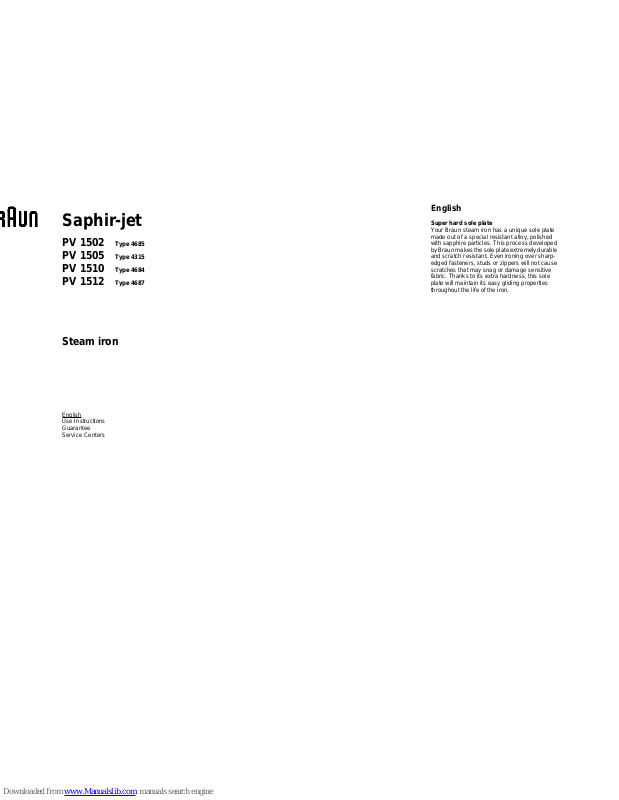

Braun Saphir-jet PV1502, Saphir-jet PV1505, Saphir-jet PV1510, Saphir-jet PV1512, Saphir-jet P1512 Use Instructions
...
Saphir-jet
PV 1502
Type 4685
PV 1505
Type 4315
PV 1510
Type 4684
PV 1512
Type 4687
Steam iron
English
Use Instructions
Guarantee
Service Centers
English
Super hard sole plate
Your Braun steam iron has a unique sole plate
made out of a special resistant alloy, polished
with sapphire particles. This process developed
by Braun makes the sole plate extremely durable
and scratch resistant. Even ironing over sharpedged fasteners, studs or zippers will not cause
scratches that may snag or damage sensitive
fabric. Thanks to its extra hardness, this sole
plate will maintain its easy gliding properties
throughout the life of the iron.
Our products are engineered to meet the
highest standards of quality, functionality
and design. We hope you thoroughly enjoy
your new Braun steam iron.
Notice
: Should the sole plate of your model have
a protective plastic covering, take it off before
using the iron.
Important Safeguards
• Read all instructions carefully before using the iron. Keep the use instructions during the
entire life of the iron.
• Before filling with water, always disconnect the plug from the socket first.
• Always pull the plug and not the cord.
• Electric irons reach high temperatures during operation that could lead to burns.
• Keep the iron away from children, and when it is turned on, keep the unit under supervision.
• Disconnect the plug when leaving the room where you are ironing, even if it is only briefly.
• Never iron or dampen clothes while wearing them.
• During ironing pauses, always place the iron upright in its heel rest.
• Never immerse the iron in water or other liquids.
• The cord should never come into contact with hot objects or the sole plate.
• Check the cord periodically for possible damage.
• Do not use a damaged iron.
• Take it to a Braun Service Center for repair.
• Braun electric appliances meet applicable safety standards.
• This appliance can only be opened by an authorised Braun Service Centre for repairs.
• The cord of this appliance may only be replaced by an authorised Braun Service Centre since
special tools are required.
• Faulty, unqualified repair work may cause accidents or injury to the user.
• Make sure your voltage corresponds to that printed on the iron. Connect the iron to an alternating
current (~) outlet only.
Table of features
for each model
Feature: Model:
Type:
PV 1502
4685
PV 1505
4315
PV 1510
4684
PV 1512
4687
Jet of steam
● ● ● ●
Shot of steam
● ●
Extra steam
● ●
Spray
● ● ● ●
Specifications
Voltage/wattage: See typeplate at the
bottom of the unit.
Water tank capacity: 215 cc (approximately
1 filling beaker
q
of water filled up to the
mark = 1 tank filling).
Description
1
Temperature selector
2
Water tank with sliding shutter opening
3
Water spray nozzle
4
Steam regulator / self-cleaning activator
and anti-calc. valve
5
Extra steam button
6
Jet of steam button
7
1- or 2-function button (water-spray/
shot of steam, see «Table of features»)
8
Pilot light
9
Swivel cord
j
Heel rest
k
Cord storage/typeplate
l
Transparent water tank
L
Maximum marking («max.»)
m
Sole plate with 71 steam vents
n
Full-lenght button groove
o
Slim pointed tip
p
Jet of steam outlet
q
Filling beaker
proglide-jet
jet
jet
-jet
max
jet
max
min
sc
jet
max
min
sc
shot
spray
shot
spray
jet
shot
s
e
l
f
c
l
e
a
n
i
n
g
s
e
l
f
c
l
e
a
n
i
n
g
7
8
11
9
10
17
12
14
f
c d
a
13
12a
Made in Spain 230 V ~ / 50 - 60 Hz / 1300 W
Type: 4 _ _ _ _ Model: PV 1 _ _ _ _
Saphir-jet
4
in position «
•
»
2
.
2
L
(a), using the
q
.
1
(b). As soon as the pilot
goes out, the iron has reached the
4
in position «
•
»
1
is marked with
Synthetics (acrylic, acetate)
Silk/rayon/nylon/polyester/
cotton blends/wool
Cotton/linen
Dry ironing
Set the steam regulator
4
in position «
•
»
(= steam off) (c) for dry ironing. The water
spray
7
may be used at any temperature
setting to dampen the laundry. The jet of steam
6
and the shot of steam
7
buttons can be
activated during dry ironing, provided that the
temperature selector
1
is within the continuous
red area
Steam ironing
(see «Table of features»)
Tem
perature selection: Set the temperature
selector
1
within the red
range steam (b) and wait
until the iron has reached the selected
temperature (i. e. the pilot light
8
goes off).
Steam ironing is possible in the entire red range.
Steam ironing at lower temperatures may cause
water drops instead of steam. Should this
happen, turn the steam regulator
4
to the
position «
•
» (= steam off) (c).
Steam regulator
4
:
Select the quantity of
steam required (c) for
each garment with the
steam regulator
4
.
You can increase the
quantity by turning the
steam regulator clock-
wise (wide markings) to the end of the red
marking.
Caution: While ironin
g do not turn the steam
regulator further, otherwise hot water may
come out from the sole plate (see section
«Decalcifying/Self-cleaning»).
By turning the steam regulator anti-clockwise
you can reduce the quantity of steam or turn the
steam off «
•
» (= steam off) (see «Ironing
Guide»).
Constant steam
: Your Braun steam iron is
equipped with a special tank configuration to
provide constant steam even when the water
level in the tank is low.
«Extra steam
»*
(coming from the
steam vents in the sole
plate): For stubborn
creases and wrinkles,
collars and cuffs.
When ironing within
the red range
area the extra steam function can
be used. You can press the button
5
(d) for 3
seconds at intervals of no less than 7 seconds.
5
Jet of steam*
(coming from the outlets
p
at the slim pointed tip)
o
): Caution: Keep children away from the jet of
steam and do not hold
your fingers in front of the
outlets
p
when activating
this function.
When ironing within the red range
area the jet of steam function
6
can be used (e). To do so, press the button
6
at
intervals of no less than 5 seconds. The jet of
steam has been designed not only for steaming
hard to reach areas like pleats, inside of pockets
etc., but also for steaming hanging clothing (e. g.
velvet skirts, curtains, etc.) (g). The jet of steam
functions between horizontal and upright
positions. Be careful not to touch sensitive
textiles with the hot sole plate.
Shot of steam
* (coming
from the vents in the sole
plate): When ironing
within the red
area the shot of
steam function can be
used. It gives an extra,
particular-ly powerful shot
of steam penetrating deep into the textiles in
order to straighten creases, collars and pleats.
The function «shot of steam» can be used in
normal ironing and also vertically for steaming
hanging clothing (e. g. velvet skirts, curtains etc.)
(g). Press the shot of steam button
7
at intervals
of no less than 5 seconds. When steaming be
careful not to touch sensitive textiles with the hot
sole plate.
* If pressed too frequently, it can drip. Should this
happen, wait a few seconds before using it
again.
Spray
(coming from the
nozzle
3
): The spray
function can be used at
any temperature, to
dampen laundry. To do
so, press the button
7
(water spray = blue).
Spray / shot of steam
2-function button:
With the models 4684 and
4687 the functions «water
spray» and «shot of
steam» can be activated
with a 2-function button.
The desired function can
be selected by turning the
button
7
as far as it will
go. The marking (blue =
water spray or red = shot
of steam) must point to
the respective function (f).
Turn the button from blue
(spray) to red (shot of
steam) anti-clockwise
and from red to blue clockwise (f).
Storage
After ironing, always pull the plug out of the wall
outlet. Set the temperature selector
1
to «min.»
(b) and the steam regulator
4
to «
•
» (= steam
off) (c).
To empty the iron hold it with the open water tank
opening
2
downwards (h) and shake it 1 or 2
times. The swivel cord
9
conveniently winds up
around the cord storage
k
.
IMPORTANT
: Store the cool steam iron in a dry
place and always standing on its heel rest
j
.
The sole plate may be damaged by remaining
water if it is stored horizontally. The warranty
does not cover faults or damage resulting from
improper storage of the iron.
Maintenance and Cleaning
To remove residues of minerals/starch from the
sole plate always use steel wool. Never use a
scouring pad, vinegar or other chemicals. The
steam vents
m
and jet of steam outlets
p
may
be cleaned manually with a toothpick, if
necessary. Clean the sole plate regularly if you
use starch or other aids on the clothes for
ironing.
Decalcifying / Self-cleaning
Braun irons Saphir-jet have a built-in system
(anti-calc. valve) to prevent calcification. It allows
you to clean residues from the steam chamber.
Do not use commercial decalcifiers; they may
damage the sole plate. We recommend to use
the self-cleaning function every 3 months.
4
to the position «
•
»
L
1
to the
marking («self-cleaning» = SC) (A).
8
goes off.
4
clockwise to
Cleaning the anti-calc. valve on the steam
regulator
During the time the sole plate is cooling down we
recommend to decalcify the anti-calc. valve in
the following way:
1. Put a small quantity of white vinegar (not
vinegar essence) or lemon juice into a glass or
bowl.
2. Immerse just the bottom part of the valve in
the liquid, wait till it is
decalcified and carefully brush of remaining residue (E).
Do not use a metal
brush.
3. Then, rinse it under
running water without touching the lower end
of the valve.
Re-inserting the steam regulator with anti-calc.
valve
1. Re-insert the steam regulator so that the
double-arrow aligns with the marking on
the iron (F).
2. Then push it down carefully and at the same
time turn the button anti-clockwise.
3. Keep turning the button
to the marking «
•
»
(= steam off).
4. If your iron has the shot
of steam, refill the tank
with water, heat the
iron up and press the
button
7
3 to 4 times in
the shot of steam
function before ironing, to rinse the iron.
ATTENTION: The iron must not be used without
the steam regulator and the anti-calc. valve.
7
Ironing Guide
To begin ironing, it is best to start with fabrics
requiring a lower temperature (e. g. synthetics),
and continue with those requiring a higher
temperature (e. g. cotton, linen).
Silk and silk-like synthetics tend to waterspot,
therefore before using the water spray feature,
test it on an inconspicuous spot first.
Mixed fabrics: Always select the temperature
suited for the most sensitive fibre the garment
contains. Follow manufacturer’s instructions on
the label.
Subject to chance without notice.
This product conforms to the
EMC-Requirements as laid down by
the Council Directive 89/336/EEC.
Guarantee
We grant a 1 year guarantee on the product
commencing on the date of purchase.
Within the guarantee period we will eliminate,
free of charge, any defects in the appliance
resulting from faults in material or workmanship
either by repairing, or exchanging parts or
exchanging the whole appliance as we may
choose.
Not covered by this guarantee: damage arising
from improper use or storage (operation with
incorrect current/voltage, plugging it into an
unsuitabie power point, breakage use of
commercial decalcifyers, wet storage on the
ironing surface), normal wear and defects which
have a negligible effect on the value or operation
of the appliance.
The guarantee becomes void if repairs are
undertaken by unauthorised persons and if
original Braun parts are not used.
The guarantee only comes into force if the date
of purchase is confirmed by the dealer's stamp
and signature on the guarantee card and
registration card.
This guarantee extends to every country where
this appliance is supplied by Braun or its
appointed distributor and where no import
restrictions or other legal regulations hinder or
prevent service being given under guarantee.
Service under the guarantee does not affect the
expiry date of the guarantee. The guarantee on
parts or entire appliances which are exchanged
ends when the guarantee on this appliance
expires.
In the event of a claim under this guarantee,
hand in the complete appliance with the valid
guarantee card to your dealer, or send both to
the nearest Braun Customer Service Centre.
All other claims including for damages resulting
from this guarantee are excluded unless our
liability is legally mandatory.
Those claims arising out of the sales contract
with the vendor are not affected by this
guarantee.
For UK only:
This guarantee in no way affects your rights
under statutory law.
Fabrics Temperature
regulator
setting
Steam
regulator
setting
Synhetics
(acrylic, acetate)
●
•
(= steam off)
Silk, rayon,
nylon, polyester,
cotton blends
●●
•
(= steam off)
to max.
Wool
●●
•
(= steam off)
to max.
Cotton
●●●
•
(= steam off)
to max.
Linen
●●●
to max.
•
(= steam off)
to max.
Loading...
