Page 1
4615
4605
e
l
b
a
h
s
a
w
Type 5100
TwinControl
Page 2
Flex 4615
1
2
Flex 4605
3
2
585
585
10
3
585
off
e
l
b
a
h
s
4
5
6
9
5
a
w
e
l
b
a
h
s
a
w
8 h
7
e
l
b
a
h
s
a
w
9
11
8
on
Page 3
trim
clean
w
a
s
h
a
b
l
w
a
s
h
a
b
l
e
e
Page 4

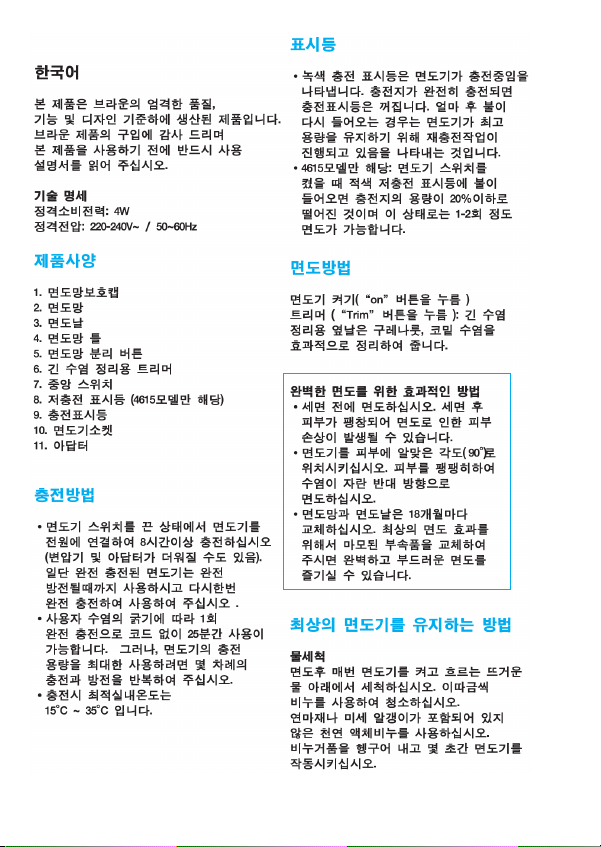

English
Our products are designed to meet the
highest standards of quality, functionality
and design. We hope you enjoy your new
Braun shaver.
Technical specifications
Wattage via cord set: 4 W, automatic
power supply 220-240 V~ / 50-60 Hz
on, the light comes on again, this
indicates that the shaver is being
recharged to maintain its full capacity.
• Model 4615 only: The red low charge
light will come on when the battery
capacity has dropped below 20%,
provided the shaver is switched on.
The remaining capacity will then be
sufficient for 1 to 2 shaves.
Description
1 Foil protection cap
2 Shaver foil
3 Cutter block
4 Foil frame
5 Release buttons
6 Long hair trimmer
7 Central switch
8 Low charge light (4615 only)
9 Charging light
10 Shaver socket
11 Mains adapter
Charging the shaver
• Via the adapter, connect the shaver to
the mains with the motor switched
off. Charge for at least 8 hours (transformer and shaver might get warm).
Once the shaver is completely
charged, shave until fully discharged.
Then recharge to full capacity again.
•A full charge will give up to 25
minutes of cordless shaving time
depending on your beard growth.
However, the maximum battery
capacity will only be reached after
several charging/dis-charging cycles.
• Best environmental temperature
range for charging is 15°C to 35°C.
Indicator lights
• The green charging light shows that
the shaver is being charged.When the
rechargeable battery is fully charged,
the charging light goes off. If later
Shaving
Turn on the shaver («on»)
Trimmer («trim»): When the long hair
trimmer is activated, it allows the
controlled trimming of moustache or
sideburns.
Tips for the perfect shave
• We recommend that you shave
before washing, as the skin tends to
be slightly swollen after washing.
• Hold the shaver at right angles (90°)
to the skin. Stretch your skin and
shave against the direction of beard
growth.
• To ensure optimum shaving performance, we recommend to replace the shaver foil and cutter
block every 18 months, or when
the parts are worn.
Keeping your shaver in top
shape
Cleaning under running water
After each shave, turn on the shaver and
clean it under running hot water.
Occasionally use soap (natural based
liquid soap without particles and
abrasive substances). Then rinse off all
foam and let the shaver run for another
moment.
Brush cleaning
Instead of cleaning under running water,
you may clean your shaver with a dry
Page 5
brush: turn the shaver off, remove the foil
frame and, using the brush, clean the
cutter block and the inner area of the foil
frame head. To clean underneath the
long hair trimmer, push the switch to
«clean».
Do not clean the shaver foil with the
brush.
General cleaning
About every four weeks, clean the cutter
block with Braun cleaning agents.
Put a drop of light machine oil onto the
long hair trimmer and shaver foil.
Replacing the shaving parts
The shaver foil and cutter block are
precision parts that, in time, are subject
to wear. To exchange the shaver foil,
remove it from the foil frame as shown in
the illustrations. Lift the foil first on the
front side, then the back. Be careful that
you do not squeeze the foil to tightly
while removing or replacing.
Replace your shaver foil and cutter block
every 18 months and get a 25% better
shave.*
(Shaver foil and cutter block: part no.
585, availabe at your dealer or Braun
Service Centres)
*(Overall evaluation from Braun users
comparing their shave with new parts
and those used for 18 months.)
Preserving the batteries
• In order to maintain the optimum
capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months
approximately. Then recharge the
shaver to full capacity again.
• Do not expose the shaver to temperatures of more than 50°C for longer
periods of time.
Environmental notice
This appliance is provided with nickelcadmium batteries. To protect the
environment, do not dispose of this
appliance in the household waste at the
end of its useful life. Disposal can take
place at a Braun Service Centre or
appropriate collection sites. However,
if you prefer to dispose of the product
yourself, remove the batteries as shown.
Subject to change without notice

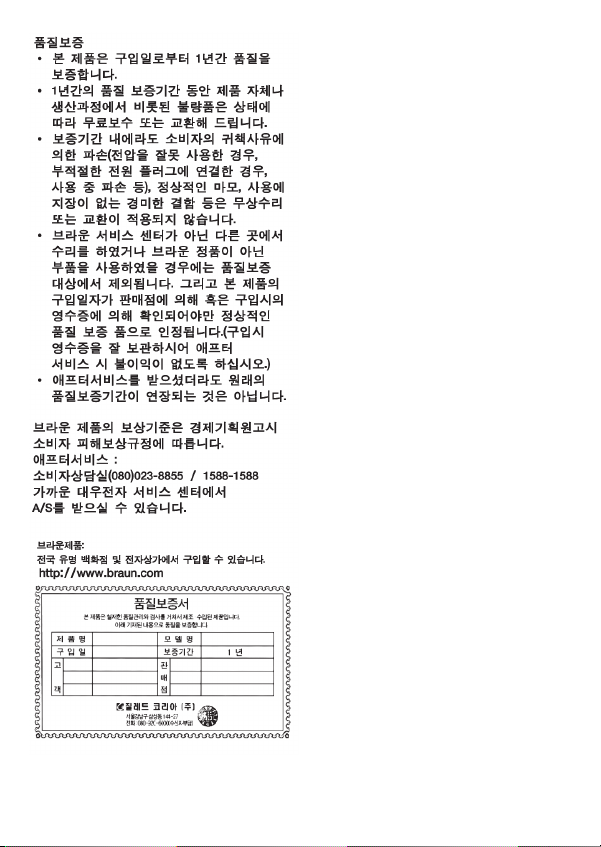

Guarantee
We grant 2 years guarantee on the
product commencing on the date of
purchase. Within the guarantee period
we will eliminate, free of charge, any
defects in the appliance resulting from
faults in materials or workmanship, either
by repairing or replacing the complete
appliance as we may choose.
This guarantee extends to every country
where this appliance is supplied by
Braun or its appointed distributor.
This guarantee does not cover: damage
due to improper use, normal wear or use
as well as defects that have a negligible
effect on the value or operation of the
appliance.
The guarantee becomes void if repairs
are undertaken by unauthorised persons
and if original Braun parts are not used.
To obtain service within the guarantee
period, hand in or send the complete
appliance with your sales receipt to an
authorised Braun Customer Service
Centre.
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Cd

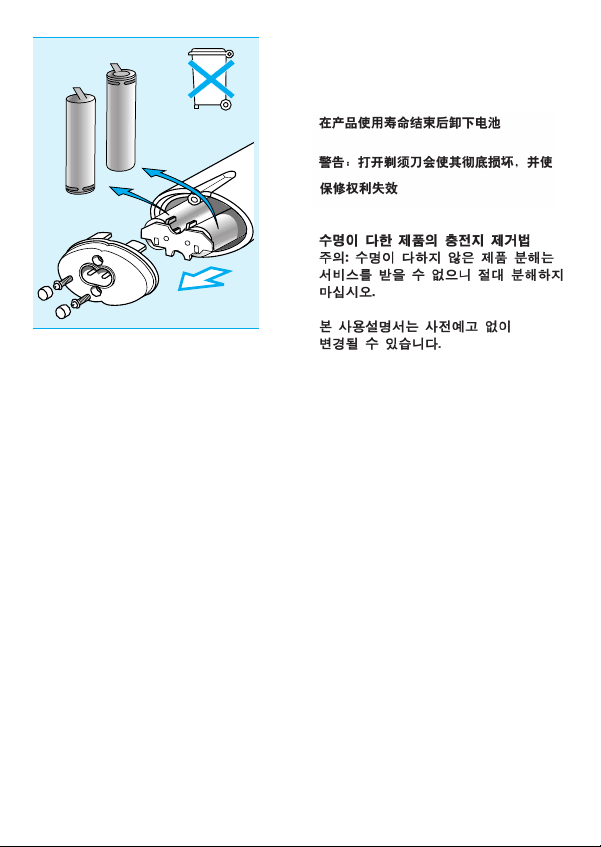

Battery removal at the end of the
product’s useful life
Caution: Opening will destroy the
appliance and invalidate the guarantee.
Page 12
5-100-207/00/V-02
GB/China/Korea
