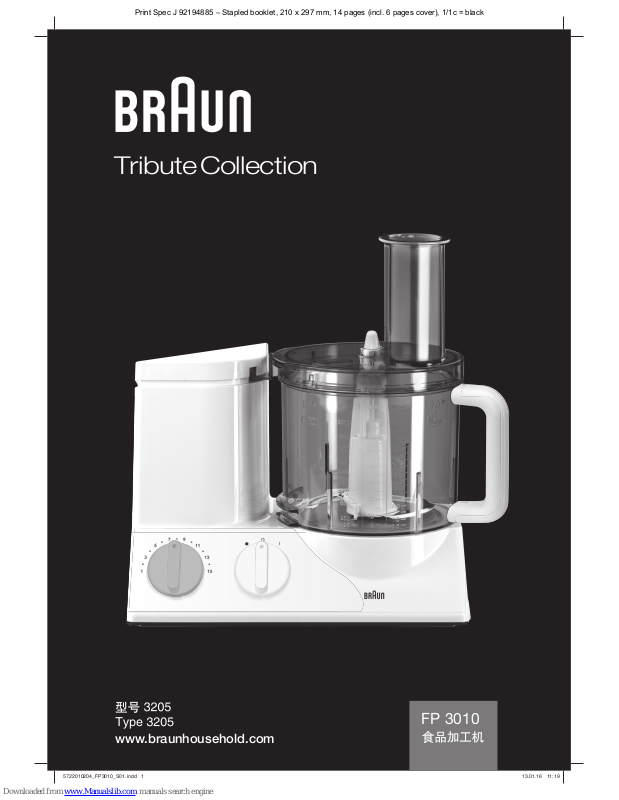

Page 1
www.braunhousehold.com
Tribute Collection
FP 3010
5722010204_FP3010_S01.indd 15722010204_FP3010_S01.indd 1 13.01.16 11:1913.01.16 11:19
Print Spec J 92194885 – Stapled booklet, 210 x 297 mm, 14 pages (incl. 6 pages cover), 1/1c = black
Page 2
English 4
8
De’Longhi-Braun-Household GmbH
Carl-Ulrich-Straße 4
63263 Neu-Isenburg/Germany
5722010204/01.16
UK/China
5722010204_FP3010_S02.indd 15722010204_FP3010_S02.indd 1 13.01.16 11:2013.01.16 11:20
Page 3
5722010204_FP3010_S03.indd 15722010204_FP3010_S03.indd 1 13.01.16 11:2113.01.16 11:21
Page 4
4
English
Our products are engineered to meet the
highest standards of quality, functionality
and design. We hope you thoroughly
enjoy your new Braun appliance.
Please read the use instruc tions
carefully before first use.
Important
•
This appliance shall not be used
by children. Keep the appliance
and its cord out of reach of
children. Switch off the appliance
and disconnect from supply
before changing accessories or
approaching parts that move in
use.
•
This appliance can be used by
persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision or instruction concerning
use of the appliance in a safe way
and if they understand the
hazards involved.
•
The blade 9 is very
sharp! Take hold of the
blady by the knob only. After use,
always first remove the blade
from the food processor bowl 6
before removing the processed
food.
•
Make sure that your voltage
corre sponds to the voltage
printed on the bottom of the
appliance. Connect to alternating
current only.
•
Keep the appliance out of the
reach of children.
•
This appliance was constructed
for household use only to process
the listed quantities.
•
Do not use any parts in the microwave oven.
•
Do not allow the appliance to
operate unsupervised.
•
Braun electric appliances meet
applicable safety standards.
Repairs or the replacement of the
mains cord must only be done by
authorised service personnel.
Faulty, unqualified repair work
may cause considerable hazards
to the user.
•
Always disconnect the appliance
from the supply if it is left unattended and before assembling,
disassembling or cleaning.
Specifications
• Voltage/wattage: See typeplate on the
bottom of the appliance.
• Operating time and max. capacity:
See processing instructions.
Description
The Braun food processor FP 3010
meets highest demands for kneading,
mixing, blending, chopping, slicing,
shredding and grating, both simply and
quickly.
1 Motor block
2 Cord storage
3 Motor switch (on = «I», off = «O»)
4 Pulse mode «»
5 Variable speed regulator (1 - 15)
6 Food processor bowl (2 l capacity)
7 Lid for food processor bowl 6
8 Pusher for lid 7
Attachments for food processor
bowl 6
(Important: Not all attachments will be
included in the standard equipment of
all models.)
9 Blade with protective cover
j Insert carrier
q Fine slicing insert – a
l Coarse slicing insert – b
m Fine shredding insert – c
n Coarse shredding insert – d
o Grating insert – e
p French-fries system
q Kneading hook
r Whipping attachment
Note: Before using the food processor
for the first time, clean all parts as
described under «Cleaning».
Overload protection
In order to avoid damages caused by
overload, this appliance is equipped with
an automatic security switch which shuts
off the current supply if necessary. In
such case, turn the motor switch 3 back
to «O» and wait approx. 15 minutes to
allow the motor to cool off before switching on the appliance again.
Pulse mode «» 4
The pulse mode is for example useful
for the following applications:
• Chopping delicate and soft food, e.g.,
eggs, onions or parsley.
• Carefully folding flour into dough or
batter to maintain the creaminess.
• Adding whipped eggs or cream to
more solid food.
The pulse mode «» is activated by
turning the motor switch to the left.
The switch does not catch at this
setting. Hold the switch in pulse
position or turn it to pulse position
repeatedly.
Before activating the pulse mode, set
the desired speed with the speed regulator 5. When releasing the pulse mode,
the appliance is switched off.
Recommended speed
ranges for individual attachments
Set the speed range by means of the
variable speed regulator 5. It is recommended to first select the speed and
then switch on the appliance in order to
work whith the desired speed right from
the beginning.
Attachments Speed range
Kneading hook 7
Blade 6 - 15
Whipping attachment:
– egg-whites 4 - 5
– cream 2
Slicing, grating and
shredding inserts 1 - 8
French-fries system 1 - 2
(please also refer to product printing)
Double safety feature
The appliance can only be switched on
when the food processor bowl with lid is
properly engaged. If the lid is opened
during operation, the motor switches off
automatically. As in this case the motor
switch 3 is still on «I», turn it back to
«O» to avoid switching on the motor
accidentally.
Attaching the food processor
bowl 6 and the lid 7
1. With the motor switched off, place
the food processor bowl onto the drive
place of the motor block 1 matching
the arrow on the bowl with the arrow on
the motor block (A). Then turn the bowl
in the «function» direction as far as it
will go.
2. Put the attachment needed (see
instructions for each of the attachments)
onto the drive shaft of the bowl and
push it down as far as it will go.
3. Put the lid 7 onto the bowl matching
the arrow on the lid with the arrow on
the bowl.
Then turn the lid clockwise guiding its
nose rim into the safety lock opening of
A
1
2
5722010204_FP3010_S04-14.indd 45722010204_FP3010_S04-14.indd 4 13.01.16 11:2313.01.16 11:23
Page 5
5
the motor block 1 until it audibly snaps
in place (B).
Removing the food
processor bowl and the lid
Switch off the appliance. Turn the lid
counterclockwise and lift it off. Then turn
the food processor bowl in the «click»
direction until it locks and lift off the
bowl.
When removing the blade from the bowl,
take hold of it by the knob and pull it off.
Caution: The blade is very sharp!
The blade 9 comes with a protective
cover. If not in use, store the blade in
the protective cover.
Cleaning
First, always switch off the motor and
unplug the appliance. Clean the motor
block 1 with a damp cloth only.
All parts can be cleaned in the dishwasher. If necessary, clean all parts
thoroughly with a spatula or a brush
before rinsing them.
Color-intensive food (e.g. carrots) may
leave stains on the plastic parts; wipe
them off with cooking oil before cleaning
with water.
Do not use sharp objects for cleaning
purposes.
Clean the blades and the inserts very
carefully – they are very sharp!
1. Kneading
For kneading you can use the kneading
hook q or the blade 9. For best results,
we recommend using the kneading hook
which is specially designed for making
yeast dough, pasta and pastries.
Yeast dough (bread/cake)
Max. 500 g flour plus other ingredients
Speed 7, 1
1
/2 minutes
Pour the flour into the food processor
bowl, then add the other ingredients –
except liquids.
Put on the lid 7 and lock in place.
Then choose speed 7 and switch the
appliance on.
Add liquids by pouring them through the
filling tube of the lid while the motor is
running.
When kneading with the blade 9, do
not add ingredients like raisins, candied
peel, almonds, etc. which are not supposed to be cut. These have to be added
maually after having taken the kneaded
dough out of the food processor bowl.
Pasta dough
Max. 500 g flour plus other ingredients
Speed 7, 1
1
/2 minutes
Pour the flour into the food processor
bowl, then add the other ingredients –
except liquids.
Pour the required amount of liquid
through the filling tube in the lid when
the motor is running.
Do not add any liquid after the dough
has formed into a ball as then the liquid
will no longer be absorbed evenly.
Pastries
Max. 500 g flour plus other ingredients
Speed 7, approx. 1 minute
Pour flour into the food processor bowl,
then add the other ingredients. For best
results, be butter used must not be too
hard, nor too soft.
Put on the lid 7 and lock in place.
Choose speed 7 and switch on the
appliance.
Stop kneading the dough shortly after a
ball has formed. Otherwise the pastry
dough will become too soft.
2. Mixing
For mixing cake dough or sponges
use the blade 9.
The kneading hook q is not suitable for
mixing cake doughs or sponges.
Max. 500 g flour plus other ingredients
Cake mixture
(2 methods) Speed / Time
a) Cream butter with
sugar end eggs 6 / ca. 1 min
pour in milk and 6 / ca. 15 secs
carefully fold in 15 / ca. 10-15 x
flour with pulse «»
mode.
b) Pour all ingredients
except liquids into
the food processor
bowl. 15 / ca. 1 min
Add required liquids through the
filling tube of the lid while the motor
is running. Finally add ingredients like
raisins manually.
Sponge Speed / Time
Cream eggs and
water (if required) 15 / ca. 2 mins
and sugar 15 / ca. 4 mins
fold in flour with
pulse mode 8 / 5 x «»
add cocoa powder 8 / 3 x «»
3. Blending
Use the blade 9 for blending soups,
shakes, etc.
Maximum capacity 2 l
Speed 10
(otherwise the bowl may overflow)
For milk-shakes, pour coarsely chopped
fruit into the food processor bowl.
Put on the lid 7 and lock in place.
With speed 15, blend fruit first, then add
liquid at speed 10 and finish blending.
When blending milk, please note that it
will froth. Use smaller quantities.
B
click
click
1
2
5722010204_FP3010_S04-14.indd 55722010204_FP3010_S04-14.indd 5 13.01.16 11:2313.01.16 11:23
Page 6
6
4. Chopping
Chopping with the blade 9
Processing examples
The processing times are approximate and depend on the quality, the amount of
food to be processed and the required degree of fineness.
Product Max. Preparation Speed Mode Time/pulses
amounte
Hard bread 4 quartered 15 I 45 secs
rolls
Ice cubes 28 whole 15 I 1 minute (snow)
Apples 700 g quartered 8 I 15 secs
Chocolate 400 g broken 15 I coarse 15 secs
cool fine 30 secs
Eggs 8 whole 6 8 x
Cheese (soft) 400 g 3-cm cubes 15 I 20 secs
Cheese (hard) 700 g 3-cm cubes 15 I 60 - 70 secs
Meat 700 g in cubes 15 I 40 secs
Carrots 700 g in pieces 15 I 10 secs
Onions 700 g quartered 15 10 - 13 x
Recipe example
Dried Fruit in Vanilla-Honey
(as a pancake stuffing or spread)
(use the food processor bowl, speed: 15)
Chill 500g creamy honey and chopped
dried fruit (250 g prunes, 250 g dried
figs) in the fridge. Fill honey and dried
fruit into the food processor bowl and
chop for 20 seconds, then add 250 ml
water and 3 drops vanilla aroma and
resume chopping for 3 seconds.
Cleaning
Be careful when cleaning the blade.
Take hold of it by the knob only. Please
note that the chopper bowl is not dishwasher-proof.
Clean it manually with warm water.
5722010204_FP3010_S04-14.indd 65722010204_FP3010_S04-14.indd 6 13.01.16 11:2313.01.16 11:23
Page 7
7
5. Slicing, shredding, grating
• Place the insert you want to use into
the insert carrier j as shown in (C) and
snap into position. In order to remove
the insert, push up the insert end that
protrudes at the bottom of the insert
carrier.
a
C
• Put the assembled slicer/shredder
onto the drive shaft of the food processor bowl (D).
D
• Put on the lid 7 and lock in place. Set
the speed and fill the food to be processed into the filling tube while the
motor is switched off. Refilling should
be done with the motor switched off.
• Never reach into the filling tube when
the motor is running. Always use the
pusher 8 (E).
N.B.: When processing juicy or soft
food, you will obtain better results at a
lower speed. Hard food should be
processed at a higher speed. Do not
overload the food processor bowl.
Fine slicing insert – a q
Speed 1 - 2
Processing examples: cucumbers,
cabbage, raw potatoes, carrots, onions,
radishes.
Coarse slicing insert – b l
Speed 1 - 2
Processing examples: cucumbers,
kohlrabi, raw potatoes, onions, bananas,
tomatoes, mushrooms, celery.
Fine shredding insert – c m
Speed 3 - 6
Processing examples: cheese (soft to
medium), cucumbers, carrots, raw
potatoes, apples.
Coarse shredding insert – d n
Speed 3 - 6
Processing examples: cheese (soft to
medium), cucumbers, kohlrabi, beetroot,
carrots, raw potatoes, apples, cabbage.
Grating insert – e o
Speed 8 - 15
Processing examples: raw potatoes
(e.g. for potatoe pancakes), horseradish,
parmigiano cheese (hard).
6. Whipping with the
whipping attachment r
Speed / Time
Whipping sponges
Max. 280-300 g flour
plus ingredients
Cream eggs and
water (if required) 5 / ca. 2 mins
add sugar 5 / ca. 2 mins
fold in flour 1 / ca. 30 secs
Whipping egg-whites
Min.: 2 egg-whites 4 - 5 / ca. 4 mins
Max.: 6 egg-whites 4 - 5 / ca. 6 mins
Whipping cream
Min.: 0.15-0.2 l 2 / ca. 1-2 mins
Max.: 0.4 l 2 / ca. 3.5-4 mins
Before whipping sterilized cream, keep
the cream cool for several hours
(at 4° C approx.).
Please do not dispose of the
product in the household waste
at the end of its useful life.
Disposal can take place at a
Braun Service Centre or at appropriate
collection points provided in your
country.
Subject to change without notice.
E
1
2
5722010204_FP3010_S04-14.indd 75722010204_FP3010_S04-14.indd 7 13.01.16 11:2313.01.16 11:23
Page 8
8
5722010204_FP3010_S04-14.indd 85722010204_FP3010_S04-14.indd 8 13.01.16 11:2313.01.16 11:23
Page 9
9
A
1
2
B
c
l
i
c
k
c
l
i
c
k
1
2
5722010204_FP3010_S04-14.indd 95722010204_FP3010_S04-14.indd 9 13.01.16 11:2313.01.16 11:23
Page 10
10
5722010204_FP3010_S04-14.indd 105722010204_FP3010_S04-14.indd 10 13.01.16 11:2313.01.16 11:23
Page 11
11
5722010204_FP3010_S04-14.indd 115722010204_FP3010_S04-14.indd 11 13.01.16 11:2313.01.16 11:23
Page 12
12
a
C
D
5722010204_FP3010_S04-14.indd 125722010204_FP3010_S04-14.indd 12 13.01.16 11:2313.01.16 11:23
Page 13
13
E
1
2
5722010204_FP3010_S04-14.indd 135722010204_FP3010_S04-14.indd 13 13.01.16 11:2313.01.16 11:23
Page 14
5722010204_FP3010_S04-14.indd 145722010204_FP3010_S04-14.indd 14 13.01.16 11:2313.01.16 11:23
Loading...
