Brass Smith DECO-970 User Manual

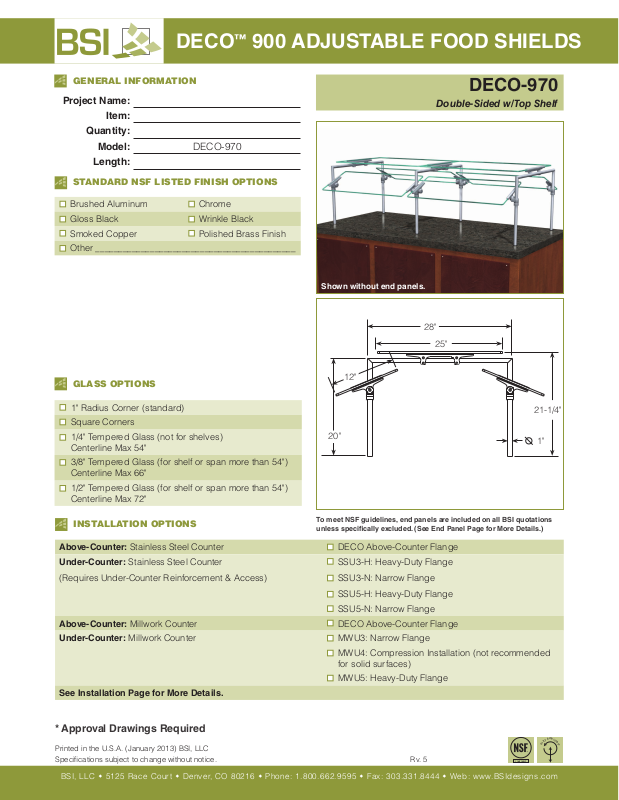

DECO™ 900 ADJUSTABLE FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: DECO-970

Length:

STANDARD NSF LISTED FINISH OPTIONS

Brushed Aluminum Chrome

Gloss Black Wrinkle Black

Smoked Copper Polished Brass Finish

Other ____________________________________________

DECO-970

Double-Sided w/Top Shelf

Shown without end panels.

28"

25"

GLASS OPTIONS

12"

1" Radius Corner (standard)

Square Corners

1/4" Tempered Glass (not for shelves)

20"

Centerline Max 54"

3/8" Tempered Glass (for shelf or span more than 54")
Centerline Max 66"

1/2" Tempered Glass (for shelf or span more than 54")
Centerline Max 72"

INSTALLATION OPTIONS

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded. (See End Panel Page for More Details.)

Above-Counter: Stainless Steel Counter DECO Above-Counter Flange

Under-Counter: Stainless Steel Counter SSU3-H: Heavy-Duty Flange

(Requires Under-Counter Reinforcement & Access) SSU3-N: Narrow Flange

SSU5-H: Heavy-Duty Flange

SSU5-N: Narrow Flange

Above-Counter: Millwork Counter DECO Above-Counter Flange

Under-Counter: Millwork Counter MWU3: Narrow Flange

MWU4: Compression Installation (not recommended
for solid surfaces)

MWU5: Heavy-Duty Flange

See Installation Page for More Details.

21-1/4"

1"

* Approval Drawings Required

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com

Rv. 5
