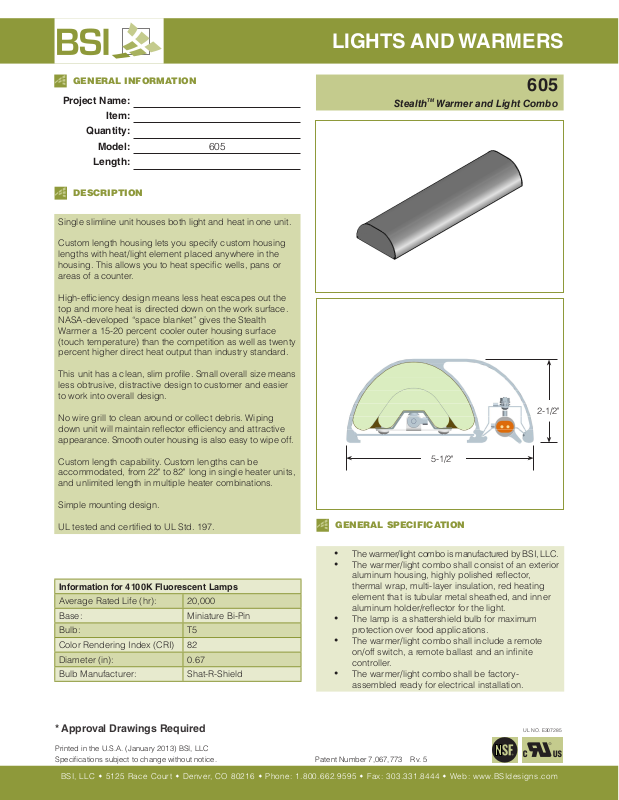

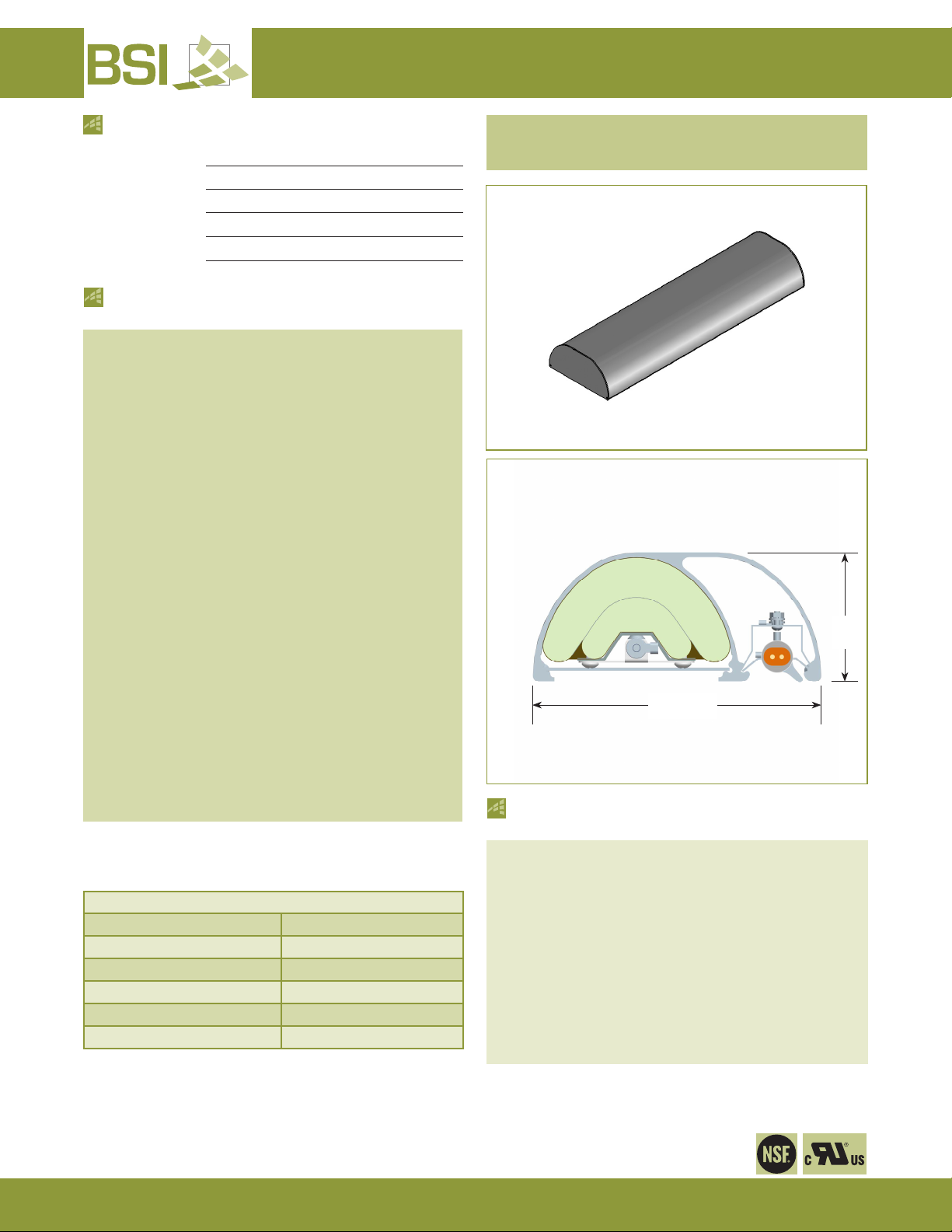

Page 1
LIGHTS AND WARMERS
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: 605
Length:
DESCRIPTION
Single slimline unit houses both light and heat in one unit.
Custom length housing lets you specify custom housing
lengths with heat/light element placed anywhere in the
housing. This allows you to heat specific wells, pans or
areas of a counter.
High-efficiency design means less heat escapes out the
top and more heat is directed down on the work surface.
NASA-developed “space blanket” gives the Stealth
Warmer a 15-20 percent cooler outer housing surface
(touch temperature) than the competition as well as twenty
percent higher direct heat output than industry standard.
605
StealthTM Warmer and Light Combo
This unit has a clean, slim profile. Small overall size means
less obtrusive, distractive design to customer and easier
to work into overall design.
No wire grill to clean around or collect debris. Wiping
down unit will maintain reflector efficiency and attractive
appearance. Smooth outer housing is also easy to wipe off.
Custom length capability. Custom lengths can be
accommodated, from 22" to 82" long in single heater units,
and unlimited length in multiple heater combinations.
Simple mounting design.
UL tested and certified to UL Std. 197.
Information for 4100K Fluorescent Lamps
Average Rated Life (hr): 20,000
Base: Miniature Bi-Pin
Bulb: T5
Color Rendering Index (CRI) 82
Diameter (in): 0.67
Bulb Manufacturer: Shat-R-Shield
2-1/2"
5-1/2"
GENERAL SPECIFICATION
• The warmer/light combo is manufactured by BSI, LLC.
• The warmer/light combo shall consist of an exterior
aluminum housing, highly polished reflector,
thermal wrap, multi-layer insulation, red heating
element that is tubular metal sheathed, and inner
aluminum holder/reflector for the light.
• The lamp is a shattershield bulb for maximum
protection over food applications.
• The warmer/light combo shall include a remote
on/off switch, a remote ballast and an infinite
controller.
• The warmer/light combo shall be factory-
assembled ready for electrical installation.
* Approval Drawings Required
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5Patent Number 7,067,773
UL NO. E307285

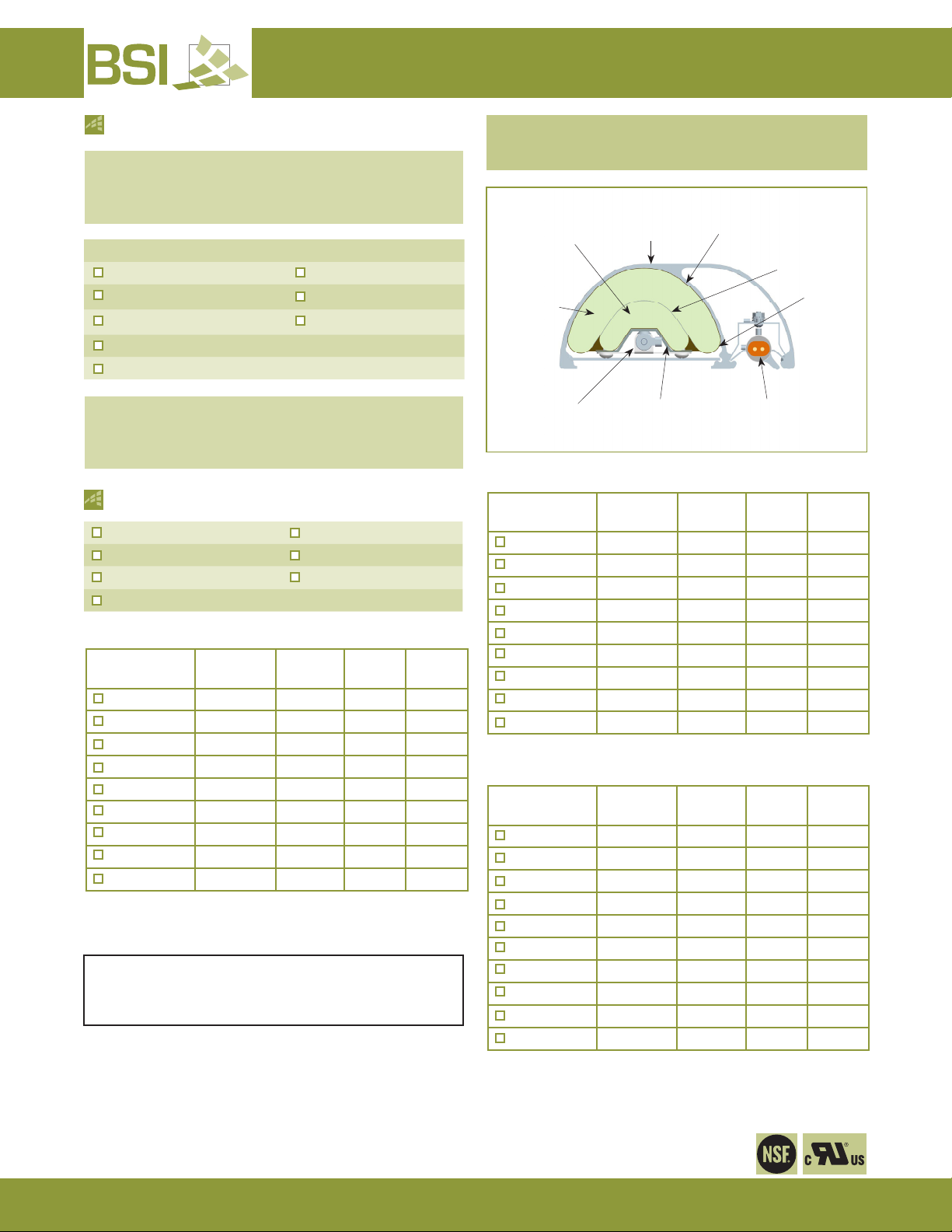

Page 2
LIGHTS AND WARMERS
OPTIONS AND ACCESSORIES
Light/Heat housing is an aluminum extrusion finished
to match guard. NSF-approved powder-coat colors are
available as well as satin or polished finishes. Please
contact factory for further information.
Switch Options Wiring Exit Point Options
Remote Infinite (standard) Top
Remote Switch Left Side
Solid State Right Side
Internal Control
Indicator Light
The warmer shall be single phase and rated at __________
watts, __________ volts.
Warmer shall be __________ inches in overall width.
STANDARD NSF LISTED FINISH OPTIONS
Brushed Aluminum Chrome
Gloss Black Wrinkle Black
Smoked Copper Polished Brass Finish
Other ____________________________________________
MODEL
NUMBER
605-120-18 22"-28" 120 (120) 350 3.18
605-120-24 28"-34" 120 (120) 500 4.43
605-120-30 34"-40" 120 (120) 660 5.76
605-120-36 40"-46" 120 (120) 800 6.93
605-120-42 46"-52" 120 (120) 950 8.18
605-120-48 52"-58" 120 (120) 1100 9.43
605-120-54 58"-64" 120 (120) 1250 10.68
605-120-60 64"-70" 120 (120) 1400 12.03
605-120-66 70"-76" 120 (120) 1560 13.36
Wiring Diagrams for StealthTM Warmer and
Fluorescent Light Combos can be found at
the end of the Lights and Warmers Section.
OA
HOUSING
VOLTS
(Light)*
WATTS
TOTAL
AMPS
605
StealthTM Warmer and Light Combo
Outer
Insulation
Inner
Insulation
Element
MODEL
NUMBER
605-208-24 28"-34" 208 (120) 500 2.66
605-208-30 34"-40" 208 (120) 660 3.43
605-208-36 40"-46" 208 (120) 800 4.11
605-208-42 46"-52" 208 (120) 950 4.83
605-208-48 52"-58" 208 (120) 1100 5.55
605-208-54 58"-64" 208 (120) 1250 6.27
605-208-60 64"-70" 208 (120) 1400 7.09
605-208-66 70"-76" 208 (120) 1560 7.86
605-208-72 76"-82" 208 (120) 1725 8.65
MODEL
NUMBER
605-240-18 22"-28" 240 (120) 350 1.72
605-240-24 28"-34" 240 (120) 500 2.34
605-240-30 34"-40" 240 (120) 660 3.01
605-240-36 40"-46" 240 (120) 800 3.59
605-240-42 46"-52" 240 (120) 950 4.22
605-240-48 52"-58" 240 (120) 1100 4.84
605-240-54 58"-64" 240 (120) 1250 5.47
605-240-60 64"-70" 240 (120) 1400 6.19
605-240-66 70"-76" 240 (120) 1560 6.86
605-240-72 76"-82" 240 (120) 1725 7.84
Housing
Main Reflector
OA
HOUSING
OA
HOUSING
Housing Reflector
VOLTS
(Light)*
VOLTS
(Light)*
WATTS
WATTS
Inner Reflector
Thermal
Wrap
Light
TOTAL
TOTAL
AMPS
AMPS
* VOLTS: Shown as - Element Voltage (Light Voltage)
UL NO. E307285
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5Patent Number 7,067,773
