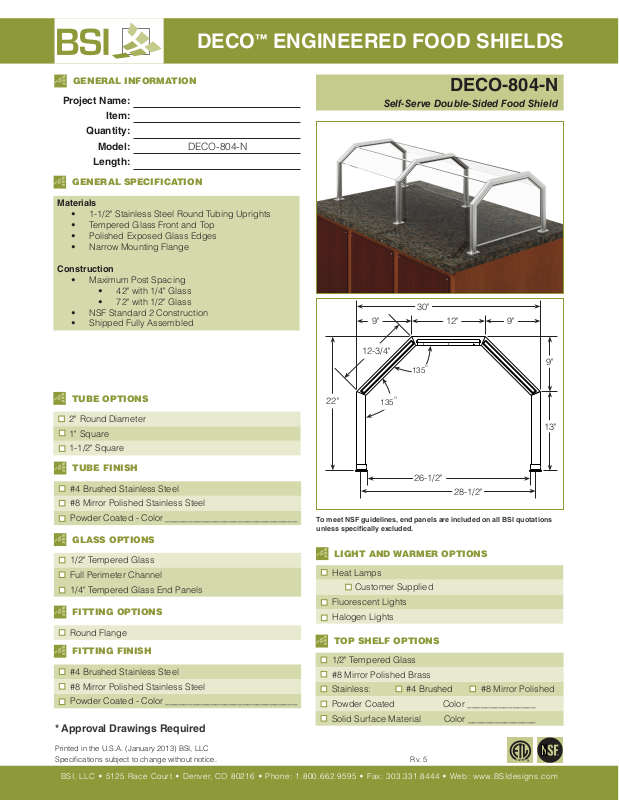

DECO™ ENGINEERED FOOD SHIELDS
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: DECO-804-N
Length:
GENERAL SPECIFICATION
Materials
• 1-1/2" Stainless Steel Round Tubing Uprights
• Tempered Glass Front and Top
• Polished Exposed Glass Edges
• Narrow Mounting Flange
Construction
• Maximum Post Spacing
• 42" with 1/4" Glass
• 72" with 1/2" Glass
• NSF Standard 2 Construction
• Shipped Fully Assembled
DECO-804-N
Self-Serve Double-Sided Food Shield
30"
9"
12-3/4"
135
12"
o
9"
9"
TUBE OPTIONS
2" Round Diameter
1" Square
1-1/2" Square
TUBE FINISH
#4 Brushed Stainless Steel
#8 Mirror Polished Stainless Steel
Powder Coated - Color _____________________________
GLASS OPTIONS
1/2" Tempered Glass
Full Perimeter Channel
1/4" Tempered Glass End Panels
FITTING OPTIONS
Round Flange
FITTING FINISH
#4 Brushed Stainless Steel
#8 Mirror Polished Stainless Steel
Powder Coated - Color _____________________________
* Approval Drawings Required
22"
To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded.
LIGHT AND WARMER OPTIONS
Heat Lamps
Customer Supplied
Fluorescent Lights
Halogen Lights
TOP SHELF OPTIONS
1/2" Tempered Glass
#8 Mirror Polished Brass
Stainless: #4 Brushed #8 Mirror Polished
Powder Coated Color _______________
Solid Surface Material Color _______________
135
o
13"
26-1/2"
28-1/2"
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5
