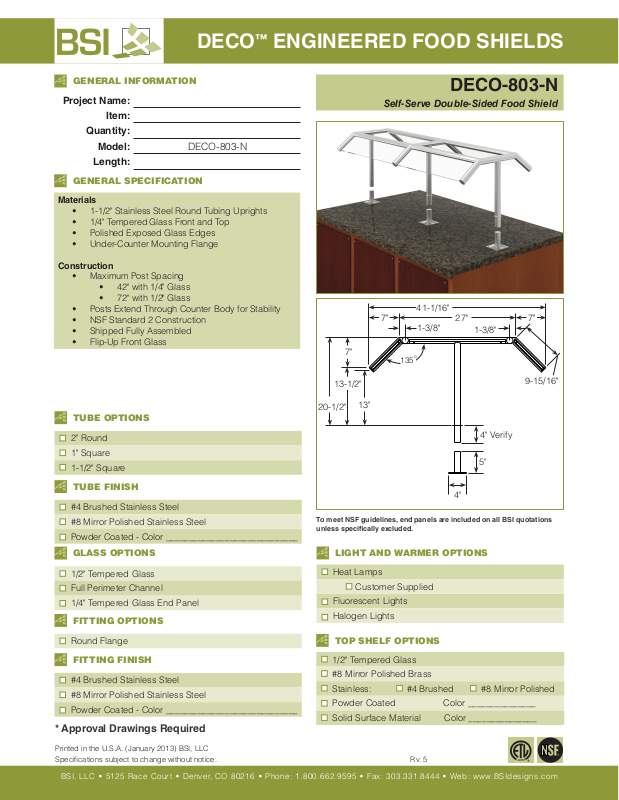

Brass Smith DECO-803-N User Manual

DECO™ ENGINEERED FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: DECO-803-N

Length:

GENERAL SPECIFICATION

Materials

• 1-1/2" Stainless Steel Round Tubing Uprights

• 1/4" Tempered Glass Front and Top

• Polished Exposed Glass Edges

• Under-Counter Mounting Flange

Construction

• Maximum Post Spacing

• 42" with 1/4" Glass

• 72" with 1/2" Glass

• Posts Extend Through Counter Body for Stability

• NSF Standard 2 Construction

• Shipped Fully Assembled

• Flip-Up Front Glass

DECO-803-N

Self-Serve Double-Sided Food Shield

41-1/16"

7" 27"

1-3/8"

7"

135

o

1-3/8"

7"

TUBE OPTIONS

2" Round

1" Square

1-1/2" Square

TUBE FINISH

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

GLASS OPTIONS

1/2" Tempered Glass

Full Perimeter Channel

1/4" Tempered Glass End Panel

FITTING OPTIONS

Round Flange

FITTING FINISH

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

* Approval Drawings Required

13-1/2"

20-1/2"

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded.

13"

4" Verify

5"

4"

LIGHT AND WARMER OPTIONS

Heat Lamps

Customer Supplied

Fluorescent Lights

Halogen Lights

TOP SHELF OPTIONS

1/2" Tempered Glass

#8 Mirror Polished Brass

Stainless: #4 Brushed #8 Mirror Polished

Powder Coated Color _______________

Solid Surface Material Color _______________

9-15/16"

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com

Rv. 5
