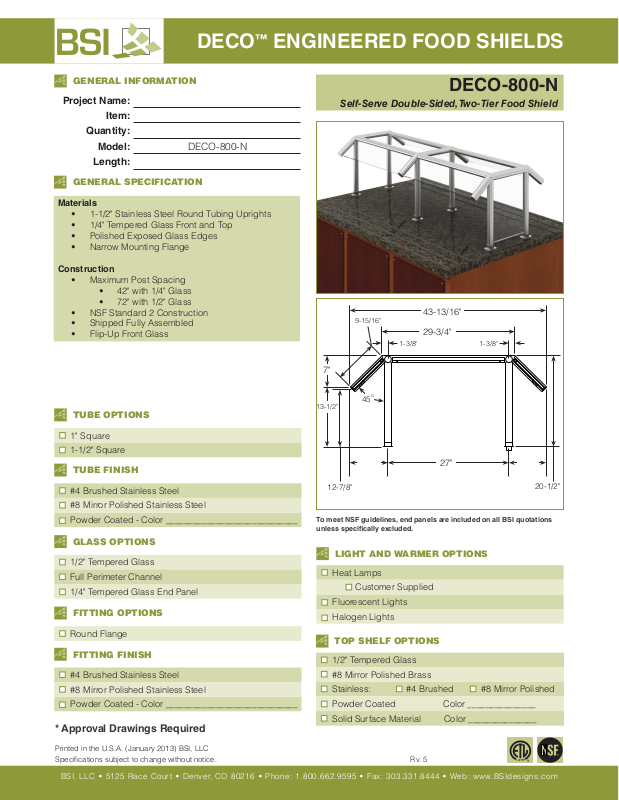

DECO™ ENGINEERED FOOD SHIELDS
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: DECO-800-N
Length:
GENERAL SPECIFICATION
Materials
• 1-1/2" Stainless Steel Round Tubing Uprights
• 1/4" Tempered Glass Front and Top
• Polished Exposed Glass Edges
• Narrow Mounting Flange
Construction
• Maximum Post Spacing
• 42" with 1/4" Glass
• 72" with 1/2" Glass
• NSF Standard 2 Construction
• Shipped Fully Assembled
• Flip-Up Front Glass
DECO-800-N
Self-Serve Double-Sided, Two-Tier Food Shield
43-13/16"
9-15/16"
29-3/4"
1-3/8" 1-3/8"
7"
TUBE OPTIONS
1" Square
1-1/2" Square
TUBE FINISH
#4 Brushed Stainless Steel
#8 Mirror Polished Stainless Steel
Powder Coated - Color _____________________________
GLASS OPTIONS
1/2" Tempered Glass
Full Perimeter Channel
1/4" Tempered Glass End Panel
FITTING OPTIONS
Round Flange
FITTING FINISH
#4 Brushed Stainless Steel
#8 Mirror Polished Stainless Steel
Powder Coated - Color _____________________________
* Approval Drawings Required
o
13-1/2"
12-7/8"
To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded.
45
27"
20-1/2"
LIGHT AND WARMER OPTIONS
Heat Lamps
Customer Supplied
Fluorescent Lights
Halogen Lights
TOP SHELF OPTIONS
1/2" Tempered Glass
#8 Mirror Polished Brass
Stainless: #4 Brushed #8 Mirror Polished
Powder Coated Color _______________
Solid Surface Material Color _______________
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5
