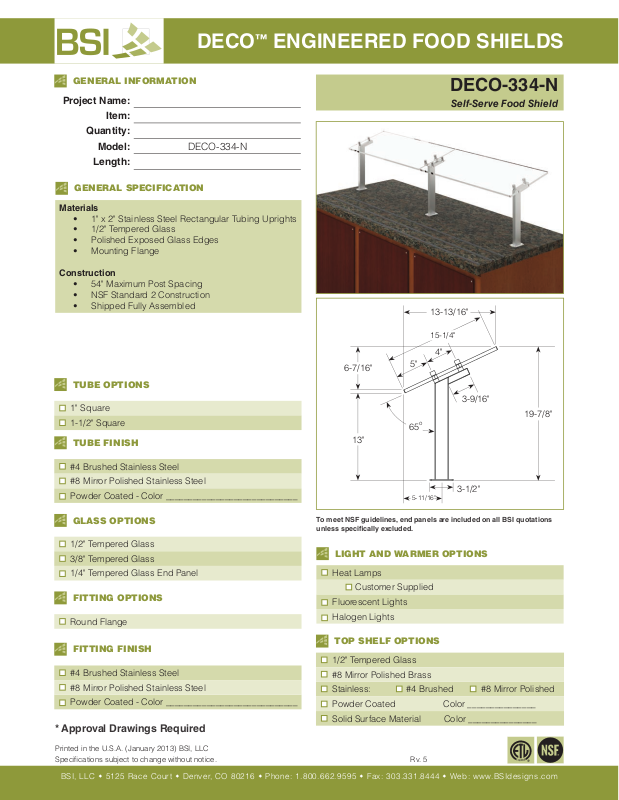

Brass Smith DECO-334-N User Manual

A-A

0.125

DECO™ ENGINEERED FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: DECO-334-N

Length:

GENERAL SPECIFICATION

Materials

• 1" x 2" Stainless Steel Rectangular Tubing Uprights

• 1/2" Tempered Glass

• Polished Exposed Glass Edges

• Mounting Flange

Construction

• 54" Maximum Post Spacing

• NSF Standard 2 Construction

• Shipped Fully Assembled

TUBE OPTIONS

1" Square

1-1/2" Square

TUBE FINISH

6-7/16"

13"

5"

65

13-13/16"

15-1/4"

4"

o

DECO-334-N

Self-Serve Food Shield

3-9/16"

19-7/8"

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

GLASS OPTIONS

5-11/16"

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded.

3-1/2"

1/2" Tempered Glass

3/8" Tempered Glass

1/4" Tempered Glass End Panel

LIGHT AND WARMER OPTIONS

Heat Lamps

Customer Supplied

FITTING OPTIONS

Round Flange

Fluorescent Lights

Halogen Lights

TOP SHELF OPTIONS

FITTING FINISH

1/2" Tempered Glass

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

#8 Mirror Polished Brass

Stainless: #4 Brushed #8 Mirror Polished

Powder Coated Color _______________

Solid Surface Material Color _______________

* Approval Drawings Required

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com

Rv. 5
