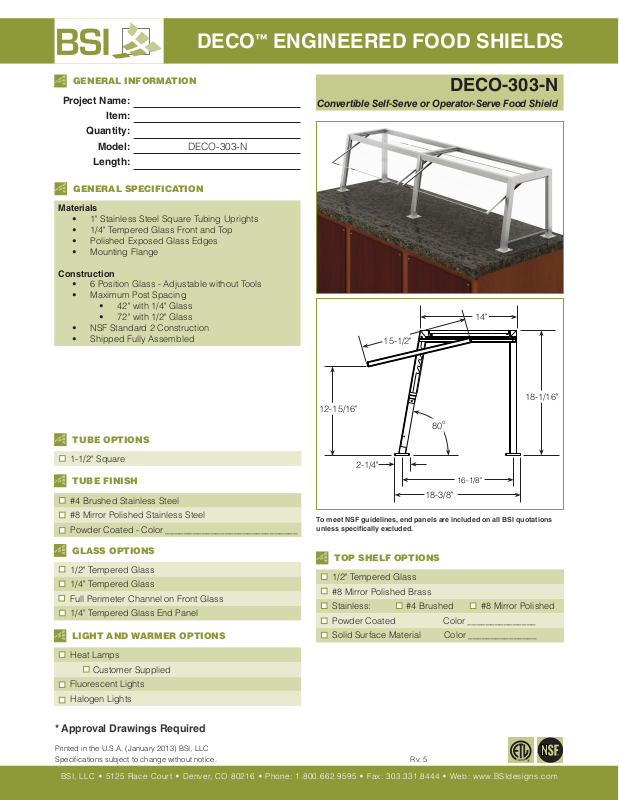

Brass Smith DECO-303-N User Manual

DECO™ ENGINEERED FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: DECO-303-N

Length:

GENERAL SPECIFICATION

Materials

• 1" Stainless Steel Square Tubing Uprights

• 1/4" Tempered Glass Front and Top

• Polished Exposed Glass Edges

• Mounting Flange

Construction

• 6 Position Glass - Adjustable without Tools

• Maximum Post Spacing

• 42" with 1/4" Glass

• 72" with 1/2" Glass

• NSF Standard 2 Construction

• Shipped Fully Assembled

DECO-303-N

Convertible Self-Serve or Operator-Serve Food Shield

14"

15-1/2"

TUBE OPTIONS

1-1/2" Square

TUBE FINISH

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

GLASS OPTIONS

1/2" Tempered Glass

1/4" Tempered Glass

Full Perimeter Channel on Front Glass

1/4" Tempered Glass End Panel

LIGHT AND WARMER OPTIONS

Heat Lamps

Customer Supplied

Fluorescent Lights

Halogen Lights

18-1/16"

12-15/16"

o

80

2-1/4"

16-1/8"

18-3/8"

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded.

TOP SHELF OPTIONS

1/2" Tempered Glass

#8 Mirror Polished Brass

Stainless: #4 Brushed #8 Mirror Polished

Powder Coated Color _______________

Solid Surface Material Color _______________

* Approval Drawings Required

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com

Rv. 5
