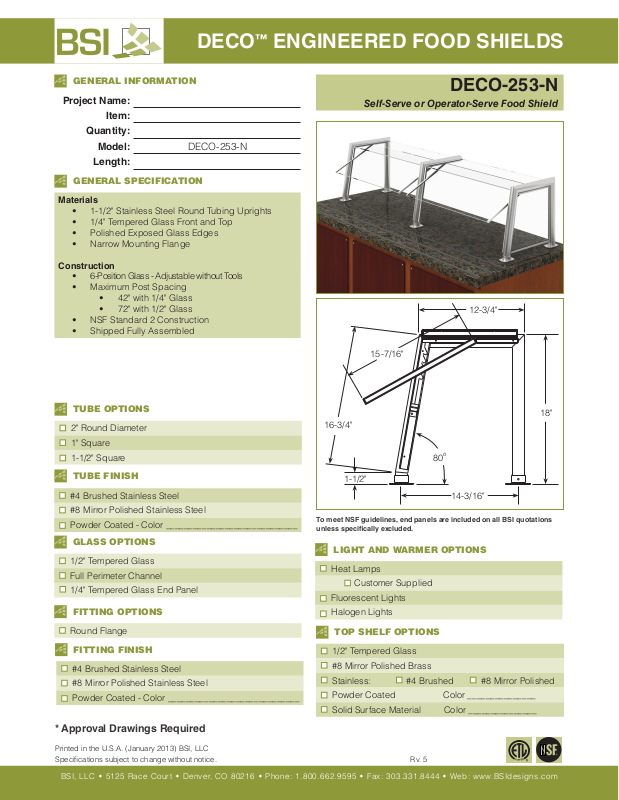

Brass Smith DECO-253-N User Manual

DECO™ ENGINEERED FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: DECO-253-N

Length:

GENERAL SPECIFICATION

Materials

• 1-1/2" Stainless Steel Round Tubing Uprights

• 1/4" Tempered Glass Front and Top

• Polished Exposed Glass Edges

• Narrow Mounting Flange

Construction

• 6-Position Glass - Adjustable without Tools

• Maximum Post Spacing

• 42" with 1/4" Glass

• 72" with 1/2" Glass

• NSF Standard 2 Construction

• Shipped Fully Assembled

DECO-253-N

Self-Serve or Operator-Serve Food Shield

12-3/4"

15-7/16"

TUBE OPTIONS

2" Round Diameter

1" Square

1-1/2" Square

TUBE FINISH

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

GLASS OPTIONS

1/2" Tempered Glass

Full Perimeter Channel

1/4" Tempered Glass End Panel

FITTING OPTIONS

Round Flange

FITTING FINISH

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

18"

16-3/4"

o

80

1-1/2"

14-3/16"

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded.

LIGHT AND WARMER OPTIONS

Heat Lamps

Customer Supplied

Fluorescent Lights

Halogen Lights

TOP SHELF OPTIONS

1/2" Tempered Glass

#8 Mirror Polished Brass

Stainless: #4 Brushed #8 Mirror Polished

Powder Coated Color _______________

Solid Surface Material Color _______________

* Approval Drawings Required

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com

Rv. 5
