LIGHTS AND WARMERS

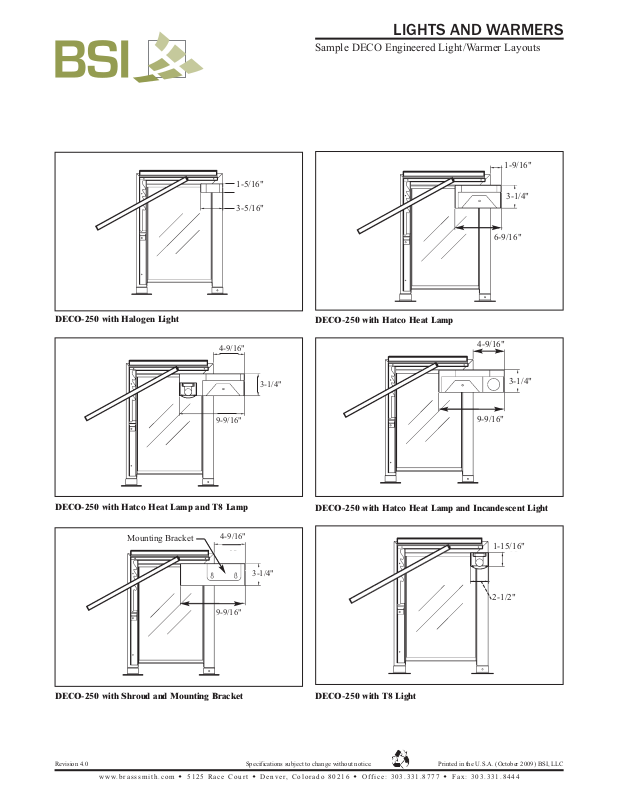

Sample DECO Engineered Light/Warmer Layouts
DECO-250 with Halogen Light
DECO-250 with Hatco Heat Lamp
DECO-250 with Hatco Heat Lamp and T8 Lamp
DECO-250 with Hatco Heat Lamp and Incandescent Light
DECO-250 with T8 Light
DECO-250 with Shroud and Mounting Bracket
1-5/16"
3-5/16"
4-9/16"
3-1/4"
9-9/16"
9-9/16"
3-1/4"
4-9/16"
Mounting Bracket
3-1/4"
6-9/16"
1-9/16"
9-9/16"
3-1/4"
4-9/16"
2-1/2"
1-15/16"
Page 2
www.brasssmith.com 5125 Race Court Denver, Colorado 80216 Office: 303.331.8777 Fax: 303.331.8444
Revision 4.0 Specifications subject to change without notice. Printed in the U.S.A. (October 2009) BSI, LLC
LIGHTS AND WARMERS
Sample ZGuard Light/Warmer Layouts
Z9930 with Hatco Heat Lamp
Z9930 with Fluorescent Slimline Light
Z9930 with Stealth Warmer and Light Combo
Z9930 with Stealth Double Warmer and Light Combo
Z9930 with Stealth Warmer
Z9930 with Hatco Heat Lamp and Light
5/16"
1-3/8"
5-1/2"
2-1/2"
4"
7"
2-1/2"
4"
2-1/2"
9-1/2"
10"
4"
