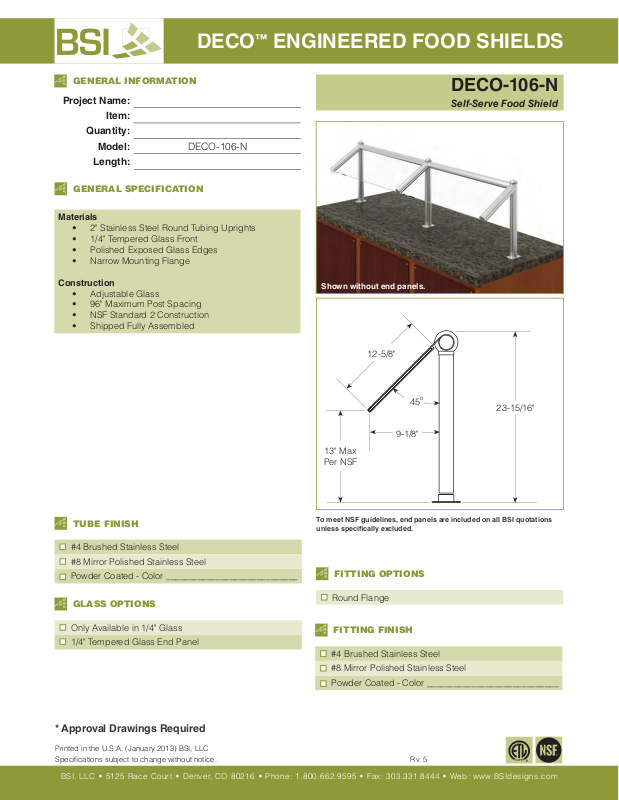

Brass Smith DECO-106-N User Manual

DECO™ ENGINEERED FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: DECO-106-N

Length:

GENERAL SPECIFICATION

Materials

• 2" Stainless Steel Round Tubing Uprights

• 1/4" Tempered Glass Front

• Polished Exposed Glass Edges

• Narrow Mounting Flange

Construction

• Adjustable Glass

• 96" Maximum Post Spacing

• NSF Standard 2 Construction

• Shipped Fully Assembled

DECO-106-N

Self-Serve Food Shield

Shown without end panels.

12-5/8"

TUBE FINISH

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

GLASS OPTIONS

Only Available in 1/4" Glass

1/4" Tempered Glass End Panel

o

45

9-1/8"

13" Max
Per NSF

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded.

FITTING OPTIONS

Round Flange

FITTING FINISH

#4 Brushed Stainless Steel

#8 Mirror Polished Stainless Steel

Powder Coated - Color _____________________________

23-15/16"

* Approval Drawings Required

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
