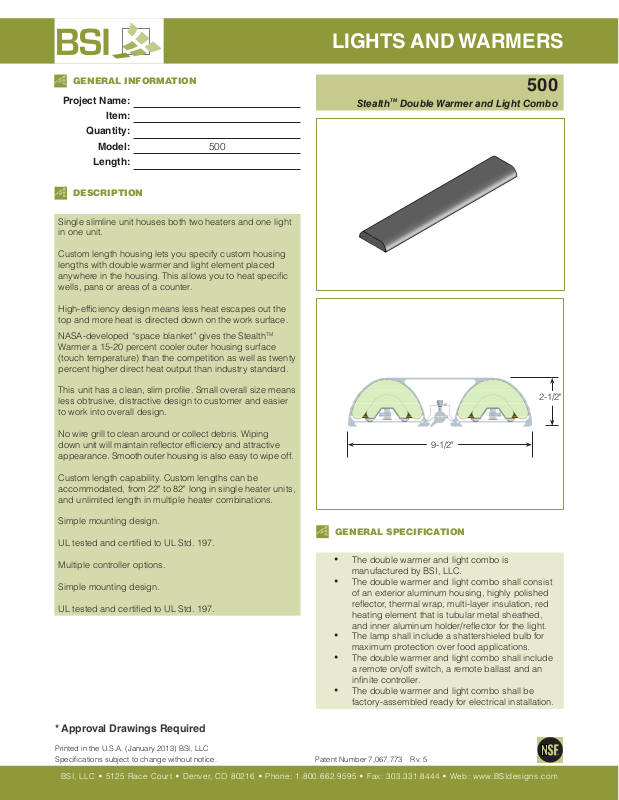

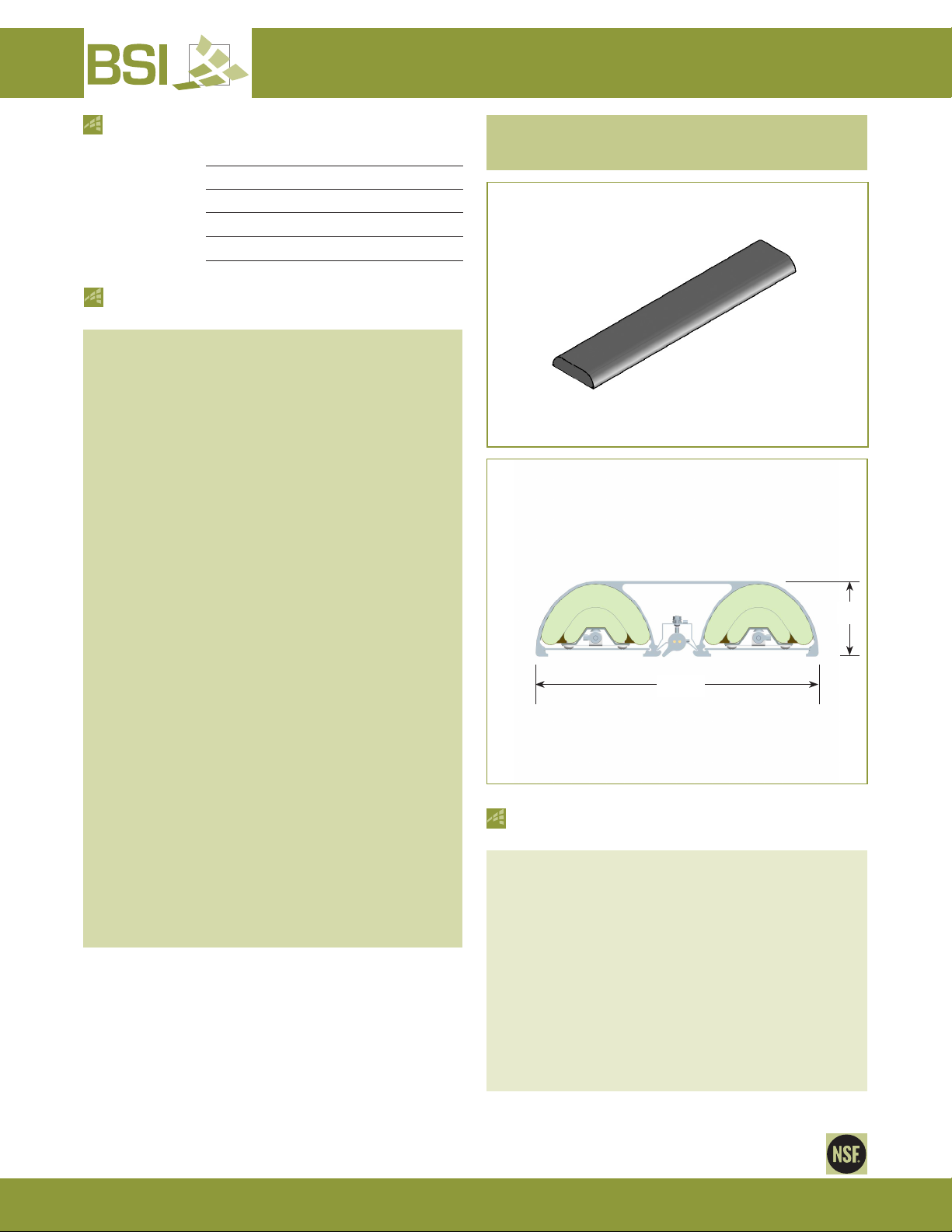

Page 1
LIGHTS AND WARMERS
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: 500
Length:
DESCRIPTION
Single slimline unit houses both two heaters and one light
in one unit.
Custom length housing lets you specify custom housing
lengths with double warmer and light element placed
anywhere in the housing. This allows you to heat specific
wells, pans or areas of a counter.
High-efficiency design means less heat escapes out the
top and more heat is directed down on the work surface.
NASA-developed “space blanket” gives the Stealth
Warmer a 15-20 percent cooler outer housing surface
(touch temperature) than the competition as well as twenty
percent higher direct heat output than industry standard.
TM
500
StealthTM Double Warmer and Light Combo
This unit has a clean, slim profile. Small overall size means
less obtrusive, distractive design to customer and easier
to work into overall design.
No wire grill to clean around or collect debris. Wiping
down unit will maintain reflector efficiency and attractive
appearance. Smooth outer housing is also easy to wipe off.
Custom length capability. Custom lengths can be
accommodated, from 22" to 82" long in single heater units,
and unlimited length in multiple heater combinations.
Simple mounting design.
UL tested and certified to UL Std. 197.
Multiple controller options.
Simple mounting design.
UL tested and certified to UL Std. 197.
2-1/2"
9-1/2"
GENERAL SPECIFICATION
• The double warmer and light combo is
manufactured by BSI, LLC.
• The double warmer and light combo shall consist
of an exterior aluminum housing, highly polished
reflector, thermal wrap, multi-layer insulation, red
heating element that is tubular metal sheathed,
and inner aluminum holder/reflector for the light.
• The lamp shall include a shattershieled bulb for
maximum protection over food applications.
• The double warmer and light combo shall include
a remote on/off switch, a remote ballast and an
infinite controller.
• The double warmer and light combo shall be
factory-assembled ready for electrical installation.
* Approval Drawings Required
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5Patent Number 7,067,773

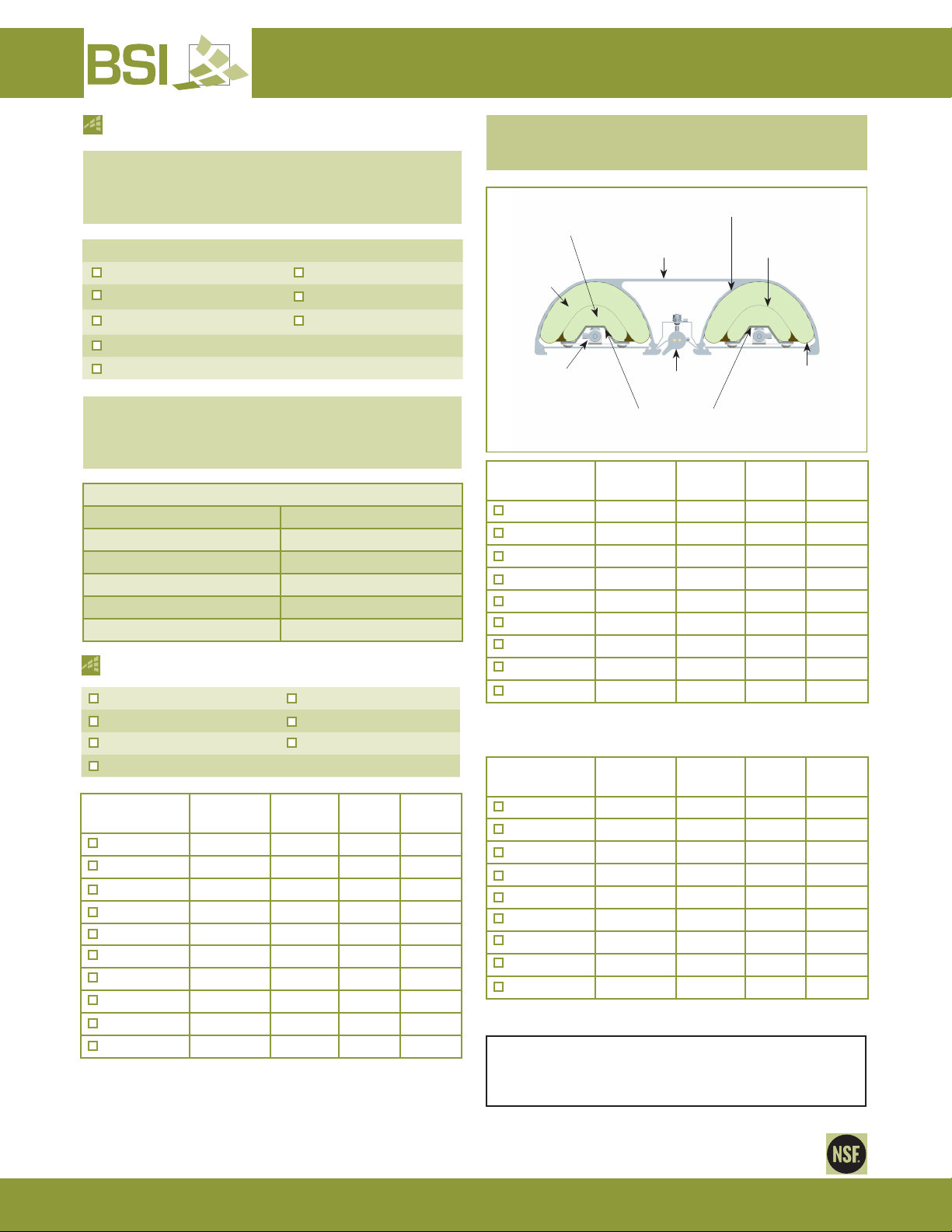

Page 2
LIGHTS AND WARMERS
OPTIONS AND ACCESSORIES
Double Warmer and Light housing is an aluminum
extrusion finished to match guard. NSF-approved powdercoat colors are available as well as satin or polished
finishes. Please contact factory for further information.
Switch Options Wiring Exit Point Options
Remote Infinite (standard) Top
Remote Switch Left Side
Solid State Right Side
Internal Control
Indicator Light
The warmer shall be single phase and rated at __________
watts, __________ volts.
Warmer shall be __________ inches in overall width.
Information for 4100K Fluorescent Lamps
Average Rated Life (hr): 20,000
Base: Miniature Bi-Pin
Bulb: T5
Color Rendering Index (CRI) 82
Diameter (in): 0.67
Bulb Manufacturer: Shat-R-Shield
STANDARD NSF LISTED FINISH OPTIONS
Brushed Aluminum Chrome
Gloss Black Wrinkle Black
Smoked Copper Polished Brass Finish
Other ____________________________________________
MODEL
NUMBER
500-120-18 22"-28" 120 (120) 731 6.06
500-120-24 28"-34" 120 (120) 1031 8.66
500-120-30 34"-40" 120 (120) 1351 11.26
500-120-36 40"-46" 120 (120) 1631 13.66
500-120-42 46"-52" 120 (120) 1931** 16.06**
500-120-48 52"-58" 120 (120) 2231** 18.66**
500-120-54 58"-64" 120 (120) 2531** 21.06**
500-120-60 64"-70" 120 (120) 2843** 23.76**
500-120-66 70"-76" 120 (120) 3163** 26.36**
500-120-72 76"-82" 120 (120) 3493** 29.16**
* VOLTS: Shown as - Element Voltage (Light Voltage)
** Total wattage/amperage listed is divided between two individual circuits.
OA
HOUSING
VOLTS
(Light)*
TOTAL
WATTS
TOTAL
AMPS
500
StealthTM Double Warmer and Light Combo
Outer
Insulation
Housing
Inner
Insulation
Element
MODEL
NUMBER
500-208-24 28"-34" 208 (120) 1031 5.06
500-208-30 34"-40" 208 (120) 1351 6.66
500-208-36 40"-46" 208 (120) 1631 8.06
500-208-42 46"-52" 208 (120) 1931 9.46
500-208-48 52"-58" 208 (120) 2231 10.86
500-208-54 58"-64" 208 (120) 2531 12.26
500-208-60 64"-70" 208 (120) 2843 13.76
500-208-66 70"-76" 208 (120) 3163 15.36
500-208-72 76"-82" 208 (120) 3493** 16.96**
* VOLTS: Shown as - Element Voltage (Light Voltage)
** Total wattage/amperage listed is divided between two individual circuits.
MODEL
NUMBER
500-240-24 28"-34" 240 (120) 1031 4.46
500-240-30 34"-40" 240 (120) 1351 5.86
500-240-36 40"-46" 240 (120) 1631 6.86
500-240-42 46"-52" 240 (120) 1931 8.06
500-240-48 52"-58" 240 (120) 2231 9.46
500-240-54 58"-64" 240 (120) 2531 10.66
500-240-60 64"-70" 240 (120) 2843 11.96
500-240-66 70"-76" 240 (120) 3163 13.36
500-240-72 76"-82" 240 (120) 3493 14.76
* VOLTS: Shown as - Element Voltage (Light Voltage)
Wiring Diagrams for StealthTM Warmer and
Fluorescent Light Combos can be found at
the end of the Lights and Warmers Section.
HOUSING
HOUSING
Light
Main Reflector
OA
OA
Housing Reflector
Inner Reflector
VOLTS
(Light)*
VOLTS
(Light)*
TOTAL
WATTS
TOTAL
WATTS
Thermal
Wrap
TOTAL
AMPS
TOTAL
AMPS
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5Patent Number 7,067,773
