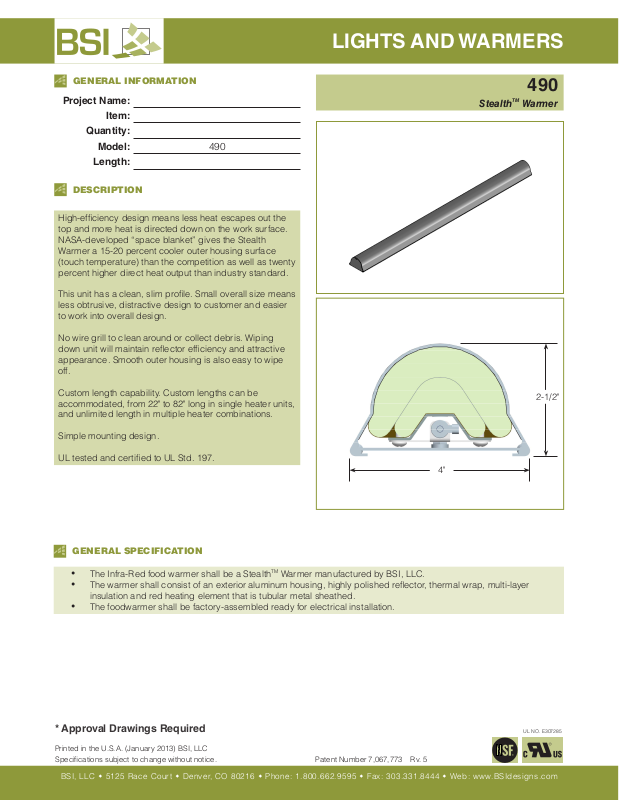

Page 1
LIGHTS AND WARMERS
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: 490
Length:
DESCRIPTION
High-efficiency design means less heat escapes out the
top and more heat is directed down on the work surface.
NASA-developed “space blanket” gives the Stealth
Warmer a 15-20 percent cooler outer housing surface
(touch temperature) than the competition as well as twenty
percent higher direct heat output than industry standard.
This unit has a clean, slim profile. Small overall size means
less obtrusive, distractive design to customer and easier
to work into overall design.
No wire grill to clean around or collect debris. Wiping
down unit will maintain reflector efficiency and attractive
appearance. Smooth outer housing is also easy to wipe
off.
490
StealthTM Warmer
Custom length capability. Custom lengths can be
accommodated, from 22" to 82" long in single heater units,
and unlimited length in multiple heater combinations.
Simple mounting design.
UL tested and certified to UL Std. 197.
4"
GENERAL SPECIFICATION
• The Infra-Red food warmer shall be a Stealth
TM
Warmer manufactured by BSI, LLC.
• The warmer shall consist of an exterior aluminum housing, highly polished reflector, thermal wrap, multi-layer
insulation and red heating element that is tubular metal sheathed.
• The foodwarmer shall be factory-assembled ready for electrical installation.
2-1/2"
* Approval Drawings Required
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5Patent Number 7,067,773
UL NO. E307285
Page 2
LIGHTS AND WARMERS
OPTIONS AND ACCESSORIES
Light/Heat housing is an aluminum extrusion finished
to match guard. NSF-approved powder-coat colors are
available as well as satin or polished finishes. Please
contact factory for further information.
Switch Options Wiring Exit Point Options
Remote Infinite (standard) Top
Remote Switch Left Side
Solid State Right Side
Internal Control
Indicator Light
The warmer shall be single phase and rated at __________
watts, __________ volts.
Warmer shall be __________ inches in overall width.
STANDARD NSF LISTED FINISH OPTIONS
Brushed Aluminum Chrome
Gloss Black Wrinkle Black
Smoked Copper Polished Brass Finish
Other ____________________________________________
MODEL
NUMBER
490-120-18 22"-28" 120 350 2.92
490-120-24 28"-34" 120 500 4.17
490-120-30 34"-40" 120 660 5.50
490-120-36 40"-46" 120 800 6.67
490-120-42 46"-52" 120 950 7.92
490-120-48 52"-58" 120 1100 9.17
490-120-54 58"-64" 120 1250 10.42
490-120-60 64"-70" 120 1400 11.67
490-120-66 70"-76" 120 1560 13.00
490-120-72 76"-82" 120 1725 14.38
Wiring Diagrams for StealthTM Warmers
OA
HOUSING
can be found at the end of the
Lights and Warmers Section.
VOLTS WATTS AMPS
StealthTM Warmer
Housing
Inner Reflector
Outer
Insulation
Element
MODEL
NUMBER
490-208-24 28"-34" 208 500 2.40
490-208-30 34"-40" 208 660 3.17
490-208-36 40"-46" 208 800 3.85
490-208-42 46"-52" 208 950 4.57
490-208-48 52"-58" 208 1100 5.29
490-208-54 58"-64" 208 1250 6.01
490-208-60 64"-70" 208 1400 6.73
490-208-66 70"-76" 208 1560 7.50
490-208-72 76"-82" 208 1725 8.29
MODEL
NUMBER
490-240-24 28"-34" 240 500 2.08
490-240-30 34"-40" 240 660 2.75
490-240-36 40"-46" 240 800 3.33
490-240-42 46"-52" 240 950 3.96
490-240-48 52"-58" 240 1100 4.58
490-240-54 58"-64" 240 1250 5.21
490-240-60 64"-70" 240 1400 5.83
490-240-66 70"-76" 240 1560 6.50
490-240-72 76"-82" 240 1725 7.19
OA
HOUSING
OA
HOUSING
VOLTS WATTS AMPS
VOLTS WATTS AMPS
Housing Reflector
Inner
Insulation
Thermal
Main Reflector
490
Wrap
UL NO. E307285
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5Patent Number 7,067,773
