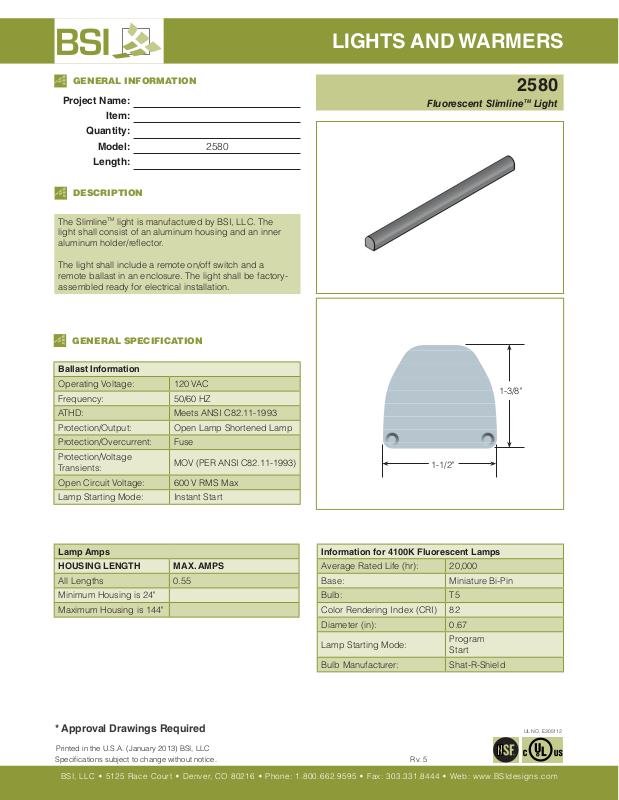

Page 1
LIGHTS AND WARMERS
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: 2580
Length:
DESCRIPTION
The SlimlineTM light is manufactured by BSI, LLC. The
light shall consist of an aluminum housing and an inner
aluminum holder/reflector.
The light shall include a remote on/off switch and a
remote ballast in an enclosure. The light shall be factoryassembled ready for electrical installation.
GENERAL SPECIFICATION
Ballast Information
Operating Voltage: 120 VAC
Frequency: 50/60 HZ
ATHD: Meets ANSI C82.11-1993
Protection/Output: Open Lamp Shortened Lamp
Protection/Overcurrent: Fuse
Protection/Voltage
Transients:
Open Circuit Voltage: 600 V RMS Max
Lamp Starting Mode: Instant Start
MOV (PER ANSI C82.11-1993)
2580
Fluorescent SlimlineTM Light
1-3/8"
1-1/2"
Lamp Amps
HOUSING LENGTH MAX. AMPS
All Lengths 0.55
Minimum Housing is 24"
Maximum Housing is 144"
* Approval Drawings Required
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Information for 4100K Fluorescent Lamps
Average Rated Life (hr): 20,000
Base: Miniature Bi-Pin
Bulb: T5
Color Rendering Index (CRI) 82
Diameter (in): 0.67
Lamp Starting Mode:
Bulb Manufacturer: Shat-R-Shield
Rv. 5
Program
Start
UL NO. E305112
Page 2
OPTIONS AND ACCESSORIES
LIGHTS AND WARMERS
2580
Fluorescent SlimlineTM Light
Light/Heat housing is an aluminum extrusion finished
to match guard. NSF-approved powder-coat colors are
available as well as satin or polished finishes. Please
contact factory for further information.
The light shall be 120-Volt single phase.
If Housing or Bulb Length is to be different than Food
Shield Length, please indicate requested lengths.
Light Housing shall be __________ inches in overall length.
Bulb shall be __________ inches in overall length.
* BSI Designer can calculate final length options.
STANDARD NSF LISTED FINISH OPTIONS
Brushed Aluminum Chrome
Gloss Black Wrinkle Black
Smoked Copper Polished Brass Finish
Other ____________________________________________
HOUSING
LENGTH
28" to 39" 24"* 14W
40" to 51" 36"* 21W
52" to 63" 48"* 28W
64" to 75" 60"* 35W
76" to 99"
100" to 119"
120" to 144"
* Rounded up to the nearest foot.
BULB LENGTH WATTAG E
Two 3-foot bulbs
wired in tandem
Two 4-foot bulbs
wired in tandem
Two 5-foot bulbs
wired in tandem
42W Total
56W Total
70W Total
Bulb
Installation
Lever
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
Rv. 5
UL NO. E305112
