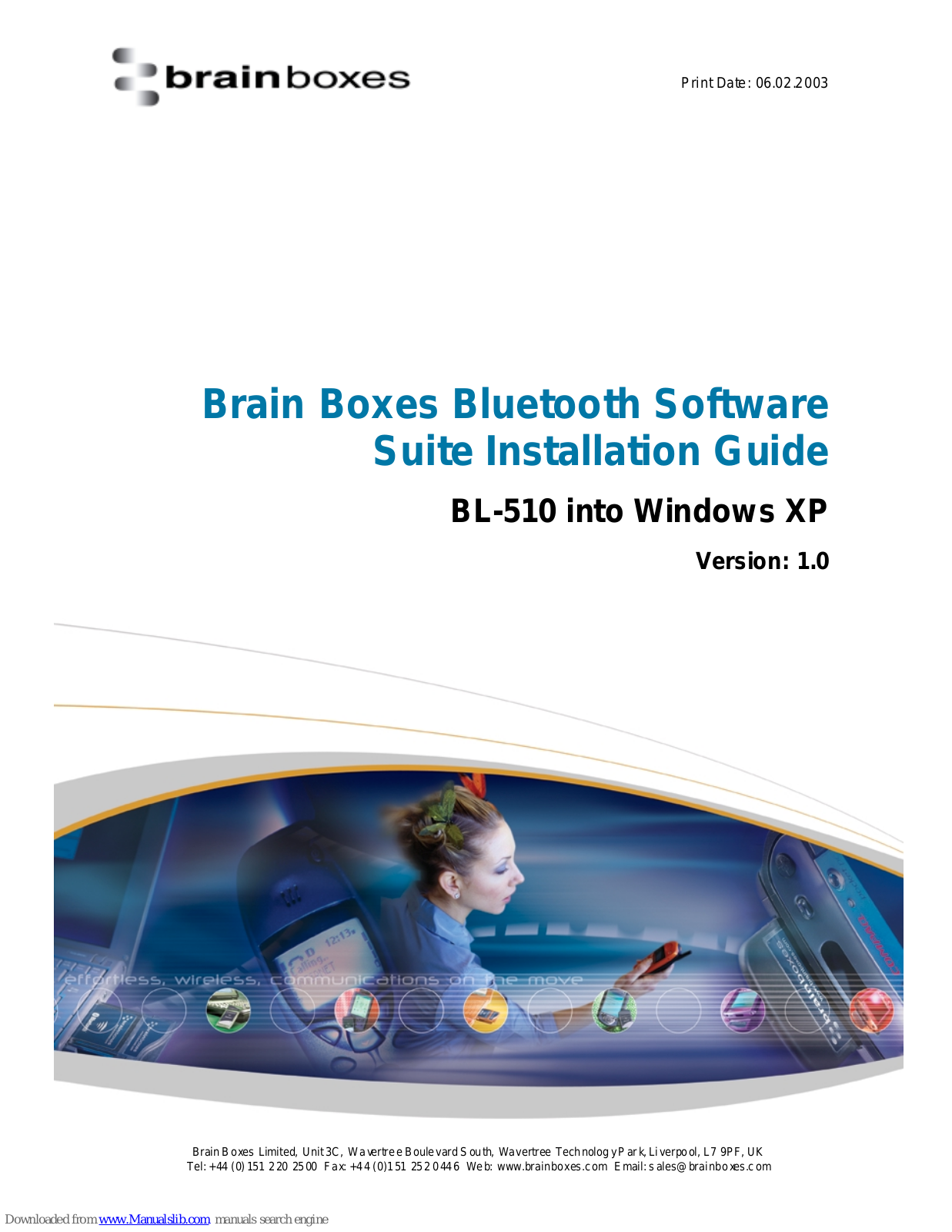

Brainboxes BL-510 Software Install Manual

Print Date: 06.02.2003

Brain B oxes Limited, Unit 3C, Wavertree Boulevard South, Wavertree Technolog y Par k, Li verpool, L7 9PF, UK

Tel: [phone] Fax: [phone] Web: www.brainboxes.c om Email: [e-mail]

Brain Boxes Bluetooth Softw are

Suite Installation Guide

BL-510 into Windows XP

Version: 1.0

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 2 of 1

2

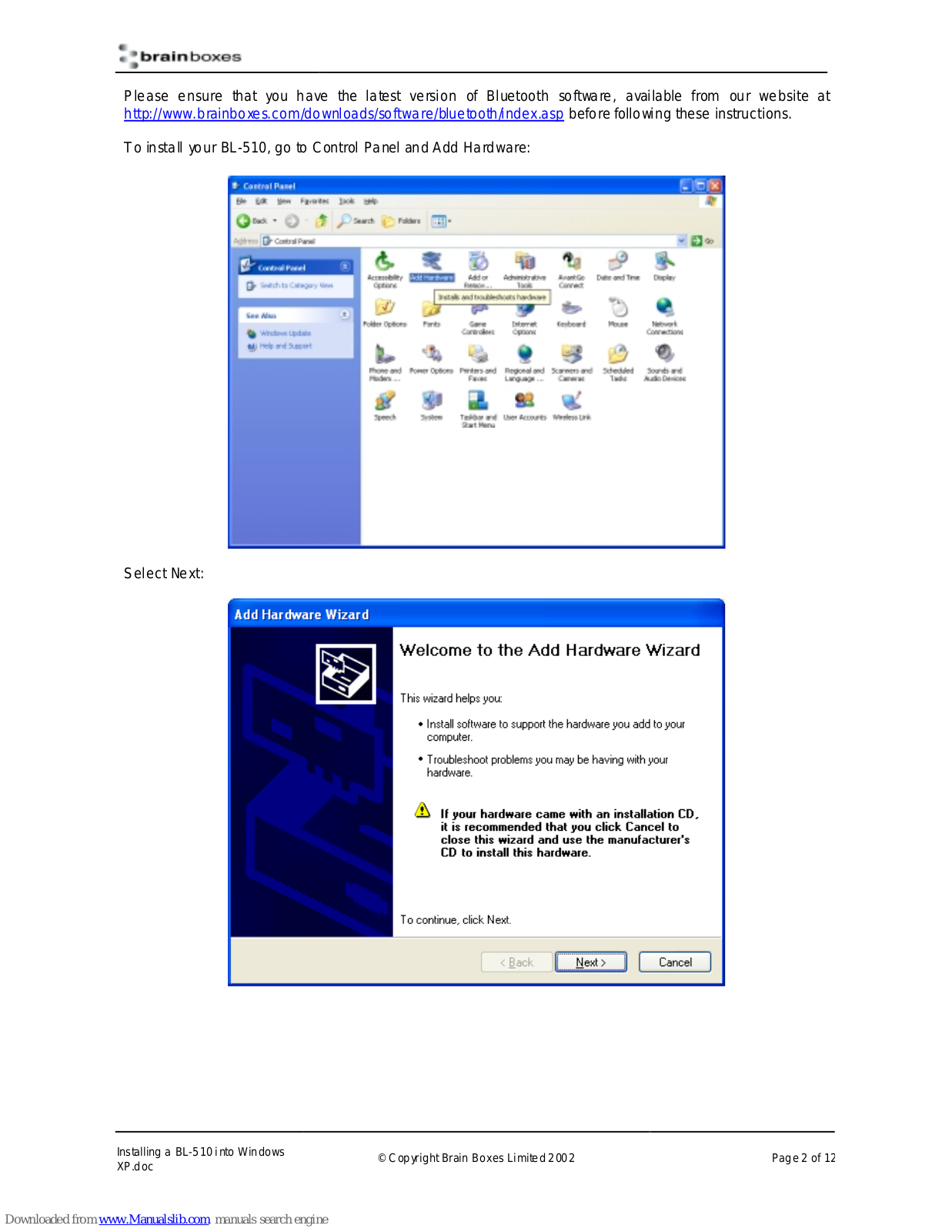

Please ensure that you have the latest version of Bluetooth software, available from our website at

http://www.brainboxes.com/downloads /software/bluetooth/index.asp before followi ng these instructions.

To install your BL-510, go to Control Panel and Add Hardware:

Select Next:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 3 of 1

2

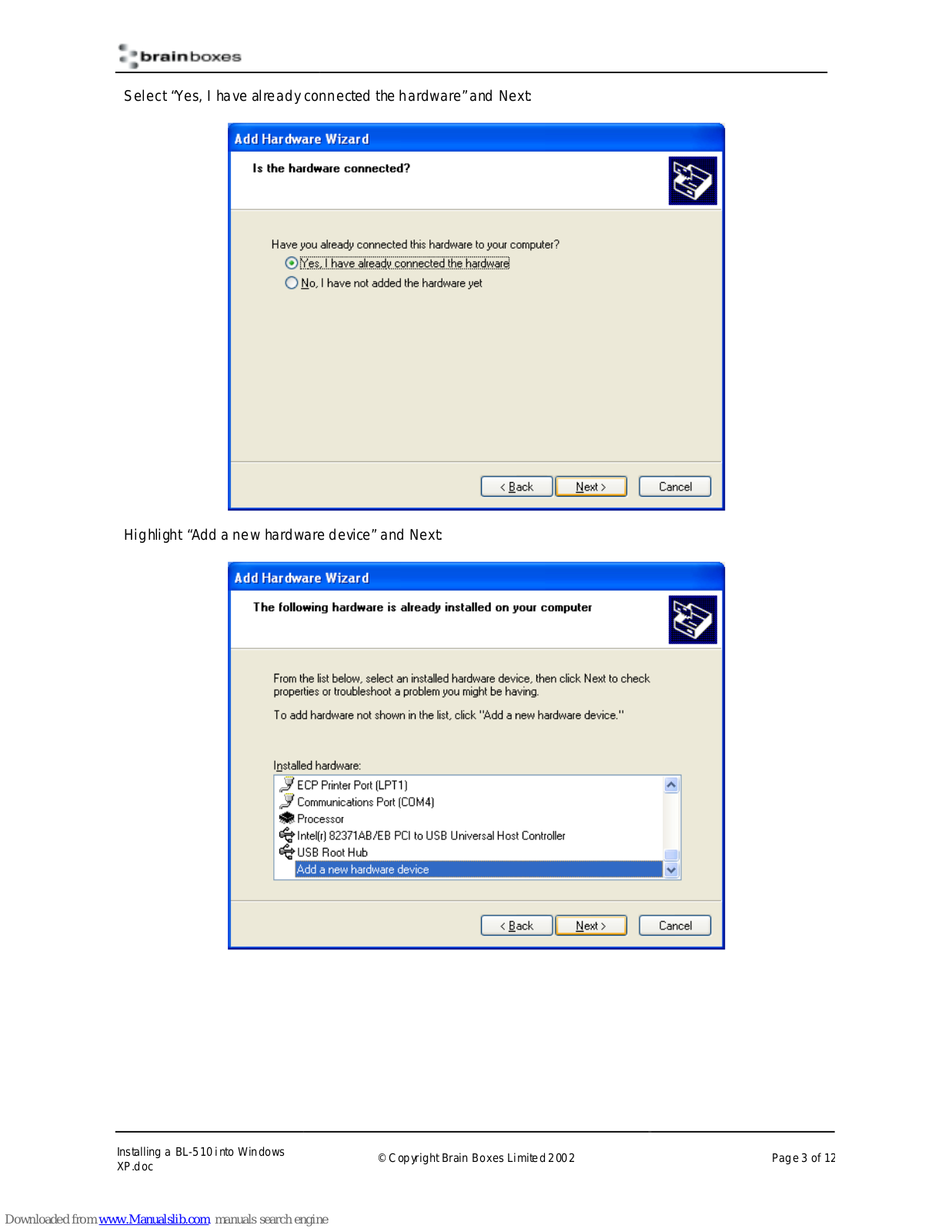

Select “Yes, I have already connected the hardware” and Next:

Highlight “Add a new hardware device” and Next:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 4 of 1

2

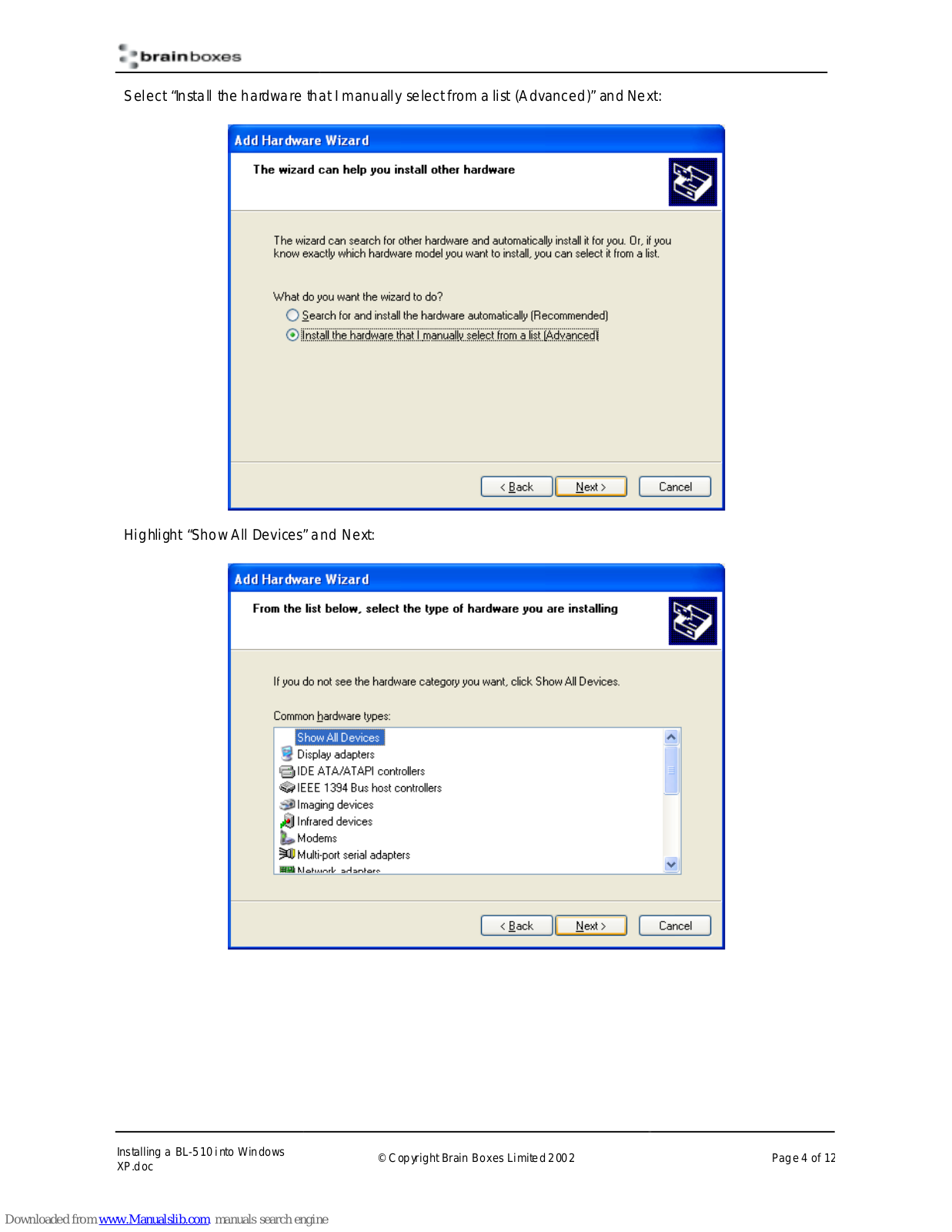

Select “Install the hardware that I manually select from a list (Advanced)” and Next:

Highlight “Show All Devices” and Next:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 5 of 1

2

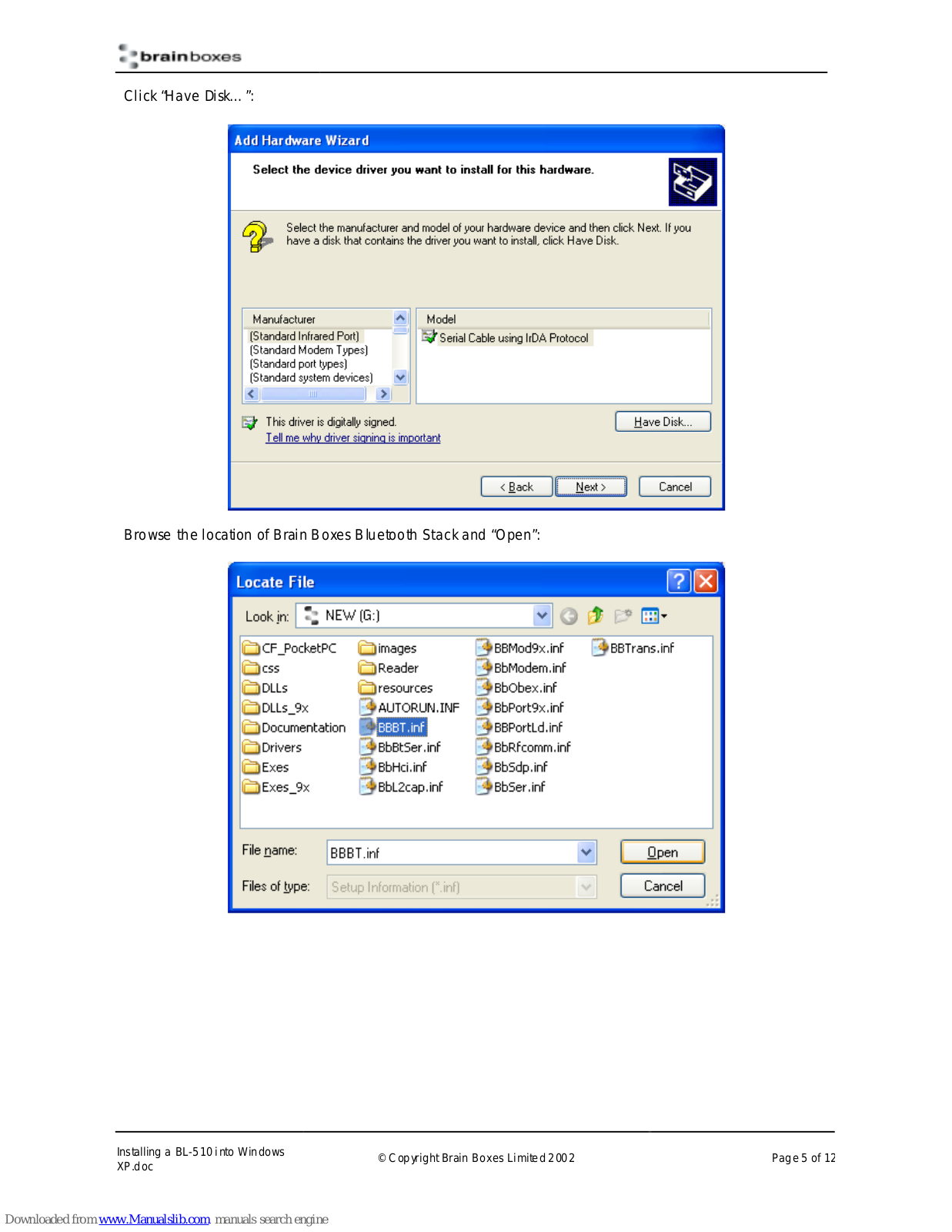

C l i ck “Have Di sk… ”:

Browse the l ocation of Brain Boxes Bluetooth Stack and “Open”:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 6 of 1

2

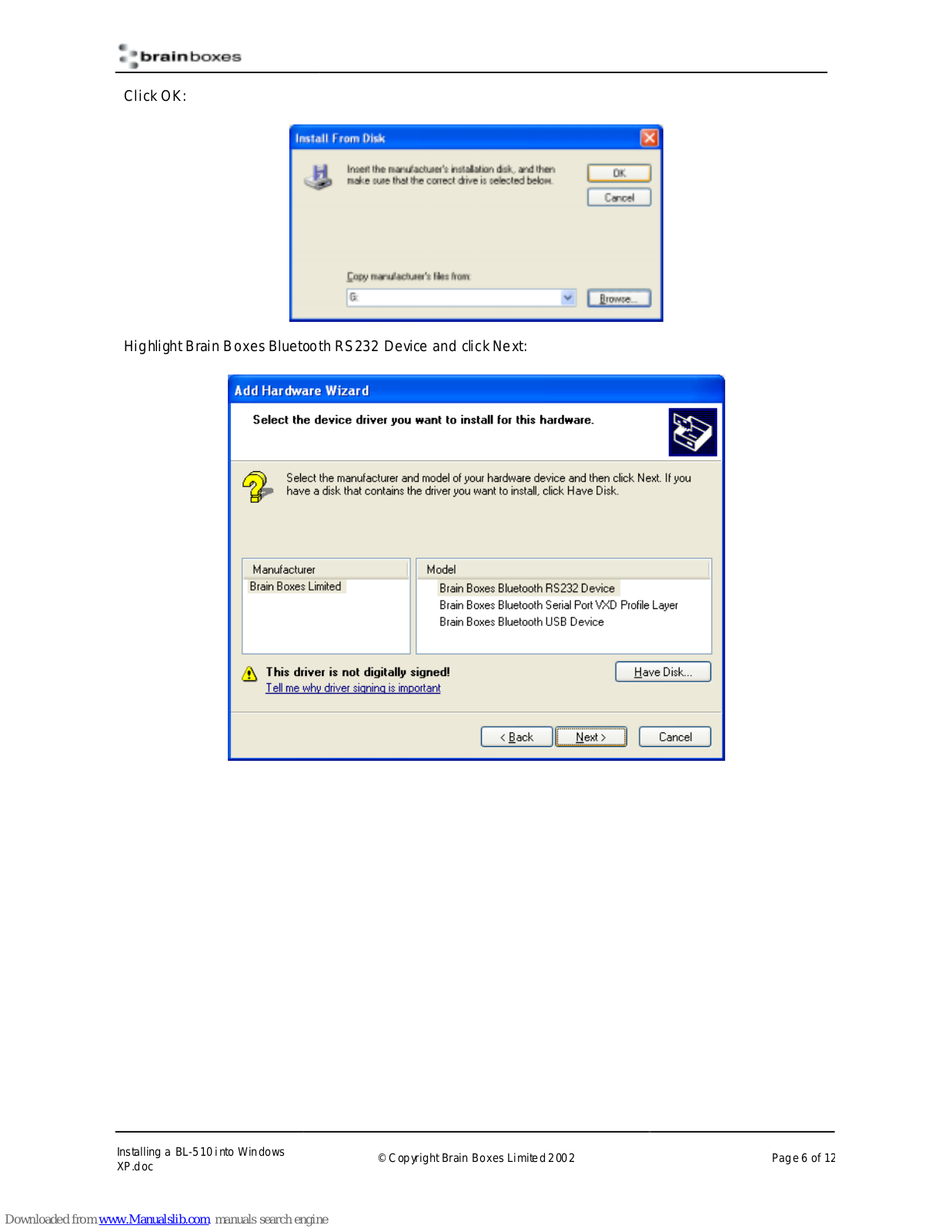

Click OK:

Highlight Brain Boxes Bluetooth RS232 Device and click Next:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 7 of 1

2

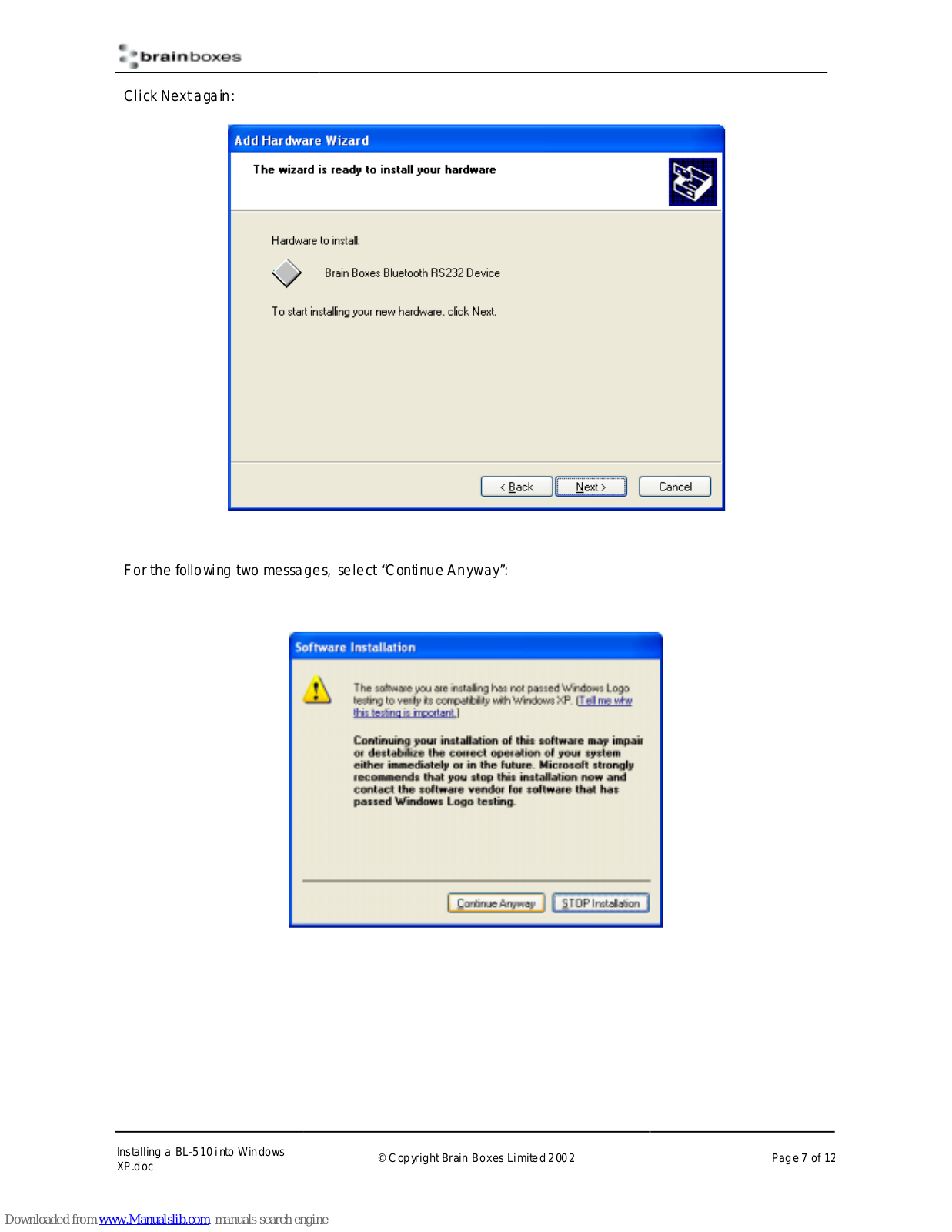

Click Next again:

For the following two messages, select “Continue Anyway”:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 8 of 1

2

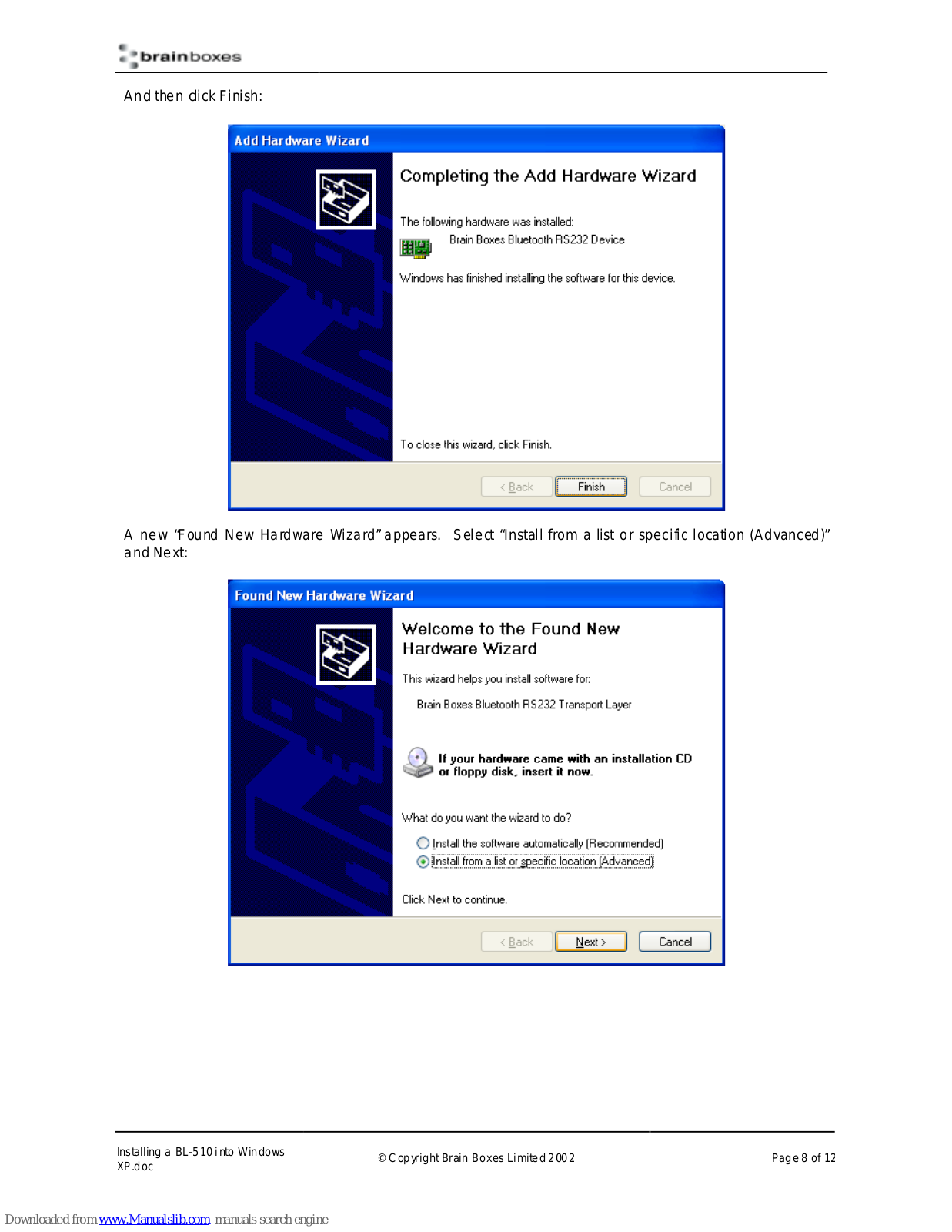

And then click Finish:

A new “Found New Hardware Wizard” appears. Select “Instal l from a list or specifi c locati on (Advanced)”
and Next:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 9 of 1

2

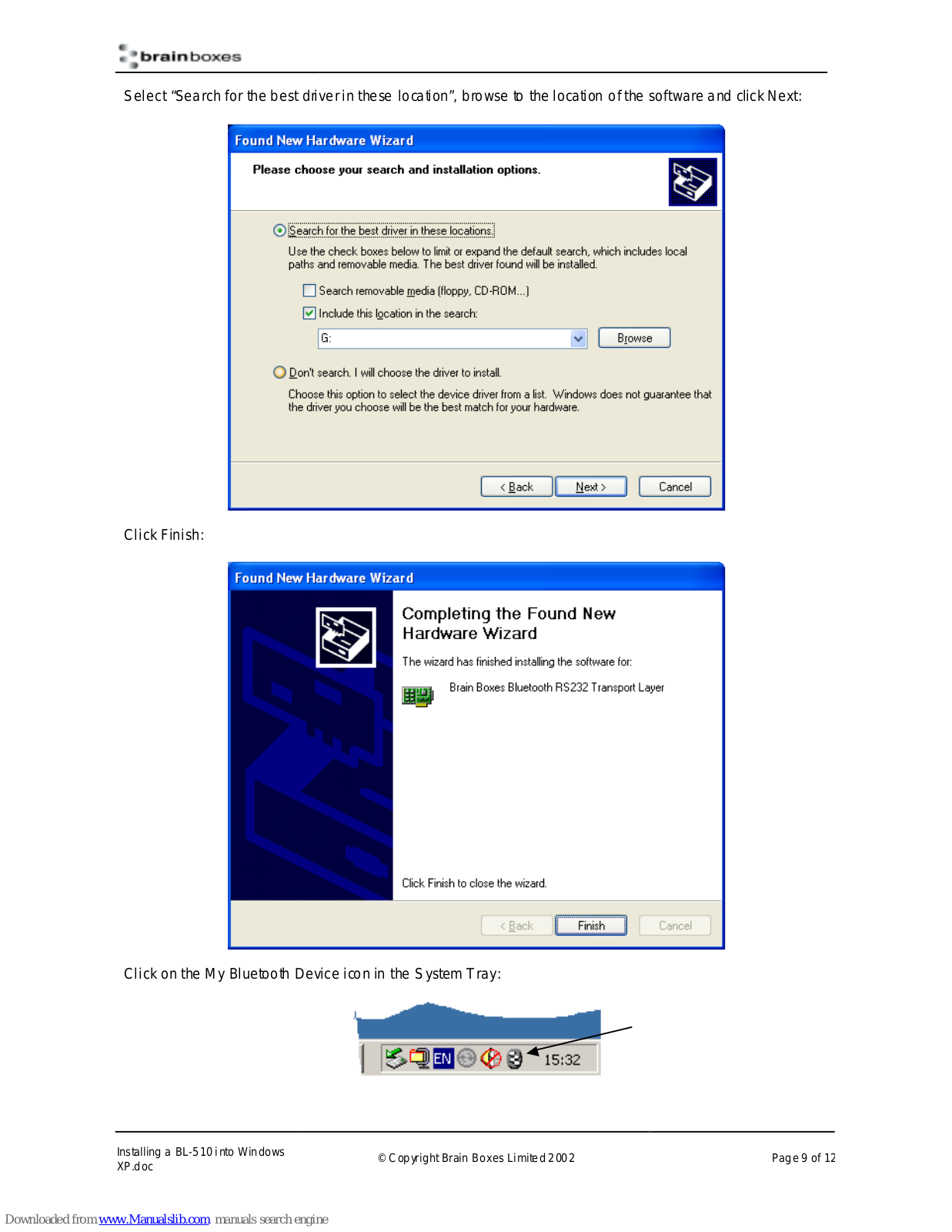

Select “Search for the best driver in these locati on”, browse to the location of the software and click Next:

C l i ck Finish:

Click on the My Bluetooth Devi ce icon in the System T ray:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 10 of 1

2

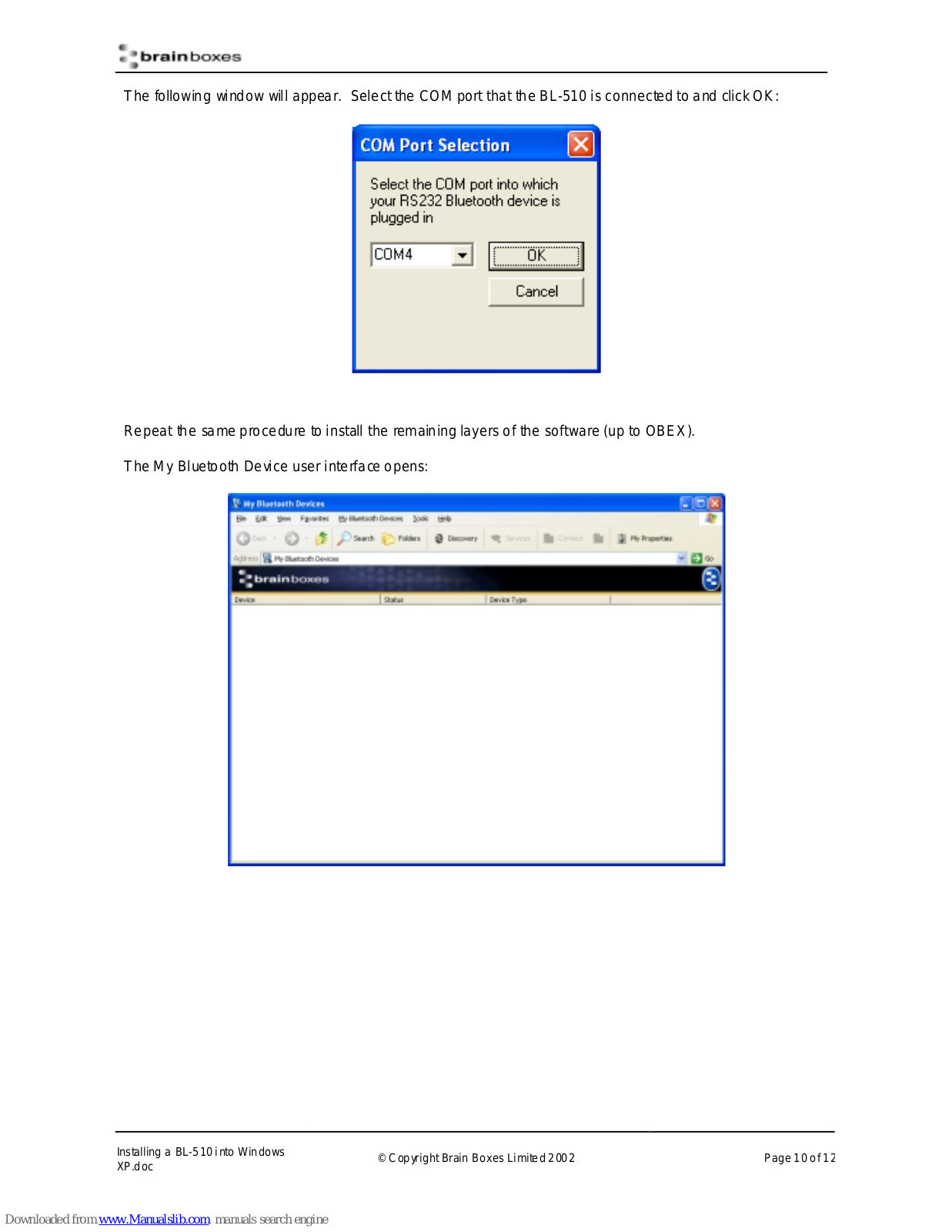

The following window will appear. Select the COM port that the BL-510 is connected to and click OK:

Repea t the same procedure to install the remaining layers of the software (up to OBEX).
The My Bluetooth Device user interface opens:

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 11 of 1

2

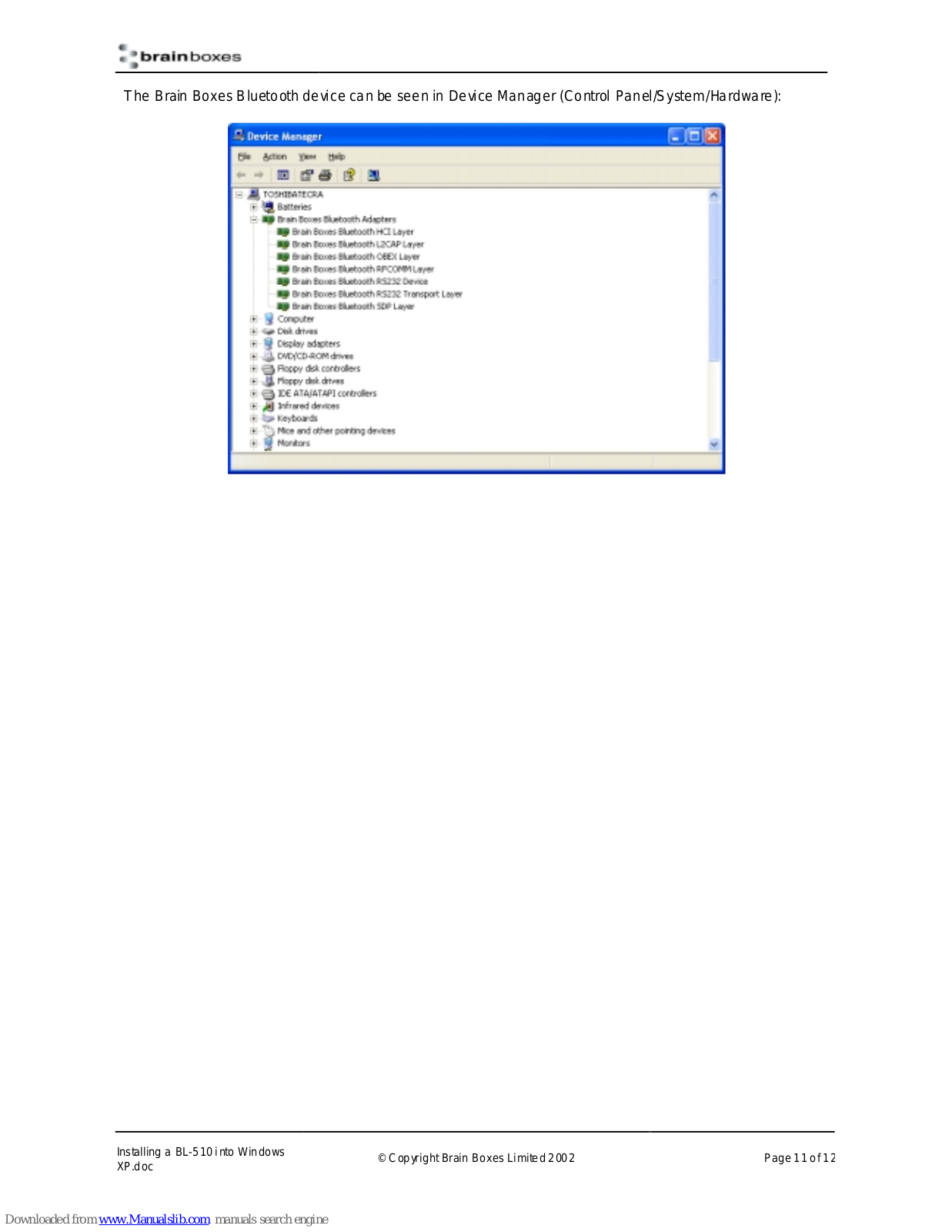

The Brain Boxes Bluetooth device can be seen in Device Manager (Control Panel/System/Hardware):

Inst alling a BL -51 0 in to Wind ows
XP.doc

© C opyrigh t Brain Boxes Limited 2002 P age 12 of 1

2

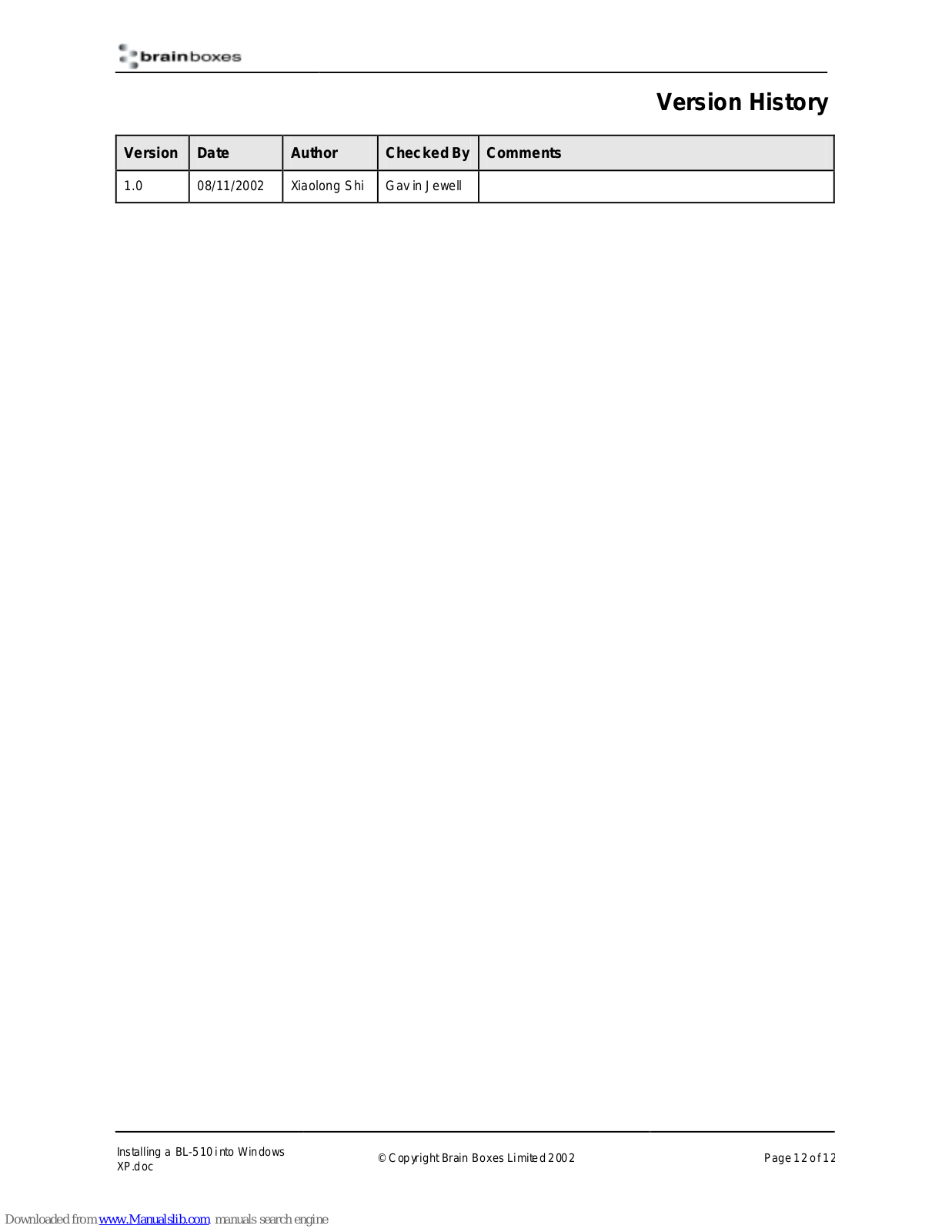

Version Hi st or y

Version Date Author Checked By Comments

1.0 08/11/ 2002 Xiaolong Shi Gavin Jewell
