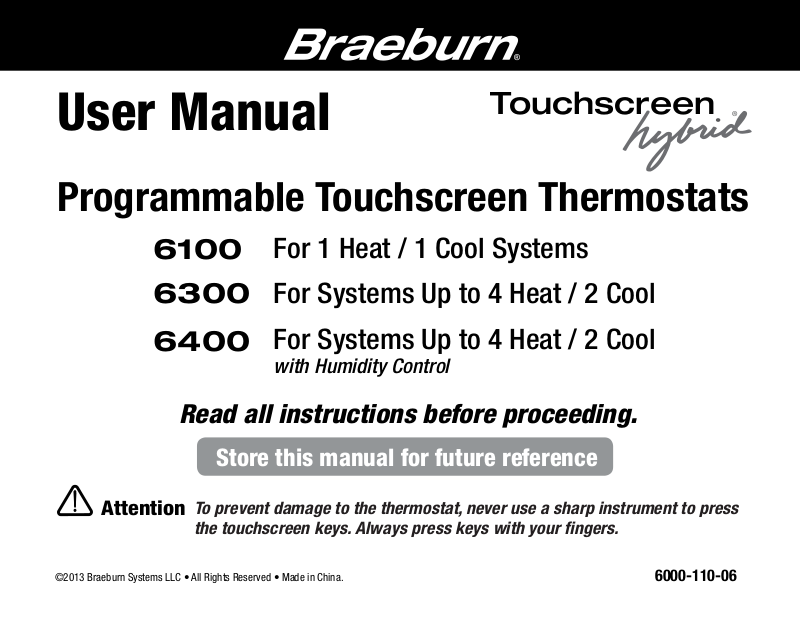

User Manual
Touchscreen
Programmable Touchscreen Thermostats
6100
6300
6400
Read all instructions before proceeding.
Attention
©2013 Braeburn Systems LLC • All Rights Reserved • Made in China. 6000-110-06
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
For 1 Heat / 1 Cool Systems
For Systems Up to 4 Heat / 2 Cool
For Systems Up to 4 Heat / 2 Cool
with Humidity Control
Store this manual for future reference
®
Contents
1 About Your Thermostat
Thermostat Features ................................................ 3
Quick Reference - Thermostat and Display ............... 4
Quick Reference - Thermostat TouchPadsTM.............. 6
2 Setting User Options
Accessing User Options ............................................ 8
Table of User Options ............................................... 9
Service Monitors (Filter, UV and Humidier Pad) ........ 10
Extended Hold Time Period ..................................... 10
Temporary Override Adjustment Limit ..................... 11
Program Override Time Limit .................................. 11
Thermostat Lock Code ........................................... 11
Audible Tone .......................................................... 12
3 Setting Your Program Schedule
Setting the Time and Day ....................................... 12
Tips Before Setting Your Program Schedule ........... 13
Programming a 7 Day Residential Schedule ........... 16
Programming a 5-2 Day Residential Schedule ........ 18
Programming a 7 Day Commercial Schedule ......... 19
User Manual 2
4 Operating Your Thermostat
Setting the System Control Mode ......................... 21
Setting the Fan Control Mode ............................... 22
Setting the Temperature ....................................... 23
Status Indicators .................................................. 24
Program Event Indicator ....................................... 25
Resetting the Thermostat ..................................... 25
5 Additional Operation Features
Auto Changeover Mode ....................................... 26
Adaptive Recovery Mode ..................................... 27
Circulating Fan Mode .......................................... 27
Programmable Fan Mode ..................................... 28
Compressor Protection ........................................ 28
Locking and Unlocking the Thermostat................. 29
AC Power Monitor ............................................... 31
Indoor Remote Sensing ....................................... 31
Outdoor Remote Sensing .................................... 32
Humidication / Dehumidication (6400 only) ..... 33
6 Thermostat Maintenance
Screen Cleaning .................................................. 35
Battery Replacement ........................................... 36
Congratulations! You are in control of one of the easiest-to-use touchscreen thermostats on the
market today. This thermostat has been designed to provide you with years of reliable performance
and comfort control.
Features
• SpeedBar® multi-function button simplies programming and setting changes.
• SpeedSet® programming gives you the option of programming all 7 days at once.
• Convenient HOLD feature lets you override the program schedule.
• Large 12 sq. in. bright blue backlit display is easy to read.
• Extra large display characters make viewing settings even easier.
• User selectable service monitors remind you of required system maintenance.
• Precise temperature accuracy keeps you in control of your comfort.
• Convenient programmable and circulating fan modes.
• Remote sensing and humidity control on select models.
3 User Manual
About Your Thermostat
1
Attention
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
1
2
3
4
User Manual 4
5
13
Instructions
6
12
11
10
9
8
14
RESET
RESET
7
15
Thermostat Display
1
Room Temperature ...................... Displays the current room temperature
2
Lock Mode Indicator ................... Indicates if the thermostat is locked
3
Set Temperature .......................... Displays the current set point temperature
4
Humidity Indicator (6400 only) .... Indicates when there is a call for humidity
5
Fan Indicator ................................ Indicates when the system fan is running
6
Service Indicators ...................... Displays various service/maintenance information
7
Time of Day ................................. Displays the current time of day
8
Program Event Indicator.............. Displays the current program event
9
Day of the Week ........................... Displays the current day of the week
10
System Status Indicator ............. Displays information about the status of the system
11
Hold Mode Indicator ................... Indicates if the thermostat is in HOLD mode
12
Low Battery Indicator .................. Indicates when the batteries need to be replaced
Thermostat
13
Quick Reference Instructions ...... Stored in slot located at top of thermostat
14
SpeedBar® .................................... Increases or decreases settings (time, temperature, etc.)
15
Reset Button ............................... Resets current time, program and user settings
Battery Compartment ................. Located in the back of thermostat
5 User Manual
About Your Thermostat
1
Attention
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
TouchPads
TM
User Manual 6
RESET
RESET
Thermostat TouchPads
TM
NOTE: Thermostat TouchPads are located on the left, right and bottom portions of the display screen. They are
the “touch sensitive” segments used to adjust your thermostat. Depending on equipment installed, all touchpads
may not show.
SYSTEM..... Selects AUTO (Heat/Cool), COOL, OFF HEAT or EMER (Emergency Heat)
FAN............ Selects AUTO, ON, CIRC (Circulation) and PROG (Program) fan modes
PROG......... Selects programming mode or press for 3 seconds to select SpeedSet® mode
HOLD......... Enters/exits the HOLD mode (Program bypass)
DAY/TIME.. Sets the current time and day of the week
BACK......... Moves back in setting modes
NEXT.......... Moves forward in setting modes
RETURN..... Returns to normal mode from program or settings modes
OUTDOOR.. Displays the outdoor temperature if a Braeburn® outdoor sensor is installed
HUMIDITY.. Displays or adjusts the current humidity level (6400 only)
CONFIG...... Enters the User settings mode
CLEAN....... Enters a brief screen cleaning mode
7 User Manual
Setting User Options
2
Accessing User Options
User options allow you to customize some of your thermostat’s features.
Most users will not need to make any changes to the settings
in this section.
To access the User Options menu, touch and hold the CONFIG
TouchPad™ for approximately 1 second until the screen changes
and displays the rst User Option.
Press the SpeedBar® up or down to change the setting
displayed User Option. After you have changed your
setting, touch NEXT to advance to the next User Option. You may
also touch BACK to move backwards through the User Options.
When your changes are complete, touch RETURN to exit.
User Manual 8
for the
desired
Table of User Options
NOTE: Some user options may not be available, depending on how your thermostat was configured in the
Installer Settings (see Installer Manual). A detailed description of each User Option follows this table.
No. User Options Factory Setting Comments Pg.
Default Options
1 Filter Service OFF OFF Disables lter service monitor feature.
Monitor 30, 60, 90, Selects a number of days that must pass before the
in the display screen.
2 UV Light Service OFF OFF Disables UV service monitor feature.
Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service UV reminder in the display screen.
3 Humidier Pad OFF OFF Disables pad service monitor feature.
Service Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service Humid reminder in the display screen.
4 Extended Hold Period LONG LONG Selects long (permanent) hold mode.
24HR Selects 24 hour (temporary) hold mode.
5 Temporary Override 0 ADJ 0, 1, 2, or 3
Adjustment Limit ADJ 0 0 (disabled), 1˚, 2˚ or 3˚.
6 Program Override 4 TEMP 4, 3, 2 or 1 Selects a temporary program override time limit of
Time Limit TEMP 1, 2, 3 or 4 hours.
7 Thermostat Lock Code 000 0-9 Select a 3 digit lock code of 0-9 for each digit.
8 Audible Tone on BEEP on BEEP Enables an audible key press tone.
oF BEEP Disables an audible key press tone.
120, 180, 365
thermostat will ash a Service Filter reminder
Selects a temporary temperature adjustment limit of
9 User Manual
10
10
10
10
11
11
11
12
Detailed Explanation of User Options:
Service Monitors
(Filter, UV and Humidifier Pad)
User Options 1, 2 and 3
There are three user selectable service monitors that will display
reminders for a required air lter, UV bulb or humidier pad
replacement. The SERVICE segment ashes in the display
along with FILTER, UV or HUMID. When the service interval
has been reached, and required cleaning or replacement has
been performed, touch the RETURN TouchPad™ to reset the
timer. Select OFF or a set number of days before the reminder
will appear.
Extended Hold Period
User Option 4
The Extended Hold Period lets you select the period your thermostat will hold the temperature when the HOLD
mode is activated (See Setting the Temperature, page 23). When LONG is selected the thermostat will hold your
temperature indenitely. When 24HR is selected, the thermostat will hold your temperature for 24 hours and
then return to the current program at that time. Not available in non-programmable mode.
User Manual 10
Service
Reminders
Temporary Override Adjustment Limit
User Option 5
The Temporary Override Adjustment Limit will limit how
much the thermostat can be adjusted from the current set point
when the thermostat is used in the programmable mode. This
setting will not allow the user to override the temperature past
the selected limit amount of 1, 2 or 3 degrees
set point. When the user reaches the adjustment
will ash ADJ. A setting of 0 disables the adjustment limit.
The Temporary Override Adjustment Limit can also be used in
the non-programmable mode if the keypad lockout security
level is set to level 1 (See Installer Manual).
from the current
limit the screen
Program Override Time Limit
User Option 6
The Program Override Time Limit allows you to set a maximum time limit (in hours) that the thermostat will
return to the program after a temporary temperature adjustment has been made (See Setting the Temperature,
page 23).
You may select 1, 2, 3 or 4 hours. Not available in non-programmable mode.
Thermostat Lock Code
User Option 7
The Thermostat Lock Code sets a 3-digit code that you may use at any time to lock or unlock the thermostat.
Setting the code in the user options mode does not activate the lock feature (See Locking/Unlocking Thermostat ,
page 29). You may choose a 3-digit code with each digit being 0-9. (continued)
11 User Manual
Audible Tone
User Option 8
The Audible Tone feature enables or disables a tone you will hear when you touch any of the TouchPads™ or
press the SpeedBar®. Select between on and off.
Setting Your Program Schedule
3
Setting the Time and Day
1. In normal operating mode, touch the DAY/TIME TouchPad.
The display will switch to the day/time setting mode and the
hour will be ashing.
2. Press the SpeedBar up or down to adjust the hour,
touch NEXT.
3. Press the SpeedBar up or down to adjust the minute,
touch NEXT.
4.
Press the SpeedBar up or down to adjust the day of the week.
5. Touch RETURN to exit.
User Manual 12
Tips Before Setting Your Program Schedule
• Make sure your current time and day of the week are set correctly.
• When programming, make sure the AM and PM indicators are correct.
• Various installer settings such as auto changeover mode, fan lock mode and temperature adjustment limits
may affect your programming exibility.
• Your NIGHT event cannot exceed 11:50 PM.
This thermostat has been configured with one of the following programming options:
• Residential 7 day programming mode with 4 events per day (default)
• Residential 5-2 (weekday/weekend) programming mode with 4 events per day
• Commercial 7 day programming mode with 2 events per day
• Non-Programmable mode
NOTE: If this thermostat was configured In the Installer Settings to be non-programmable, then you cannot set a
user program and may skip this section. See the installer manual for different configuration options.
13 User Manual
Energy Saving Programs
This thermostat comes pre-programmed with a default energy saving program. The following tables outline
the pre-programmed times and temperatures for heating and cooling in each of your 4 daily events (2 events if
congured for commercial mode). If you wish to use these settings then no further programming is necessary:
Residential 7 Day Programming
Factory Settings
4 Event
MORN
DAY
EVE
NIGHT
User Manual 14
All Days
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 85˚ F (29˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 82˚ F (28˚ C)
Commercial 2 Event Programming
Factory Settings
2 Event
OCCUPIED
UNOCCUPIED
All Days
Time: 8:00 am
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 6:00 pm
Heat: 62˚ F (17˚ C)
Cool: 85˚ F (29˚ C)
Residential 5-2 Day Programming– Weekday/Weekend
Factory Settings
4 Event
MORN
DAY
EVE
NIGHT
15 User Manual
Weekday Weekend
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 85˚ F (29˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 82˚ F (28˚ C)
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 85˚ F (29˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 82˚ F (28˚ C)
Programming a 7 Day Residential Schedule
The 7 day residential programming mode gives you the option to program individual days (1 day at a time) or to
use SpeedSet and program the entire week (all 7 days) with a 4 event program schedule.
Setting All 7 Days at Once (SpeedSet®)
NOTE: Setting all 7 days at once will copy over any previously programmed individual days.
1. Hold the PROG TouchPad™ for 3 seconds. The display will
switch to SpeedSet programming mode. All 7 days of the
week will appear and the hour will be ashing.
2. Touch SYSTEM to select HEAT or COOL.
3. Press the SpeedBar® up or down to adjust the hour for
the MORN (morning) event. Touch NEXT.
4. Press the SpeedBar up or down to adjust the minute for the
MORN event. Touch NEXT.
5. Press the SpeedBar up or down to adjust the temperature for
the MORN event. Touch NEXT.
6. Press the SpeedBar up or down to adjust the fan setting for
the MORN event. Touch NEXT.
7. Repeat steps 3-6 for the DAY, EVE and NIGHT events.
8. If needed, repeat steps 2-7 to program the opposite mode (HEAT or COOL).
9. Touch RETURN to exit.
User Manual 16
Setting Individual Days (7 Day Residential)
1. Touch the PROG TouchPad™. The display will switch to
programming mode. M (Monday) will be displayed and the
hour will be ashing.
2. Touch SYSTEM to select HEAT or COOL.
3. Touch DAY/TIME to select the day you would like to program.
4. Press the SpeedBar® up or down to adjust the hour for the
MORN (morning) event. Touch NEXT.
5. Press the SpeedBar up or down to adjust the minute for the
MORN event. Touch NEXT.
6. Press the SpeedBar up or down to adjust the temperature
for the MORN event. Touch NEXT.
7. Press the SpeedBar up or down to adjust the fan setting for
the MORN event. Touch NEXT.
8. Repeat steps 4-7 for your DAY, EVE and NIGHT events.
9.
If needed, repeat steps 3-7 to select a different day to program.
10. If needed, repeat steps 2-9 to program the opposite
mode (HEAT or COOL).
11. Touch RETURN to exit.
17 User Manual
Programming a 5-2 Day Residential Schedule
The 5-2 day residential programming mode allows you to program Monday - Friday with one 4 event schedule
and then allows you to change Saturday and Sunday with a different 4 event schedule.
1. Touch the PROG TouchPad™. The display will switch to
programming mode. The days M, TU, W, TH, and F will be
displayed and the hour will be ashing.
2. Touch SYSTEM to select HEAT or COOL.
3. Press the SpeedBar® up or down to adjust the hour for the
MORN (morning) event. Touch NEXT.
4. Press the SpeedBar up or down to adjust the minute for the
MORN event. Touch NEXT.
5. Press the SpeedBar up or down to adjust the temperature
for the MORN event. Touch NEXT.
6. Press the SpeedBar up or down to adjust the fan setting for
the MORN event. Touch NEXT.
7. Repeat steps 3-6 for your DAY, EVE and NIGHT events.
8. Repeat steps 3-7 for your weekend (S, SU) program.
9. If needed, repeat steps 2-9 to program the opposite
mode (HEAT or COOL).
10. Touch RETURN to exit.
User Manual 18
Programming a 7 Day Commercial Schedule
The 7 day commercial programming mode gives you the option to program individual days (1 day at a time) or to
use SpeedSet and program the entire week (all 7 days) with a 2 event program schedule.
Setting All 7 Days at Once (SpeedSet®)
NOTE: Setting all 7 days at once will copy over any previously programmed individual days.
1. Hold the PROG TouchPad™ for 3 seconds. The display will
switch to SpeedSet programming mode. All 7 days of the
week will appear and the hour will be ashing.
2. Touch SYSTEM to select HEAT or COOL.
3. Press the SpeedBar® up or down to adjust the hour for
the OCCUPIED event. Touch NEXT.
4. Press the SpeedBar up or down to adjust the minute for
the OCCUPIED event. Touch NEXT.
5. Press the SpeedBar up or down to adjust the temperature for
the OCCUPIED event. Touch NEXT.
6. Press the SpeedBar up or down to adjust the fan setting for the
OCCUPIED event. Touch NEXT.
7. Repeat steps 3-6 for your UNOCCUPIED event.
8. If needed, repeat steps 2-7 to program the opposite mode (HEAT or COOL).
9. Touch RETURN to exit.
19 User Manual
Setting Individual Days (7 Day Commercial)
1. Touch the PROG TouchPad™. The display will switch to
programming mode. M (Monday) will appear and the hour
will ash.
2. Touch SYSTEM to select HEAT or COOL.
3. Touch DAY/TIME to select an individual day.
4. Press the SpeedBar® up or down to adjust the hour for the
OCCUPIED event. Touch NEXT.
5. Press the SpeedBar up or down to adjust the minute for
the OCCUPIED event. Touch NEXT.
6. Press the SpeedBar up or down to adjust the temperature
for the OCCUPIED event. Touch NEXT.
7. Press the SpeedBar up or down to adjust the fan setting
for the OCCUPIED event. Touch NEXT.
8. Repeat steps 4-7 for your UNOCCUPIED event.
9. If needed, repeat steps 3-7 to select other individual days.
10. If needed, repeat steps 2-9 to program the opposite
mode (HEAT or COOL).
11. Touch RETURN to exit.
User Manual 20
Operating Your Thermostat
4
Setting the SYSTEM Control Mode
The System Control has 5 modes of operation – AUTO, COOL, OFF, HEAT and EMER. The mode can be selected
by touching the SYSTEM TouchPad™ to scroll through the different modes.
NOTE: Depending on how your thermostat was configured, some system modes may not be available.
AUTO The system will cycle between heating and cooling
automatically based on your program set points.
AUTO will be displayed with either HEAT or COOL.
COOL Only your cooling system will operate.
OFF Heating and cooling systems are off.
HEAT Only your heating system will operate
EMER Operates a backup heat source (Emergency Heat)
for heat pump systems only.
21 User Manual
Setting the FAN Control Mode
The Fan Control has 4 modes of operation – AUTO, ON, CIRC and PROG. The mode can be selected by touching
the FAN TouchPad™ to scroll through the different modes.
NOTE: Depending on how your thermostat was configured, some fan modes may not be available.
AUTO The system fan will run only when your heating or
cooling system is running.
ON The system fan stays on.
CIRC The system fan will run intermittently to help circulate
air and provide more even temperature distribution when
the heating or cooling system is not active.
PROG The system fan will function in the AUTO or ON modes
depending on your program schedule.
User Manual 22
Setting the Temperature
SpeedBar
Temporary Adjustment – Press the SpeedBar® up or
down
to adjust the current set temperature. If your
thermostat is running in 5-2 or 7 day programmable
mode, the set temperature will change back to your
original programmed settings when your next scheduled
change in temperature occurs.
Extended Adjustment – Touch the HOLD TouchPad™
so that HOLD appears in the display screen. Press the
SpeedBar up or down to adjust the current set temperature
RESET
RESET
(See Extended Hold Period, page 10).
NOTE: If this thermostat was configured to be non-
programmable, you will not have a HOLD option.
23 User Manual
Status Indicators
Status indicators appear in the display to let you know what part of your system is running.
HEAT ON Indicates that your heating system is running.
Status
Indicator
COOL ON Indicates that your cooling system is running.
AUX Indicates that the auxiliary stage of heating is running
(multi-stage systems only).
EMER
Indicates that the emergency heating system is running
(heat pump systems only).
CHECK Indicates that there is a potential problem with your
system. Contact a local service technician.
SERVICE Indicates a user selectable service reminder for changing a lter, UV air purier bulb or humidier
pad (See Service Monitors, page 10).
User Manual 24
Program Event Indicators
Program Event Indicator
Program event indicators appear in the display to let you
know what part of your current program is active.
• In Residential Program Mode, MORN, DAY, EVE or NIGHT
will appear.
•
In Commercial Program Mode, OCCUPIED or UNOCCUPIED
will appear.
When the program event indicator is ashing, your program
has been temporarily bypassed and will resume at the
next scheduled event.
NOTE: You will not see a program event indicator while in
HOLD or Non-Programmable Mode.
Resetting the Thermostat
This thermostat provides you with a reset button that will
erase all of your user settings and programming.
The reset feature does not affect the Installer Settings.
To reset the thermostat, use a small object such as a
tooth pick or paperclip and gently press the button located
inside the small hole on the front of the thermostat housing
labeled “reset”.
NOTE: You cannot reset the thermostat if it is locked.
25 User Manual
RESET
RESET
Reset
Button
Additional Operation Features
5
Auto Changeover Mode
Auto Changeover mode is a feature enabled/disabled in the
Installer Settings (see Installer Manual). If enabled, it is selected
by touching the SYSTEM TouchPad™until AUTO HEAT or AUTO
COOL appears below the TouchPad.
When Auto Changeover mode is enabled and selected, the system
automatically switches between heating and cooling when the
room temperature meets the programmed heating or cooling set
points. To operate properly, the thermostat requires a “dead band”
setting to eliminate program conicts. The dead band is set in the
Installer Settings (See Installer Manual). The default setting is 3° F.
Therefore, you will not be able to set your heat or cool temperature
within 3° F of each other. If a setting is made in either heating or cooling which violates the dead band, the
opposite mode will adjust up or down automatically to maintain the programmed dead band spacing.
User Manual 26
Adaptive Recovery Mode (ARM™)
Adaptive Recovery Mode is a feature enabled/disabled in the Installer Settings (See Installer Manual).
If enabled, the feature is automatically present while in programmable mode.
Adaptive Recovery Mode tries to reach your desired heating or cooling temperature at the time you have set in
your current program schedule, after a setback period. For example, if you set your heat down to 62° at night
and have a set point of 70° scheduled for 7:00 AM, the thermostat may turn on your heating system early in
order achieve a temperature of 70° by 7:00 AM.
This feature does not operate when the thermostat is in HOLD mode, if the program is temporarily overridden or
if emergency heat is selected on a multistage heat pump system.
Circulating Fan Mode
Circulating Fan Mode is selected by touching the FAN
TouchPad™until CIRC appears in the display.
Fan operates as required by heating and cooling system (just like
AUTO mode). When heating or cooling is not active, fan will run
as needed to ensure a 35% minimum run time.
27 User Manual
Programmable Fan Mode
Programmable Fan Mode is selected by touching FAN until
PROG appears below the FAN TouchPadTM. It is only available in
programmable mode.
Programmable Fan Mode allows the user to run the fan
continuously during a selected program event. To use this feature,
select fan ON while setting program events. (See “Setting Your
Program Schedule”, page 12).
The Programmable Fan Mode is not available if the Circulating
Fan Lock was enabled in the Installer Settings or if in
non-programmable mode (See Installer Manual).
Compressor Protection
Compressor protection is enabled/disabled in the Installer Settings (See Installer Manual). If enabled, this
feature is automatically present in cooling and/or heating modes.
This thermostat includes an automatic compressor protection delay to avoid potential damage to your system
from short cycling. This feature activates a short delay after turning off the system compressor.
Additionally, for multi-stage heat pump systems, this thermostat provides cold weather compressor protection by
locking out the compressor stage(s) of heating for a period of time after a power outage greater than 60 minutes.
This cold weather compressor protection can be manually overridden at any time by changing the system mode
to OFF momentarily, then back to HEAT.
User Manual 28
Locking and Unlocking the Thermostat
Your 3-digit Lock Code is set in the “User Options” portion
of this manual (See “Setting User Options”, page 8 and 11).
Once the code is set, the thermostat can be locked or
unlocked at any time by entering that code.
To lock or unlock the thermostat, touch and hold the CLEAN
and CONFIG TouchPads™ together for 5 seconds (Figure 1).
The screen will change, displaying 000 and LOCK will be
ashing (Figure 2). Press the SpeedBar® up or down to enter
the rst digit of your lock code and then touch NEXT to
advance to the next digit. Repeat this process to enter the
second and third digit of your lock code. After entering the
third digit, touch RETURN.
29 User Manual
Figure 1
Figure 2
If you entered a valid code the thermostat will be locked or unlocked
(depending on its previous state). When locked, the word LOCKED
appears in the display (Figure 3). If an invalid code is entered the
word
NO will briey appear, indicating that an incorrect code was
entered (Figure 4).
User Manual 30
Figure 3
Figure 4
AC Power Monitor
The AC Power Monitor feature is enabled in the Installer
Settings (See Installer Manual). If enabled, this feature will
automatically be present.
If your thermostat was hardwired (power provided from the system
with batteries as a backup) then the AC Power Monitor feature will
indicate when a loss of power to the thermostat has occurred by
displaying NOAC.
Indoor Remote Sensing
Indoor remote sensing is achieved by installing a Braeburn® remote indoor sensor and is configured in the
Installer Settings (See Installer Manual).
If a Braeburn indoor remote sensor was installed and properly congured in the Installer Settings, the thermostat
will sense temperature at a remote location or at a combination of a remote location and the thermostat location.
31 User Manual
Outdoor Remote Sensing
Outdoor remote sensing is enabled by installing a Braeburn®
remote outdoor sensor. No additional configuration is required.
If a Braeburn outdoor remote sensor was installed you will see the
OUTDOOR TouchPad™on the right side of the main display screen
(Figure 1). To view the outdoor temperature, touch OUTDOOR.
The current outdoor temperature will be displayed for 5 seconds
(Figure 2).
The outdoor sensor can also be congured in the Installer Settings
(See Installer Manual) to automatically control advanced thermostat
functions.
User Manual 32
Figure 1
Figure 2
Humidification and Dehumidification (6400 only)
The Braeburn®model 6400 can be used to control a whole
house humidifier or dehumidifier. Humidification can be
controlled manually from the thermostat or automatically
when a Braeburn outdoor remote sensor is installed and
configured in the Installer Settings (See Installer Manual).
To view the current humidity level at the thermostat, touch the
HUMIDITY TouchPad™ (Figure 1). If humidication and dehumidication
are not enabled, you will only see the current humidity level.
If humidication is enabled you will see the current humidity
level along with the humidication set point (Figure 2). Press the
SpeedBar®up or down to adjust the humidication set point.
33 User Manual
Figure 1
Figure 2
If humidication and dehumidication are both enabled you will
rst see the current humidity level along with the humidication
set point. Press the SpeedBar® up or down to adjust the humidication
set point. Touch HUMIDITY again to display the dehumidication
set point. Press the SpeedBar up or down to adjust the dehumidication
set point (Figure 3). Touch RETURN.
NOTE: If Automatic Humidity Control was enabled in the Installer
Options, the humidification set point may be automatically adjusted
to compensate for changes in outdoor temperature.
When there is a call for humidication a small water droplet symbol
will appear in the screen (Figure 4). When there is a call for
dehumidication, the word DEHUMID will appear.
Figure 3
User Manual 34
Water
Droplet Symbol
Figure 4
Thermostat Maintenance
6
Screen Cleaning
To access the screen cleaning mode hold the CLEAN TouchPad
for 3 seconds (Figure 1). The screen will display a countdown timer
for 30 seconds
and you may
the display will
Never spray any liquid directly on the thermostat. Spray your
cleaning liquid on a soft cloth and then proceed to clean the screen
with the damp cloth. Only use water or household glass cleaner.
Never use any abrasive cleansers to clean your thermostat.
35 User Manual
(Figure 2). During
proceed with cleaning the screen. After 30 seconds
return to normal.
this time the screen will be locked
™
Figure 1
Figure 2
Changing the Batteries
This thermostat requires two (2) properly installed “AA”
alkaline batteries to maintain the thermostat clock and to
provide power for the thermostat if 24 volt AC power is not
connected. (See Installer Manual).
If batteries become low, a battery indicator will appear
in the display. You should change your batteries immediately
when you see the low battery signal by following
these instructions.
1. Remove thermostat body by gently pulling it from base.
2. Remove old batteries and replace with new batteries.
3. Make sure to correctly position the (+) and (-) symbols.
4. Gently push thermostat body back onto base.
NOTE: We recommend replacing the thermostat batteries annually or if the thermostat will be unattended for
an extended period of time.
+
+
For troubleshooting tips, visit www.braeburnonline.com
User Manual 36
®
Limited Warranty
When installed by a professional contractor, this product is backed by a 5 year limited
warranty. Limitations apply. For limitations, terms and conditions, you may obtain a full
copy of this warranty:
· Visit us online: www.braeburnonline.com/warranty
· Phone us: 866.268.5599
· Write us: Braeburn Systems LLC
2215 Cornell Avenue
Montgomery, IL 60538
5
YEAR
LIMITED
WARRANT Y
®
Braeburn Systems LLC
2215 Cornell Avenue • Montgomery, IL 60538
Technical Assistance: www.braeburnonline.com
Call us toll-free: 866-268-5599 (U.S.)
630-844-1968 (Outside the U.S.)
©2013 Braeburn Systems LLC • All Rights Reserved • Made in China.
6000-110-06
Loading...
