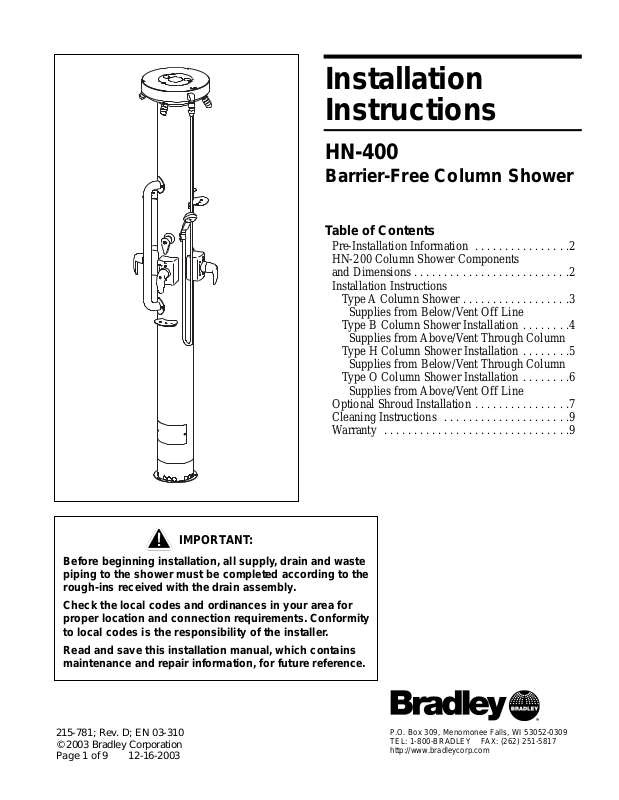

Installation
Instructions
HN-400
Barrier-Free Column Shower
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL: 1-800-BRADLEY FAX: (262) 251-5817
http://www.bradleycorp.com
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . .2
HN-200 Column Shower Components
and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation Instructions
Type A Column Shower . . . . . . . . . . . . . . . . . .3
Supplies from Below/Vent Off Line

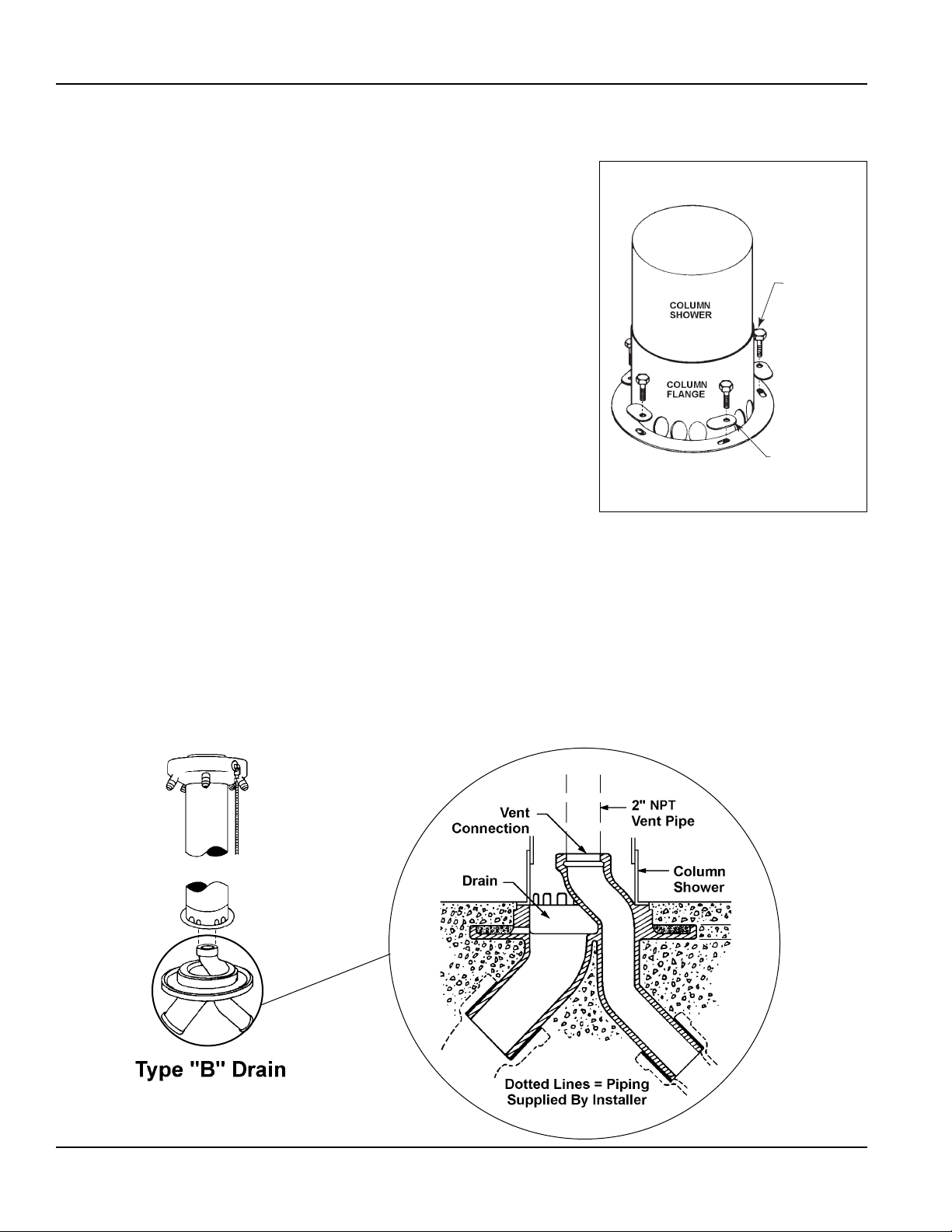

Type B Column Shower Installation . . . . . . . .4
Supplies from Above/Vent Through Column

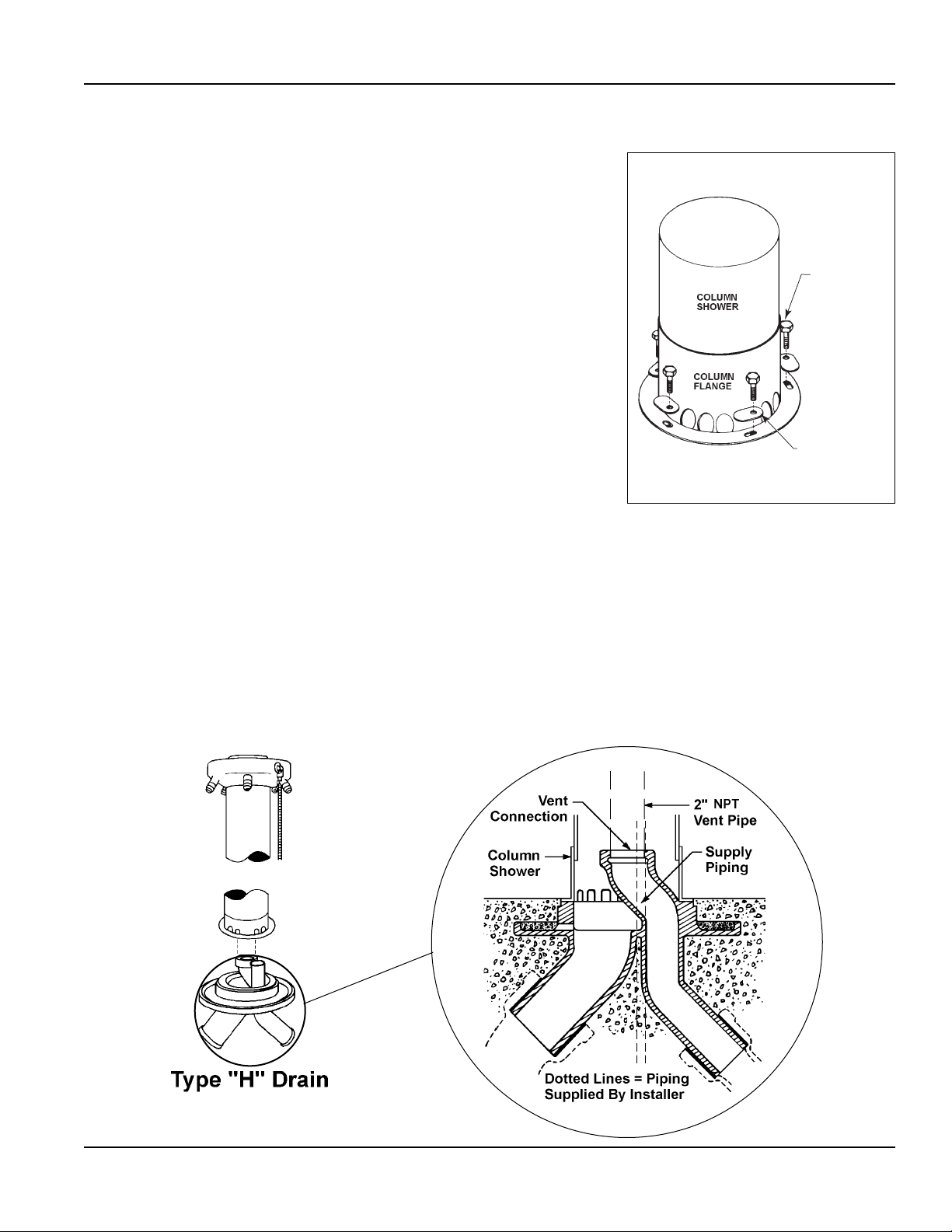

Type H Column Shower Installation . . . . . . . .5
Supplies from Below/Vent Through Column

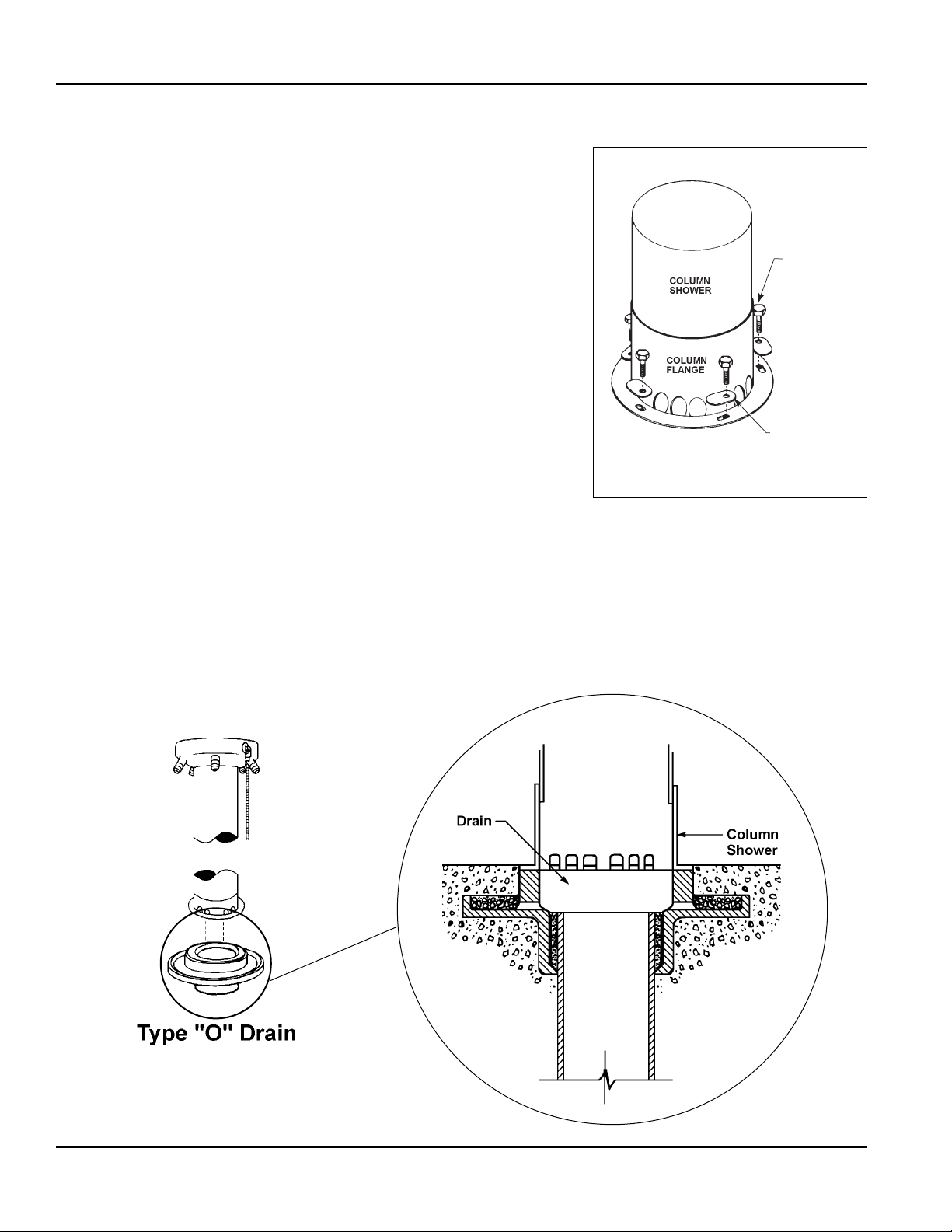

Type O Column Shower Installation . . . . . . . .6
Supplies from Above/Vent Off Line
Optional Shroud Installation . . . . . . . . . . . . . . . .7
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . .9
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
IMPORTANT:
Before beginning installation, all supply, drain and waste
piping to the shower must be completed according to the
rough-ins received with the drain assembly.
Check the local codes and ordinances in your area for
proper location and connection requirements. Conformity
to local codes is the responsibility of the installer.
Read and save this installation manual, which contains
maintenance and repair information, for future reference.
215-781; Rev. D; EN 03-310
© 2003 Bradley Corporation
Page 1 of 9 12-16-2003
2 Bradley Corporation • 215-781 Rev. D; EN 03-310
Barrier-Free Column Shower
HN-400 Installation Instructions
12-16-2003
Pre-Installation Information
Overview
The Bradley HN-400 Barrier-Free Column Shower features one station that is adapted for use by the
handicapped. Valve and showerhead height for all wash stations, including the handicapped station,
measures 42" (1067 mm).
Components
Material: Column showers are constructed of 16-gauge, type 304 stainless steel. The base flange is
14-gauge stainless steel. All exposed stainless steel parts are #4 finish. Exterior brass components are
polished and chrome-plated.
Handicapped Station: The handicapped station includes a grab bar, diverter valve, hand-held
shower with bracket, in-line backflow preventer, and quick disconnect (see shower components and
dimensions shown below).
HN-400 Column Shower
Components and Dimensions
Supplies required for installation:
• Supply piping to column’s 3/4"
type “L” copper tubing
• 2" NPT vent pipe (for type B and
type H drains only)
• (5) 5/16" screws (for shroud slip
ring installation)
SUPPLY
ELBOW
169-941
GRAB BAR
S53-039
MOUNTING
POST
S70-078
CONNECTOR
DIVERTER
S45-323
SWIVEL
169-943
SOAP TRAY
126-005A
INLINE
BACKFLOW
PREVENTER
169-988
QUICK
DISCONNECT
169-937
HOSE
169-937
HOSE SPRAY
169-936
48"
(1219 mm)
TO FLOOR
42"
(1067 mm)
TO FLOOR
3Bradley Corporation • 215-781 Rev. D; EN 03-310
Barrier-Free Column Shower
Installation Instructions HN-400
12-16-2003
Installation Instructions for Type A HN-400 Column Shower
Step 1: Install column shower components
NOTE: Flush supply lines before making connections.
1. Remove the five bolts that secure the disposable washer to
the drain and lift the disposable washer off.
2. Bolt the column shower to the drain with the five bolts
(removed in procedure #1) and oval washers provided (see
Figure 1).
Step 2: Connect water supply
1. Remove the two 1/4"-20 screws from the access panel on
the lower body of the column shower and lift the panel off.
2. Through the access opening, connect water supplies to the
shower’s 3/4" copper tubing as shown in Figure 2 (piping
supplied by installer).
3. Turn on water to the shower and test for leaks and adequate
water flow.
4. Replace the access panel onto the shower with 1/4"-20 screws provided.
NOTE: For column shower drains with a dome grate drain, install the two halves of the grate with
the screws provided after the column installation is complete.
Figure 1
Figure 2
Supplies from Below/Vent Off Line
(5) 5/16"-18
HEX-HEAD
BOLTS
160-092
(5) WASHERS
142-034
