Installation
Instructions
Table of Contents
Dimensions . . . . . . . . . . . . . . . . . . . . . . .2–3
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . 4–5
Installation Instructions . . . . . . . . . . . . . .6–9
Cleaning and Maintenance . . . . . . . . . . . .10
Assembly of Components . . . . . . . . . . . . .11
Vernatherm™ Valve Troubleshooting . . . .12
Vernatherm™ Valve Repair Parts . . . . . . .13
EXD-2N
Express® Deck Lavatory
System EXD-Series
(Standard and Wall-Hung Pedestals)
Express® Decks are ADA
and TAS compliant.
215-1542 Rev. E; EN 06-915
© 2007 Bradley Corporation
Page 1 of 13 2/9/07
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY FAX 262-251-5817
http://www.bradleycorp.com
IMPORTANT
Read this entire installation manual to ensure proper installation, then file these
instructions with the owner or maintenance department.
Flush all the water supply lines before making connections. Debris in supply
lines will cause the valves to malfunction.
Turn OFF electrical power to the outlet when installing the Express® Deck.
Wall anchors used must have a minimum pull-out rating of 1,000 lbs.
Product warranties may be found under "Product Information" on our web site at
www.bradleycorp.com.
A
D
A
C
O
M
P
L
I
T
N
A
2
Express® Deck Lavatory System EXD-Series
EXD-2N Installation Instructions
2/9/07 Bradley Corporation • 215-1542 Rev. E; EN 06-915
EXD-2N/STD and EXD-2N/WH
Express® Deck Lavatory System Dimensions
50"
(1270mm)
8"
(203mm)
RADIUS
10"
15"
(381mm)
15"
(381mm)
(254mm)
RADIUS
STANDARD
HEIGHT
WALL-HUNG
HEIGHT
7"
(178mm)
21-1/4"
(540mm)
30"
(762mm)
36"
(914mm)
7"
(178mm)
30"
(762mm)
36"
(914mm)
3
Express® Deck Lavatory System EXD-Series
Installation Instructions EXD-2N
Bradley Corporation • 215-1542 Rev. E; EN 06-915 2/9/07
Express® Deck Lavatory System Dimensions continued . . .
21-1/8"
(537mm)
11-1/2"
STANDARD HEIGHT
34"
(864mm)
30"
(762mm)
(292mm)
8-5/8"
(219mm)
WALL-HUNG
MOUNTED AT
STANDARD HEIGHT
34"
(864mm)
30"
(762mm)
13-1/4"
(337mm)
A
D
A
C
O
M
P
L
13-1/4"
(337mm)
21-1/8"
(537mm)
T
I
N
A
11-1/2"
(292mm)
8-5/8"
(219mm)
A
D
A
C
O
M
P
T
L
I
N
A
3" (76mm)
SCUFF BASE
STANDARD
HEIGHT ONLY
WALL-HUNG
MOUNTED AT
JUVENILE HEIGHT
AGES 6 THROUGH 12
31"
(787mm)
27"
686mm)
10-1/4"
(260mm)
D
A
C
O
M
P
A
T
L
I
N
A
21-1/8"
(537mm)
11-1/2"
(292mm)
(219mm)
8-5/8"
WALL-HUNG
MOUNTED AT
TAS HEIGHT
GRADES PRE-K
THROUGH 5 OR 6
30"
(762mm)
26"
(660mm)
235mm)
9-1/4"
TAS
21-1/8"
(537mm)
11-1/2"
(292mm)
(219mm)
8-5/8"
WALL-HUNG
MOUNTED AT
TAS HEIGHT
GRADES 6
THROUGH 8 OR 9
32"
(813mm)
28"
(711mm)
11-1/4"
(286mm)
TAS
21-1/8"
(537mm)
11-1/2"
(292mm)
(219mm)
8-5/8"
4
Express® Deck Lavatory System EXD-Series
EXD-2N Installation Instructions
2/9/07 Bradley Corporation • 215-1542 Rev. E; EN 06-915
Installation Instructions
Supplies required for installation:
• (6) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall
(minimum pull-out rating of 1,000 lbs.)
• STD. HEIGHT ONLY: (2) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount scuff
base to wall
• 1/2" NPT hot and cold supply piping
• 1-1/2" NPT drain piping
• 110 volt electrical outlet for optional 110/24 VAC plug-in transformer, if required
• (2) #10 wall anchors and fasteners for optional Vernatherm™ valve mounting
• 240/208-volt or 277-volt electrical box for optional electric tankless water heater
Step 1: Rough in
IMPORTANT: Dimensions shown in Figure 1 on page 5 are for a Standard and Wall-
Hung Pedestal Express® Deck only. Make sure to follow appropriate
dimensions based on configuration and required rim height. See
Charts 1 and 2 on page 5 before beginning rough-ins.
1. Rough in 1/2" NPT hot and cold supply lines through wall at dimensions shown.
2. Rough in 1-1/2" NPT drain waste connection through wall at dimensions shown.
3. FOR OPTIONAL ELECTRIC FAUCETS: Install the 110 volt GFCI electrical outlet per local
code at the location shown in Figure 1.
4. Install four to six 3/8" wall anchors with a minimum pull-out rating of 1,000 lbs. (supplied by
installer) at the locations shown in Figure 1.
5. On the back of the bowl, measure the distance between the 3/4" bowl mounting holes. Divide
this measurement in half. Measure and mark this dimension on the wall to the left of the
centerline and to the right of the centerline. Install two 3/8" wall anchors with a minimum pullout rating of 1,000 lbs. (supplied by installer) at the locations marked (ref. location “A” shown in
Figure 1).
NOTE: Wall anchors at location “C” (standard frame only) do not require a minimum pull-out
rating of 1,000 lbs.
NOTE: The anchors will be used to mount the Express® Deck bowl and frame to the wall.
5
Express® Deck Lavatory System EXD-Series
Installation Instructions EXD-2N
Bradley Corporation • 215-1542 Rev. E; EN 06-915 2/9/07

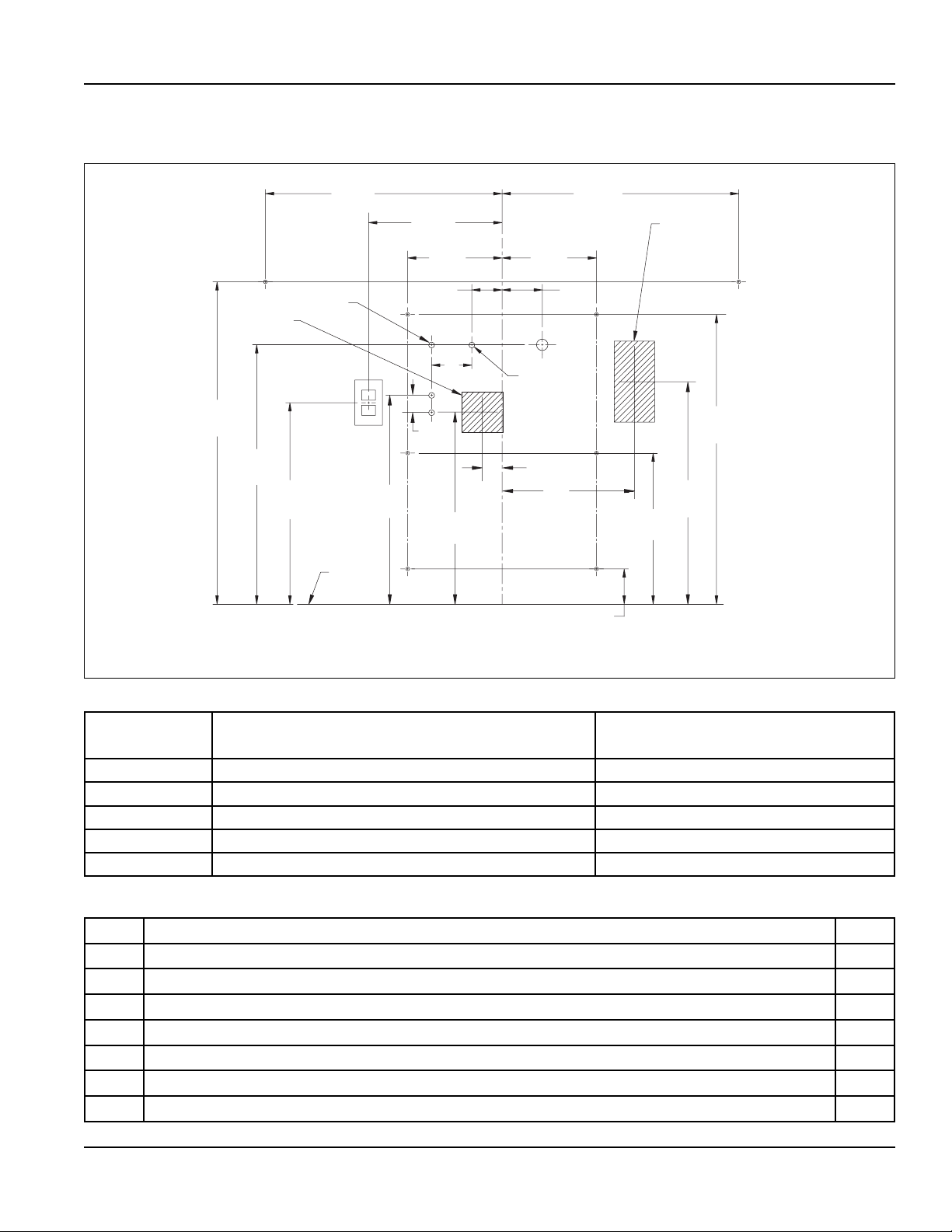

EXD-2N Express® Deck Lavatory System Dimensions
Figure 1
RIM HEIGHT
VERTICAL HEIGHT ADJUSTMENTS
“A” THROUGH “F”
FIXTURE STYLE
34" NONE STANDARD HEIGHT
34" NONE WALL HUNG
32" SUBTRACT 2" TAS, GRADES 6 THRU 8/9
31" SUBTRACT 3" JUVENILE HEIGHT
30" SUBTRACT 4" TAS, PRE-K THROUGH 5/6
CODE DESCRIPTION QTY.
“A” 3/8" BOWL WALLANCHORS WITH A MINIMUM PULL-OUT FORCE OF 1,000 LBS. 2
“B” 3/8" MAIN FRAME WALL ANCHORS WITH A MINIMUM PULL-OUT FORCE OF 1,000 LBS. 6
“C” 3/8" BASE FRAME WALL ANCHORS, STANDARD FRAME OPTION ONLY. 2
“D” 1/2" NPT HOT/COLD SUPPLIES, STUB OUT 2" FROM WALL 2
“E” 1-1/2" NPT DRAIN, STUB OUT 2" FROM WALL 1
“F” 110V GFCI PROTECTED ELECTRIC OUTLET (FOR OPTIONAL ELECTRONIC FAUCETS) 1
“G” #10 WALL ANCHORS/FASTENERS FOR OPTIONAL VERNATHERM™ VALVE MOUNTING 2
CHART 1
CHART 2
C
D
L
COLD OR
TEMPERED
SUPPLY
OPTION
9-3/8"
(238mm)
(102mm)
E
2" (51mm)
13"
(330mm)
23-1/2"
(597mm)
4"
OPTION #1*
A
B
28-3/4"
22"
(559mm)
(730mm)
B
15"
(381mm)
C
32"
(813mm)
A
OPTION #2**
25-3/4"
(654mm)
(508mm)
HOT SUPPLY
20"
23-1/2"
(597mm)
F
FLOOR
21"
(533mm)
(337mm)
B
B
C
13-1/4"
9-3/8"
(238mm)
(76mm)
D
(102mm)
G
G
1-3/8"
(35mm)
(483mm)
3"
4"
19"
3-1/2"
(89mm)
* OPTION 1 - RECOMMENDED 240V/208V OR 277V
ELECTRICAL BOX LOCATION (4"L x 4"W x 8"H)
** OPTION 2 - RECOMMENDED 240V/208V OR 277V
ELECTRICAL BOX LOCATION (4"L x 4"W x 4"H)
or
6
Express® Deck Lavatory System EXD-Series
EXD-2N Installation Instructions
2/9/07 Bradley Corporation • 215-1542 Rev. E; EN 06-915
Installation Instructions continued . . .
Step 2: Mounting frame to wall
1. Using a T20 Torx key, remove the six #10-24 flat head Torx screws and #10 finish washers
securing the access panel to the main frame, and remove the panel (Figure 2).
2. Position the frame against the wall, ensuring that it is level.
IMPORTANT: Anchoring the frame to a wall that is not flat may cause the frame to
bend, making it difficult to reinstall the access panels.
3. Ensure that the back of the frame is flat against the wall.
4. Once you have positioned the
frame such that it is level (and
resting on the floor, standard height
frame only) and flat against the
wall, use the 3/8" bolts and 1" min.
O.D. washers to mount the frame
to the wall (Figure 3).
5. When mounting the standard
height frame, mount the scuff base
to the wall at the same time using
the two additional 3/8" bolts and
washers mentioned in Step 1,
procedure #3 on page 4 (Figure 3).
Figure 3
Figure 2
MAIN FRAME
ACCESS PANEL
#10-24 PANEL FASTENERS
AND WASHERS
(6) PLACES
SCUFF PANEL
STANDARD HEIGHT
FRAME ONLY
SCUFF PANEL FASTENERS
AND WASHERS
(4) PLACES
3/8" WALL ANCHORS
(4) PLACES
*
*
MAIN FRAME
*
*
SCUFF BASE FRAME
STANDARD HEIGHT
FRAME ONLY
*
*
3/8" WALL ANCHORS
(2) PLACES
STANDARD HEIGHT
FRAME ONLY
7
Express® Deck Lavatory System EXD-Series
Installation Instructions EXD-2N
Bradley Corporation • 215-1542 Rev. E; EN 06-915 2/9/07
MAIN FRAME
BOWL
3/8" BOLT AND WASHER
(2) PLACES FOR
BOWL MOUNTING
1/4-20 SCREWS AND WASHERS
(2) PLACES BOWL/FRAME
MOUNTING
SCUFF BASE FRAME
AND DRAIN ASSEMBLY
NOT SHOWN FOR CLARITY
Figure 4
Installation Instructions continued . . .
Step 3: Installing bowl
WARNING: To prevent serious injury and/or damage to the bowl, move and
position the bowl with the assistance of another person and always
use appropriate lifting procedures.
NOTE: Refer to Figure 4 below when installing the bowl.
1. With someone to assist you, place the bowl squarely onto the frame.
2. Attach the front underside of the bowl to the frame using the two 1/4"-20 x 1/2" pan-head screws
and washers provided. Do not tighten bolts at this time.
IMPORTANT: When bolting the bowl to the frame and wall, do not overtighten
bolts. Overtightening bolts can damage the Terreon® material.
3. After the bowl is attached to the frame, use 3/8" bolts and 1" min. O.D. washers (supplied by the
installer) to bolt the bowl to the wall anchors, two places.
4. Tighten the screws installed in procedure #2 above to secure the bowl to the frame. Do not
overtighten.
8
Express® Deck Lavatory System EXD-Series
EXD-2N Installation Instructions
2/9/07 Bradley Corporation • 215-1542 Rev. E; EN 06-915
Installation Instructions continued . . .
Step 4: Connecting supply and drain
1. Connect the Vernatherm™ Thermostatic Mixing Valve as shown in Figure 5a.
2. Install the drain plug in the drain hole in the bowl (see Figure 5b).
3. Beneath the bowl, install the 1/8" rubber washer and the threaded tailpiece onto the drain plug.
4. Assemble the P-trap by connecting the 1-1/2" tubular pipe to the tailpiece and to the 1-1/2" drain
pipe stubbed out of the wall (see Figure 5c).
5. Install the strainer on the drain plug opening inside the bowl using the #8 screw.
Figure 5c
Figure 5a
Figure 5b
STRAINER
BOWL
1/8"
RUBBER
WASHER
DRAIN
PLUG
TAILPIECE
#8 SCREW
HOT SUPPLY
VERNATHERM™
BRACKET
#10 SCREW
COLD SUPPLY
1/2" NPT
CHECK/STOP
VALV E
H
1/2" FLEXIBLE
C
VERNATHERM™
VALV E
HOSE
P-TRAP
STRAINER
TAILPIECE
45˚
FRAME (FRONT)
9
Express® Deck Lavatory System EXD-Series
Installation Instructions EXD-2N
Bradley Corporation • 215-1542 Rev. E; EN 06-915 2/9/07
Installation Instructions continued . . .
Step 5: Optional hot water heater
WARNING: To avoid personal injury or damage to the unit when installing the water
heater, make all plumbing connections first, then proceed with the
electrical connections.
NOTE: 240/208 or 277 voltage is required
for hot water heater. Refer to the
installation manual provided with the hot
water heater for further installation
information.
1. Remove the cover from the water
heater. Attach the bracket to the cover
with the two screws, nuts and
washers, then reattach the cover (see
Figure 6a).
2. Hang the water heater on the right
side frame member (see Figure 6b).
3. Connect the 1/2" flexible hose from
the cold water supply stub-out to the
hot water heater inlet.
4. Connect the 1/2" flexible hose from
the hot water heater outlet to the
supply inlet on the solenoid valve
assembly.
Step 6: Completing installation
1. Install the faucets according to the
installation instructions that came
with your faucets.
2. Turn on the water supply to the
Express® Deck and check for
leaks.
3. FOR DECKS WITH INFRARED
FAUCETS ONLY: Turn on the
electrical power to the electrical
outlet and pass your hand in front
of each faucet’s sensor until all
the air is purged from the lines
and water is flowing smoothly.
4. After testing is complete, reinstall
panel to frame. Fasten panel with
eight Torx-head screws provided
(see Figure 2 on page 6).
Figure 6a
Figure 6b
#8-32 x 3/4"
ROUND HEAD
MACHINE SCREW
PREPACKS:
EX95TMLB (S45-2186)
EX100TMLB (S45-2187)
COLD WATER
BRACKET
WATER
HEATER
BASE
SUPPLY
#8 WASHER
OPTIONAL 90˚ ELBOW
CHECK/STOP
#8 NUT
VALV E
OUTLET TO
FAUCETS
INLET
WATER
HEATER
COVER
WATER
HEATER
10
Express® Deck Lavatory System EXD-Series
EXD-2N Installation Instructions
2/9/07 Bradley Corporation • 215-1542 Rev. E; EN 06-915
Cleaning and Maintenance Instructions
IMPORTANT: Strong alkaline or acid-based chemicals and cleansers should not be
used to clean Terreon®. If these chemicals come in contact with the
Terreon® surface, wipe off the surface immediately and flush with
soapy water.
Terreon® and panel maintenance
The bowl is constructed of Terreon®, a densified solid surface material composed of an acrylic
modified polyester resin. Terreon® is resistant to chemicals, stains, burns and impact. Surface
damage can be easily repaired with everyday cleaners or fine grit abrasives. The panel is made of an
acrylic/ABS laminate, and will not chip, peel or flake. With regular cleaning, your Terreon® fixture
will provide years of dependable service.
Cleaning
• Daily Cleaning: Wipe the surface with a damp cloth and wipe dry.
• Weekly Cleaning: Wipe the surface with a damp cloth and a household liquid detergent.
Stubborn stains can be removed as follows:
1. Using a #7448 Scotch-Brite® pad, scrub with an abrasive cleanser such as Ajax®,
Comet® or Soft Scrub® and water.
2. Clean thoroughly with soapy water and allow to dry.
• Scorch Marks: Although Terreon® will not burn, a lit cigarette in contact with Terreon® could
leave a scorch mark. Scorch marks can be removed by buffing with a #7448 Scotch-Brite pad or
with an abrasive cleaner.
• Repair kit: In the unlikely event your Terreon® surface becomes damaged, it can easily be
repaired. Contact your Bradley representative to order a repair kit and be sure to specify color
when ordering.
Panel cleaning
IMPORTANT: Do not use abrasive cleansers to clean the panel. Abrasive cleaners
can mar the surface.
• Graffiti/Vandalism: If vandals create markings on the panel, Bradley recommends using
Motsenbocker’s LIFT OFF® to remove ink and spray paint. Remover #3 is for ink and markers,
and Remover #4 is for spray paint. Motsenbocker’s LIFT OFF® can be ordered through Sanitary
Maintenance Service Inc. (call 1-800-451-5523 x 425 or visit
www.santitarymaintenance.com/product.htm for ordering information). After cleaning with LIFT
OFF®, give the panel a final thorough cleaning with a liquid tub and tile cleaner to remove soil
and maintain the glossy finish.
NOTE: Use of brand names is intended only to indicate a type of cleaner. This does not constitute an
endorsement, nor does the omission of any brand name cleaner imply its inadequacy. Many products
named are regional in distribution and can be found in local supermarkets, department and hardware
stores or through your cleaning service. It is emphasized that all products should be used in strict
accordance with package instructions.
11
Express® Deck Lavatory System EXD-Series
Installation Instructions EXD-2N
Bradley Corporation • 215-1542 Rev. E; EN 06-915 2/9/07
Assembly of Components
BOWL
PREPACK
(S45-2166)
PANEL
FASTENERS
(160-450)
WASHERS
(142-002CA)
(6) PLACES
MAIN
FRAME
(S17-325)
90˚ ELBOW
(169-639)
ACCESS PANEL
GRAY (186-1646)
PUTTY (186-1646A)
COAL (186-1646B)
SCUFF BASE PANEL
GRAY (185-034)
PUTTY (185-034A)
COAL (185-034B)
BOWL MOUNTING
HARDWARE
1/4"-20 x 1/2"
PAN HEAD
SCREW (qty. 2)
(160-389)
VERNATHERM™ VALVE ASSEMBLY
1/4"-20
WASHER
(qty. 2)
(142-002DB)
SCUFF FRAME
(S17-326)
USED WITH
STANDARD HEIGHT
FRAME ONLY
SCUFF PANEL
FASTENERS (160-450)
WASHERS (142-002CA)
(4) PLACES
#8-32 SCREW
(160-319)
STRAINER
(P16-075)
DRAIN PLUG
(P16-072)
1/8" RUBBER
CHECK STOP
(S27-102)
HOSE
(269-1735)
DRAIN
ASSEMBLY
WASHER
(125-001DP)
CHECK/STOP VALVE
(S27-102)
#10 SCREW
(P18-054)
1/2" FLEXIBLE
HOSE
(269-653)
1/2" FLEXIBLE
VERNATHERM™ BRACKET
(140-934)
HOSE
(269-1735)
VERNATHERM™
VALV E
(S01-524)
TAILPIECE
(129-056)
P-TRAP (POLYPROPYLENE)
(269-1697)
OPTIONAL P-TRAP
(CHROME-PLATED BRASS)
(S29-094)
12
Express® Deck Lavatory System EXD-Series
EXD-2N Installation Instructions
2/9/07 Bradley Corporation • 215-1542 Rev. E; EN 06-915
Thermostatic Mixing Valve Maintenance and Troubleshooting
NOTE: Before attempting to troubleshoot the valve or disassemble the components, check for the
following conditions:
• If stop/check valves are used, make sure that they are fully open.
• Make sure that the hot and cold inlet pipes are connected properly, and that there are no crossconnections or leaking stop/check valves.
• Check the hot water heater output to make sure that it is at least 20° F above the set
temperature.
Be sure to close the appropriate shut-off valves prior to disassembly of the valve and reopen the
valves after inspection and repair is complete.
Problem: Limited water flow
Cause: Dirt and debris have built up in the valve or strainer.
1. Remove and clean strainer. If strainer needs to be replaced, order Bradley part no. 173-028.
2. Check the piston for smooth movement.
To check the valve's piston for free and smooth movement, follow the procedures outlined below:
1. Remove the valve's cap and thermostat (see Figure 7 on Page 13).
2. Push down on the piston with your finger (the piston should move freely). If the movement is
not as it should be, the piston needs to be cleaned. Follow the method outlined below for
cleaning the piston and valve body:
• Remove the thermostat.
• Lift the piston out with a needle-nose pliers and remove the spring.
• Any cleaner suitable for brass and stainless steel may be used (if cleaning with suitable cleaner
is not sufficient to remove debris, a 400-grit sandpaper may be used to polish and hone the
piston and valve body).
• Snap spring into piston (will detent) and reassemble into the valve body. Retest the piston.
3. If, after a thorough cleaning, the piston does not move freely, the piston must be replaced.
Contact your Bradley representative and ask for Repair Kit (part number S65-259).
Problem: External leaks in the system
Cause: O-rings have been damaged.
Solution: Replace O-rings where necessary. For replacement of the O-rings, contact your
Bradley representative and ask for Repair Kit (part number S65-259).
Problem: Improper water temperature or temperature fluctuation
Cause: Thermostat is slowly failing or not working at all.
Solution: Check the thermostat for proper operation.
1. At room temperature (80° F or less) remove cap and thermostat.
2. Place thermostat into container with 115° F water. The pushrod should pop out of the
thermostat approximately 1/10".
3. If thermostat pushrod does not pop out, the thermostat must be replaced. Contact your Bradley
representative and ask for Repair Kit (part number S65-259).
Cause: Valve temperature is not properly set.
Solution: Adjust the temperature. Using a blade screwdriver, turn the adjustment stem
counterclockwise to increase the temperature or clockwise to decrease the temperature.
13
Express® Deck Lavatory System EXD-Series
Installation Instructions EXD-2N
Bradley Corporation • 215-1542 Rev. E; EN 06-915 2/9/07
Figure 7
Vernatherm™ Thermostatic Mixing Valve S01-524
Repair Kit S65-259
Item Qty Description
Thermostat51
7 1 O-Ring
8 1 O-Ring
10
Nut 3/8-24 Hex Jam
9
Cap
8
O-Ring
7
O-Ring
6
Stem
5
Thermostat
Piston
4
3
Spring
Strainer
(173-028)
11
2
Seal Cup
1
Valve Body
Loading...
