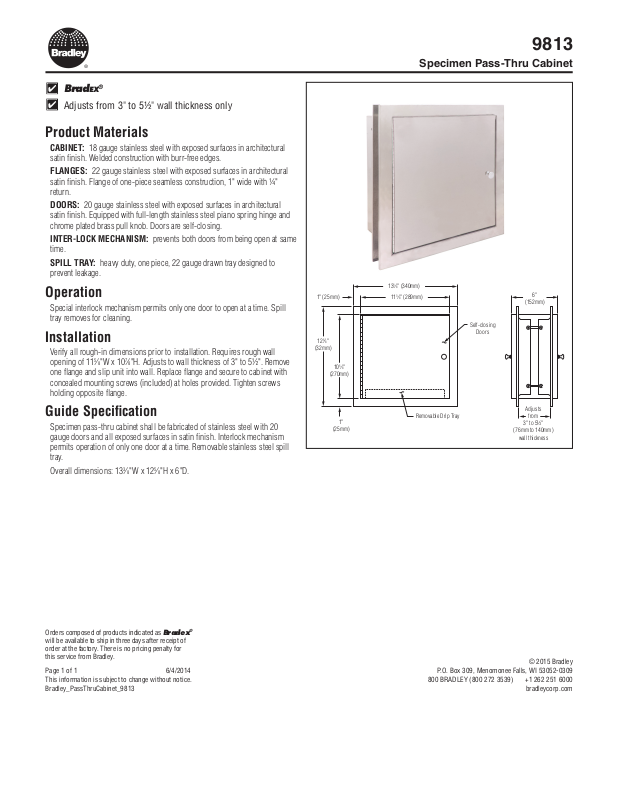

9813
Specimen Pass-Thru Cabinet
Bradex
®
Adjusts from 3" to 5½" wall thickness only
Product Materials
CABINET: 18 gauge stainless steel with exposed surfaces in architectural
satin finish. Welded construction with burr-free edges.
FLANGES: 22 gauge stainless steel with exposed surfaces in architectural
satin finish. Flange of one-piece seamless construction, 1" wide with ¼"
return.
DOORS: 20 gauge stainless steel with exposed surfaces in architectural
satin finish. Equipped with full-length stainless steel piano spring hinge and
chrome plated brass pull knob. Doors are self-closing.
INTER-LOCK MECHANISM: prevents both doors from being open at same
time.
SPILL TRAY: heavy duty, one piece, 22 gauge drawn tray designed to
prevent leakage.
Operation
Special interlock mechanism permits only one door to open at a time. Spill
tray removes for cleaning.
Installation
Verify all rough-in dimensions prior to installation. Requires rough wall
opening of 11
one flange and slip unit into wall. Replace flange and secure to cabinet with
concealed mounting screws (included) at holes provided. Tighten screws
holding opposite flange.
5
⁄8"W x 107⁄8"H. Adjusts to wall thickness of 3" to 5½". Remove
Guide Specification
Specimen pass-thru cabinet shall be fabricated of stainless steel with 20
gauge doors and all exposed surfaces in satin finish. Interlock mechanism
permits operation of only one door at a time. Removable stainless steel spill
tray.
Overall dimensions: 13
3
⁄8"W x 125⁄8"H x 6"D.
1" (25mm)
125⁄8"
(32mm)
105⁄8"
(270mm)
1"
(25mm)
133⁄8" (340mm)
113⁄8" (289mm)
Removable Drip Tray
Self-closing
Doors
6"
(152mm)
Adjusts
from
3" to 5½"
(76mm to 140mm)
wall thickness
Orders composed of products indicated as Bradex®
will be available to ship in three days after receipt of
order at the factory. There is no pricing penalty for
this service from Bradley.
