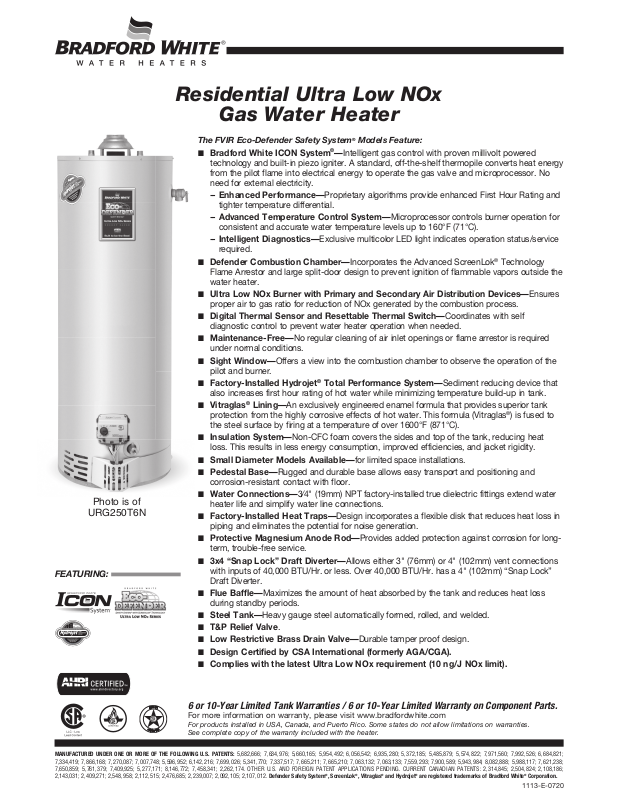

Residential Ultra Low NOx
Gas Water Heater
Photo is of
URG250T6N
FEATURING:
The FVIR Eco-Defender Safety System® Models Feature:
■ Bradford White ICON System
®
—Intelligent gas control with proven millivolt powered
technology and built-in piezo igniter. A standard, off-the-shelf thermopile converts heat energy
from the pilot flame into electrical energy to operate the gas valve and microprocessor. No
need for external electricity.
-- Enhanced Performance—Proprietary algorithms provide enhanced First Hour Rating and
tighter temperature differential.
-- Advanced Temperature Control System—Microprocessor controls burner operation for
consistent and accurate water temperature levels up to 160°F (71°C).
-- Intelligent Diagnostics—Exclusive multicolor LED light indicates operation status/service
required.
■ Defender Combustion Chamber—Incorporates the Advanced ScreenLok
®
Technology
Flame Arrestor and large split-door design to prevent ignition of flammable vapors outside the
water heater.
■ Ultra Low NOx Burner with Primary and Secondary Air Distribution Devices—Ensures
proper air to gas ratio for reduction of NOx generated by the combustion process.
■ Digital Thermal Sensor and Resettable Thermal Switch—Coordinates with self
diagnostic control to prevent water heater operation when needed.
■ Maintenance-Free—No regular cleaning of air inlet openings or flame arrestor is required
under normal conditions.
■ Sight Window—Offers a view into the combustion chamber to observe the operation of the
pilot and burner.
■ Factory-Installed Hydrojet
®
Total Performance System—Sediment reducing device that
also increases first hour rating of hot water while minimizing temperature build-up in tank.
■ Vitraglas
protection from the highly corrosive effects of hot water. This formula (Vitraglas
®
Lining—An exclusively engineered enamel formula that provides superior tank
®
) is fused to
the steel surface by firing at a temperature of over 1600°F (871°C).
■ Insulation System—Non-CFC foam covers the sides and top of the tank, reducing heat
loss. This results in less energy consumption, improved efficiencies, and jacket rigidity.
■ Small Diameter Models Available—for limited space installations.
■ Pedestal Base—Rugged and durable base allows easy transport and positioning and
corrosion-resistant contact with floor.
■ Water Connections—3⁄4" (19mm) NPT factory-installed true dielectric fittings extend water
heater life and simplify water line connections.
■ Factory-Installed Heat Traps—Design incorporates a flexible disk that reduces heat loss in
piping and eliminates the potential for noise generation.
■ Protective Magnesium Anode Rod—Provides added protection against corrosion for long-
term, trouble-free service.
■ 3x4 “Snap Lock” Draft Diverter—Allows either 3" (76mm) or 4" (102mm) vent connections
with inputs of 40,000 BTU/Hr. or less. Over 40,000 BTU/Hr. has a 4" (102mm) “Snap Lock”
Draft Diverter.
■ Flue Baffle—Maximizes the amount of heat absorbed by the tank and reduces heat loss
during standby periods.
■ Steel Tank—Heavy gauge steel automatically formed, rolled, and welded.
■ T&P Relief Valve.
■ Low Restrictive Brass Drain Valve—Durable tamper proof design.
■ Design Certified by CSA International (formerly AGA/CGA).
■ Complies with the latest Ultra Low NOx requirement (10 ng/J NOx limit).
6 or 10-Year Limited Tank Warranties / 6 or 10- Year Limited Warranty on Component Parts.
For more information on warranty, please visit www.bradfordwhite.com
For products installed in USA, Canada, and Puerto Rico. Some states do not allow limitations on warranties.
See complete copy of the warranty included with the heater.
MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,682,666; 7,634,976; 5,660,165; 5,954,492; 6,056,542; 6,935,280; 5,372,185; 5,485,879; 5,574,822; 7,971,560; 7,992,526; 6,684,821;
7,334,419; 7,866,168; 7,270,087; 7,007,748; 5,596,952; 6,142,216; 7,699,026; 5,341,770; 7,337,517; 7,665,211; 7,665,210; 7,063,132; 7,063,133; 7,559,293; 7,900,589; 5,943,984; 8,082,888; 5,988,117; 7,621,238;
7,650,859; 5,761,379; 7,409,925; 5,277,171; 8,146,772; 7,458,341; 2,262,174. OTHER U.S. AND FOREIGN PATENT APPLICATIONS PENDING. CURRENT CANADIAN PATENTS: 2,314,845; 2,504,824; 2,108,186;
2,143,031; 2,409,271; 2,548,958; 2,112,515; 2,476,685; 2,239,007; 2,092,105; 2,107,012. Defender Safety System
®
, ScreenLok®, Vitraglas® and Hydrojet® are registered trademarks of Bradford White® Corporation.
1113-E-0720
Ultra Low NOx Models
5115/16
497/8
591/2
497/8
41
57
7
/8
497/8
405/8
497/8
1319
1267
1511
1267
1041
1470
1267
1031
1267
Liters
Residential Ultra Low NOx Gas Water Heater
C
NATURAL GAS
Model
Number
●
URG130T6N
●
URG230T6N
●
URG140T6N
●
URG240T6N
●
URG240S6N
●
URG150T6N
●
URG250T6N
URG250L6N
●
URG250S6N
Model
Number
●
URG130T6N
●
URG230T6N
●
URG140T6N
●
URG240T6N
●
URG240S6N
●
URG150T6N
●
URG250T6N
URG250L6N
●
URG250S6N
Model
Number
●
URG130T6N
●
URG230T6N
●
URG140T6N
●
URG240T6N
●
URG240S6N
●
URG150T6N
●
URG250T6N
URG250L6N
●
URG250S6N
Available in Natural Gas only.
For 10 year models, change suffix from “6” to “10”.
* Based on manufacturers rated recovery efficiency.
• Models feature optional top T&P location and must be specified
when ordering. Note: URG250L6N does not have top T&P option.
Uniform Energy Factor and First Hour Rating is based
on the latest AHRI directory listings.
General:
Meets NAECA Requirements.
All gas water heaters are certified at 300 PSI test pressure (2068 kPa) and 150
PSI working pressure (1034 kPa). All water connections are 3⁄4” NPT (19mm)
on 8" (203mm) centers. All gas connections are 1⁄2" (13mm). All models
design-certified by CSA International (formerly AGA/CGA), to meet ANSI
standard Z21.10.1 and peak performance rated.
Dimensions and specifications subject to change without notice in
accordance with our policy of continuous product improvement.
Suitable for Water (Potable) Heating and Space Heating. Toxic chemicals,
such as those used for boiler treatment, shall NEVER be introduced into this
system. This unit may NEVER be connected to any existing heating system
or component(s) previously used with a non-potable water heating appliance.
Nominal
Gal.
Capacity
U.S.
Gal.
30
30
40
40
40
50
50
48
50
A
Floor to
Flue
Conn.
in.
15
59
5615/16
611/2
605/16
513/4
605/16
605/16
5113/16
605/8
A
Floor to
Fluet
Conn.
mm.
1522
1446
1562
1532
1314
1532
1532
1316
1540
Imp.
Gal.
25
25
33
33
33
42
42
40
42
/16
DOE
Rated
Storage
Volume
(Gal.)
29
29
38
38
38
47
48
47
47
B
Jacket
Dia.
in.
16
18
18
20
22
20
22
24
22
B
Jacket
Dia.
mm.
406
457
457
508
559
508
559
610
559
BTU/Hr.
Input
27,000
32,000
34,000
40,000
40,000
34,000
40,000
40,000
50,000
76 or 102
76 or 102
76 or 102
76 or 102
76 or 102
76 or 102
76 or 102
76 or 102
C
Vent
Size
in.
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
4
C
Vent
Size
mm.
102
First
Hour
Rating
(Gal.)
46
60
64
75
69
75
81
77
75
Uniform
Energy
D
Floor to
T&P
Conn.
in.
3
/8
56
563/8
591/2
565/8
471/4
563/8
57
5
40
/8
57
D
Floor to
T&P
Conn.
mm.
1432
1432
1511
1438
1200
1432
1448
1032
1448
Factor
0.54
0.60
0.59
0.64
0.58
0.63
0.63
0.63
0.63
Recovery at
90°F Rise*
U.S.
GPH
29
34
37
43
43
37
43
43
54
E
Floor to
Gas
Conn.
in.
7
11
/16
117/16
117/16
117/16
117/16
117/16
117/16
117/16
117/16
E
Floor to
Gas
Conn.
mm.
291
291
291
291
291
291
291
291
291
Imp.
GPH
24
28
31
36
36
31
36
36
45
F
Floor to
Top of
Heater
in.
3
56
/8
563/8
5715/16
563/4
483/16
563/4
5611/16
483/16
563/4
F
Floor to
Top of
Heater
mm.
1432
1432
1472
1441
1224
1441
1440
1224
1441
Model
Number
●
URG130T6N
●
URG230T6N
●
URG140T6N
●
URG240T6N
●
URG240S6N
●
URG150T6N
●
URG250T6N
URG250L6N
●
URG250S6N
Floor to
Water
Conn.
56
575/16
591/2
573/4
497/16
577/8
581/16
499/16
5715/16
Floor to
Water
Conn.
mm.
1446
1456
1511
1467
1256
1470
1475
1259
1471
H
Optional
Top
T&P Valve
Meet or exceed ASHRAE 90.1b (current standard) C.E.C. Listed
Recovery efficiency ranging up to 80%
Nominal
Liter
Capacity
114
114
151
151
151
189
189
182
189
G
in.
15
/16
G
H
Depth
in.
1
20
213/16
223/16
233/16
253/16
243/16
253/8
273/16
253/16
H
Depth
mm.
510
538
564
589
640
614
645
691
640
DOE
Rated
Storage
Volume
(Liters)
110
110
144
144
144
178
182
178
178
/16
kW
Input
7.9
9.4
10.0
11.7
11.7
10.0
11.7
11.7
14.7
J
C/L of
Water
Conn.
in.
8
8
8
8
8
8
8
8
8
J
C/L of
Water
Conn.
mm.
203
203
203
203
203
203
203
203
203
First
Hour
Rating
(Liters)
174
227
243
284
262
284
307
292
284
M
Water
Conn.
NPT
in.
3
/4
3
/4
3
/4
3
/4
3
/4
3
/4
3
/4
3
/4
3
/4
M
Water
Conn.
NPT
mm.
19
19
19
19
19
19
19
19
19
J
B
MM
G
F
S
E
Uniform
Energy
Factor
0.54
0.60
0.59
0.64
0.58
0.63
0.63
0.63
0.63
Conn.
S
Gas
Size
in.
1
/2
1
/2
1
/2
1
/2
1
/2
1
/2
1
/2
1
/2
1
/2
S
Gas
Conn.
Size
mm.
13
13
13
13
13
13
13
13
13
Recovery at
50°C Rise*
Liters/
Hour
110
129
139
163
163
139
163
163
204
Approx.
Shipping
Weight
lbs.
112
119
130
137
149
153
160
174
169
Approx.
Shipping
Weight
kg.
51
54
59
62
68
69
73
79
77
D
A
For field service, contact your professional installer or local Bradford White sales representative.
Sales 800-523-2931 n Fax 215-641-1612
Technical Support 800-334-3393
Warranty 800-531-2111
n
n
Email techserv@bradfordwhite.com
Email warranty@bradfordwhite.com
International: Telephone 1-215-641-9400 n Email international@bradfordwhite.com / www.bradfordwhite.com
©2020, Bradford White Corporation. All rights reserved.
Printed in U.S.A.1113-E-0720
