Bradford White M-I-60T6FSX User Manual

GAS-FIRED WATER HEATER

A Spanish language version of these instructions is available by contacting the
company listed on the rating plate.
La version espanola de estas instrucciones se puede obtener al escribirle
a la fabrica cuyo nombre aparece en la placa de especificaciones.

INSTALLATION &

OPERATING

INSTRUCTION MANUAL

WARNING: If the information in these instructions is not

followed exactly, a fire or explosion may result causing
property damage, personal injury or death.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable,
combustible, or corrosive vapors and liquids in the
vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neighbor’s

phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire

department.

Installation and service must be performed by a qualified

INTERNET VERSION FOR REFERENCE ONLY

installer, service agency or the gas supplier.

For your family’s comfort, safety and convenience, we
recommend this water heater be installed and serviced by a
plumbing professional.

TABLE OF CONTENTS

page

GENERAL INFORMATION............................................................ 3

INSTALLATION

Locating The Water Heater.................................................... 5

Minimum Clearances............................................................... 8

Venting...................................................................................... 9

Combustion Air Supply ............................................................ 10

Water Connections.................................................................. 12

Gas Connections..................................................................... 15

GENERAL OPERATION ................................................................ 16

Lighting and Shutdown Instructions..................................... 17

Thermostat Adjustment........................................................... 18

Burner Flame Check ............................................................... 19

MAINTENANCE .............................................................................. 20

PARTS LIST.................................................................................... 24

PARTS LIST DRAWING................................................................. 24

INSTALLATION INSTRUCTIONS FOR POTABLE WATER AND

SPACE HEATING ........................................................................... 25

NOTES ............................................................................................ 26

INTERNET VERSION FOR REFERENCE ONLY

GENERAL INFORMATION

This gas -fired water heater is design certified by CSA International under the
applicable American National Standard, Z21.10.1 or Z21.10.3-(as indicated on
the rating plate), or CSA 4.1-(as indicated on the rating plate), available from
CSA International, 8501 East Pleasant Valley Road, Cleveland, OH U.S.A.
44131-5575.

This water heater must be installed in accordance with local codes. In the
absence of local codes, it must be installed in compliance with the National
Fuel Gas Code (ANSI Z223.1-Latest Edition), or in Canada CAN/CGA B149.1
Natural Gas Installation Code (Latest Edition) or CAN/CGA B149.2 Propane
Installation Code (Latest Edition). The warranty for this water heater is in effect
only when the water heater is installed, adjusted, and operated in accordance
with these Installation and Operating Instructions. The manufacturer will not be
liable for any damage resulting from alteration and/or failure to comply with
these instructions.

This water heater is not design certified for installation in a mobile home. Such
an installation may create a hazardous condition and will nullify the warranty.

This water heater has been designed and certified for the purpose of heating
potable water. The installation and use of this water heater for any purpose
other than the heating of potable water may cause damage to the water heater,
create a hazardous condition, and nullify the warranty.

CAUTION

Incorrect operation of this appliance may create a hazard to life and
property and will nullify the warranty.

Do not use this appliance if any part has been submerged in water. Immediately
call a qualified service technician to inspect the appliance and to replace any
part of the control system and any gas control which has been under water.
Depending upon the individual circumstances, it may be necessary to replac e

INTERNET VERSION FOR REFERENCE ONLY

the entire water heater.

DANGER

Do not store or use gasoline or other flammable, combustible, or
corrosive vapors and liquids in the vicinity of this or any other
appliance.

General Information continued -

IMPORTANT

Before proceeding, please inspect the water heater and components for
possible damage. DO NOT install any damaged components. If damage is
evident then please contact the supplier where the water heater was
purchased or the manufacturer listed on the rating plate for replacement
parts.

This water heater has been manufactured for operation at altitudes from sea
level to 2000 feet (610m). For use of this appliance at an elevation greater than
2000 feet (610m), contact the dealer or manufacturer listed on the rating plate
for information on any necessary modification. Uncorrected operation of this
appliance may create a hazard to life and property.

Make sure that you check the rating plate and combination gas control on the
water heater to be certain that the type of gas being supplied corresponds with
the marking on the rating plate and combination gas control.

A sacrificial anode is used to extend tank life. The removal of this anode, for any
reason, will nullify the warranty. In areas where water is unusually active, an
odor may occur at the hot water faucet due to a reaction between the sacrificial
anode and the impurities in the water. If this should happen, an alternative anode
may be purchased from the supplier that installed this water heater. This will
minimize the odor while protecting the tank. Additionally, the water heater
should be flushed with appropriate dissolvers to eliminate any bacteria.

INTERNET VERSION FOR REFERENCE ONLY

INSTALLATION

LOCATING THE WA TER HEATER

WARNING

Water heaters are heat producing appliances. To avoid damage or injury
there shall be no materials stored against the water heater or vent -air intake
system and proper care shall be taken to avoid unnecessary contact
(especially by children) with the water heater and vent -air intake components.

UNDER NO CIRCUMSTANCES SHALL FLAMMABLE MATERIALS, SUCH
AS GASOLINE OR PAINT THINNER BE USED OR STORED IN THE
VICINITY OF THIS WATER HEATER, VENT-AIR INTAKE SYSTEM OR IN
ANY LOCATION FROM WHICH FUMES COULD REACH THE WATER
HEATER OR VENT-AIR INTAKE SYSTEM.

This water heater MUST NOT be installed in any location where gasoline
or flammable vapors are likely to be present, unless the installation is
such to eliminate the probable ignition of gasoline or flammable vapors.

Water heaters in residenti al garages shall be installed so that all
burner(s) and burner ignition device(s) are located not less than 18
inches (45.7 cm) above the floor and be located, or protected, to avoid
physical damage. For other installations refer to local codes. In the
absence of local codes, the water heater shall be installed in
compliance with the National Fuel Gas Code, (ANSI Z223.1- Latest
Edition), or in Canada CAN/CGA B149.1 Natural Gas Installation Code
(Latest Edition) or CAN/CGA B149.2 Propane Installation Code (Latest
Edition).

The location of this water heater is of the utmost importance. Before installing
this water heater, you should read the Installation section of these instructions.
After reading these Installation and Operating Instructions, select a location for
the water heater where the floor is level and is easily accessible to gas and
water supply lines. DO NOT locate the water heater where water lines

could be subjected to freezing temperatures. Make sure the cold water
pipes are not located directly above the gas control so that condensate

INTERNET VERSION FOR REFERENCE ONLY

during humid weather does not drip on the controls.

Installation (Locating The Water Heater) continued -

Water heater corrosion and component failure can be caused by the heating and
breakdown of airborne chemical vapors. Examples of some typical compounds
that are potentially corrosive are: spray can propellants, cleaning solvents,
refrigerator and air conditioning refrigerants, swimming pool chemicals, calcium
and sodium chloride, waxes and process chemicals. These materials are
corrosive at very low concentration levels with little or no odor to reveal their
presence. NOTE: DAMAGE TO THE WATER HEATER CAUSED BY

EXPOSURE TO CORROSIVE VAPORS IS NOT COVERED BY THE
WARRANTY. DO NOT OPERATE THE WATER HEATER IF EXPOSURE HAS
OR WILL OCCUR. DO NOT STORE ANY POTENTIALLY CORROSIVE
COMPOUNDS IN THE VICINITY OF THE WATER HEATER.

WARNING

Liquefied petroleum gases/propane gas are heavier than air and will remain
at floor level if there is a leak. Basements, crawl spaces, closets and areas
below ground level will serve as pockets for accumulation of leaking gas.
Before lighting, smell all around the appliance area for gas. Be sure to smell
next to the floor.

IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any telephone in your

building.

• Immediately call your gas supplier from a neighbor’s telephone. Follow
the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire depart ment.

DO NOT OPERATE APPLIANCE UNTIL LEAKAGE IS CORRECTED!

INTERNET VERSION FOR REFERENCE ONLY

Installation (Locating The Water Heater) continued -

WARNING

DO NOT ATTEMPT TO LIGHT ANY GAS APPLIANCE IF YOU ARE NOT
CERTAIN OF THE FOLLOWING:

• Liquefied petroleum gases/propane gas and natural gas have an odorant
added by the gas supplier that aids in detection of the gas.

• Most people recognize this odor as a “sulfur” or “rotten egg” smell.

• Other conditions, such as “odorant fade” can cause the odorant to

diminish in intensity, or “fade”, and not be as readily detectable.

• If you have a diminished sense of smell, or are in any way unsure of the
presence of gas, immediately contact your gas supplier from a
neighbor’s telephone.

• Gas detectors are available. Contact your gas supplier or plumbing

professional for more information.

Proper venting practices must be considered when selecting a location for this
water heater. For exact venting specifications, please consult the Venting
section, located on page 9, of these Installation and Operating Instructions.

This water heater must be located in an area where leakage of the tank, water
line connections, or the combination temperature and pressure relief valve will
not result in damage to the area adjacent to the water heater or to lower floors of
the structure. When such locations cannot be avoided, a suitable drain pan
must be installed under the water heater. The drain pan must be no greater
than 1-½ inches (3.8 cm) deep and have a minimum length and width of at least
four (4) inches (10.2 cm) measured from the jacket of the water heater. The
drain pan, as described above, can be purchased from your plumbing
professional. The drain pan must be piped to an adequate drain. The piping
must be at least 3/4 inch (1.9 cm) in diameter and pitched for proper drainage.

It is recommended that a minimum clearance of four (4) inches (10.2 cm) be
provided on the side of the water heater for servicing and maintenance of the
combination temperature and pressure relief valve.

INTERNET VERSION FOR REFERENCE ONLY

Installation (continued)-

MINIMUM CLEARANCES

WARNING

Failure to adhere to these installation and operating instructions may
create a hazard to life and property and will nullify the warranty.

This installation shall allow access to the front of the water heater and adequate
clearance shall be provided for servicing and operating this water heater. The
water heater may be installed on either a combustible or non-combustible floor.
If the water heater is to be installed directly on carpeting, it shall be installed on
top of a metal or wood panel (or equivalent) extending beyond the full width and
depth of the appliance by at least three (3) inches (7.6 cm) in any direction or, if
the appliance is to be installed in an alcove or closet, the entire floor shall be
covered by the panel. If the rating plate or the label on the front of the

heater specifies minimum clearances less than those listed in the below
table, the water heater may be installed in accordance with the
minimum clearances listed on the rating plate or the label on the front of
the heater.

If it is necessary to install this water heater in an alcove, use the clearances
listed in the following table and Figure 1.

Minimum Clearances From

INTERNET VERSION FOR REFERENCE ONLY

Combustible Materials

For Alcove Installation

A 6” (15.2cm)
B 6” (15.2cm)
C 26” (66cm)
VENT 6” (15.2 cm)

Figure 1

Installation (continued)-

VENTING

WARNING

The vent system must be installed properly. Failure to properly install the
vent system could result in property damage, personal injury, or death.

Place the draft diverter over the flue opening at the top of the water heater by
inserting the tips of the draft diverter legs into the four (4) holes provided in the
water heater top. On some models, line up the holes in the draft diverter legs
with the holes provided on top of the water heat er. Secure the draft diverter to
the water heater with sheet metal screws. (See Figure 5)

Vent piping must be attached to the draft diverter outlet to connect the water
heater to the gas vent or chimney. The following minimum clearances must be
followed when connecting vent piping:
a) The vent connector must be the same nominal size as the draft
diverter.
b) The vent connector should not exceed 15 feet (4.5m) in length (for
power vent appliances, refer to supplemental instructions), must not
project into the chimney beyond the inner wall and should contain the
least possible number of bends.
c) All horizontal runs should have a minimum rise of ¼ inch per foot
(2.1cm/m).
d) Joints of vent connectors shall be securely fastened by sheet metal
screws or other approved methods.
e) All single wall vent connectors must be at least 6” (15cm) from
combustible surfaces.
f) Vent connectors made of single-wall metal pipe shall not pass
through any attic, inside wall, concealed space, or any floor. When a
single-wall metal pipe passes through an exterior wall constructed of
combustible material, it shall be guarded at the point of passage by a
ventilated metal thimble at least 4” (10cm) larger in diameter than the
connector. (Consult National Fuel Gas Code, ANSI Z223.1and/or
CAN/CGA B149, Installation Codes).

INTERNET VERSION FOR REFERENCE ONLY

A separate vent for each application is strongly recommended. If combined
venting of multiple appliances is necessary or if an unusual situation arises,
consult the National Fuel Gas Code, ANSI Z223.1and/or CAN/CGA B149,
Installation Codes, for sizing and installation information.

Combustion Air Supply

WARNING

Liquefied petroleum gases/propane gas are heavier than air and will remain
at floor level if there is a leak. Basements, crawl spaces, closets and areas
below ground level will serve as pockets for accumulation of leaking gas.
Before lighting, smell all around the appliance area for gas. Be sure to smell
next to the floor.

IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any telephone in your

building.

• Immediately call your gas supplier from a neighbor’s telephone. Follow
the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

DO NOT OPERATE APPLIANCE UNTIL LEAKAGE IS CORRECTED!

IMPORTANT

The flow of combustion and ventilating air must not be obstructed.

Provide adequate air for combustion and ventilation. An insufficient supply of air
will cause recirculation of combustion products resulting in air contamination
that may be hazardous to life. Such a condition often will result in a yellow,
luminous burner flame, causing carboning or sooting of the combustion
chamber, burners and flue tubes with possible damage to the water heater.

When an exhaust fan is installed in the same room with a heater, sufficient
openings for air must be provided in the walls. Undersized openings will cause
air to be drawn into the room through the chimney, causing recirculation of
combustion products.

Confined Spaces

Confined spaces are spaces defined as having less than 50 ft.3/1000 BTU
(15m3/.29kw) per hour.

INTERNET VERSION FOR REFERENCE ONLY

Unconfined Spaces
In unconfined spaces in buildings, infiltration may be adequate to provide air for
combustion, ventilation and dilution of flue gases. However, in buildings of tight
construction (for example, weather stripping, heavily insulated, caulked, vapor
barrier, etc.), additional air may need to be provided using the methods
described above under CONFINED SPACES: All Air From Outdoors or
SPECIALLY ENGINEERED INSTALLATIONS.

Installation (Combustion Air Supply) continued -

All Air From Inside the Building: The confined space shall be provided with
two permanent openings communicating directly with an additional room(s) of
sufficient volume so that the combined volume of all spaces meets the criteria
for an unconfined space. The total input of all gas utilization equipment installed
in the combined space shall be cons idered in making this determination. Each
opening shall have a minimum free area of 1 square inch per 1000 BTU
(2.54cm2/.29kw) per hour of the total input rating of all gas utilization equipment
in the confined space, but not less than 100 square inches (254cm2). One
opening shall be within 12 inches (31cm) of the top and one within 12 inches
(31cm) of the bottom of the enclosure.

All Air From Outdoors: The confined space shall be provided with two
permanent openings, one commencing within 12 inches (31cm) of the top and
one commencing within 12 inches (31cm) from the bottom of the enclosure.
The openings shall communicate directly, or by ducts, with the outdoors or
spaces (crawl or attic) that freely communicate with the outdoors.

1. When directly communicating with the outdoors, each opening shall have a
minimum free area of 1 square inch per 4000 BTU (2.54cm2/1.2kw) per hour
of total input rating of all equipment in the enclosure.

2. When communicating with the outdoors through vertical ducts, each
opening shall have a minimum free area of 1 square inch per 4000 BTU
(2.54cm2/1.2kw) per hour of total input rating of all equipment in the
enclosure.

3. When communicating with the outdoors through horizontal ducts, each
opening shall have a minimum free area of 1 square inch per 2000 BTU
(2.54cm2/.6kw) per hour of total input rating of all equipment in the
enclosure.

4. When ducts are used, they shall be of the same cross-sectional area as the
free area of the openings to which they connect. The minimum dimension
of rectangular air ducts shall be not less than 3 inches (7.5cm)

Specially Engineered Installations
The requirements noted under CONFINED SPACES above shall not necessarily
govern when special engineering, approved by the authority having jurisdiction,
provides an adequate supply of air for combustion, ventilation, and dilution of flue
gases.

INTERNET VERSION FOR REFERENCE ONLY

WATER CONNECTIONS

Note: BEFORE PROCEEDING WITH THE INSTALLATION, CLOSE THE
MAIN WATER SUPPLY VALVE.

After shutting off the main water supply, open a faucet to relieve the water line
pressure to prevent any water from leaking out of the pipes while making the
water connections to the water heater. After the pressure has been relieved,
close the faucet. The COLD water inlet and HOT water outlet are identified on
the top of the water heater. The fittings at the cold water inlet and hot water
outlet are dielectric waterway fittings with 3/4” NPT male thread. Make the
proper plumbing connections between the water heater and the plumbing
system to the house. Install a shut -off valve in the cold water supply line.

CAUTION

If sweat fittings are to be use, DO NOT apply heat to the nipples on top of the
water heater. Sweat the tubing to the adapter before fitting the adapter to the
water connections. It is imperative that heat is not applied to the nipples
containing a plastic liner.

WARNING

FAILURE TO INSTALL AND MAINTAIN A NEW, LISTED 3/4” X 3/4”
TEMPERATURE AND PRESSURE RELIEF VALVE WILL RELEASE THE
MANUFACTURER FROM ANY CLAIM WHICH MIGHT RESULT FROM
EXCESSIVE TEMPERATURE AND PRESSURES.

If this water heater is installed in a closed water supply system, such as the
one having a back-flow preventer in the cold water supply, provisions shall be
made to control thermal expansion. DO NOT operate this water heater in a
closed system without provisions for controlling thermal expansion. Your water
supplier or local plumbing inspector should be contacted on how to control this
situation

After installation of the water lines, open the main water supply valve and fill the
water heater. While the water heater is filling, open several hot water faucets to
allow air to escape from the water system. When a steady stream of water
flows through the faucets, close them and chec k all water connections for
possible leaks. NEVER OPERATE THE WATER HEATER WITHOUT FIRST

INTERNET VERSION FOR REFERENCE ONLY

BEING CERTAIN IT IS FILLED WITH WATER.

WARNING

For protection against excessive temperatures and pressure, install
temperature and pressure protective equipment required by local codes, but
not less than a combination temperature and pressure relief valve certified
by a nationally recognized testing laboratory that maintains periodic
inspection of production of listed equipment or materials as meeting the
requirements of the Standard for Relief Valves and Automatic Gas Shutoff

Devices for Hot Water Supply Systems, ANSI Z21.22 or the Standard
CAN1-4.4. Temperature and Pressure and the Standard CAN1-4.4,
Temperature, Pressure, Temperature and Pressure Relief Valves and
Vacuum Relief Valves . The combination temperature and pressure relief

valve shall be marked with a maximum set pressure not to exceed the
maximum working pressure of the water heater. The combination
temperature and pressure relief valve shall also have an hourly rated
temperature steam BTU discharge capacity not less than the hourly rating
of the water heater.

Install the combination temperature and pressure relief valve into the opening
provided and marked for this purpose on the water heater.

Note: Some models may already be equipped or supplied with a
combination temperature and pressure relief valve. Verify that the
combination temperature and pressure relief valve complies with local
codes. If the combination temperat ure and pressure relief valve does not
comply with local codes, replace it with one that does. Follow the
installation instructions above on this page.

Install a discharge line so that water discharged from the combination
temperature and pressure relief valve will exit within six (6) inches (15.2 cm)
above, or any distance below the structural floor and cannot contact any live
electrical part. The discharge line is to be installed to allow for complete
drainage of both the combination temperature and pressure relief valve and
the discharge line. The discharge opening must not be subjected to
blockage or freezing. DO NOT thread, plug or cap the discharge line. It is
recommended that a minimum clearance of four (4) inches (10.2 cm) be
provided on the side of the water heater for servicing and maintenance of the

INTERNET VERSION FOR REFERENCE ONLY

combination temperature and pressure relief valve.
Do not place a valve between the combination temperature and pressure

relief valve and the tank.

Installation (Water Connections) continued -

WARNING

Hydrogen gas can be produced in an operating water heater that has
not had water drawn from the tank for a long period of time (generally
two weeks or more). Hydrogen gas is extremely flammable. To
prevent the possibility of injury under these conditions, we recommend
the hot water faucet to be open for several minutes at the kitchen sink
before you use any electrical appliance which is connected to the hot
water system. If hydrogen is present, there will be an unusual sound
such as air escaping through the pipes as hot water begins to flow. Do
not smoke or have open flame near the faucet at the time it is open.

This water heater can deliver scalding temperature water at any faucet in the
system. Be careful whenever using hot water to avoid scalding injury. Certain
appliances such as dishwashers and automatic clothes washers may require
increased temperature water. By setting the thermostat on this water heater to
obtain the increased temperature water required by these appliances, the
potential for scald injury increases. To protect against injury, you should install
an ASSE approved mixing valve in the water system. This valve will reduce
point of discharge temperature by mixing cold and hot water in branch supply
lines. Such valves are available from the manufacturer of this water heater or a
local plumbing supplier. Please consult with a plumbing professional.

INTERNET VERSION FOR REFERENCE ONLY

GAS CONNECTIONS

The gas supply lines must meet all requirements of the National Fuel Gas Code
ANSI Z223.1-(Latest Edition) and/or in Canada CAN/CGA B149 Installation
Codes - (Latest Editions).

The minimum permissible gas supply pressure for the purpose of input
adjustment is 1.0” water column (.25kPa) above the operating manifold
pressure. See the rating plate and combination gas control for the manifold
pressure and gas type. The maximum permissible gas supply pressure is 14.0”
water column (3.5kPa) for natural gas and liquefied petroleum gases/propane
gas.

1. Connect this water heater only to the type of gas (Natural or Propane gas)
as shown on the rating plate. Use clean 1/2 inch black iron pipe. (Dirt and
scale from the pipe can enter the combination control and cause it to
malfunction). The inlet gas line must have a minimum length of 3” (7.6 cm)
drip leg (sediment trap) installed as close to the water heater’s combination
gas control as possible. A ground joint union must be installed in the gas
supply line feeding the water heater to permit servicing of the water heater.
Compounds used on the threaded joints of the gas piping must be resistant
to the action of liquefied petroleum gases/propane gas.

2. This water heater and its gas connection must be leak tested before placing
the water heater in operation. Check for gas leaks with a soap and water
solution and a brush or a commercial leak detector fluid. NEVER USE A

MATCH OR OPEN FLAME FOR TESTING!

CAUTION

The water heater and individual shutoff valve must be disconnected from the
gas supply piping system during any pressure testing of the system at test
pressures in excess of 1/2 psi (3.5 kPa). The water heater must be
isolated from the gas supply piping system by closing its manual shutoff
valve during any pressure testing of the gas supply system at test
pressures equal to or less than 1/2 psi (3.5 kPa). The supply line must be
capped when not connected to the water heater.

INTERNET VERSION FOR REFERENCE ONLY

GENERAL OPERATION

WARNING

Water heaters are heat producing appliances. To avoid damage or injury
there shall be no materials stored against the water heater or vent -air intake
system, and proper care shall be taken to avoid unnecessary contact
(especially by children) with the water heater and vent -air intake system.

UNDER NO CIRCUMSTANCES SHALL FLAMMABLE MATERIALS, SUCH
AS GASOLINE OR PAINT THINNER BE USED OR STORED IN THE
VICINITY OF THIS WATER HEATER, VENT-AIR INTAKE SYSTEM OR IN
ANY LOCATION FROM WHICH FUMES COULD REACH THE WATER
HEATER OR VENT-AIR INTAKE SYSTEM.

TO FILL THE WATER HEATER

1. Close the water heater drain valve by turning the knob clockwise

2. Open the cold water supply shut -off valve.

3. Open several hot water faucets to allow air to escape from the system.

4. When a steady stream of water flows from the faucets, the water heater is
filled. Close the faucets and check for water leaks at the water heater drain
valve, combination temperature and pressure relief valve and the hot and
cold water connections.

TO DRAIN THE WATER HEATER
Should it become necessary to completely drain the water heater, make sure
you follow the steps below:

1. Rotate the thermostat dial counter-clockwise
position.

2. Rotate gas control knob clockwise

to the lowest possible

to the “OFF” position.

3. Shut off the gas supply to the water heater.

4. Close the cold water supply shut -off valve.

5. Open the drain valve on the water heater by turning the knob counter­clockwise

. The drain valve has threads on the end that will allow the

connection of a standard hose coupling.

6. Open a hot water faucet to allow air to enter the system.

To refill the water heater, refer to “To Fill the Water Heater.”

INTERNET VERSION FOR REFERENCE ONLY

General Operation (continued)-

.

INTERNET VERSION FOR REFERENCE ONLY

THERMOSTAT ADJUSTMENT

The thermostat dial is set to its lowest temperature setting when shipped from
the factory. Remember that lower temperature settings are more energy
efficient. Adjust the temperature by turning the thermostat dial. It is
suggested that the starting point setting not be greater than the “ “ mark on
the thermostat dial (approximately 120°F [49°C]) as indicated below. Rotate the

thermostat dial clockwise
the thermostat dial counter-clockwise

to increase the temperat ure setting. Rotate

to decrease the temperature
setting. Adjust the thermostat dial until the minimum acceptable temperature is
achieved (See figure below for approximate temperature settings).

Figure 2

DANGER

Hotter water increases the risk of scald injury. Scalding may occur within
five (5) seconds at a temperature setting of 135°F (57°C). To protect against
hot water injury, ins tall an ASSE approved mixing valve in the water system.
This valve will reduce point of discharge temperature by mixing cold and hot
water in branch water lines. A licensed plumbing professional or local
plumbing authority should be consulted.
Note: This water heater is equipped with an energy cut out device to

INTERNET VERSION FOR REFERENCE ONLY

prevent overheating. Should overheating occur or the gas supply fail to
shut off, turn off the manual gas control valve to the appliance and call a
qualified service technician.
Note: Whenever the water heater is filled with cold water, condensate will
form on the cool tank surface and drops of water will fall on the hot burner
and combustion chamber surfaces producing a “sizzling” noise.
Condensation is normal and does not indicate a leak. It will disappear
when the tank becomes heated.

General Operation (continued)-

BURNER FLAME CHECKS

Cast Iron Burner: At the time of installation and at periodic intervals (not more

than 6 months), a visual check of the main burner and pilot flames should be
made to determine if they are burning properly. For ideal operation, the gas and
air must be properly proportioned. The proper air-gas mixture is obtained by
adjusting the air shutter on the mixer face of the main burner (See Figure 4). To
adjust for proper burning, loosen the air shutter nut, rotate shutter to close the
opening in the burner then slowly rotate the shutter until the yellow tips
disappear and the flame becomes blue. Tighten the air shutter nut. Too much
air will cause the flame to lift off the burner ports and create noisy operation.
Too little air will result in soot formation. The main burner flame should light
smoothly from the pilot.

Steel Burner: These models are equipped with self adjusting air mixture and
do not have an adjustable air shutter (See Figure 3). At periodic intervals, a
visual check of the main burner and pilot flames should be made to determine if
they are burning properly. The main burner flame should light smoothly from the
pilot.

Figure 4

INTERNET VERSION FOR REFERENCE ONLY

Figure 3

19

MAINTENANCE

WARNING

Water heaters are heat producing appliances. To avoid damage or injury there
shall be no materials stored against the water heater or vent -air intake
system, and proper care shall be taken to avoid unnecessary cont act
(especially by children) with the water heater and vent -air intake system.

UNDER NO CIRCUMSTANCES SHALL FLAMMABLE MATERIALS, SUCH
AS GASOLINE OR PAINT THINNER BE USED OR STORED IN THE
VICINITY OF THIS WATER HEATER, VENT-AIR INTAKE SYSTEM OR IN
ANY LOCATION FROM WHICH FUMES COULD REACH THE WATER
HEATER OR VENT-AIR INTAKE SYSTEM.

IMPORTANT

The water heater should be inspected at a minimum annually by a
qualified service technician for damaged components and/or joints not
sealed. DO NOT opera te this water heater if any part is found
damaged or if any joint is found not sealed.

The following maintenance should be performed by a qualified service technician
at the minimum periodic intervals suggested below. In some installations, the
maintenance interval may be more frequent depending on the amount of use and
the operating conditions of the water heater. Regular inspection and
maintenance of the water heater and vent -air intake system will help to insure
safe and reliable operation.

1. Annually check the operation of the thermostat.

2. The flow of combustion and ventilation air MUST NOT be restricted. Clear

the combustion air openings of any dirt, dust, or other restrictions.
WARNING! The ventilation air system may be HOT.

3. At all times keep the water heater area clear and free from combustible

materials, gasoline and other flammable vapors and liquids.

INTERNET VERSION FOR REFERENCE ONLY

4. Bi-annually conduct a visual check of the main and pilot burner flames to

determine that they are burning properly. See Burner Flame Check section
on page 19.

20

Maintenance (continued)-

5. Annually remove the inner door and main burner assembly to clean orifices

and related parts of any dirt or other foreign material. Inspect the burner
ports for obstructions or debris and clean with a wire brush as needed.
Wire brush and/or vacuum clean the combustion chamber as needed to
remove scale deposits and debris. NOTE: It is imperative for proper
operation of the water heater that the inner door be replaced in the original
location.

WARNING

When lifting lever of the combination temperature and pressure relief
valve, hot water will be released under pressure. Be careful that any
released water does not result in bodily injury or property damage.

6. At least once a year, check the combination temperature and pressure relief

valve to insure that the valve has not become encrusted with lime. Lift the
lever at the lever at the top of the valve several times until the valve seats
properly without leaking and operates freely.

7. Monthly drain off a gallon of water to remove silt and sediment.

WARNING! THIS WATER MAY BE HOT.

8. If the combination temperature and pressure relief valve on the appliance

discharges periodically, this may be due to thermal expansion in a closed
water supply system. Contact the water supplier or local plumbing
inspector on how to correct this situation. Do not plug the combination
temperature and pressure relief valve outlet.

9. A combination sacrifi cial anode rod/hot water outlet nipple has been

installed to extend tank life. The anode rod should be inspected periodically
(every 2 years) and replaced when necessary to prolong tank life. Water
conditions in your area will influence the time interval for inspection and
replacement of the anode rod. Contact the plumbing professional who

INTERNET VERSION FOR REFERENCE ONLY

installed the water heater or the manufacturer listed on the rating plate for
anode replacement information. The use of a water softener may increase
the speed of anode consumption. More frequent inspection of the anode is
needed when using softened (or phosphate treated) water.

21

Maintenance (continued)-

CAUTION

FOR YOUR SAFETY, DO NOT ATTEMPT REPAIR OF COMBINATION GAS
CONTROL, BURNERS OR GAS PIPING. REFER REPAIRS TO A
QUALIFIED SERVICE TECHNICIAN.

Contact your supplier or plumbing professional for replacement parts or contact
the company at the address given on the rating plate of the water heater.

Provide the part name, model and serial numbers of the water heater when
ordering parts.

READ THE WARRANTY FOR A FULL EXPLANATION OF THE LENGTH OF
TIME THAT PARTS AND THE WATER HEATER ARE WARRANTED.

Manufactured under one or more of the following U.S. Patents: Re. 34,534;
4,416,222; 4,628,184; 4,669,448; 4,672,919; 4,808,356; 4,829,983; 4,861,968;
4,904,428; 5,000,893; 5,023,031; 5,052,346; 5,081,696; 5,092,519; 5,115,767;
5,199,385; 5,277,171; B1 5,341,770; 5,372,185; 5,485,879; 5,574,822; 5,596,952;
5,660,165; 5,682,666; 5,761,379; 5,943,984; 5,954,492; 5,988,117. Other U.S.
and Foreign patents applications pending. Current Canadian Patents: 1,272,914;
1,280,043; 1,289,832; 2,045,862; 2,107,012; 2,108,186; 2,112,525.

Complete the following information and retain for future reference:
Model No:
Serial No:
Service Phone

Days: Nights:
Address:
Supplier:

INTERNET VERSION FOR REFERENCE ONLY

Supplier Phone No:

22

Figure 5

INTERNET VERSION FOR REFERENCE ONLY

23

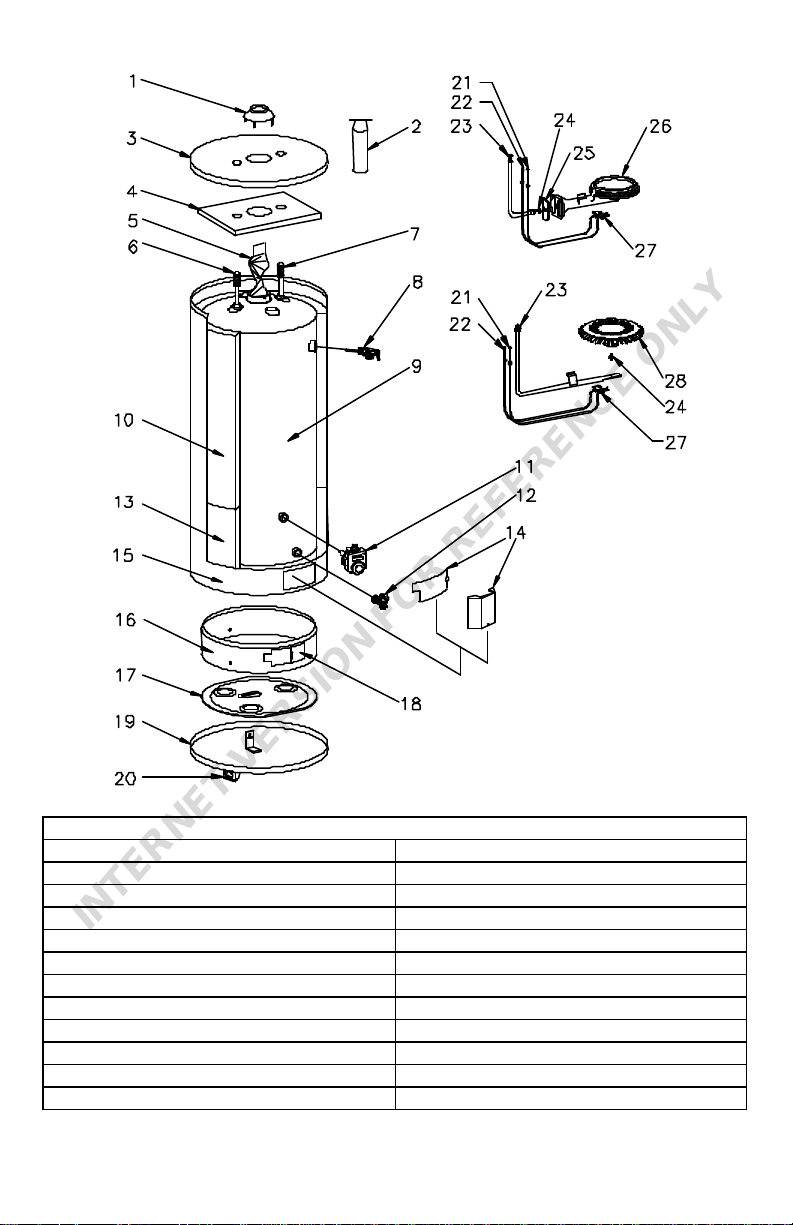

PARTS LIST AND DRAWING

PART NAME AND DESCRIPTION

1. Draft Diverter 15. Jacket

2. Flue Core Assembly (Certain Models) 16. Combustion Chamber

3. Jacket Head Pan 17. Radiation Shield

4. Fiberglass Head Insulation 18. Combustion Chamber Door

INTERNET VERSION FOR REFERENCE ONLY

5. Flue Baffle Assembly 19. Jacket Base Pan

6. Magnesium Anode - Hot Water Outlet 20. Heater Leg

7. Dip Tube - Cold Water Inlet 21. Thermocouple Lead

8. Temperature and Pressure Relief Valve 22. Gas Feedline to Pilot

9. Glass Lined Tank 23. Gas Feedline to Burner

10. Foam Insulation 24. Orifice

11. Thermostat with ECO 25. Air Shutter (Cast Iron Burner Only)

12. Drain Valve 26. Cast Iron Burner

24

13. Fiberglass Insulation 27. Pilot Assembly

14. Outer Door (Varies by Model) 28. Steel Burner (Varies by Model)

THE FOLLOWING INSTRUCTIONS ARE FOR INSTALLATION OF:

GAS WATER HEATERS

SUITABLE FOR WATER (POTABLE) HEATING AND SPACE

HEATING

1. All piping components connected to this water heater for space heating

applications must be suitable for use with potable water. In Massachusetts,
space heating piping length must not exceed 50 feet.

2. Toxic chemicals, such as those used for boiler treatment, must not be

introduced into potable water used for space heating.

3. This water heater must not be connected to an existing heating system or

component(s) previously used with a non-potable water heating appliance.

4. When the system requires water for space heating at temperatures higher

than required for other means, such as an ASSE approved mixing valve
shall be installed to temper the water for those uses in order to reduce the
scald hazard potential.

Please refer to the illustrations for suggested piping arrangements.

INTERNET VERSION FOR REFERENCE ONLY

25

INTERNET VERSION FOR REFERENCE ONLY

26

NOTES

INTERNET VERSION FOR REFERENCE ONLY

27

NOTES

INTERNET VERSION FOR REFERENCE ONLY

28

NOTES

INTERNET VERSION FOR REFERENCE ONLY

29

INTERNET VERSION FOR REFERENCE ONLY

30
