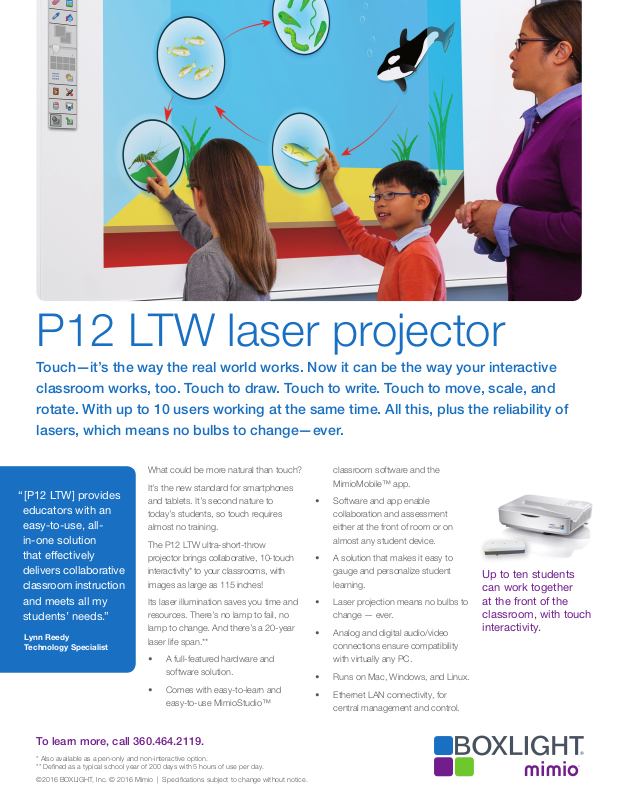

Boxlight N12 LNW, P12 LIW, P12 LTW Product Sheet

P12 LTW laser projector

Touch—it’s the way the real world works. Now it can be the way your interactive

classroom works, too. Touch to draw. Touch to write. Touch to move, scale, and

rotate. With up to 10 users working at the same time. All this, plus the reliability of

lasers, which means no bulbs to change—ever.

What could be more natural than touch?

“ [P12 LTW] provides

educators with an
easy-to-use, all­in-one solution
that eectively
delivers collaborative
classroom instruction
and meets all my
students’ needs.”

Lynn Reedy
Technology Specialist

It’s the new standard for smartphones
and tablets. It’s second nature to
today’s students, so touch requires
almost no training.

The P12 LTW ultra-short-throw
projector brings collaborative, 10-touch
interactivity* to your classrooms, with
images as large as 115 inches!

Its laser illumination saves you time and
resources. There’s no lamp to fail, no
lamp to change. And there’s a 20-year
laser life span.**

• A full-featured hardware and
software solution.

• Comes with easy-to-learn and
easy-to-use MimioStudio™

To learn more, call 360.464.2119.

* Also available as a pen-only and non-interactive option.
** Defined as a typical school year of 200 days with 5 hours of use per day.

©2016 BOXLIGHT, Inc. © 2016 Mimio | Specifications subject to change without notice.

classroom software and the
MimioMobile™ app.

• Software and app enable
collaboration and assessment
either at the front of room or on
almost any student device.

• A solution that makes it easy to
gauge and personalize student
learning.

• Laser projection means no bulbs to
change — ever.

• Analog and digital audio/video
connections ensure compatibility
with virtually any PC.

• Runs on Mac, Windows, and Linux.

• Ethernet LAN connectivity, for
central management and control.

Up to ten students
can work together
at the front of the
classroom, with touch
interactivity.

Key Features

Package Contents

P12 LTW laser touch-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, mini-USB cable (5m), 2

magnetic static pens, laser curtain module, DC power cable for laser curtain, and MimioStudio software license.

P12 LIW laser pen-interactive projector

and MimioStudio software license.

N12 LNW laser non-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, and mini-USB cable (5m).

Specifications

- Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, mini-USB cable (5m), 2 IR pens,

Software Requirements MimioStudio 11.6 or higher on a

OSDisplay

Windows, Mac, or Linux OS

Brightness 3,700 lumens (2,600 eco)

Light Source Laser Diode x 23

Laser Life (typical) 20,000 hours

Native Aspect Ratio 16:10

Native Resolution WXGA 1280 x 800

Image Size (diagonal) 85 in. - 115 in. (216 cm - 292 cm)

Keystone Correction Vertical: ±5°

Contrast Ratio (typical) 1,800:1 (10,000:1 high contrast)

Color Reproduction 1.07 billion colors (R/G/B 10 bit)

Color Uniformity

Δu’v’ ≦0.03

Projection Lens f/2.4

Throw Ratio Ultra-short throw of 0.27

Focus Type Manual

Projection Technology Digital Light Processing (DLP),

utilizing a 6-segment color wheel.

Closed Captioning Based on TI DDP4421 spec,

CC1/CC2/CC3/CC4 supported

3D DLP Link 3D and HDMI 1.4a 3D

Digital A/V Inputs HDMI x 2

Video Analog Inputs - VGA x 1

- VGA in/out switched* x 1

- Composite x 1

Video Analog Outputs VGA in/out switched x 1

Audio Analog Inputs - Stereo line 3.5 mm x 1

- Stereo line RCA jacks x 1

- Mic level 3.5 mm x 1

Audio Analog Outputs Line out 3.5 mm x 1

Audio/Video Connections

Speaker 1 speaker 10 W

LAN Standard using RJ-45 connector

LAN Control Protocols Crestron

Laser Curtain DC Power 3.5 mm

ControlGeneral

Mounting Front or rear projection, wall,

ceiling, or table mount**

Mech

Security Kensington Lock >20 kg

Power Supply AC 100 – 240 V 50-60 Hz

Power Consumption
(typical)

Normal mode: 330 W
ECO mode: 210 W
Standby: < 0.5 W Touch Mode***

Operating Temperature 5 - 40° C (41 - 104° F) non-condensing

Fan Noise Full mode : 36dBA (typical) /

38dBA (maximum)
ECO mode : 32dBA (typical) /
35dBA (maximum)

Touch Points 10

Calibration Auto/Manual

Laser Curtain Module IR Laser 825 nm, 20,000 hrs

Laser Curtain Power 12V/0.3A from projector

Visible Laser Curtain
Alignment

Whiteboard Non-planarity <3 mm

Interactivity****

- Visible light 650 nm

- Optical power < 0.39 mW

- Dot size at focus point 10 mm

Laser Safety IEC 60825-1 Class-1

Interactivity USB Mini

* One connector switchable between VGA in or out.
** Ceiling and table mount require third-party bracket.
*** LAN/RS-232/VGA out are o.
****Laser Curtain specifications only apply to touch model.

Dimensions and Weight

Projector

Weight: 8 kg

(17.6 lb)

103 mm

(4.06 in.)

383 mm (15.08 in.)

310 mm (12.2 in.)

Laser Curtain Module

Weight: .35 kg

(.77 lb)

(1.57 in.)

Connections

150 mm (5.91 in.)40 mm

To learn more, call 360.464.2119.

Specifications subject to change without notice.

50 mm
(1.97 in.)

86 mm
(3.39 in.)
