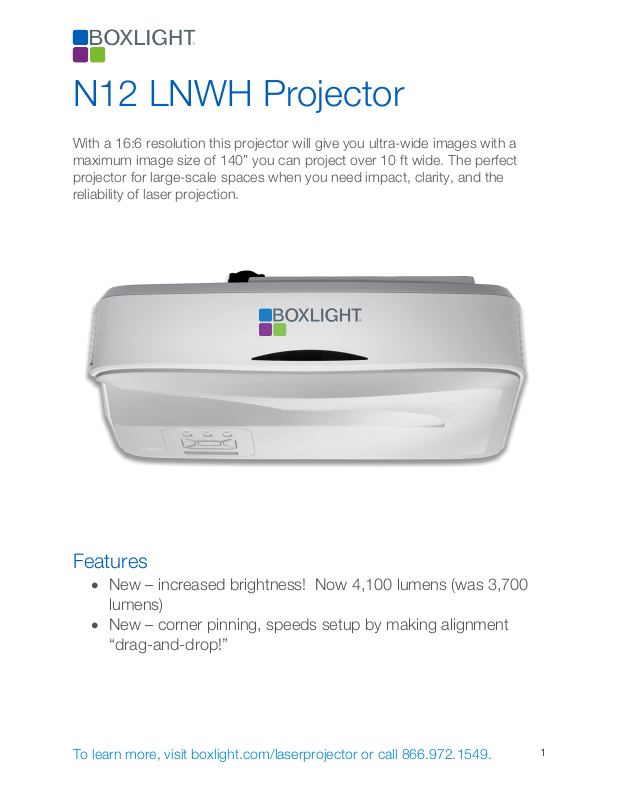

N12 LNWH Projector
With a 16:6 resolution this projector will give you ultra-wide images with a
maximum image size of 140” you can project over 10 ft wide. The perfect
projector for large-scale spaces when you need impact, clarity, and the
reliability of laser projection.
Features
• New – increased brightness! Now 4,100 lumens (was 3,700
lumens)
• New – corner pinning, speeds setup by making alignment
“drag-and-drop!”
To learn more, visit boxlight.com/laserprojector or call 866.972.1549.
Page 2
2
Specifications
Display
Brightness
4,100 lumens (2,850 eco) NEW higher brightness!!!
Light Source
Laser Diode x 23
Laser Life (typical)
20,000 hours
Native Aspect Ratio
16:10
Native Resolution
WXGA 1,280 x 800
Image Size (diagonal)
85 in. - 115 in. / 216 cm - 292 cm
Keystone Correction
V: ±5°, H: ±5°, 4-Corner Keystone adjustment NEW – corner pinning!!!
Contrast Ratio
(typical)
1,800:1 (10,000:1 high contrast)
Color Reproduction
1.07 billion
Color Uniformity
Δu’v’ ≦0.03
Projection Lens
f=2.4
Throw Ratio
Ultra-short throw of 0.27:1
Focus Type
Manual
Projection
Technology
Digital Light Processing (DLP), utilizing a 6-segment color wheel.
Closed Captioning
Based on TI DDP4421 spec, CC1/CC2/CC3/ CC4 supported
3D
DLP Link 3D and HDMI 1.4a 3D
Audio/Video Connections
Digital A/V Inputs
- HDMI x 2 (1 x MHL) Mobile High-Definition Link
Video Analog Inputs
- VGA x 1
- VGA in/out switched* x 1
- Composite x 1
To learn more, visit boxlight.com/laserprojector or call 866.972.1549.
Page 3
3
Video Analog
Outputs
- VGA x 1 (switched in/out)*
Audio Analog Inputs
- Stereo line 3.5 mm x 1
- Stereo line RCA jacks x 1
- Mic level 3.5 mm x 1
Audio Analog
Outputs
- 3.5mm x 1
Speaker
10 W x 1
Control
RS232 / RJ-45***
USB
Type-A female (media display)
Control
LAN
- Standard using RJ-45 connector
LAN Control
Protocols
- Crestron
Laser Curtain DC
Power
3.5 mm
Service and Network
RS-232, RJ45, mini-USB
System Requirements
OS Supported
- Microsoft Windows 7 / Windows 8 / Windows 10 (.NET Framework
4.0 installation is required)
- Mac OS X v10.8 to 10.12
Processor Type
Intel Core™ i3 (Windows); Intel (Mac)
RAM
2 GB or More
Min. HDD Space
350 MB
Mechanical
Mounting
Table/ceiling, front/rear **
Security
Kensington Lock >20 kg
General
Power Supply
100~240V @ 50/60Hz
To learn more, visit boxlight.com/laserprojector or call 866.972.1549.
Page 4
4
Power Consumption
(typical)
Normal mode: 330 W ECO mode: 210 W Standby: < 0.5 W (LAN/RS232/VGA out are off)
Fan Noise Max
Full mode : 36dBA (typical) / 38dBA (maximum)
ECO mode : 33dBA (typical) / 35dBA (maximum)
Environmental
Operating
Temperature
5-40° C (41-104° F) non-condensing
Dimensions and Weight
Product Dimensions
383 mm W x 103 mm H x 310 mm D (15.08 in x 4.06 in. x 12.2 in.)
Net Weight
8 kg (17.6 lb)
Packaged
Dimensions
508 mm W x 330 mm H x 432 mm D (20 in x 17 in x13 in)
Gross Weight
9.3 kg (20.5 lb)
Safety
Certifications
UL and FCC
To learn more, visit boxlight.com/laserprojector or call 866.972.1549.
Page 5
5
What’s in the box:
Hardware
• Projector
• Remote control with battery
Documentation
• Warranty
Cables
• AC power cord (4m)
• HDMI cable (5m)
Options
• Wall Mount
To learn more, visit boxlight.com/laserprojector or call 866.972.1549.
Page 6
6

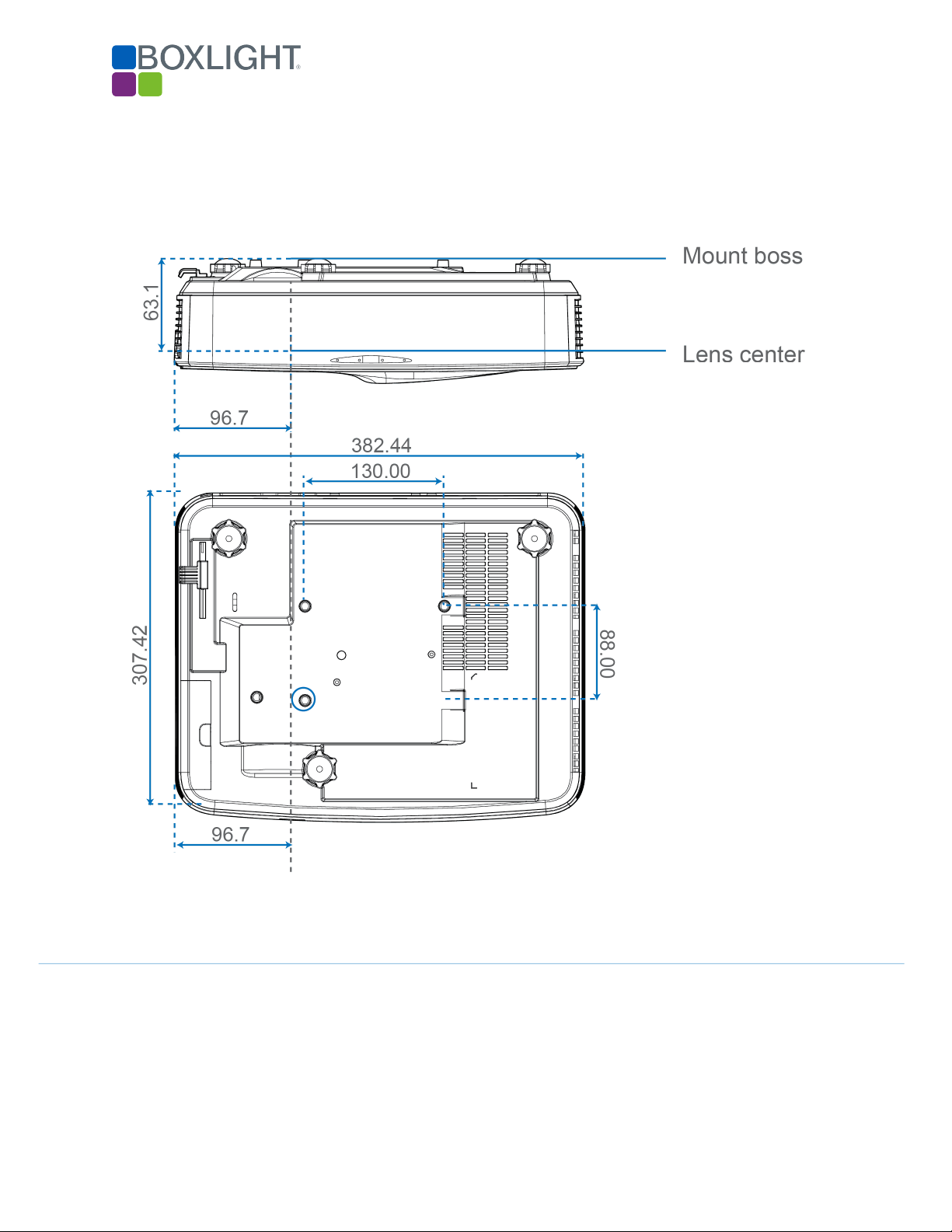

Technical drawings:
Specifications are subject to change without notice.
* One c onnector switchable between VGA in or out.
** Ceiling and table mou nt req uire third-party bracket.
*** LAN/RS-232/VGA out are off.
