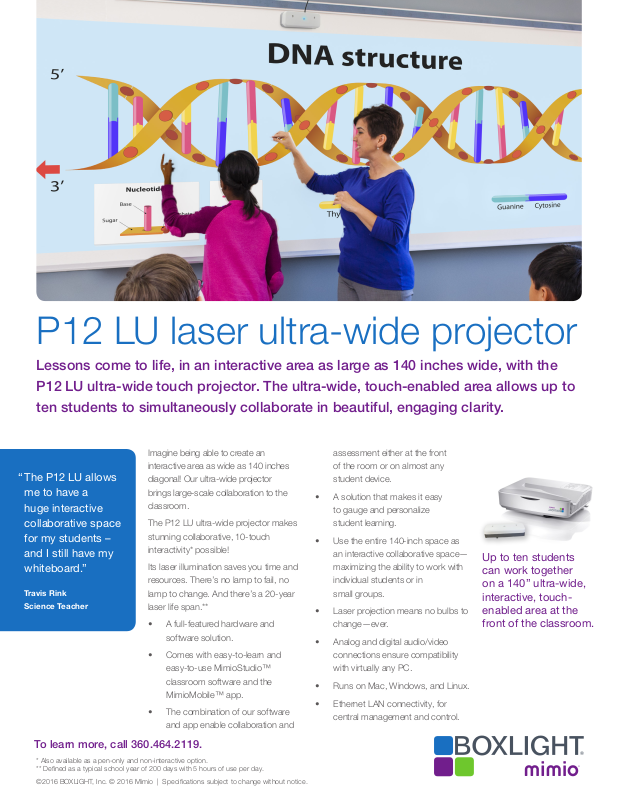

Boxlight N12 LNU, P12 LIU, P12 LTU Product Sheet

P12 LU laser ultra-wide projector

Lessons come to life, in an interactive area as large as 140 inches wide, with the

P12 LU ultra-wide touch projector. The ultra-wide, touch-enabled area allows up to

ten students to simultaneously collaborate in beautiful, engaging clarity.

Imagine being able to create an
interactive area as wide as 140 inches

“ The P12 LU allows
me to have a
huge interactive
collaborative space
for my students –
and I still have my
whiteboard.”

Travis Rink

Science Teacher

diagonal! Our ultra-wide projector
brings large-scale collaboration to the
classroom.

The P12 LU ultra-wide projector makes
stunning collaborative, 10-touch
interactivity* possible!

Its laser illumination saves you time and
resources. There’s no lamp to fail, no
lamp to change. And there’s a 20-year
laser life span.**

• A full-featured hardware and
software solution.

• Comes with easy-to-learn and
easy-to-use MimioStudio™
classroom software and the
MimioMobile™ app.

• The combination of our software
and app enable collaboration and

To learn more, call 360.464.2119.

* Also available as a pen-only and non-interactive option.
** Defined as a typical school year of 200 days with 5 hours of use per day.

©2016 BOXLIGHT, Inc. © 2016 Mimio | Specifications subject to change without notice.

assessment either at the front
of the room or on almost any
student device.

• A solution that makes it easy
to gauge and personalize
student learning.

• Use the entire 140-inch space as
an interactive collaborative space—
maximizing the ability to work with
individual students or in
small groups.

• Laser projection means no bulbs to
change—ever.

• Analog and digital audio/video
connections ensure compatibility
with virtually any PC.

• Runs on Mac, Windows, and Linux.

• Ethernet LAN connectivity, for
central management and control.

Up to ten students
can work together
on a 140” ultra-wide,
interactive, touch­enabled area at the
front of the classroom.

Key Features

Package Contents

P12 LTU laser ultra-wide touch-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, mini-USB cable

(5m), 2 magnetic static pens, laser curtain module, DC power cable for laser curtain, and MimioStudio software license.

P12 LIU laser ultra-wide pen-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, mini-USB cable (5m),

2 IR pens, and MimioStudio software license.

N12 LNU laser ultra-wide

Specifications

non-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, and mini-USB cable (5m).

Software Requirements MimioStudio 11.6 or higher on a

OSDisplay

Windows, Mac, or Linux OS

Brightness 3,100 lumens

Light Source Laser Diode x 23

Laser Life (typical) 20,000 hours

Native Aspect Ratio 16:6

Native Resolution 1920 x 720 (16:6)

Image Size (diagonal) 120 in. - 140 in. / 305 cm - 356 cm

Keystone Correction Vertical: ±5°

Contrast Ratio (typical) 1,800:1 (10,000:1 high contrast)

Color Reproduction 16.7 million colors (R/G/B 10 bit)

Projection Lens f/2.4

Throw Ratio Ultra-short throw of 0.25

Focus Type Manual

Projection Technology Digital Light Processing (DLP),

utilizing a 6-segment color
wheel.

Closed Captioning Based on TI DDP4421 spec,

CC1/CC2/CC3/CC4 supported

Digital A/V Inputs HDMI x 2

Video Analog Inputs - VGA x 1

- VGA in/out switched* x 1

- Composite x 1

Video Analog Outputs VGA in/out switched x 1

Audio Analog Inputs - Stereo line 3.5 mm x 1

- Stereo line RCA jacks x 1

- Mic level 3.5 mm x 1

Audio Analog Outputs Line out 3.5 mm x 1

Speaker 1 speaker 10 W

Audio/Video Connections

LAN Standard using RJ-45 connector

LAN Control Protocols Crestron

Laser Curtain DC Power 3.5 mm

Control

Mounting Front or rear projection, wall, or

ceiling mount

Mech

Security Kensington Lock >20 kg

Power Supply AC 100 – 240 V 50-60 Hz

Power Consumption
(typical)

Full : 335 W±15%
ECO : 225 W±15%
Standby: < 0.5 W Touch Mode**

Operating Temperature 5 - 40° C (41 - 104° F)

General

Fan Noise Full mode : 36dBA (typical) /

38dBA (maximum)
ECO mode : 32dBA (typical) /
35dBA (maximum)

Interactive/Touch Points 10

Calibration Auto/Manual

Laser Curtain Module IR Laser 825 nm, 20,000 hrs

Laser Curtain Power 12V/0.3A from projector

Visible Laser Curtain
Alignment

- Visible light 650 nm

- Optical power < 0.39 mW

- Dot size at focus point 10 mm

Interactivity***

Whiteboard Non-planarity <3 mm

Laser Safety IEC 60825-1 Class-1

Interactivity USB Mini (5m x 1 provided)

* One connector switchable between VGA in or out.
** LAN/RS-232/VGA out are o.
***Laser Curtain specifications only apply to touch model.

Dimensions and Weight

Projector

Weight: 5.5 kg

(2.49 lb)

103 mm

(4.06 in.)

383 mm (15.08 in.)

310 mm (12.2 in.)

Laser Curtain Module

Weight: .35 kg

(.77 lb)

150 mm (5.91 in.)40 mm

Connections

(1.57 in.)

To learn more, call 360.464.2119.

Specifications subject to change without notice.

50 mm
(1.97 in.)

86 mm
(3.39 in.)
