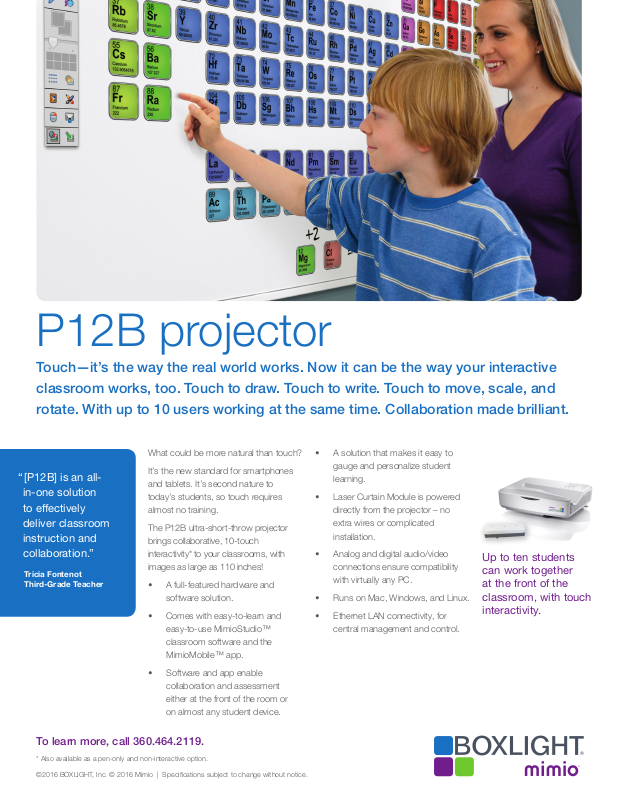

Boxlight N12 BNW, P12 BIW, P12 BTW Product Sheet

P12B projector

Touch—it’s the way the real world works. Now it can be the way your interactive

classroom works, too. Touch to draw. Touch to write. Touch to move, scale, and

rotate. With up to 10 users working at the same time. Collaboration made brilliant.

What could be more natural than touch?

“ [P12B] is an all-

in-one solution to eectively deliver classroom instruction and collaboration.”

Tricia Fontenot Third-Grade Teacher

It’s the new standard for smartphones and tablets. It’s second nature to today’s students, so touch requires almost no training.

The P12B ultra-short-throw projector brings collaborative, 10-touch interactivity* to your classrooms, with images as large as 110 inches!

• A full-featured hardware and software solution.

• Comes with easy-to-learn and easy-to-use MimioStudio™ classroom software and the MimioMobile™ app.

• Software and app enable collaboration and assessment either at the front of the room or on almost any student device.

To learn more, call 360.464.2119.

* Also available as a pen-only and non-interactive option.

• A solution that makes it easy to gauge and personalize student learning.

• Laser Curtain Module is powered directly from the projector – no extra wires or complicated installation.

• Analog and digital audio/video connections ensure compatibility with virtually any PC.

• Runs on Mac, Windows, and Linux.

• Ethernet LAN connectivity, for central management and control.

Up to ten students can work together at the front of the classroom, with touch interactivity.

Key Features

Package Contents

P12BTW touch-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, mini-USB cable (5m), 2 magnetic static pens, laser curtain module, DC power cable for laser curtain, and MimioStudio software license.

P12BIW pen-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, mini-USB cable (5m), 2 IR pens, and MimioStudio software license.

N12BNW non-interactive projector - Projector, AC power cord (4m), HDMI cable (5m), remote control with battery, and mini-USB cable (5m).

Speciﬁcations

Software Requirements MimioStudio 11.6 or higher on a

Windows, Mac, or Linux OS

Brightness 4,000 lumens (2,800 eco)

Light Source 260 W Philips halogen

Lamp Life (typical) 3000 hr (standard) / 4000 hr

(economy)

Native Aspect Ratio 16:10

Native Resolution WXGA 1280 x 800

Image Size (diagonal) 80 in. - 110 in. / 203 cm - 279 cm

Keystone Correction Vertical: ±10°

Contrast Ratio (typical) 1,800:1 (10,000:1 high contrast)

Color Reproduction 1.07 billion colors (R/G/B 10 bit)

Display

Color Uniformity

Δu’v’ ≦0.03

Projection Lens f/2.4

Throw Ratio Ultra-short throw of 0.27

Focus Type Manual

Projection Technology Digital Light Processing (DLP),

utilizing a 6-segment color wheel.

Closed Captioning Based on TI DDP4421 spec,

CC1/CC2/CC3/CC4 supported

3D DLP Link 3D and HDMI 1.4a 3D

Digital A/V Inputs HDMI x 2

Video Analog Inputs - VGA x 1

- VGA in/out switched* x 1

- Composite x 1

Video Analog Outputs VGA in/out switched x 1

Audio Analog Inputs - Stereo line 3.5 mm x 1

- Stereo line RCA jacks x 1

- Mic level 3.5 mm x 1

Audio Analog Outputs Line out 3.5 mm x 1

Audio/Video Connections

Speaker 1 speaker 10 Watts.

LAN Standard using RJ-45 connector

LAN Control Protocols Crestron

Laser Curtain DC Power 3.5 mm

ControlGeneral

Service and Network Control

RS-232, RJ45, mini-USB (shared with interactive)

Mounting Front or rear projection, wall,

ceiling, or table mount**

Mech

Security Kensington Lock >20 kg

Power Supply AC 100 – 240 V 50-60 Hz

Power Consumption (typical)

Normal mode: 330 W ECO mode: 210 W Standby: < 0.5 W Touch Mode***

Operating Temperature 5 - 40° C (41 - 104° F) non-condensing

Fan Noise Full mode : 36dBA (typical) /

38dBA (maximum) ECO mode : 32dBA (typical) / 35dBA (maximum)

Touch Points 10

Calibration Auto/Manual

Laser Curtain Module IR Laser 825 nm, 20,000 hrs

Laser Curtain Power 12V/0.3A from projector

Visible Laser Curtain Alignment

- Visible light 650 nm

- Optical power < 0.39 mW

- Dot size at focus point 10 mm

Whiteboard

Interactivity****

Non-planarity

<3 mm

Laser Safety IEC 60825-1 Class-1

Interactivity USB Mini

* One connector switchable between VGA in or out. ** Ceiling and table mount require third-party bracket. *** LAN/RS-232/VGA out are o. ****Laser Curtain speciﬁcations only apply to touch model.

Dimensions and Weight

Projector

Weight: 5 kg

(11.02 lb)

103 mm

(4.06 in.)

383 mm (15.08 in.)

310 mm (12.2 in.)

Laser Curtain Module

Weight: .35 kg

(.77 lb)

150 mm (5.91 in.)40 mm

Connections

(1.57 in.)

To learn more, call 360.464.2119.

Speciﬁcations subject to change without notice.

50 mm (1.97 in.)

86 mm (3.39 in.)
