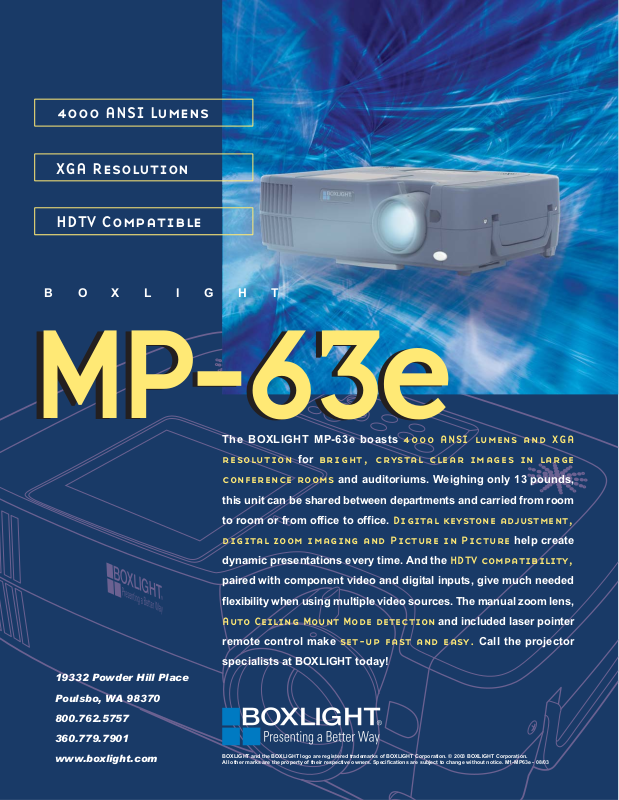

Boxlight MP-63e Product Sheet

4000 ANSI Lumens

XGA Resolution

HDTV Compatible

BOXLIGHT

MP-63e

The BOXLIGHT MP-63e boasts 4000 ANSI lumens and XGA

resolution for bright, crystal clear images in large

conference rooms and auditoriums. Weighing only 13 pounds,

this unit can be shared between departments and carried from room

to room or from office to office. Digital keystone adjustment,

digital zoom imaging and Picture in Picture help create

dynamic presentations every time. And the HDTV compatibility,

paired with component video and digital inputs, give much needed

flexibility when using multiple video sources. The manual zoom lens,

Auto Ceiling Mount Mode detection and included laser pointer

remote control make set-up fast and easy. Call the projector

specialists at BOXLIGHT today!

19332 Powder Hill Place

Poulsbo, WA 98370

800.762.5757

360.779.7901

www.boxlight.com

BOXLIGHT and the BOXLIGHT logo are registered trademarks of BOXLIGHT Corporation. © 2003 BOXLIGHT Corporation. All other marks are the property of their respective owners. Specifications are subject to change without notice. M1-MP63e - 08/03

 4000 ANSI lumens

 True 1024 x 768 XGA resolution with

compression up to 1280 x 1024 SXGA.

 Compatible with HDTV standards.

BOXLIGHT

MP-63e

projector

 Manual zoom lens.

 Connect to multiple computers and

peripheral systems at the same time.

 Economy Mode to preserve lamp life.

 Digital keystone adjustment on

remote - horizontal and vertical.

 Digital zoom imaging.

 Picture in Picture feature enhances

training presentations.

 Auto Ceiling Mount Mode detection.

 All BOXLIGHT projectors feature the

latest in technology and design.

 Lifetime 24/7 technical support.

 The fastest response time in the industry

from our state-of-the-art service center.

*Several financing options available!

Resolution:

Brightness: Lamp:

Lamp Life:

Projection Lens:

Throw Distance:

Display Type:

Contrast Ratio:

Colors:

Aspect Ratio:

Inputs:

Outputs:

Diagonal Image Size:

Audible Noise: Scan Frequency: Vertical Refresh Rate:

1024 x 768 XGA with compression up to 1280 x 1024 SXGA 4000 ANSI lumens

250W OSRAM

2000 hours

Manual Zoom & focus, F1.72.4; f=33.443.3mm; zoom ratio 1:1.3

3.342.7 / 113m 30.99 TFT polysilicon LCDs

500:1

16.7 million

4:3, 16:9 compatible

Computer: (1) 15-pin, (1) DVI-I; Audio: (2) Stereo mini-jack; Video: (1) component; (1) S-Video; (1) composite

(1) 15-pin; (1) mini-jack audio, Control Port: for RS-232 control and mouse operation, USB for mouse operation

30300 / 76760cm

35dB in whisper mode 15100kHz

43120Hz

Audio: Video:

HDTV / EDTV:

Keystone:

Adjustments:

Power Supply:

Power Consumption: Compatibility:

FCC Rating:

Dimensions (HxWxD):

Weight:

Warranty:

Accessories Included:

Optional Accessories:

2 built-in 1-watt speakers with audio loop-through

NTSC4.43, PAL, SECAM, NTSC, PAL-M, PAL-N 1080i, 1125i, 720p, 525p, 525i, 480p compatible

Digital adjustment Horizontal +/- 15º, Vertical +/- 15º

On-board and remote

100V240V; 50/60Hz 300 watts

SXGA, XGA, SVGA, VGA, Mac Class B

4.7 x 14.4 x 11.4 / 11.9 x 36.7 x 29cm

13 lbs. / 5.9kg

Two-year parts and labor (120 days or 500 hours, whichever comes first, lamp guarantee)

Laser pointer remote control, VGA cable, US power cord, S-Video cable, composite A/V cable, USB mouse cable

Ceiling mount plate, ceiling mount suspension pole, ceiling round flush mount kit, soft carry case, hard carry case, ATA case, projector lamp, mouse cable
