BOXLIGHT MP-45, MP-45t Service Manual
SERVICE MANUAL
ORIGINAL VERSION
REFERENCE NO. SM5110521
BOXLIGHT MP-45t
SERVICE MANUAL
Chassis No. MR3-MP-45t00
NOTE: Match the Chassis No. on the unit’s
back cover with the Chassis No. in the
Service Manual.
If the Original Version Service
Manual Chassis No. does not match
the unit’s, additional Service
Literature is required.You must refer to
“Notices” to the Original Service
Manual prior to servicing the unit.
PRODUCT CODE
MR3E MP-45t : 1 122 185 04
2
■ Contents
■ Safety instructions ________________________________________________3
■ Specifications __________________________________________________ 4
■ Adjustments after parts replacement ________________________________ 5
■ Circuit protections ______________________________________________ 6-7
● Fuse ____________________________________________________ 6
● Thermal switch ____________________________________________ 6
● Interlock switch ____________________________________________ 6
● Warning temperature and power failure protection ________________ 7
■ Mechanical disassemblies ______________________________________ 8-12
■ Optical parts disassemblies ____________________________________ 13-16
■ LCD panel/prism ass’y replacement ________________________________ 17
■ Lamp replacement ______________________________________________ 18
■ Optical adjustments __________________________________________ 19-21
● Contrast adjustment ________________________________________ 19
● Condenser adjustment ______________________________________ 20
● Relay lens adjustment ______________________________________ 21
■ Electric adjustments __________________________________________ 22-40
● Service adjustment menu operation ____________________________ 22
● Circuit adjustments ______________________________________ 23-27
● Service adjustment data table ______________________________ 28-39
● Test points and locations ____________________________________ 40
■ Circuit block diagrams ________________________________________ 41-45
■ Power supply lines ______________________________________________ 46
■ Troubleshooting ______________________________________________ 47-51
● No power ______________________________________________ 47-48
● No picture ________________________________________________ 49
● No sound ________________________________________________ 50
● Lens motor problems ______________________________________ 51
■ Control port functions ________________________________________ 52-56

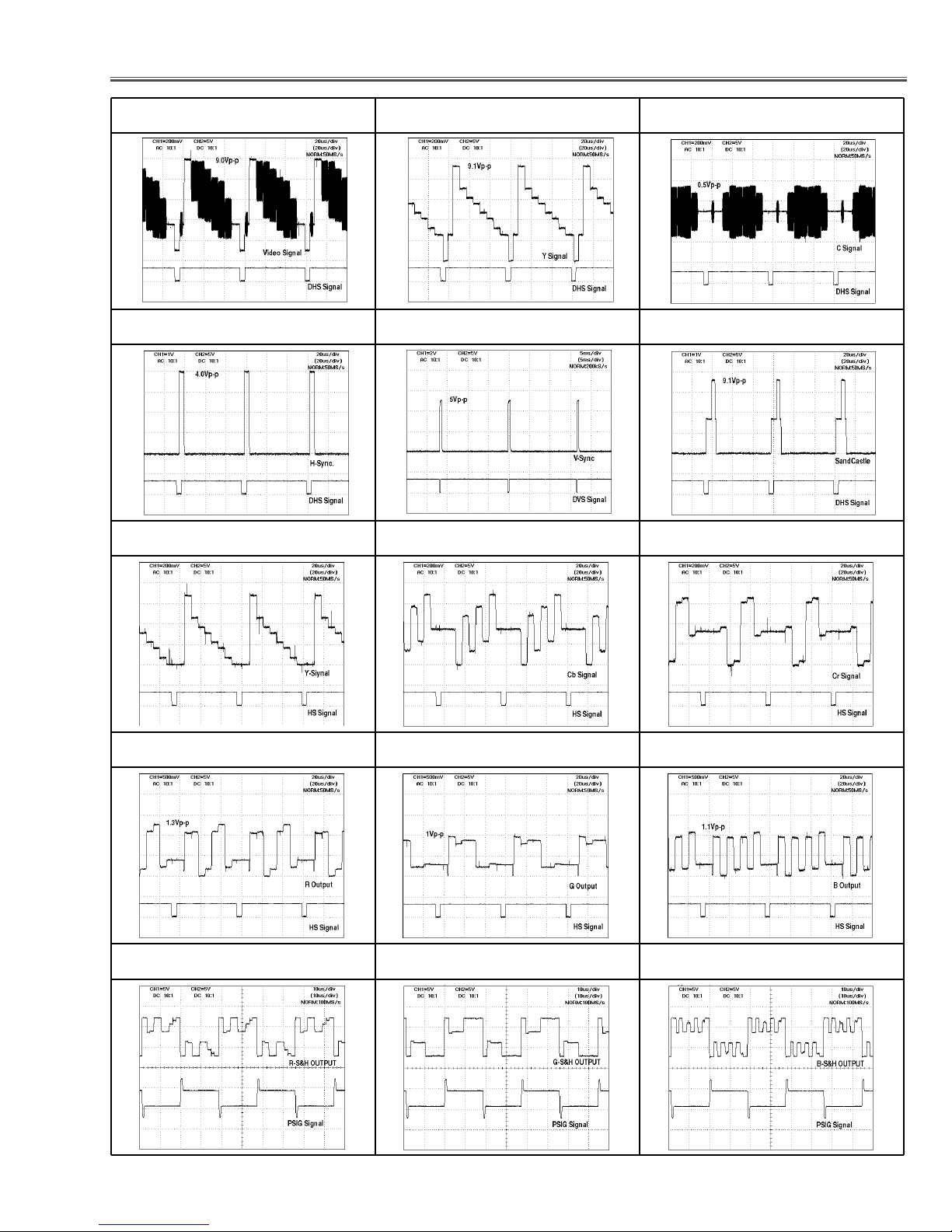

■ Waveforms ____________________________________________________ 57
■ Cleaning ______________________________________________________ 58

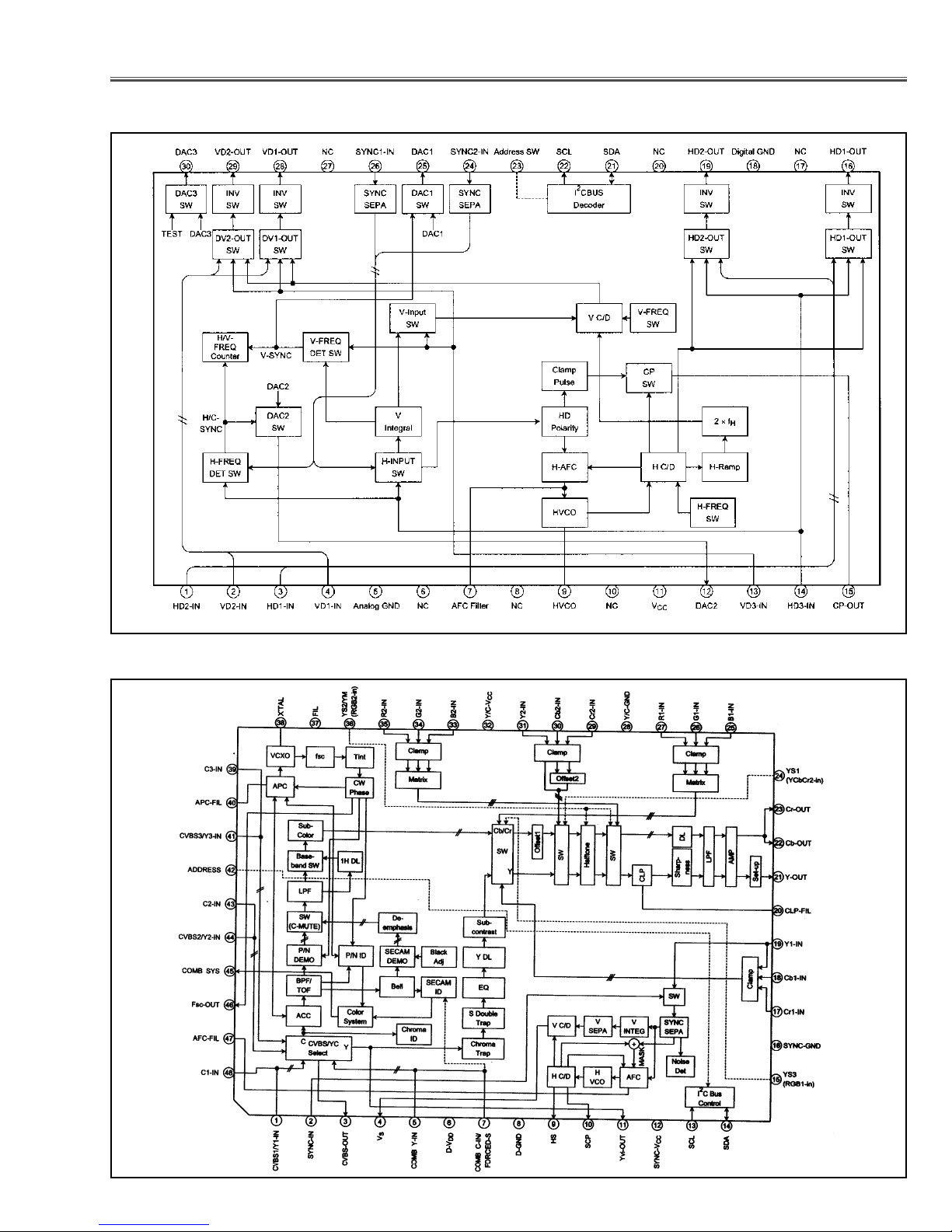

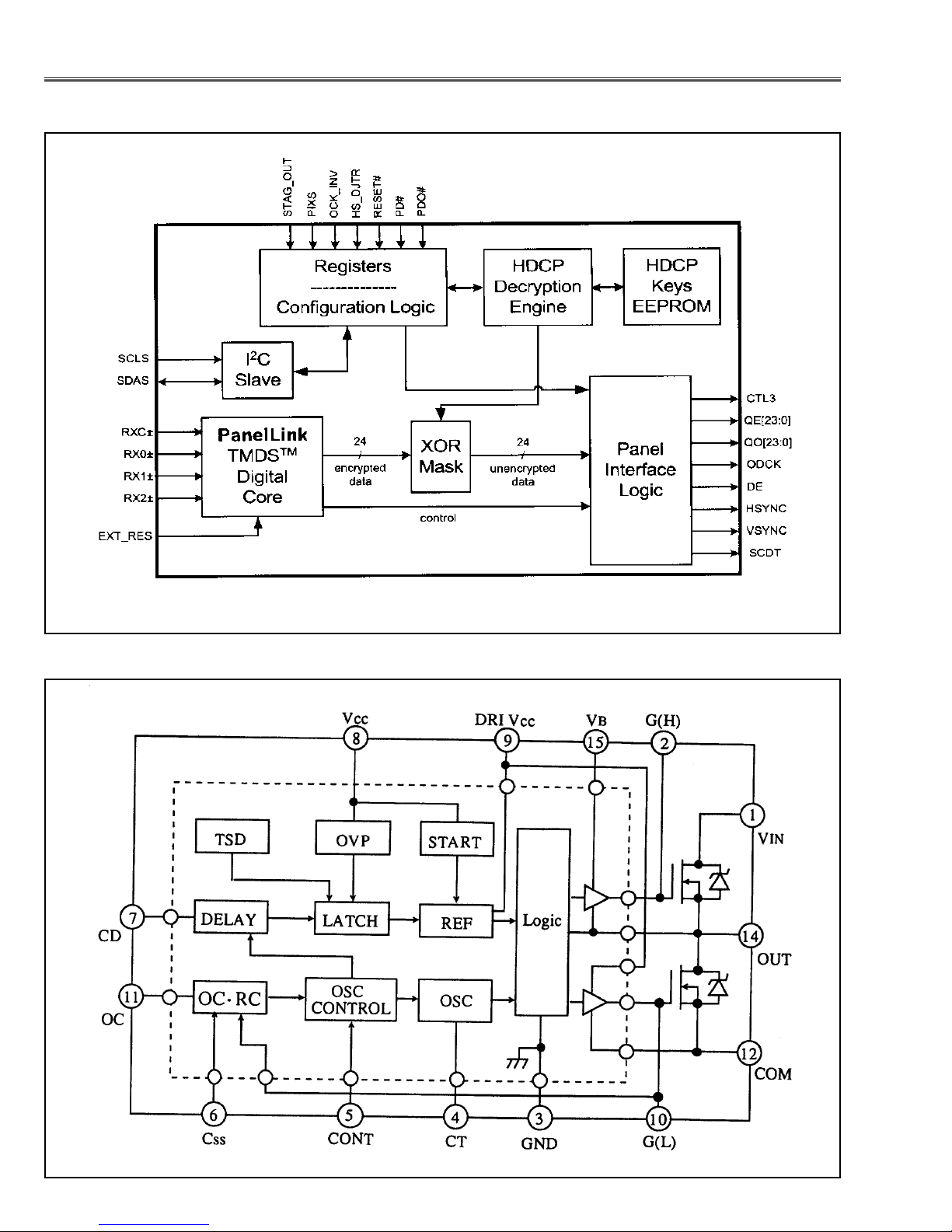

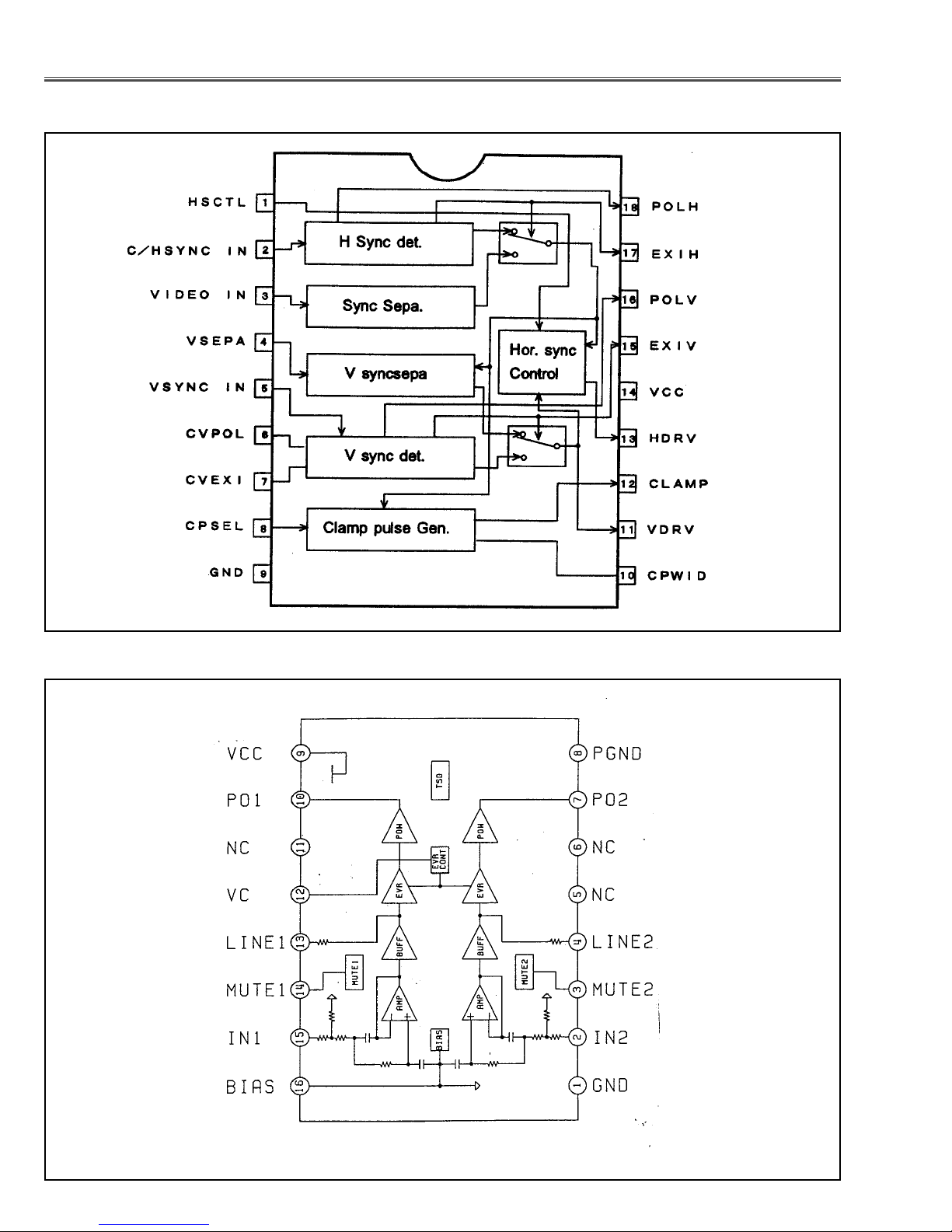

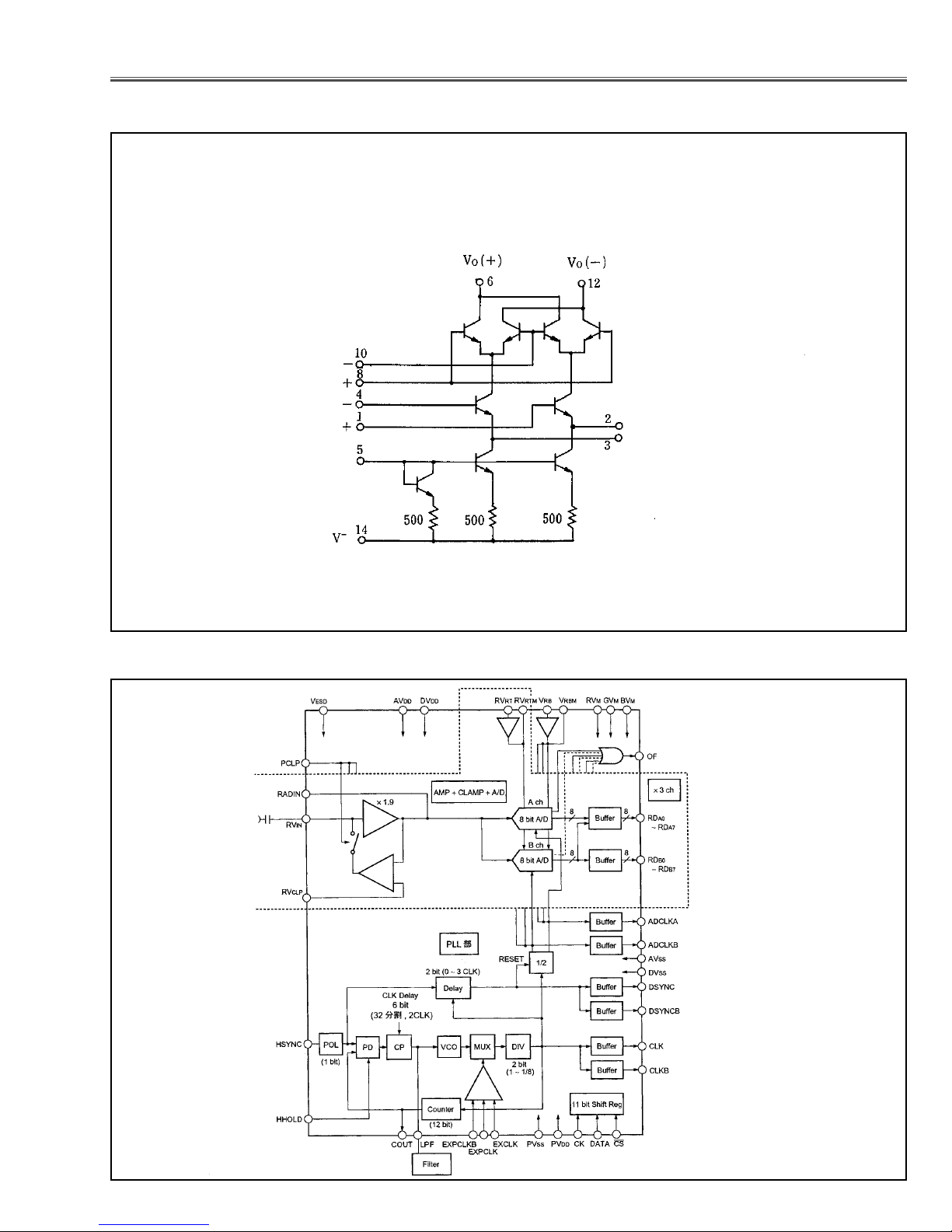

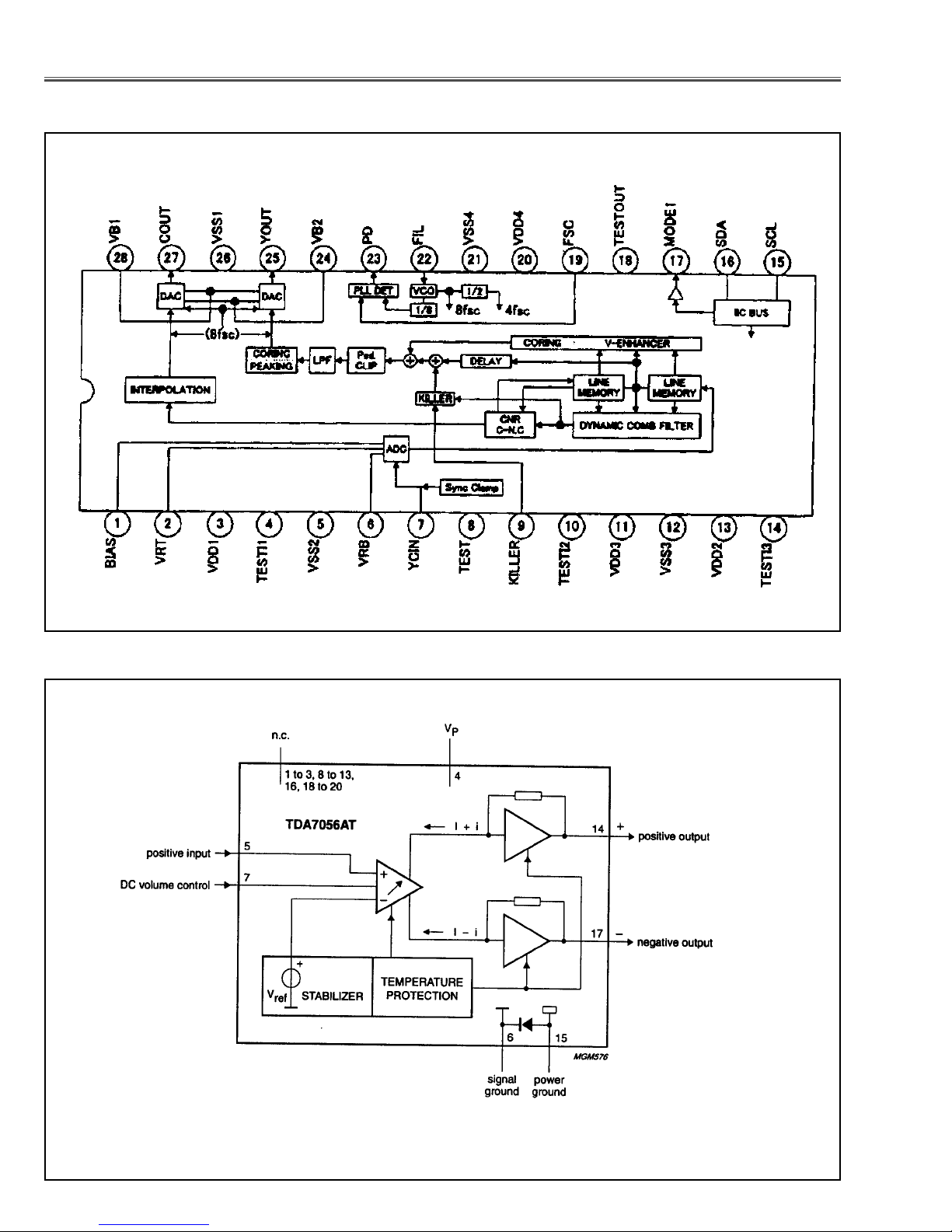

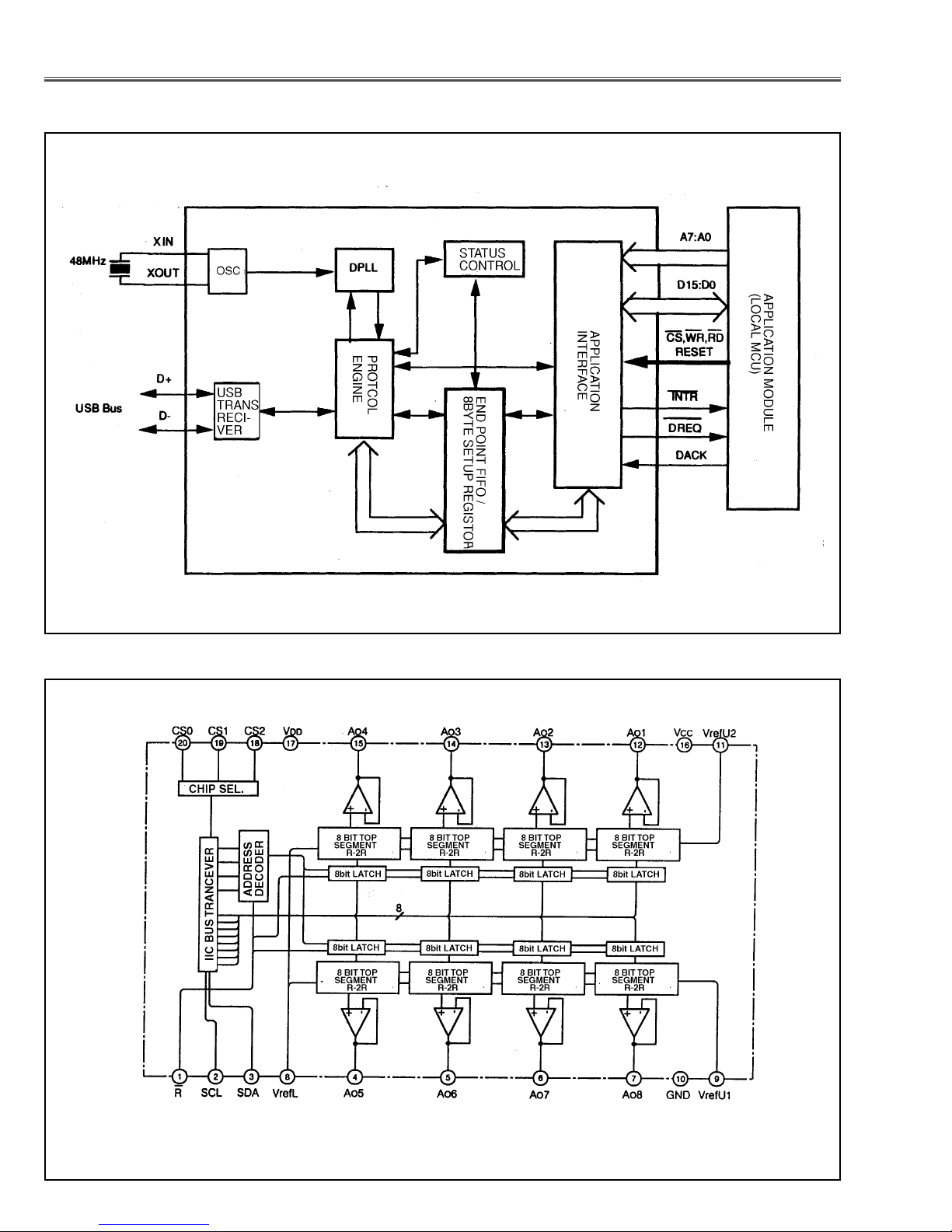

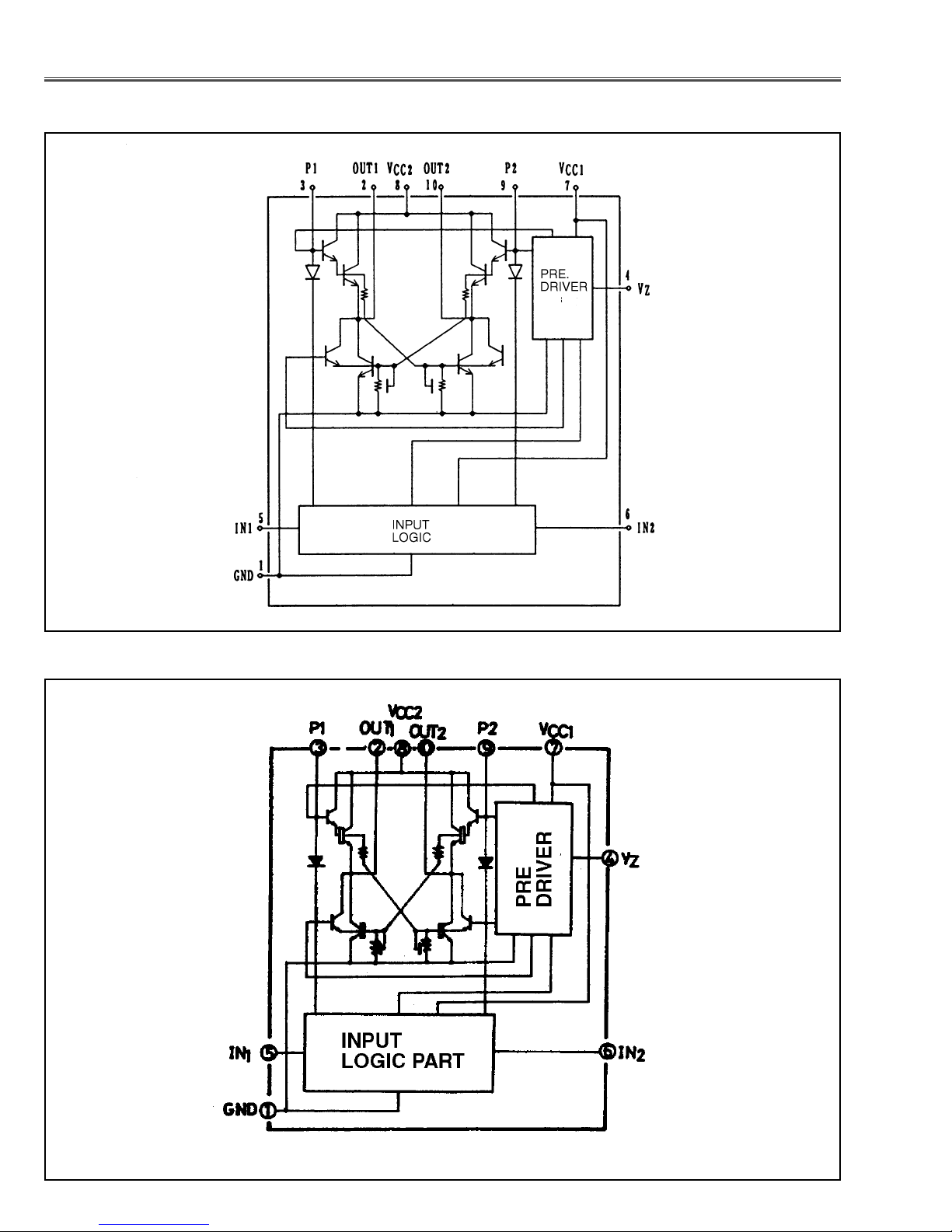

■ IC block diagrams ____________________________________________ 59-70
■ Service parts lists __________________________________________ 71-111
● Electrical parts list ______________________________________ 71-105
● Mechanical parts list __________________________________ 106-108
● Optical parts list ______________________________________ 109-111
Drawings & Diagrams ______________________________________ A1-A17
■ Parts description and reading in schematic diagram____________________ A2
■ Schematic diagrams ________________________________________ A3-A10
■ Printed wiring board diagrams ________________________________ A11-A16
■ Pins description of ICs, transistors, diodes __________________________ A17
3
■ Safety Instructions
WARNING:
The chassis of this projector is isolated (COLD) from AC line by using the converter transformer. Primary side of
the converter and lamp power supply unit circuit is connected to the AC line and it is hot, which hot circuit is identified with the line ( ) in the schematic diagram. For continued product safety and protection of personnel
injury, servicing should be made with qualified personnel.
The following precautions must be observed.
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the projector and the AC line
before any service is performed on the projector.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, cabinet bottom, inside the
cabinet or on the chassis.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, etc.
DO NOT OPERATE THIS PROJECTOR WITHOUT
THE PROTECTIVE SHIELD IN POSITION AND
PROPERLY SECURED.
4: Before replacing the cabinet cover, thoroughly
inspect the inside of the cabinet to see that no stray
parts or tools have been left inside.
Before returning any projector to the customer, the
service personnel must be sure it is completely safe to
operate without danger of electric shock.
SERVICE PERSONNEL WARNING
Eye damage may result from directly viewing the light produced by the Lamp used in this equipment. Always turn
off Lamp before opening cover. The Ultraviolet radiation eye protection required during this servicing.
Never turn the power on without the lamp to avoid electric-shock or damage of the devices since the stabilizer
generates high voltages(15kV - 25kV) at its starts.
Since the lamp is very high temperature during units operation replacement of the lamp should be done at least
45 minutes after the power has been turned off, to allow the lamp cool-off.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of the projector.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is, therefore, particularly recommended that the replacement of there parts
must be made by exactly the same parts.
DO NOT ATTEMPT TO SERVICING THE
REMOTE CONTROL UNIT.
Laser Beam may be leaked out when in disassemble
the Unit. As the Laser Beam used in this Remote control unit is harmful to the eyes.
LASER RADIATION
DO NOT STARE INTO BEAM
MAX. OUTPUT: 1mW
WAVE LENGTH: 650± 20nm
CLASS
II LASER PRODUCT
This product is complied with 21 CFR
part 1040.10
CAUTION
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
LASER-STRAHLING
NICHT IN DEN STRAHL BLICKEN
LASER KLASSE 2
IEC60825-1, Am. 1 1997
MAX OUTPUT ( ) : 1 mW
WAVE LENGTH ( ) : 650±20nm
4
■ Specifications
● The specifications are subject to change without notice.
This symbol on the nameplate means the product is Listed by Underwriters
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.
Projector Type Multi-media Projector
Dimensions (W x H x D) 12.6” x 6.6” x 18.5” (319mm x 168mm x 470mm)
Net Weight 20.3 lbs (9.2 kg)
LCD Panel System 1.3” TFT Active Matrix type, 3 panels
Panel Resolution 1024 x 768 dots
Number of Pixels 2,359,296 (1024 x 768 x 3 panels)
Color System PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
High Definition TV SIgnals 480i, 480p, 575i, 575p, 720p, 1035i and 1080i
Scanning Frequency H-sync. 15 ~ 100kHz, V-sync. 50 ~ 100Hz
Projection Lens F 1.7 ~2.0 lens with f=48.2mm ~ 62.6mm motor zoom and focus
Throw Distance 4.6’ ~ 48.3’ (1.4m ~ 14.7m)
Motorized Lens Shift Up and Down
Projection Image Size (Diagonal) Adjustable from 31” to 400”
Horizontal Resolution 800 TV lines (HDTV)
Projection Lamp 300 watt type
Input 1/Monitor Output Jacks DVI Terminal (Digital) HDCP Compatible, HDB 15-pin Terminal (Analog)
and Stereo Mini Type Jack (Audio)
Input 2 Jacks BNC Type x 5 (G or VIDEO/Y, B or Cb/Pb, R or Cr/Pr, H and V),
Stereo Mini Type Jack (Audio)
Input 3 Jacks RCA Type x 3 (VIDEO/Y, Cb/Pb, Cr/Pr), RCA Type x 2 (Audio R and L)
and DIN 4-pin (S-Video)
Other Jacks DIN 8-pin (Control port), USB port (Series B receptacle),
and Wired Remote Jack
Built-in Speakers INT. SP. Stereo (R and L), 2 watts RMS (T.H.D. 10%)
Feet Adjustment 0˚ to 10.5˚
Voltage and AC 100 ~ 120V (5.0A Max. Ampere), 50/60Hz (The U.S.A and Canada)
Power Consumption AC 200 ~ 240V (2.5A Max. Ampere), 50/60Hz (Continental Europe)
Operating Temperature 41 ˚F ~ 95 ˚F (5˚C ~ 35˚C)
Storage Temperature 14 ˚F ~ 140 ˚F (-10˚C ~ 60˚C)
Remote Control Transmitter Wireless/Wired Remote Control, batteries AA, UM3 or R06 Type x 2
The CE Mark is a Directive conformity mark of the European Community (EC).
5
● : Adjustment necessary ❍ : Check necessary
■ Adjustments after Parts Replacement
Condenser lens adjustment ❍●
Relay lens adjustment ❍●
Contrast Adjustment
R-Contrast adjustment ●
G-Contrast adjustment ●
B-Contrast adjustment ●
Output voltage adjustment ●
+16 V adjustment ●
Fan output voltage adjustment ●●
Video center adjustment ●
PSIG adjustment ●
PC pedestal adjustment ●
PC gain adjustment ●
PC gamma gain adjustment ●
PC black level adjustment ●
Video A/D reference voltage top & bottom adj. ●
Video pedestal adjustment ●
Video gain adjustment ●
Video black level adjustment ●
Component pedestal adjustment ●
Component A/D reference voltage top adjustment ●
Component gain adjustment ●
RGB pedestal adjustment ●
RGB A/D reference voltage top adjustment ●
RGB gain adjustment ●
Common center adjustment ●●
PC white balance adjustment ❍❍
Video white balance adjustment ❍❍
Disassembly / Replaced Parts
LCD/
Prism
Ass’y
Condenser
Lens
Polarized glass
RGB
Optical Adjustments
Electrical Adjustments
Sub
Powe r
Board
Main
Board
Relay
Lens
Powe r
Board
-6-
● Interlock switch
The interlock switch (SW902) cuts off the AC mains power supply
when the lamp cover is removed. After opening the lamp cover for
replacing the lamp ass’y, place the lamp cover correctly otherwise
the projector can not turn on.
● Thermal switch
There is the thermal switch (SW905) inside of the projector to
prevent the internal temperature from rising abnormally. When the
internal temperature reaches near 90˚C, turn off the AC main
power supply automatically.
The thermal switch is not reset to normal automatically even if the
internal temperature becomes normal. Reset the thermal switch
following procedure.
Check the resistance between terminals of thermal switch by
using the tester. If it has high impedance, thermal switch may be
in operative.
How to reset the thermal switch
1.
Loosen 2 screws and open the lamp cover.
2. Press the reset button on the thermal switch with a sharp-
pointed tool.
CAUTION:
Before press the reset button, disconnect the AC cord from the
projector.
■ Circuit Protections
This projector is equipped with the following circuit protections to operate in safety. If the abnormality occurs inside
the projector, it will automatically turn off by operating one of the following protection circuits.
● Fuse
The fuse is located inside of the projector. When either the LAMP
indicator or the READY indicator is not illuminated, fuse may be
opened. Check the fuse as following steps.
It should be used the specified fuse as follows;
How to replace the fuse
1. Remove the cabinet top following to “Mechanical
Disassemblies”.
2. Remove the fuse from fuse holder.
To install the fuse, take reversed step in the above.
Fuse Part No.: 423 025 1201
TYPE T8AH 250V FUSE
LITTEL FUSE INC. TYPE 215008
Fuse
Line Filter Board
Interlock switch
Thermal switch
Lamp cover
-7-
Circuit Protections
● Warning temperature and power failure protection
The TEMP WARNING indicator flashes red and the projector will automatically turn off when the internal temperature of the projector exceeds the normal temperature or when stopping cooling fans or when the internal power
supply lines are failed.
Check the following possible causes and wait until stopping the TEMP WARNING indicator flashing.
Possible causes
- Air filter is clogged with dust particles. Remove dust from the air filter by following instructions in the “Air filter
care and cleaning” below.
- Ventilation slots of the projector are blocked. In such an event, reposition the projector so that ventilation slots are
not obstructed.
- Check if projector is used at higher temperature place (Normal operating temperature is 5 to 35 ˚C or 41 to 95˚F)
If the TEMP WARNING indicator still continues to flash, there may be defects on cooling fans or power supply circuits. Please check fan operation and power supply lines referring to the “Power Supply Lines Chart”.
Air filter care and cleaning
The removable air filter prevents dust from accumulation on the surface of the projection lens and projection mirror.
Should the air filter become clogged with dust particles, it will reduce the cooling fan’s effectiveness and may result
in internal heat build up and reduce the life of the projector.
To clean up the air filters, follow the cleaning procedure
below:
1. Tu rn the power off, and disconnect the AC power cord
from the AC outlet.
2. Tu rn the projector upside down and remove the air fil-
ters by pulling the latches of them upward.
3. Clean the air filters with brush or wash out the dust and
particles.
4. Replace each air filter properly. Make sure that the air
filters are fully inserted.
CAUTION:
Do not operate the projector with the air filter removed. The
dust is stuck on the LCD panel and the mirror, and it may
spoil the fine picture image.
Do not put the small parts into the air intake vents. It may
result in the malfunction of the projector. The air filter is
small parts. Take care that children don’t eat or swallow it.
RECOMMENDATION
We recommend to avoid dusty, smoky place for operating the projector. Using in dusty place may cause the picture
of poor quality.
When using under the dusty or smoky conditions, dust may accumulate on the LCD panel and lens inside it, and
may resultantly be projected on the screen together with the picture.
When the above symptoms are noticed, please clean up the LCD panel and lens following to the “Cleaning
Method”.
Air filters
-8-
1 Remove 5 screws A, 2 screws B, and loosen 2 screws
C, and then take the Cabinet Top upward off.
Note: If you want to remove the Cabinet Front-Top only,
you do not need to remove screws A. Remove 2 screws B
and Lens Front Cover.
■ Mechanical Disassemblies
Mechanical disassemble should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original otherwise it may cause loss of
performance and product safety.
Fig.1
1 Tu rn the Lens Front Cover counter-clockwise and to take
it off by pulling forward as shown in Fig.2-1.
2 Remove the Cabinet Front-Top, Lens Cover Holder and
Lens Cover upward off.
3 Remove 2 screws D to take the Cabinet Front off.
4 Remove the RC Board and speakers on the Cabinet
Front.
Fig.2
-2
Cabinet Top removal
1
Cabinet Front removal
2
UP
Fig.2-1
C
B
A
A
A
A
B
A
D
D
Cabinet Front-Top
Lens
Front
Cover
Lens Cover Holder
Cabinet Front
Lens Cover
C
-9-
Mechanical Disassemblies
1 Remove 6 screws to take the Main Board upward.
Fig.3
Fig.4
1 Remove 1 screw A and take the Rear Panel ass’y
upward off.
2 Remove 4 screws B to take the fan (FN905) off.
3 Remove 5 screws C and 1 screw D to take AV Board
from the Rear Panel ass’y off.
4 Remove 2 screws E and grounding leads and then pull
up the I/F Board and Holder assy from the bottom cabinet.
5 Remove 4 screws F to take the I/F Board.
Main Board removal
3
AV , I/F Board & Rear Panel removal
4
Main Board
A
B
B
B
B
C
D
Rear Panel Ass’y
FN905
AV Board
I/F Board
F
F
F
F
E
E
-10-
Mechanical Disassemblies
1 Remove 4 screws A to take the Ballast Cover upward
off.
2 Remove 3 screws B to take the Fan (FN904) and the
Fan mounting base off.
3 Remove 2 screws C to take the Fan (FN904) off from
the Fan mounting base.
4 Remove the Sub Power Board and Drive Board by
pulling them upward.
Fig.5
Lamp Ballast Unit removal
5
A
Ballast Board
FN904
Sub Power
Board
Drive Board
A
A
A
C
C
Ballast Cover
1 Remove 1 screw A and then remove the holder.
2 Remove 2 screws B and 4 screws C(small) and pull the
Optical Unit upward off.
3 Remove 4 screws D to take the Fan (FN906) off.
4 Remove 1 screws E to take the Fan (FN903) off and 2
screws F to take the air duct off.
5 Remove 3 screws G to take the Fan (FN907) off.
Fig.6
Optical Unit removal
6
FN906
FN903
Optical Unit
B
B
C
C
C
C
D
D
D
E
F
F
A
FN907
G
G
G
B
B
B
-11-
1 Remove 2 screws A to take the Prism Base ass’y
upward off.
2 Remove 2 screws B to take the Lens Shift Motor and
Sensor SW Holder from the Base.
Mechanical Disassemblies
1 Remove 3 screws A to take the Power Board off.
2 Remove 4 screws B to take Holder off from the cabinet
bottom.
Fig.8
Fig.7
Prism Base removal
7
Power Board removal
8
Prism Base Ass’y
Motor and
Sensor Holder
B
B
A
A
Power Board
Power Board
Holder
B
B
A
A
B
B
A
1 Remove 1 screw A to take Interlock Switch(SW902).
2 Remove 2 screws B to take Filter Board Holder and
remove 2 screws C to take Filter Board from the Holder.
3 Remove 1 screw D to take Thermal Switch(SW905).
-12-
Mechanical Disassemblies
Fig.9
Filter Board & Interlock SW & Thermal SW
removal
9
D
Interlock Switch
(SW902)
Filter Board
C
C
A
B
B
Holder
Thermal Switch
(SW905)
1 Remove 4 screws A to take Air-duct Top off.
2 Remove 1 screw B (small) and 1 screw C (big) to take
Duct Cover-A.
3 Remove 2 screws D to take Fan (FN901) off.
4 Remove 1 screw E (small) and 2 screws F (big) to take
Air-duct-A and Fan (FN902) off.
Fig.10
Fans (FN901, FN902) removal
10
A
A
AA
B
C
D
D
E
F
F
F
Duct
Cover
-A
FN901
FN902
Air-duct-A
Air-duct
To p
Duct
Cover-B
-13-
■ Optical Parts Disassemblies
Before taking this procedure, remove Cabinet Top and Main Board following to the “Mechanical Disassemblies”.
Disassembly requires a 2.0mm or 2.5mm hex wrench and a slot screwdriver.
1 Remove each hex screw and pull the Polarized Glass-In ass’y upward.
2 Remove a stopper and take the glass off upward.
Polarized Glass-In removal
Fig.2-1
Fig.2-2
Stopper
polarized glass
* Glass should be placed as the
printed marker comes to the
upper left corner.
Phase Sheet
Part No. is printed on
upper side.
Lens attachment
4.0mm hex wrench
Fig.1-2Fig.1-1
B
B
B
B
A
1 Shift the Projection lens to the low end by the LENS SHIFT function.
2 Remove Cabinet Front-Top following to the chapter “Mechanical
Disassemblies”.
3 Slide the lens lock lever A on the projector to "UNLOCK"(UPPER) posi-
tion and remove the Projection Lens ass’y off.
Note : When making unlocking, attach your hand to prevent the lens fall.
4 Disconnect the connector and remove 4 screws B and take the
Projection lens from the lens attachment.
Projection Lens removal
Connector
-14-
1 Remove 4 hex screws A and take the LCD/Prism ass’y off upward.
2 Remove 3 screws B and take the Glass Holder, and then pull the polarized
Glass-Out and the wide view glass upwards off.These glasses are mount-
ed for R, G and B LCD panels respectively.
Note:
To avoid the CG and focus alignments slipping off, please be careful to handle the LCD/Prism ass'y.
LCD Panel/Prism Ass’y
Note:
Do not replace the LCD panel
separately otherwise it can
not obtain proper picture.
Fig.4-1
Polarized Glass-Out and Wide view Glass removal
A
A
A
Optical Pats Disassemblies
1 Remove 2 hex screws A and pull the Relay Lens ass’y upward.
2 Remove 2 screws B to take the Lens off from the holder.
Note:
There is no mounting direction of the lens.
A
Fig.3-2
Fig.3-1
B
B
Holder
Relay Lens
A
Relay Lens disassembly
*2 Glasses should be placed as the
sheet attached side comes to
the LCD panel side.
Fig.4-2
B
B
B
Pre-Polarized
Glass-Out (*1)
Phase Sheet
Wide view Glass
Phase Sheet
Polarized GlassOut
*1 Pre-polarized Glass-
Out should be placed
into the Green and
Blue LCD panels.
Phase Sheet (*1)
-15-
Optical Parts Disassemblies
1 Remove 7 screws to take the Optical Unit Top off upward.
Optical Unit Top removal
1 Remove 2 hex screws A and take the Condenser Lens ass’y.
2 Release 4 hooks B to take the Lens off from the holder.
A
Fig.6-2
Fig.6-
1
B
Holder
Condenser Lens
A
Condenser Lens disassembly
*Lens should be placed
as the flat surface side
comes to the holder
side.
Condenser Lens
Fig.5
-16-
Optical Parts Disassemblies
When the optical parts in the optical unit mounting or assembling, the
parts must be mounted in the specified location and direction as
shown in figure below.
14
12
8
Fig.7
3
14
1
2
4
9
Locations and Directions
13
6
1 Condenser lens (R)
2 Condenser lens
3 Condenser lens
4 Mirror (B)
5 Optical filter (UV cut)
6 Dichroic mirror (B
7 Dichroic mirror (G)
8 Mirror (W)
9 Condenser lens (IN)
10 PBS (prism beam splitter)
11 Integrator lens (OUT)
12 Integrator lens (IN)
13 Relay lens (IN)
14 Mirror (R)
Key No. Description
7
10
11
5
The printed marker
comes this side.
The cutting corner
comes to this side up.
Place the lens as the both
rugged surface sides in the
same direction.
The printed marker
comes this side.
-17-
■ LCD Panel/Prism Ass’y Replacement
1 Remove the cabinet top and main board following to
“Mechanical Disassemblies”.
2 Remove 4 screws by using the 2.0 mm hex driver and
take the LCD Panel/Prism ass’y off upward from the
optical unit.
LCD Panel/Prism
Ass’y
After replacing or installing the LCD Panel/Prism ass'y,
please make sure to obtain the best focus in both TELE
and WIDE zoom. If the focus adjustment is required,
please adjust the positioning of LCD Panel/Prism Ass’y by
following the below procedure.
Mounting Procedure:
1 Loosen 4 screws A on the LCD Panel/Prism ass'y with
2.0 mm hex driver.
2 Tu rn the projector on and project the image with WIDE
zoom, and adjust the FOCUS control to obtain the best
focus.
3 Tu rn the ZOOM control to the TELE position.
4 Move the LCD Panel/Prism Ass’y backward or forward
(about 0mm ~ 0.8mm) to obtain the proper focus.
Confirm the focus at TELE and WIDE zoom.
5 Tighten 4 screws A to fix the LCD Panel/Prism ass'y.
T
op View
A
A
A
A
LCD Panel/Prism Ass’y
Note:
Do not replace the LCD
panel separately otherwise
it can not obtain proper picture.
IMPORTANT NOTICE on LCD Panel/Prism Ass'y Replacement
LCD panels used for this model can not be replaced separately. Do not disassemble the LCD Panel/Prism Ass’y.
These LCD panels are installed with precision at the factory. When replacing the LCD panel, should be replaced
whole of the LCD panels and prism ass’y at once.
After replacing LCD Panel/Prism ass’y, please check the following adjustments.
- Check the “Condenser Lens Adjustment” and “Relay Lens Adjustment” following to chapter “Optical
Adjustment”.
- Check the “White Balance Adjustment” and “Common Centre Adjustment” following to chapter
“Electrical Adjustment”.
- Check the white uniformity on the screen.
If you find the color shading, please adjust the white uniformity by using the proper computer and
“Color Shading Correction” software supplied separately.
LCD Panel/Prism Ass’y removal
Note on LCD Panel/Prism Ass’y Mounting
-18-
WARNING:
- For continued safety, replace with a lamp assembly of the same type.
- Allow the projector to cool for at least 45 minutes before you open the
lamp cover. The inside of the projector can become very hot.
- Do not drop the lamp module or touch the glass bulb! The glass can
shatter and cause injury.
Procedure
1 Tu rn off the projector and disconnect the AC cord. Allow the projector to
cool for at least 45 minutes.
2 Loosen 2 screws with a screwdriver and open the lamp cover.
3 Loosen 2 screws and pull out the lamp assembly by grasping the handle.
4 Replace the lamp assembly securely and tighten 2 screws.
5 Close the lamp cover and tighten 2 screws.
6 Connect the AC cord to the projector and turn on.
Note:
- Do not reset the Lamp Replace Counter, except after lamp is replaced.
- The projector can not be turned-on with lamp cover removed, because
when the lamp cover is removed, the interlock switch is also released to
switch off the mains power for safety.
7 Reset the Lamp Replace Counter, see below explanation.
■ Lamp Replacement
1 Tu rn the projector on, and press the MENU button
and the on-screen menu will appear. Press the POINT
LEFT/RIGHT buttons to move a red frame pointer to
SETTING menu icon.
2 Press the POINT DOWN button to move a red frame
pointer to “Lamp counter reset” and then press the
SELECT button.The message “Lamp replace counter
reset?” is displayed. Move the pointer to [Yes] and the
press the SELECT button.
3 Another confirmation dialog box appears and select
[Yes] to reset Lamp Replace Counter .
Please refer to the owners manual for further information.
Recommendation
Should the air filter become clogged with dust particles,
it will reduce the cooling fan’s effectiveness and may
result in internal heat build up and short lamp life. We
recommend cleaning the air filter after the projection
lamp is replaced.
Refer to “Air Filter Cleaning”.
The LAMP REPLACEMENT indicator will illuminate
when the Lamp Replace Counter reaches 1500
hours. This is to indicate that lamp replacement is
required.
You can check the lamp replace counter following to
below procedure.
1 Press and hold the POWER button on the projector or
the remote control unit for more than 20 seconds.
2 The Lamp replace Counter service menu appears
on the center of the screen briefly.
Remark :
The upper display "Projector Counter" is not reset by
resetting Lamp Replace Counter.
Lamp cover
Lamp replace counter data
ORDER REPLACEMENT LAMP
T
ype No.
Service Parts No.
POA-LMP67 610 306 5977
How to reset Lamp Replace Counter
How to check Lamp Replace Counter
Screws
Handle
Lamp Assembly
-19-
B-Polarized Glass
Mounting Ass'y
and Base
R-Polarized Glass
Mounting Ass'y
and Base
G-Polarized Glass
Mounting Ass'y
and Base
A
A
A
Fig.1-2
■ Optical Adjustments
Main Board
Before taking optical adjustments below, remove the Cabinet Top and Main Board following to the “Mechanical
Disassemblies”
Adjustments require a 2.0mm hex wrench and a slot screwdriver.
Note: Do not disconnect connectors K8L, K8X, K8D, K8G and K8E on the main board, because the projector can
not turn on due to operate the power failure protection.
Fig.1-1
Polarized glass
mounting base
A
Polarized
glass
mounting ass'y
[Before Adjustment]
- Input a 100% of black raster signal.
[R/G/B-CONTRAST ADJUSTMENT]
1 Loosen a screw A (Fig.1-1/1-2) on the polarized glass mounting
base which you intend to adjust.
2 Tu rn the polarized glass mounting ass'y and the polarized glass
mounting base at the same time as shown in Fig.1-1 to obtain the
darkest brightness on the screen.
Note: Both of them should be moved at the same time and in the
same direction.
3 Tighten the screw A to fix the polarized glass mounting base.
Repeat steps 1 to 3 for remaining polarized glasses.
Contrast adjustment
-20-
Optical Adjustments
Fig.2-2
1 Tu rn the projector on by a state of without FPC cables.
2 Adjust the adjustment base of condenser lens ass’y to make color
uniformity in white.
1) If the shading appears on the left or right of the screen as
shown in Fig.2-1, loosen 2 screws A with the 2.0mm hex driver, and adjust the slot B to make color uniformity in green by
using a slot screwdriver.
2) If the shading appears on the top or bottom of the screen as
shown in Fig.2-2, loosen 1 screw C with the 2.0mm hex driver,
and adjust the slot D to make color uniformity in green by using
a slot screwdriver
3 Tighten screws A and C to fix the Condenser lens unit.
Note:
The relay lens adjustment must be carried out after completing this
adjustment.
y
x
Moving of Slot D
Slot D
a
b
a
b
Moving of slot B
Fig.2-1
Slot B
A
C
y
x
White
White
Condenser Lens adjustment
A
-21-
1 Tu rn the projector on by a state of without FPC cables.
2 Adjust the adjustment base of relay lens ass’y to make color unifor-
mity in white.
1) If the cyan bar appears on the left or right of the screen as shown
in Fig.4-1, loosen 1 screw A with the 2.0mm hex driver, and
adjust the slot B to make color uniformity in white by using a slot
screwdriver.
2) If the cyan bar appears on the top or bottom of the screen as
shown in Fig.4-2, loosen 2 screws C with the 2.0mm hex driver,
and adjust the screw D to make color uniformity in white by using
a slot screwdriver.
3 Tighten the screws A and C to fix the relay lens unit.
Fig.4-1
A
Slot B
a
b
a
Moving of slot B
b
White
Fig.4-2
Screw D
Moving of slot D
y
x
C
Optical Adjustments
y
x
Relay lens-Out adjustment
White
C
Cyan
Cyan
-22-
■ Electrical Adjustments
To enter the service mode
To enter the “Service Mode”, press and hold the MENU and IMAGE button on the projector at the same time for
more than 3 seconds, or press and hold the MENU button on the remote control unit for more than 20 seconds.
The service menu appears on the screen as follows.
To adjust service data
Select the adjustment group no. by pressing the MENU or IMAGE button, and select the adjustment item no. by
pressing the pointer UP or DOWN button, and change the data value by pressing the VOLUME – or VOLUME +
button. Refer to the “Service Adjustment Data Table” for further description of adjustment group no., item no. and
data value.
To exit the service mode
To exit the service mode, press the POWER ON-OFF button on the projector or remote control unit.
● Service Adjustment Menu Operation
IC808 on the main board stores the data for the service adjustments, and should not be replaced except for
the case of defective device.
If replaced, it should be performed the re-adjustments
following to the “Electrical Adjustments”.
The data of lamp replacement monitor timer is stored
in the IC808.
Please note that the lamp replace counter is reset
when the memory IC (IC808) is replaced.
(Lamp replace counter can not be set to the previous
value.)
● Caution to memory IC replacement
When IC808 is replaced with new one, the CPU writes
down the default data of the service adjustments to the
replaced IC, refer to the service adjustment table. As
these data are not the same data as factory shipped
data, it should be required to perform the re-adjust-
ments following to the “Electrical Adjustments”.
Please note that the lamp replace counter is reset.
● Caution of Main Board replacement (in the case
IC808 is not defective)
When the main board is replaced, IC808 should be
replaced with the one on previous main board. After
replacement, it should be required to perform the readjustments following to the “Electrical Adjustments”.
In this case, the lamp replace counter can be kept the
v
alue as before.
● Memory IC Replacement
Group No. Data valueItem No.
Service Mode
Input 1
Group No. Data
0 0 0
Ver.
-23-
● Circuit Adjustments
CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the follow-
ing adjustments except requiring the readjustments in servicing otherwise it may cause loss of performance and product safety.
Electrical Adjustments
[Adjustment Condition]
● Input signal
Video signal .......................... 1.0Vp-p/75Ω terminated, 16 steps gray
scale, white 100% and black 0% pattern (Composite video signal)
Computer signal .................... 0.7Vp-p/75Ω terminated, 16 steps gray
scale pattern (XGA)
Component Video signal ........ 0.7Vp-p/75Ω terminated, 16 steps gray
scale, white 100% and black 0% pattern (480i format)
RGB Video signal .................. 0.7Vp-p/75Ω terminated, 16 steps gray
scale, white 100% and black 0% pattern (480p format)
● Picture control mode ................ “STANDARD” mode unless otherwise noted.
Note:
* Please refer to “Service Adjustment Menu Operation” for entering to the service mode and adjusting the service
data.
After replacing the Power Board readjust the Output
voltage adjustment as follows.
1. Connect a digital voltmeter to pin 1 (+) of K6A and
chassis ground (-).
2. Adjust the voltage by using VR601 on the power
board as following.
AC Input Reading
230V 370 ±2Vdc
or 120V 356 ±2Vdc
Caution:
Be sure to connect the lamp when taking this adjustment.
z Output Voltage adjustment
1. Receive the 16-step gray scale video signal with
Input 3 [VIDEO] mode.
2. Connect a digital voltmeter to pin 3 (+) of CN6A and
chassis ground (-).
3. Adjust the voltage to be 15.8 ±0.1Vdc by using
VR681 on the power board.
x +16V adjustment
16 steps gray scale pattern
1. Enter the service mode.
2. Connect a digital multimeter to test point “TPFN❊”(+)
and chassis ground (-). (as shown below)
3. Select group no. “11”, item no. “24” and change data
value of the fan number. (as shown below)
4. Select item no.“41” and change data value to adjust
the fan max. output voltage to be 14.0 ±0.1V.
5. Select item no.“42” and change data value to adjust
the fan min. output voltage to be 6.5 ±0.1V.
6. Each fan should be adjusted refer to item 2 - 5.
Note:
The location of each fan is refer to the parts list.
c Fan Voltage adjustment
FAN No. Group/Item
FN901 11 / 24
FN902 11 / 24
FN903 11 / 24
FN904 11 / 24
FN905 11 / 24
FN906 11 / 24
FN907 11 / 24
Data Test point
0 TPFN1
0 TPFN1
2 TPFN3
5 TPFN4
1 TPFN5
4 TPFN6
3 TPFN7
Note:
The Power Board for replacing is already adjusted in
the factory, so it is not required to perform readjustment of item1 and 2.
White 100%
Black 100%
-24-
1. Receive the 16-step gray scale computer signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode.
3. Connect a digital voltmeter to test point “TP531”(+)
and chassis ground (-).
4. Select group no. “4”, item no. “6” and change data
value to adjust the voltage to be 7.50 ±0.1Vdc.
5. Connect a digital voltmeter to test point “TP561”(+)
and chassis ground (-).
6. Select item no. “7” and change data value to adjust
the voltage to be 7.50 ±0.1Vdc.
7. Connect a digital voltmeter to test point “TP501”(+)
and chassis ground (-).
8. Select item no. “8” and change data value to adjust
the voltage to be 7.70 ±0.1Vdc.
v Video Center adjustment
Electrical Adjustments
1. Receive the 16-step gray scale computer signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode.
3. Select group no. “500”, item no. “0” and change data
value to adjust the green noise on the white 0% area
of screen to the first point of the deepest green.
4. Select item no. “1” and change data value to adjust
the blue noise on the white 0% area of screen to the
first point of the deepest blue.
4. Select item no. “2” and change data value to adjust
the red noise on the white 0% area of screen to the
first point of the deepest red.
n PC Pedestal adjustment
1. Receive the 16-step gray scale computer signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP533” (+) and
chassis ground (-).
4. Select group no. “4”, item no. “18” and change data
value to adjust amplitude “a” to be 10.0 ±0.1V.
4. Select item no. “21” and change data value to adjust
amplitude “b” to be 4.0 ±0.1V.
3. Connect an oscilloscope to test point “TP503” (+) and
chassis ground (-).
4. Select group no. “4”, item no. “20” and change data
value to adjust amplitude “a” to be 10.0 ±0.1V.
5. Select item no. “
23” and change data value to adjust
amplitude “b” to be
4.0 ±0.1V.
b PSIG adjustment
1. Receive the 16-step gray scale computer signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP531”(+) and
chassis ground (-).
4. Select group no. “4”, item no. “0” and change data
value to adjust waveform “a” to be minimum amplitude.
5. Connect an oscilloscope to test point “TP561”(+) and
chassis ground (-).
6. Select item no. “1” and change data value to adjust
waveform “a” to be minimum amplitude.
7. Connect an oscilloscope to test point “TP501”(+) and
chassis ground (-).
8. Select item no. “2” and change data value to adjust
waveform “a” to be minimum amplitude.
m PC Gain adjustment
(b)
White Level
(a)
(a)
-25-
1. Receive the 16-step gray scale computer signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP531”(+)
and chassis ground (-).
4. Select group no. “4”, item no. “12” and change data
value to adjust amplitude “a” to be 9.8 ±0.1V.
. PC black Level adjustment
1. Receive the 16-step gray scale video signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP531” (+) and
chassis ground (-).
4. Select group no. “4”, item no. “9” and change data
value to adjust amplitude “a” to be 4.0 ±0.1V.
5. Connect an oscilloscope to test point “TP561” (+) and
chassis ground (-).
6. Select item no. “10” and change data value to adjust
amplitude “a” to be 4.0 ±0.1V.
7. Connect an oscilloscope to test point “TP501” (+) and
chassis ground (-).
8. Select item no. “11” and change data value to adjust
amplitude “a” to be 4.0 ±0.1V.
, PC gamma gain adjustment
1. Receive the 16-step gray scale computer signal with
Input 3 [Video] mode.
2. Enter the service mode.
3. Connect a digital voltmeter to test point “TPVRB”(+)
and chassis ground (-).
4. Select group no. “5”, item no. “17” and change data
value to adjust the voltage to be 0.70 ±0.03Vdc.
⁄0 Video A/D reference voltage (bottom
side) adjustment
1. Receive the black 0% composite video signal with
Input 3 [Video] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “11” and change data
value to adjust the green noise on the screen to the
deepest green.
1. Receive the white 100% composite video signal with
Input 3 [Video] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “18” and change data
value to adjust the magenta noise on the screen to
the deepest magenta.
1. Receive the black 0% composite video signal with
Input 3 [Video] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “12” and change data
value to adjust the blue noise on the screen to the
deepest blue.
4. Select group no. “5”, item no. “13” and change data
value to adjust the red noise on the screen to the
deepest red.
⁄3 Video Cb/Cr pedestal adjustment
Electrical Adjustments
⁄1 Video Y pedestal adjustment
⁄2 Video A/D reference voltage (top
side) adjustment
(a)
black level
(a)
black level
-26-
Electrical Adjustments
1. Receive the 16-step gray scale computer signal with
Input 3 [video] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP531” (+) and
chassis ground (-).
4. Select group no. “4”, item no. “0” and change data
value to adjust waveform “a” to be minimum amplitude.
5. Connect an oscilloscope to test point “TP561” (+) and
chassis ground (-).
6. Select item no. “1” and change data value to adjust
waveform “a” to be minimum amplitude.
7. Connect an oscilloscope to test point “TP501” (+) and
chassis ground (-).
8. Select item no. “2” and change data value to adjust
waveform “a” to be minimum amplitude.
⁄4 Video Gain adjustment
1. Receive the 16-step gray scale computer signal with
Input 3 [Video] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP531”(+)
and chassis ground (-).
4. Select group no. “4”, item no. “12” and change data
value to adjust amplitude “a” to be 9.8 ±0.1V.
⁄5 Video black Level adjustment
1. Receive the black 0% component 480i video signal
with Input 3 [Component] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “11” and change data
value to adjust the green noise on the screen to the
deepest green.
⁄6 Component Y pedestal adjustment
1. Receive the white 100% component 480i video signal
with Input 3 [Component] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “18” and change data
value to adjust the magenta noise on the screen to
the deepest magenta.
⁄7 Component A/D reference voltage
(top side) adjustment
1. Receive the black 0% component 480i video signal
with Input 3 [Component] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “12” and change data
value to adjust the blue noise on the screen to the
deepest blue.
4. Select item no. “13” and change data value to adjust
the red noise on the screen to the deepest red.
⁄8 Component Cb/Cr pedestal adjustment
1. Receive the 16-step gray scale component 480i signal with Input 3 [Component] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP531”(+) and
chassis ground (-).
4. Select group no. “4”, item no. “0” and change data
value to adjust waveform “a” to be minimum amplitude.
5. Connect an oscilloscope to test point “TP561”(+) and
chassis ground (-).
6. Select item no. “1” and change data value to adjust
waveform “a” to be minimum amplitude.
7. Connect an oscilloscope to test point “TP501”(+) and
chassis ground (-).
8. Select item no. “2” and change data value to adjust
waveform “a” to be minimum amplitude.
⁄9 Component Gain adjustment
White Level
(a)
black level
(a)
black level
White Level
(a)
-27-
1. Receive the 16-step gray scale computer signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode.
3. Project only green light component to the screen.
4. Select group no. “4”, item no. “15” and change data
value to obtain the minimum flicker on the screen.
5. Project only blue light component to the screen.
6. Select item no. “16” and change data value to obtain
the minimum flicker on the screen.
7. Project only red light component to the screen.
8. Select item no. “17” and change data value to obtain
the minimum flicker on the screen.
¤4 Common Center adjustment
[PC WHITE BALANCE ADJUSTMENT]
1. Receive the 16-step gray scale computer signal with
Input 1 [RGB(Analog)] mode.
2. Enter the service mode, select group no. “4”, item no.
“13” (Red) or “14” (Blue), and change data values
respectively to make a proper white balance.
[AV WHITE BALANCE ADJUSTMENT]
3. Receive the 16-step gray scale video signal with
Input 3 [Video] mode.
4. Enter the service mode, select group no. “4”, item no.
“13” (Red) or “14” (Blue), and change data values
respectively to make a proper white balance.
Confirm that the same white balance is obtained in
video and computer input.
¤5 White Balance adjustment
Electrical Adjustments
1. Receive the black 0% RGB 480p video signal with
Input 2 [RGB] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “11” and change data
value to adjust the green noise on the screen to the
deepest green.
¤0 RGB G pedestal adjustment
1. Receive the white 100% RGB 480p video signal with
Input 2 [RGB] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “18” and change data
value to adjust the magenta noise on the screen to
the deepest magenta.
¤1 RGB A/D reference voltage (top side)
adjustment
1. Receive the black 0% RGB 480p video signal with
Input 2 [RGB] mode.
2. Enter the service mode.
3. Select group no. “5”, item no. “12” and change data
value to adjust the blue noise on the screen to the
deepest blue.
4. Select item no. “13” and change data value to adjust
the red noise on the screen to the deepest red.
¤2 RGB B/R pedestal adjustment
1. Receive the 16-step gray scale RGB 480p signal with
Input 2 [RGB] mode.
2. Enter the service mode.
3. Connect an oscilloscope to test point “TP531” (+) and
chassis ground (-).
4. Select group no. “4”, item no. “0” and change data
value to adjust waveform “a” to be minimum amplitude.
5. Connect an oscilloscope to test point “TP561” (+) and
chassis ground (-).
6. Select item no. “1” and change data value to adjust
waveform “a” to be minimum amplitude.
7. Connect an oscilloscope to test point “TP501” (+) and
chassis ground (-).
8. Select item no. “2” and change data value to adjust
waveform “a” to be minimum amplitude.
¤3 RGB Gain adjustment
If you find the color shading on the screen, please
adjust the white uniformity by using the proper computer and “Color Shading Correction” software supplied
separately.
NOTE ON WHITE UNIFORMITY
ADJUSTMENT
White Level
(a)
-28-
Group: 0 TA1370
0 SEP_LEV 3 / 3 / 3 0 ~ 3 YCbCr-1080i,1035i,720p / RGB-1080i,1035i,720p / others
1 YCLP_PHS 0 / 1 / 1 0 or 1 YCbCr-1080i,1035i,720p / RGB-1080i,1035i,720p / others
2 HD_PHASE 37 / 40 / 36 / 37 / 40 / 0 ~ 63 YCbCr-1080i,1035i / 720p / 1080i_50 / RGB-1080i / RGB-720p /
36 / 37 / 37 / 32 RGB-1080i_50 / 575p / 480p / others
3 V_FREQ - - Read only
4H_FREQ - -
5 HD_IN - -
Group: 1 uPD64083
0 NRMD 0 0 ~ 3
1 HDP 4 0 ~ 7
2 CDL 4 0 ~ 7
3DYCOR 4 0 ~ 15 DY detect coring level (Y movement detect coring)
4DYGAIN 15 0 ~ 15 DY detect gain (Y movement detect gain)
5 DCCOR 2 0 ~ 15 DC detect coring level (C movement detect coring)
6 DCGAIN 13 0 ~ 15 DC detect gain (C movement detect gain)
7VAPGAIN 3 0 ~ 15
8VAPINV 2 0 ~ 15
9 YPFT 3 0 ~ 3
10 YPFG 12 0 ~ 15
11 V1PSEL 3 0 ~ 3
12 VEGSEL 3 0 ~ 3
13 CC3N 0 0 or 1
14 SELD2FH 1 0 or 1
15 SELD1FL 1 0 or 1
16 YHCOR 0 0 ~ 3
17 HPLLFG 1 0 or 1
18 PLLFS 1 0 or 1
19 KILR 3 0 ~ 15
20 HSSL 12 0 ~ 15
21 VSSL 3 0 ~ 15
22 BGPS 7 0 ~ 15
23 BGPW 3 0 ~ 15
Group: 2 TB1274AF
0 TINT 32 0 ~ 63
1 SHP_EQ 2 0 ~ 3
2 SHP_FO 2 0 ~ 3
3 SHP_GAIN 11 / 11 / 8 / 6 0 ~ 15 Video NT / PAL,PALM,PALN / SECAM,BW60,BW50 / NT443 /
6 / 9 / 8 / 8 PAL60 / S-Video / YCbCr / Scart
4 Y_OUT_LEVEL 33 / 31 / 32 / 32 / 35 / 0 ~ 63 Video NT / NT443 / PAL,PALM,PALN / PAL60 / SECAM,BW /
0.7V 31 / 31 / 32 / 32 S-Video NT,BW / NT443 / PAL,PALM,PALN / PAL60
32 / 35 / 38 SECAM / YCbCr / Scart
5 C_OUT_LEVEL 25 / 24 / 31 / 25 / 41 / 0 ~ 63 Video NT / NT443 / PAL,PALM,PALN / PAL60 / SECAM,BW /
0.6V 26 / 26 / 32 / 25 / S-Video NT,BW / NT443 / PAL,PALM,PALN / PAL60
42 / 35 / 35 / 35 SECAM / 480i / 575i / Scart
6 Y_DELAY 5 / 5 / 4 / 4 / 4 / 0 ~ 15 Video NT,BW60 / PAL,PALM,PALN,BW50 / SECAM / NT443 / PAL60
4 / 4 / 3 / 3 / 4 S-Video NT,BW60 / PAL,PALM,PALN,BW50 / SECAM / NT443 / PAL60
7 COL_SYS - - Read Only
8X’TAL - -
9 NOISE_DET - -
10 V_FREQ - -
11 Vert. Std - -
12 CID - -
13 V_SIG - -
14 MVM 0 0 or 1
15 AFC_GAIN 1 0 ~ 3
16 SECAM_GP, SECAM_ID 7 0 ~ 15
17 LPF 1 / 1 0 or 1 Not-Scart / Scart

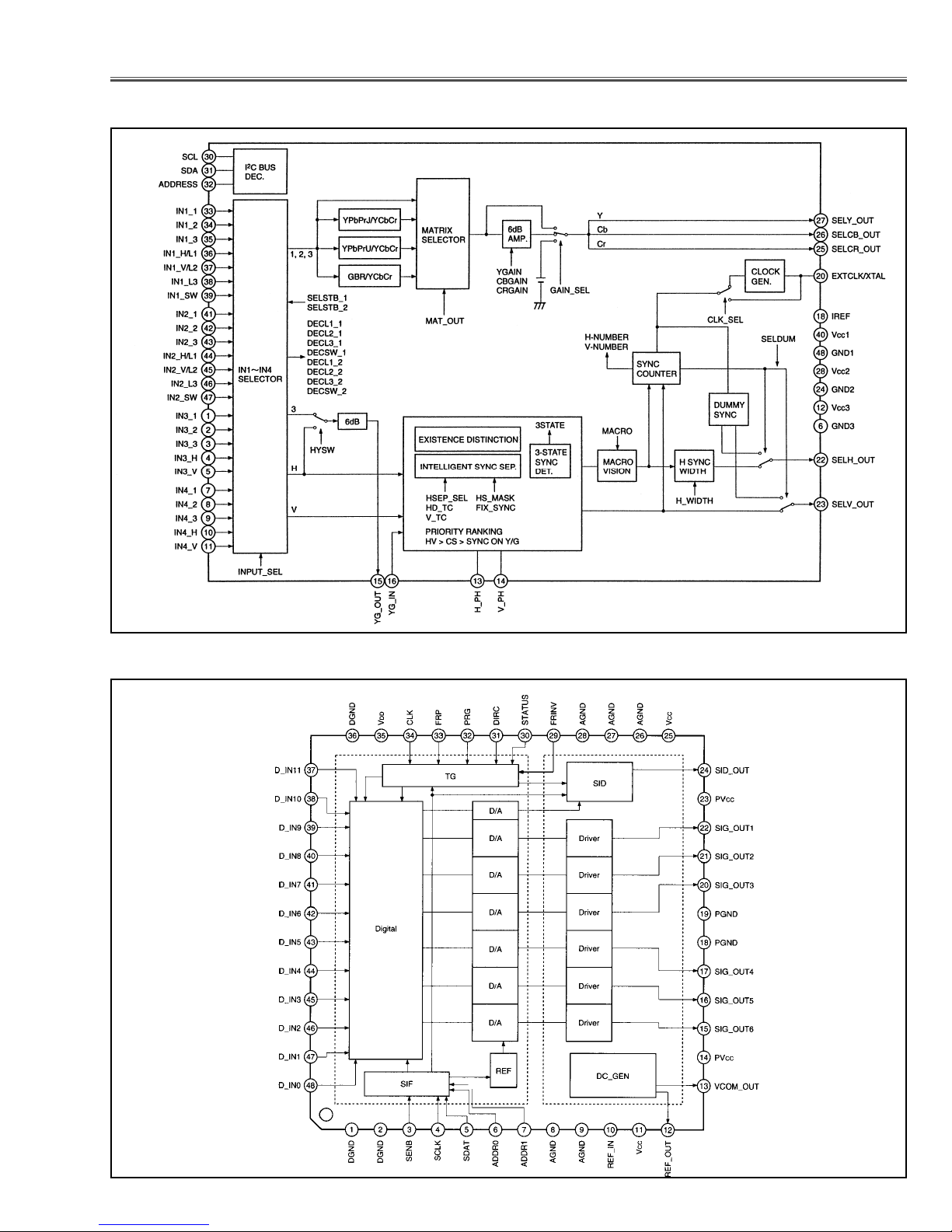

Group: 3 CXA2151
0MATOUT 0 / 0 / 0 / 2 / 1 0 ~ 3 RGB / YCbCr 480i&575i / YCbCr 480p&575p / YCbCr 1080i&720p / YCbCr 1035i
1 V_TC 0 / 0 / 0 / 0 / 0 ~ 3 RGB-480i,575i / 480p,575p / 720p,1080i / 1035i
0 / 0 / 0 / 0 YCbCr-480i,575i / 480p,575p / 720p,1080i / 1035i
2 HSEP_SEL 0 / 0 / 0 / 0 / 0 or 1 RGB-480i,575i / 480p,575p / 720p,1080i / 1035i
0 / 0 / 0 / 0 YCbCr-480i,575i / 480p,575p / 720p,1080i / 1035i
3 HD_TC 0 / 0 / 0 / 0 / 0 or 1 RGB-480i,575i / 480p,575p / 720p,1080i / 1035i
0 / 0 / 0 / 0 YCbCr-480i,575i / 480p,575p / 720p,1080i / 1035i
No. Adjustment Item Initial Value Range Input source / Description
Electrical Adjustments
● Service Adjustment Data T
able
These initial values are the reference data written from the CPU
ROM to memory IC when replaced new memory IC. The adjustment items indicated with “✻” are required to readjust following
to the “Electrical adjustments”. Other items should be used with
the initial data value.
-29-
4 HS_MASK 0 / 0 / 0 / 0 / 0 or 1 RGB-480i,575i / 480p,575p / 720p,1080i / 1035i
0 / 0 / 0 / 0 YCbCr-480i,575i / 480p,575p / 720p,1080i / 1035i
5MACRO 1 / 1 / 0 / 0 or 1 RGB-480i,575i / 480p,575p / 720p,1035i,1080i
1 / 1 / 0 YCbCr-480i,575i / 480p,575p / 720p,1035i,1080i
6 CB_GAIN 6 / 6 / 6 / 6 / 6 0 ~ 15 RGB / YCbCr-480i,575i / YCbCr-480p,575p / YCbCr-1080i,720p / YCbCr-1035i
7 CR_GAIN 6 / 6 / 6 / 6 / 6 0 ~ 15 RGB / YCbCr-480i,575i / YCbCr-480p,575p / YCbCr-1080i,720p / YCbCr-1035i
8 Y_GAIN 6 / 6 / 6 / 6 / 6 0 ~ 15 RGB / YCbCr-480i,575i / YCbCr-480p,575p / YCbCr-1080i,720p / YCbCr-1035i
9 GAIN_SEL 1 / 1 0 ~ 3 without RGB Video / RGB Video
Group: 4 PANEL (CXD3531R, CXA7004R)
0 G_SUB_GAIN 67 / 67 / 62 / 67 0 ~ 255 PC / AV / DVI / HD White 100% Adjustment ✻ Gain adjustment [G]
1 B_SUB_GAIN 67 / 67 / 62 / 67 0 ~ 255 ✻ Gain adjustment [B]
2R_SUB_GAIN 67 / 67 / 62 / 67 0 ~ 255 ✻ Gain adjustment [R]
3 G_SUB_BRT 0 / 0 -4096 ~ 4095 PC / DVI,AV
4 B_SUB_BRT 0 / 0 -4096 ~ 4095
5 R_SUB_BRT 0 / 0 -4096 ~ 4095
6 G_SIG_CNTR 33 0 ~ 255 Panel Center Adjustment ✻ Signal center adjustment [G]
7B_SIG_CNTR 33 0 ~ 255 ✻ Signal center adjustment [B]
8 R_SIG_CNTR 33 0 ~ 255 ✻ Signal center adjustment [R]
9 G_GAIN_CTRL 160 0 ~ 255 ✻ Gamma gain adjustment [G]
10 B_GAIN_CTRL 160 0 ~ 255 ✻ Gamma gain adjustment [B]
11 R_GAIN_CTRL 160 0 ~ 255 ✻ Gamma gain adjustment [R]
12 G_BRT_CTRL 100 / 90 0 ~ 255 PC(A,D) / AV,RGB-VIDEO ✻ Black level adjustment [G]
13 R_BRT_CTRL 100 / 90 0 ~ 255 PC(A,D) / AV,RGB-VIDEO ✻ White balance adjustment [R]
14 B_BRT_CTRL 100 / 90 0 ~ 255 PC(A,D) / AV,RGB-VIDEO ✻ White balance adjustment [B]
15 G_VCOM_CTRL 100 0 ~ 255 ✻ Common center adjustment [G]
16 B_VCOM_CTRL 100 0 ~ 255 ✻ Common center adjustment [B]
17 R_VCOM_CTRL 100 0 ~ 255 ✻ Common center adjustment [R]
18 G_PSIGA 21 0 ~ 255 ✻ Psig adjustment [G]
19 B_PSIGA 21 0 ~ 255
20 R_PSIGA 21 0 ~ 255 ✻ Psig adjustment [R,B]
21 G_PSIGB 212 0 ~ 255 ✻ Psig adjustment [G]
22 B_PSIGB 212 0 ~ 255
23 R_PSIGB 212 0 ~ 255 ✻ Psig adjustment [R,B]
24 Cinema G_BRT_CTRL 0 / 0 -128 ~ 127 PC(A,D) / AV,RGB-VIDEO
25 Cinema R_BRT_CTRL 0 / 0 -128 ~ 127 PC(A,D) / AV,RGB-VIDEO
26 Cinema B_BRT_CTRL 0 / 0 -128 ~ 127
27 SHP 23 0 ~ 63
28 GC_ON 0 0 ~ 1
29 G_GC_ATT 0 0 ~ 255
30 B_GC_ATT 0 0 ~ 255
31 R_GC_ATT 0 0 ~ 255
Group: 5 DAC
0 G_VIDEO_CENTER 120 0 ~ 255 dac1
1 B_VIDEO_CENTER 120 0 ~ 255 dac1
2R_VIDEO_CENTER 120 0 ~ 255 dac1
3 REF_G 60 0 ~ 255 dac1
4 REF_B 60 0 ~ 255 dac1
5 REF_R 60 0 ~ 255 dac1
6 NRSB 160 0 ~ 255
7 NRSA 40 0 ~ 255
8 G_V_COM 55 0 ~ 255 dac2
9 B_V_COM 55 0 ~ 255 dac2
10 R_V_COM 55 0 ~ 255 dac2
11 G_CLMP 125 / 208 / 208 / 208 0 ~ 255 PC(not RGB Video) / RGB Video / Video / Component ✻ Y/G pedestal adjustment
12 B_CLMP 181 / 158 / 224 / 224 0 ~ 255 PC(not RGB Video) / RGB Video / Video / Component ✻ Cb/B pedestal adjustment
13 R_CLMP 184 / 158 / 224 / 224 0 ~ 255 PC(not RGB Video) / RGB Video / Video / Component ✻ Cr/R pedestal adjustment
14 SGAIN + - 0 ~ 255
15 SGAIN - 128 0 ~ 255
16 LF_LEV 255 / 255 / 255 / 0 / 0 0 ~ 255 SCART / RGB-480i,575i / YCbCr-480i,575i / VIDEO,S-VIDEO / Others
17 DAC_VRB 34 0 ~ 255 ✻ A/D reference voltage bottom adjustment
18 DAC_GY 112 / 112 / 112 0 ~ 255 Composite / Component / RGB Video ✻ A/D reference voltage top adjustment
19 DAC_BCB 113 / 113 / 113 0 ~ 255 Composite / Component / RGB Video
20 DAC_RCR 113 / 113 / 113 0 ~ 255 Composite / Component / RGB Video
Group: 6 TC90A69F
0Y-EQ_GAIN 3 0 ~ 3
1Y-EQ_N_C_LIM 3 0 ~ 3
2V-ENH_GAIN 4 0 ~ 7
3 V_ENH_CORING 2 0 ~ 3
4 NTSC443_SW 1 0 ~ 1 0 : NTSC4.43 1 : PAL60 (Available for NTSC4.43)
Group: 10 Option
0 Lamp Time Monitor - 0 ~ 8738 Read only
1 RS232C Baudrate 0 0 ~ 1 0: 19200bps 1: 9600bps
Electrical Adjustments
No. Adjustment Item Initial Value Range Input source / Description
-30-
2 Shootout Mode 0 0 ~ 1 0: Disable 1: Enable
3 Cooling Time 3 0 ~ 15 Set cooling period, 1: 30 sec. 3: 90 sec. 15: 450 sec. 0: continuos
4Hi-Land SW 0 0 ~ 1 0: Normal 1: Highland mode (Fan spin speed max.)
5V-Douki SW 0 0 ~ 1 0: Synchronized Vertical 1: non-synchronized Vertical
6 Lamp Total Time - 0 ~ 65535 Read only
7 Net Board RESET 1 0 ~ 1 0: Disable 1: Enable
8Keystone Option 0 0 ~ 1 0: Maximum correction (fix) 1: Changeable for Input signal
9 Syukka SW 0 0 ~ 10 Set 10 to Shipping Condition
10 Color Shading SW 1 0 ~ 1 0: OFF 1: ON
11 RC Enable/Disable 0 0 ~ 3 0: Both enable 1: Front Disable 2: Rear Disable 3: Both Disable
12 Lamp Dim Level 15 0 ~ 15 0: the darkest 1: the brightest
13 Lamp Warning Time 1500 0 ~ 65535 Unit = hour
14 Forced NOBRAND 0 0 ~ 1 0: Normal 1: No brand
15 Forced Video Mute Off 0 0 ~ 1 0: Video Mute ON 1:Video Mute OFF
16 ANZEN FAN Control Fix SW 0 0 ~ 4 0: Normal 1: Normal min. 2: Normal max 3: Eco min. 4: Eco max
17 DJTR_SW - - Not used
18 HDCP Option 0 0 ~ 3 0: XGA 1: Not XGA
19 HDCP Reset 0 0 ~ 10 Set 10 and write EDID Data for HDCP
Group: 11 FAN (Fan Control)
0FAN_TEMP_A_WARNING 460 30 ~ 1000 Temperature to judge abnormal A (Not memorized) Inside projector
1FAN_TEMP_B_WARNING 800 30 ~ 1000 Temperature to judge abnormal A (Not memorized) Lamp
2FAN_TEMP_C_WARNING 510 30 ~ 1000 Temperature to judge abnormal A (Not memorized) LCD Panel
3FAN_TEMP_B-A_WARNING 520 0 ~ 1000
4FAN_TEMP_C-A_WARNING 200 0 ~ 1000
5FAN_CONTROL_SW 0 0 or 1 0: Auto-control all Fans 1: Manual control all Fans
6FAN1 Manual Out 1350 0 ~ 2000 These are effective when FAN_CONTROL_SW is set to "1".
7FAN2 Manual Out 1350 0 ~ 2000
8FAN4 Manual Out 1350 0 ~ 2000
9FAN5 Manual Out 1350 0 ~ 2000
10 FAN6 Manual Out 1350 0 ~ 2000
11 FAN7 Manual Out 1350 0 ~ 2000
12 FAN1 Now Out - Read only Reading voltage of each Fan
13 FAN2 Now Out -
14 FAN4 Now Out -
15 FAN5 Now Out -
16 FAN6 Now Out -
17 FAN7 Now Out -
18 Temp Monitor A - - Read only
19 Temp Monitor B - -
20 Temp Monitor C - -
21 Pressure Monitor - - Read only
22 FAN_BALLAST_SW 0 0 or 1 Fan control depend on Ballast Output Voltage 0: OFF 1: ON
23 Ser vice Target MODE -1 -1 ~ 3 -1: Current Mode 0: Normal Mode 1: Eco Mode
24 Ser vice Target FAN 0 0 ~ 5 Service taget 0: FAN1 1: FAN2 2: FAN4 3: FAN5 4: FAN6 5: FAN7 ✻ Fan adjustment [Setting]
25 Control Switch 0 Control Switch for the operated Fan 0: Auto 1: Manual
26 Temp Source Range High 400 Control range of Temperature for Temperature Sensor A
27 Temp Source Range Low 330
28 Temp Fan-Out Range High 1350 / 1000 Control range of Fan control voltage by Temperature Sensor A
29 Temp Fan-Out Range Low 780 / 700 / 1000
30 Diff (UP)Src Range High 180 Difference of temperature between temp-A and temp-C for Fan additional voltage (upward)
31 Diff (UP)Src Range Low 150
32 Diff(DWN)Src Range High 80 Difference of temperature between temp-A and temp-C for Fan additional voltage (downward)
33 Diff(DWN)Src Range Low 60
34 Press Source Range Low Control range of Pressure Sensor
35 Press Source Range High
36 Press FanAdd Range High 0 Control range of Fan additional voltage by Pressure sensor
37 Press FanAdd Range Low 500
38 Ceil-Add Fan additional voltage when ceiling
39 Fan Out Limit Volt MAX 1400 Limit voltage of current Fan output voltage
40 Fan Out Limit Volt MIN. 650
41 Fan Out Limit DAC MAX 0 ~ 255 Limit of DAC output for current Fan ✻ Fan adjustment [max.]
42 Fan Out Limit DAC MIN. 0 ~ 255 ✻ Fan adjustment [min.]
43 Manual Out 0 ~ 2000 Output voltage of current Fan at manual mode
44 Now Out - Reading voltage of current Fan
Group: 12 PC Real / AV Cinema
0 PC Real Contrast 32 0 ~ 63
1 PC Real Br ightness 32 0 ~ 63
2 PC Real Color 32 0 ~ 63
3 PC Real Tint 32 0 ~ 63
4 PC Real Red 32 0 ~ 63
5 PC Real Green 30 0 ~ 63
6PC Real Blue 29 0 ~ 63
Electrical Adjustments
No. Adjustment Item Initial Value Range Input source / Description
Loading...
