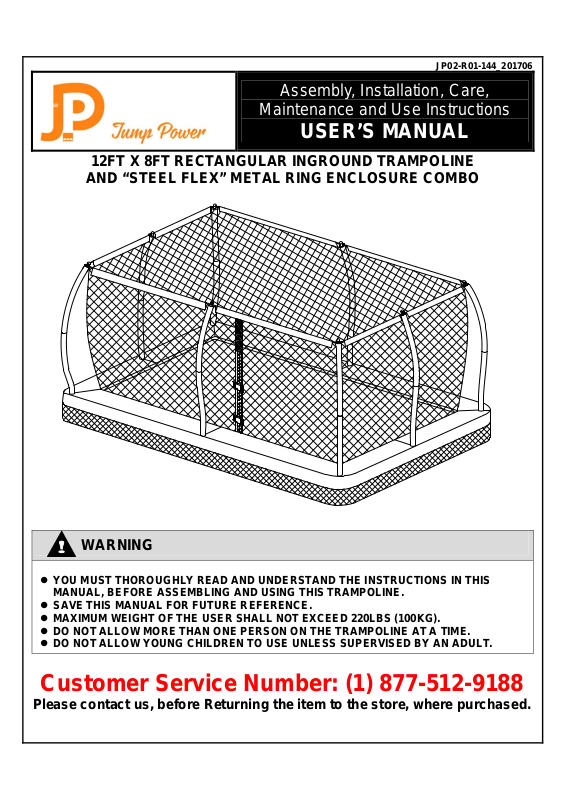

JP02-R01-144_201706

Assembly, Installation, Care,

Maintenance and Use Instructions

USER’S MANUAL

12FT X 8FT RECTANGULAR INGROUND TRAMPOLINE

AND “STEEL FLEX” METAL RING ENCLOSURE COMBO

WARNING

 YOU MUST THOROUGHLY READ AND UNDERSTAND THE INSTRUCTIONS IN THIS

MANUAL, BEFORE ASSEMBLING AND USING THIS TRAMPOLINE.

 SAVE THIS MANUAL FOR FUTURE REFERENCE.  MAXIMUM WEIGHT OF THE USER SHALL NOT EXCEED 220LBS (100KG).  DO NOT ALLOW MORE THAN ONE PERSON ON THE TRAMPOLINE AT A TIME.  DO NOT ALLOW YOUNG CHILDREN TO USE UNLESS SUPERVISED BY AN ADULT.

Customer Service Number: (1) 877-512-9188

Please contact us, before Returning the item to the store, where purchased.

Thank you for purchasing this product. We hope that you will enjoy it. It will take a little time to assemble it. Please take it as an exercise in assembling this product. It is not unusual for you to take more than an hour to assemble this product; so please be patient and enjoy this process with a friend.

WARNING

MAXIMUM WEIGHT OF THE USER SHALL NOT EXCEED 220LBS (100KG)

TRAMPOLINE ASSEMBL Y AND MOVING

Select a location where you want the trampoline permanently prior to assembly.

MOVING THE TRAMPOLINE

If you need to move the trampoline, two or three people are required. When moving, lift the trampoline slightly off the ground and keep it horizontal to the ground. For any type of other movement, you should disassemble the trampoline.

We strongly recommend that you do not use the trampoline without an enclosure. If you find the trampoline is being used without an enclosure, stop the user and immediately purchase and install the enclosure. Lateral clearance is essential. Place the trampoline away from walls, structures, fences and other play areas. Maintain a clear space on all sides of the trampoline.

Do not allow children to play or jump on the trampoline when it’s windy or during tornado season. Wind can lift up this trampoline and cause serious injury or death.

INTRODUCTION

Before you begin using this trampoline, be sure to carefully read all the information provided to you in this manual. Just like any other type of physical recreational activity, participants can be

injured. To reduce the risk of injury, be sure to follow appropriate safety rules and tips.

 Misuse and abuse of this trampoline is dangerous and can cause serious injury!  Trampolines, being rebounding devices, propel the performer to unaccustomed heights and into a

variety of body movements.

 Always inspect the trampoline before each use for worn mats, loose or missing parts.  Proper assembly, care and maintenance of product , safety tips, warnings, and proper techniques

in jumping and bouncing are all included in this manual. All users and supervisors must read and familiarize themselves with these instructions. Anybody who chooses to use this trampoline must be aware of their own limitations in regards to performing various jumps and bounces with this trampoline.

NO MORE THAN ONE PERSON AT A TIME ON THE TRAMPOLINE! MULTIPLE JUMPERS INCREASE THE RISK OF INJURY SUCH AS BROKEN HEAD, NECK, LEG OR BACK.

PARALYSIS OR DEATH CAN RESULT IF YOU LAND ON YOUR HEAD OR NECK! DO NOT PERFORM SOMERSAULTS (FLIPS) AS THIS WILL INCREASE YOUR CHANCES OF LANDING ON YOUR HEAD OR NECK!

ALWAYS CONSULT A PHYSICIAN BEFORE PERFORMING ANY KIND OF PHYSICAL ACTIVITY

 Adequate overhead clearance is essential. A minimum of 24ft from ground level is recommended. Provide

clearance for wires, tree limbs, and other possible hazards.

 Lateral clearance is essential. Place the trampoline away from walls, structures, fences, and other play

areas.

 Maintain a clear space of 2.5 meters on all sides of the trampoline. For safe use of the trampoline, please

be aware of the following when selecting a place for your trampoline:

 Place the trampoline on a level surface before use; illumination may be required for shady areas and

indoor areas.

 Secure the trampoline against unauthorized and unsupervised use.  Remove any obstructions from beneath the trampoline.  The owner and supervisors of the trampoline are responsible to make all users aware of practices

specified in the use instructions.

 Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis or

death, even when landing in the middle of the bed.

 Do not allow more than one person on the trampoline. Use by more than one person at the same time can

result in serious injury.

 Use trampoline only with mature, knowledgeable adult supervision.  For additional information concerning the trampoline equipment, contact the manufacturer.  Only for domestic use and outdoor use.  Not suitable for children under 3 years. Small parts. Choking hazard. Long cord. Strangulation hazard.  Maximum weight of the user shall not exceed 220lbs (100kg).  Only one user. Collision hazard.  Adult supervision required.  No somersaults.  Always jump in the middle of the mat.  All nuts and bolts must be checked for tightness and if necessary must be retightened.  All spring-loaded (pit pin) joints must be checked to see that they are still intact and cannot become

dislodged during play.

 Check all coverings for bolts and sharp edges and replace them if necessary.  If self-locking nuts are used, it should be noted that these are only suitable for one assembly and must

therefore be replaced.

 Information regarding the expiry of the enclosure.  Trampolines over 20in. (51 cm) tall are not recommended for use by children under 6 years of age.  Inspect the trampoline before each use. Make sure the frame padding is correctly and securely positioned.

Replace any worn, defective, or missing parts.  Climb on and off the trampoline. It is a dangerous practice to jump from the trampoline to the floor or

ground when dismounting, or to jump onto the trampoline when mounting. Do not use the trampoline as a springboard onto other objects.

 Stop bounce by flexing knees as feet come in contact with the trampoline bed. Learn this skill before

attempting others.

 Learn fundamental bounces and body positions thoroughly before trying more advanced skills. A variety of

trampoline activities can be carried out by performing the basic fundamentals in various series and combinations, performing one fundamental after another, with or without feet bounces between them.

 Avoid bouncing too high. Stay low until bounce control and repeated landing in the center of the trampoline

can be accomplished. Control is more important than height.

 Focus eyes on the trampoline. This will help control bounce.

 Avoid bouncing when tired. Keep turns short.

Properly secure the trampoline when not in use. Protect it against u nauthoriz ed use. If a tra mpoline ladd er



is used, the supervisor should remove it from the trampoline when leaving the area to prevent unsupervised access by children under 6 years of age.

 Ladder lets young children climb onto trampoline.  Keep objects away which could interfere with the performer. Maintain a clear area around the trampoline.  Do not use the trampoline while under the influence of alcohol or drugs.  For information concerning skill training, contact a certified trampoline instructor.  Bounce only when the surface of the bed is dry. Wind or air movement should be calm to gentle. The

trampoline must not be used in gusty or severe winds.

 Always start your jump at the center of the trampolin e mat. When you land more than 1ft away from the

center of the trampoline mat, stop your jump immediately!! Restart your jump at the center of the trampoline mat.

 Read all instructions before using the trampoline, warnings and instructions for the care, maintena nce, and

use of this trampoline are included to promote safe, enjoyable use of this equipment.

 Do not eat while jumping  Instructions that the trampoline is not intended to be buried into the ground.

TRAMPOLINE PLACEMENT

The minimum overhead clearance required is 24 feet (7.3 meters). In terms of horizontal clearance, please ensure that no hazardous objects are near the trampoline such as tree limbs, other recreational objects (i.e. swing sets, swimming pools), electrical power wiring, walls, fences, etc. For safe use of the trampoline, please be aware of the following when selecting a place for your trampoline:

 Make sure it is placed on a flat and level surface.  The area is well-lit.  There are no obstructions beneath the trampoline.  When not in use, the trampoline shall be secured against unauthorized use.  The surface of the jump bed shall be dry. Do not jump on wet bed.  Wind or air movement shall be calm and gentle. Do not use trampoline in gusty or severe wind.  Person in charge and responsible for use of the trampoline shall mak e users aware of practice specified

on this manual. Person in charge shall be a qu alified adult. This person shall always be present, when trampoline is in use.

 Do not place trampoline on concrete floor, hard ground su rface (i.e. rock) or slippery surface. Do not use

indoors.

WARNING!

If you do not follow these guidelines, you increase the risk of someone getting injured. This trampoline was designed and manufactured with quality materials and craftsmanship. If proper

care and maintenance are provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below: This trampoline is designed to withhold a certain amount of weight and use. Please make sure that only one person is using the trampoline at any one time. Also, the person should weigh less than 220 pounds; jumpers should either wear socks, gymnastics shoes, or be barefoot when using the trampoline. Please be aware that street shoes or tennis shoes should NOT be worn while using the trampoline. In order to prevent the trampoline mat from getting cut or damaged please do not allow any pets onto the mat. Also, jumpers should remove all sharp objects from their pockets prior to using the trampoline. All objects should be kept off the trampoline mat at all times.

Always inspect the trampoline before each use for worn, abused or missing parts. A number of conditions could arise that may increase your chances of getting injured. Please be aware of:

 Damaged, missing or insecurely attached frame pad  Protrusions of any types (especially sharp typed) on the frame, springs or mat or suspension  Always close the net opening before practice  Empty pockets and hands before practice  Do not exit the mat by a jump  Limit the time of continuous usage (make regular stops)

IF YOU FIND ANY OF THE PREVIOUS CONDITIONS OR ANYTHING ELSE THAT YOU FEEL COULD CAUSE HARM TO ANY USER, THE TRAMPOLINE SHOULD BE DISASSEMBLED OR SECURED FROM USE UNTIL THE CONDITION(S) HAS BEEN RESOLVED.

WINDY CONDITIONS

In severe wind situations, the trampoline can be blown about. If you expect windy weather conditions, the trampoline should be moved to a sheltered area or be disassembled. Another option is to tie the round, outside portion (top frame) of the trampoline to the ground using ropes and stakes. To ensure security, at least four (4) tie downs should be used. Do not just secure the legs of the trampoline to the ground because they can be pulled out of the frame sockets.

TRAMPOLINES OVER 20 IN. (51CM) TALL ARE NOT RECOMMENDED FOR USE BY CHILDREN UNDER 6 YEARS OF AGE.

DO NOT USE INDOORS.

IMPORTANT !

READ IT! Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death. Do not allow more than one person on the trampoline at a time.

1. Maintenance of T r am poline Enclosure Net and Pad

Enclosure net and pad are prone to wear and tear like tires on a car. Gradual deterioration of the material will occur, the speed of which will depend on the level of exposure to UV rays, airborne pollution, and outdoor weather conditions such as rain and wind.

The net and pad need to be properly maintain ed and checked by following the Maintenance Schedule set out in these instructions. When the material shows any signs of weakness, you must stop using the trampoline immediately, properly store the trampoline and restrict access by users until a new replacement net or pad is properly installed.

2. Maintenance Requirement for Enclosure Net

Your trampoline enclosure netting is manufactured with UV resistant material. Despite this the netting is exposed to the outdoor elements including sunlight, wind, rain and wildlife.

The net surrounding the trampoline must be checked prior to each use. This includes, but is not limited to inspecting the net for cracks, excess wear, brittleness, stretching, all connections and for overall integrity. The net must be immediately replaced if it shows any signs of wear, damage, being stretched, cracked, loose, brittle or otherwise loses any integrity. The following Maintenance Schedule must be followed:

1 to 3 Months 3 to 6 Months 6 to 12 Months Thorough inspection for UV damage and prior to every use for net.

Thorough inspection for UV damage and prior to every use for net, net hanger and straps.

Thorough inspection before every use on net, net hanger, straps, zippers, ties and strings. Replace after 12 months or earlier

IT IS RECOMMENDED THAT THE NET BE REPLACED ON A YEARLY BASIS OR EARLIER UNDER NORMAL USE, EVEN IF IT DOES NOT SHOW ANY VISIBLE SIGNS OF DAMAGE.

INFORMATION ON USE OF THE TRAMPOLINE

 Initially, you should get accustomed to the feel and bounce of the trampoline. The focus must be

on the fundamentals of your body position and you should practice each bounce (the basic bounces) until you can do each skill with ease and control.

 To break a bounce, all you need to do is flex your knees sharply before they come in

contact with the mat of the trampoline. This technique should be practiced while you are

learning each of the basic bounces. The skill of braking should be used whenever you lose balance or control of your jump.

 Always learn the simplest bounce first and be consistent with the control of your bounce before

moving on to more difficult and advanced bounces. A controlled bounce is one when your take off point and landing point is the same spot on the mat. If you move up to the next bounce without first mastering the previous, you increase your chances of getting injured.

 Do not bounce on the trampoline for extended periods of time because fatigue can increase your

chances of becoming injured. Bounce for a brief period of time and then allow others to join in on the fun! Never have more than one person bouncing on the trampoline.

 Jumpers should wear clothing free of drawstrings, hooks, loops or anything that could get caught

while using the trampoline/enclosure and result in entanglement or strangulation, or both. If you are just beginning, you may want to wear long sleeve shirts and pants to protect against

scrapes and abrasions until you master correct landing positions and form. Do not wear hard sole shoes, such as tennis shoes on the trampoline, as this will cause excessive wear on the mat material.

 You should always mount and dismount properly in order to avoid injury. To mount properly, you

should PLACE your hand on the frame and either step or roll up onto the frame, over the springs, and onto the trampoline mat. You should always remember to place your hands onto the frame while mounting or dismounting. Do not step directly onto the frame pad or grasp the frame pad. To dismount properly, move over to the side of the trampoline and place your hand onto the frame as a support and step from the mat to the ground. Smaller children should be assisted when mounting and dismounting the trampoline.

 Do not bounce recklessly on the trampoline since this will increase your chances of getting

injured. The key to safety and having fun on the trampoline is control and mastering the various bounces. Never try to out-bounce another bouncer in terms of height! Never use the trampoline alone without supervision.

ACCIDENT CLASSIFICATION

Mounting and dismounting: Be very careful when getting on and off the trampoline. DO NOT mount the trampoline by grabbing the frame pad, stepping onto the springs, or by jumping onto the mat of the trampoline from any object (i.e. a deck, roof, or ladder). This will increase your chances of getting injured! DO NOT dismount by jumping off the trampoline and landing on the ground, regardless of the makeup of the ground. If small children are playing on the trampoline, they may need help in mounting and dismounting.

Use of alcohol or Drugs:

will increase your chances of getting injured since these foreign substances might impair your judgments, reaction time, and overall physical coordination.

Multiple Jumpers:

time), you increase the chances of getting injured. Injuries could occur when you fly off the trampoline, lose control, collide with the other jumper(s) or land on the springs. Generally, the lightest person on the trampoline will get injured.

Striking the Frame or Springs:

will reduce the risk of getting injured by landing on the frame or springs. Always ensure that the frame pad covers the frame of the trampoline. DO NOT jump or step onto the frame pad directly since it was not intended to support the weight of a person.

Loss of Control:

previous maneuverer, or if you are just learning how to jump on a trampoline. If you do, you will increase the risk of getting injured by landing on the frame, springs or off the trampoline completely because you might lose control of your jump. A controlled jump is considered landing on the same spot that you took off from. If you do lose control when you are jumping on the trampoline, bend your knees sharply when you land and this will allow you to regain control and stop your jump.

Somersaults (Flips):

trampoline, if you make a mistake when trying to perform a somersault, you could land on your head or neck. This will increase your chances of getting your neck or back broken, which will result in death or paralysis, even when landing in the middle of the trampoline mat.

Foreign Objects:

underneath the trampoline. This will increase the chances of an injury occurring. DO NOT hold any foreign objects in your hand and DO NOT place any objects on the trampoline while anyone is playing on it. Please be aware of what is overhead when you are playing on the trampoline. Tree limbs, wires, of other objects located over the trampoline will increase your chances of getting injured.

If you have multiple jumpers (more than one person on the trampoline at any one

DO NOT try difficult manoeuvres, or any manoeuvre until you have mastered the

DO NOT use the trampoline if there are pets, other people, or any objects

DO NOT consume any alcohol or drugs when using this trampoline! This

When playing on the trampoline, STAY in the center of the mat. This

DO NOT PERFORM somersaults of any type (backwards or forwards) on this

Poor Maintenance of Trampoline:

injured. Please inspect the trampoline before each use for bent steel tubes, torn mat, loose or broken springs, and overall stability of the trampoline.

Weather Conditions:

mat of the trampoline is wet, the jumper could slip and injure him or herself. If it is too windy, jumpers could lose control.

Limiting Access:

place so that children cannot play on the trampoline unsupervised.

Please be aware of the weather conditions when using the trampoline. If the

When the trampoline is not in use, always store the access ladder in a secure

A trampoline in poor condition will increase your risk of getting

TIPS TO REDUCE THE RISK ACCIDENTS

Jumper’s role in accident prevention The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult manoeuvres until you have mastered the basic, fundamental bounce. Education is also key to safety and very important. Read, understand, and practice all safety precautions and warnings prior to using the trampoline. A controlled jump is when you land and take off from the same location. For additional safety tips and instructions, contact a certified trampoline instructor.

Supervisor’s Role in Accident Prevention Supervisors need to understand and enforce all safety rules and guidelines. It is the responsibility of the supervisor to provide knowledgeable advice and guidance to all jumpers of the trampoline. If supervision is unavailable or inadequate, the trampoline could be stored in a secure place, disassembled to prevent unauthorized use, or covered with a heavy tarp that can be locked or secured with lock or chains. The supervisor is also responsible to ensure that the safety placard is placed on the trampoline and that jumpers are informed of these warnings and instructions.

TRAMPOLINE SAFETY INSTRUCTIONS

JUMPERS

 Do not use trampoline if you have consumed alcohol or drugs  Remove all hard and sharp objects from person before using trampoline  You should climb on and off in a controlled and careful manner. Never jump on or off the

trampoline and never use the trampoline as a device to bounce onto or into another object.

 Always learn the basic bounce and master each type of bounce before trying more difficult types

of bounces. Review the Basic Skills Section to learn how to do the basics

 To stop your bounce, flex your knees when you land on the mat with your feet  Always be in control when you are bouncing on the trampoline. A controlled jump is when you

land at the same spot that you took off from. If at any time you feel out of control, try to stop your bouncing

 Do not jump or bounce for prolonged periods of time or too high for a number of jumps  Keep your eyes in the mat to maintain control. If you do not, you could lose balance or control  Never have more than 1 person on the trampoline at any one time  Always have a supervisor watching you when you are on the trampoline

SUPERVISORS

Educate yourself with the basic jumps and safety rules. To prevent and reduce the risk of injuries, enforce all safety rules and ensure that new jumpers learn the basic bounces before trying more difficult and advanced jumps.

 All jumpers need to be supervised, regardless of skill level or age.

 Never use the trampoline when it is wet, damaged, dirty, or worn out. The trampoline should be

inspected before any jumpers start bouncing on it.

 Keep all objects that could interfere with the jumper away from the trampoline. Be aware of what

is overhead, underneath, and around the trampoline.

 To prevent unsupervised and unauthorized use, the trampoline should be secured when not in

use.

LESSON PLAN

The following lessons are suggested in order to learn basic steps and bounces before moving onto more difficult, complicated bounces. Before actually getting on and using the trampoline, you should read and understand all safety instructions. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well.

THE BASIC BOUNCE

1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat.

2. Swing arms forward and up in a circular motion.

3. Bring feet together while in mid-air and point toes downwards.

4. Keep the feet shoulder width apart when landing on mat.

KNEE BOUNCE

SEAT BOUNCE

1. Start with the basic bounce and keep it low.

2. Land on knees while keeping your back straight and body erect while using your arms to maintain balance.

3. Bounce back to basic bounce position by swinging arms up.

1. Land in a flat sitting position.

2. Place hands on mat besides hips, but do not

lock your elbow.

3. Return to erect position by pushing with

hands.

FRONT BOUNCE

180 DEGREE BOUNCE

1. Start with a low bounce.

2. Land in prone (face down) position and keep hand and arms extended forward on mat.

3. Push off the mat with arms to return to standing position.

1. Start with the Front Bounce position.

2. Push off with left or right hands and arms (depending on which way you wish to turn).

3. Maintain head and shoulders in the same direction while keeping your back parallel to the mat and your head up.

4. Land in the Prone position and return to standing position.

ALWAYS START YOUR JUMP AT THE BROKEN CIRCLE. WHEN YOU LAND MORE THAN 1FT OR 30.5CM AWAY FROM THE EDGE OF THE BROKEN CIRCLE, STOP YOUR JUMP IMMEDIATELY!!

RESTART YOUR JUMP AT THE OF BROKEN CIRCLE. ALWAYS START YOUR JUMP AT THE CENTER OF THE TRAMPOLINE MAT.

WHEN YOU LAND MORE THAN 1FT OR 30.5CM AWAY FROM THE CENTER OF THE TRAMPOLINE MAT, STOP YOUR JUMP IMMEDIATELY!!

RESTART YOUR JUMP AT THE CENTER OF THE TRAMPOLINE MAT.

ASSEMBLY INSTRUCTIONS

To assemble this trampoline all you need is our special spring loading tool provided with this product. During periods of non-use, this trampoline can be easily disassembled and stored. Please read the assembly instructions before beginning to assemble the product.

PRIOR TO ASSEMBLING

Please refer to next page for parts descriptions and numbers. The assembly steps use these descriptions and numbers as reference for your convenience.

Make sure that you have all parts listed. If you are missing any parts, please refer to this page for instructions on how to attain any parts. To prevent any injuries to your hands from pinch points during assembly, please use protective

gloves to protect your hands.

Working Drawing

 Please refer to the following figure to dig a pit.

Long Side View ：

For distance more than 36"

Short Side View ：

For distance more than 36"

WARNING!

 Be sure that there are no any objects or hazards underneath the trampoline.

And you need to clear them out before using.

WARNING! Please make sure there is no pets or reptiles underneath.

Trampoline Parts List

Part

Number

Diagram Description Quantity

Top Rail with Leg Sockets A 2

Top Rail with Leg Sockets B 2

Top Rail with Leg Sockets C 2

Top Rail with Leg Sockets D 4

Trampoline Mat 1

Frame Pad 1

Leg Base A 2

Leg Base B 2

Long Bolt 2

Arc Washer 10

Small Spring Lock Washer 16

Self-Locking Screw 24

Anchor Set 8

Allen Wrench 1

Wrench 1

Nut 2

Spring Loading Tool 1

Galvanized Springs 64

Large End Cap(used on Leg Base) 8

Trampoline Safety Instruction Placard 1

Enclosure Parts List

Part

Number

Diagram Description Quantity

Upper Frame Tube with Foam 8

Lower Frame Tube with Foam 8

Plastic Cap 8

Spring Lock Washer 8

Short Bolt 8

Small End Cap(used on Top Rail) 8

Cord 6

Enclosure Netting 1

Enclosure Safety Instruction Placard 1

Cable Wire Sets 1

TOOLS REQUIRED FOR ASSEMBLY ARE LISTED ABOVE. PHILLIPS SCREW DRIVER, WHICH IS NOT INCLUDED, COULD BE USED FOR EASIER ASSEMBLY.

Trampoline Assembly

STEP 1

STEP 2

Hole for screw

STEP 3

Hole for screw

 Repeat steps to assemble one more other frames.

STEP 4

 Insert Large Cap（# 19） to Leg Base.

STEP 5 - Spring Assembly

WARNING

Heavy gloves must be used to protect your hands from pinch points assembly and goggles must be worn to avoid injuries to the eyes.

FRAME

TRIANGLE-RING

HOLE FOR SPRING

Tips: The number of triangle-rings sewn onto the Mat is equal to the number of holes in the frame. lf you notice that you have miscounted a hole or triangle-ring, remove and reinstall the springs as necessary while maintaining an even distribution of tension as explained above.

STEP 6- Spring Assembly(Continued)  There are a total of 64 springs, for even distribution of spring tension

and ease of assembly, the spring must always be installed on opposite sides of the mat in an alternating manner. If you do not follow this pattern it will be very difficult to assemble the trampoline mat correctly.

 The first spring is in place continue with the next in the numerical order

shown on the picture. When you have completed number 16 you can attach the remaining springs in any order.

1st

5th

4th

12th

13th

16th

11th

8th

7th

3rd

6th

2nd

9th

14th

15th

10th

STEP 7

Trampoline Enclosure Assembly STEP 8

STEP 9 list the cable wires as below :

There are 10 Cable Wires (# J) needed to form the enclosure top frame. 4-STYLE A (1010mm x 4pcs)

2-STYLE B ( 900mm x 2pcs) 4-STYLE C (1060mm x 4pcs)

STYLE A

STYLE B

STYLE A

STYLE C

Thread

STYLE C

12FT SIDE

STYLE C

Nut

STYLE C

STYLE A

STYLE B

8FT SIDE

STYLE A

STEP 10

Thread

Nut

Long Side

Short Side

STEP 11

Short Side

Long Side

Zipper door

STEP 12

Larger hole

Small hole

STEP 13

Cable wire

STEP 14

STEP 15

 The Anchors(#13) go through the hole of pad / hole of leg base and into

the soil.

STEP 16

WARNING

CARE AND MAINTENANCE

This trampoline was designed and manufactured with quality materials and craftsmanship. If proper care and maintenance is provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below:

This trampoline is designed to withhold a certain amount of weight and use. Please make sure that only one person at any one time uses the trampoline. Jumpers should either wear socks, gymnastics shoes, or be barefoot when using the trampoline. Please be aware that street shoes or tennis shoes should NOT be worn while using the trampoline. In order to prevent the trampoline mat from getting cut or damaged please do not allow any pets onto the mat. Also, jumpers should remove all sharp objects from their person prior to using the trampoline. Any type of sharp or pointed objects should be kept off the trampoline mat at all times.

Always inspect the trampoline before each use for worn, abused or missing parts. A number of conditions could arise that may increase your chances of getting injured. Please be aware of:

 Punctures, frays, tears or holes worn in the bed or frame padding  Missing, improperly positioned or insecurely attached frame padding  Sagging trampoline mat  Loose stitching or any kind of deterioration of the mat  Bent or broken frame parts (legs and/or rails)  Broken, missing or damaged springs  Damaged, missing or insecurely attached frame pad  Protrusions of any types (especially sharp typed) on the frame, springs or mat or

suspension

WINDY CONDITIONS

In severe wind situations, the trampoline can be blown about. If you expect windy weather conditions, the trampoline should be moved to a sheltered area or disassembled. Another option is to tie the round, outside portion (top frame) of the trampoline to the ground using ropes and stakes. To ensure security, at least four (4) tie downs should be used. Do not just secure the legs of the trampoline to the ground because they can pull out the frame sockets.

USE INSTRUCTIONS

Before you begin use of this trampoline and trampoline enclosure, be sure to carefully read all the information provided to you in this manual. Just like any other type of physical recreational activity, participants can be injured.

To reduce the risk of injury, be sure to follow appropriate safety rules and tips.

* Trampolines over 20 in. (51cm) tall are not recommended for use by children under 6 years

of age. * DO NOT attempt or allow somersaults. Landing on the head or neck can cause serious injury,

paralysis, or death, even when landing in the middle of the bed.

* Inspect the trampoline before each use. Make sure the frame padding is correctly and

securely positioned. Replace any worn, defective or missing parts.

* To climb on and off the trampoline, it is a dangerous practice to jump from the trampoline to

the floor or ground when dismounting, or to jump onto the trampoline when mounting. Do not use the trampoline as a springboard to jump onto other objects.

* Stop bounce by flexing knees as feet come in contact with the trampoline bed. Learn this skill

before attempting others.

* Learn fundamental bounces and body positions thoroughly before trying more advanced

skills. A variety of trampoline activities can be carried out by performing the basic fundamentals in various series and combinations, performing one fundamental after another, with or without feet bounces between them.

* Avoid bouncing too high. Stay low until bounce control and repeated landing in the center of

the trampoline can be accomplished. Control is more important than height.

* While keeping the head erect, focus eyes on the trampoline toward the perimeter. This will

help control bounce. Avoid bouncing when tired. Keep turns short.

* Properly secure the trampoline when not in use. Protect it against unauthorized use. If a

trampoline ladder is used, the supervisor should remove it from the trampoline when leaving the area to prevent unsupervised access by children under 6 years of age.

* Keep objects away which could interfere with the performer. Maintain a clear area around the

trampoline. * Do not use the trampoline while under the influence of alcohol or drugs. * For further information or additional instruction materials on skill training, contact a competent

trampoline instructor. * Bounce only when the surface of the bed is dry. Wind or air movement should be calm and

gentle. The trampoline must not to be used in gusty or severe winds. * Read all instructions before using the trampoline. Warnings and instructions for the care,

maintenance and use of this trampoline are included to promote safe, enjoyable use of this equipment.

*You should always mount and dismount properly in order to avoid injury. It is a dangerous

practice to jump from the trampoline to the floor or ground when dismounting, or to jump onto the trampoline when mounting.

*Stop bounce by flexing knees as feet come in contact with the trampoline bed. Learn this skill

before attempting others. This technique should also be practiced while you are learning each of the basic bounces. The skill of breaking should be used whenever you lose balance or control of your jump. Initially, you should get accustomed to the feel and bounce of the trampoline. The focus must be on the fundamentals of your body position and you should practice each bounce (the basic bounces) until you c an do each skill with ease and control.

*Always learn the simplest bounce first and be consistent with the control of your bounce

before moving on to more difficult and advanced bounces. A controlled bounce is one when your take off point and landing point is the same spot on the mat. If you move up to the next bounce without first mastering the previous, you increase your chances of getting injured.

*Do not bounce recklessly on the trampoline since this will increase your chances of getting

*Do not bounce on the trampoline for extended periods of time because fatigue can increase

your chances of becoming injured. Bounce for a brief period of time and then allow others to join in on the fun! Never have more than one person bouncing on the trampoline.

*Focus your eyes on the end of the trampoline. This will help you control your bounce. Do

check your position while jumping by checking your position in relation to the center of the trampoline bed. Do not jump more than 1ft or 30.5cm from the center of the trampoline bed.

*Keep objects away that could interfere with the performer. Maintain a clear area around the

trampoline and trampoline enclosure.

*Bounce only when the surface of the mat is dry. Wind or air movement should be calm to

gentle. The trampoline must not be used in gusty or severe winds.

*In severe wind situations, the trampoline can be blown about. If you expect windy weather

conditions, the trampoline and moved to a sheltered area or disassembled. Another option for the trampoline is to tie the round, outside portion (top frame) of the trampoline, to the ground using ropes and stakes. To ensure security, at least four (4) tie downs should be used. Do not just secure the legs of the trampoline to the ground because they can pull out of the frame sockets.

*For further information or additional instructional materials on skill training, contact a

competent trampoline instructor.

*Do not jump from other objects, buildings or surfaces onto the trampoline.

TIPS TO REDUCE THE RISK OF ACCIDENTS

All jumpers need to be supervised, regardless of skill level or age.

Jumper’s role in accident prevention

The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult maneuvers until you have mastered the basic, fundamental bounce. Education is also key to safety and very important. Read, understand, and practice all safety precautions and warnings prior to using the trampoline. A controlled jump is when you land and take off from the same location.

For additional safety tips and instructions, contact a certified trampoline instructor.

Supervisor’s or owner’s role in accident prevention

Supervisors need to understand and enforce all safety rules and guidelines. It is the responsibility of the supervisor to provide knowledgeable advice and guidance to all jumpers of the trampoline. If supervision is unavailable or inadequate, the trampoline should be stored in a secure place, disassembled to prevent unauthorized use or covered with a heavy tarp that can be locked or secured with lock or chains. The supervisor is also responsible to ensure that the safety placard is placed on the trampoline that jumpers are informed of these warnings and instructions.

Customer Service Number: (1) 877-512-9188

Please contact us, before Returning the item to the store, where purchased.

Bounce Master JMPW1007 Assembly Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
