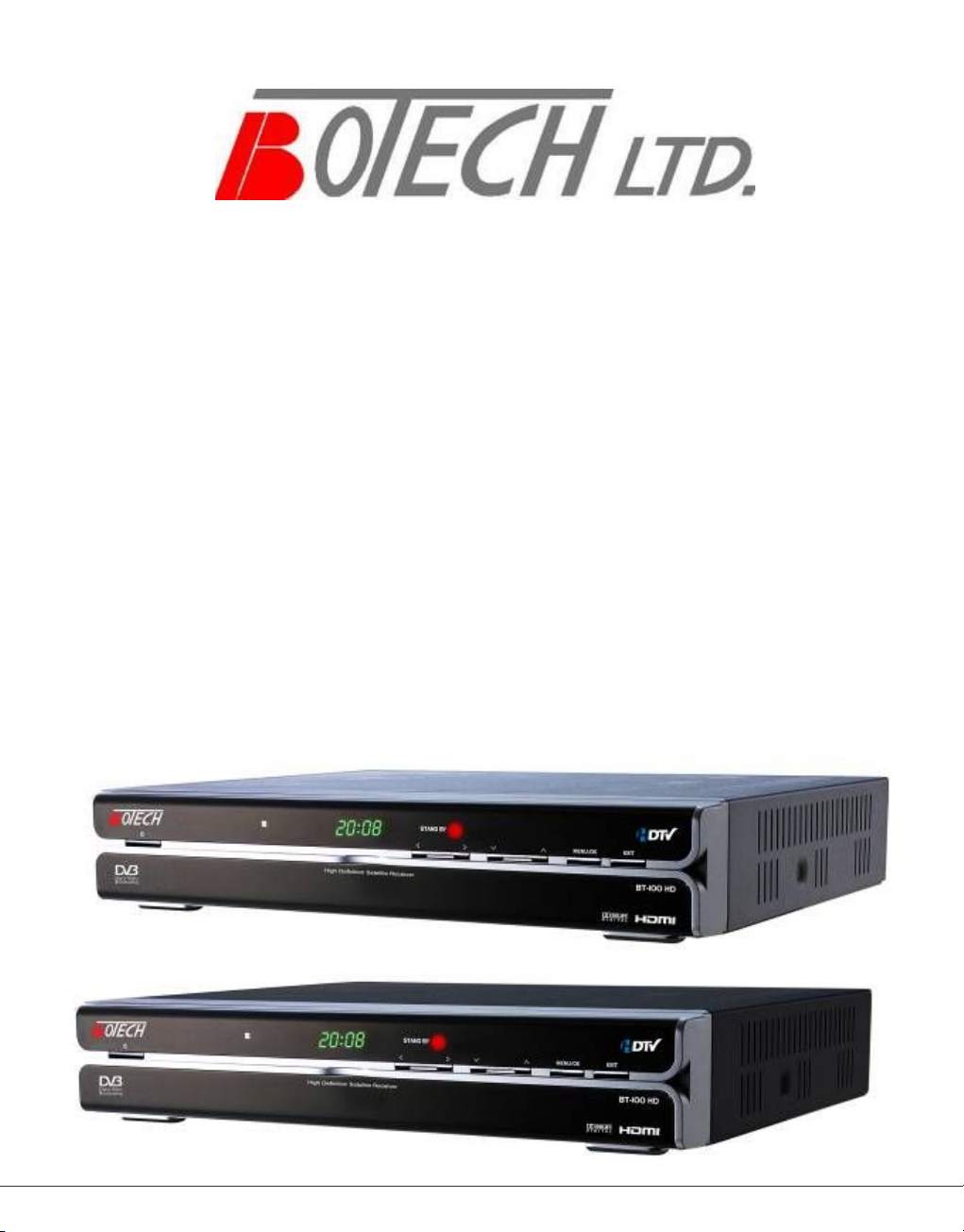

Botech BT-100 HD User Manual

BT-100 HD

HD(High Definition)

Common Interface Embedded

Satellite Receiver

User Manual

TABLE OF CONTENTS

Notice 3

Safety Information 4

1 Before You Begin 6

1.1 Features 6

1.2 Accessories 7

2 Controls and Functions 8

2.1 Front Panel 8

2.2 Rear Panel 8

2.3 Remote Control Unit 9

3. Connections 11

3.1 Connecting to TV 11

3.2 Connecting to Dish 15

4. Menu Overview 17

4.1 Menu Instruction 17

4.2 Menu Help 17

4.3 Menu Structure 18

5. Menu Operation 19

5.1 First Installation 19

5.2 Installation 21

5.3 System Setting 26

5.4 Channel 28

5.5 Advanced 30

5.6 Status 31

1

6. Viewing General Information 31

6.1 Banner Information 31

6.2 TV & Radio changing 32

6.3 TV or Radio Channel Lists 33

6.4 Option 37

6.5 A/V+ 38

6.6 Fav 39

6.7 A-Z 39

6.8 EPG 40

Additional Information 42

1.1 Programming the Remote Control to Operate Other Devices 42

1.2 Key Table 44

1.3 Brand List 46

A.1 Troubleshooting 56

A.2 Technical Specifications 57

A.3 Glossary of Terms 59

2

Notice

Caution

Read this manual carefully and make sure you understand the provided instructions. For your

safety, check what the result each action will be.

Warnings, Cautions and Notes

Throughout he whole manual, pay special attention to the following marks that indicate hazardous
situations.

Indicates a situation which, if not avoided, could damage the

equipment or apparatus.

Warnings

Indicates a hazardous situation which, if not avoided, could result in

serious injury.

Note

Indicates additional information to the user to make the user aware of

possible problems and information of any importance to help the user

to understand, to use and to maintain the installation.

3

Safety Information

This digital satellite receiver has been manufactured to comply with international safety standards.
Please read the following safety precautions carefully.

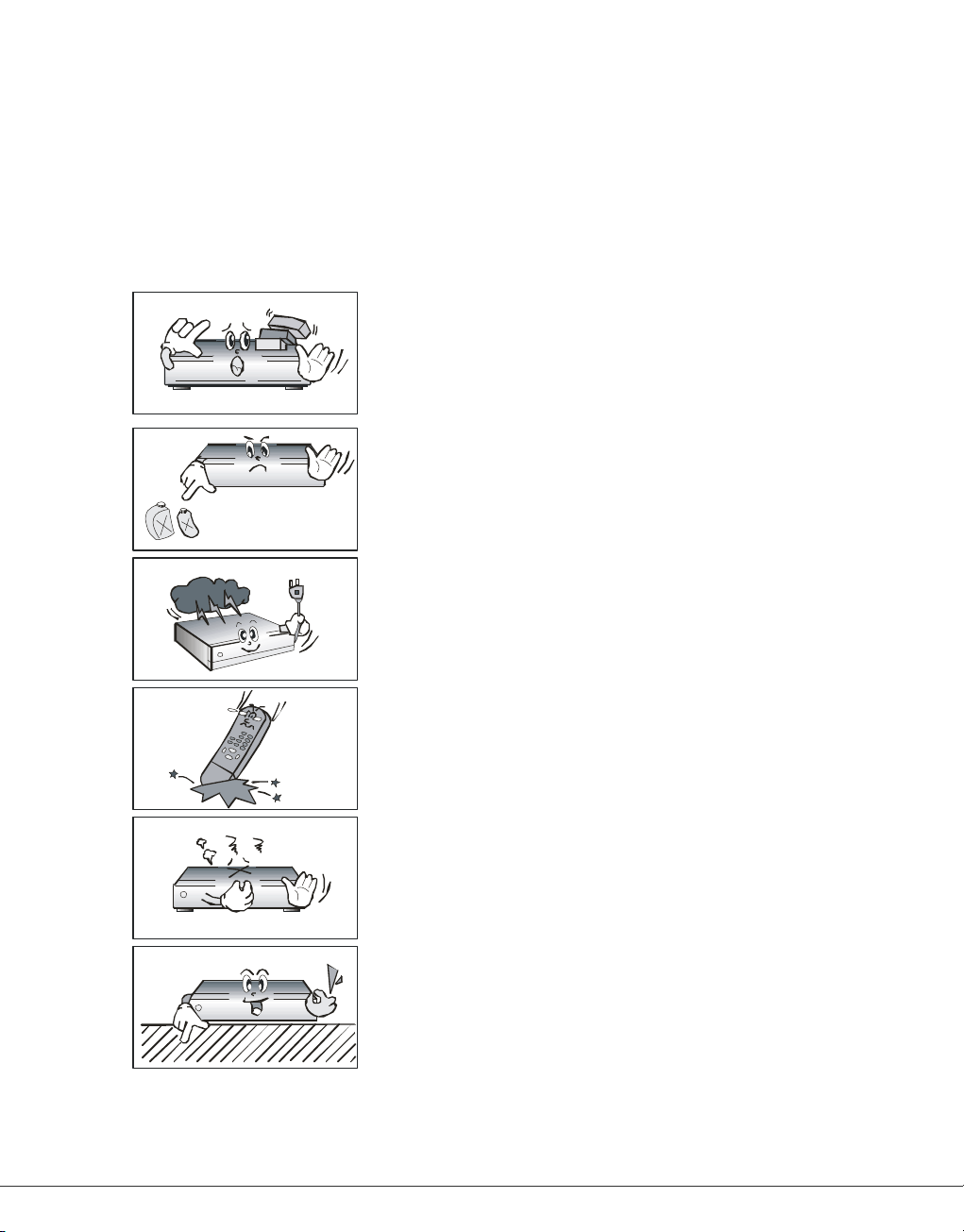

Safety Instructions and Precautions

Avoid placing heavy things and blocking ventilation passage.

(Passage blocking can cause fire)

Avoid scrubbing the surface with Benzene or Volatile gasoline. Color

can be damaged.

Leave the power and the antenna off for the ling absence or during

thunder storm.

Avoid dropping and damaging Remote Control Unit.

If there is smoke or burning smell, turn off & un-plug the set

immediatel y. Contact your local repair center for advice.

Avoid place the set on slippery and slant surface.

4

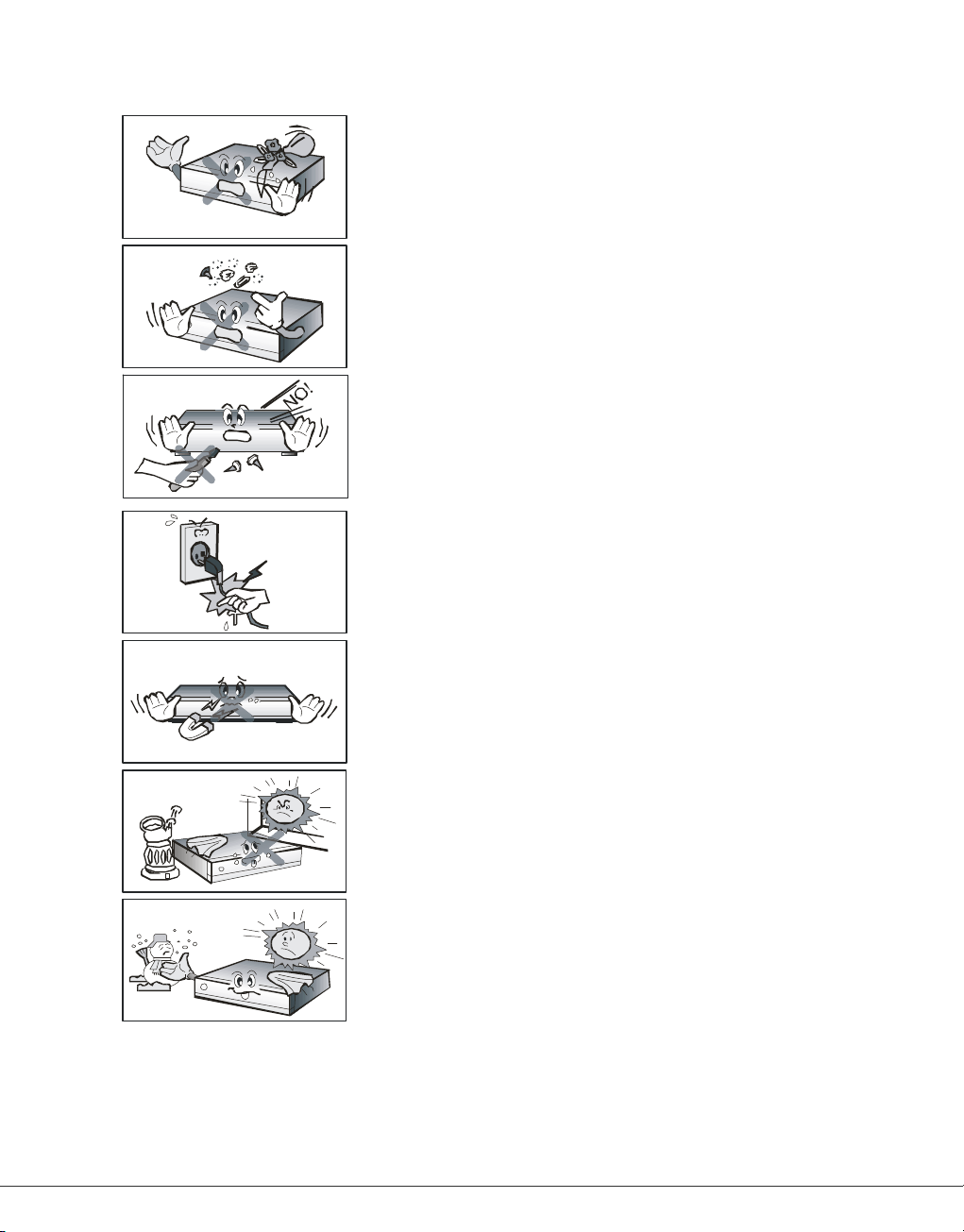

Keep away from the water.

Clear off the dust. Dust or Metallic particles inside the set can cause

fire and electric shock.

Avoid dissembling and assembling. Do not open the set.

Do not snatch the cable to plug out .

Do not move the set while power cord is plugged in.

Keep the distance from Magnetic items and Audio Speaker.

Place the set with the good ventilation and away from the direct

sunlight and humidity.

Avoid the temperatur e of over 30C and below 5C .

5

1 Before You Begin

1.1 Features

· Brilliant On Screen Graphic

· MPEG-2 & MPEG-4 Fully DVB Compliant

· MPEG-2 Video (MP@ML), MPEG-1 Audio Layer1,Layer2

· LNB Controlling Logic

· SCPC/MCPC Receivable from C / Ku-Band Satellites

· Digital Tuner with Loop-through

· HDMI, Component, RGB/HV, S-Video, Composite Video, Audio L/R

· Wide Symbol Rate 1~45Mbps & Frequency Input 950 ~ 2150MHz

· DiSEqC 1.2 Supported

· S/PDIF AC3 Audio

· User friendly OSD Menu with Full Function

· 256 Color Graphic User Interface

· Multi-language menu

· 4-digit 7-segment LED Display

· Variable Aspect Ratio (4.3, 16:9) with Pan Vector or Letter Box

· EPG(Electronic Program Guide) for On-screen Channel Information

· Teletext and Subtitle Supported (VBI & OSD)

· Installation by Easy Setup Guide

· Capacity for Storing Multi Channel (FTA.2500 Channels, 500 Transponders)

· Favorite Channel and Parental Lock Function

· RS232C Port for Upgrading System Software

· Input Frequency 51~862 Mhz

· Implement complet DVB-T (ETS 300 744) standard

· 2K and 8K transmission modes

· No=Hierarchial and Hierarchial support

· Optimized for both SFN and MFN enviroment

6

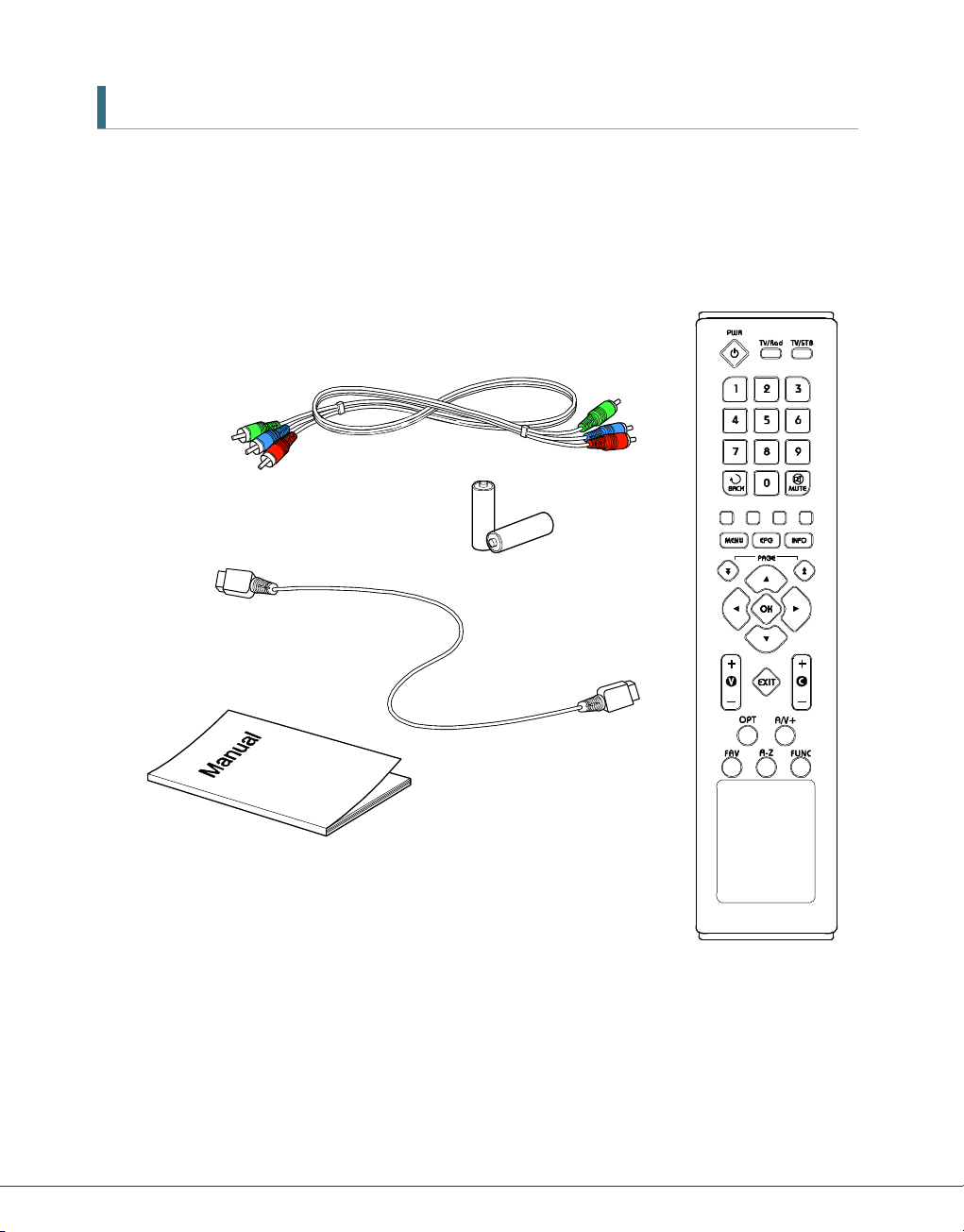

1.2 Accessories

· Component video cable

· HDMI cable

· Operating instruction (this Manual)

· Remote Control

· AAA dry cell batteries x 2

7

2 Controls and Functions

2.1 Front Panel

Item Description

1. Power Button Turns the receiver On/Off.

2 Menu/OK Button Shows the Main menu in viewing mo de. Acti vates the highlighted m enu

item in menu mode.

3. EXIT Button Exit from the current menu or cancels the current progressing
operation if applicable.

4. CH Up/Down Buttons

(▲/▼)

5. Volume Up/Down Buttons

(/)

7. Display

(4-digit 7-segment)

Changes channels in viewing mo de and moves the cursor up/down in
menu mode.

Increases/ decreases the volume levels in viewing mod e and changes
settings i n menu mode.

4-digit display of channel information.
The red LED is the STAND BY indicator.

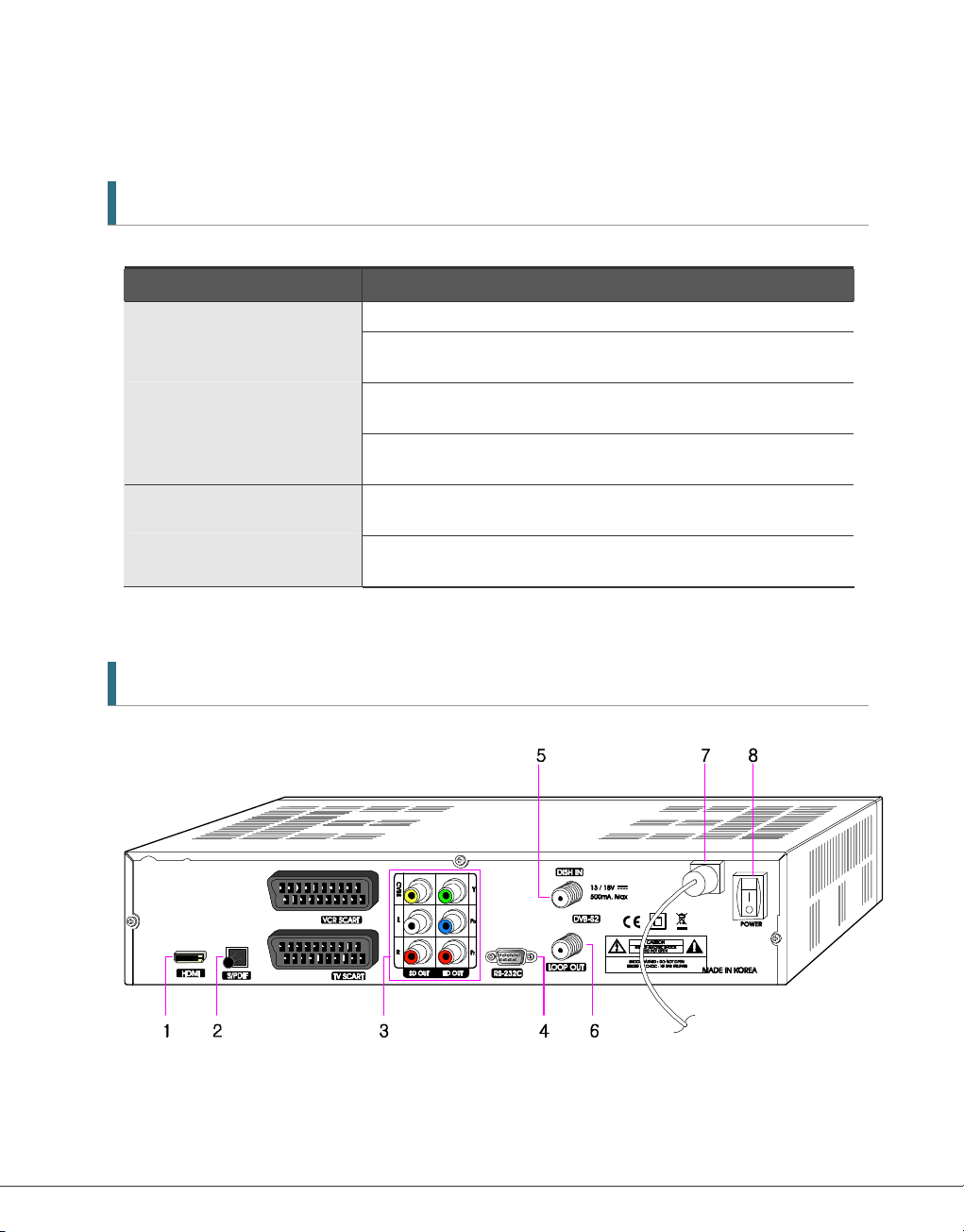

2.2 Rear Panel

8

Item Description

1. HDMI Connect HDMI input of TV or PC monitor.

2. S/PDIF Output for connection to a digital amplif ier.

3. CVBS OUT Using standard video cables, these jacks connect CV BS(Yellow).

Stereo Audio OUT Using standard stereo audio cables, these jacks connect L/R(White,

Red).

YPbPr OUT Using standard A/V cables, these jacks connect Y/Pb/Pr(Green, Blue,

Red) HD component video input.

4. RS-232C Connects to a Set-top box or a PC serial port.

5. DISH IN 13/18(14/19)V
500mA Max

6. LOOP OUT Loop Out is a output port of the DISH IN signal.

7. Electric Inlet Lead 90~240V AC(Auto-selectable), 50~60Hz. Make sure to check the power

8. Power Cord AC Power Switch.

Connect the satellite dish.

specification.

2.3 Remote Control Unit

All receiver features can be controlled with the remote controller.

Button Description

1. POWER

TV/STB

TV

VCR

DVD

STB

2. NUMERIC Buttons

( ~ )

BACK

TV/RAD

3. MENU

EPG

INFO

Turns the unit On and Off.

Switches between TV and STB.

Mode indicator :
Indicates operational mode of remote control.

Chooses channels and enters prodramming information.

Move to the previous channel.

Switches between TV and Radio.

Display the main menu of the receiver and come out from inner level to viewing
mode(Exit all).

Shows the TV/Radio Channel guide.

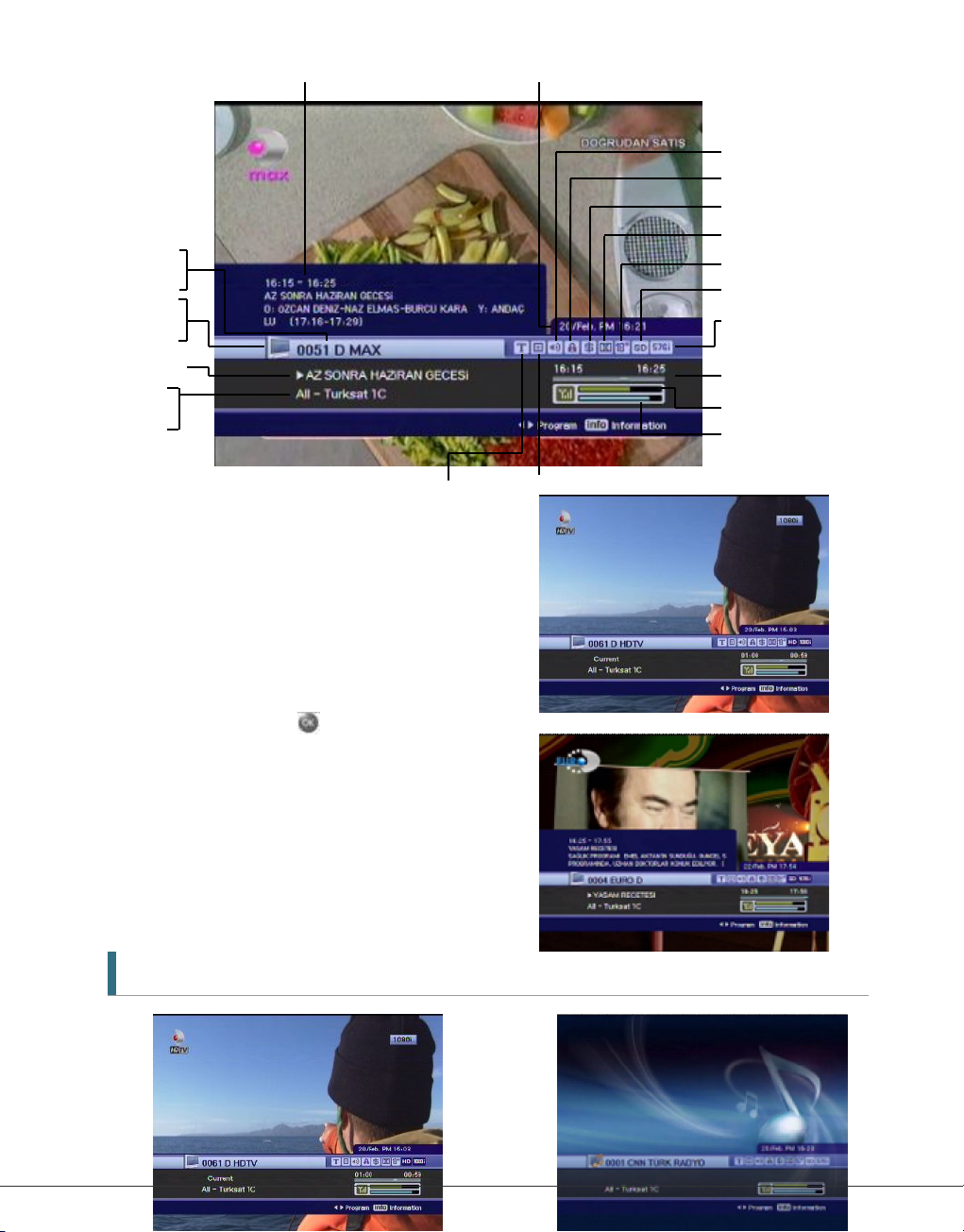

Shows the information of the Banner and EPG.

9

EXIT

Removes all on-screen displays and returns to TV viewing from any menu.

4. / ( / )

▲/▼ ( / )

OK( )

A-Z

MUTE

5. V+/-

CH+/-

P+/-

6. ( )

( )

( )

( )

7. OPT

A/V+

FAV

FUNC

Moves left/right or change settings in menu mod e.

Changes channels in viewing mo de.

Moves up/down in menu mode.

Confirms the choices and/or selections the highlighted menu item. While watching
TV or listening to Radio, press the

Sort the channels automatically in alphabetical order.

Tur ns the sound on/off.

Changes the volume level in viewing mode.

Changes channels in viewing mo de.

Selects ot her menu pages with sub-pages.

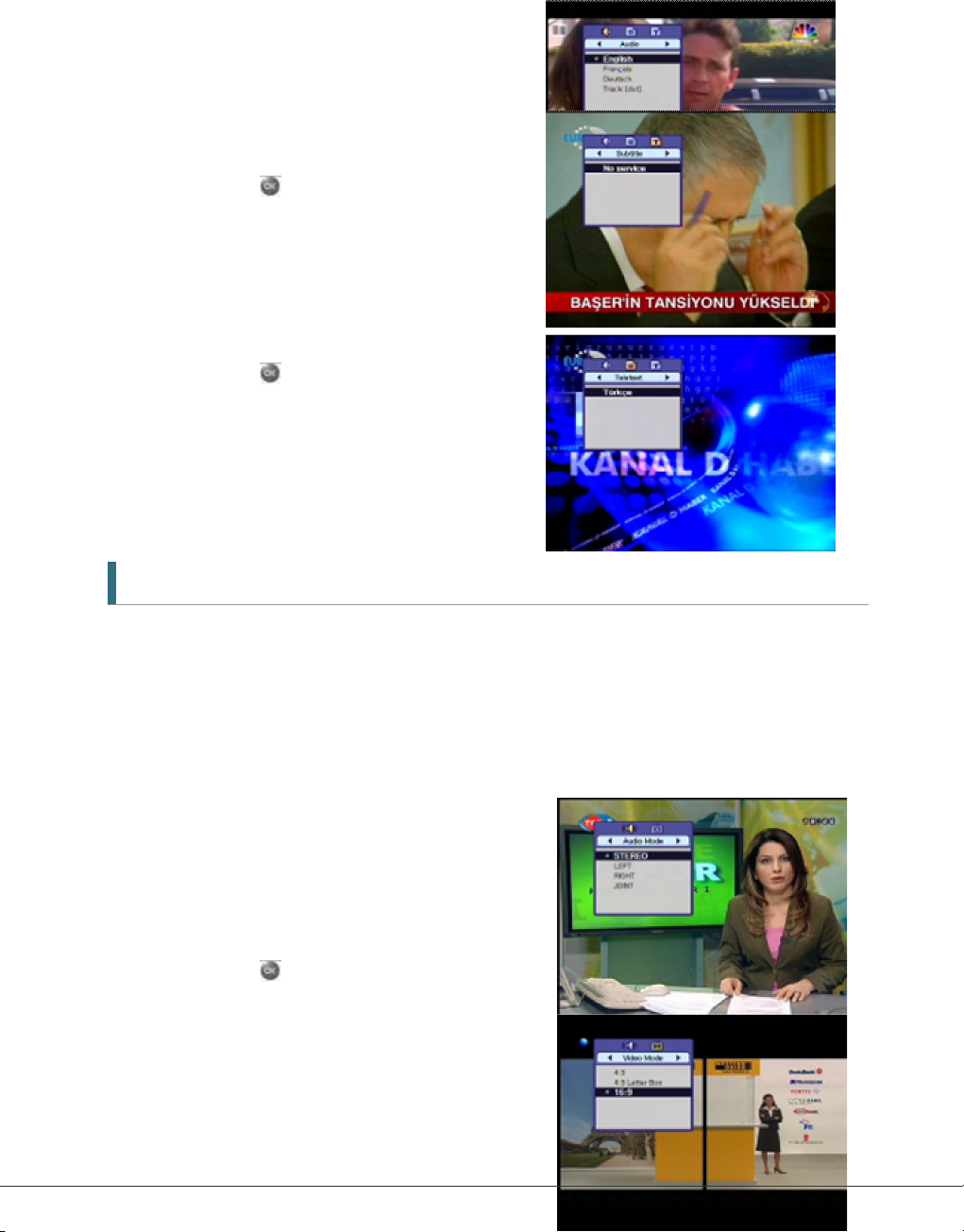

Select the option such as Audio Language, Teletext Language and Subtitle
Language.

Select video mode (4:3, 4:3 Letter Box, 16:9) and audio mode (Left, Right, Stereo,
Joint).

Select the group of satellite or favorite.

Selects the new features such as Zooming, Multi picture.

Select the option such as Audio Language, Teletext Language and Subtitle
Language.

Select video mode (4:3, 4:3 Letter Box, 16:9) and audio mode (Left, Right, Stereo,
Joint).

Select the group of satellite or favorite.

Selects the new features such as Zooming, Multi picture.

button and the channel list will appear.

10

3. Connections

3.1 Connecting to TV

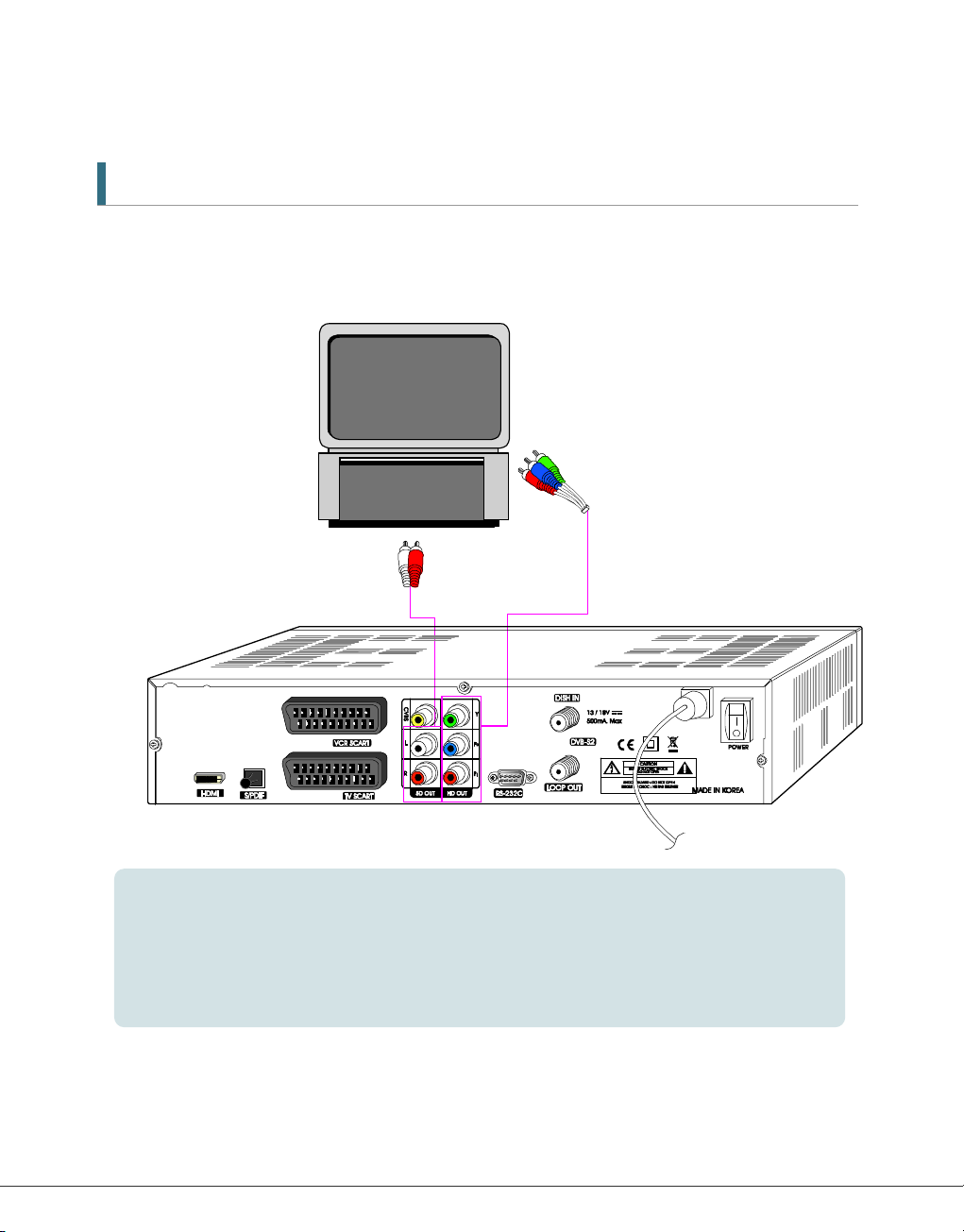

<Connecting to digital TV which can support HD resolution (1080i,720p480p&480i) using YPbPr port>

1.Connect STB’s YPbPr OUT and audio L/R OUT to YPbPr IN and audio L/R IN of TV.

2.Set STB’s video output mode to 1080i or 720p or 480p using ‘FUNC’ key of remote controller.

Please check TV’s user manual for detail connecting method of the YPbPr input port.

11

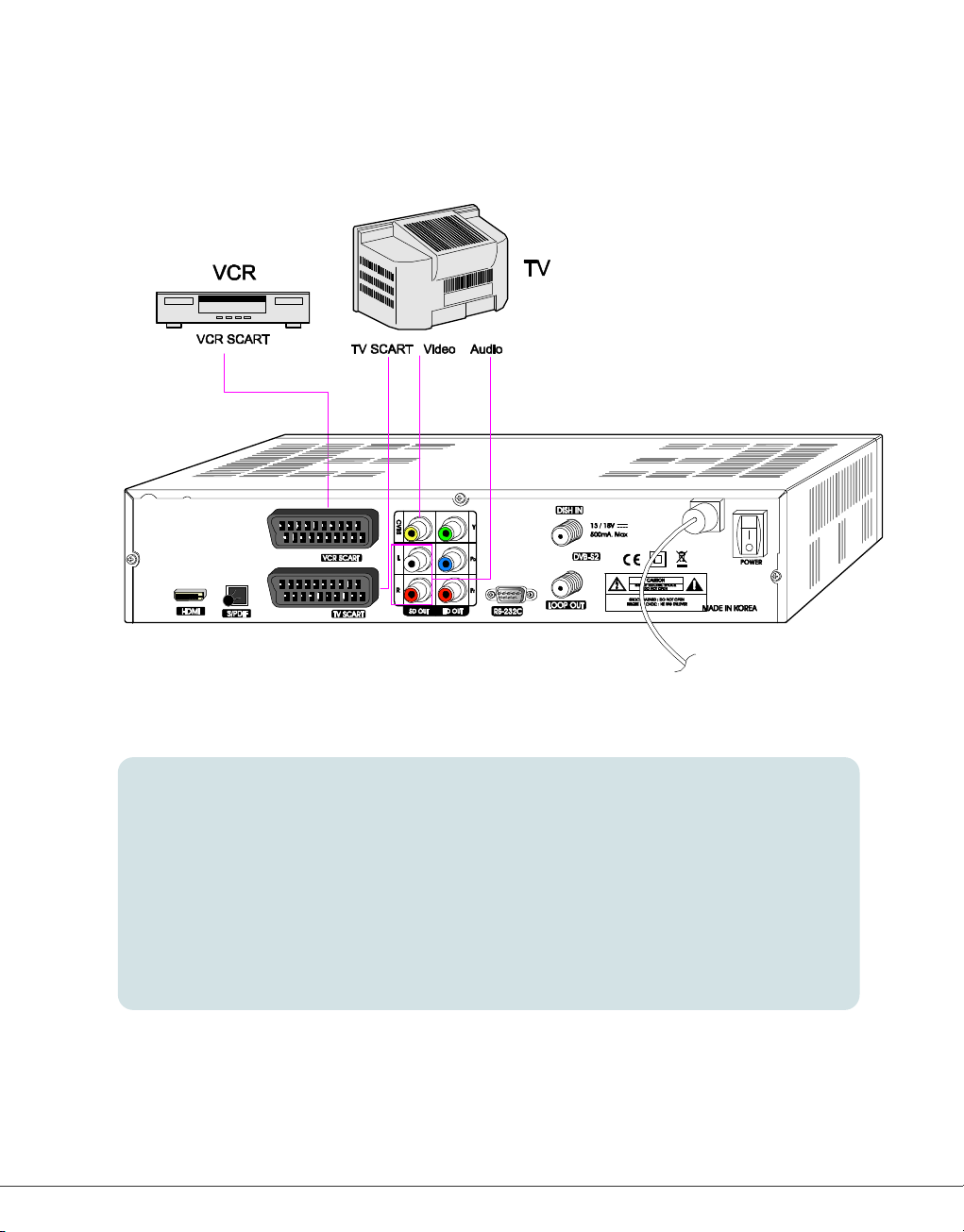

<Receiver to TV and VCR with SCART Cables >

1.Connect the Video and Audio of TV to the Video and Audio. Connect Red and White

connector to Audio R and Audio L, and Yellow to Video port respectively.

2.Connect the TV SCART of TV to lower SCART connector with fully featured SCART cable.

3.Connect the VCR SCART of VCR to upper SCART connector with fully featured SCART cable.

4.Go to section 3.2, Connecting to Dish, then connect your dish.

12

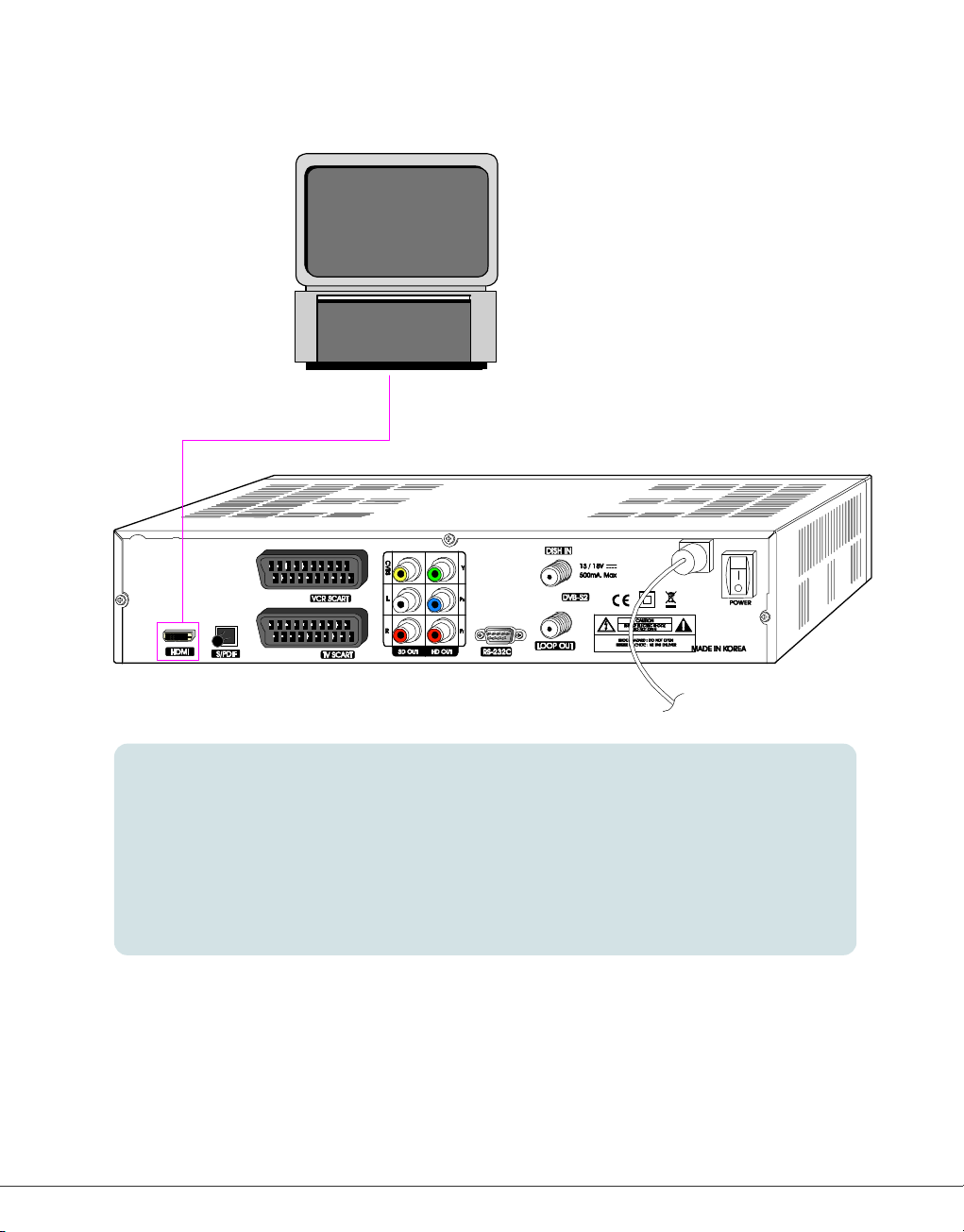

<Connecting to PC monitor or digital TV which has HDMI input port>

1.Connect STB’s HDMI OUT to HDMI IN of monitor or TV.

2.Set STB’s video output mode to 1080i or 720p or 480p using ‘FUNC’ key of remote controller.

For the best access to HD programming at the highest available resolution, use this connection
method.

13

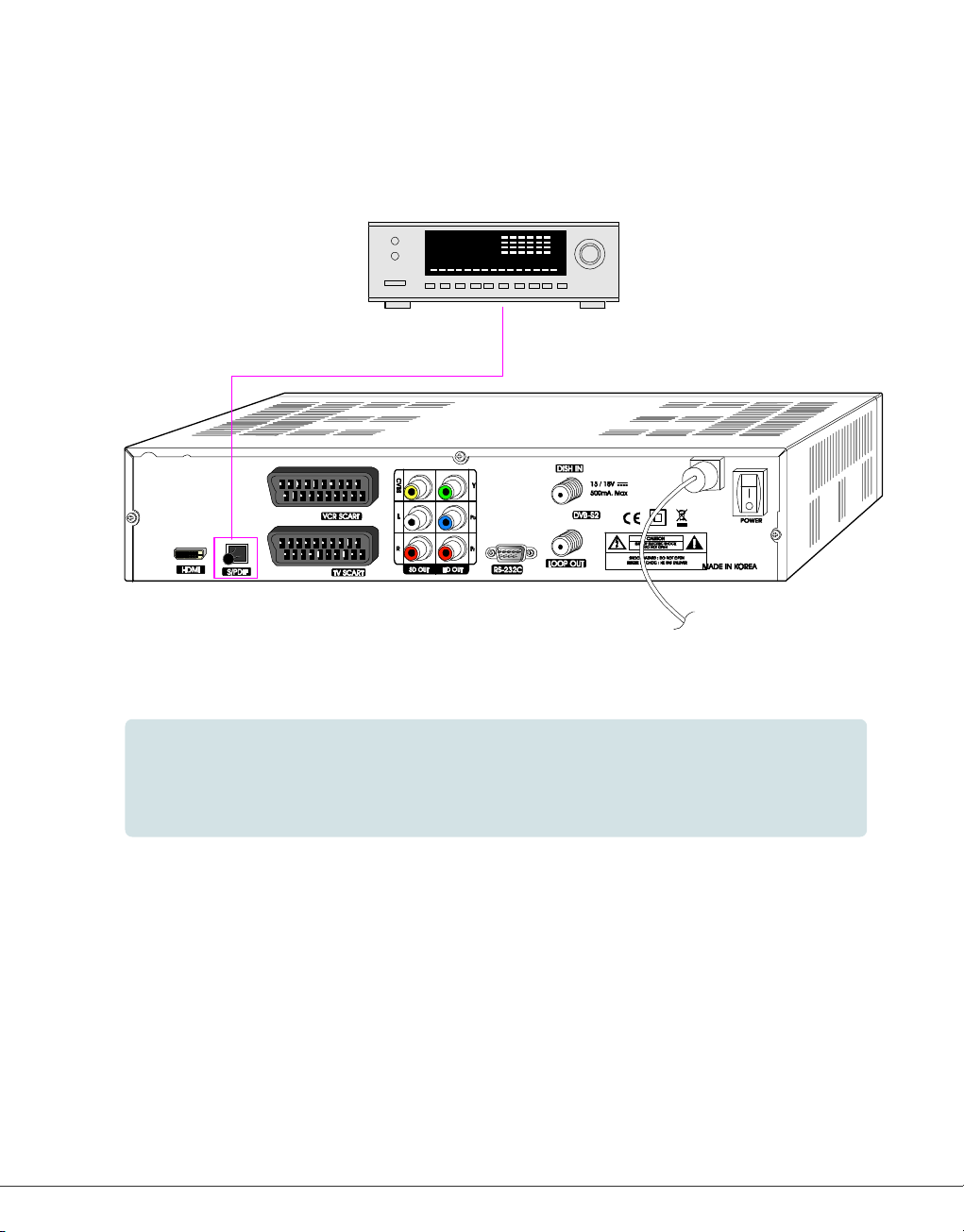

<Connecting to A/V receiver (Dolby digital amplifier)>

1.Connect STB’s optical digital audio out to A/V receiver.

2.Go to TV Output menu and set “Dolby Digital(DD)” to enable.

14

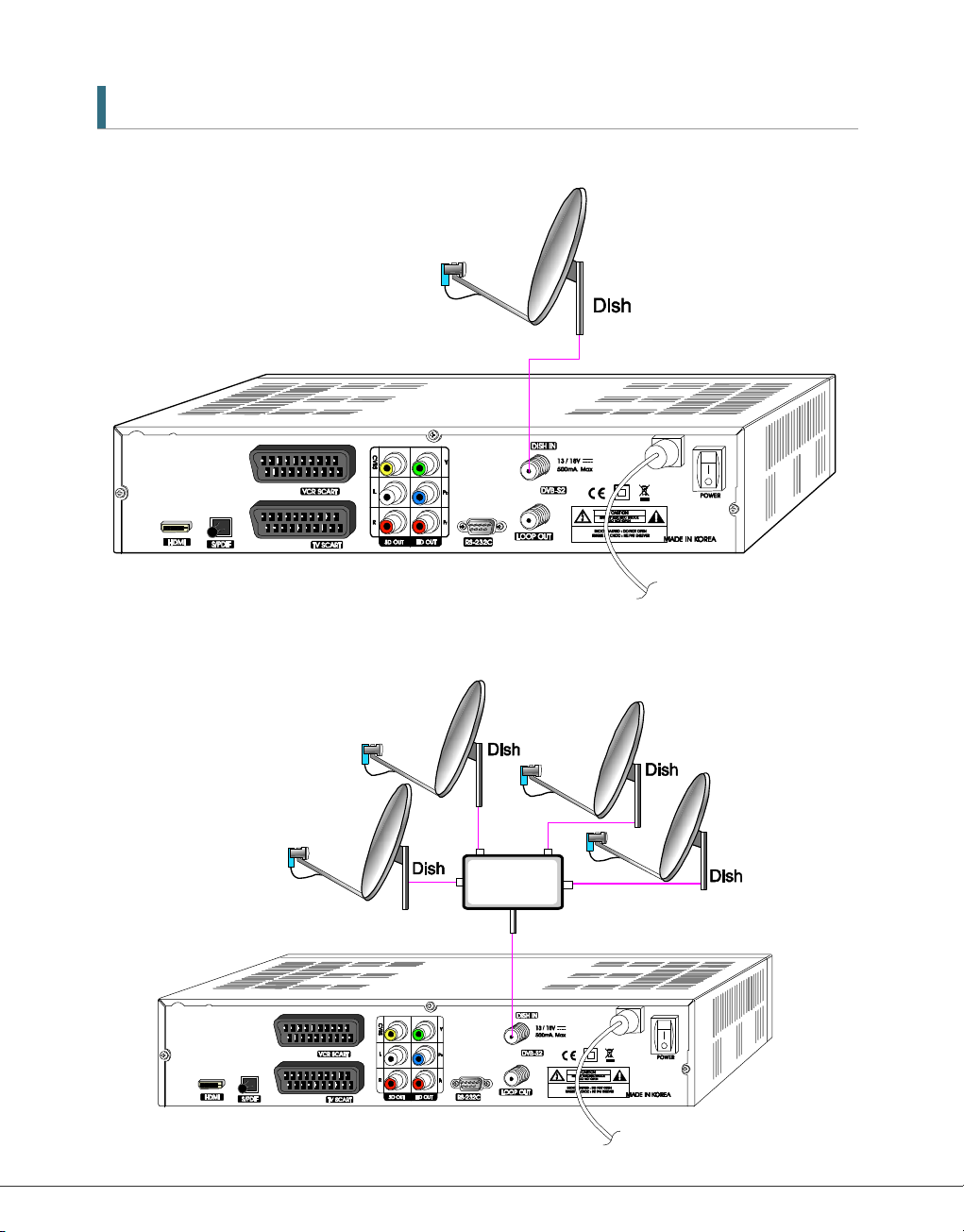

3.2 Connecting to Dish

<Dish>

Connect the Satellite antenna cable to DISH IN.

<Fixed Dishes Using a DiSEqC switch>

Connect the output of DiSEqC 1.0 to DISH IN of the receiver.

15

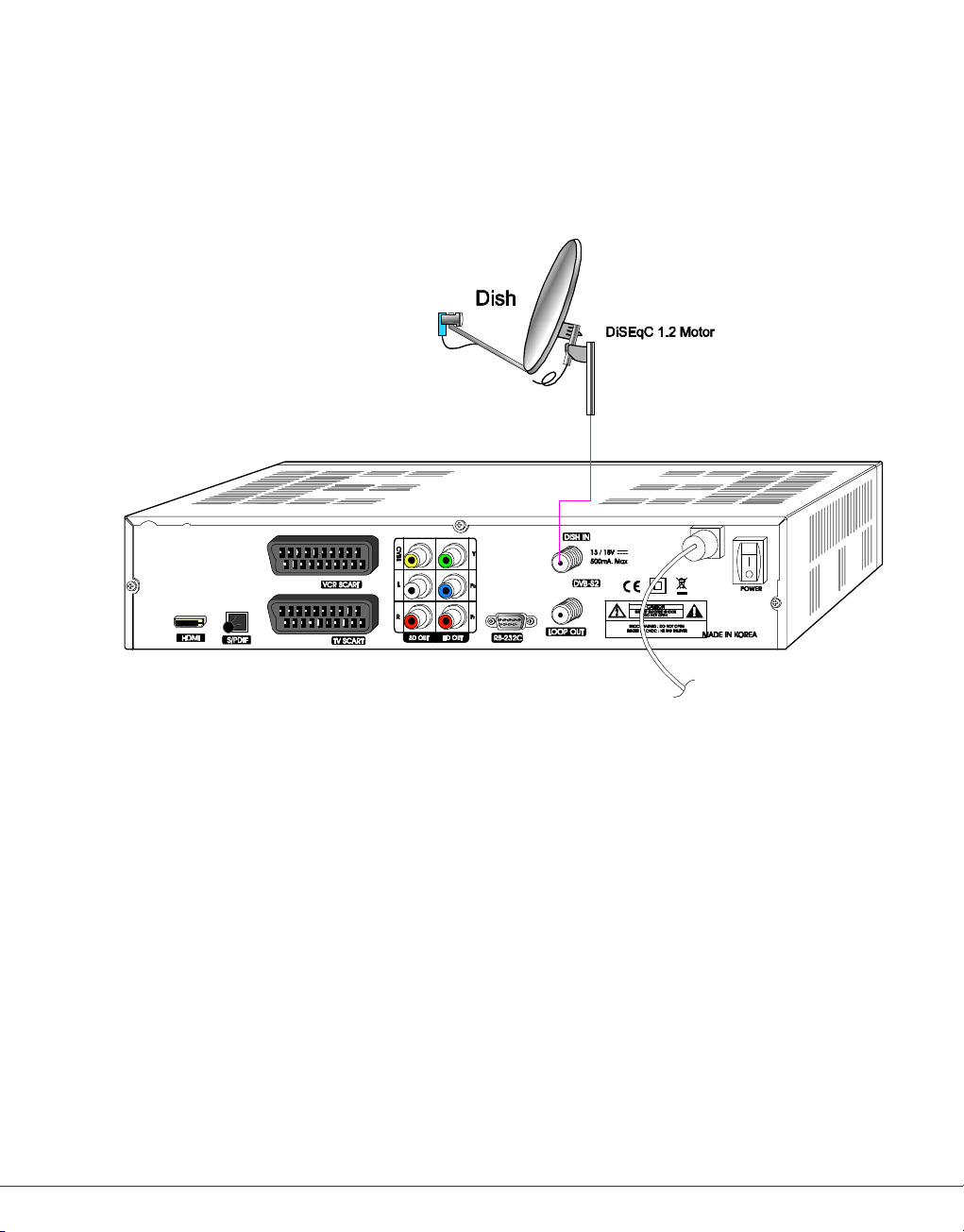

<Motorized Dish Using DiSEqC 1.2>

Connect the output of DiSEqC 1.2 to DISH IN of the receiver.

16

4. Menu Overview

4.1 Menu Instruction

Press the MENU button to display the main menu. You can select the sub menu using the ▲/▼//
button. The selected sub menu becomes highlighted.
When you have selected the sub menu you want, press the
When you want to return to the previous menu, press the
When you want to return to the live screen, press the Menu button.

button.

button.

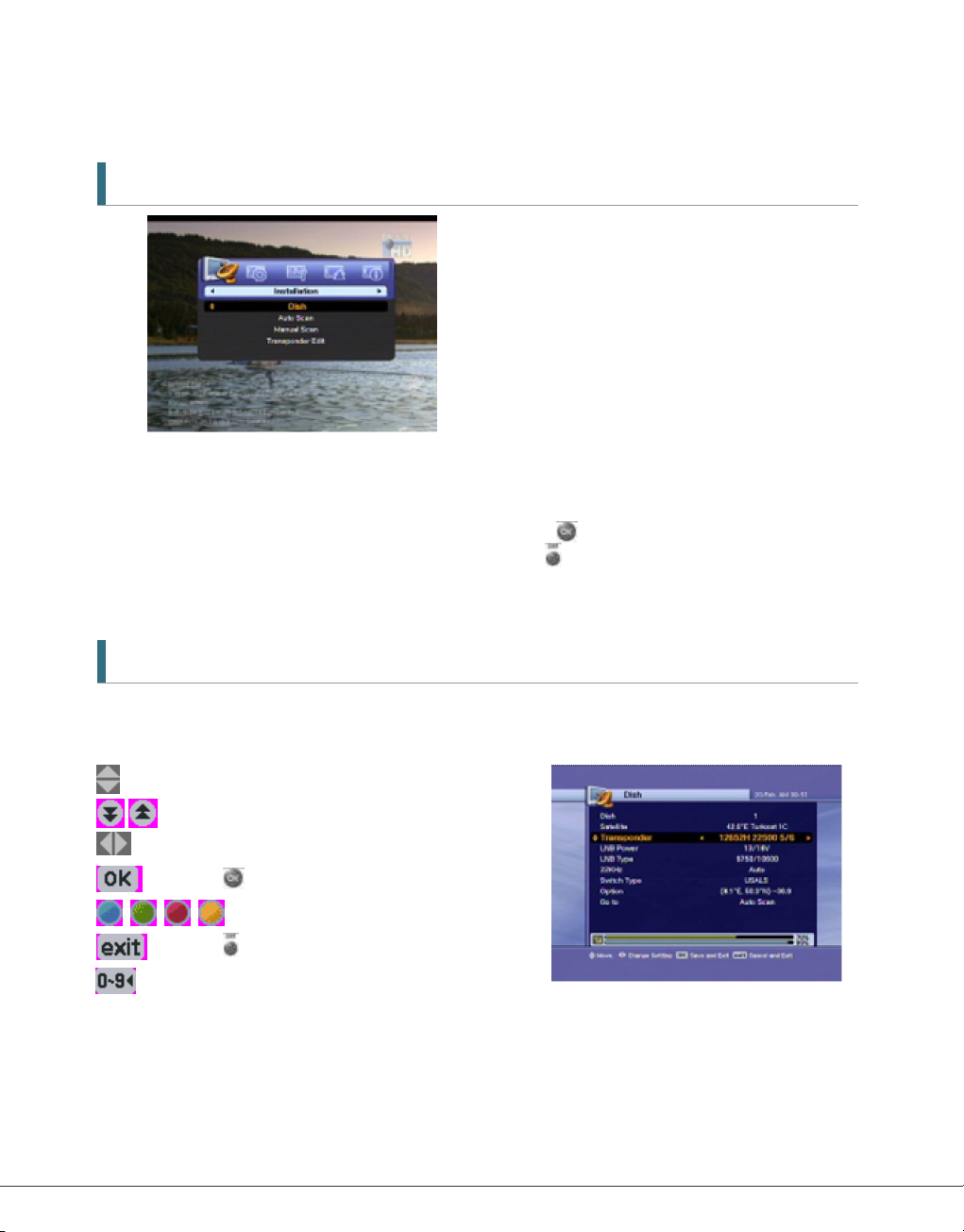

4.2 Menu Help

In the menu, short information is displayed at the bottom of the screen.

: Using▲/▼ button.

: Using P+/P- button.

: Using/button.

: Using

: Using Opt, A/V+, Fav button.

: Using button.

: Numerical button or  Button.

button.

17

4.3 Menu Structure

In the menu, short information is displayed at the bottom of the screen.

Installation

Dish : Select the dish and LNB settings for channel search.

Auto Scan : Search the whole channel automatically without inputting the special parameters.

Manual Scan : Search the channel manually with user's inputting parameters.

Option

TV Output : Select the video or audio output.

Language : Select the display language, audio language, and subtitle language.

Time Setting : Setting current time.

Parental Control : Change the password and select the censorship classification

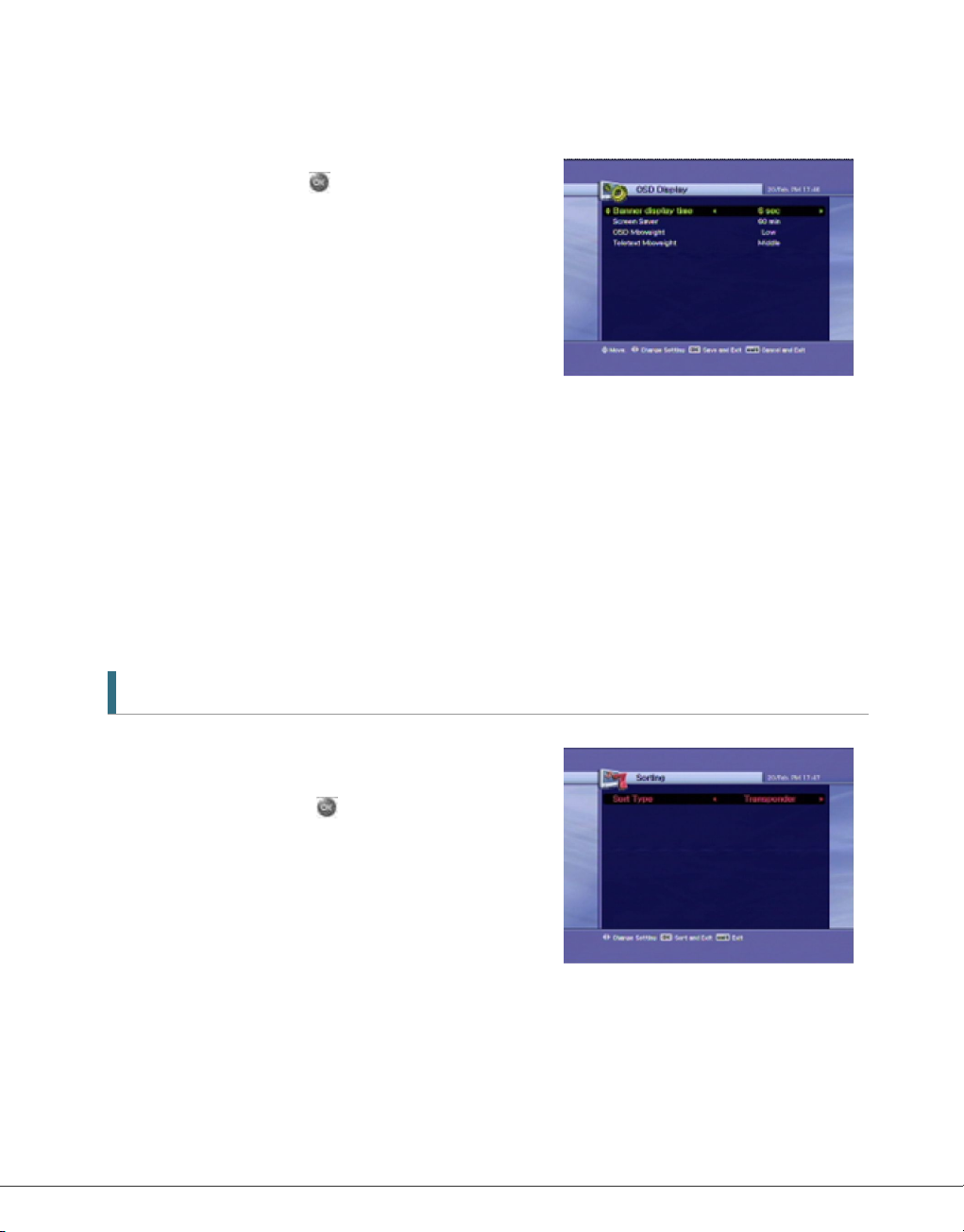

OSD Display : Setting OSD display time and transparency.

Channel

Sorting : Choose the channel sort type, such as by Transponder, Network, CAS.

Reservation : Reserving channels you want to record at your desired time.

Delete : Delete the channels such as Favorite, TV/Radio CAS, etc.

Advanced

Reset Factory Default : Restore the receiver to the default values.

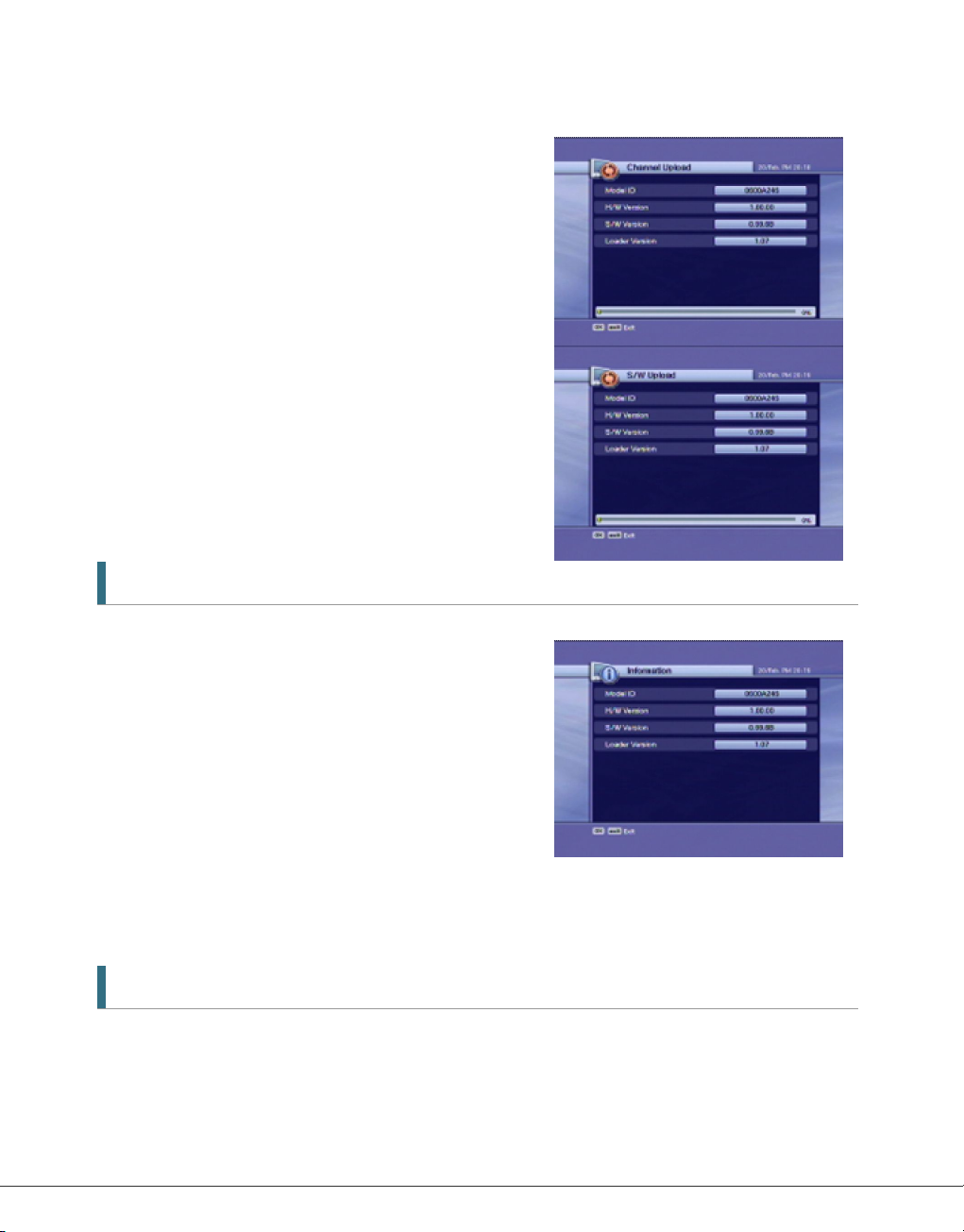

Channel Upload : Transfer the programs from receiver to receiver or PC.

S/W Upload : Transfer the software from receiver to receiver or PC.

Status

Information : Check the version of satellite receiver.

18

5. Menu Operation

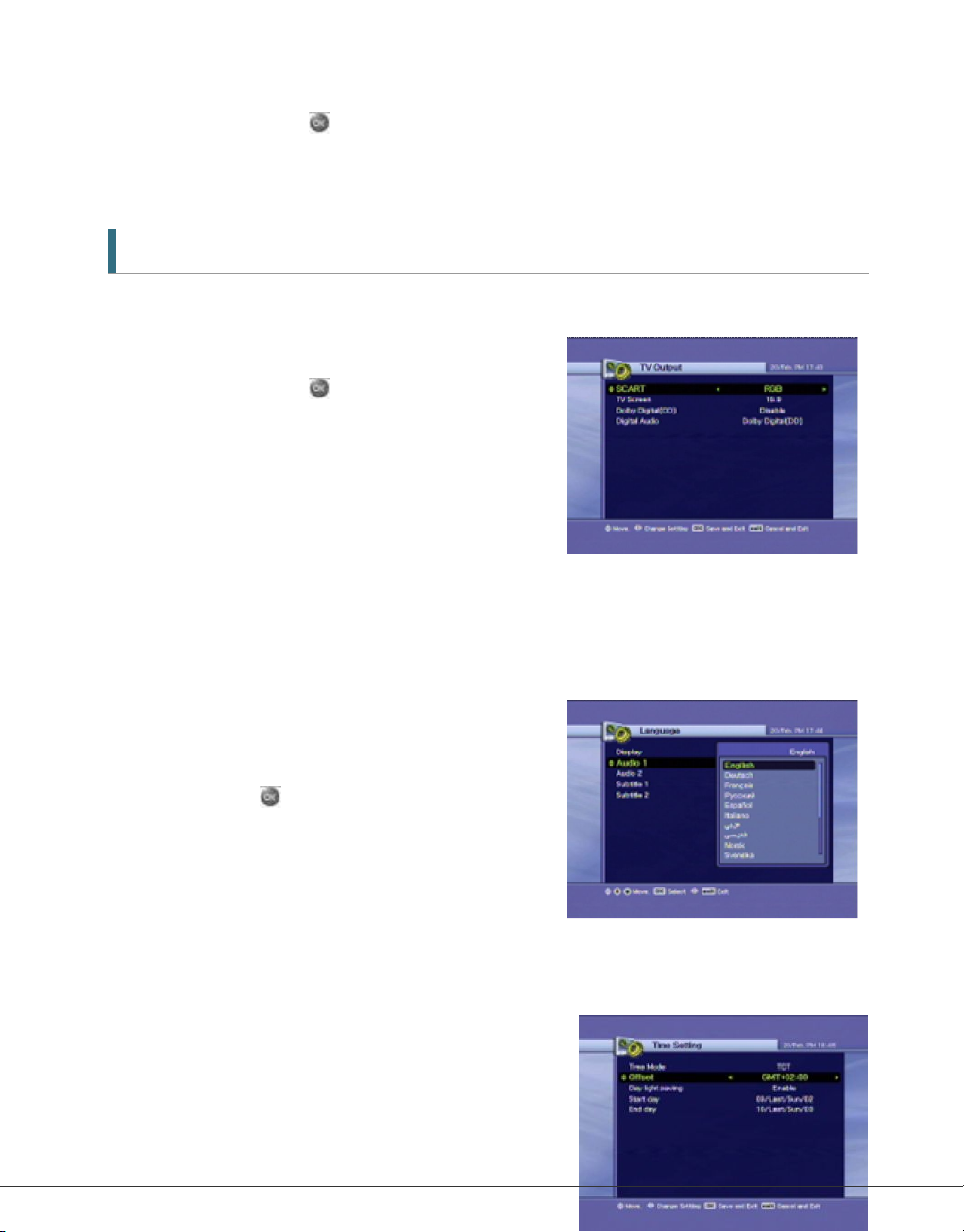

5.1 First Installation

You can install the receiver using First Installation for
your convenience.

‘First Installation' allow you to set your receiver using
simple procedure.

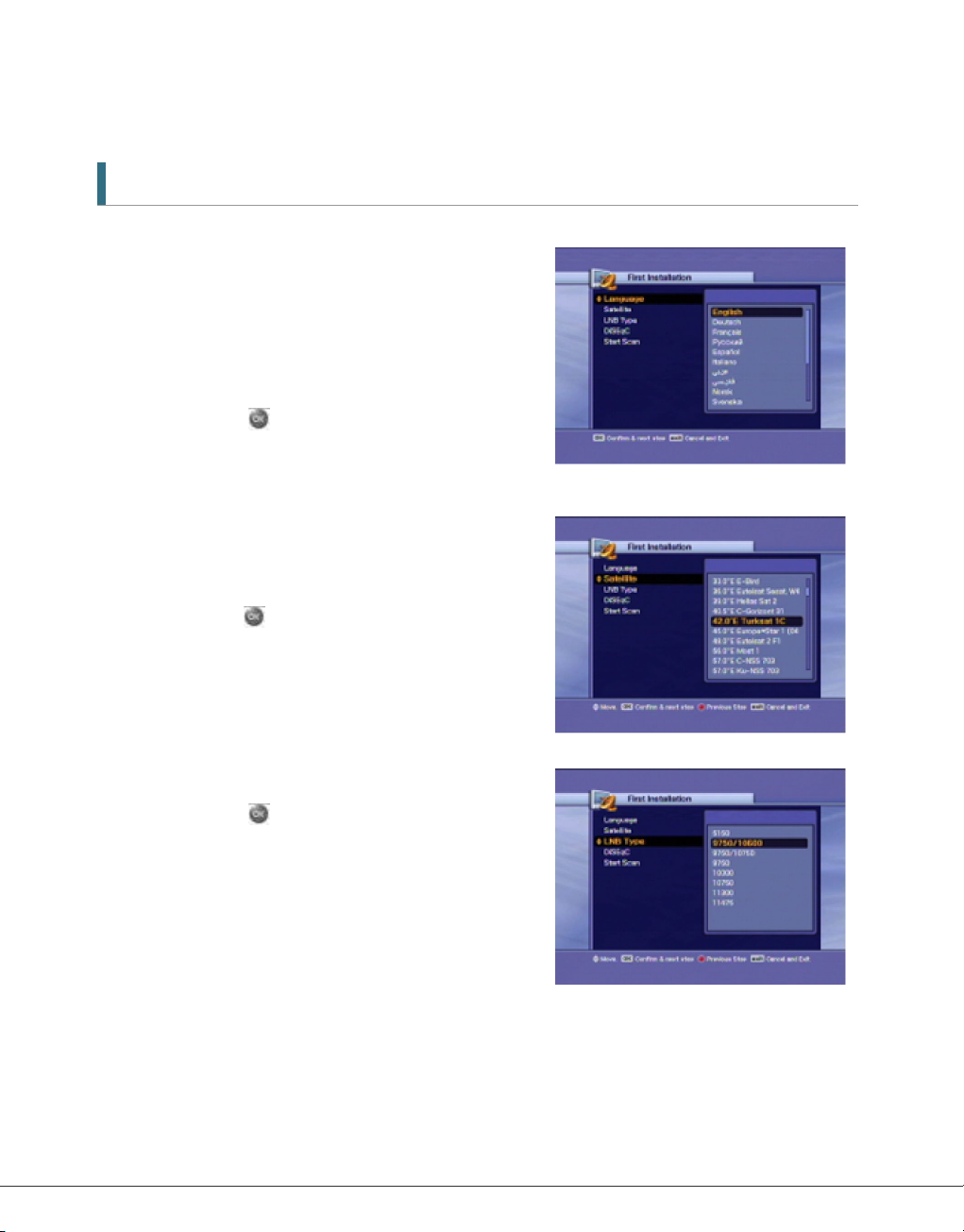

1. Select the desired language using the ▲/▼

button.

2. Press the

next step.

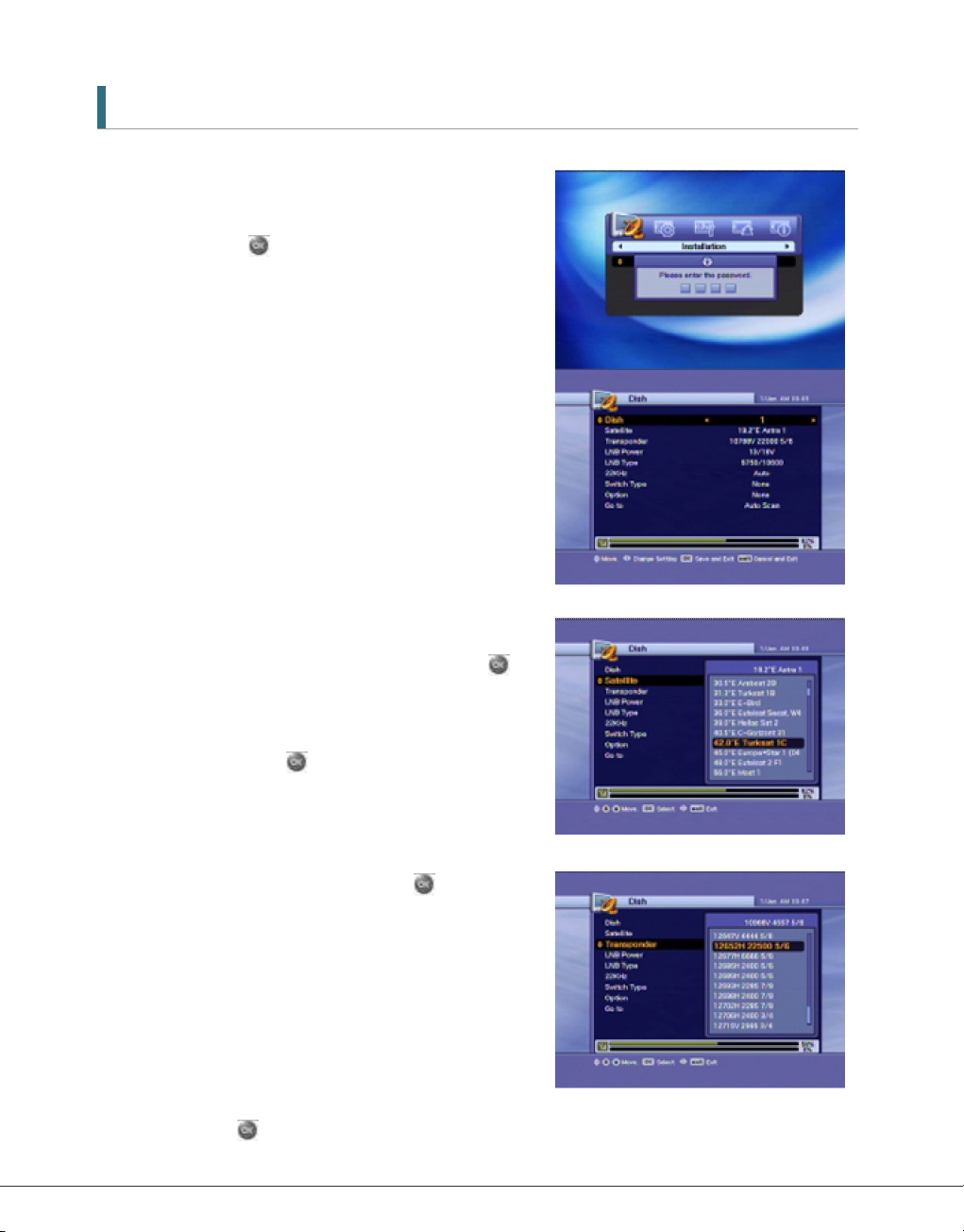

1. Select the desired satellite using the▲/▼ button.

2. Press the

next step.

button to confirm and go to the

button to confirm and go to the

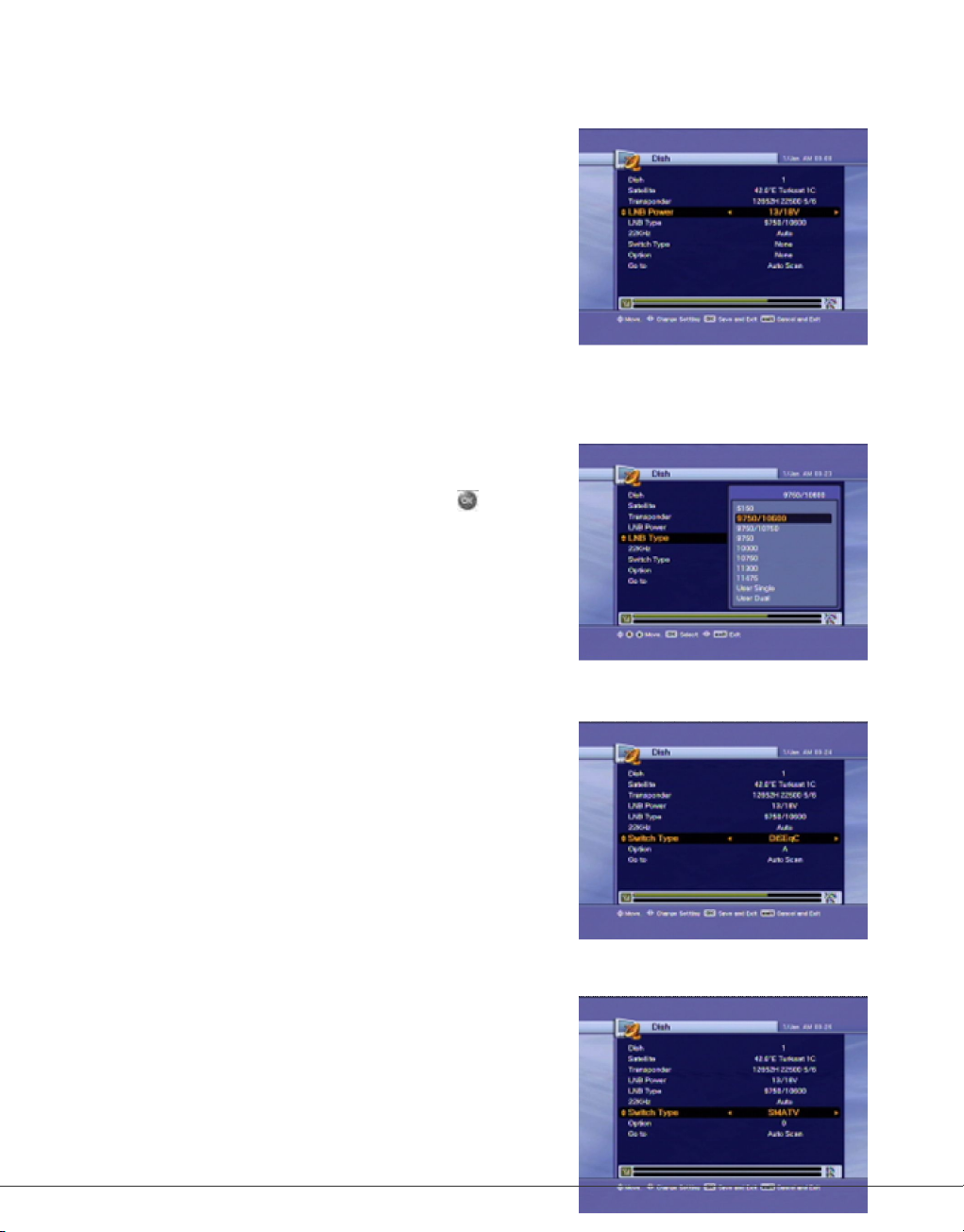

1. Select LNB Type using the ▲/▼ button.

2. Press the

next step.

button to confirm and go to the

19

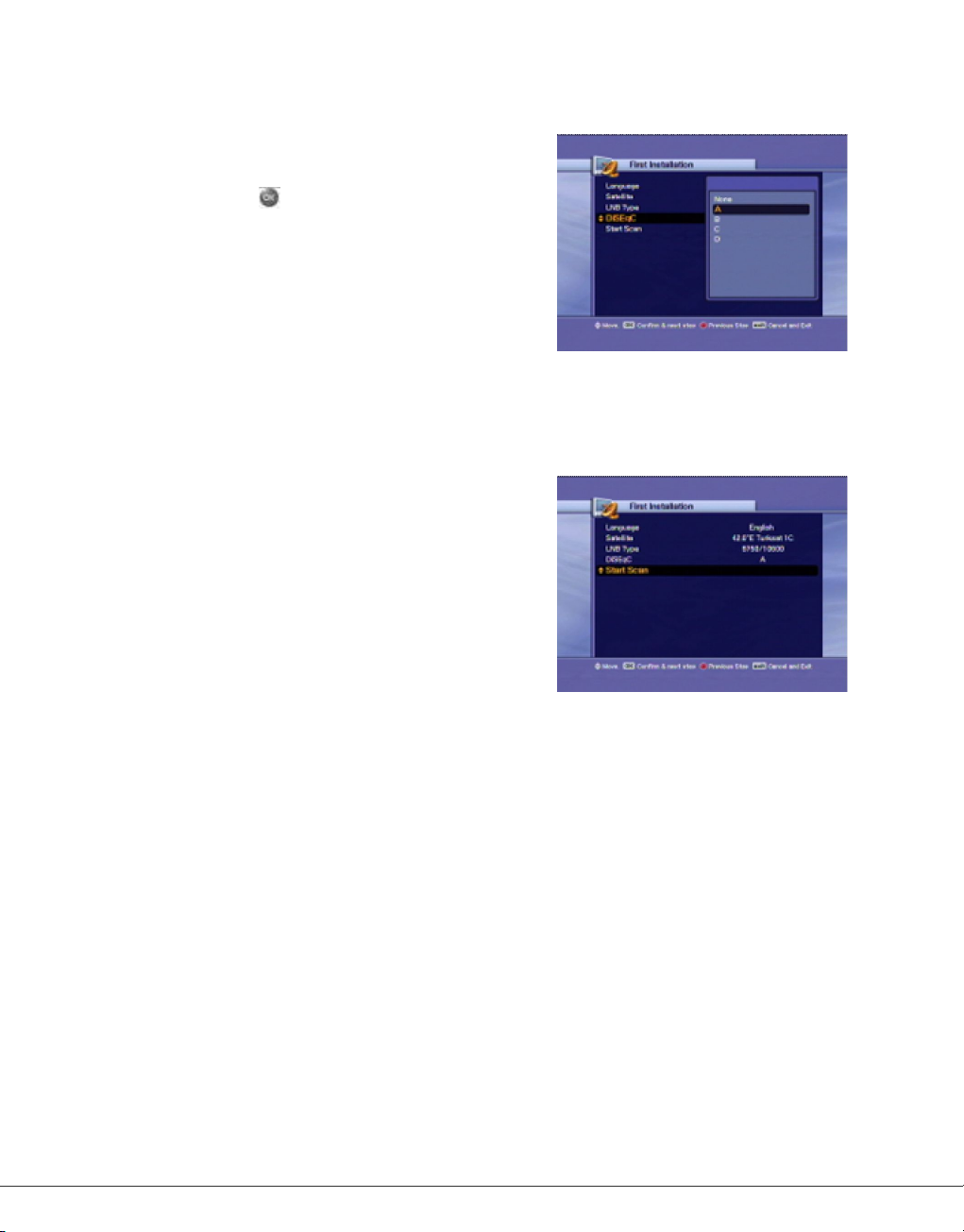

1. If you use a DiSEqC 1.0 switch, select DiSEqC

option using the ▲/▼ button.

2. Press the button to confirm and go to the

next step.

1. After all settings are done. press the button to start scanning.

If you want to know more detail description about
each procedure, please refer to the following
installation part in 5.2.

· Previous Step button : If you want to go to the
previous step, press the Opt button and

then you can reset options.

· Cancel and Exit button : If you want to skip 'First
installation', press the Exit button.

20

5.2 Installation

5.2.1 Dish

1. Press the Menu button to display the main menu.

2. Press the

password pop-up window appears. All sub menus
such as Dish, Auto Scan, Manual Scan, and
Transponder Edit on the Installation are locked
by password. The default password is "0000".

Use the ▲/▼ button, you can move upwards and
downwards in this mode.
In any item, such as Dish, Satellite, Transponder, etc.
if you want to check the detail view, use the /
button.

button on the sub menu. The

1. Press the / button, the right screen shows

the pre-selected 32 satellite lists.

2. Select the desired satellite, and press the

button. Then change the satellite column will be by

the desired Satellite name.
If you can't find the desired satellite, select any
satellite and press the

button.

1. Press the / button to watch the satellite in

the pre-programmed lists. Press the

replace the Current satellite with the selected

satellite.

1. Press the / button, the right screen shows the transponder lists.

2. Press the

button to select other transponder.

button to

21

If you select one of the alternative satellite
names, the transponder list is changed
automatically according to the selected satellite
name.

1. Select one of the LNB Power types using the /

button.

You can select LNB Power value as 13/18V normally or
if the distance between antenna and receiver is further
than 60m, you can select LNB Power value as 14/19V.

1. Select the LNB Type value.

If you have selected User Single or User Dual, enter
LNB frequency value directly, and press the
button. If you select LNB Type value as 9750/10600,
9750/10750 or User Dual, 22KHz value is fixed to
auto mode, in other case you can select a value
depending on usage of 22KHz tone switch box.

1. Select Switch Type if used.

2. If you use a DiSEqC 1.0 switch, select DiSEqC on the Switch Type.

3. Select one of the DiSEqC inputs from the Option.

1. Select Switch Type.

2. If you use a DiSEqC 1.1 switch, select SMATV on

the Switch Type.

3. Enter a value with the numeric key. (950~2150).

22

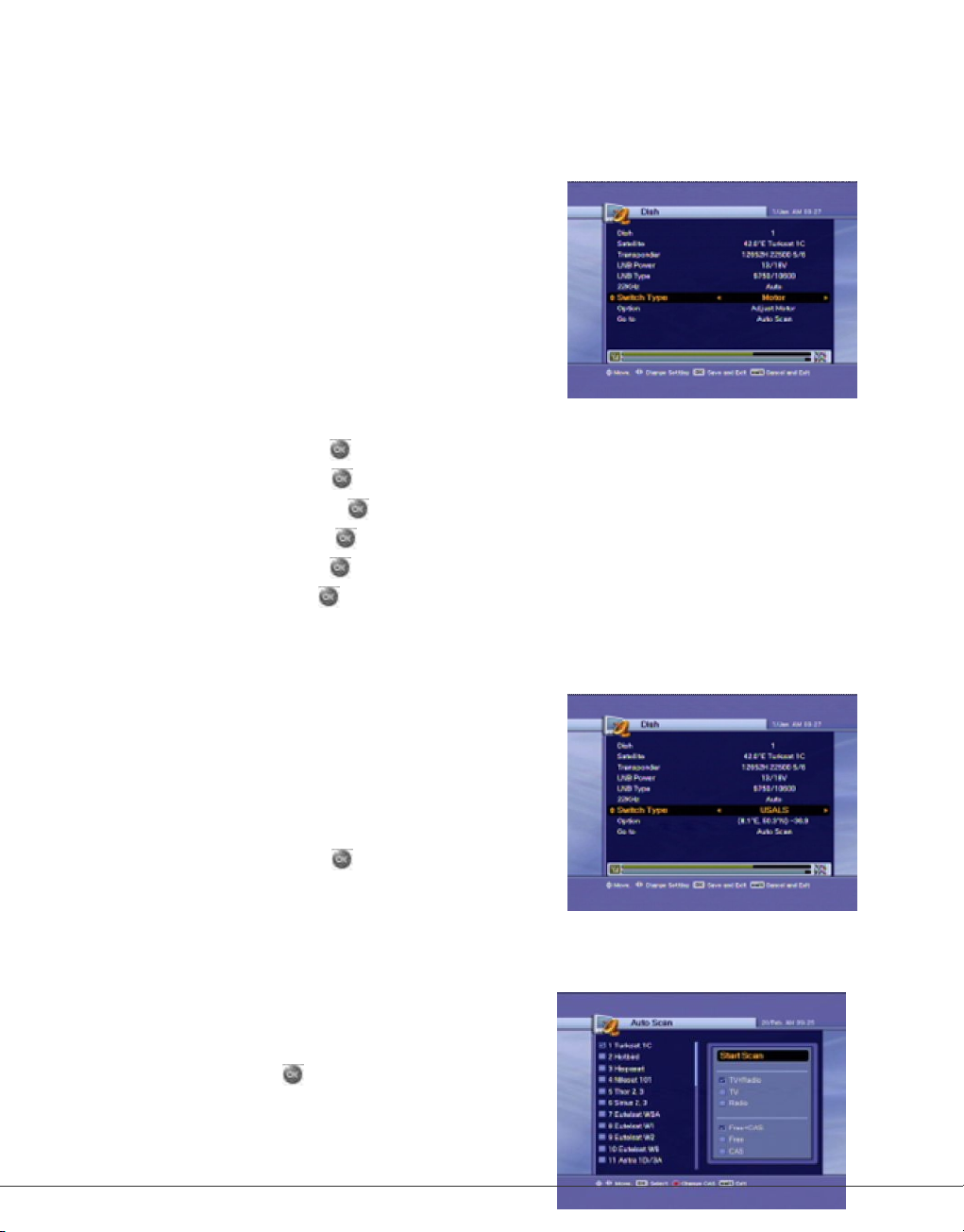

1. Select Switch Type.

2. If you use a DiSEqC 1.2 motor, select the Motor

on the Switch Type.

3. Change position of your Motor through the Option.

DiSEqC 1.2 Options

· Move West-East : Press the / button to move the motor.

· Store Position : Press the

· Go to Position : Press the

· Go to Reference : Press the button to move the motor to the 0 position.

· Set West Limit : Press the

· Set East Limit : Press the

· Enable Limit : Press the button to change the limit.

(Set West Limit & Set East Limit can be available with Disable Limit status)

button to save the current position.

button to move the motor to the stored position.

button to fix West limit.

button to fix East limit.

1. Select Switch Type.

2. If you use a USALS motor, select from the Switch

Type using the / butto n.

3. Change position of your USALS motor through the

Option.

· Go to Position : Press the
motor to the position calculated by the

· longitude and latitude.

button to move the

5.2.2 Auto Scan

You can search the channels offered by the satellite for
which your antenna has been configured.

1. Select the satellite for scanning using ▲/▼ button

and press the

button.

2. The check mark indicates which satellite has

been marked for scanning.

23

3. Press the / button, select scan option using ▲/▼button, and

press the button.

4. If you want to scan the satellite move to "Start Scan" and press

the

button.

1. Select Free+CAS or CAS using the ▲/▼//

button.

2. Press the Opt button, CAS Pop-up window will

appear.

3. Select the kind of CAS using the ▲/▼ button.

4. Press the

button.

5. If you want to scan the satellite, move to "Start

Scan" and press the

button.

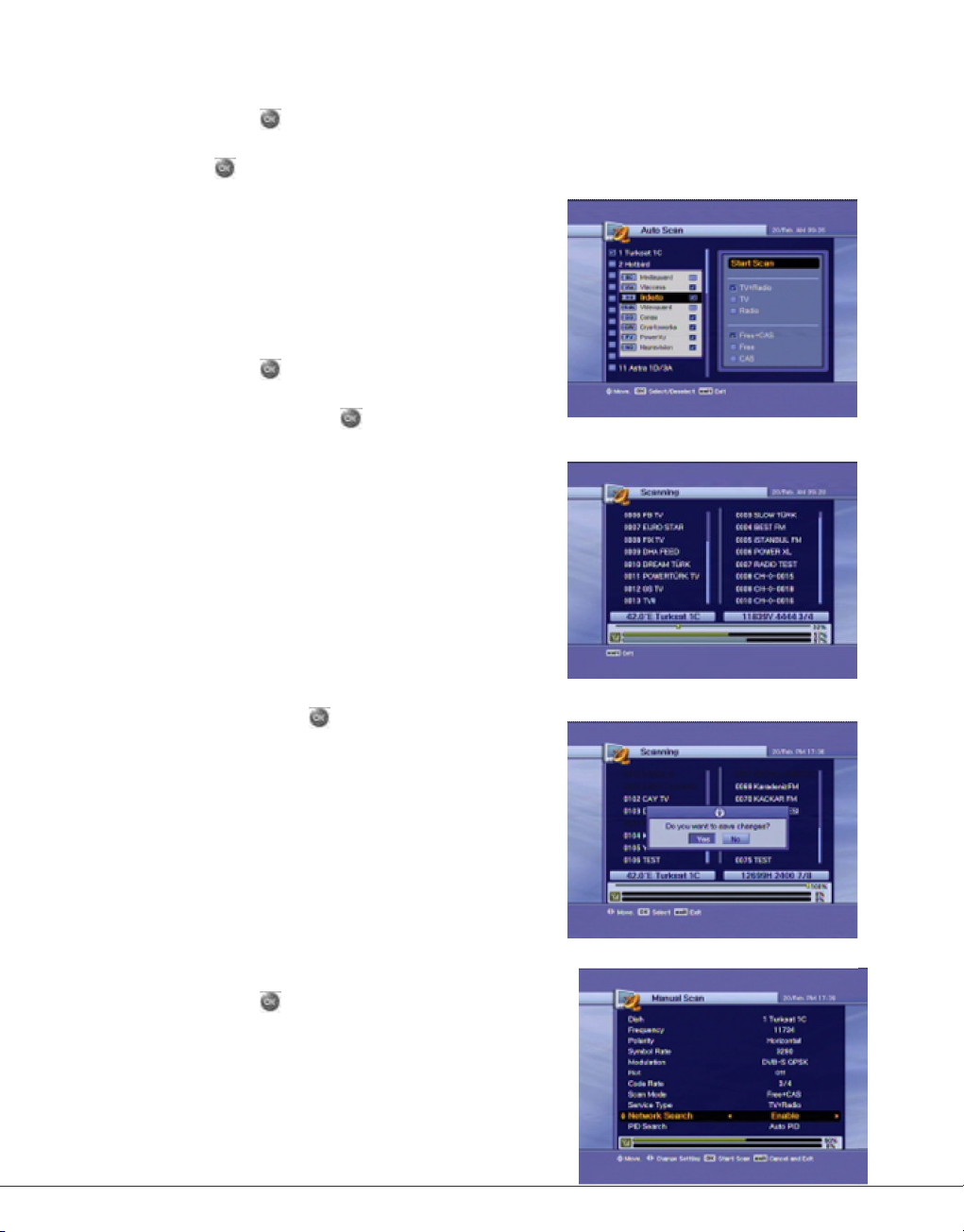

1. The left window shows TV channels and the

right window shows Radio channels during the
scanning process. White channel names are new
channels downloaded to your receiver. Black
channel names are already existing channels.

1. If you press the button when scanning for

channels, pop-up window appears.

2. When you complete scanning for channels, a

similar pop-up menu appears.

3. If you want to save the updated channels, select

'Yes'.

5.2.3 Manual Scan

1. Change to the specific values you want to scan.

2. Press the

button to start the manual scan.

24

Dish : The target satellite for the manual scan.

Frequency : The frequency of the transponder you want to find manually.

Polarity : The polarity of the transponder you want to find.

Symbol Rate : The symbol rate of the transponder you want to find.

Modulation : The selection of modulation(DVB-S QPSK, DVB-S2 QPSK and DVB-S2 8PSK)

Pilot : The DVB-S2 parameter (DVB-S2 modulation mode only)

Code Rate : The code rate of the transponder you want to find.

Scan Mode : In the Free Channel mode, the receiver scans all channels without scrambled

service.

Service Type : The selection of TV, Radio and TV&Radio.

Network Search : When enable, the receiver searches for more transponders using the network

index table.

PID Search : Search using Auto PID, Manual Dec,

Manual Hex.

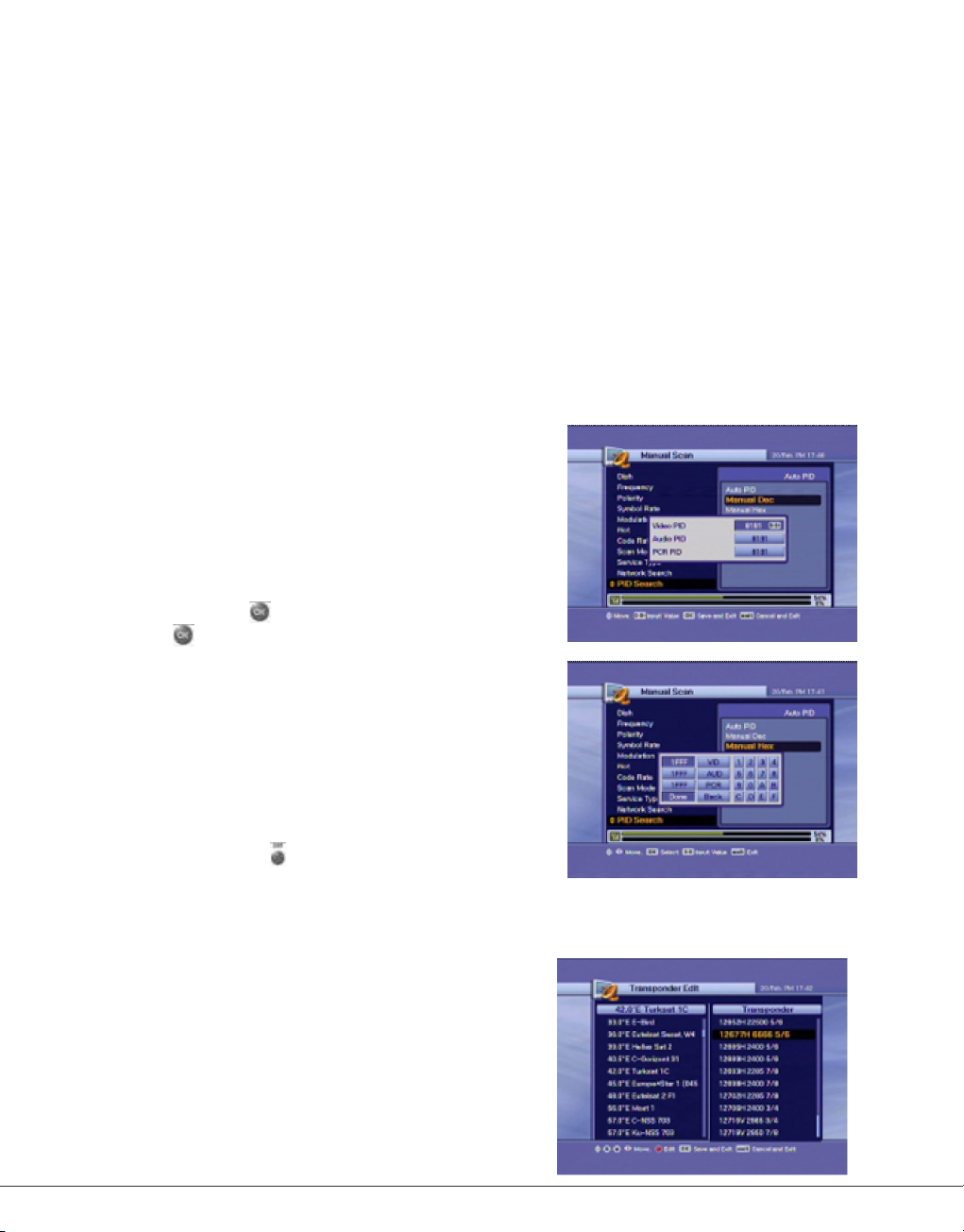

1. When you select Manual Dec option, a pop-up

menu appears.

2. Enter the value of Video PID, Audio PID and

PCR PID with numeric keys.

3. Press the

button to make the pop-up menu

disappeared.

button to scan PIDs or press the

1. When you select the Manual Hex option, a pop

up menu appears.

2. Enter the value of Video PID, Audio PID and

PCR PID with pop-up keypad.

3. Press ‘Done’ on the pop-up keypad to save PIDs

or press the
menu disappeared.

5.2.4 Transponder Edit

button to make the pop-up

1. Press the Opt button to select the satellite in the

left screen or the transponder in the right
screen.

2. Select one of Delete, Edit or Add from the pop-

up window. (The satellite and transponder
cannot be deleted if the channels of the
selected satellite have already been

25

Downloaded)

3. If you press the

saved and exit.

button, the current changing state will be

5.3 System Setting

5.3.1 A/V Output Setting

1. Select the TV output options using the ▲/▼//

button.

2. If you press the

will be saved and exit.

· TV Screen : Select the screen format of your TV.(4:3, 4:3 Letter Box, 16:9)

· Dolby Digital(DD) : Set the Channel to display the audio and video signal on your TV.

button, the changed state

5.3.2 Language

1. Select the language options using the ▲/▼//

button.

2. Press the

language.

· Display : Change the language used in the OSD and Menus.

· Audio 1-2 : Change the language that you listen to audio in.

· Subtitle 1-2 : Change the language that you watch

the subtitle in.

button to change the selected

5.3.3 Time Setting

1. Setting current time using the▲/▼// button.

26

2. If you press the button, current changing state will be saved

and exit.

· Time Mode (TDT, USER).

TDT : Receive the time from broadcaster.

USER : Set the time directly by user.

· Offset : Set the time difference between GMT and the local time.

· Day light saving : Day light saving will work only in case of 'Enable' mode.

· Start day : Day light saving start day.

· End day : Day light saving end day.

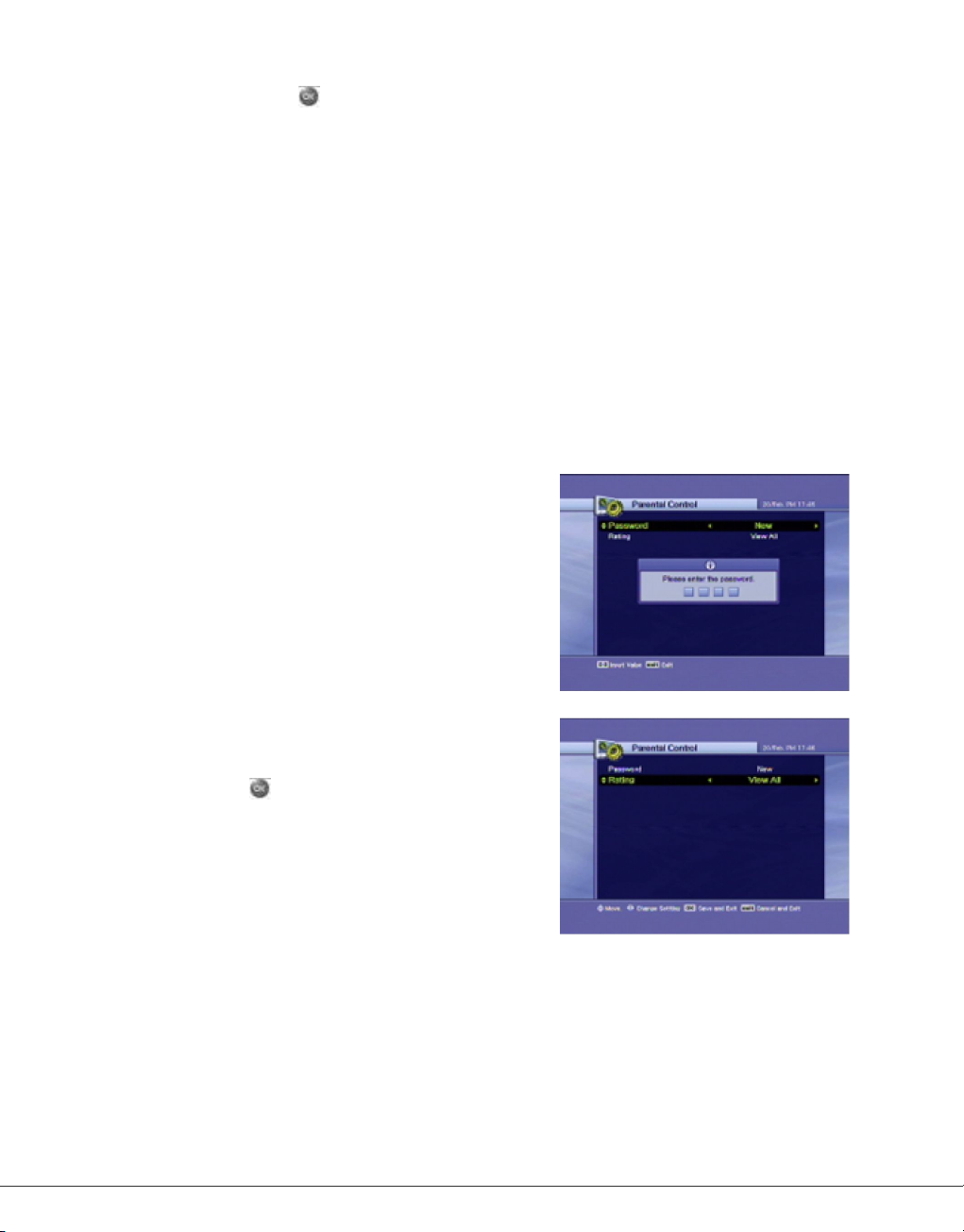

5.3.4 Security Setting

1. If you want to change the password, press the 

/ button, following message requiring new
password will be displayed.

2. Change the password into new one by numeric

button.

3. To ensure your change, you are supposed to

input a password once more.

1. Select your desired rating level using the /

button.

2. Press the

mode allows you to block channel according to
the age level you have set.

· View All : All channels can be watched.

· 7 : Channels are blocked under the age of 7.

· 12 : Channels are blocked under the age of 12.

· 15 : Channels are blocked under the age of 15.

· 18 : Channels are blocked under the age of 18.

You have to enter password to watch the channels which is blocked by the age level.

button to save and exit. Rating

27

5.3.5 OSD Setting

1. Select the options using the▲/▼// button.

2. If you press the

state will be saved and exit.

· Banner display time : Banner will disappear after setting time passed.(1~9).

· Screen Saver : Screen Saver is a function to protect your TV in case Radio status or in Menu.

(Disable, 5, 10, 20, 30, 60, 120 Minutes)

· OSD Mixweight : Select the OSD transparent type. (Low, Middle, High).

button, current changing

5.4 Channel

5.4.1 Sorting

1. Select Sorting Type using the / button.

2. If you press the

state will be Saved and exit.

· Transponder : Channels are sorted into transponder
order..

· Network : Channels are sorted into service provider order.

· CAS : Channels are sorted into Scramble channels and Free channels order.

5.4.2 Reservation

You can reserve a Channel at your desired time. In this mode, you can reserve channels up to 8.

28

button, current changing

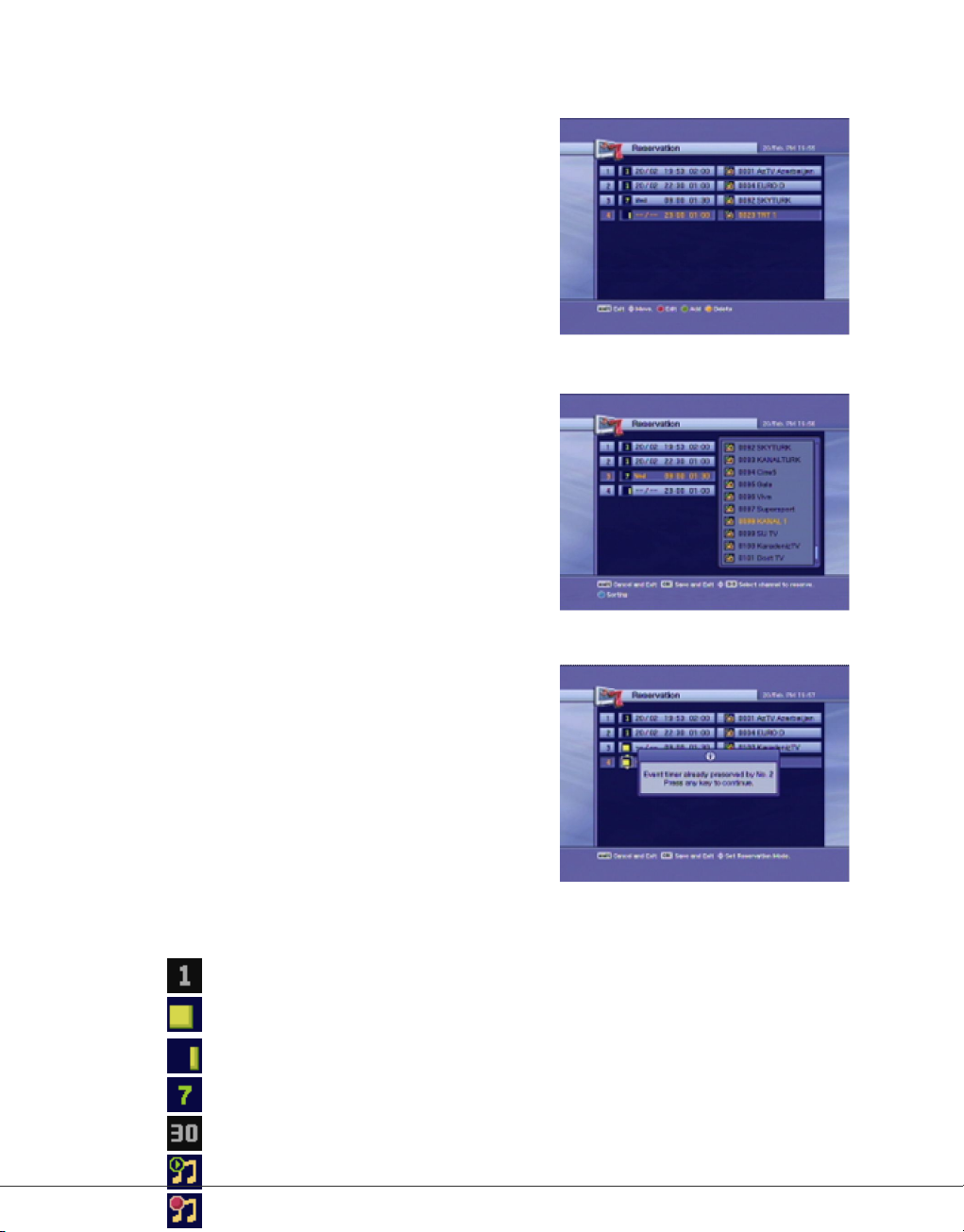

1. Press the Opt button to edit the reserved

channel. And then use the▲/▼// button to the
detail setting for your reservation.

1. To add more, press the A/V+ button. Press the Fav button to

delete the reservation.

2. After all settings are done, press the

button to save and exit.

If it is duplicated with the time zone that was already
registered at a reservation list, the alarm message
appears which it is not able to register.

In this case, you must register a reservation for other
time zone.

· : Just one time action (After action was done, event will be deleted on the list.)

· : Action execution in weekday

· : Action execution in weekend

· : Action execution weekly

· : Action execution in every day

29

· : Radio channel(FTA, CI)

· : Radio channel(PVR only)

· : TV channel(FTA, CI)

· : TV channel(PVR only)

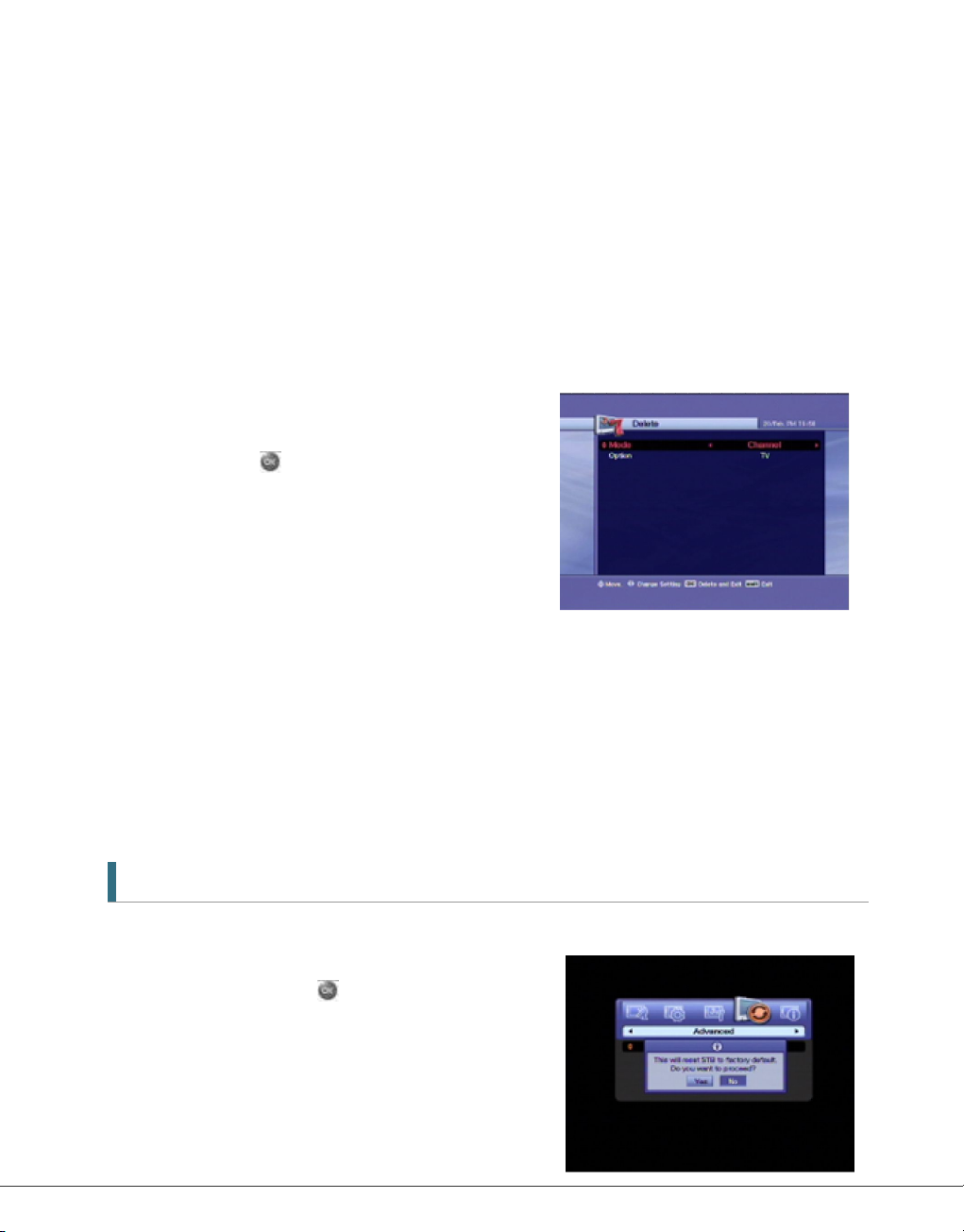

5.4.3 Delete

You can delete channels. You can select not only Mode such as Channel and Favorite, but also
Option such as TV, Radio and etc.

1. Select the Mode and Option you want to delete

channels using the ▲/▼// button.

2. Press the

button to delete and exit.

5.5 Advanced

5.5.1 Reset Factory Default

1. If you want to change the set into the default

values, press the
confirmation window will appear.

2. If you select 'Yes', the system will be reset to

the primitive state like new receiver.

30

button. The following

5.5.2 Channel Upload

1. Connect the receiver with other receiver or PC

through RS-232 cable.

2. For the target receiver, turn the AC Power off,

then turn on again.

3. You can watch the transfer status of software.

5.5.3 S/W Upload

1. Connect the receiver with other receiver or PC

through RS-232 cable.

2. For the target receiver, turn the AC Power off,

then turn on again.

3. You can watch the transfer status of software.

5.6 Status

5.6.1 System Information

1. You can watch the system information such as

Model ID, Hardware version, Software version,
and Loader version.

6. Viewing General Information

6.1 Banner Information

Detailed Event Information Current Time

31

Channel Number

and Name

TV Type

(TV and Radio)

Current Event Name

Satellite or Group

Name

1. Whenever you press the INFO button, the banner information

1. If you press the INFO button again on the banner, the detail

2. If you press the button, information and EPG window will

3. Press the P+- button and then you can

4. If '' exists on the Banner, press the /

Audio Language

Lock

Scramble

Dolby

Parentel Control

Density (HD/SD)

Stream Resolution

Event Progress Bar

Signal Strength Bar

Signal Quality Bar

Subtitle Teletex

window appears for a few seconds.

EPG window appears.

disappear.

change the channel.

button and then you can watch the next
EPG.

6.2 TV & Radio changing

While watching TV or listening to Radio, you can select TV or Radio using the TV/Rad button.

32

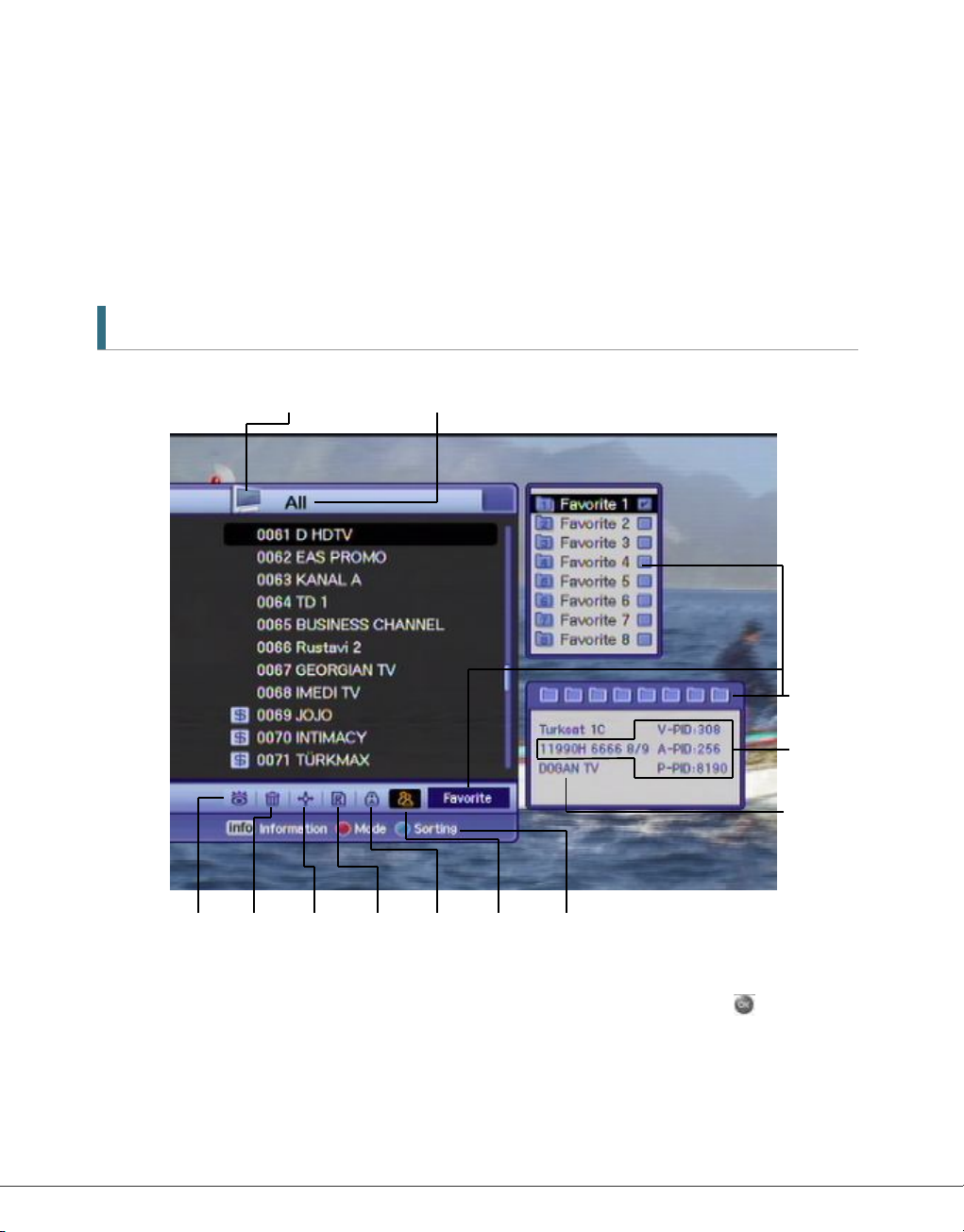

6.3 TV or Radio Channel Lists

TV Type

( TV or Radio)

Group or

Satellite Name

Group Status

Channel

Parameters

Provider Name

View Delete Move Rename Lock Group Sorting

6.3.1 Watching Mode

While watching TV or listening to Radio, you can watch the channel list. Press the
to display the channel list. You can watch several icons at the bottom of the channel list.
Each icon has a special and convenient function for user. If you want to change the mode, press
the Opt button to go to the desired icon.

button

33

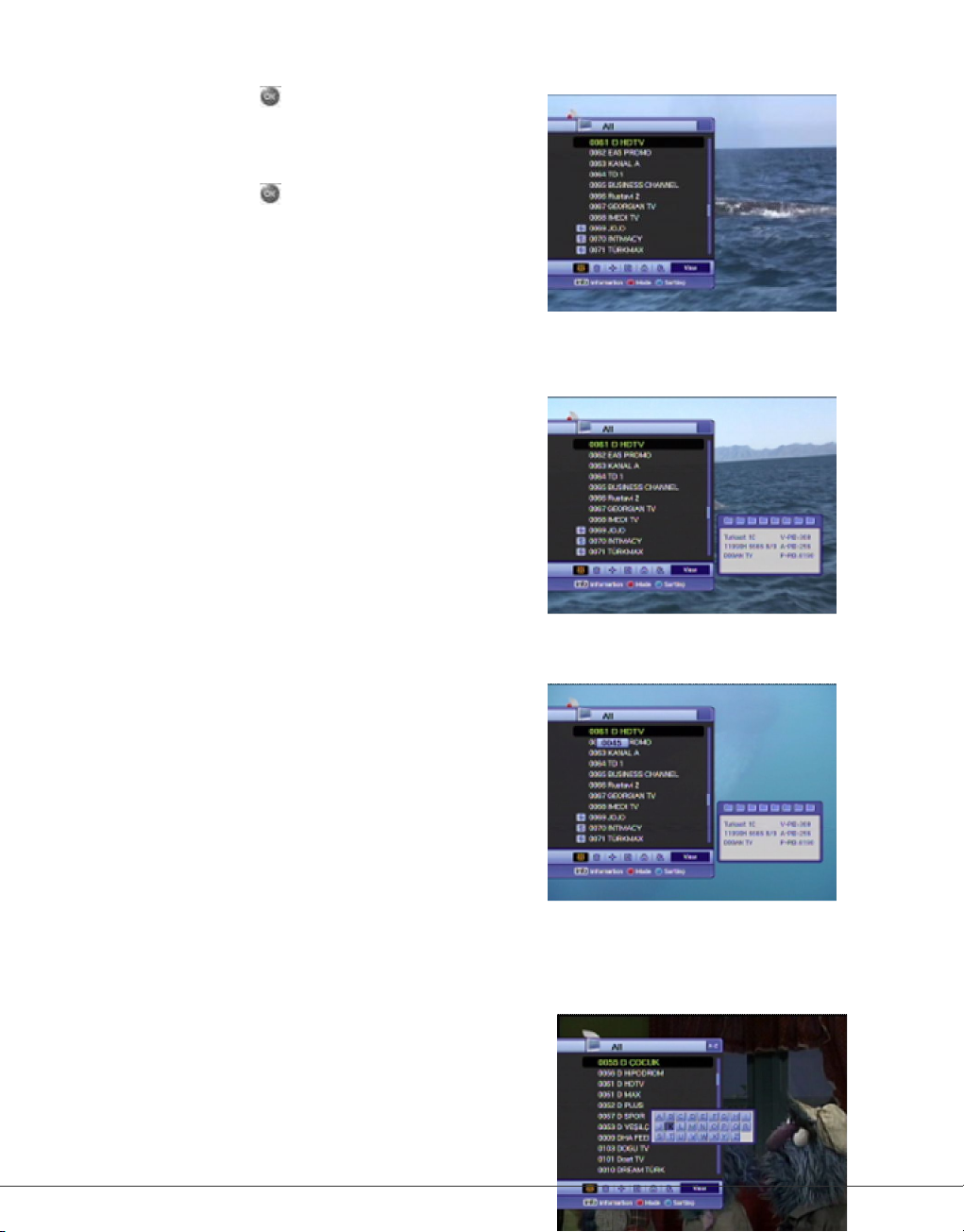

1. Press the button or A-Z button. If you

want to view the sorted channel list, press
the A-Z button.

2. Press the ▲/▼ button to move the cursor.

3. Press the

channel.

button to watch the desired

4. If you want to hide the channel list, press the

button.

· When you want to sort the channels, press the A-Z button.

· When you want to change the TV/Radio mode, press the TV/Rad button.

· When you want to watch the next or previous

channel page, press the P+- button.

1. Press the INFO button to watch the

information for a selected channel.

2. Press the EXIT button to hide the information.

1. If you know the correct channel-number to

watch, press the number using the numeric
button.

1. If you want to go Alphabetic move, you must

change the channel list to the sorted status. To
become the sorted status, press the A-Z
button on the channel list or on the Live
screen.

2. Press the numeric button. Then Alphabetic Pad

34

will appear.

3. You can select the Alphabet using the numeric key(1-9)/▲/▼//

button.

4. Press the

not exists, there will be any change.

button. If the selected channel by user input-letter

6.3.2 Delete Mode

1. Select the Delete Icon using the Opt button.

2. Select channel you want to delete using the ▲/

▼ button. Press the
will be marked on the right side of the channel
name.

button. Checked sign

3. Press the EXIT button to save and exit.

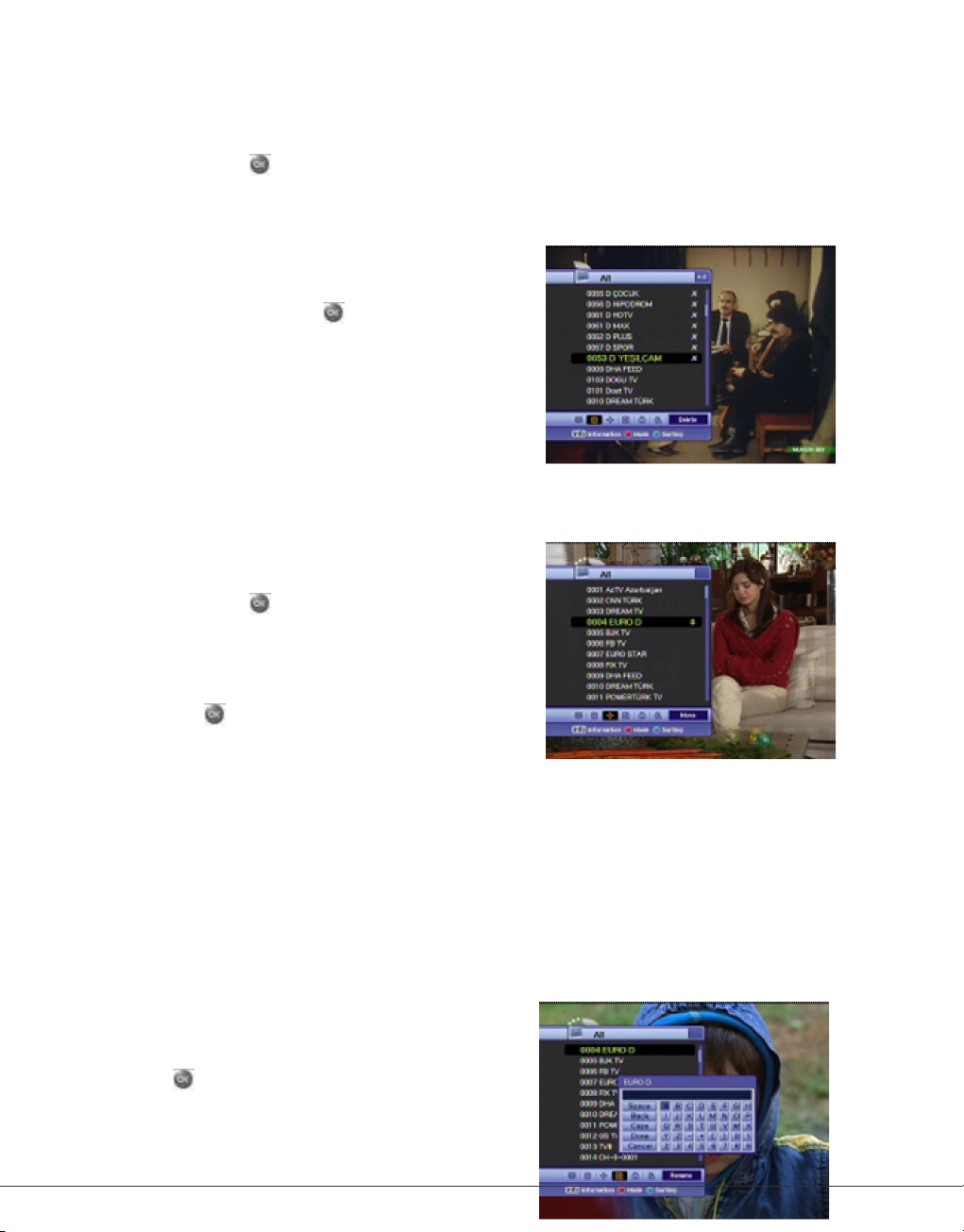

6.3.3 Move Mode

1. Select the Move Icon using the Opt button.

2. Select the channel which will be located in

other position.

3. Press the

indicates "move" will be marked on the right
side of the channel name.

button, and then a sign which

4. Set the new position using the▲/▼ button.

5. If you want to complete moving channel, press

the

button. Then "move" sign will
disappear on the right side of the channel
name.

6. Press the EXIT button to save and exit.

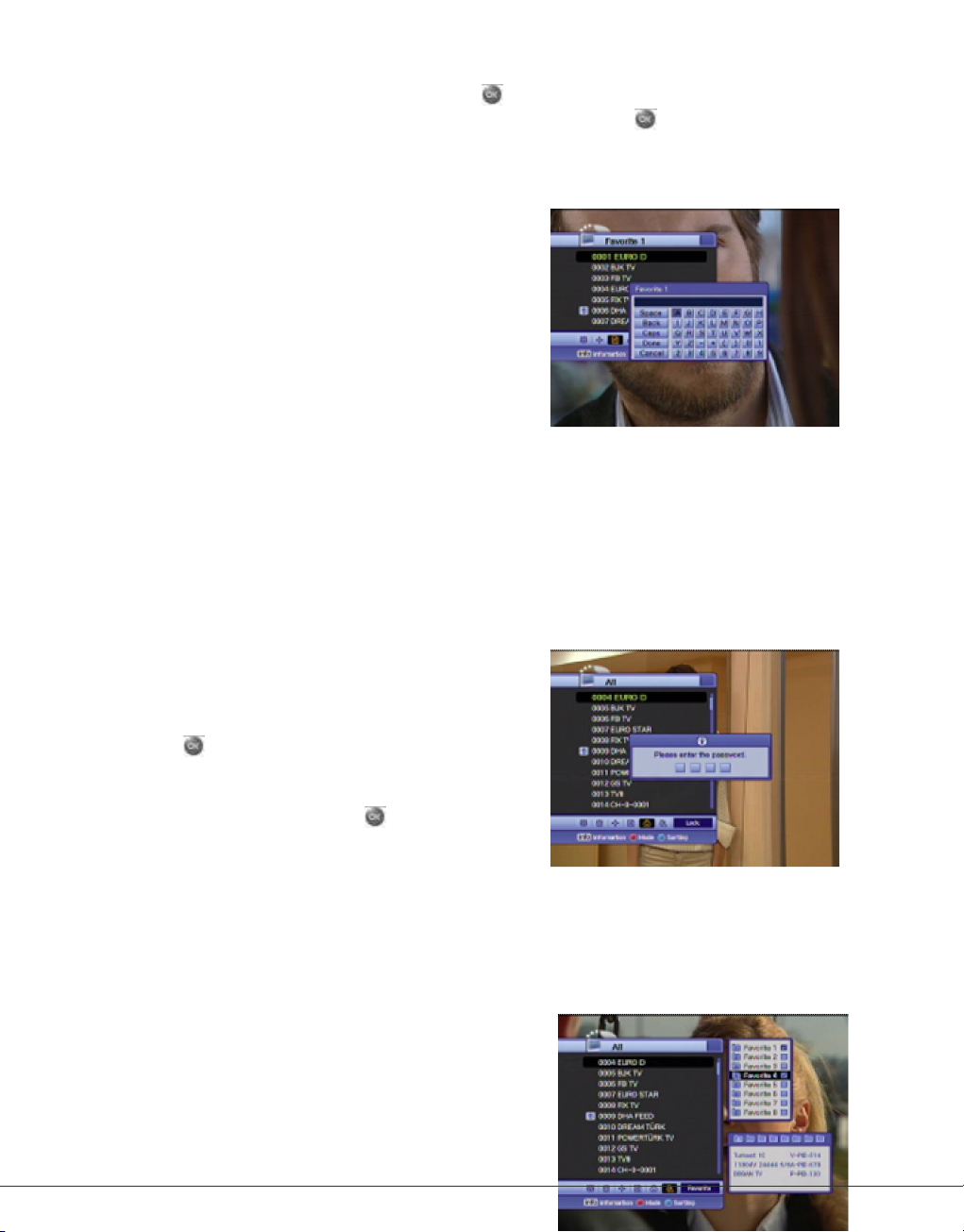

6.3.4 Rename Mode

1. Select Rename Icon using the Opt button.

2. Select the channel to rename and press the

button. And then a small editing

name window will be displayed.

3. You can write each letter of the channel

35

name using the ▲/▼// button and the button.

4. After renaming is done, select Done tab and then press the

button.

5. Press the EXIT button to exit.

You can change the Favorite group name.

1. Select the desired group.

2. Change the name of group according to

above procedures.
<Remark>
It is impossible that Delete & Group function can be
changed in grouping mode.

· Space : Write between two characters.

· Back : Delete characters.

· Caps : Change between caps and lower case letter.

· Done : To save the change.

· Cancel : Exit rename mode.

6.3.5 Lock Mode

1. Select Lock Icon using the Opt button.

2. Select the channel to be locked and press the

button.

3. Set the password. Locking mark will appear

on the left side of the Channel name. To

cancel it, just press the button.

4. Press the EXIT button to save and exit.

6.3.6 Group Mode

You can make the group up to the 8th group. It can

accommodate 100 Channels in one group.

So you can get 800 favorite channels.

1. Select Group Icon using the Opt button.

2. Select the channels that you want to make

36

favorite channel list.

3. Press the

appear on the right side of the screen.

button, and then a small favorite Window will

4. Choose the group number using the▲/▼ button and press the

button. To cancel it, just press the button again.

5. If you want to select other channel in current group, press the /

 button. And then highlighted channel will be showed on the

channel list.

6. Press the

button to set the group with selected group using the / button.

7. Press the EXIT button to save and exit.

6.4 Option

While watching TV or listening to Radio, press the Opt button. You can watch small pop-up
window. You can select a option.(Audio Language, Teletext Language, Subtitle Language) If
you want to change the option mode, press the / button.

6.4.1 Audio Language

1. Select the 'Audio' using the / button.

2. Press the▲/▼ button to select a desired audio language.

3. Press the

button to change the audio language.

37

6.4.2 Sub-Title

1. Select the 'SubTitle' using the / button.

2. Press the▲/▼ button to select enable.

3. Press the

button.

4. You can watch the Subtitle contents in the

language if it is available.

6.4.3 Teleteks

1. Select the 'SubTitle' using the / button.

2. Press the▲/▼ button to select enable.

3. Press the

button.

4. You can watch the Subtitle contents in the

language if it is available.

6.5 A/V+

While watching TV or listening to Radio, press the A/V+ button. You can watch small pop-up
window. You can select a option.(Audio Mode, Video Mode) If you want to change the option mode,
press the / button.

6.5.1 Audio Mode

1. Select the 'Audio Mode' using the / button.

2. Press the▲/▼ button to set the output

direction for speakers.

(STEREO, LEFT, RIGHT, JOINT)

3. Press the

6.5.2 Video Mode

button to save and exit.

1. Select the 'Video Mode' using the / button.

2. Press the▲/▼ button to set screen format of

38

your TV.

3. Press the

button to save and exit.

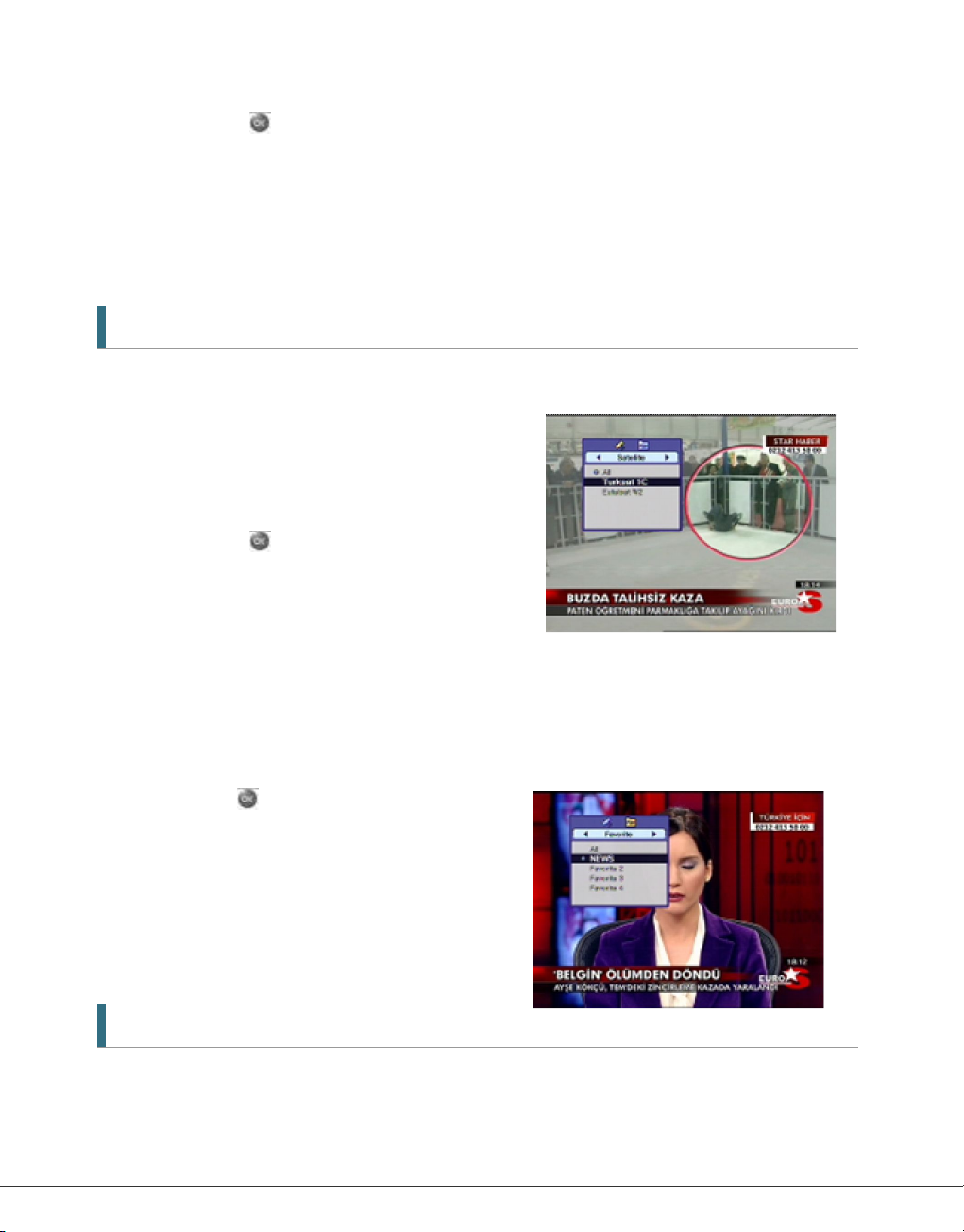

6.6 Fav

While watching TV or listening to Radio, press the Fav button. You can watch small pop-up window.
You can select a Favorite group.

6.6.1 Satellite

1. Select the 'Satellite' using the / butto n.

2. Press the▲/▼ button to select a Satellite.

3. Press the

channel list of selected Satellite.

button, then you can watch the

6.6.2 Favorite

1. Select the 'Favorite' using the / button.

2. Press the ▲/▼ button to select a group.

3. Press the

channel list of selected group.

6.7 A-Z

While watching TV or listening to Radio, press the A-Z button. You can watch sorted channel list.

button, then you can watch the

39

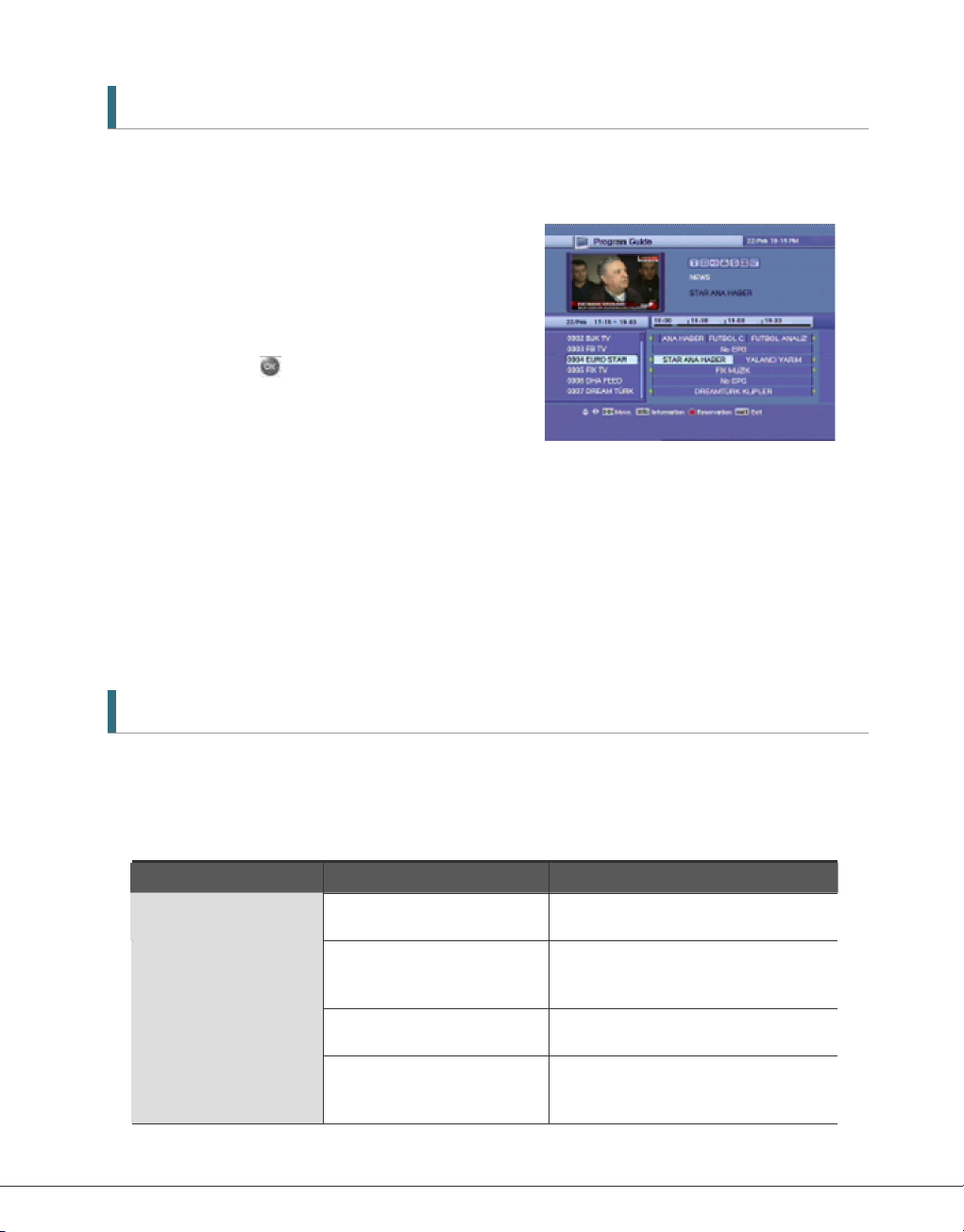

6.8 EPG

Press the EPG button and the electronic channel guide appears if applicable.
Time intervals are arranged in a row and Channel lists are shown in a column.

6.8.1 EPG Information

1. Press the / button to change time interval.

2. Press the ▲/▼ button to watch the guide

about the channel, and then press the INFO

button, the detail EPG window will appear.

3. Press the

· Press the Opt button to reserve channels with event. If you want to know the detail

Description about reservation, refer to the reservation description in chapter 5.4.2.

· Press the INFO button to watch the detail EPG.

button to exit.

A.1 Troubleshooting

There may be various reasons behind receiver problems. Check the receiver according to the
procedures described below.

If you can’t solve your problem even after following the troubleshooting procedures, please
contact the dealer. Do not open the receiver cover. It may cause a dangerous situation.

Symptom Cause Remedy

The front panel doesn’t
display any message.

No picture or sound.

40

The power cord is not plugged
in.

Wrong connection of the
Audio/Video output of the
receiver to TV.

Wrong connection of the
antenna.

No or Bad signal message
appears.

Check that the power cable is plugged in
to the wall outlet.

Connect the Audio/Video output of the
receiver to TV correctly.

Connect the ante nnal cable corr ectly.

Check other device connected between
Antenna and the receiver, or adjust the
antenna position.

No picture.

No or bad signal.

The remote controller
does not operate.

Poor picture quality.

Less channels in
scanning.

Audio muting Press the MUTE button

TV Power Turn TV on.

The receiver can’t receive the
signal.

Incorrect values of some tuner
parameters.

The UHF A ntenna is not
Pointing.

Signal too strong. Connect the signal attenuator to the

Antenna is too small. Change to a larger antenna.

The batteri es of the remote
controller are not inserted or
exhausted.

Signal loss cable. Change the antenna power in Antenna

Check the antenna cable, replace the
cable, or connect the cable to the
receiver tightly.

Set the values of tuner parameters
correctly. Refer to the Installation menu.

Adjust the antenna.

signal input.

Check whether the batteries are inserted
correctly in your remote controller.
Check and replace the batteries of the
remote controller.

menu.

A.2 Technical Specifications

1. Tuner & Demodulator

Parameter Specifications

Input Frequency Range 950MHz to 2150 Mhz

RF Input Signal Level -25 to -65dBm

RF Impedance 75W

IF Bandwidth 55MHz/8MHz(Under 5Msps)

LNB Power 13/18DC, 14/19V +/-5%, 0.5Amax, 0.8Apeak overload protected

LNB Tone Switch 22kHz +/-2kHz, 0.6Vpp +/-0.2V

DiSEqC Control Version 1.2, Tone burst A/B

Demodulation QPSK, QAM256, VSB, 64QAM

Symbol Rate 1~45Msps/SCPC, MCPC

41

2. MPEG

Parameter Specifications

Transport Stream MPEG-2 ISO/IEC 13818 Transport Stream Specification

Input Rate Max.15Mbit/s

Video MPEG-2 MP@ML

Audio MPEG-1/2 Audio Layer 1,2

Aspect Ratio 4:3, 16:9

Video Resolution 720x480p(PAL), 720x480i(NTSC), 1080i

Audio Mode Stereo, Dual channel, Joint stereo, Mono

Audio Sampling Frequency 32/44.1/48kHz

42

3. Connector

Port Specifications

LNB IF input F type, IEC 169-24 Female

LNB IF Loop-through Output F type, IEC 169-24 Female

S-VHS Y, C

RCA Stereo,CVBS

Component Y,Pb,Pr

SPDIF Fiber-Optic connection(Digital Audio Output)

Serial Port RS232C D-sub male type

4. Power Supply

Parameter Specifications

Input Voltage 90~260VAC(SMPS)

Power Cons umption Max. 27W

Weight Appr. 1.5KG

Operating Temperature 0'C~40'C

Storage Temperature -40'C~65'C

43

A.3 Glossary of Terms

DiSEqC

Digital Satellite Equipment Control.

EPG

Electronic Program Guide. Software that enables viewers to navigate easily among the large
selection of channels provided by the digital technology and choose the service they desire.

FEC

Forward Error Correction. Correction of faulty bits in the received signal.

LNB(Low-Noise Block converter)

The LNB is an electronic unit mounted on the satellite dish. It receives the signals reflected by the
dish and converts them to signals that can be used by Satellite receiver.

Parental control

A feature that allows parents to lock programs that they consider unsuitable for their children. A
locked channel or program can only be unlocked with the password.

PIN code

Personal Identification Number. A four-digit code that is used for locking/unlocking channels and
programs, as in the parental control feature.

Polarization

Polarization allows several programmes to be fitted into the same frequency band.
The signals from a satellite are transmitted either with linear (vertical or horizontal) polarization or
circular (right or left) polarization.

RS 232

Serial communication standard data port.

Satellite dish

A dish-shaped antenna to receive signals from a satellite. The dish focuses the signals into the LNB.

44

Scrambled satellite TV programme

Some satellite TV programmes are transmitted in scrambled form. A smartcard, and possibly a
CA module is needed to view such programmes.

Symbol rate

Size of the digital package transmissi

45
