Boston Acoustics S50 Specification
Boston Acoustics, Inc. 300 Jubilee Drive Peabody
, Massachusetts 01960 U.S.A. bostonacoustics.com
© 2005 Boston Acoustics, Inc. All rights reserved. Boston, Boston Acoustics, and the Boston Acoustics logo
are registered trademarks of Boston Acoustics, Inc.
50

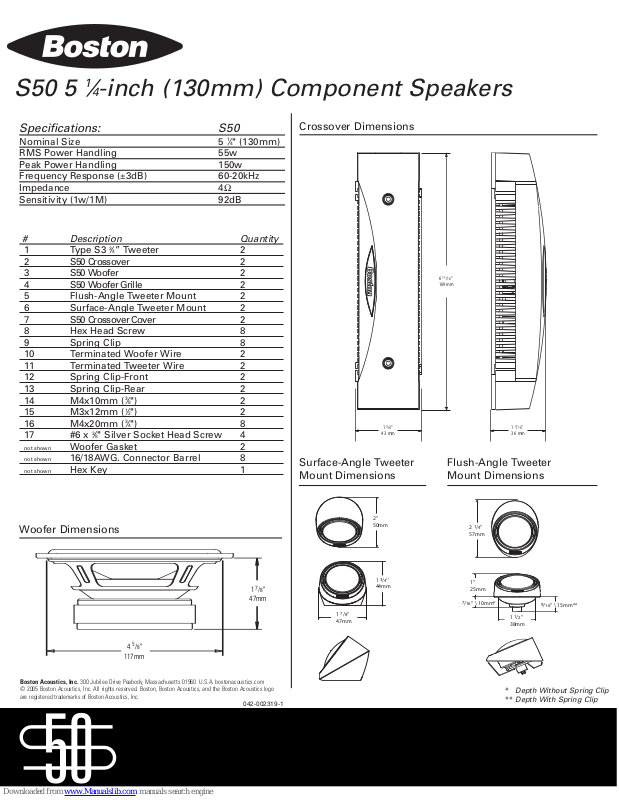

Specifications: S50
Nominal Size 5 1⁄4" (130mm)
RMS Power Handling 55w
P
eak Power Handling 150w
Frequency Response (±3dB) 60-20kHz
Impedance 4Ω
Sensitivity (1w/1M) 92dB
042-002319-1
117mm
4
5
/8”
1
7
/8”
47mm
# Description Quantity
1 Type S3 3⁄4” Tweeter 2
2 S50 Crossover 2
3 S50 Woofer 2
4 S50 Woofer Grille 2
5 Flush-Angle Tweeter Mount 2
6 Surface-Angle Tweeter Mount 2
7 S50 Crossover Cover 2
8 Hex Head Screw 8
9 Spring Clip 8
10 Terminated Woofer Wire 2
11 Terminated Tweeter Wire 2
12 Spring Clip-Front 2
13 Spring Clip-Rear 2
14 M4x10mm (3⁄8") 2
15 M3x12mm (1⁄2") 2
16 M4x20mm (3⁄4") 8
17 #6 x 3⁄8" Silver Socket Head Screw 4
not shown Woofer Gasket 2
not shown 16/18AWG. Connector Barrel 8
not shown Hex Key 1
2‘’
50mm
2 1/4‘’
57mm
2‘’
50mm
2 1/4‘’
57mm
1 3/4‘’
44mm
7
/16‘’ \ 10mm*
9
/16‘’ \ 15mm**
1‘’
25mm
1 1/2‘’
38mm
1 7/8‘’
47mm
2 1/4‘’
57mm
2 1/4‘’
57mm
7
/16‘’ \ 10mm*
9
/16‘’ \ 15mm**
1‘’
25mm
1 1/2‘’
38mm
1 7/16"
36 mm
6 11/16"
169 mm
1
3
/4"
43 mm
S50 5 1⁄4-inch (130mm) Component Speakers
Woofer Dimensions
Crossover Dimensions
Surface-Angle Tweeter
Mount Dimensions
Flush-Angle Tweeter
Mount Dimensions
* Depth Without Spring Clip
** Depth With Spring Clip
2‘’
50mm
2 1/4‘’
57mm
1 3/4‘’
44mm
7
/16‘’ \ 10mm*
9
/16‘’ \ 15mm**
1‘’
25mm
1 1/2‘’
38mm
1 7/8‘’
47mm
1
/4‘’
9
/16‘’ \ 15mm**
1 1/2‘’
38mm
S50
Impedance 4 Ohms
55 Watts RMS
150 Watts Peak
Surface-Angle Mount Flush-Angle Mount Tweeter Level Adjustment
15
16
6
5
1
2
B C D EA
Wire ConnectionsSecure CrossoversConnect CrossoversRemove Covers
Connecting Crossover Cases
Re-Install Covers
System Wiring
Grille Installation
17
7
2
8
9
4
3
10
2
16
S50 Woofer Wiring
+
Positive
–
Negative
13
12
5
14
1
50
S50 5 1⁄4-inch (130mm) Component Speakers
