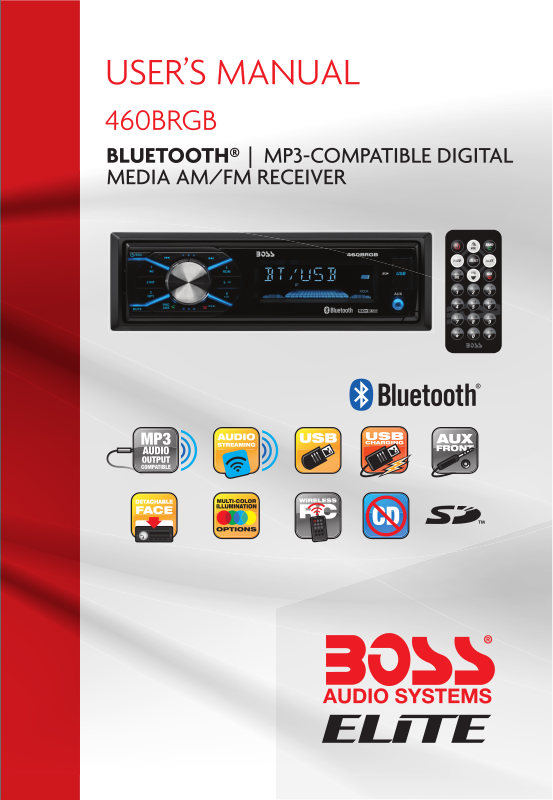

Boss Audio 460BRGB User Manual
CONTENTS
Precautions................................................................................................................................................. 1
Lithium Battery Cell Warnings
Use Caution
Installation ..................................................................................................................................................
Installation Procedures .......................................................................................................................... 2
Installation Opening................................................................................................................................ 2
Wiring Connections................................................................................................................................ 3
Uninstall the Main Unit
Control Panel Button Locations..................................................................................................................
Operation
Power / SRC
Change the Source (SRC)
Store/Recall Preset Stations (1 - 6)
Play/Pause, Intro, Repeat, Random, Tracks playback
Track/Folder Navigation
Set the Clock (CLK)
Insert SD Card
Adjust Volume (VOL)
Switch Between US and EU Frequency
Manual Tuning (|<< / >>|)
Auto Seek Tuning (|<< / >>|)
Change Bands (BAND)
Automatic Music Search (AMS)
Track Search
Mute
Insert USB
AUX In Jack
Release Panel
Reset System (RESET)
Bluetooth Operation.................................................................................................................................... 7
Pair and Connect ................................................................................................................................... 7
Make a Call ............................................................................................................................................ 7
Redial Last Dialed Number ................................................................................................................... 7
Answer a Call......................................................................................................................................... 7
End a Call .............................................................................................................................................. 7
Switch Audio Between Car and Phone .................................................................................................. 7
Adjust Talk Volume................................................................................................................................. 7
Bluetooth Music (A2DP)......................................................................................................................... 7
Remote Control
Remove Insulating Sheet.......................................................................................................................
Replace Lithium Battery Cell.................................................................................................................. 8
Remote Control Operation ..................................................................................................................... 8
Button Names and Locations................................................................................................................. 9
Troubleshooting.........................................................................................................................................
s ..........................................................................................................................................1
...................................................................................................................................................
...........................................................................................................................................
..............................................................................................................................
.......................................................................................................................................
.............................................................................................................................
Next/Previous Track
Fast Forward/Backward
......................................................................................................................................................
.............................................................................................................................................
............................................................................................................................................
...............................................................................................................................
..........................................................................................................................................
..........................................................................................................................................
.......................................................................................................................................
.........................................................................................................................................
..............................................................................................................................
...........................................................................................................................
....................................................................................................................
........................................................................................................
..............................................................................
.........................................................................................................................
.................................................................................................
.....................................................................................................................
..................................................................................................................
........................................................................................................................
..........................................................................................................................
.............................................................................................................
.........................................................................................................................
10
11
1
2
3
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
7
8
8
ii
PRECAUTIONS
Lithium Battery Cell Warnings
Cell leakage may cause damage to the remote control.
Do not throw cells into as this may cause an explosion.
Keep battery cells out of reach of children.
Use cautions
Some MP3/WMA files may not be playable.
Be sure to lower the volume before switching off the unit or the ignition key.
1
INSTALLATION
Installation Procedures
First complete the electrical connections and then check for correctness.
Installation Opening
This unit can be installed in any dashboard Having an opening as shown below.
2.05 inch
7.20 inch
Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver.
Make sure that lock lever is flush with the mounting collar( not projecting outward).
MOUNTING SLEEVE
2
INSTALLATION(CONT.)
!
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
Wiring Connections
WIRING
DIAGRAM
15
ACC + (Red)
GND - (Black)
ANT + (Blue)
Power B + (Yellow)
Radio Antenna
White:Front Left PRE-AMP Output
Red: Front Right PRE-AMP Output
Red: Rear Right PRE-AMP Output
White: Rear Left PRE-AMP Output
CAUTION
+12V DC
NEGATIVE
Rear Right Speaker
Front Right Speaker
Purple +
Purple/Black -
Gray +
Green +
Green/Black -
White +
White/Black -Gray/Black -
15A
Rear Left Speaker
Front Left Speaker
GROUND
Uninstall the Main Unit
1. Remove the metal strap from the main unit.
2. Remove the plastic trim out from the main unit.
3. Insert a bracket key into the left and right side of the main unit and draw the unit out of
the mounting sleeve.
3
