Page 1

Washing machine WAW28420AU

en Instruction Manual and Installation Instructions

Page 2

Your new washing machine

You have chosen a Bosch washing machine.

Please take a few minutes to read and become familiar with the advantages of your washing machine.

To meet the high quality demands required by Bosch, every washing machine that leaves our factory is carefully checked to ensure that it functions correctly and is in perfect condition.

For more information on our products, accessories, replacement parts and services, see our website www.boschhome.com or contact our after-sales service centres.

If the operating and installation instructions describe different models, any differences will be pointed out at the relevant points in the text.

Read these operating and installation instructions before switching on the washing machine.

Display rules

: Warning!

This combination of symbol and signal word indicates a possibly dangerous situation. Not heeding the warning can cause death or injuries.

Caution!

This signal word indicates a possibly dangerous situation. Not heeding the caution can cause property and/or environmental damage.

Note/tip

Information about the optimum use of the appliance/any other useful information.

1. 2. 3. / a) b) c)

The steps are represented by numbers or letters.

■ / -

Lists are represented by a small box or a dash.

Page 3

Contents

enInstruction Manual and Installation Instructions

8 Intended use. . . . . . . . . . . . . . . . .4

( Safety instructions . . . . . . . . . . .5

Children/people/pets . . . . . . . . . . . . . 5

Installation. . . . . . . . . . . . . . . . . . . . . . 6

Operation . . . . . . . . . . . . . . . . . . . . . . 9

Cleaning/Maintenance . . . . . . . . . . . 10

7 Environmental protection . . . . .12

Packaging/used appliance . . . . . . . . 12

Tips on economical use . . . . . . . . . . 12

5 Positioning and connecting . . .13

Included with the appliance . . . . . . . 13

Safety instructions. . . . . . . . . . . . . . . 14

Installation surface . . . . . . . . . . . . . . 14

Installation on a base or a wooden

joist floor. . . . . . . . . . . . . . . . . . . . . . 14

Installation on a platform with

drawer . . . . . . . . . . . . . . . . . . . . . . . 14

Installing the appliance in a

kitchenette . . . . . . . . . . . . . . . . . . . . 15

Removing the transport locks. . . . . . 15

Hose and cable lengths . . . . . . . . . . 16

Water inlet. . . . . . . . . . . . . . . . . . . . . 17

Water outlet . . . . . . . . . . . . . . . . . . . 18

Levelling . . . . . . . . . . . . . . . . . . . . . . 19

Electrical connection. . . . . . . . . . . . . 19

Before washing for the first time . . . . 20

Transportation. . . . . . . . . . . . . . . . . . 21

Y Main points in brief . . . . . . . . . .22

* Getting to know the appliance 23

Washing machine . . . . . . . . . . . . . . . 23

Control panel . . . . . . . . . . . . . . . . . . 24

Display panel . . . . . . . . . . . . . . . . . . 25

Z Laundry. . . . . . . . . . . . . . . . . . . .26

Prepare the laundry . . . . . . . . . . . . . 26

Sorting laundry . . . . . . . . . . . . . . . . . 26

C Detergent . . . . . . . . . . . . . . . . . . 27

Correct selection of detergent . . . . . .27

Saving energy and detergent . . . . . .27

/ Overview of programmes . . . . . 28

Programmes on the programme

selector . . . . . . . . . . . . . . . . . . . . . . .28

Starching . . . . . . . . . . . . . . . . . . . . . .33

Dyeing/bleaching . . . . . . . . . . . . . . .33

Soaking . . . . . . . . . . . . . . . . . . . . . . .33

0 Programme default settings. . . 34

Temperature s . . . . . . . . . . . . . . . . . .34

Spin speed . . . . . . . . . . . . . . . . . . . .34

Finished in ñ. . . . . . . . . . . . . . . . . . .34

\ Additional programme

settings. . . . . . . . . . . . . . . . . . . . 35

EcoPerfect F . . . . . . . . . . . . . . . . . .35

SpeedPerfect (. . . . . . . . . . . . . . . .35

Easy Iron p . . . . . . . . . . . . . . . . . . .35

Rinse Plus ' . . . . . . . . . . . . . . . . . .35

1 Operating the appliance . . . . . . 36

Preparing the washing machine . . . .36

Switching on the appliance/

selecting a programme . . . . . . . . . . .36

Placing laundry into the drum . . . . . .36

Measure and add detergent and

care products . . . . . . . . . . . . . . . . . .37

Change the programme default

settings . . . . . . . . . . . . . . . . . . . . . . .38

Select additional programme

settings . . . . . . . . . . . . . . . . . . . . . . .38

Start the programme . . . . . . . . . . . . .38

Child lock 3 sec. . . . . . . . . . . . . . . .38

Adding laundry . . . . . . . . . . . . . . . . .39

Changing the programme . . . . . . . . .39

Cancel the programme . . . . . . . . . . .39

Programme end during rinse hold. . .39

Programme end . . . . . . . . . . . . . . . .39

Removing laundry/switching off the

appliance. . . . . . . . . . . . . . . . . . . . . .40

Page 4

en Intended use

Q Appliance settings . . . . . . . . . . 41

Activating the setting mode . . . . . . . 41

Changing the signal volume . . . . . . 41

Selecting/deselecting the appliance

automatic switch-off . . . . . . . . . . . . . 41

Exiting setting mode . . . . . . . . . . . . 41

H Sensors . . . . . . . . . . . . . . . . . . . 42

Automatic load sensing . . . . . . . . . . 42

Unbalanced load detection system . 42

AquaSensor. . . . . . . . . . . . . . . . . . . 42

2 Cleaning and maintenance . . . 43

Machine housing/control panel . . . . 43

Drum . . . . . . . . . . . . . . . . . . . . . . . . 43

Descaling. . . . . . . . . . . . . . . . . . . . . 43

Detergent drawer and housing . . . . 44

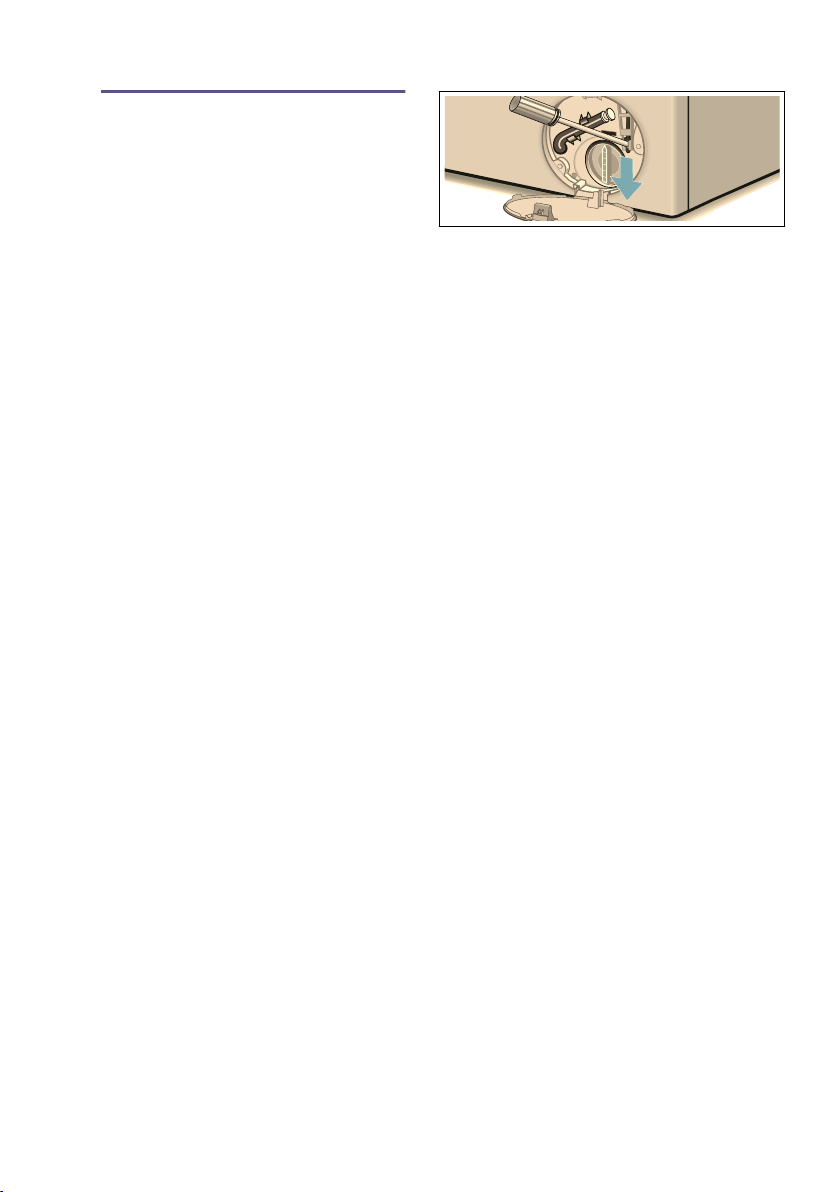

The drain pump is blocked,

emergency draining. . . . . . . . . . . . . 44

The drain hose at the siphon is

blocked . . . . . . . . . . . . . . . . . . . . . . 45

Filter in the water supply blocked . . 45

3 Faults and what to do about

them. . . . . . . . . . . . . . . . . . . . . . 46

Emergency release . . . . . . . . . . . . . 46

Information on the display panel . . . 47 Faults and what to do about them. . 48

4 After-sales service . . . . . . . . . . 50

[ Consumption rates . . . . . . . . . . 51

Energy and water consumption, programme duration and residual moisture for the main washing

programmes . . . . . . . . . . . . . . . . . . 51

J Technical data. . . . . . . . . . . . . . 52

Technical data . . . . . . . . . . . . . . . . . 52

Information for test institute . . . . . . . 53

8 Intended use

Intended use

■ This appliance is intended for private

domestic use only.

■ Do not install or operate this

appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.

■ This appliance must only be used for

washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and is forbidden.

■ This appliance is suitable for

operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).

■ This appliance is intended for use up

to a maximum height of 4000 metres above sea level.

Before you switch on the appliance:

Check that there is no visible damage to the appliance. Do not operate the appliance if it is damaged. Should you have any problems, please contact your specialist dealer or our customer service.

Read and follow the operating and installation instructions and all other information provided with this appliance.

Retain the documents for subsequent use or for subsequent owners.

r Aqua-Stop warranty . . . . . . . . . 54

Page 5

Safety instructions en

( Safety instructions

Safety instructions

The following safety information and warnings are provided to protect you from injury and to prevent material damage to your surroundings.

It is nevertheless important to take the necessary precautions and to proceed with care when installing, maintaining, cleaning and operating the appliance.

Children/people/pets

:Warning

Risk of death!

Children and other people who are unable to assess the risks involved when using the appliance may injure themselves or may find themselves in life-threatening situations. Therefore please note:

■ The appliance may be used

by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how to use the appliance safely and they have understood the potential risks of using the appliance.

■ Children must not play with

this appliance.

■ Do not allow children to

clean or maintain this appliance unsupervised.

■ Keep children under 3 years

and pets away from this appliance.

■ Do not leave the appliance

unattended when children or other people who are unable to assess the risks are in the vicinity.

:Warning

Risk of death!

Children may lock themselves inside appliances and find themselves in a life-threatening situation.

■ Do not position the

appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.

■ Once an appliance has

reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.

Page 6

en Safety instructions

:Warning

Risk of suffocation!

If allowed to play with the packaging/plastic film or packing components, children may become caught in these or pull them over their heads and suffocate. Keep packaging, plastic film and packing components away from children.

:Warning

Risk of poisoning!

Detergents and care products may result in poisoning if consumed. If accidentally swallowed, seek medical advice. Keep detergents and care products out of the reach of children.

:Warning

Risk of burns!

When washing at high temperatures, the glass in the appliance door becomes hot. Stop children from touching the appliance door when it is hot.

:Warning

Eye/skin irritation!

Contact with detergents or care products may cause eye/skin irritation. Rinse eyes/skin thoroughly if they/it come(s) into contact with detergents or care products. Keep detergents and care products out of the reach of children.

Installation

:Warning

Risk of electric shock/fire/ material damage/damage to the appliance!

If the appliance is not installed properly, this may lead to a dangerous situation. Ensure the following:

■ The mains voltage on your

power socket must match the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.

■ The appliance must only be

connected to alternating voltage via a protective contact socket that has been correctly installed. This plug socket must be freely accessible at all times.

■ The mains plug and the

protective contact socket must match and the earthing system must be correctly installed.

■ The installation must have an

adequate cross section.

Page 7

Safety instructions en

■ The mains plug must be

freely accessible at all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (all pole disconnection) must be built into the permanent installation in accordance with electrical installation regulations.

■ If using a residual current

circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.

:Warning

Risk of electric shock/fire/ material damage/damage to the appliance!

If the appliance's mains cable is altered or damaged, this may result in electric shock, short circuiting or fire due to overheating. The mains cable must not be kinked, crushed or altered, and must not come into contact with any heat sources.

:Warning

Risk of fire/material damage/ damage to the appliance!

The use of extension cords or power strips may result in fire due to overheating or short circuiting. Connect the appliance directly to an earthed socket that has been correctly installed. Do not use extension cords, power strips or multi-way couplers.

:Warning

Risk of injury/material damage/damage to the appliance!

■ The appliance may vibrate or

move when in operation, potentially resulting in injury or material damage. Place the appliance on a clean, even, solid surface and, using a spirit level to guide you, level it with the screw-in feet.

Risk of injury/material damage/damage to the appliance!

■ If you take hold of any of the

appliance's protruding parts (e.g. the appliance door) in order to lift or move it, these parts may break off and cause injury. Do not take hold of any of the appliance's protruding parts in order to move the appliance.

Page 8

en Safety instructions

:Warning

Risk of injury!

■ The appliance is very heavy.

Lifting it may result in injury. Do not lift the appliance on your own.

Risk of injury!

■ The appliance has sharp

edges on which you could cut your hands. Do not take hold of the appliance by its sharp edges. Wear protective gloves to lift it.

Risk of injury!

■ If the hoses and mains

cables are not correctly routed, they may constitute a tripping hazard, which may result in injury. Route hoses and cables such that they do not constitute a tripping hazard.

Caution! Material damage/damage to

the appliance

■ If the water pressure is too

high or too low, the appliance may not be able to operate properly, and it may also result in material damage or damage to the appliance. Make sure that the water pressure in the water supply facility is at least 100 kPa (1 bar), and does not exceed 1000 kPa (10 bar).

Material damage/damage to the appliance

■ If the water hoses are altered

or damaged, this may result in material damage or damage to the appliance. The water hoses must not be kinked, crushed, altered or severed.

Material damage/damage to the appliance

■ The use of hoses supplied

by other brands to connect to the water supply may result in material damage or damage to the appliance. Use the hoses supplied with the appliance or genuine spare part hoses only.

Material damage/damage to the appliance

■ The appliance is secured for

transportation by transport locking devices. If the transport locking devices are not removed before the appliance is operated, this may result in damage to the appliance. It is important to completely remove all transport locking devices before using the appliance for the first time. Make sure that you retain these transport locking devices separately. It is important to refit the transport locking devices if the appliance is to be transported, in order to prevent the appliance from being damaged in transit.

Page 9

Safety instructions en

Operation

:Warning

Risk of explosions/fire!

Laundry that has been pretreated with cleaning agents that contain solvents, e.g. stain remover/cleaning solvent, may cause an explosion in the drum. Rinse the laundry thoroughly with water before washing it in the machine.

:Warning

Risk of poisoning!

Poisonous fumes may be given off by cleaning agents that contain solvents, e.g. cleaning solvent. Do not use cleaning agents that contain solvents.

:Warning

Risk of injury!

■ If you support your weight/sit

on the appliance door when it is open, the appliance may tip over, which may result in injury. Do not support your weight on the appliance door when it is open.

Risk of injury!

■ If you climb onto the

appliance, the worktop may break, which may result in injury. Do not climb onto the appliance.

Risk of injury!

■ If you reach into the drum

while it is still rotating, you risk injuring your hands. Wait until the drum has stopped rotating.

:Warning

Risk of scalding!

When washing at high temperatures, there is a risk of scalding if you come into contact with hot detergent solution (e.g. when draining hot detergent solution into a washbasin). Do not reach into the hot detergent solution.

:Warning

Eye/skin irritation!

Detergent and care products may spray out if the detergent drawer is opened while the appliance is in operation. Rinse eyes/skin thoroughly if they/it come(s) into contact with detergents or care products. If accidentally swallowed, seek medical advice.

Page 10

en Safety instructions

Caution! Material damage/damage to

the appliance

■ If the amount of laundry in

the appliance exceeds its maximum load capacity, it may not be able to operate properly, or this may result in material damage or damage to the appliance. Do not exceed the maximum load capacity of dry laundry. Make sure you comply with the maximum load capacities specified for each of the programs. ~ Page 28

Material damage/damage to the appliance

■ If you pour the wrong

quantity of detergent or cleaning agent into the appliance, this may result in material damage or damage to the appliance. Use detergents/care products/cleaning agents and softeners in accordance with the manufacturers' instructions.

Cleaning/Maintenance

:Warning

Risk of death!

The appliance is powered by electricity. There is a risk of electric shock if you come into contact with live components. Therefore please note:

■ Switch off the appliance.

Disconnect the appliance from the power supply (pull out the plug).

■ Never take hold of the mains

plug with wet hands.

■ When removing the mains

plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.

■ Do not make any technical

modifications to the appliance or its features.

■ Repairs and any other work

on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).

■ Spare mains cables can be

ordered from our customer service.

:Warning

Risk of poisoning!

Poisonous fumes may be given off by cleaning agents that contain solvents, e.g. cleaning solvent. Do not use cleaning agents that contain solvents.

:Warning

Risk of electric shock/material damage/damage to the appliance!

If moisture penetrates the appliance, this may cause it to short circuit. Do not use a pressure washer, steam cleaner, hose or spray gun to clean your appliance.

Page 11

:Warning

Risk of injury/material damage/damage to the appliance!

The use of spare parts and accessories supplied by other brands is dangerous and may result in injury, material damage or damage to the appliance. For safety reasons, use genuine spare parts and accessories only.

Caution! Material damage/damage to

the appliance

Cleaning agents and agents for pretreating laundry (e.g. stain removers, prewash sprays, etc.) may cause damage if they come into contact with the surfaces of the appliance. Therefore please note:

Safety instructions en

■ Do not allow these agents to

come into contact with the surfaces of the appliance.

■ Clean the appliance with

nothing but water and a soft, damp cloth.

■ Remove any detergent,

spray or other residues immediately.

Page 12

en Environmental protection

7 Environmental

protection

Environmental protection

Packaging/used appliance

)

Tips on economical use

■ Always fill the appliance with the

Dispose of packaging in an environmentally-responsible manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

maximum amount of laundry for the relevant programme. Overview of programmes

~ Page 28

■ Energy-saving mode: The display

panel lighting goes out after a few minutes and the A button flashes. Press any button to activate the lighting. Energy-saving mode is not activated if a programme is running.

■ Automatic switch off: If the

appliance is not operated for a prolonged period, it may automatically switch off before the programme starts and when the programme has ended to save energy. Press the main switch again to switch on the appliance. Switching the ~ Page 41 function on/off

■ If the laundry is subsequently dried

in a tumble dryer, select the spin speed according to the tumble dryer manufacturer's instructions.

■ Wash normally soiled laundry

without a prewash.

■ Save energy and detergent when

washing lightly and normally soiled laundry. ~ Page 27

■ The selectable temperatures apply

to the care labels on the textiles. The temperatures in the machine may deviate from this so that you get the optimum mix of energy-saving and washing results.

Page 13

Positioning and connecting en

5 Positioning and

connecting

Positioning and connecting

Included with the appliance

Note: Check the machine for transport

damage. Never use a damaged machine. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services. ~ Page 50

 

 #

( Mains cable 0 Bag:

■ Installation and operating

instructions

■ Customer services location

directory*

■ Warranty*

■ Cover caps for openings after

the transport braces have been removed

■ Adaptor with sealing washer

from 21 mm = ½" to

26.4 mm = ¾" *

8 Water supply hose on Aqua-Stop

models

@ Water drain hose H Elbow for securing the water

drain hose*

P Water supply hose on standard/

Aqua-Secure models

* depending on the model

In addition, a hose clamp (24 - 40 mm diameter, available from specialist dealers) is required to connect the water drain hose to a siphon.

Useful tools

■ Spirit level for aligning

■ Spanner with:

– WAF13 for loosening the

transport braces, and

– WAF17 for aligning the appliance

feet

Page 14

en Positioning and connecting

Safety instructions

:Warning

Risk of injury!

■ The washing machine is very heavy.

Be careful when lifting/transporting the washing machine.

■ When the washing machine is lifted

by its protruding parts (e.g. the washing machine door), the components may break off and cause injuries. Do not lift the washing machine by protruding parts.

■ If the hose and mains cables are not

routed properly, there is a risk of tripping and injury. Lay hoses and cables in such a way that there is no risk of tripping.

Caution! Damage to the appliance

Frozen hoses may rip/burst. Do not install the washing machine in areas exposed to frost or outdoors.

Caution! Water damage

The connection points for the water supply hose and water drain hose are under high water pressure. To prevent leaks and water damage, you must follow the instructions in this section.

Notes

■ In addition to the safety information

listed here, the local water and electricity supplier may have special requirements.

■ If in doubt, have the appliance

connected by a specialist.

Installation surface

Note: The washing machine be stable

so that it does not move around.

■ The installation surface must be firm

and level.

■ Soft floors/floor coverings are not

suitable.

Installation on a base or a wooden joist floor

Caution! Damage to the appliance

The washing machine may "wander" and tip/topple from the base when spinning. The feet of the appliance must be secured with holding brackets. Order no. WMZ 2200, WX 9756, Z 7080X0

Note: On wooden joist floors, install the

washing machine:

■ In a corner, if possible,

■ On a water-resistant wooden board

(min. 30 mm thick) which is screwed tightly to the floor.

Installation on a platform with drawer

Platform order no.: WMZ 20490, WZ 20490, WZ 20510, WZ 20520

Page 15

Positioning and connecting en

Installing the appliance in a kitchenette

:Warning

Danger of death!

There is a risk of electric shock if you touch live components. Do not remove the appliance covering plate.

Notes

■ Recess width of 60 cm required.

■ Only install the washing machine

underneath a continuous worktop that is securely connected to adjacent cabinets.

Removing the transport locks

Caution! Damage to the appliance

■ The machine is secured for

transportation using transport locks. If the transport locks are not removed, the drum, for example, may become damaged when the machine is operated. Before using the appliance for the first time, make sure that you completely remove all four transport locks. Keep the locks in a safe place.

■ To prevent transport damage from

occurring if the appliance is moved at a later date, you must refit the transport locks before transporting the appliance.

1. Take the hoses out of the holders.

2. Unscrew and remove all four

transportation securing bolts with a wrench (WAF 13). Remove the sleeves. Remove the mains cable from the holders.

3. Insert the covers. Lock the covers

firmly in place by applying pressure to the snap-in hooks.

Note: Keep the screws and sleeves in

a safe place.

Page 16

en Positioning and connecting

Hose and cable lengths

■ Left-hand connection

aFP

aFP

PD[FP

aFP

■ Right-hand connection

aFP

aFP

PD[FP

Tip: The following are available from

specialist dealers/customer services:

■ Extension for Aqua-Stop and cold

water supply hose (approx. 2.50 m); order no. WM Z2380, WZ 10130, CZ 11350, Z 7070X0

■ A longer supply hose (approx. 2.20

m) for standard models; individual component number for customer services: 00353925

Page 17

Positioning and connecting en

Water inlet

:Warning

Danger of death!

There is a risk of electric shock if you touch live components. Do not immerse the Aqua-Stop safety valve in water (it contains an electric valve).

Notes

■ Only operate the washing machine

using cold mains water.

■ Do not connect the machine to the

mixer tap of an unpressurised hotwater boiler.

■ Do not use a used supply hose. Only

use the supply hose supplied or one that was purchased from an authorised specialist retailer.

■ Do not kink or squash the water

supply hose.

■ Do not alter (shorten, cut through)

the water supply hose (otherwise its strength is no longer guaranteed).

■ Only tighten the screw connections

by hand. If the screw connections are tightened too much with a tool (pliers), the thread may become damaged.

■ When connecting to a 21 mm = ½"

tap, first fit an adapter* with a sealing washer from 21 mm = ½" to

26.4 mm = ¾". *supplied depending on the model

Optimum water pressure in the supply network

At least 100 kPa (1 bar) Maximum 1000 kPa (10 bar)

When the tap is open, the water flow rate is at least 8 l/min.

If the water pressure is higher than this, a pressure-reducing valve must be installed.

Connection

Connect the water supply hose to the tap (26.4 mm = ¾") and to the appliance (not necessary for Aqua-Stop models as this is permanently installed):

■ Model: Standard

■ Model: Aqua-Secure

■ Model: Aqua-Stop

ê

ë

PLQPP

Note: Turn on the tap carefully,

checking the leak tightness of the connection points. The screw connection is under mains water pressure.

Page 18

en Positioning and connecting

Water outlet

:Warning

Risk of scalding!

When you are washing at high temperatures, there is a risk of scalding if you come into contact with hot water (e.g. when draining hot water into a washbasin). Do not reach into the hot water.

Caution! Water damage

If the drain hose slips out of the washbasin or the connection point during draining due to high water pressure, any escaping water may cause water damage. Secure the drain hose so that it cannot slip out.

Caution! Damage to the appliance/fabrics

If the end of the drain hose is immersed in the drained water, water may be sucked back into the appliance and may damage the appliance/fabrics. Make sure that:

■ The plug does not block drainage

from the washbasin.

■ The end of the drain hose is not

immersed in the drained water.

■ The water drains away quickly

enough.

Connection

■ Drainage into a washbasin

■ Drainage into a siphon

The connection point must be secured using a hose clamp with a diameter of 24 - 40 mm (available from specialist dealers).

■ Drainage into a plastic pipe with

rubber bushing or into a drainage pit

Note: Do not kink the water drain hose

or put strain on it lengthways.

Page 19

Positioning and connecting en

Levelling

Align the appliance using a spirit level. Incorrect alignment may result in loud

noises, vibrations and machine "movement".

1. Loosen the lock nuts using a WAF17

spanner, by turning it in a clockwise direction.

2. Check the alignment of the washing

machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet. All four appliance feet must stand firmly on the ground.

3. The lock nuts on all four appliance

feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.

Electrical connection

:Warning

Danger of death!

There is a risk of electric shock if you touch live components.

■ Never touch or hold the mains plug

with wet hands.

■ Only pull out the mains cable by the

plug and never by the cable, as this could damage it.

■ Never unplug the mains plug during

operation.

Notes

■ The mains voltage and voltage

indicated on the washing machine (rating plate) are the same. The connected load and fuse required are specified on the rating plate.

■ The washing machine is only

connected to an alternating current supply via a properly installed earthed socket.

■ The mains plug fits the socket.

■ The cable cross-section is adequate.

■ The earthing system is properly

installed.

■ The mains cable is only replaced by

a qualified electrician (if this is necessary). Replacement mains cables are available from customer services.

■ No multiple plugs/couplings or

extension cables are used.

■ If an earth-leakage circuit breaker is

used, only a type which displays the z symbol is used. Only this symbol guarantees compliance with the currently applicable regulations.

■ The mains plug can be accessed at

all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (2-pole switch-off) must be built into the permanent installation in accordance with electrical installation regulations.

■ The mains cable is not kinked,

squashed, altered or cut through.

■ The mains cable does not come into

contact with heat sources.

Observe the following information and ensure that:

Page 20

en Positioning and connecting

Before washing for the first time

The washing machine was thoroughly tested before leaving the factory.To remove any water that may be left over from the test, run the first wash cycle

without any laundry.

Notes

■ The washing machine must be

correctly installed and connected.

From ~ Page 13

■ Never use a machine if it is

damaged. Inform the after-sales service.

Preparatory work:

1. Check the machine.

2. Remove the protective film from the

control panel.

3. Plug in the mains plug.

4. Turn on the tap.

Running the programme without laundry:

1. Switch on the appliance.

2. Close the door (do not load any

laundry).

3. Set the Û Drum Clean 90 °C

programme.

4. Open the detergent drawer.

5. Pour approximately 1 litre of water

into compartment II.

6. Pour standard washing powder into

compartment II.

Note: To prevent foaming, only use

half the amount of detergent recommended by the detergent manufacturer.Do not use detergents intended for woollens or delicates.

7. Close the detergent drawer.

8. Press the A button.

9. Switch off the appliance at the end of

the programme.

Your washing machine is now ready to use.

Page 21

Positioning and connecting en

Transportation

E.g. when moving house

Preparatory work:

1. Turn off the tap.

2. Reduce the water pressure in the

supply hose: ~ Page 45; Cleaning and maintenance – filter in the water supply blocked

3. Disconnect the washing machine

from the mains.

4. Drain the remaining water:

~ Page 44; cleaning and maintenance – the drain pump is blocked, emergency draining

5. Remove the hoses.

Fitting the transportation securing means:

1. Remove the covers and keep them

in a safe place. If required, use a screwdriver.

Before switching on the appliance again:

Notes

■ The transport braces must be

removed.

■ Pour approx. 1 litre of water into

compartment II, select the [ Drain programme and start. This will prevent detergent from flowing unused into the drain during the next wash.

2. Insert all four sleeves.

Clip the mains cable securely in the holders. Insert the transportation securing bolts and tighten them with a wrench (WAF 13).

Page 22

en Main points in brief

Y Main points in brief

Main points in bri ef

1 @ @ @

Connect the mains plug. Turn on the

--------

tap.

Open the door. To switch on, press

the # button.

2 @ @ @

Sort the laundry. Observe the

Load the laundry. Close the door. maximum load (depending on the model) on the

--------

display panel.

3 @ @

Add detergent. If necessary, change the default programme

--------

4 @ @ @

settings and/or select additional settings.

Select a programme, e.g. i Cottons.

FODFN

Start the programme.

--------

End of the programme Open the door and

remove the laundry.

To switch off, press

the # button.

Turn off the tap (for models without Aqua-Stop).

Page 23

Getting to know the appliance en

* Getting to know the appliance

Getting to know the appliance

Washing machine









6 7

( Detergent drawer ~ Page 37 0 Operating/display panel 8 Door with door handle 9S Open the door 9T Close the door @ Service flap

Page 24

en Getting to know the appliance

Control panel

Note: All the buttons are sensitive

(except for the main switch) and only need to be pressed lightly.

( Main switch

for switching the washing machine on and off: Press the # button.

0 Programme selector

for selecting a programme. Overview of programmes

~ Page 28

8 Additional programme settings:

~ Page 35

■ EcoPerfect F,

■ SpeedPerfect (,

■ Rinse Plus ',

■ Easy Iron p

@ A button for:

■ Starting a programme

■ Interrupting a programme, e.g.

to add items of laundry

~ Page 39

■ Cancelling a programme

~ Page 39

H Changing the default programme

settings: ~ Page 34

■ Temperature s,

■ Spin speed (Spin 0),

■ Finished in ñ time

P Child lock 3 sec. (E)

to prevent the set functions from being changed accidentally: To do so, press Finished in ñ + and - simultaneously for approx. 3 seconds. ~ Page 38

X Display panel for settings and

information. ~ Page 25

Page 25

Getting to know the appliance en

  

Display panel

Default programme settings:

(

Temperature sin °C

Ž - 90 (Ž = cold)

0 Spin speed in rpm,

$ - 1600*; * Max. spin speed, depending on the selected programme and model, $ = Rinse Stop ~ Page 34

Finished in ñ time

e.g. 2:30; Programme duration depends on the programme selection in h:min (hours:minutes),

■ Preselection of end time

1 - 24 h; Programme ends after ... h (h = hours)

■ Load recommendation

e.g. kg 9*; * depending on the selected programme

Further information

Programme progress:

! Prewash*

N Washing

à Rinse

0 Spin

- 0 - Programme end $ Programme end during Rinse Stop

- P - Pause, e.g. to reload laundry

Washing machine door:

ÿ lights up

ÿ flashes

The washing machine door can be opened.

When the programme has started: The washing machine door is not closed properly.

Tap:

Tap not turned on, no water pressure

lights up r

flashes

Water pressure too low (may increase the programme duration)

Childproof lock: ~ Page 38 E

Childproof lock activated

lights up E

flashes

Childproof lock activated, programme selector adjusted

Foam detection: Å

~ Page 38

lights up

Fault display:

E: - - ~ Page 47

Signal setting:

0 - 4 ~ Page 41

Switching off the appliance automatically:

On OFF ~ Page 12, ~ Page 41

* depending on the model

Page 26

en Laundry

Z Laundry

Laundry

Prepare the laundry

Caution! Damage to the appliance/fabrics

Foreign objects (e.g. coins, paperclips, needles, nails) may damage the laundry or components in the washing machine.

You should therefore note the following tips when preparing your laundry:

■ Empty any pockets.

■ Look out for metal items (paperclips,

etc.) and remove them.

■ Wash delicates in a laundry bag

(tights, underwired bras, etc.).

■ Close any zips; button up any cover

buttons.

■ Brush sand out of pockets and

collars.

■ Remove curtain fittings or place

curtains in a laundry bag.

Sorting laundry

Some examples of soiling levels can be found on ~ Page 27 – Light: Do not prewash, select the

SpeedPerfect ( setting if

necessary – Normal – Heavy: Load less laundry, select

a programme with prewash – Stains: Remove/pretreat stains

while they are fresh. Firstly, dab

with soapy water; do not rub.

Then wash the items of laundry

with the appropriate programme.

Stubborn or dried-in stains can

sometimes only be removed by

washing several times.

■ Symbols on the care labels

Note: The numbers in the symbols

indicate the maximum washing temperature that may be used.

M Suitable for normal washing

process; e.g. Cottons programme

U A gentle washing process is

required; e.g. Easy-Care programme

O An especially gentle washing

process is required; e.g. Delicate/Silk programme

W Suitable for washing by hand;

e.g. W Woollens programme

Ž Do not machine wash.

Sort your laundry according to the care instructions and manufacturer's information on the care labels, depending on:

■ Type of fabric/fibre

■ Colour

Note: Laundry may discolour. Wash

white and coloured items separately. Wash new coloured items separately the first time you wash them.

■ Soiling

Wash laundry with the same level of soiling together.

Page 27

Detergent en

C Detergent

Detergent

Correct selection of detergent

The care label is crucial for selecting the correct detergent, temperature and treatment of the laundry. ~ See also www.sartex.ch

If you visit www.cleanright.eu, you will find further information on detergents, care products and cleaning agents for domestic use.

■ Standard detergent with optical

brighteners

Suitable for boil-washable white laundry made from linen or cotton Programme: Cottons/ cold - max. 90 °C

■ Detergent for colours without

bleach or optical brighteners

Suitable for coloured laundry made from linen or cotton Programme: Cottons/ cold - max. 60 °C

■ Detergent for colours/delicates

without optical brighteners

Suitable for coloured laundry made from easy-care fibres, synthetic fibres Programme: Easy-Care/ cold - max. 60 °C

■ Detergent for delicates

Suitable for delicate, fine fabrics, silk or viscose Programme: Delicate/Silk/ cold - max. 40 °C

■ Detergent for woollens

Suitable for wool Wool programme/ cold - max. 40 °C

Saving energy and detergent

For light and normal soiling, you can save energy (lower washing temperature) and detergent.

Saving Soiling/note

Reduced temperature and detergent quantity as per the recommended dosage

Temperature as per the care label and detergent quantity as per the recommended dosage for heavy soiling

Note: When measuring the amount of

all detergents/additives/care products and cleaning agents, please always check the manufacturer's instructions and information. ~ Page 37

Light

No visible dirt or stains. Clothing has taken on some body odour, e.g.:

■ Light summer/sports

clothing (worn for a few hours)

■ T-shirts, shirts, blouses

(worn for up to one day)

■ Guest bed linen and

hand towels (used for one day)

Normal

Visible dirt or a few light stains, e.g.:

■ T-shirts, shirts, blouses

(sweat soaked, worn a few times)

■ Towels, bedding (used

for up to one week)

Heavy

Dirt and/or stains clearly visible, e.g. tea towels, baby items, work clothing

Page 28

en Overview of programmes

/ Overview of programmes

Overview of programmes

Programmes on the programme selector

Programme/type of laundry/information Settings

Programme name

Brief explanation of the programme and for which fabrics it is suitable.

i Cottons

Hard-wearing fabrics, heat-resistant fabrics made of cotton or linen;

*** i Cottons + T Prewash Programme with prewash; divide the detergent between

compartments I and II

Notes

■ For the EcoPerfect F setting, the wash temperature is

lower than the selected temperature. If you would like to set a particular washing temperature, use the programme without the EcoPerfect F setting or, if necessary, set a higher temperature.

■ The SpeedPerfect ( setting is suitable as a short

programme for lightly soiled laundry.

f Easy Care

Synthetic or blended fabrics; *** f Easy Care + T Prewash Programme with prewash; divide the detergent between

compartments I and II

* Reduced load for the SpeedPerfect ( setting ** Max. spin speed, depending on the model *** Programme depending on the model

Max. load Temperature s that can be selected

(Ž = cold)

Spin speed that can be selected**; $ = Rinse Stop

Additional programme settings that can be selected

Max. 9 kg/5* kg Ž - 90 °C

400 - 1600** rpm EcoPerfect F, SpeedPerfect (,

Easy Iron p, Rinse Plus '

Max. 4 kg

Ž - 60 °C $ - 1200** rpm

EcoPerfect F, SpeedPerfect (, Easy Iron p, Rinse Plus '

Page 29

Overview of programmes en

Programme/type of laundry/information Settings

o Mix

Mixed load of cottons and synthetic fabrics

Max. 4 kg

Ž - 40 °C $ - 1600** rpm

EcoPerfect F, SpeedPerfect (, Easy Iron p, Rinse Plus '

“ Delicates / Silk

For delicate, washable fabrics, e.g. made of silk, satin, synthetic fibres or blends (e.g. silk blouses, silk scarves)

Note: . Use a detergent suitable for machine-washing delicates

or silk.

Max. 2 kg

Ž - 40 °C $ - 800 rpm

EcoPerfect F, SpeedPerfect (, Easy Iron p, Rinse Plus '

W l Wool Hand- or machine-washable fabrics that are made of wool or

contain wool; particularly gentle wash programme to prevent laundry from

shrinking, with longer pauses in the programme (during which

Max. 2 kg

Ž - 40 °C $ - 800 rpm

the items rest in the water)

Notes

■ Wool is of animal origin, e.g.: Angora, alpaca, llama, sheep.

■ Use a detergent that is suitable for machine-washing wool.

[ Drain

For the rinsing water, e.g. after the $ setting (Rinse Stop = no final spin cycle)

O Rinse / 0 Spin

Extra rinse/spin with speed that can be selected

Note: . The Rinse Plus ' button is set by default for this

programme. If you require a spin cycle only, press the button to deactivate the function.

*** ]/, SuperQuick 15’/30‘ Extra-short programme of approx. 15/30 minutes, suitable for

small items of lightly soiled laundry

Note: . The ] SuperQuick 15’ programme is run for the

SpeedPerfect ( setting.

$ - 1600** rpm Easy Iron p

max. 2/3,5 kg

Ž - 40 °C $ - 1200** rpm

* Reduced load for the SpeedPerfect ( setting ** Max. spin speed, depending on the model *** Programme depending on the model

Page 30

en Overview of programmes

Programme/type of laundry/information Settings

*** Û Drum Clean Programme for cleaning and caring for the drum and the outer

tub, e.g. before running the first wash cycle, if washing frequently at a low temperature (40 °C or lower) or if an odour has developed after a prolonged period of non-use. The Û

0 kg Ž, 40 °C, 90 °C

1200 rpm

Drum Clean indicator lamp flashes when you have not used a programme of 60 °C or higher for a long time.

Notes

■ Run the drum-care programme without any laundry.

■ Use standard washing powder or a detergent containing

bleach. To prevent foaming, only use half the amount of detergent recommended by the detergent manufacturer. Do not use detergents intended for woollens or delicates.

*** ¢ Kidswear Hard-wearing items, heat-resistant items made of cotton or

linen; energy-optimised washing that works by reducing the

temperature while achieving a comparable washing result to the

i Cottons programme.

Note: . The washing temperature is lower than the selected

max. 9 kg Ž - 90 °C

400 - 1600** rpm EcoPerfect F, SpeedPerfect (,

Easy Iron p, Rinse Plus '

temperature. If you want to achieve a higher water temperature, use the i Cottons programme with a higher temperature as required.

*** ] SuperQuick 15’ Extra-short programme of approx. 15 minutes, suitable for small

items of lightly soiled laundry

Max. 2 kg

Ž - 40 °C $ - 1200 rpm

*** Jeans / Dark Wash Dark-coloured cottons and dark-coloured easy-care fabrics; turn items inside-out before washing.

Max. 3.5 kg

Ž - 40 °C $ - 1200 rpm

EcoPerfect F, SpeedPerfect (, Easy Iron p, Rinse Plus '

* Reduced load for the SpeedPerfect ( setting ** Max. spin speed, depending on the model *** Programme depending on the model

Page 31

Overview of programmes en

Programme/type of laundry/information Settings

*** ; Allergy Plus Hard-wearing fabrics made of cotton or linen

Note: . Particularly suited to washing items that need to be

hygienically clean and especially kind to sensitive skin thanks to the longer wash cycle at a defined temperature, higher water level and longer spin cycle.

Max. 7 kg/5* kg Ž - 60 °C

400 - 1600** rpm EcoPerfect F, SpeedPerfect (,

Easy Iron p, Rinse Plus '

*** Outdoor / Impregnation Wash cycle followed by waterproofing of membrane-coated

weatherproof and outdoor clothing or water-resistant fabrics

1. Select a programme.

2. Add special detergent for outdoor clothing to compartment

II.

Max. 1 kg

Ž - 40 °C $ - 800 rpm

EcoPerfect F, SpeedPerfect (, Rinse Plus '

3. Add waterproofing agent (max. 170 ml) to compartment i.

4. Press the A button. After-treat the laundry in accordance

with the manufacturer's instructions.

Notes

■ Use a special detergent suitable for machine washing and

dose in accordance with the manufacturer's instructions:

■ Laundry must not be treated with fabric softener.

■ Before washing, clean the detergent drawer thoroughly (all

compartments) to remove fabric-softener residue.

*** Outdoor Membrane-coated weatherproof or outdoor clothing and water-

resistant fabrics

Notes

■ Use special detergent suitable for machine washing; add

the correct dosage to compartment II in accordance with

Max. 2 kg

Ž - 40 °C $ - 800 rpm

EcoPerfect F, SpeedPerfect (, Rinse Plus '

the manufacturer's instructions.

■ Laundry must not be treated with fabric softener.

■ Before washing, clean the detergent drawer thoroughly (all

compartments) to remove fabric-softener residue.

*** w Sportswear Sportswear and leisurewear made from microfibre fabrics;

Notes

■ Laundry must not be treated with fabric softener.

■ Before washing, clean the detergent drawer thoroughly (all

compartments) to remove fabric-softener residue.

Max. 2 kg

Ž - 40 °C $ - 800 rpm

EcoPerfect F, SpeedPerfect (, Easy Iron p, Rinse Plus '

* Reduced load for the SpeedPerfect ( setting ** Max. spin speed, depending on the model *** Programme depending on the model

Page 32

en Overview of programmes

Programme/type of laundry/information Settings

*** S Night wash Especially quiet programme for washing during the night;

suitable for cotton, linen, synthetic and blended fabrics.

Notes

■ Final buzzer deactivated.

■ Reduced final spin speed set by default and shorter washing

time

*** Quilts Machine-washable items stuffed with synthetic fibres, such as

pillows, quilts and bedspreads; also suitable for items stuffed with down

Note: . Wash large items separately. Use a detergent designed

for delicates and follow the instructions on the item's care label.

Max. 4 kg

Ž - 40 °C $, 0 - 1200 rpm

EcoPerfect F, SpeedPerfect (, Easy Iron p, Rinse Plus '

Max. 2.5 kg

Ž - 60 °C $ - 1200 rpm

EcoPerfect F, SpeedPerfect (, Rinse Plus '

Use detergent sparingly.

‹ Shirts

Non-iron shirts or blouses made of cotton, linen, synthetic fibres or blended fabrics

Notes

■ Shirts/blouses are only given a short spin on the

Easy Iron p setting. Hang them up to dry while still drip- ping wet. ~ Self-smoothing effect

■ Use the “ Delicates / Silk programme to wash shirts/

Max. 2 kg

Ž - 60 °C $ - 800 rpm

EcoPerfect F, SpeedPerfect (, Easy Iron p, Rinse Plus '

blouses made of silk or delicate fabrics.

* Reduced load for the SpeedPerfect ( setting ** Max. spin speed, depending on the model *** Programme depending on the model

Page 33

Starching

Note: Laundry should not be treated

with fabric softener.

Liquid starch can be used to stiffen fabrics particularly in the Rinse and Cottons programmes. Measure starch into compartment M in accordance with the manufacturer's instructions (clean first if necessary).

Dyeing/bleaching

Dye should only be used in normal household quantities. Salt may damage stainless steel. Always follow the dye manufacturer's instructions.

Do not use the washing machine to bleach clothes.

Soaking

1. Switch on the appliance.

2. Select the i Cottons 30 °C

programme.

3. Pour soaking agent/detergent into

compartment II in accordance with the manufacturer’s instructions.

4. Press the A button. The

programme starts.

5. After approx. 10 minutes, press the

A button to pause the programme.

6. Leave the laundry to soak for as long

as required, then either press the A button again to continue the programme or change the programme.

Overview of programmes en

Notes

■ Load laundry of the same colour.

■ No additional detergent is required;

the soaking solution is used for washing.

Page 34

en Programme default settings

0 Programme default

settings

Programme default settings

The default programme settings are displayed in the display panel after selecting the programme.

You can change the default settings. An overview of all programme settings,

which can be selected depending on the programme, can be found from ~ Page 28.

Temperature s

Depending on what stage the programme is in, you can change the set temperature before and during the programme.

The maximum temperature that can be set depends on the programme that has been selected.

Spin speed

(Spin 0) Depending on what stage the

programme is in, you can change the spin speed (in rpm; revolutions per minute) before and during the programme.

Setting $: Rinse Stop = no final spin. The laundry stays in the water after the final rinse.

You can select "Rinse Stop” to prevent creasing if the laundry will not be taken out of the washing machine immediately after the programme has ended.

To continue/end the programme

~ Page 39

The maximum speed that can be set depends on the model and programme that has been selected.

Finished in ñ

Before starting the programme, you

can preselect the programme end ("Ready in" time) in hourly increments (h = hour) up to a maximum of 24 hours.

To do this:

1. Select a programme.

The programme duration is displayed for the selected programme, e.g. 2:30 (hours:minutes).

2. Press the Finished in ñ button

repeatedly until the required number of hours is displayed.

Note: The setting values are

increased using the Finished in ñ + button, and decreased using the

Finished in ñ - button.

3. Press the A button.

The programme starts. The selected number of hours (e.g. 8 h) is shown in the display panel and counts down until the wash programme starts. The duration of the programme is then displayed.

Note: The length of the programme is

automatically adjusted when the programme is running. Changes to the default programme settings or programme settings may also change the programme duration.

After starting the programme (if a Finished in ñ time has been selected and the wash programme has not yet started), you can change the preselected number of hours as follows:

1. Press the A button.

2. Use the Finished in ñ - or + button

to change the number of hours.

3. Press the A button.

After starting the programme, you can

add or remove laundry if necessary.

~ Page 39

Page 35

\ Additional programme

settings

Additional programme settings

An overview of all additional settings, which can be selected depending on the programme, can be found from ~ Page 28.

EcoPerfect F

Energy-optimised washing by reducing the temperature while achieving a washing result that is consistent with the selected programme, without the EcoPerfect F setting.

SpeedPerfect (

Washing in a shorter time while achieving a washing result that is consistent with, but uses more energy than, the selected programme, without the SpeedPerfect ( setting.

Note: Do not exceed the maximum

load. Overview of programmes ~ Page 28

Additional programme settings en

Easy Iron p

Reduces creasing thanks to a special spin sequence followed by fluffing and reduced spin speed.

Note: The washing's residual moisture

is increased.

Rinse Plus '

Additional rinse cycle for particularly sensitive skin and/or for areas with very soft water.

Page 36

en Operating the appliance

1 Operating the

appliance

Operating the appliance

Preparing the washing machine

Note: The washing machine must be

correctly installed and connected.

From ~ Page 13.

1. Connect the mains plug.

2. Turn on the tap.

3. Open the door.

4. Check that the drum is completely

drained. Drain if necessary.

Switching on the appliance/ selecting a programme

Press the # button. The appliance is switched on.

The i Cottons programme set at the factory is then always displayed.

You can use this programme or select a different programme. The programme selector can be turned in either direction.

Note: If you have activated the

childproof lock, you must deactivate it before you can set a different programme. ~ Page 38

■ The maximum load and the duration

of the programme (alternately) In appliances with a drum light: The drum is lit after switching on the

appliance, after opening and closing the door and after starting the programme. The light switches off automatically.

Placing laundry into the drum

:Warning

Danger of death!

Items of laundry pretreated with cleaning agents that contain solvents, e.g. stain remover/cleaning solvent, may cause an explosion after being loaded into the washing machine. Hand-rinse these items of laundry thoroughly beforehand.

Notes

■ Mix items of laundry of varying sizes.

Laundry items of different sizes

distribute themselves better during

the spin cycle. Individual laundry

items may cause an unbalanced

load.

■ Observe the maximum specified

load. Overfilling adversely affects the

washing result and promotes

creasing.

1. Unfold presorted laundry items and

place them in the drum.

2. Make sure that no items of laundry

are trapped between the door and

the rubber seal, and close the door.

The indicator lamp on the programme selector lights up and the default programme settings for the selected programme appear in the display panel:

■ Temperature

■ Spin speed and

The A button indicator lamp flashes and the programme settings appear in the display panel.

Page 37

Operating the appliance en

Measure and add detergent and care products

Caution! Damage to the appliance

Cleaning agents and agents for pretreating laundry (e.g. stain removers, prewash sprays, etc.) may cause damage if they come into contact with the surfaces of the washing machine. Do not allow these agents to come into contact with the surfaces of the washing machine. If necessary, immediately wipe away spray residue and other residues/ droplets with a damp cloth.

Dosing

Dose the detergents and care products according to:

■ Water hardness (ask your water

supply company)

■ The manufacturer's instructions on

the packaging

■ The amount of laundry

■ Soiling ~ Page 27

Filling

:Warning

Eye/skin irritation!

Detergents and care products may spray out if the detergent drawer is opened while the machine is in operation. Open the drawer carefully. Rinse eyes/skin thoroughly if they come into contact with detergents or care products. If accidentally swallowed, seek medical advice.

Pour the detergent and care products into the appropriate compartments:

Measuring aid A For liquid detergent Compartment II Detergent for the main

wash, water softener, bleach, stain remover

Compartment i Fabric softener, liquid

starch; do not exceed max.

Compartment I Detergent for prewash

1. Pull out the detergent drawer as far

as possible.

2. Add detergent and/or care products.

3. Close the detergent drawer.

Measuring aid* for liquid detergent

*depending on the model

Position the measuring aid for dosing the correct amount of liquid detergent:

1. Pull out the detergent drawer. Press

down the insert and fully remove the drawer.

2. Slide the measuring aid forwards,

fold it down and click it into place.

3. Reinsert the drawer.

Note: Dilute viscous fabric softener and

fabric conditioner with a little water. This prevents blockages in the washing machine's piping.

Note: Do not use the measuring aid for

gel detergents and washing powder, or for programmes with prewash or when the “Ready in” time is selected.

Page 38

en Operating the appliance

For models without a measuring aid,

pour the liquid detergent into the appropriate dispenser and place it in the drum.

Change the programme default settings

You can use or change the default settings for this washing cycle.

To do this, repeatedly press the corresponding button until the required setting is displayed.

Note: Pressing and holding the button

automatically runs through the set values to the end. Then press the button once more and you can then change the setting values again.

The settings are activated without needing to be confirmed.

The settings are not saved after switching off the washing machine.

Default programme settings

~ Page 34

Select additional programme settings

By selecting additional settings, you can better adapt the washing process to your items of laundry.

The settings can be selected or deselected depending on the programme progress.

The button indicator lamps light up if a setting is activated.

The settings are not saved after switching off the washing machine.

Additional programme settings

~ Page 35

Start the programme

The display panel shows the "Ready in" time while the programme is running or the programme length and the programme progress symbols when the washing programme has started. Display panel ~ Page 25

Note: Foam detection

If the Å symbol also lights up in the display panel, the washing machine has detected too much foam during the wash programme and automatically activated additional rinse cycles to remove the foam. Add less detergent to the next washing cycle with the same load.

If you want to lock the programme to prevent it from being inadvertently adjusted, you can select the childproof lock as follows.

Child lock 3 sec.

(E) You can lock the washing machine to

prevent the functions you have set from being changed inadvertently. To do this, activate the childproof lock.

To activate/deactivate, press and hold the Finished in ñ - and + buttons at the same time for approx. three seconds. The E symbol is appears in the display panel.

■ E lights up: The childproof lock is

active.

■ E flashes briefly: The childproof lock

is active and the programme

selector was turned or a button was

pressed.

Note: The childproof lock remains

active, even once the washing machine has been switched off. Before selecting the next programme, deactivate the childproof lock.

Press the A button. The indicator lamp lights up and the programme starts.

Page 39

Operating the appliance en

Adding laundry

After starting the programme, you can add or remove laundry if necessary.

Press the A button to do this. The A button indicator lamp flashes

and the machine checks whether it is possible to add laundry.

If the following appears in the display panel:

■ Both the - P - and ÿ symbols light

up, it is possible to add laundry.

■ - P - lights up, it is not possible to

add laundry.

To continue the programme, press the A button. The programme continues automatically.

Notes

■ Do not leave the door open for too

long when adding laundry as water from the laundry may leak out.

■ For safety reasons, the door remains

locked when the water level or temperature is high, or while the drum is turning, and it is not possible to add laundry during this time.

■ The load display is not active during

reloading.

Cancel the programme

For programmes at high temperatures:

1. Press the A button.

2. To cool down laundry:

Select O Rinse.

3. Press the A button.

For programmes at low temperatures:

1. Press the A button.

2. Select 0 Spin or [ Drain.

3. Press the A button.

Programme end during rinse hold

In the display panel, $ flashes, and the preset spin speed and remaining programme length are displayed for the selected programme.

Continue the programme by:

■ Pressing the A button or

■ Changing the spin speed, or setting

the programme selector to [ Drain and then pressing the A button.

Programme end

- 0 - and ÿ appear in the display panel. The A button indicator lamp is off.

Changing the programme

If you have started the wrong programme by mistake, you can change the programme as follows:

1. Press the A button.

2. Select another programme.

3. Press the A button. The new

programme starts from the beginning.

Page 40

en Operating the appliance

Removing laundry/switching off the appliance

1. Open the door and remove the

laundry.

2. Press the # button. The appliance is

switched off.

3. Turn off the tap. Note: Not required for Aqua-Stop

models.

Notes

■ Do not leave any items of laundry in

the drum. They may shrink in the next wash or discolour another item.

■ Remove any foreign objects from the

drum and the rubber seal – risk of rusting.

■ Wipe the rubber seal dry.

■ Leave the door and detergent

drawer open so that any residual water can evaporate. ~ Page 43

■ Always wait until the programme

ends, as the appliance could still be locked. Then switch the appliance on and wait for it to unlock.

■ If the display panel goes off at the

end of a programme, the energysaving mode is active. Press any button to activate the panel.

Page 41

Appliance settings en

Q Appliance settings

Appli ance settings

You can change the following settings:

■ The volume of the buttons and

information signals (e.g. at the end of the programme)

■ Select/deselect the appliance's

automatic switch-off function.

~ Page 12

You will need to activate the setting mode in order to change these settings.

3RVLWLRQV

   

Activating the setting mode

1. Press the # button.

The appliance is switched on and the i Cottons programme is shown at position 1.

2. Press the Temperature s button and,

at the same time, turn the programme selector clockwise to

position 2. Release the button. The setting mode is activated and the preset volume for the information signals appears in the display panel.

Changing the signal volume

Use the Finished in ñ + or - button to change the following settings at the corresponding programme selector positions:

■ 2: The volume of the information

signals and/or

■ 3: The volume of the button signals.

0 = off, 1 = quiet, 2 = medium, 3 = loud, 4 = very loud

Exit setting mode or:

Selecting/deselecting the appliance automatic switchoff

With the programme selector in position 4, press the Finished in ñ + or - button to switch the "Automatic switch-off" function on or off.

Exiting setting mode

To exit and save the settings, press the # button.

The appliance is switched off. The selected settings will take effect the next time the washing machine is switched on.

You can now change the settings:

Page 42

en Sensors

H Sensors

Sensors

Automatic load sensing

Depending on the type of fabric and load, the automatic load sensing function optimally adjusts the water consumption and programme duration in each programme.

Unbalanced load detection system

The automatic unbalanced load detection system detects imbalances and ensures even distribution of the laundry by repeatedly starting and stopping drum spinning.

If the laundry is extremely unevenly distributed, the speed is reduced or the spin cycle is not performed for safety reasons.

Note: Place large and small items of

laundry evenly in the drum. ~ Page 36, ~ Page 48

AquaSensor

Depending on the program and model During a rinse cycle, the Aqua sensor

checks the turbidity of the rinsing water (turbidity is caused by dirt and detergent residue). The duration and the number of rinse cycles depend on the turbidity of the water.

Page 43

Cleaning and maintenance en

2 Cleaning and

maintenance

Cleaning and maintenance

:Warning

Danger of death!

There is a risk of electric shock if you touch live components. Switch off the appliance and pull out the mains plug.

:Warning

Risk of poisoning!

Toxic vapours can be produced by cleaning agents that contain solvents, e.g. cleaning solvent. Do not use cleaning agents that contain solvents.

Caution! Damage to the appliance

Cleaning agents that contain solvents, e.g. cleaning solvent, can damage surfaces and components in the machine. Do not use cleaning agents that contain solvents.

Prevent detergent residue from building up and odours from forming by following these instructions:

Machine housing/control panel

■ Wipe the housing and the control

panel with a soft, damp cloth.

■ Remove the detergent residue

immediately.

■ Do not clean with a water jet.

Drum

Use chlorine-free cleaning agents, do not use steel wool.

If there are odours in the washing machine, or to clean the drum, run the Û Drum Clean 90 °C programme without laundry. Add washing powder.

Descaling

Descaling should not be necessary if the detergent is measured out correctly. However, if it is required, follow the manufacturer's instructions for the descaling agent. Suitable descalers can be obtained via our website or from customer services. ~ Page 50

Notes

■ Ensure the room in which the

washing machine is set up is well

ventilated.

■ Leave the door and detergent

dispenser tray open slightly when

the washing machine is not in use.

■ Occasionally run a wash using the i

Cottons 60 °C programme and

powder detergent.

Page 44

en Cleaning and maintenance

Detergent drawer and housing

If the washing machine contains detergent or fabric softener residues:

1. Pull out the detergent drawer. Press

down the insert and fully remove the drawer.

2. To remove the insert: Push the insert

upwards from below with your finger.

3. Clean the detergent dispenser tray

and insert with water and a brush, and dry it. Clean the inside of the housing as well.

4. Fit the insert and lock it in place

(push the cylinder onto the guide pin).

5. Push in the detergent drawer.

Note: Leave the detergent drawer open

so that any residual water can evaporate.

The drain pump is blocked, emergency draining

4. Take the drain hose out of the

retainer. Remove the sealing cap and pour the water out into a suitable container. Replace the sealing cap and place the drain hose back in the retainer.

5. Carefully unscrew the pump cover;

residual water may leak out. Clean the interior, pump-cover thread and pump housing. The impeller in the drain pump must be able to rotate. Refit the pump cover and screw it on tightly. The handle must be in a vertical position.

:Warning

Risk of scalding!

When you wash at high temperatures, the water gets very hot. If you come into contact with the hot water, you may be scalded. Allow the water to cool down.

1. Turn off the tap so that no more

water can flow in and has to be drained via the drain pump.

2. Switch off the appliance. Pull out the

mains plug.

3. Open and remove the service flap.

6. Place the service flap back on, lock

it into place, and close it.

Page 45

Cleaning and maintenance en

Note: To prevent unused detergent

from flowing straight into the drain during the next wash: Pour 1 litre of water into compartment II and start the

[ Drain programme.

The drain hose at the siphon is blocked

1. Switch off the appliance. Pull out the

mains plug.

2. Loosen the hose clamp. Carefully

remove the drain hose; residual

water may leak out.

3. Clean the drain hose and siphon

connecting piece.

4. Re-attach the drain hose and secure

the connection point using the hose

clamp.

Filter in the water supply blocked

Then clean the filter:

1. Disconnect the hose from the tap.

Clean the filter with a small brush.

2. For standard and Aqua-Secure

models, clean the filter on the rear of the appliance: Remove the hose from the rear of the appliance. Use pliers to remove the filter and then clean it.

3. Connect the hose and check for

leaks.

First, reduce the water pressure in the supply hose:

1. Turn off the tap.

2. Select any programme

(except Rinse/Spin/Empty).

3. Press the A button. Allow the

programme to run for approximately

40 seconds.

4. Press the # button. The appliance is

switched off.

5. Pull out the mains plug.

Page 46

en Faults and what to do about them.

3 Faults and what to do

about them.

Faults and what to do about them.

Emergency release

E.g. in the event of a power cut The programme continues when the

power supply is restored.

However, if the laundry has to be removed, the washing machine door can be opened as follows:

:Warning

Risk of scalding!

When you are washing at high temperatures, there is a risk of scalding if you come into contact with hot water and laundry. If possible, leave it to cool down first.

:Warning

Risk of injury!

You may injure your hands if you reach into the drum while it is turning. Do not reach into the drum when it is turning. Wait until the drum has stopped turning.

Caution! Water damage

Any escaping water may cause water damage. Do not open the door if water can be seen through the glass.

1. Switch off the appliance. Pull out the

mains plug.

2. Drain the water

3. Pull the emergency release

downwards with a tool and release. The door can then be opened.

. ~ Page 44

Page 47

Faults and what to do about them. en

Information on the display panel

Display Cause/Remedy

- P - and ÿ The door is unlocked. It is possible to add laundry.

- P - ■ The temperature is too high. Wait until the temperature drops.

■ The water level is too high. It is not possible to add laundry. Close the door

immediately, if necessary. Press the A button to continue the programme.

ÿ flashes ■ Laundry may be caught. Open and close the door again and press the A

r lights up ■ Turn on the tap fully,

E:18 ■ The drain pump is blocked. Clean the drain pump. ~ Page 44

E:23 There is water in the base trough, the appliance is leaking. Turn off the tap. Call

E The childproof lock is activated – deactivate it. ~ Page 38 Å lights up Too must foam has been detected and an additional rinse cycle has been activated.

Other displays Switch off the appliance, wait for five seconds and then switch it on again. If the

button.

■ If necessary, push the door closed or remove some laundry and then push it

closed again.

■ If necessary, switch the appliance off and on again; set the programme and

make your individual settings; start the programme.

■ Supply hose kinked/trapped,

■ The water pressure is too low. Clean the filter. ~ Page 45

■ The drain hose/drain pipe is blocked. Clean the drain hose at the siphon.

~ Page 45

customer services. ~ Page 50

Add less detergent to the next washing cycle with the same load.

display appears again, call customer services. ~ Page 50

Page 48

en Faults and what to do about them.

Faults and what to do about them.

Faults Cause/Remedy

Water is leaking from the machine.

The machine is not filling with water.

Detergent is not being dispensed.

The door cannot be opened.

The programme will not start.

The drum briefly jerks or judders after the programme has started.

The water is not draining. ■ Is $ selected (Rinse Stop = no final spin)? ~ Page 39

Water is not visible in the drum.

The spin result is not satisfactory.

Laundry is wet/too damp.

The spin cycle runs several times.

The programme is taking longer than usual.

The length of the programme changes during the wash cycle.

Residual water in the care-product compartment i .

■ Attach the drain hose correctly or replace it.

■ Tighten the screw fitting on the supply hose.

■ Have you pressed the A button?

■ Is the tap turned on?

■ Could the filter be clogged? Clean the filter. ~ Page 45

■ Is the supply hose kinked or trapped?

■ The safety function is activated. Stop the programme? ~ Page 39

■ Is the E childproof lock activated? Deactivate it. ~ Page 38

■ Is $ selected (Rinse Stop = no final spin)? ~ Page 39

■ Can the door only be opened by the emergency release? ~ Page 46

■ Have you pressed the A button or selected Finished in ñ time?

■ Is the door closed?

■ Is the E childproof lock activated? Deactivate it. ~ Page 38

Not a fault – the internal motor test may cause the drum to jerk or judder briefly when the wash programme starts.

■ Clean the drain pump. ~ Page 44

■ Clean the drain pipe and/or the drain hose.

Not a fault – the water is below the visible area.

■ Not a fault – the unbalanced load detection system has interrupted the

spin cycle because the laundry is unevenly distributed. Distribute small and large items of laundry evenly in the drum.

■ Is Easy Iron p selected (depending on the model)? ~ Page 35

■ Is the selected speed too low?

Not a fault – the unbalanced load detection system is adjusting an imbalance.

■ Not a fault – the unbalanced load detection system is adjusting an

imbalance by repeatedly distributing the laundry.

■ Not a fault – the foam detection system is active – a rinse cycle has been

switched on. ~ Page 38

Not a fault – the programme sequence is optimised for the specific washing process. This may change the length of the programme shown in the display panel.

■ Not a fault – the effect of the care product is not affected.

■ Clean the insert if necessary. ~ Page 44

Page 49

Faults and what to do about them. en

Faults Cause/Remedy

Odours in the washing machine.

Run the Û Drum Clean 90 °C programme without laundry. Add washing powder or a detergent containing bleach.

Note: . To prevent foaming, only use half of the amount of detergent

recommended by the detergent manufacturer. Do not use detergents designed for woollens or delicates.

The Å symbol lights up in the display panel. Foam may also be leaking from the detergent drawer.

Have you used too much detergent? Mix one tablespoon of fabric softener with 1/2 litre of water and pour it into

compartment II (not suitable for outdoor clothing, sportswear or items stuffed with down).

Use less detergent in the next washing cycle.

Loud noises, vibrations and machine "movement" during the spin cycle.

■ Is the appliance aligned? Align the appliance. ~ Page 19

■ Are the appliance's feet fixed? Secure the appliance's feet. ~ Page 19

■ Have the transport braces been removed? Remove the transport braces.

~ Page 15

The display panel/ indicator lamps do not work while the appliance

■ Has there been a power failure?

■ Have the fuses blown? Reset/replace the fuses.

■ If the fault occurs repeatedly, call customer services.

is running.

There is detergent residue on the laundry.

- P - appears in the display panel when the cycle is paused.

- P - and ÿ appear in the

■ Some phosphate-free detergents contain water-insoluble residue.

■ Select O Rinse or brush the laundry after washing.

■ The water level is too high. It is not possible to add laundry. Close the door

immediately, if necessary.

■ Press the A button to continue the programme.

The door is unlocked. It is possible to add laundry. display panel when the cycle is paused.

If you cannot rectify a fault yourself (after switching the machine off and on again) or a repair is required:

■ Switch off the appliance and pull out the mains plug.

■ Turn off the tap and call customer services.

Page 50

en After-sales service

4 After-sales service

Aft er-sales service

If you cannot rectify a fault yourself, contact customer services. ~ Cover page

We will always find an appropriate solution in order to avoid unnecessary visits by engineers.

Please give customer services the product number (E no.) and the production number (FD) of the appliance.

(1U )'

E no. Product number FD Production number

You can find this information *depending on the model:

On the inside of the door*/in the opened service flap* and on the rear of the appliance.

Trust the expertise of the manufacturer.

Contact us for assistance. By doing so, you will ensure that the repairs are carried out by trained service personnel using genuine spare parts.

Page 51

Consumption rates en

[ Consumption rates

Consumption rates

Energy and water consumption, programme duration and residual moisture for the main washing programmes

(approximate values)

Programme Additional

i Cottons 20 °C 9 kg 0,35 kWh 70 l 3 ] h i Cottons 40°C 9 kg 1,25 kWh 70 l 3 ^ h i Cottons 60°C 9 kg 1,20 kWh 70 l 3 h i Cottons 60 °C +

EcoPerfect F **

i Cottons 90°C 9 kg 2,60 kWh 80 l 3 h f Easy Care 40 °C 4 kg 0,80 kWh 65 l 2 h

o Mix 40 °C 4 kg 0,60 kWh 45 l 1 h

“ Delicates / Silk 30 °C 2 kg 0,25 kWh 35 l _ h

l Wool 30 °C 2 kg 0,20 kWh 36 l _ h

Values determined according IEC60456:2010.

* Observed values may deviate from the indicated values due to influence of water pressure, hardness

and inlet temperature, ambient temperature, type, amount and soiling of laundry, detergent used, fluctuations in power supply and selected additional functions.

** Program setting with maximum spin speed for testing according to AS/NZS2040.1:2005 and labeling

according to AS/NZS2040.2:2005 and AS/NZS 6400:2016 with cold water (20°C).

*** Additional function for label program.

i Cottons 60 °C + EcoPerfect F + Rinse Plus ' + 1400 rpm is recommended for a normally soiled load.

function

Rinse Plus ' *** 9 kg 0,74 kWh 77 l 5 _ h

Load Energy

consumption*

Water consumption*

Programme duration*

Page 52

en Technical data

J Technical data

Technical data

Dimensions:

850 x 600 x 590 mm (height x width x depth) Weight:

70 - 85 kg (depending on model) Mains connection:

Mains voltage 220 - 240 V, 50 Hz Nominal current 10 A Nominal power 1900 – 2300 W Water pressure:

100 - 1000 kPa (1 - 10 bar)

Power consumption when switched off:

0,12 W Power consumption when left on:

0,43 W

Page 53

Technical data en

Information for test institute

Items Instruction

Pre-treatment of new appliance

According to standard AS NZS 2040.1-2005

Washing programme i Cottons 60°C + EcoPerfect F + Rinse Plus ', 9 kg,

Testing instructions The dosage of detergent: 12,5g/kg

Age of test loads The average age of test load around 10~20 times is

Loading Procedure The items are loaded into the drum by circle first, then by

No. of Layers Items of garments

External circle sheets, bath towels Layer1 Tablecloth Layer2 Shirts, T-shirts, Pillow cases Layer3 Shorts (all), Wash cloths (all),handkerchiefs (all) Layer4 Shirts, T-shirts, Pillow cases Layer5 Tablecloth

Run two empty runs of i Cottons 90 °C with 1400 rpm: The 1st run with 50g detergent and 8g anti sudsing agent, the 2nd run without detergent and sudsing agent.

AS NZS 2040.2-2005 AS NZ 6400-2016

1400 rpm

The dosage of anti sudsing agent: 2g/kg Add the dry powder detergent into main wash dispenser before start. After detergent is flushed in add the PBIS solution and anti-sudsing agent as soon as possible.

recommended to replicate normal use.

layers according to the table and picture below evenly.

Drum

External circle

Layer 5

Layer 4

Layer 3

Layer 2

Layer 1

External circle

Page 54

en Aqua-Stop warranty

r Aqua-Stop warranty

Aqua-Stop warranty

Only for appliances with Aqua-Stop

In addition to warranty claims against the vendor based on the purchase agreement and to our appliance warranty, we will provide compensation under the following conditions:

1. If water damage is caused due to a

fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.

2. The liability guarantee is valid for the

service life of the appliance.

3. It is a prerequisite of all warranty

claims that the appliance with AquaStop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories). Our warranty does not cover defective feed lines or fittings leading to the Aqua-Stop connection at the tap.

4. Appliances with Aqua-Stop do not

need to be supervised during operation, nor secured afterwards by turning off the tap. The tap only needs to be turned off if you are away from home for a long period, e.g. for several weeks' holiday.

Page 55

Page 56

7 Advice and repair order in the event of faults

GB 0344 892 8979 (Calls charged at local or mobile rate.) IE 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.)

You can find the contact information for all countries in the attached after-sales service directory.

Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY

*9001346934*

9001346934 (9709)

Bosch WAW28420AU User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Your new washing machine

Display rules

: Warning!

Caution!

Note/tip

1. 2. 3. / a) b) c)

* Getting to know the appliance 23

8 Intended use

Intended use

( Safety instructions

Safety instructions

Children/people/pets

:Warning

Risk of death!

:Warning

Risk of death!

:Warning

Risk of suffocation!

:Warning

Risk of poisoning!

:Warning

Risk of burns!

:Warning

Eye/skin irritation!

Installation

:Warning

Risk of electric shock/fire/ material damage/damage to the appliance!

:Warning

Risk of electric shock/fire/ material damage/damage to the appliance!

:Warning

Risk of fire/material damage/ damage to the appliance!

:Warning

Risk of injury/material damage/damage to the appliance!

:Warning

Risk of injury!

Material damage/damage to the appliance

Operation

:Warning

Risk of explosions/fire!

:Warning

Risk of poisoning!

:Warning

Risk of injury!

:Warning

Risk of scalding!

:Warning

Eye/skin irritation!

Material damage/damage to the appliance

Cleaning/Maintenance

:Warning

Risk of death!

:Warning

Risk of poisoning!

:Warning

Risk of electric shock/material damage/damage to the appliance!

:Warning

Risk of injury/material damage/damage to the appliance!

en Environmental protection

Environmental protection

Packaging/used appliance

Tips on economical use

Positioning and connecting en

Positioning and connecting

Included with the appliance

Note: Check the machine for transport

Useful tools

Safety instructions

:Warning

Risk of injury!

Notes

Installation surface

Note: The washing machine be stable

Installation on a base or a wooden joist floor

Note: On wooden joist floors, install the

Installation on a platform with drawer

Installing the appliance in a kitchenette
