Bosch WAN20170IL User manual and assembly instructions

Washing machine
WAN20170IL
instructions
Register your
new device on
MyBosch now and
get free benefits:
bosch-home.com/
welcome
en

Table of contents

1 Safety ............................................4
1.1 General information....................4
1.2 Intended use...............................4
1.3 Restriction on user group...........4
1.4 Safe installation ..........................5
1.5 Safe use .....................................7
1.6 Safe cleaning and mainten-
ance............................................9
2 Preventing material damage .....10
3 Environmental protection and
saving energy.............................11
3.1 Disposing of packaging ...........11
3.2 Save energy and conserve
resources..................................11
3.3 Energy saving mode ................11
4 Installation and connection.......12
4.1 Unpacking the appliance .........12
4.2 Contents of package................13
4.3 Requirements for the install-
ation location ............................13
4.4 Removing the transit bolts .......14
4.5 Connecting the appliance ........15
4.6 Aligning the appliance..............16
4.7 Connecting the appliance to
the electricity supply.................17
5 Familiarising yourself with
your appliance............................18
5.1 Appliance .................................18
5.2 Detergent drawer......................19
5.3 Controls ....................................19
6 Display ........................................20
7 Buttons .......................................22
8 Programmes ...............................23
9 Accessories................................29
10 Before using for the
first time....................................29
10.1 Starting an empty washing
cycle .......................................29
11 Laundry.....................................30
11.1 Preparing the laundry.............30
11.2 Sorting laundry .......................31
11.3 Degrees of soiling ..................31
11.4 Care symbols on the care
labels ......................................31
12 Detergents and care
products ...................................32
12.1 Detergent recommendation ...32
12.2 Detergent dosage ..................33
13 Basic operation ........................33
13.1 Switching on the appliance ....33
13.2 Setting a programme .............34
13.3 Adjusting the programme
settings ...................................34
13.4 Loading laundry......................34
13.5 Using a measuring aid for
liquid detergent ......................34
13.6 Adding detergent and care
product ...................................35
13.7 Starting the programme .........35
13.8 Adjusting the "Ready in" time before the programme
starts.......................................35
13.9 Soaking laundry .....................35
13.10 Adding laundry.....................35
13.11 Cancelling the pro-
gramme ................................36
13.12 Resuming the programme
when the programme
status is Rinse Hold .............36
13.13 Unloading the laundry..........36
13.14 Switching off the appli-
ance......................................36
2
14 Childproof lock.........................37
14.1 Activating the childproof
lock.........................................37
14.2 Deactivating the childproof
lock.........................................37
15 Basic settings...........................38
15.1 Overview of the basic set-
tings........................................38
15.2 Changing the basic set-
tings........................................39
16 Cleaning and servicing ............39
16.1 Tips on appliance care...........39
16.2 Cleaning the drum..................39
16.3 Cleaning the detergent
drawer.....................................39
16.4 Descaling................................40
16.5 Cleaning the drain pump........41
16.6 Cleaning the water outlet
hose at the siphon .................43
16.7 Clean the water inlet filters.....43
17 Troubleshooting.......................46
18 Transportation, storage and
disposal ....................................54
18.1 Removing the appliance ........54
18.2 Inserting the transit bolts........54
18.3 Using the appliance again .....55
18.4 Disposing of old appliance ....55
en
19 Customer Service.....................56
19.1 Product number (E-Nr.) and
production number (FD).........56
20 Consumption values................57
21 Technical specifications..........57
3
en Safety

1 Safety

Observe the following safety instructions.

1.1 General information

¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance: ¡ For washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ With tap water and commercially available detergents and care
products suitable for washing machines.
¡ In private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of max. 4000m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be performed by chil­dren unless they are being supervised. Keep children under the age of 3 years and pets away from the appliance.
4
Safety en

1.4 Safe installation

Take note of the safety instructions when installing the appliance.
WARNING‒Risk of electric shock!
Improper installation is dangerous.
Connect and operate the appliance only in accordance with the specifications on the rating plate.
Connect the appliance to a power supply with alternating cur­rent only via a properly installed socket with earthing.
The protective conductor system of the domestic electrical in­stallation must be properly installed. The installation must have a sufficiently large cross section.
When using a residual current circuit breaker, only use a type with the mark.
Never equip the appliance with an external switching device, e.g. a timer or remote control.
When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent elec­trical installation according to the installation regulations.
When installing the appliance, check that the power cable is not trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
Never let the power cord come into contact with hot appliance parts or heat sources.
Never let the power cord come into contact with sharp points or edges.
Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved adapters.
Do not use extension cables or multiple socket strips.
If the power cord is too short, contact Customer Service.
Only use adapters approved by the manufacturer.
5
en Safety
WARNING‒Risk of injury!
The high weight of the appliance may result in injury when lifted.
Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall.
Only stack the dryer on a washing machine using the connec-
tion kit from the dryer manufacturer . No other installation
method is permitted.
Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection kit.
Do not install appliances from different manufacturers and with
varying depths and widths in a washer-dryer stack.
Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap themselves up in it and suffocate.
Keep packaging material away from children.
Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
Place the appliance on a clean, even, solid surface.
Align the appliance using the appliance feet and a spirit level. If hoses and power cords have been laid incorrectly, this causes a tripping hazard.
Lay hoses and power cords in such a way that there is no risk
of tripping. If the appliance is moved by holding onto protruding components, such as the appliance door, the parts may break off.
Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
Do not touch the sharp edges on the appliance.
6
Safety en
Wear protective gloves when installing and transporting the ap-
pliance.

1.5 Safe use

WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
Never operate a damaged appliance.
Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box and
turn off the water tap.
Call customer services. →Page56 An ingress of moisture can cause an electric shock.
Only use the appliance in enclosed spaces.
Never expose the appliance to intense heat or humidity.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting their lives at risk.
Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to suffocate.
Keep small parts away from children.
Do not let children play with small parts.
7
en Safety
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con­sumed.
If accidentally swallowed, seek medical advice.
Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Laundry that has been pretreated with cleaning agents that con­tain solvents may cause an explosion in the appliance.
Rinse pretreated laundry thoroughly with water before washing.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the appliance.
Do not stand on or climb onto the appliance. The appliance may tip over if you sit on or lean against the open door.
Do not sit on or lean against the appliance door.
Do not place any objects on the appliance door. Reaching into the drum while it is still turning may cause hand in­juries.
Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk of burns!
When washing at high temperatures, the glass in the appliance door becomes hot.
Do not touch the appliance door when it is hot.
Keep children away from the appliance door when it is hot.
CAUTION‒Risk of scalding!
When you wash at high temperatures, the detergent solution gets hot.
Do not touch the hot detergent solution.
8
Safety en
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care products may spray out from the appliance. Contact with eyes or skin may cause irritation.
Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
If accidentally swallowed, seek medical advice.
Keep detergents and care products out of the reach of children.

1.6 Safe cleaning and maintenance

Take note of the safety instructions when cleaning and performing maintenance work on the appliance.
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
Repairs to the appliance should only be carried out by trained
specialist staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk. An ingress of moisture can cause an electric shock.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories is dangerous.
Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that contain solvents.
Do not use cleaning agents that contain solvents.
9
en Preventing material damage

Preventing material damage

2 Preventing material
damage
Preventing material damage
Follow these instructions to avoid ma­terial damage and damage to the ap­pliance.
ATTENTION!
The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, de­tergent, care product or cleaning agent.
Follow the dosage recommenda-
tions from the manufacturer. Exceeding the maximum load capa­city impairs the function of the appli­ance.
Observe the maximum load capa-
city for each programme and do
not exceed it.
→"Programmes", Page23 The appliance is secured for trans­portation using transit bolts. Transit bolts which have not been removed may result in material damage and damage to the appliance.
Before starting up the appliance,
remove the transit bolts completely
and keep them in a safe place.
Before transport, fit the transit bolts
fully in order to prevent damage in
transit. Material damage may be caused if the water inlet hose is connected in­correctly.
Tighten the screw connections on
the water inlet until they are hand-
tight.
Ideally, connect the water inlet
hose directly to the water tap,
without any additional connecting
elements such as adapters, exten-
sions, valves or similar.
Ensure that the inner diameter of
the water tap is at least 17 mm.
Make sure that the length of the thread on the connection to the
water tap is at least 10 mm. If the water pressure is too high or too low, the appliance may not be able to operate properly.
Ensure that the water pressure in
the water supply system is at least
100kPa (1bar) and max.
1000kPa (10bar).
If the water pressure exceeds the
maximum value specified, a pres-
sure-reducing valve must be in-
stalled between the drinking water
connection and the hose set of the
appliance.
Do not connect the appliance to
the mixer tap of an unpressurised
hot-water boiler. Modified or damaged water hoses may result in material damage and damage to the appliance.
Never kink, crush, modify or cut
through water hoses.
Only use the water hoses supplied
with the appliance or genuine
spare hoses.
Never re-use water hoses that
have been used before. Operating the appliance using water that is dirty or too hot may cause ma­terial damage.
Only operate the appliance with
cold mains water. Unsuitable cleaning products may damage the surfaces of the appli­ance.
Do not use harsh or abrasive de-
tergents.
Do not use cleaning products with
a high alcohol content.
Do not use hard scouring pads or
cleaning sponges.
Clean the appliance with nothing
but water and a soft, damp cloth.
10
Remove all detergent residue, spray residue or other residues im­mediately if they come into contact with the appliance.

Environmental protection and saving energy

3 Environmental protec-
tion and saving energy
Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environ­mentally compatible and can be re­cycled.
Sort the individual components by type and dispose of them separ­ately.
Environmental protection and saving energy en
Reduce the washing temperature for lightly and normally soiled laundry.
a
At low temperatures, the appliance
consumes less energy. For light to
normal soiling, lower temperatures
than indicated on the care label
are also sufficient.
Set the maximum spin speed if you want to dry the laundry in a tumble dryer afterwards.
a
The drier the laundry, the shorter
the programme duration when dry-
ing which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in
the laundry and increases the
volume of the spin noise.
3.2 Save energy and con­serve resources
If you follow these instructions, your appliance will use less electricity and less water.
Choose programmes with low tem­peratures and longer wash times and use maximum load capacity →Page23.
a
Energy consumption and water consumption is most efficient.
Add →Page33 detergent based on the laundry's degree of soiling.
a
For light to normal soiling, a smal­ler amount of detergent is suffi­cient. Observe the dosage recom­mendation from the detergent manufacturer.
Wash the laundry without prewash.
a
Washing with prewash increases the programme duration and in­creases energy and water con­sumption.
The appliance has a continuous automatic load adjustment function.
a
Depending on the type of fabric and load capacity, the continuous automatic load adjustment func­tion optimally adjusts the water consumption and programme dur­ation.

3.3 Energy saving mode

If you do not use the appliance for an extended period, it automatically switches to energy-saving mode. All displays go out and Start / Reload
flashes. Energy-saving mode ends when you use the appliance again, e.g. if you open or close the door.
11
en Installation and connection

Installation and connection

4 Installation and con-
nection
Installation and connection

4.1 Unpacking the appliance

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
ATTENTION!
Objects remaining in the drum that are not designed for operation with the appliance may cause material damage and damage to the appli­ance.
Remove these objects, along with all supplied accessories, from the drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the appliance.
For the environmentally friendly disposal of the packaging materi­als, observe the information on the topic of →"Disposing of packaging", Page11.
2. Check the appliance for visible
damage.
3. Open the door.
→"Basic operation", Page33
4. Remove the accessory from the
drum.
5. Close the door.
12
Installation and connection en
1 2 3
4
1
2
3
4

4.2 Contents of package

After unpacking all parts, check for any damage in transit and completeness of the delivery.
Washing machine
Accompanying documents
Water inlet hose
Cover caps
4.3 Requirements for the in­stallation location
Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
WARNING
Risk of electric shock!
The appliance contains live parts. Touching live parts is dangerous.
Do not operate the appliance without a cover cap.
WARNING
Risk of injury!
When using the appliance on a base, the appliance may tip over.
Always secure the feet of the appli­ance to a base using the manufac­turer's fixing brackets →Page29 before using the appliance for the first time.
13
en Installation and connection
ATTENTION!
If the appliance is installed in areas exposed to frost or outdoors, frozen residual water may damage the appli­ance and frozen hoses may crack or split.
Do not install or operate this appli­ance anywhere that is liable to ex-
perience frost and/or outdoors. The appliance underwent a function test before leaving the factory and may, therefore, contain residual wa­ter. This residual water may leak out if the appliance is tilted at an angle greater than 40°.
Tilt the appliance carefully.
Installation loca-
Requirements
tion
On a base Secure the appli-
ance with fixing brackets →Page29.
On a wooden joist floor
Place the appli­ance on a water­resistant wooden board which is screwed tightly to the floor. The wooden board should be at least 30mm thick.
In a kitchen unit ¡ A niche width
of 60cm is re­quired.
¡ Only install the
appliance un­derneath a continuous worktop that is securely con­nected to adja­cent cabinets.
Installation loca-
Requirements
tion
On a wall Do not trap the
hoses between the wall and the appliance.

4.4 Removing the transit bolts

The appliance is secured for trans­portation using transit bolts on the rear of the appliance.
Notes
¡ Please read the information in the
Safety →Page4 and Preventing material damage →Page10 sec­tions to ensure that you use the appliance safely.
¡ Keep the transit bolts, screws and
sleeves in a safe place for future transport →Page54.
1. Pull the hoses out of the holders.
14
Installation and connection en
2. Unscrew and remove all four
screws for the transit bolts with a WAF 13 wrench.
3. Pull the power cord out of the
holder.
5. Put on the four cover caps.
6. Press down on the four cover
caps.
4. Remove the four sleeves.

4.5 Connecting the appliance

Connecting the water inlet hose

Note
¡ Please read the information in the
Safety →Page4 and Preventing material damage →Page10 sec­tions to ensure that you use the appliance safely.
15
en Installation and connection
2
1
¾˝
min.
min.
10 mm
17 mm
1. Connect the water inlet hose.
2. Connect the water inlet hose to a
tap (26.4mm=3/4").
3. Open the water tap carefully and
check that the connection points are tight.

Water outlet connection types

This information is intended to help you to connect this appliance to the water outlet.
Note:Please read the information in the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
ATTENTION!
When draining, the water outlet hose is subject to water pressure and may come loose from the installed con­nection point.
Secure the water outlet hose against unintentional loosening.
16
Note:Observe the draining heights. The draining heights are: minimum: 60cm, maximum: 100cm.
Drainage into a siphon
Secure the con­nection point with a (24–40 mm) hose clamp.
Drainage into a washbasin
Fix and secure the water outlet using an elbow. →Page29
Drainage into a plastic pipe with rubber sleeve.
Fix and secure the water outlet using an elbow. →Page29

4.6 Aligning the appliance

In order to reduce noise and vibra­tion and to prevent the appliance from moving, align the appliance cor­rectly.
Note:Please read the information in the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
Installation and connection en
1. Loosen the lock nuts using a WAF
17 wrench by turning it in a clock­wise direction.
2. To align the appliance, turn the ap-
pliance feet. Check that the appli­ance is level using a spirit level.
All appliance feet must stand firmly on the ground.
3. Screw the lock nuts tightly against
the housing using a WAF 17 wrench.
In doing so, hold the foot tight and do not adjust its height.

4.7 Connecting the appliance to the electricity supply

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
1. Insert the mains plug of the appli-
ance's power cable in a socket nearby.
The connection details of the appli­ance can be found under Tech­nical data →Page57.
2. Check the mains plug is inserted
properly.
17
en Familiarising yourself with your appliance
1
2
4
6
3
5
7
7
1
2
3
4
5
6
7
Familiarising yourself with your appliance

5 Familiarising yourself with your appliance

Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.
On certain models, specific details such as the colour and shape may differ from those pictured.
Maintenance flap for the drain pump →Page41
Door
Detergent drawer →Page19
18
Controls →Page19
Water outlet hose →Page16
Power cord →Page17
Transit bolts →Page14
Familiarising yourself with your appliance en
2
3
1
4
1
2
3
4
2 3
1 1
4 4
1
2
3
4

5.2 Detergent drawer

Measuring aid for liquid deter­gent →"Using a measuring aid for
liquid detergent", Page34
Compartment II:
¡ Detergent for main wash ¡ Water softener ¡ Bleach ¡ Stain remover
Compartment :
¡ Fabric softener ¡ Liquid starch ¡ Waterproofing agent
Compartment I:
¡ Detergent for prewash ¡ Hygiene detergent

5.3 Controls

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
Programmes →Page23
Programme selector →Page33
Display →Page20
Buttons
19
en Display
Display

6 Display

Display
The display shows the current settings, options or relevant information.
Display Designation Description
1
0:40
1
10h
1
7 kg
––– - 1000 Spin speed Set spin speed in rpm.
– 90 Temperature Set temperature in °C.
––– Rinse Hold Programme status
1
Example
Programme dura­tion/programme
Approximate expected programme dura­tion or programme time remaining.
time remaining "Ready in" time The programme end has been set and the
remaining number of hours is displayed. →"Buttons", Page22
Recommended load
The maximum load capacity for the selec­ted programme in kg.
→"Buttons", Page22 0= No final spin, only draining –––: Rinse Hold, no draining
→"Buttons", Page22
(cold)
Start/Pause Start, cancel or pause
¡ Lights up: The programme is running
and can be cancelled or paused.
¡ Flashes: The programme can be star-
ted or continued.
20
Display Designation Description
End End of pro-
Programme status
gramme Childproof lock ¡ lights up: The childproof lock is activ-
ated.
¡ flashes: The childproof lock is activated
and the appliance has been operated. →"Deactivating the childproof lock",
Page37
Prewash Prewash is activated.
→"Buttons", Page22
SpeedPerfect Short wash activated.
→"Buttons", Page22
Eco Energy-saving washing activated.
→"Buttons", Page22
Door ¡ Lights up: The door is locked and can-
not be opened.
¡ Flashes: The door is not closed prop-
erly.
¡ Off: The door is unlocked and can be
opened.
Tap ¡ No water pressure.
¡ The water pressure is too low.
E:35 / -10
1
Example
1
Error Error code, error display, signal.
Display en
21
en Buttons
Buttons

7 Buttons

Buttons
The selection of programme settings depends on the programme that is set. You can see the selection options for each programme in the overview for →"Programmes", Page23.
Button Selection Description
Start / Reload ¡ Start
¡ Cancel ¡ Pause
Speed ⁠ / Eco ¡ (Short
wash)
¡ (Energy-sav-
ing wash)
Finish in 1–24 hours Set the programme end.
Temp. °C – 90 °C Adjust the temperature in °C. Spin ––– - 1000 Adjust the spin speed or activate –––
⁠ 3 sec. ¡ Activate
¡ Deactivate
Prewash ¡ Activate
¡ Deactivate
Start, cancel or pause the pro­gramme.
When is selected, the short wash is activated.
Note:Energy consumption increases. The washing result is not affected by this.
When is selected, the energy-sav­ing wash is activated. The temperature is reduced and the programme duration is extended. The washing result is not affected by this.
The programme duration is already in­cluded in the set number of hours. Once the programme has started, the programme duration is displayed.
(Rinse Hold). If ––– is selected, the water is not drained at the end of the washing cycle and the spin cycle is deactiv­ated. The laundry remains in the water used for rinsing.
Activate or deactivate the childproof lock. Disable the control panel to prevent unwanted or accidental operation. If the childproof lock is activated and the appliance has been switched off, the childproof lock remains activated. →"Childproof lock", Page37
Activate or deactivate prewash, e.g. for washing heavily soiled laundry.
22
Programmes en
Prewash
Spin ––– (Rinse Hold)
Speed ⁠ / Eco
Speed ⁠ / Eco
Programme settings
Max. spin speed
1
(rpm)
Max. temperature (°C)
Max. load (kg)
1000
90
7
1000
60
4
1000
60
4
800
40
2
Programmes

8 Programmes

Programmes
Below is an overview of the programmes. You can find information on the load and on the adjustable pro-
gramme options.
Tip:The laundry's care labels provide you with additional information on programme selection.
Programme Description
→"Care symbols on the care labels", Page31
cotton, linen or blended fabrics.
blended fabrics.
or synthetic or blended fabrics.
Suitable for lightly soiled laundry.
from silk, viscose and synthetics.
Use a detergent that is suitable for
delicates or silk.
Cottons Wash hard-wearing items made from
Easy Care Wash items made from synthetic or
Mixed Load Wash items made from cotton, linen,
⁠ Delicates / Silk Wash delicate, washable items made
Programme setting
1
23
en Programmes
Prewash
Spin ––– (Rinse Hold)
Speed ⁠ / Eco
Speed ⁠ / Eco
Programme settings
Max. spin speed
1
(rpm)
Max. temperature (°C)
Max. load (kg)
800
40
2
1000
1000
Programme Description
24
Note:Wash especially delicate items
or items with hooks, eyelets or clips
in a mesh laundry bag.
that are made from wool or contain
wool.
To prevent the laundry from shrink-
ing, the drum moves the items very
gently with long pauses.
Use a detergent that is suitable for
wool.
and then drains the water.
⁠ Wool Hand- or machine-washable items
Rinse Rinses and then spins the laundry,
If you only want to drain the water,
activate 0. The laundry is not spun.
Programme setting
Spin ⁠ / Drain Spins and drains the water.
1
Programmes en
Prewash
Spin ––– (Rinse Hold)
Speed ⁠ / Eco
Speed ⁠ / Eco
Programme settings
Max. spin speed
1
(rpm)
Max. temperature (°C)
Max. load (kg)
1000
40
4
1000
60
1,5
Programme Description
Wash dark-coloured and colour-in-
tense items made from cotton or
easy-care fabric, e.g. jeans.
Turn laundry inside-out before wash-
ing.
Use liquid detergent.
stuffed with down and fillings with
synthetic fibres.
Wash large items separately.
Use a detergent that is suitable for
down or delicates.
Use sparingly.
Do not use fabric softener.
⁠ Down Wear Wash pillows, duvets or clothing
Note:To prevent excessive foaming,
remove air from laundry items by
rolling them up before you wash
them.
Programme setting
1
25
en Programmes
Prewash
Spin ––– (Rinse Hold)
Speed ⁠ / Eco
Speed ⁠ / Eco
Programme settings
Max. spin speed
1
(rpm)
Max. temperature (°C)
Max. load (kg)
1000
60
4
1000
40
5
1000
60
6,5
Programme Description
26
or synthetic or blended fabrics.
Suitable for quiet washing at night.
The audible signal at the end of the
programme is deactivated and a re-
duced final spin speed set by default.
Wash items made from cotton, linen,
or synthetic or blended fabrics.
Suitable for lightly and normally
soiled laundry.
Optimum washing results in under an
hour.
cotton, linen or blended fabrics.
Suitable for allergy sufferers and for
Silent Wash items made from cotton, linen,
60'
⁠ Power Wash
AllergyPlus Wash hard-wearing items made from
strict hygiene requirements.
Note:Once the set temperature has
been reached, it remains constant
throughout the washing process.
Programme setting
1
Programmes en
Prewash
Spin ––– (Rinse Hold)
Speed ⁠ / Eco
Speed ⁠ / Eco
Programme settings
Max. spin speed
1
(rpm)
Max. temperature (°C)
Max. load (kg)
800
60
2
800
40
2
1000
40
4
Programme Description
made from cotton, linen, synthetic or
blended fabrics.
Note:Use the ⁠ Delicates / Silkpro-
gramme to wash shirts and blouses
made from silk or delicate fabrics.
from synthetic fibres, microfibre or
fleece.
Use a detergent that is suitable for
sports items.
Do not use fabric softener.
Tip:Use the Easy Care programme
to wash heavily soiled laundry.
⁠ Shirts Wash non-iron shirts and blouses
⁠ Sportswear Wash sports and leisure items made
thetic or blended fabrics.
Short programme for small items of
lightly soiled laundry.
The programme duration is approx.
30 minutes.
Programme setting
Quick 15'/30' / Wash items made from cotton, syn-
1
27
en Programmes
Prewash
Spin ––– (Rinse Hold)
Speed ⁠ / Eco
Speed ⁠ / Eco
Programme settings
Max. spin speed
1
(rpm)
Max. temperature (°C)
Max. load (kg)
Programme Description
28
If you wish to reduce the programme
duration to 15 minutes, activate . The
maximum load is reduced to 2kg.
Programme setting
1
Accessories en
Accessories

9 Accessories

Accessories
Use original accessories. These have been made especially for your appliance.
Use Order number
Water inlet hose exten­sion
Pedestal with drawer Install the appliance at a
Fixing brackets Improves the stability of
Longer water inlet hose Replace the standard
Elbow Secure the water outlet
Liquid detergent insert Measure liquid deter-
Extend the water inlet hose for cold water or AquaStop (approx. 2.50 m).
raised height so that it can be easily loaded and unloaded.
the appliance.
water inlet hose with a longer hose (2.20 m).
hose in place.
gent.
WMZ2381
WMZPW20W
WMZ2200
00353925
00655300
00637516

Before using for the first time

10 Before using for the
first time
Before using for the first time
Prepare the appliance for use.
10.1 Starting an empty wash­ing cycle
Your appliance was inspected thor­oughly before leaving the factory. To remove any residual water, run the first wash cycle without any laundry.
Note:Please read the information in the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
1. Turn the programme selector to
Cottons 90°.
2. Close the door.
29
en Laundry
3. Pull out the detergent drawer.
4. Pour washing powder into com-
partmentII.
To prevent foaming, use only half of the amount of detergent recom­mended by the detergent manufac­turer for light soiling. Do not use detergent suitable for woollens or delicates.
5. Push in the detergent drawer.
6. Press Start / Reload to start the
programme.
a The display shows the remaining
programme duration.
a After the programme has ended,
the display shows: "End".
7. Start the first wash cycle or set the
programme selector to Off to switch off the appliance. →"Basic operation", Page33
Laundry

11 Laundry

Laundry

11.1 Preparing the laundry

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
ATTENTION!
Objects remaining in the laundry may damage the laundry and the drum.
Remove all items from any pock­ets in your laundry before using the appliance.
To protect your appliance and the laundry, prepare the laundry be­forehand.
– Empty any pockets – Brush sand out of all collars and
pockets
– Close bed covers and cushion
covers
– Close all zips, Velcro fasteners,
hooks and eyes
– Tie cloth belts, apron strings,
etc. together or use a laundry bag.
– Remove curtain hooks and lead
strips or use a mesh laundry bag
– Use a mesh laundry bag for
small items of laundry, such as children's socks
30
Laundry en
– Some stubborn or dried-in stains
can be removed by washing several times
– Wash large and small items of
laundry together
– Do not rub fresh stains but dab
them with soapy water
– Separate items of laundry and
shake them out

11.2 Sorting laundry

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
To improve washing results and prevent discolouration, sort the laundry according to the following criteria before washing.
– Type of fabric and fibre
Wash laundry of the same type of fabric and fibre to­gether.
– Care symbols on the care labels
→Page31
– Description of the programmes
→Page23
– Whites – Colours
Wash new coloured items separately the first time you wash them.

11.3 Degrees of soiling

Degree of soiling Soiling Examples
Light ¡ No dirt or stains are vis-
ible
¡ Laundry has absorbed
odours
Normal Dirt or light stains are vis-
ible
Heavy Dirt or stains are clearly
visible
Light summer clothing or sports clothing that has been worn for a just a few hours
¡ T-shirts, shirts or blouses
are sweat-soaked or have been worn a few times
¡ Towels or bedding that
has been used for up to one week
Tea towels, baby items or work clothing

11.4 Care symbols on the care labels

Washing care symbols

Symbol Washing process Recommended pro-
gramme
Normal Cotton ⁠ Gentle Easy-Care
31
en Detergents and care products
Symbol Washing process Recommended pro-
gramme
Particularly gentle Delicates/Silk for
washing by hand Hand wash Wool Not suitable for machine-washing

Detergents and care products

12 Detergents and care
products
Detergents and care products
Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
The manufacturer's instructions for use and dosage can be found on the packaging.
Notes
¡ Only use liquid detergents that are
self-flowing
¡ Do not mix different liquid deter-
gents
¡ Do not mix detergent and fabric
softener
¡ Do not use products that have ex-
pired or are highly congealed
¡ Do not use products containing
solvents, caustic agents or volatile substances (e.g. bleach)
¡ Use dyes sparingly as salt may
damage stainless steel
¡ Do not use bleaching agents in the
appliance

12.1 Detergent recommendation

Detergent Fabrics Pro-
gramme
Standard detergent with optical brighten­ers
Detergent for colours without bleach or op­tical brighteners
Detergent for col­ours/delicates without optical brighteners
Detergent for delic­ates
Detergent for wool­lens
Heat-resistant white
Cotton From cold up to fabrics made from cotton or linen
Coloured fabrics
Cotton From cold up to made from linen or cotton
Coloured fabrics
Easy-Care From cold up to made from easy-care fabrics or synthetic materials
Delicate fine textiles, silk or viscose
Delicates/
Silk Wool Wool From cold up to
Temperature
90 °C
60 °C
60 °C
From cold up to 40 °C
40 °C
32

12.2 Detergent dosage

Basic operation en
The detergent dosage depends on:
¡ The amount of laundry ¡ Degree of soiling ¡ Water hardness
Water hardness
You can find out how hard your water is from your local water com­pany or measure it yourself using a water hardness tester.
Hardness range Total hardness in mmol/lGerman degrees in °dH
soft (I) 0–1.5 0–8.4 medium (II) 1.5– 2.5 8.4–14 hard (III) over 2.5 over 14
Example of a manufacturer's instructions for detergent
These example values refer to a standard load of 4–5 kg.
Soiling Light Normal Heavy
Water hardness: Soft/medium 40ml 55ml 80ml Water hardness: Hard/very
55ml 80ml 105ml
hard
The dosages can be found on the manufacturer's packaging. ¡ Adjust the dosage to the actual
load.
Basic operation

13 Basic operation

Basic operation

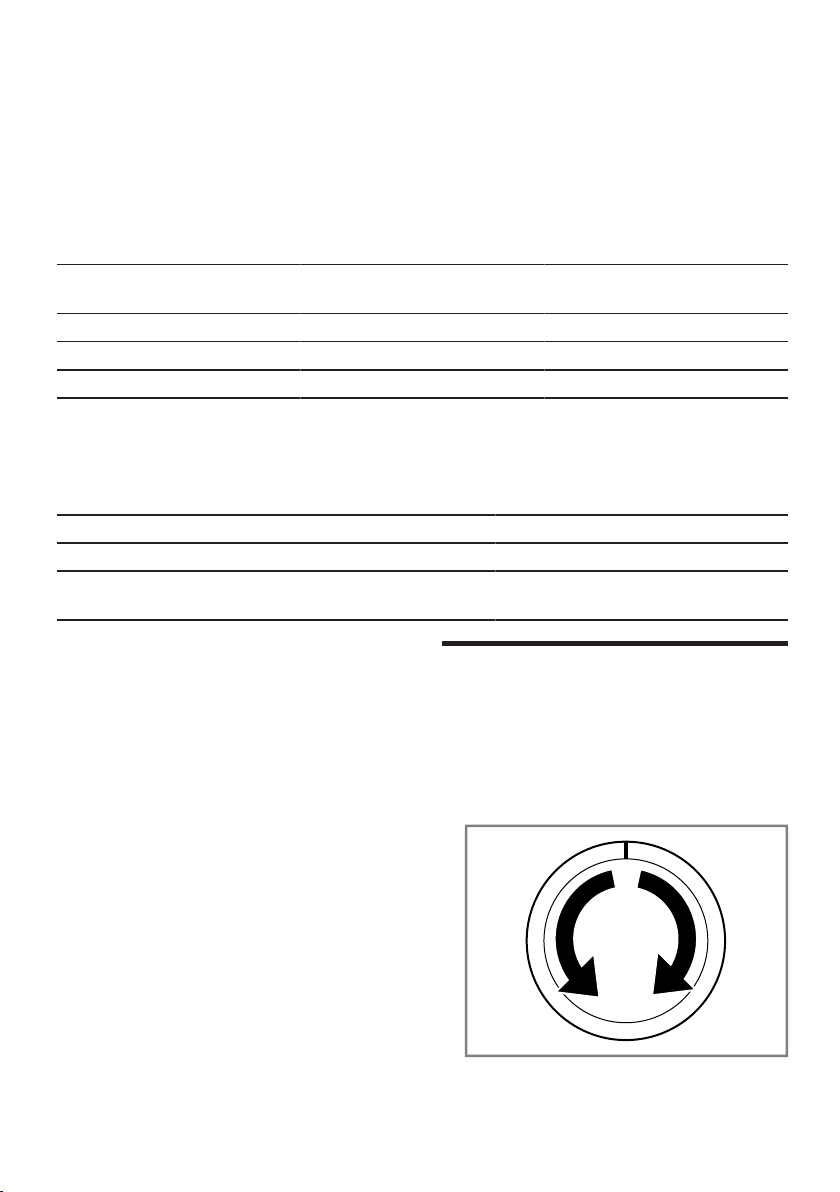

13.1 Switching on the appli­ance
Turn the programme selector to a programme.
33
en Basic operation
1
2

13.2 Setting a programme

1. Set the programme selector to the
required programme. →"Programmes", Page23
2. If necessary, adjust the pro-
gramme settings →Page34.
13.3 Adjusting the pro­gramme settings
Requirement:A programme has
been set. →"Setting a programme", Page34
Adjust the programme settings. →"Programmes", Page23
Note:The programme settings are not saved permanently for the pro­gramme.
1. Open the door.
Make sure that the drum is empty.
2. Load the laundry unfolded into the
drum.
3. Close the door.
Ensure that there is no laundry trapped in the door.

13.5 Using a measuring aid for liquid detergent

If you order the measuring aid as an accessory, you must use the measur­ing aid.
1. Press down on the insert and re-
move the detergent drawer.

13.4 Loading laundry

Notes
¡ Please read the information in the
Safety →Page4 and Preventing material damage →Page10 sec­tions to ensure that you use the appliance safely.
¡ To prevent creasing, take note of
the maximum load for the →"Programmes", Page23.
Requirement:The laundry is pre­pared and sorted. →"Laundry", Page30
34
Basic operation en
2. Insert the measuring aid.
3. Insert the detergent drawer.

13.6 Adding detergent and care product

Notes
¡ Please read the information in the
Safety →Page4 and Preventing material damage →Page10 sec­tions to ensure that you use the appliance safely.
¡ Do not use the measuring aid for
liquid detergent for gel detergents, washing powder, or if Prewash or "Ready in" time are activated.
Requirement:Find out the optimum dosage for detergent and care product. →Page32
1. Pull out the detergent drawer.
2. Pour in detergent.
→"Detergent drawer", Page19
3. If required, add the care product.
4. Push in the detergent drawer.

13.7 Starting the programme

Note:If you want to change the time
until the programme ends, set the "Ready in" time first.
Press Start / Reload .
a The display shows either the pro-
gramme duration or the "Ready in" time.
a After the programme has ended,
the display shows: "End".
13.8 Adjusting the "Ready in" time before the pro­gramme starts
You can readjust the selected "Ready in" time before the programme starts.
1. Press Start / Reload .
2. Press Finish in repeatedly until
the display indicates the desired "Ready in" time.
3. Press Start / Reload .

13.9 Soaking laundry

Note:No additional detergent is re-
quired. The washing solution is then used for washing.
1. Start the programme.
2. To pause the programme, after ap-
prox. 10 minutes, press Start / Re­load .
3. To resume the programme, after
the desired soaking time, press
Start / Reload .

13.10 Adding laundry

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
1. Press Start / Reload .
35
en Basic operation
The appliance is paused and checks whether it is possible to add or remove laundry. Take note of the programme status.
2. Add or remove laundry.
3. Close the door.
4. Press Start / Reload .
13.11 Cancelling the pro­gramme
Once the programme has started, you can cancel it at any time.
Note:Please read the information in the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
1. Press Start / Reload .
2. Open the door.
The appliance door remains locked for safety reasons if the temperature and water levels are high. – If the temperature is high, start
the Rinse programme.
– If the water level is high: Start
the Spin or Drain pro­gramme.
3. Remove the laundry.

13.13 Unloading the laundry

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
1. Open the door.
2. Remove the laundry.
13.14 Switching off the appli­ance
1. Turn the programme selector to
Off.
13.12 Resuming the pro­gramme when the pro­gramme status is Rinse Hold
1. Set the Spin or Drain pro-
gramme.
2. Press Start / Reload .
36
2. Turn off the tap.
Childproof lock en
3. Wipe the rubber gasket dry and re-
move any foreign objects.
4. Leave the door and detergent
drawer open so that residual water can evaporate.
Childproof lock

14 Childproof lock

Childproof lock
Secure your appliance against being operated unintentionally using the controls.
14.1 Activating the childproof
lock
So that the programme currently running is not cancelled, the pro­gramme selector must be set to the initial programme.
a goes out in the display.
Press and hold the two 3 sec. buttons for approx. 3seconds.
a The display shows . a The controls are locked. a The childproof lock remains active
even after the appliance has been switched off.
14.2 Deactivating the child-
proof lock
Requirement:To deactivate the
childproof lock, the appliance must be switched on.
Press and hold the two 3 sec. buttons for approx. 3seconds.
37
en Basic settings
Basic settings

15 Basic settings

Basic settings
You can configure the appliance to meet your needs.

15.1 Overview of the basic settings

Below is an overview of the basic settings on your appliance.
Basic setting Programme
Value Description
position
End signal 2 0 (off)
1 (quiet) 2 (me­dium) 3 (loud) 4 (very loud)
Button signal 3 0 (off)
1 (quiet) 2 (me­dium) 3 (loud) 4 (very loud)
Set the volume of the signal at the end of the programme.
The volume of the audible signal emitted when the buttons are pressed.
38
Cleaning and servicing en
15.2 Changing the basic set-
tings
1. Set the programme selector to po-
sition 1.
2. Press Start / Reload and, at the
same time, turn the programme selector to position2.
a The display shows the current
value.
3. Set the programme selector to the
required position.
4. To change the value, press Finish
in .
5. To save the changes, switch off
the appliance.

Cleaning and servicing

16 Cleaning and servi-
cing
Cleaning and servicing
To keep your appliance working effi­ciently for a long time, it is important to clean and maintain it carefully.

16.1 Tips on appliance care

Follow the tips for appliance care to ensure your appliance works cor­rectly in the long term.
Wipe down the housing and the control panel
The appliance parts remain clean and hy­gienic.
with nothing but water and a damp cloth.
Remove all de­tergent residue, spray residue or other residues immediately.
Keep the appli­ance door and detergent drawer open after use.
Fresh deposits are easier to re­move without leaving any residue.
This allows the residual water to dry, reducing odours in the ap­pliance.

16.2 Cleaning the drum

If you often wash at a washing tem­perature of 40°C and lower or the appliance has not been used for a long period, clean the drum.
CAUTION
Risk of injury!
Permanently washing at low temper­atures and a lack of ventilation for the appliance may damage the drum and cause injury.
Regularly run a programme for cleaning the drum or wash at tem­peratures of at least 60°C.
Leave the appliance to dry after every operation with the door open, and leave the detergent drawer to dry.
Run the Cottons 90° programme without laundry.
Add washing powder.

16.3 Cleaning the detergent drawer

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
39
en Cleaning and servicing
1
2
1. Pull out the detergent drawer.
2. Press down on the insert and re-
move the detergent drawer.
3. Press out the insert upwards from
below.
5. Fit the insert and lock it into place.
6. Cleaning the opening for the deter-
gent drawer.
7. Push in the detergent drawer.
4. Clean the detergent drawer and in-
sert with water and a brush, and then dry them.
40

16.4 Descaling

If you add detergent correctly, you do not need to descale your appliance. If you still wish to use descaler, follow the manufacturer's instructions for use.
ATTENTION!
The use of unsuitable descaling agents, e.g. for coffee machines, may damage the appliance.
For this appliance, only use de­scaling agents that are available from the manufacturer's website or our after-sales service.
Cleaning and servicing en

16.5 Cleaning the drain pump

Clean the drain pump in the event of faults, e.g. blockages or rattling noises.

Emptying the drain pump

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
1. Turn off the water tap.
2. Switch off the appliance.
3. Disconnect the appliance's mains
plug from the power supply.
4. Open the maintenance flap.
6. Slide a sufficiently large receptacle
under the opening.
7. Take the drain hose out of the
holder.
5. Remove the maintenance flap.
41
en Cleaning and servicing
90°
8.
CAUTION-Risk of scalding!
When you wash at high temperat­ures, the detergent solution gets hot.
Do not touch the hot detergent solution.
To allow the detergent solution to flow out into the container, remove the sealing cap.
9. Firmly press on the sealing cap.

Cleaning the drain pump

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
Requirement:The drain pump is empty. →Page41
1. Since water may remain in the
drain pump, remove the pump cap carefully.
2. Clean the interior, the thread on
the pump cap and the pump hous­ing.
3. Make sure that the impeller in the
drain pump can be rotated.
4. Insert the pump cap and screw it
on as far as it will go.
10.Insert the drain hose into the
holder.
42
The handle on the pump cap must be in a vertical position.
Cleaning and servicing en
1
1
2
5. Insert the maintenance flap and
lock it into place.
6. Close the maintenance flap.

16.6 Cleaning the water outlet hose at the siphon

If the water outlet hose at the siphon is dirty or the detergent solution is not being pumped out, you must clean these.
1. Switch off the appliance.
2. Disconnect the appliance's mains
plug from the power supply.
3. Loosen the hose clamp and care-
fully remove the water outlet hose.
4. Clean the water outlet hose and si-
phon connecting piece.
5. Reattach the water outlet hose and
secure the connection point using the hose clamp.
Residual water may leak out.
16.7 Clean the water inlet fil­ters.

Emptying the water inlet hose

1. Turn off the tap.
2. Set a programme, except for
Rinse , Spin or Drain .
3. Start the programme and leave it
to run for approx. 40seconds.
4. Switch off the appliance.
5. Disconnect the appliance's mains
plug from the power supply.
43
en Cleaning and servicing
1
2

Cleaning the filter on the tap

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
Requirement:The water inlet hose is empty.
1. Remove the water inlet hose from
the tap.
2. Clean the filter with a small brush.
3. Connect the water inlet hose and
check for leaks.

Cleaning the filter on the appliance

Note:Please read the information in
the Safety →Page4 and Preventing material damage →Page10 sections to ensure that you use the appliance safely.
Requirement:The water inlet hose is empty. →"Emptying the water inlet hose",
Page43
1. Disconnect the hose from the rear
of the appliance.
44
2. Use pliers to remove the filter.
2
1
3. Clean the filter with a small brush.
Cleaning and servicing en
4. Reinsert the filter.
5. Connect the hose and check for
leaks.
45
en Troubleshooting
Troubleshooting

17 Troubleshooting

Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot­ing information before contacting after-sales service. This will avoid unneces­sary costs.
WARNING
Risk of electric shock!
Incorrect repairs are dangerous.
Repairs to the appliance should only be carried out by trained specialist staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out and Start / Reload flashes.
"E:36 / -10" Drain pipe or water outlet hose is blocked.
"E:36 / -25 / -26" Drain pump is blocked.
Energy-saving mode is active
Press any button.
a The symbol lights up again.
Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
Ensure that the drain pipe and water drain hose are not kinked or trapped.
Drain pump is blocked.
→"Cleaning the drain pump", Page41
The water outlet hose is connected too high.
Install the water outlet hose at a maximum height of 1 metre.
Detergent dosage is too high.
Immediate measure: Mix one tablespoon of fabric softener with 0.5 litres of water and pour the mix­ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down).
Reduce the amount of detergent for the next wash­ing cycle with the same load.
Unapproved extension installed on the water drain hose.
Remove any unapproved extensions from the water hose. Connecting the appliance
→"Cleaning the drain pump", Page41
46
Fault Cause and troubleshooting
The water pressure is low. No remedial action possible.
The filters in the water inflow are blocked.
Clean the filters in the water inflow →Page43.
The tap is turned off.
Turn on the tap.
The water inlet hose is kinked or jammed.
Ensure that the water inlet hose is not kinked or jammed.
lights up. The temperature is too high.
Wait until the temperature has dropped.
→"Cancelling the programme", Page36
Water level is too high.
Start the Drain programme.
Laundry is caught in the door.
1. Open the door again.
2. Remove any trapped laundry.
3. Close the door.
4. Press Start / Reload to start the programme.
flashes. Door is not closed.
1. Close the door.
2. Press Start / Reload to start the programme.
All other error codes. Malfunction
Call the after-sales service. →"Customer Service", Page56
The appliance is not working.
The mains plug of the power cord is not plugged in.
Connect the appliance to the power supply.
The circuit breaker is faulty.
Check the circuit breaker in the fuse box.
There has been a power cut.
Check whether the lighting in your kitchen or other appliances are working.
The programme does not start.
You have not pressedStart / Reload .
Press Start / Reload .
Door is not closed.
1. Close the door.
2. Press Start / Reload to start the programme.
Childproof lock is activated.
Troubleshooting en
47
en Troubleshooting
Fault Cause and troubleshooting
The programme does not start.
→"Deactivating the childproof lock", Page37
Finish in is activated.
Check whether Finish in is activated. →"Buttons", Page22
Laundry is caught in the door.
1. Open the door again.
2. Remove any trapped laundry.
3. Close the door.
4. Press Start / Reload to start the programme.
The door cannot beopened.
––– is activated.
Continue the programme by selecting Spin or Drain and pressing Start / Reload .
→"Resuming the programme when the programme status is Rinse Hold", Page36
The temperature is too high.
Wait until the temperature has dropped.
→"Cancelling the programme", Page36
Water level is too high.
Start the Drain programme.
Power failure.
Open the door using the emergency release. →"Emergency release", Page54
The water is not drain­ing.
Drain pipe or water outlet hose is blocked.
Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
Ensure that the drain pipe and water drain hose are not kinked or trapped.
Drain pump is blocked.
→"Cleaning the drain pump", Page41
––– is activated.
Continue the programme by selecting Spin or Drain and pressing Start / Reload .
→"Resuming the programme when the programme status is Rinse Hold", Page36
The water outlet hose is connected too high.
Install the water outlet hose at a maximum height of 1 metre.
Detergent dosage is too high.
48
Fault Cause and troubleshooting
The water is not drain­ing.
Immediate measure: Mix one tablespoon of fabric softener with 0.5 litres of water and pour the mix­ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down).
Reduce the amount of detergent for the next wash­ing cycle with the same load.
Unapproved extension installed on the water drain hose.
Remove any unapproved extensions from the water hose. Connecting the appliance
Water is not flowing in. Detergent is not being dispensed.
You have not pressedStart / Reload .
Press Start / Reload .
The filters in the water inflow are blocked.
Clean the filters in the water inflow →Page43.
The tap is turned off.
Turn on the tap.
The water inlet hose is kinked or jammed.
Ensure that the water inlet hose is not kinked or jammed.
The spin cycle runs several times.
The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry.
Not a fault – no action required.
Note:When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
The programme dura­tion changes during the wash cycle.
The programme operation is optimised electronically. This may change the programme duration.
Not a fault – no action required.
The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry.
Not a fault – no action required.
Note:When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
Foam detection system switches on a rinse cycle if foam build-up is too high.
Not a fault – no action required.
Troubleshooting en
49
en Troubleshooting
Fault Cause and troubleshooting
No water is visible in the drum.
Water is below the visible area.
Not a fault – no action required.
Do not add any extra water to the appliance while it is operating.
Drum jerks after the programme starts.
Residual water is present in the com-
This is caused by an internal motor test.
Not a fault – no action required.
Insert in compartment is blocked.
→"Cleaning the detergent drawer", Page39
partment . Vibrations and move-
ment of the appliance whilst spinning.
Appliance is not correctly aligned.
Aligning the appliance
The appliance feet are not fixed.
Secure the appliance feet. Aligning the appliance
Transit bolts have not been removed.
Removing the transit bolts
Heavy foam build-up Detergent dosage is too high.
Immediate measure: Mix one tablespoon of fabric softener with 0.5 litres of water and pour the mix­ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down).
Reduce the amount of detergent for the next wash­ing cycle with the same load.
High spin speed not reached.
A low spin speed is selected.
The next time you run a wash cycle, set a higher spin speed.
Unbalance load detection system is using a reduced spin speed to eliminate an unbalance.
Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
Start the Spin programme.
The spin programme does not start.
Drain pipe or water outlet hose is blocked.
Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
Ensure that the drain pipe and water drain hose are not kinked or trapped.
The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distrib­uted.
50
Fault Cause and troubleshooting
The spin programme does not start.
Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
Start the Spin programme.
Rushing, hissing noise.
Loud noises during the spin cycle.
Water is flushed under pressure into the detergent drawer.
Not a fault – normal operating noise.
Appliance is not correctly aligned.
Aligning the appliance
The appliance feet are not fixed.
Secure the appliance feet. Aligning the appliance
Transit bolts have not been removed.
Removing the transit bolts
Banging noises, rat­tling in the drain
Foreign bodies have got into the drain pump.
→"Cleaning the drain pump", Page41
pump. Slurping, rhythmical
suction noise.
The drain pump is active, the detergent solution is pumped out.
Not a fault – normal operating noise.
Creasing. The spin speed is too high.
The next time you run a wash cycle, set a lower spin speed.
The load is too large.
The next time you run a wash cycle, reduce the amount of laundry being loaded.
The wrong programme is selected for the type of fab­ric.
Select the programmes that are suitable for the type of fabric. →"Programmes", Page23
Detergent or fabric softener drips off the seal and collects on the door or in the seal fold.
The spin result is not satisfactory. The laun­dry is too wet/too damp.
Too much detergent/fabric softener in the detergent drawer.
When dosing liquid detergent and fabric softener, observe the marking in the detergent drawer and do not dose above this.
A low spin speed is selected.
The next time you run a wash cycle, set a higher spin speed.
Start the Spin programme.
Troubleshooting en
51
en Troubleshooting
Fault Cause and troubleshooting
The spin result is not satisfactory. The laun­dry is too wet/too damp.
Drain pipe or water outlet hose is blocked.
Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
Ensure that the drain pipe and water drain hose are not kinked or trapped.
The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distrib­uted.
Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
Start the Spin programme.
Unbalance load detection system is using a reduced spin speed to eliminate an unbalance.
Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
Start the Spin programme.
Detergent residue on the damp washing.
Detergent residue on the dry laundry.
Water is leaking out at the water inlet hose.
Detergents may contain water-insoluble substances that deposit on the laundry.
Start the Rinse programme.
Detergents may contain water-insoluble substances that deposit on the laundry.
Brush out the laundry after washing and drying.
Water inlet hose is not correctly/securely connected.
1. Connect the water supply hose correctly. Connect-
ing the water inlet hose
2. Tighten the screw connection.
Water is leaking out at the water outlet hose.
The water outlet hose is damaged.
Replace the damaged water outlet hose.
Water outlet hose is not connected correctly.
Connect the water outlet hose correctly. Water out­let connection types
52
Fault Cause and troubleshooting
Odours have formed in the appliance.
Humidity and detergent residue may promote the formation of bacteria.
→"Cleaning the drum", Page39
If you are not using the appliance, leave the door and detergent drawer open so that residual water can evaporate.
Troubleshooting en
53
en Transportation, storage and disposal

17.1 Emergency release

Releasing the door

Requirement:The drain pump is
empty. →Page41
1. ATTENTION! Escaping water may
cause material damage.
Do not open the door if you can see water through the glass.
Pull the emergency release down­wards with a tool and release.
a The door lock is released.
2. Insert the maintenance flap and
lock it into place.
3. Close the maintenance flap.

Transportation, storage and disposal

18 Transportation, stor-
age and disposal
Transportation, storage and disposal
You can find out here how to prepare your appliance for transportation and storage. You will also find out how to dispose of old appliances.
5. Drain the remaining detergent
solution. →"Cleaning the drain pump",
Page41
6. Detach the hoses.

18.2 Inserting the transit bolts

Secure the appliance for transporta­tion using transit bolts in order to pre­vent damage.
1. Remove the four cover caps.
If necessary, use a screwdriver
to remove the cover caps.
Keep the cover caps.
2. Insert the four sleeves.

18.1 Removing the appliance

1. Turn off the tap.
2.
→"Emptying the water inlet hose", Page43.
3. Switch off the appliance.
4. Unplug the appliance's mains plug.
54
Transportation, storage and disposal en
3. Insert all screws into the four
transit bolts and tighten slightly.
4. Insert the power cord into the
holder and tighten all four screws for the transit bolts with a WAF 13 wrench ⁠.
5. Insert the hose into holder.

18.3 Using the appliance again

18.4 Disposing of old appli­ance
Valuable raw materials can be re­used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the appliance, thereby putting their lives at risk.
Do not install the appliance behind a door as this may obstruct the ap­pliance door or prevent it from opening.
With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner. Information about current disposal
methods are available from your specialist dealer or local authority.
This appliance is la­belled in accordance with European Directive 2012/19/EU concerning used electrical and elec­tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determ­ines the framework for the return and recycling of used appliances as applicable throughout the EU.
Remove the transit bolts.
55
en Customer Service
Customer Service

19 Customer Service

Customer Service
If you have any queries on use, are unable to rectify faults on the appli­ance yourself or if your appliance needs to be repaired, contact Cus­tomer Service. You can solve many problems your­self by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our after-sales service. With any warranty claims, we will make sure that your appliance is re­paired by trained after-sales techni­cians using genuine spare parts, in­cluding after the manufacturer's war­ranty has expired. Detailed information on the warranty period and terms of warranty in your country is available from our after­sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E­Nr.) and the production number (FD) of your appliance. The contact details for Customer Ser­vice can be found in the enclosed Customer Service directory or on our website.
Make a note of your appliance's de­tails and the Customer Service tele­phone number to find them again quickly.

19.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E­Nr.) and the production number (FD) on the appliance's rating plate. Depending on the model, the rating plate is located:
¡ On the inside of the door. ¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
56
Consumption values en
Consumption values

20 Consumption values

Consumption values
The indicated consumption values are approximate. The values may deviate from the indicated values depending on water pres­sure, water hardness, water inlet temperature, room temperature, type of laun­dry, amount and soiling of laundry, detergent used, fluctuations in the mains voltage and selected settings.
Program: Temperat-
ure (°C)
Load (kg) Energy
consump­tion (kWh)
1
Water consump-
1
tion (l)
Program duration (hr:min)
Cottons 20 7,0 0,290 76,0 2:30 Cottons 40 7,0 1,010 76,0 3:00 Cottons 60 7,0 1,200 76,0 2:30 Cottons 90 7,0 2,250 87,0 2:30 Cotton ⁠ + Eco 260 7,0 0,910 47,0 4:15 Easy Care 40 4,0 0,790 69,0 2:00 Mixed Load 40 4,0 0,630 46,0 1:15
⁠ Delicates / Silk 30 2,0 0,220 38,0 0:45 ⁠ Wool 30 2,0 0,190 44,0 0:45
1
values determined according to the valid version of EN60456
2
Programme setting with maximum speed for testing in accordance with the applicable version of EN60456 with cold water (15 °C).

Technical specifications

21 Technical specifica-
tions
Technical specifications
Facts and figures for your appliance can be found here.
Appliance height 85,0cm Appliance width 60,0cm Appliance depth 55,0cm Weight 65 - 70kg Maximum load 7kg Mains voltage 220 - 240V,
50Hz
1
Depending on the appliance spe­cifications
1
Minimum in-
10A stallation protec­tion
Rated power 2300W Power consump-
tion
¡ Off mode:
0,12 W
¡ Left-on mode:
0,50W
Water pressure ¡ Minimum:
100kPa (1bar)
¡ Maximum:
1000kPa (10bar)
1
Depending on the appliance spe­cifications
1
57
en Technical specifications
Length of the wa-
150cm
ter inlet hose Length of the wa-
150cm
ter outlet hose Length of the
160cm
power cord
1
Depending on the appliance spe­cifications
58
Thank you for buying a Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help? You'll find it here.
Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct­ory.
Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY www.bosch-home.com
*9001507241*
9001507241 (010203) en
Loading...
