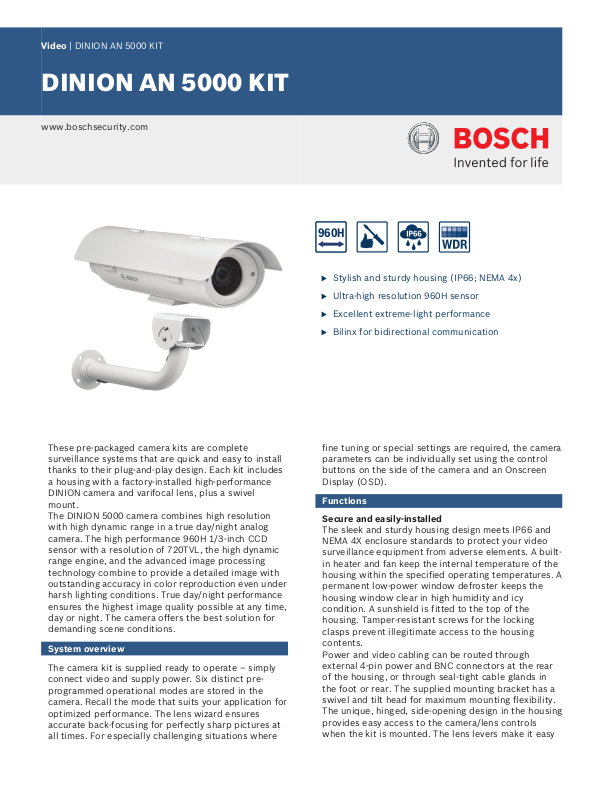

Video | DINION AN 5000 KIT

DINION AN 5000 KIT

www.boschsecurity.com

u Stylish and sturdy housing (IP66; NEMA 4x)

u Ultra-high resolution 960H sensor

u Excellent extreme-light performance

These pre-packaged camera kits are complete
surveillance systems that are quick and easy to install
thanks to their plug-and-play design. Each kit includes
a housing with a factory-installed high-performance
DINION camera and varifocal lens, plus a swivel
mount.
The DINION 5000 camera combines high resolution
with high dynamic range in a true day/night analog
camera. The high performance 960H 1/3-inch CCD
sensor with a resolution of 720TVL, the high dynamic
range engine, and the advanced image processing
technology combine to provide a detailed image with
outstanding accuracy in color reproduction even under
harsh lighting conditions. True day/night performance
ensures the highest image quality possible at any time,
day or night. The camera offers the best solution for
demanding scene conditions.

System overview

The camera kit is supplied ready to operate – simply
connect video and supply power. Six distinct pre­programmed operational modes are stored in the
camera. Recall the mode that suits your application for
optimized performance. The lens wizard ensures
accurate back-focusing for perfectly sharp pictures at
all times. For especially challenging situations where

u Bilinx for bidirectional communication

fine tuning or special settings are required, the camera
parameters can be individually set using the control
buttons on the side of the camera and an Onscreen
Display (OSD).

Functions

Secure and easily-installed

The sleek and sturdy housing design meets IP66 and
NEMA 4X enclosure standards to protect your video
surveillance equipment from adverse elements. A built­in heater and fan keep the internal temperature of the
housing within the specified operating temperatures. A
permanent low-power window defroster keeps the
housing window clear in high humidity and icy
condition. A sunshield is fitted to the top of the
housing. Tamper-resistant screws for the locking
clasps prevent illegitimate access to the housing
contents.
Power and video cabling can be routed through
external 4-pin power and BNC connectors at the rear
of the housing, or through seal-tight cable glands in
the foot or rear. The supplied mounting bracket has a
swivel and tilt head for maximum mounting flexibility.
The unique, hinged, side-opening design in the housing
provides easy access to the camera/lens controls
when the kit is mounted. The lens levers make it easy

2 | DINION AN 5000 KIT

to accurately adjust the camera focal length and focus.
A lens wizard helps focus the lens at the maximum
opening to ensure proper back-focus is maintained
throughout the 24-hour cycle. No special tools or
filters are required.
Six independent, pre-programmed operating modes
support typical applications, but are fully
programmable for individual situations.
Other features to make installation easy are a multi­language On-Screen Display (OSD) and a built-in test
pattern generator that produces signals for testing.

Pre-wired

For easy connection, some kit models have the
following 1.5 m (5 ft) cables pre-wired through seal­tight cable glands in the housing foot:

• a coaxial cable (terminated with a female BNC
connector) from the back of the camera

• a power cable (18 AWG, 3-conductor with flying
leads) from the housing PCB

Detail in extreme lighting

In harsh lighting, the difference between the brightest
and the darkest parts of a scene can be extreme. To
produce a clear picture in these conditions, the CCD
sensor in the camera generates two images; one long
exposure to resolve details in the scene’s darkest
areas, and one short exposure to resolve details in the
scene’s brightest areas. The advanced image
processing technology in the camera combines these
dual shutter images, mixing pixels from each exposure
to produce the most detailed image possible. The
superior wide dynamic range for all lighting conditions
reveals details previously unseen.

Day/Night mode

The day/night mode provides enhanced night viewing
by increasing the IR sensitivity. The IR filter can switch
from color to monochrome automatically by either
sensing the illumination level or via the alarm input.
The filter can be switched manually via the alarm
input, through the camera menu or via the Bilinx
coaxial control interface. An internal through-the-lens
IR detector enhances the monochrome mode stability,
as it prevents reverting to the color mode when IR
illumination is dominant. IR contrast is also measured
and used to handle reflected IR light in outdoor
scenes.

Bilinx technology

Bilinx is a bidirectional communication capability
embedded in the video signal of this camera. Installers
can check status, change camera settings and even
update firmware from virtually anywhere along the
video cable. Bilinx reduces service and installation
time, provides for more accurate set-up and
adjustment, and improves overall performance. In
addition, Bilinx uses the standard video cable to
transmit alarm and status messages, providing
superior performance without additional installation
steps.

Ideal picture performance

There are many settings available to help fine-tune the
picture performance to match your installation
environment. These include:

• Smart BLC – automatically and dynamically
compensates for strong backlight

• Peak White Invert – reduces glare from highlight
areas

• Contrast and sharpness – enhance details in bright or
misty scenes

• SensUp – sensitivity is dramatically enhanced by a
factor of 10

• Default shutter – improves the motion performance in
auto exposure mode

• Dynamic noise reduction – dynamically reduces noise
in the picture

Privacy masking

Fifteen different privacy zones allow specific parts of a
scene to be blocked. Pre-program any part of the
scene to be masked.

Video Motion Detection

The built-in video motion detector allows you to select
four programmable areas with sensitivity thresholds.
When motion is detected, alarms can be displayed in
the video signal, the output relay can be closed or an
alarm message can be transmitted via Bilinx.

Typical applications:

• Entrance foyer or lobby with glare

• Outdoor perimeters

– low light
– IR light

• Traffic monitoring

– highway
– traffic intersections
– emergency response coordination

• Tunnels

• Car parks (outdoor)

• Restricted access locations such as:

– prisons
– ports / freight terminals
– military facilities
– border control and homeland

• Casino and gambling centers

Lens options

Two 960H IR-corrected lens versions are available for
the housing kits:

• One with a 2.8-12 mm varifocal lens

• One with a 5-50 mm varifocal lens

Certifications and approvals

Standards FCC Part15 Subpart B, Class B

EN 55022 class B

EN61000-3-2

EN61000-3-3,

EN 50130-4

EN 50121-4

mm (in)

51 (2)

90 (3.5)

73 (2.9)

480 (18.9)

126 (5)171 (6.7)

23.9 (0.94)

25.4 (1)

6.9 (0.27)

74.7 (2.94)

37.3 (1.47)

88.9 (3.5)

73 (2.9)

7.9 (0.3)

8.9 (0.35)

88.9 (3.5)

mm (in)

306.8 (12.08)

138.3 (5.45)

3 | DINION AN 5000 KIT

Camera with 500 g (1.1 lbs) lens

VKN-5085V4-20;
VKN-5085V10-20

VKN-5085V4-50;
VKN-5085V10-50

Product certifications CE, FCC, UL, CSA

Region Certification

Europe CE

USA UL

FCC

Canada CSA

according to IEC 60068-2-6

EN60950-1,
UL60950-1 (2ND edition),
CSA C22.2 No. 60950-1-07 (2
edition)

EN60950-1

Installation/configuration notes

Housing dimensions

Mount dimensions

ND

Parts included

Item

1x Housing (including built-in camera and lens, sunshield, heater

and blower)

1x Wall mount

1x Documentation set

1x Cable mounting package

1x Identification labels

Technical specifications

Housing

Mechanical

Dimensions (H x W x L)

- closed and including
sunshield

Weight (including camera
and lens)

Construction Aluminum casing, neoprene gaskets, all

126.5 x 171.3 x 480 mm (5 x 6.7 x

18.9 in.)

3.9 kg (8.6 lbs)

stainless steel hardware, 3.3 mm
(1/8 in.) thick glass window

4 | DINION AN 5000 KIT

Mechanical

Color Gray

Locking clasps (3x) Tamper-resistant screws provided

Camera mounting Removable camera/lens tray, mounted

Max camera + lens size
(H x W x L)

Mounting 2 x pair of tapped holes (1/4-20 thread)

Rear fittings (-20 models) 1x cable diameter: 3.5 to 8.0 mm (0.14

Rear connectors (-50
models)

Bottom fittings (-20
models)

Power

Power input
(230 VAC)

Power input
(24 VAC)

with two screws

91 x 81 x 262 mm (3.6 x 3.2 x 10.3 in)

• inner pair: 50.8 mm (2.0 in)
center spread

• outer pair: 73.7 mm (2.9 in)
center spread

to 0.32 in)
2x cable diameter: 5.8 to 10 mm (0.23
to 0.39 in)

1x 4-pin (power)
1x BNC (hybrid analog video)

2x cable diameter: 4.5 to 7.9 mm (0.18
to 0.31 in)

freq. 50 Hz
consumption 45 W
fuse 2 A

freq. 60 Hz
consumption 45 W
fuse 4 A

Video performance

(100 IRE) (50 IRE) (30 IRE)

Color 0.5 lx

Color
+ SensUp
10x

Monochrome 0.2 lx

Monochrome
SensUp 10x

Video functions

Signal-to-Noise Ratio >54 dB

Video Output Composite video 1 Vpp, 75 ohm

Synchronization Internal, Line Lock

Shutter Auto (1/50 [1/60] to 1/100000) selectable,

Sensitivity Up Adjustable from Off up to 10x

Day/Night Color, Mono, Auto

Dynamic Engine XF-Dynamic, HDR, Smart BLC

Dynamic Range 94 dB (WDR)

Dynamic Noise
Reduction

AGC AGC On or Off (0 – 40 dB) selectable

(0.0465 fc)

0.05 lx
(0.00465 fc)

(0.0186 fc)

0.02 lx
(0.00186 fc)

fixed, flickerless, default

2D-NR, 3D-NR

0.09 lx
(0.00837 fc)

0.009 lx
(0.000837 fc)

0.04 lx
(0.00372 fc)

0.004 lx
(0.000372 fc)

0.04 lx
(0.00372 fc)

0.004 l
(0.000372 fc)

0.02 lx
(0.00186 fc)

0.002 lx
(0.000186 fc)

Environmental

Operating
Temperature

Storage Temperature -40°C to +70°C (-40°F to +158°F)

Operating Humidity 20% to 93% RH

Storage Humidity up to 98% RH

Enclosure protection IP66, NEMA 4X

-40°C to +50°C (-40°F to 122°F)

Camera

Sensor

Type 960H, 1/3" DS CCD, sensor resolution

System PAL or NTSC

Total pixels (H x V) 1020 x 596 (PAL)

Effective pixels (H xV)976 x 582 (PAL)

Video performance

Sensitivity – (3200K, reflectivity 89%, F1.2)

Full video Usable picture Usable picture

720TVL, WDR dual shutter

1020 x 508 (NTSC)

976 x 494 (NTSC)

Smart BLC On/Off

Peak White Invert On/Off

White Balance ATW Indoor, ATW Outdoor, ATW hold and

Contrast
Enhancement

Sharpness Sharpness enhancement level selectable

Alarm Output VMD or Bilinx

Alarm Input (TTL) Profile switching, +3.3 V nominal, +40 VDC

Alarm Output Relay 30 VAC or +40 VDC, Max 0.5 A continuous,

Cable Compensation Up to 1000 m (3000 ft) coax without external

Camera ID 17 character editable string, position

Test Pattern
Generator

Modes 6 preset programmable modes

Remote Control Bilinx coaxial bi-directional communication

Manual

Low, Medium, High

max.

10 VA

amplifiers (automatic set-up in combination
with Bilinx coaxial communication)

selectable

Color bar, Raster, Impulse, Cross Impulse,
Cross hatch,

5 | DINION AN 5000 KIT

Video functions

Video Motion
Detection

Privacy Masking 15 independent areas, fully programmable

E-Zoom Up to 16x

Digital Image
Stabilizer

Controls OSD with soft-key operation

OSD Language English, French, German, Spanish,

4 areas, fully programmable

On/Off

Portuguese, Simplified Chinese, Russian

Lens

LVF-5000C-D2811

Focal length 2.8 – 11 mm 5.0 – 50 mm

Iris range F1.4 - 360 F1.6 - 360

Min object distance 0.3 m (1.0 ft) 0.3 m (1.0 ft)

Lens mount CS CS

Angle of view (HxV) W: 97.4 x 72.4

MTF on-axis
(lp/mm)

Varifocal Lens

T: 26.2 x 19.7

>250
>223 (IR)

LVF-5000C-D0550
Varifocal Lens

W: 51.2 x 39.4
T: 5.3 x 4.1

>165
>144 (IR)

Ordering information

DINION AN 5000 KIT

High-performance 960H analog box camera in 24 VAC
(60 Hz) housing. WDR; 720 TVL; 4-zone motion detect;
15-zone privacy mask; NTSC; 2.8-11 mm lens; pre­wired

Order number VKN-5085V4-20

DINION AN 5000 KIT

High-performance 960H analog box camera in 24 VAC
(60 Hz) housing. WDR; 720 TVL; 4-zone motion detect;
15-zone privacy mask; NTSC; 5-50 mm lens; pre-wired

Order number VKN-5085V10-20

DINION AN 5000 KIT

High-performance 960H analog box camera in a
230 VAC (50 Hz) housing. WDR; 720 TVL; 4-zone
motion detect; 15-zone privacy mask; PAL; 2.8-11 mm
lens

Order number VKN-5085V4-50

DINION AN 5000 KIT

High-performance 960H analog box camera in 230 VAC
(50 Hz) housing. WDR; 720 TVL; 4-zone motion detect;
15-zone privacy mask; PAL; 5-50 mm lens

Order number VKN-5085V10-50

MTF off-axis
(lp/mm)

Iris control 4-pin, DC control 4-pin, DC control

Focus control manual manual

Zoom control manual manual

IR corrected yes yes

>145
>131 (IR)

>81
>30 (IR)

Mount

Mount LTC 9215/00

Length 300 mm (12 in)

Maximum Load 9 kg (20 lb)

Mounting Head Adjustable 360° pan, 180° tilt

Finish Light gray

Approx. Weight 0.4 kg (0.9 lb)

Mounting 2 x tapped holes

Thread: 1/4-20

73.7 mm (2.9 in) center spread

6 | DINION AN 5000 KIT

Represented by:

Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2015 | Data subject to change without notice
16305578507 | en, V2, 12. Feb 2015
