Bosch VG5-623-ECS, VG5-623-PCS Specsheet

Video | AutoDome 600 Series Analog PTZ Camera

AutoDome 600 Series Analog PTZ Camera

www.boschsecurity.com

u Choice of 550 TVL 36x or 28x day/night cameras

with 12x digital zoom and wide dynamic range

u Progressive scan provides smooth and clear images

when viewing details in a moving image

u Sodium Vapor White Balance mode restores objects

to their original color

u AutoTrack II automated motion tracking

u Advanced privacy masking

The AutoDome 600 Series is an easy to install PTZ
camera that delivers superb video in all indoor and
outdoor applications. The camera features day/night
functionality for high quality images in low light condi­tions. This discrete, high-speed dome camera ensures
reliable, uncompromised functionality in diverse envi­ronments across various applications.

AutoDome 600 Series highlights

The AutoDome delivers state-of-the-art technology and
features that far exceed other PTZ cameras. The cam­eras achieve a high horizontal resolution of 550 TV
lines enabling the reproduction of clear and detailed
images.
Wide Dynamic Range
The AutoDome features Wide Dynamic Range (WDR)
technology that allows for the capture of clear images
from both bright and dark areas in the same frame.
WDR ensures that bright areas are not saturated and
that dark areas are not too dark.
Progressive scan
The AutoDome camera is ideally suited for moving
imaging applications. The progressive scan technology
incorporated into the camera provides smooth and
clear images when viewing images from a moving cam­era.

Sodium vapor lamp white balance

The AutoDome is an exceptional performer when
shooting under a sodium vapor lamp (a street lamp or
tunnel lamp, for example). Images under these condi­tions may have a yellowish tint, which may make iden­tification difficult. In the Sodium Vapor White Balance
mode, the AutoDome automatically compensates for
the light from a sodium vapor lamp to restore objects
to their original color.

System Overview

The AutoDome 600 Series offers variable pan and tilt
speeds, and the AutoPivot feature ensures optimal
camera control and viewing at all zoom levels. These
high-performance zoom autofocus cameras incorpo­rate the latest digital imaging technology with excel­lent sensitivity and resolution. With 99 user-defined
presets as well as tour and AutoPan modes, The Auto­Dome 600 Series is not small on features.
The AutoDome 600 Series adds real intelligence to
your video surveillance applications. Equipped with
AutoTrack II, Bosch’s award-winning motion tracking
software, built-in image stabilization, motion detec­tion, and a sophisticated alarm handling “rules” en­gine, the AutoDome 600 Series incorporates advanced,
intelligent video features unmatched by any other cam­era system.

| AutoDome 600 Series Analog PTZ Camera

2

The AutoDome 600 Series supports standard and op­tional video and data transmission methods, including
Bilinx (over coax and UTP) and fiber optic. Remote
control, configuration, and firmware updates can also
be performed over these cables, offering you unparal­leled control of your cameras. Cable compensation
provides extended coaxial and UTP distance runs
while preventing the image quality degradation caused
by signal losses from long cable lengths.

Functions

The following are some of the features that make the
AutoDome 600 Series the most flexible PTZ dome
camera systems in the security industry.

High-performance PTZ day/night cameras

Image control and quality are integral aspects of any
PTZ dome camera, and the AutoDome delivers. The Au­toDome 600 Series camera has a 1/4-in. CCD sensor,
with 4CIF/D1 resolution and sensitivity to below 1.0
lux and is available with a choice of 28x and the indus­try-leading 36x optical zoom lens, and all 600 Series
systems offer a full 12x digital zoom.
Both camera options provide 550 TVL of horizontal
resolution for outstanding clarity and image detail. The
cameras also incorporate technology that dramatically
improves the dynamic range by 128 times. Also known
as WDR (wide-dynamic range), it results in clear image
reproduction in extreme high-contrast environments.
The AutoScaling (proportional zoom) and AutoPivot
(automatically rotates and flips the camera) features
ensure optimal control.
Day/night capabilities and outstanding sensitivity make
AutoDome 600 Series cameras exceptional performers
in all lighting conditions. In low light, these cameras
automatically switch from color to monochrome by re­moving the IR filter to boost the infrared illumination
sensitivity, while maintaining superior image quality.
For operation in the darkest conditions, the SensUp
control feature automatically reduces the shutter
speed to as little as one second. This increases sensi­tivity by more than 50 times.

Accurate control and positioning

With super-quick, 360° per-second pan and 100° per­second tilt speeds; the AutoDome 600 Series outper­forms other domes in its class. The 600 Series sup­ports 99 pre-positions and two styles of Guard Tours:
Preset and Record/Playback. The preset tour has capa­bility for up to 99 pre-positions with a configurable
dwell time between pre-positions, and can be custom­ized as to the order and frequency each preset is vis­ited. The AutoDome 600 Series also provides support
for two recorded tours, which have a combined dura­tion of 15 minutes of movements. These are recorded
macros of an operator’s movements, including pan,
tilt, and zoom activities, and can be played back in a
continuous manner.

Supported menu languages include: English, Czech,
Dutch, French, German, Italian, Polish, Portuguese,
Russian and Spanish.

AutoTrack II

Bosch introduced the industry’s first automated mo­tion tracking system, and now we’ve made this award­winning technology even better. The AutoDome 600
Series contains an advanced DSP that provides real­time video processing for incredibly smooth object
tracking.
AutoTrack II utilizes Bosch’s unique “virtual masking”
technology. These “invisible” masks are created to act
just like privacy masks, except that only the AutoTrack
can see them – and it knows to ignore any motion be­hind them. This enables the AutoTrack to ignore extra­neous background motion, such as a tree blowing in
the wind, making it ideal for both indoor and outdoor
applications.

Video motion detection (VMD)

With AutoDome, you can create a “region of interest”
within a preset position where motion is to be detec­ted. The AutoDome 600 Series supports a total of 10
individual regions of interest (one per pre-position).
VMD also takes advantage of virtual masking to ignore
areas of unwanted motion.

Image stabilization

As PTZ cameras continue to improve their optical
zoom capabilities, image stabilization becomes critical
to eliminate movement caused by unstable camera
mounts. A mere quarter-inch of movement of the cam­era mount can shift the field of view by more than 20
feet when the camera is zoomed to a high value. This
can render images unusable.
Image stabilization algorithms included with the Auto­Dome 600 Series reduces camera shake in both the
vertical and horizontal axis, resulting in exceptional im­age clarity (pixel displacement up to +/- 10% for fre­quencies up to 10 Hz). Bosch’s unique image stabiliza­tion solution does not reduce camera sensitivity, un­like competitive systems.

Alarm management

The AutoDome 600 Series takes alarm handling to new
levels of flexibility and power.

Inputs and outputs

The AutoDome 600 Series can handle seven alarm in­puts, two of which are analog inputs that can be pro­grammed for EOLR (End-of-Line Resistor) supervision
whenever true security applications require it. These
inputs enable the dome to “sense” if the contact is
opened or closed and whether the wire has been tam­pered with (either by being cut or shorted). In addi­tion, the AutoDome 600 Series supports four outputs:
one relay rated at two amps and three additional open
collectors for driving external devices. Each can be
programmed individually.

| AutoDome 600 Series Analog PTZ Camera

3

Advanced alarm control

The AutoDome 600 advanced alarm control uses so­phisticated rules-based logic to determine how to
manage alarms. In its most basic form, a “rule” could
define which input(s) should activate which output(s).
In a more complex form, inputs and outputs can be
combined with pre-defined or user-specified keyboard
commands to perform advanced dome functions.
There is virtually no limit to the number of combina­tions that you can program, making the standard soft­ware in the dome ready for any application.

Superior privacy masking

The AutoDome 600 Series allows for a total of 24 indi­vidual privacy masks, with up to eight displayed in the
same scene. Unlike conventional privacy masks, these
can each be programmed with three, four, or even five
corners to cover more complex shapes. Each mask
changes size and shape smoothly and quickly – ensur­ing that the covered object cannot be seen. You also
have a choice of colors: black, white, and blurred.
Blurred comes in handy when privacy is an issue, but
determining the presence of motion is still required.

Fiber Optic Kit

The VGA-FIBER-AN (multimode) is an analog, fiber op­tic conversion kit for use with 100 and 600 Series Au­toDomes. This module is a video transmitter/data re­ceiver modules designed to be mounted directly into
an AutoDome power supply box.

Ease of installation and servicing

The AutoDome 600 Series has been designed for quick
and easy installation; a key feature from Bosch CCTV
products. All housings feature recessed screws and
latches for increased tamper resistance.
AutoDome in-ceiling housings provide IP54 protection
(with an optional kit) and are rated IK 8 (IEC 62262).
These housings feature an impact-resistant polycar­bonate rugged bubble to protect your camera from
vandalism. The rugged bubble can withstand impacts
equivalent to a 4.5 kg (10 lb) weight dropped from a
height of 3 m (10 ft).
AutoDome pendant housings (indoor and outdoor) are
rated to provide IP 66 protection and come fully as­sembled with a sunshield and ready for wall or pipe
applications with the proper mounting hardware (pur­chased separately). In addition, the pendant housing
comes equipped with a low-impact, high-resolution
acrylic bubble for enhanced image clarity.
Outdoor Pendant housings provide an operating tem­perature range down to -40°C (-40°F). The optional
“XT” extreme temperature kit allows an AutoDome to
operate in temperatures down to -60°C (-76°F), ensur­ing reliable operation in even the harshest environ­ments.
Note: Bosch offers a full complement of hardware and
accessories (as a separate purchase) for corner, mast,
roof, pipe, and in-ceiling applications, which allow the
AutoDome to be easily adapted to individual site re­quirements.

Easy upgrades

Bosch’s innovative software, the Configuration Tool for
Imaging Devices (CTFID), allows operators or techni­cians to control the PTZ, change camera settings, and
even update firmware from virtually anywhere without
need for additional wiring.
The AutoDome 600 Series has advanced built-in diag­nostics to simplify service and minimize downtime. Us­ing the On Screen Display (OSD), a technician can
quickly and easily check critical parameters (such as
internal temperature and input voltage level) to verify
that the dome is functioning within acceptable operat­ing limits. If video is not present, a local inspection of
three diagnostic LEDs at the camera site can identify
the presence of video and control data.

Certifications and Approvals

Electromagnetic
Compatibility (EMC)

Product Safety Complies with CE regulations, UL, CSA, EN,

Environmental In-ceiling: IP54 (with optional VGA-IP54K-IC

Impact Resistance In-ceiling: IK 8

Complies with FCC Part 15, ICES-003, and CE
regulations, including EN50130-4 and
EN50121-4

and IEC Standards

kit), Plenum rated
Pendant: IP66, NEMA 4X

Parts Included

In-ceiling

1 Fully-assembled in-ceiling housing

1 Polycarbonate bubble, clear or tinted

1 Interface box

1 Coaxial cable with ferrite

Indoor Pendant

1 Fully-assembled indoor pendant housing

1 Acrylic bubble, clear

1 Coaxial cable with ferrite

Outdoor Pendant

1 Fully-assembled outdoor pendant housing with sunshield

1 Acrylic bubble, clear

1 Coaxial cable with ferrite

Note:

1. Mounting hardware and accessories are available sep­arately.

2. The coaxial cable with ferrite is required for pendant
arm and in-ceiling mount applications. Do note use
the coaxial cable with ferrite for pipe or roof mount
applications.

4 | AutoDome 600 Series Analog PTZ Camera

Technical Specifications

Camera 36x Day/Night

Imager 1/4 in.-type Exview HAD CCD

(progressive scan)

Effective Picture Elements PAL: Approx. 440,000; 752(H) x

582(V)
NTSC: Approx. 380,000; 768 (H) x
494 (V)

Lens 36x Zoom (3.4–122.4 mm)

F1.6 to F4.5

Zoom Movement Speed NTSC PAL

• Optical WIDE / Optical

4.0 sec. 4.0 sec.
TELE – Focus Tracking
ON

• Optical WIDE / Optical

2.7 sec. 2.7 sec.
TELE – Focus Tracking
OFF

• Optical WIDE / Digital

6.0 sec. 6.2 sec.
TELE

• Digital WIDE / Digital

2.1 sec. 2.3 sec.
TELE

Focus Automatic with manual override

Iris Automatic with manual override

Field of View 1.7° to 57.8°

Video Output 1.0 Vp-p, 75 Ohm

Gain Control Auto/Manual/Max.

(–3 dB to 28 dB, 2 dB steps)

Aperture Correction Horizontal and vertical

Digital Zoom 12x

Horizontal Resolution 550 TVL (NTSC, PAL) typical

Synchronization Line-Lock (–120° to 120° vertical

phase adjust) or internal crystal

Sensitivity (typical)

1

30 IRE 50 IRE

Day Mode

SensUp Off 0.66 lux 1.4 lux

SensUp On

0.04 lux 0.1 lux
(NTSC: 1/4s, 15X; PAL
1/3s, 16.7X)

Night Mode

SensUp Off 0.104

0.209 lux

lux

SensUp On

(NTSC: 1/4s, 15X; PAL

0.0052

lux

0.0103 lux

1/3s, 16.7X)

Electronic Shutter Speed 1/1 to 1/10,000 sec., 22 steps

Signal-to-Noise Ratio (SNR) >50 dB

White Balance 2000 K to 10,000 K

1. Unless otherwise stated, test conditions are: F1.6; shutter = NTSC 1/60s, PAL 1/50s; max AGC; no bubble. Clear

bubble adds 0.09 f-stop loss (90% light transmission). Tinted bubble adds 0.47 f-stop loss (60% light transmission).

Camera 28x Day/Night

Imager 1/4 in.-type Exview HAD CCD

(progressive scan)

Effective Picture Ele­ments

NTSC: 380,000
PAL: 440,000

Lens 28x Zoom (3.5–98.0 mm)

F1.35 to F3.7

Zoom Movement Speed NTSC PAL

• Optical WIDE /

2.5 sec. 2.5 sec
Optical TELE –
Focus Tracking
ON

• Optical WIDE /

1.7 sec. 1.7 sec.
Optical TELE –
Focus Tracking
OFF

• Optical WIDE /

4.5 sec. 4.9 sec.
Digital TELE –
Focus Tracking
ON

• Optical WIDE /

1.7 sec. 1.7 sec.
Digital TELE –
Focus Tracking
OFF

• Digital WIDE /

2.0 sec. 2.5 sec.
Digital TELE

Focus Automatic with manual override

Iris Automatic with manual override

Field of View 2.1° to 55.8°

Video Output 1.0 Vp-p, 75 Ohm

Gain Control Auto/Manual/Max.

(–3 dB to 28 dB, 2 dB steps)

Aperture Correction Horizontal and vertical

Digital Zoom 12x

Horizontal Resolution 550 TVL

Synchronization Line-Lock (–120° to 120° vertical

phase adjust) or internal crystal

Sensitivity (typical)

2

30 IRE 50 IRE

Day Mode

SensUp Off 0.33

0.66 lux

lux

SensUp On

(NTSC: 1/4s, 15X; PAL 1/3s,

0.02
lux

0.04 lux

16.7X)

Night Mode

5 | AutoDome 600 Series Analog PTZ Camera

SensUp Off 0.066

0.166 lux

lux

SensUp On

(NTSC: 1/4s, 15X; PAL 1/3s,

0.0026
lux

0.0082 lux

16.7X)

Electronic Shutter Speed 1/1 to 1/10,000 sec., 22 steps

Signal-to-Noise Ratio (SNR) >50 dB

White Balance 2000 K to 10,000 K

2. Unless otherwise stated, test conditions are: F1.6; shutter = NTSC 1/60s, PAL 1/50s; max AGC; no bubble. Clear

bubble adds 0.09 f-stop loss (90% light transmission). Tinted bubble adds 0.47 f-stop loss (60% light transmission).

Mechanical

In-Ceiling Indoor

Pendant

Outdoor
Pendant

Pan Range 360° cont. 360° cont. 360° cont.

Tilt Angle 1° above hori-

zon

Variable

0.1°/s-120°/s 0.1°/s-120°/s 0.1°/s-120°/s

18° above hori­zon

18° above ho­rizon

Speed

Pre-position
Speed

Preset

Pan: 360°/s
Tilt: 100°/s

Pan: 360°/s
Tilt: 100°/s

Pan: 360°/s
Tilt: 100°/s

± 0.1° typ. ± 0.1° typ. ± 0.1° typ.

Accuracy

Electrical

In-Ceiling Indoor

Pendant

Outdoor
Pendant

Protection on
Power Input

Peak current 7.3 A, peak power 600 W
(10/1000 μs)

(Dome)

Protection on
Power

Peak current 21.4 A, peak power 1500 W

(10/1000 μs)
Output (Arm Pow­er Supply)

Fiber Optic Kits

VGA-FIBER-AN

Description Multimode Fiber Optic Module

Compatible Receiv-erLTC 4629 Series

Optical Fiber
Compatibility

50/125 µm, 62.5/125 µm, low loss multimode
glass fiber, rated for a minimum system band­width of 20 MHz

Max. Distance 4.0 km (2.5 miles)

Optical Budget 14 dB

Connector One (1) ST connector

Wavelength

850 nm / 1310 nm

(video/data)

Miscellaneous

Sectors/Titling 16 independent sectors with 20-character titles/

sector

Masking 24 individually configurable privacy masks

Pre-positions 99, each with 20-character titles

Input Voltage 21-30 VAC

50/60 Hz

Power Con-

15 W / 27 VA 15 W / 27 VA 51 W / 55 VA
sumption,
typical

3. Add 16 W if using VG4-SHTR-XT kit.

Surge Suppression

Protection on

Peak current 10 kA (Gas Tube Arrester)

Video

Protection on

Peak current 10 A, peak power 300 W (8/20 μs)

Biphase

Protection on

ESD protection ±15 KV human body model

RS-232/485

Protection on

Peak current 17 A, peak power 300 W (8/20 μs)

Alarm Inputs

Protection on

Peak current 2 A, peak power 300 W (8/20 μs)

Alarm Outputs

Protection on
Relay Outputs

Peak current 7.3 A, peak power 600 W
(10/1000 μs)

21-30 VAC
50/60 Hz

21-30 VAC
50/60 Hz

Camera Setup/

Biphase, RS-232, RS-485, Bilinx (coax)

Control

3

Communica-

Biphase, Bilinx, Pelco P, and Pelco D

tions Protocols

Guard Tours Two (2) types of tours:

• Recorded tours – two (2), total duration
15 minutes

• Preset tour – one (1), consisting of up to 99
scenes, consecutively and (1) customized
up to 99 scenes

Supported Lan­guages

English, Czech, Dutch, French, German, Italian, Pol­ish, Portuguese, Russian and Spanish

Cable Compensation

Max Distance With Pre-comp OFF With Pre-comp ON

RG-59/U 1000 ft (300 m) 2000 ft (600 m)

RG-6/U 1500 ft (450 m) 3000 ft (900 m)

RG-11/U 2000 ft (600 m) 4000 ft (1200 m)

Cat 5/UTP

750 ft (225 m) 1500 ft (450 m)

(Passive receiver)

6 | AutoDome 600 Series Analog PTZ Camera

User Connections

Power, Camera 21-30 VAC, 50/60 Hz

Power, Heater 21-30 VAC, 50/60 Hz

Control Data Biphase ±

RS-232 RX/TX or RS-485 ± - optional control
data (dip switch selectable)

Video BNC/UTP

Audio Line In 9 K Ohm typ, 5.5 Vp-p max

EOLR Alarm Inputs (2) Programmable for

“normally open”, “normally closed”, “nor­mally open-supervised”, “normally closed­supervised”

Alarm Inputs (5) Programmable for

“normally open” or “normally closed”

Relay Out (1) Dry contact output rating:

2 A @ 30 VAC

Open Collector Outputs

32 VDC@150 ma max.

(3)

Environmental

In-Ceiling Indoor Pendant Outdoor Pendant

Design
Rating

Operat­ing Temp.

4

IP54,
Plenum rated

–10°C to 40°C
(14°F to
104°F)

IP66,
NEMA 4X

–10°C to 40°C
(14°F to
104°F)

IP66,
NEMA 4X

–40°C to 50°C
(–40°F to 122°F)
with XT kit:
–60°C to 50°C
(–76°F to 122°F)

Storage
Temp.

Humidity 0% to 90% rel-

4. With optional VGA-IP54K-IC kit.

–40°C to 60°C
(–40°F to
140°F)

ative, non-con­densing

–40°C to 60°C
(–40°F to
140°F)

0% to 90% rel­ative, non-con­densing

–40°C to 60°C
(–40°F to 140°F)

0% to 100% rela­tive, condensing

Construction

• Bubble Pendant: Acrylic (high-resolution)
In-ceiling: Polycarbonate (rugged)

Color White (RAL 9003)

Standard Finish Powder coated, sand finish

Mounts/Accessories

Bubbles

In-ceiling

Clear rugged polycarbonate VGA-BUBBLE-CCLR

Tinted rugged polycarbonate VGA-BUBBLE-CTIR

Pendant

Clear rugged polycarbonate VGA-BUBBLE-PCLR

Tinted rugged polycarbonate VGA-BUBBLE-PTIR

Clear high-resolution acrylic VGA-BUBBLE-PCLA

Tinted high-resolution acrylic VGA-BUBBLE-PTIA

Pendant Arm Mounts

Wall Arm (No Transformer) VG4-A-PA0

Wall Arm (120/230 VAC Transformer) VG4-A-PA1 /

VG4-A-PA2

Pendant Arm with Wiring VGA-PEND-ARM

Mounting plate for VGA-PEND-ARM VGA-PEND-WPLATE

Trim skirt for AutoDome Series Power

VG4-A-TSKIRT

Supplies

Optional Mounting Plates for Arm Mounts

Corner Mounting Plate VG4-A-9542

Mast (Pole) Mounting Plate VG4-A-9541

Pendant Pipe Mounts

Pipe Mount Cap VG4-A-9543

Pendant Roof Mounts

Roof (Parapet) Mount

(VG4-A-9543 Pipe Mount Cap required. Available separately.)

VGA-ROOF-MOUNT

Dimensions See dimensional drawings

Weight

• In-ceiling 2.66 kg (5.86 lb)

• Indoor Pendant 2.88 kg (6.3 lb)

• Outdoor Pend-

3.32 kg (7.3 lb)

ant

Bubble Size 153.1 mm diameter (6.03 in.)

Construction Material

• Housing Cast aluminum

Optional Mounting Plates for Roof Mounts

Flat Roof Adapter for Parapet Mount LTC 9230/01

In-ceiling Support Kits

Bracket for suspended or drop ceilings VGA-IC-SP

Gasket kit for IP54 certification VGA-IP54K-IC

Power Supplies

Outdoor Power Supply Box, no trans-

VG4-A-PSU0

former

Outdoor Power Supply Box
(120/230 VAC Transformer)

VG4-A-PSU1 /
VG4-A-PSU2

1.90

0.75

201.8

7.94

204.3

8.04

77.0

3.03

R

94.1

3.70

176.0

6.93

86.7

3.42

22.6

0.90

299.4

11.79

76.6

3.01

R

188.9

7.44

88.9

3.50

88.9

3.50

10.2

0.40

201.2

7.92

216.4

8.52

469.1

18.47

R

374.8

14.75

188.0

7.40

76.6

3.01

11.0

0.43

160.0

6.30

184.0

7.25

134.6

5.30

1

3

4

6

2

5

mm

in.

216.4

8.52

460.1

18.12

1a

134.6

5.30

(4)

11.0

0.43

160.0

6.30

185.7

7.31

169.5

6.67

366.4

14.43

R

76.6

3.01

2a

3a

7 | AutoDome 600 Series Analog PTZ Camera

Extended temp heater module

VG4-SHTR-XT
extends temperature range
to – 60°C (–76°F) for outdoor pendants
only

Fiber Optic Kit VGA-FIBER-AN

Dimensions: Indoor AutoDomes

Indoor System Dimensions

Reference Description

1 Wall Mount – Side with power supply

1a Wall/Mast Mount – Side with VGA-PEND-WPLATE

2 Wall Mount – Front with power supply and trim skirt

2a Wall Mount – Front with power supply

3

6

2

76.6

3.01

R

374.8

14.75

188.0

7.40

134.6

5.30

(4)

11.0

0.43

160.0

6.30

184.0

7.25

175

6.9

193

7.6

5

236

9.3

203

8.0

133.4

5.25

133.4

5.25

219.1

8.63

178

7.0

38

1.5

mm

in.

152.4

6.0
1-1/2 NPT

69.9

2.75

101.6 Typ.

4.0

10.4
8 x 0.41

114.3

4.50 Typ.

228.6

9.0

279.4

11.0

1022.4

40.25

976.1

38.43

88.1

3.47

1190.8

46.88

616

24.25

346.2

13.63

549.6

21.64

235.8

9.28

224.0

8.82

58

2.3

1

22.9

0.90

86.7

3.42

299.4

11.79

224.0

8.82

4

7

8

Ø

11.0

04.3

216.4

8.52

170.0

6.69

134.6

5.30

160.0

6.30

50.8

2.00

105.0

4.13

9

Ø 10.4

0.41

16.0 Typ.

0.63

111 Typ.

4.37

6.35 Typ.

0.25

279.4

11.00

6.35

0.25

378

14.88

254

10.00

477.6

18.80

216.4

8.52

224.0

8.82

134.6

5.30

160.0

6.30

185.7

7.31

(4)

11.0

0.43

169.5

6.67

366.4

14.43

76.6

3.01

R

1a

2a

3a

8 | AutoDome 600 Series Analog PTZ Camera

3 Wall Mount – Back with power supply and trim skirt

3a Wall Mount – Back with power supply

4 Pipe Mount

5 In-ceiling Mount – Front

6 In-ceiling Mount – Side

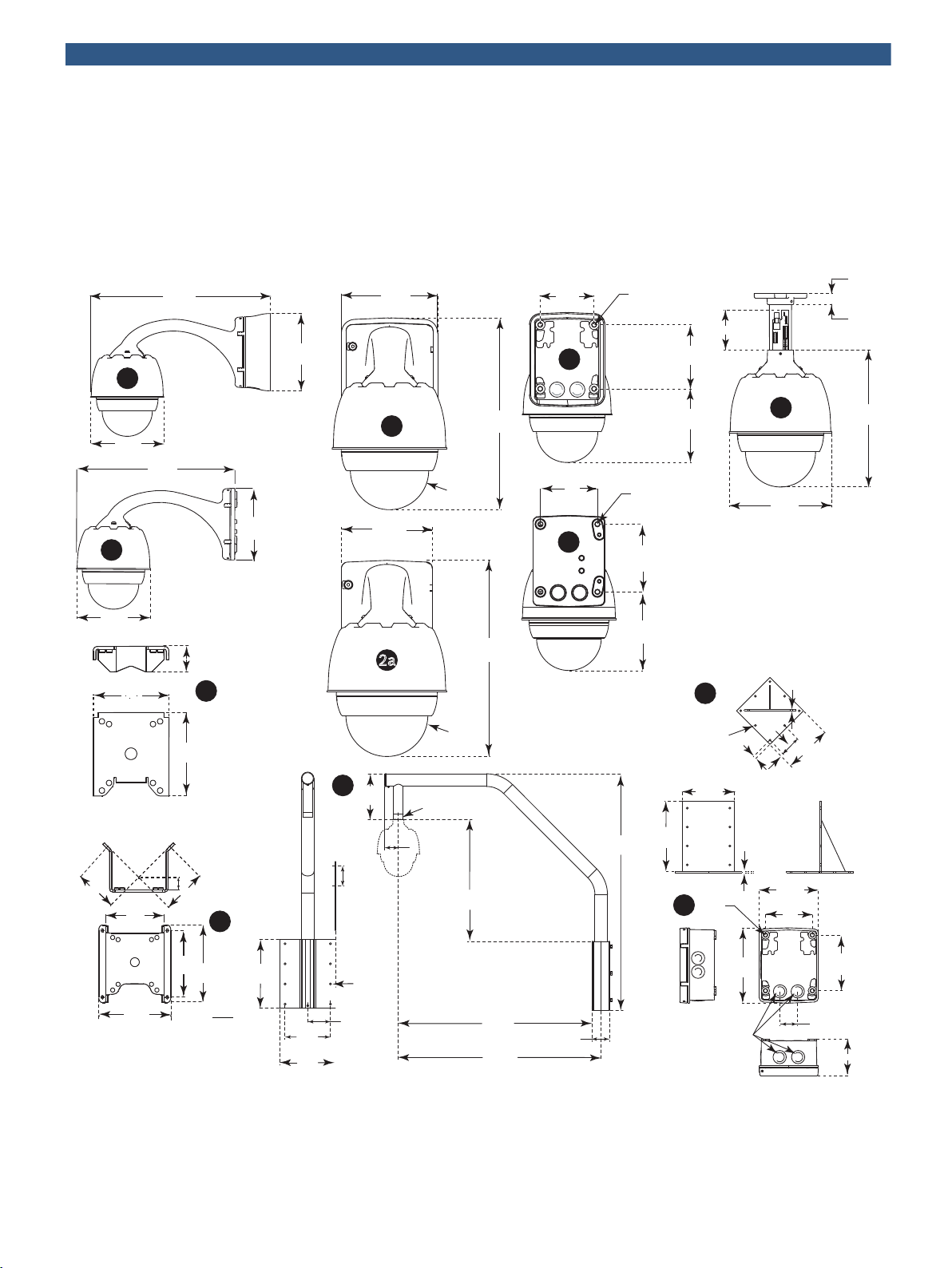

Dimensions: Outdoor AutoDomes

Outdoor System Dimensions

Reference Description

1 Wall Mount – Side with power supply and trim skirt

1a Wall/Mast Mount – Side with VGA-PEND-WPLATE

2 Wall Mount – Front with power supply and trim skirt

2a Wall Mount – Front with power supply

9 | AutoDome 600 Series Analog PTZ Camera

3 Wall Mount – Back with power supply and trim skirt

3a Wall Mount – Back with power supply

4 Pipe Mount

5 Mast Mount

6 Corner Mount

7 Roof Mount

8 Roof Mount Adapter

9 Power Supply for Pipe and Roof Mounts

Ordering Information

VG5-613-CCS AutoDome 600 Series 28x PAL In-ceiling
Camera

Analog 28x PAL camera, in-ceiling housing with a clear
polycarbonate bubble

Order number VG5-613-CCS

VG5-623-CTS AutoDome 600 Series 28x NTSC In-ceiling
Camera

Analog 28x NTSC camera, in-ceiling housing with a tin­ted polycarbonate bubble

Order number VG5-623-CTS

VG5-613-ECS AutoDome 600 Series 28x PAL Outdoor
Pendant Camera

Analog 28x PAL camera, outdoor pendant housing with
a clear acrylic bubble

Order number VG5-613-ECS

VG5-613-PCS AutoDome 600 Series 28x PAL Indoor
Pendant Camera

Analog 28x PAL camera, indoor pendant housing with
a clear acrylic bubble

Order number VG5-613-PCS

VG5-614-ECS AutoDome 600 Series 36x PAL Outdoor
Pendant Camera

Analog 36x PAL camera, outdoor pendant housing with
a clear acrylic bubble

Order number VG5-614-ECS

VG5-614-PCS AutoDome 600 Series 36x PAL Indoor
Pendant Camera

Analog 36x PAL camera, indoor pendant housing with
a clear acrylic bubble

Order number VG5-614-PCS

VG5-623-ECS AutoDome 600 Series 28x NTSC Outdoor
Pendant Camera

Analog 28x NTSC camera, outdoor pendant housing
with a clear acrylic bubble

Order number VG5-623-ECS

VG5-623-PCS AutoDome 600 Series 28x NTSC Indoor
Pendant Camera

Analog 28x NTSC camera, indoor pendant housing
with a clear acrylic bubble

Order number VG5-623-PCS

VG5-624-ECS AutoDome 600 Series 36x NTSC Outdoor
Pendant Camera

Analog 36x NTSC camera, outdoor pendant housing
with a clear acrylic bubble

Order number VG5-624-ECS

VG5-624-PCS AutoDome 600 Series 36x NTSC Indoor
Pendant Camera

Analog 36x NTSC camera, indoor pendant housing
with a clear acrylic bubble

Order number VG5-624-PCS

Accessories

VG4-A-PA0 Pendant Arm Mount

Pendant arm mount with power supply box for a Auto­Dome Series cameras, no transformer, white

Order number VG4-A-PA0

VG4-A-PA1 Pendant Arm Mount with 120 VAC Trans­former

Pendant arm mount with power supply box for Auto­Dome Series cameras with a 120 VAC transformer,
white

Order number VG4-A-PA1

VG4-A-PA2 Pendant Arm Mount with 230 VAC Trans­former

Pendant arm mount with power supply box for Auto­Dome Series cameras with a 230 VAC transformer,
white

Order number VG4-A-PA2

VGA-PEND-ARM Pendant Arm with Wiring

Compatible with an AutoDome Series pendant housing

Order number VGA-PEND-ARM

VGA-PEND-WPLATE Mounting Plate

Mounting plate for VGA-PEND-ARM, compatible with
an AutoDome Series camera

Order number VGA-PEND-WPLATE

VGA-ROOF-MOUNT Roof Mount

Roof parapet mount, white
(VG4-A-9543 Pipe Mount Cap required. Available sepa­rately.)

Order number VGA-ROOF-MOUNT

LTC 9230/01 Flat Roof Mount Adapter

For mounting a unit in an upright position on a flat sur­face for roof parapet mount VGA-ROOF-MOUNT

Order number LTC 9230/01

VG4-A-9541 Pole Mount Adapter

Pole mount adapter for a for an AutoDome Series
pendant arm or a VEI-30 or NEI-30 Dinion Infrared Im­ager, designed for poles with a diameter of
100‑380 mm (4‑15 in.), white

Order number VG4-A-9541

VG4-A-9542 Corner Mount Adapter

Corner mount adapter for an AutoDome Series pend­ant arm or a VEI-30 or NEI-30 Dinion Infrared Imager

Order number VG4-A-9542

10 | AutoDome 600 Series Analog PTZ Camera

VG4-A-9543 Pipe Mount

Pipe mount, white, for an AutoDome Series pendant
housing

Order number VG4-A-9543

VGA-IP54K-IC IP54 In-ceiling Gasket Kit for AutoDome
100/600 Series

Gasket kit for AutoDome 100 and 600 Series Auto­Dome In-ceiling mounts required for IP54 environmen­tal rating

Order number VGA-IP54K-IC

VGA-IC-SP In-ceiling Support Kit for AutoDome 100/600
Series

Suspended ceiling support kit for AutoDome 100 and
600 Series AutoDome In-ceiling mounts

Order number VGA-IC-SP

VG4-A-PSU0 24 VAC Power Supply Unit

24 VAC, 100 W, NEMA-rated, white, for an AutoDome
Series camera

Order number VG4-A-PSU0

VG4-A-PSU1 120 VAC Power Supply Unit

120 VAC, 100 W, NEMA-rated, white, for an AutoDome
Series camera

Order number VG4-A-PSU1

VG4-A-PSU2 230 VAC Power Supply Unit

230 VAC, 100 W, NEMA-rated, white, for an AutoDome
Series camera

Order number VG4-A-PSU2

VGA-SBOX-COVER Cover for AutoDome Power Supply
Boxes

Order number VGA-SBOX-COVER

VGA-FIBER-AN Analog Multimode Fiber Optic Kit

Analog multimode video transmitter/data receiver fiber
optic kit

Order number VGA-FIBER-AN

VGA-BUBBLE-CTIR Tinted Rugged Bubble for an In-ceil­ing Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-CTIR

VGA-BUBBLE-PCLR Clear Rugged Bubble for a Pendant
Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-PCLR

VGA-BUBBLE-PTIR Tinted Rugged Bubble for a Pendant
Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-PTIR

VGA-BUBBLE-PCLA Clear High-resolution Bubble for a
Pendant Housing

Low-impact acrylic bubble

Order number VGA-BUBBLE-PCLA

VGA-BUBBLE-PTIA Tinted High-resolution Bubble for a
Pendant Housing

Low-impact acrylic bubble

Order number VGA-BUBBLE-PTIA

VG4-MTRN-C Alternative Protocol Communications
Module

Supports the American Dynamics (AD) Manchester
and the American Dynamics (AD) Sensormatic RS-422
protocols.

Order number VG4-MTRN-C

Software Options

VP-CFGSFT Configuration Tool for Imaging Devices

Camera configuration software for use with Bilinx cam­eras

Order number VP-CFGSFT

VG4-A-TSKIRT Trim Skirt for AutoDome Power Supply
Boxes

Trim skirt for the following AutoDome Series power
supply boxes:
VG4-A-PSU0F, VG4-A-PSU1, VG4-A-PSU1F, VG4-A­PSU2, VG4-A-PSU2F,
VG4-SBOX-24VAC, VG4-SBOX-120VAC, and VG4­SBOX-230VAC

Order number VG4-A-TSKIRT

VG4-SHTR-XT Heating Module

Extended temperature heater module extends temper­ature range to –60°C (–76°F) for EnviroDomes and Au­toDome 600 Series Outdoor Pendants only

Order number VG4-SHTR-XT

VGA-BUBBLE-CCLR Clear Rugged Bubble for an In-ceil­ing Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-CCLR

11 | AutoDome 600 Series Analog PTZ Camera

Represented by:

Americas: Europe, Middle East, Africa: Asia-Pacific:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

© Bosch Security Systems 2011 | Data subject to change without notice

2474955659 | en, V2, 07. Dec 2011
