Bosch VG5-163-PT0 Specsheet

Video | AutoDome 100 Series Analog Fixed Camera

AutoDome 100 Series Analog Fixed
Camera

u 540 TVL fixed dome series

u Color and day/night camera options

u Available with 2.7–13.5 mm or 5–50 mm lens

The AutoDome 100 Series is an easy to install fixed
camera that delivers superb video in all indoor and
outdoor applications. The camera features day/night
functionality for high quality images in low light condi­tions. This discrete dome camera has an IP66 rating
ensuring reliable uncompromised functionality even in
dusty and potentially wet environments.
By using the same housing components, all AutoDome
installations have a consistent look, and observers
have no idea which type of camera (if any) is watching
over them.

100 Series highlights

The AutoDome 100 Series combines the same high­quality housings used by AutoDome PTZ cameras with
the award-winning imaging technology of Dinion high­resolution color or day/night fixed cameras and varifo­cal lenses.

The AutoDome 100 Series supports a variety of stand­ard and optional video and data transmission meth­ods, including Bilinx (over coax and UTP) and fiber.
Remote control, configuration, and firmware updates
can also be performed over these cables, offering you
unparalleled control of your cameras.

u Coax/UTP transmission standard on all models

u Convertible to IP communications with optional ac-

cessory

The AutoDome 100 Series maximizes your security in­vestment by integrating with Bosch video storage
products, as well as the full range of Bosch video over
IP products.

And, the AutoDome 100 Series is simple to install and
use. The in-ceiling and pendant housings come fully as­sembled. The pendant housings are ready for wall or
pipe applications with the proper mounting hardware
(purchased separately). Also available for pendants,
are corner, mast, and roof mounting kits which allow
the AutoDome 100 Series to be easily adapted to the
individual site requirements.

Functions

The following are some of the features that make the
AutoDome 100 Series the most flexible fixed dome
camera in the security industry.

High-performance camera features

AutoDome 100 Series cameras have a 1/3-inch color or
day/night CCD with Bosch’s unique 15-bit Dinion digi­tal imaging technology to deliver a 32-fold sensitivity
improvement and a full 540 horizontal lines of resolu-

2 | AutoDome 100 Series Analog Fixed Camera

tion. In addition, AutoDome 100 Series cameras incor­porate a number of features not found in other fixed
dome cameras.
These include:

• XF-Dynamic – Extends the camera’s dynamic range to
deliver sharper, more detailed images and outstand­ing color reproduction accuracy.

• NightSense – Automatically activated under low-light
conditions to extend the 100 Series’ exceptional sen­sitivity by a factor of three during monochrome opera­tion.

• SensUp – Increases integration time by a factor of 10
to dramatically enhance sensitivity.

• Back Light Compensation (BLC) – A fully programma­ble backlight compensation (BLC) area of interest
and variable BLC level let AutoDome 100 Series day/
night cameras overcome even the most challenging
entrance, vestibule, and lobby applications.

• Auto Black – Enhances contrast by compensating for
reduced contrast due to fog, mist, or glare.

• Default Shutter – Automatically adjusts to the lens
opening at fast shutter speeds, eliminating motion
blur and providing remarkably clear and detailed im­ages of fast-moving objects.

AutoDome 100 Series day/night versions automatically
switch from color to monochrome by removing a me­chanically switching IR filter in low-light conditions.
This boosts the infrared illumination sensitivity while
maintaining superior image quality.

Unsurpassed reliability

All housings feature recessed screws and latches for
increased tamper resistance.
AutoDome pendant housings (indoor and outdoor) are
rated to provide IP 66 protection. In addition, the
pendant housings come equipped with a low-impact,
high-resolution acrylic bubble for enhanced image
clarity. Outdoor Pendant housings provide an operat­ing temperature range down to -40°C (-40°F).
AutoDome in-ceiling housings provide IP54 (with op­tional kit) protection and are rated IK 8 (IEC 62262).
These housings feature an impact-resistant polycar­bonate rugged bubble to protect your camera from
vandalism. The rugged bubble can withstand impacts
equivalent to a 4.5 kg (10 lb) weight dropped from a
height of 3 m (10 ft).

Ease of installation and servicing

Bosch’s innovative software, the Configuration Tool for
Imaging Devices (CTFID), allows operators or techni­cians to change camera settings, and even update
firmware from virtually anywhere without need for ad­ditional wiring.

Certifications and Approvals

Electromagnetic
Compatibility (EMC)

Product Safety Complies with CE regulations, UL, CSA, EN,

Environmental

• In-ceiling IP54 (with optional VGA-IP54K-IC kit),

• Pendant IP66

Impact Resistance In-ceiling: IK 8

Complies with FCC Part 15, ICES-003, and CE
regulations, including EN50130-4 and
EN50121-4

and IEC Standards

Plenum rated

Parts Included

In-ceiling

1 Fully-assembled in-ceiling housing

1 Polycarbonate bubble, tinted

1 Interface box

Indoor Pendant

1 Fully-assembled indoor pendant housing

1 Acrylic bubble, tinted

Outdoor Pendant

1 Fully-assembled outdoor pendant housing with sunshield

1 Acrylic bubble, clear

Note: Mounting hardware and accessories are available
separately.

Technical Specifications

Camera 2.7 mm-13.5 mm Color

Imager 1/3 in. Interline CCD

(752 x 582 PAL)/(768 x 492 NTSC)

Lens

Iris Automatic

Field of View 78.3° to 18.5°

Video Output 1.0 Vp-p, 75 Ohm

Gain Control Off/Auto (with adjustable limit) /manual

Synchronization Line-Lock (0° to 358° vertical phase ad-

Aperture Correction Horizontal and vertical

just) or internal crystal

Horizontal Resolution 540 TVL (NTSC, PAL) typical

Sensitivity (typical) 30 IRE 50 IRE

SensUp Off 0.29 lx 0.9 lx

SensUp On (15x) 0.029 lx 0.09 lx

3 | AutoDome 100 Series Analog Fixed Camera

SNR >50 dB

White Balance 2500 K to 9000 K (with AWB hold mode

and manual mode)

Camera 2.7 mm–13.5 mm Day/Night

Imager 1/3 in. Interline CCD

(752 x 582 PAL)/(768 x 492 NTSC)

Lens

Iris Automatic

Field of View 78.3° to 18.5°

Video Output 1.0 Vp-p, 75 Ohm

Gain Control Off/Auto (with adjustable limit) /manual

Synchronization Line-Lock (0° to 358° vertical phase ad-

just) or internal crystal

Aperture Correction Horizontal and vertical

Horizontal Resolution 540 TVL (NTSC, PAL) typical

Sensitivity (typical) 30 IRE 50 IRE

Day Mode

SensUp Off 0.29 lx 0.9 lx

SNR >50 dB

White Balance 2500 K to 9000 K (with AWB hold mode

and manual mode)

Camera 5 mm–50 mm Day/Night

Imager 1/3 in. Interline CCD

(752 x 582 PAL)/(768 x 492 NTSC)

Lens

Iris Automatic

Field of View 47.5° to 5.0°

Video Output 1.0 Vp-p, 75 Ohm

Gain Control Off/Auto (with adjustable limit) /manual

Synchronization Line-Lock (0° to 358° vertical phase ad-

just) or internal crystal

Aperture Correction Horizontal and vertical

Horizontal Resolution 540 TVL (NTSC, PAL) typical

Sensitivity (typical) 30 IRE 50 IRE

Day Mode

SensUp Off 0.42 lx 1.3 lx

SensUp On (15x) 0.029 lx 0.09 lx

Night Mode

SensUp Off 0.12 lx 0.36 lx

SensUp On (15x) 0.012 lx 0.09 lx

SNR >50 dB

White Balance 2500 K to 9000 K (with AWB hold mode

and manual mode)

Camera 5 mm–50 mm Color

Imager 1/3 in. Interline CCD

(752 x 582 PAL)/(768 x 492 NTSC)

Lens

Iris Automatic

Field of View 47.5° to 5.0°

Video Output 1.0 Vp-p, 75 Ohm

Gain Control Off/Auto (with adjustable limit) /manual

Synchronization Line-Lock (0° to 358° vertical phase ad-

just) or internal crystal

Aperture Correction Horizontal and vertical

Horizontal Resolution 540 TVL (NTSC, PAL) typical

SensUp On (15x) 0.042 lx 0.13 lx

Night Mode

SensUp Off 0.17 lx 0.52 lx

SensUp On (15x) 0.017 lx 0.052 lx

SNR >50 dB

White Balance 2500 K to 9000 K (with AWB hold mode

and manual mode)

Electrical

In-ceiling Indoor Pendant Outdoor Pendant

Power 21-30 VAC

Power Draw:
(typ)

50/60 Hz

7.5 W /
14 VA

21-30 VAC
50/60 Hz

7.5 W / 14 VA 43.5 W / 47 VA

21-30 VAC
50/60 Hz

Surge Suppression

Protection on Video Peak current 10 kA (Gas Tube Arrester),

Protection on Power In­put (Dome)

Protection on Power Out­put (Arm Power Supply)

peak power 1000 W (10/1000 μ)

Peak current 7.3 A, peak power 600 W
(10/1000 μ)

Peak current 21.4 A, peak power 1500 W
(10/1000 μ)

Sensitivity (typical) 30 IRE 50 IRE

SensUp Off 0.42 lx 1.3 lx

SensUp On (15x) 0.042 lx 0.13 lx

| AutoDome 100 Series Analog Fixed Camera

4

Miscellaneous

Communications Protocols Bilinx

Supported Languages English, Czech, Dutch, French, Ger-

man, Italian, Polish, Portuguese, Russi­an and Spanish

User Connections

Power, Camera 21-30 VAC, 50/60 Hz

Power, Heater 21-30 VAC, 50/60 Hz

Video and Data BNC/UTP

Environmental

In-ceiling Indoor Pendant Outdoor Pendant

Operat­ing
Temp.

Storage
Temp.

Humidity 0% to 90% rel-

–10°C to 50°C
(14°F to
122°F)

–40°C to 60°C
(–40°F to
140°F)

ative, non-con­densing

–10°C to 50°C
(14°F
to 122°F)

–40°C to 60°C
(–40°F to
140°F)

0% to 90% rel­ative, non-con­densing

–40°C to 50°C
(–40°F to 122°F)

–40°C to 60°C
(–40°F to 140°F)

0% to 100% rela­tive, condensing

Construction

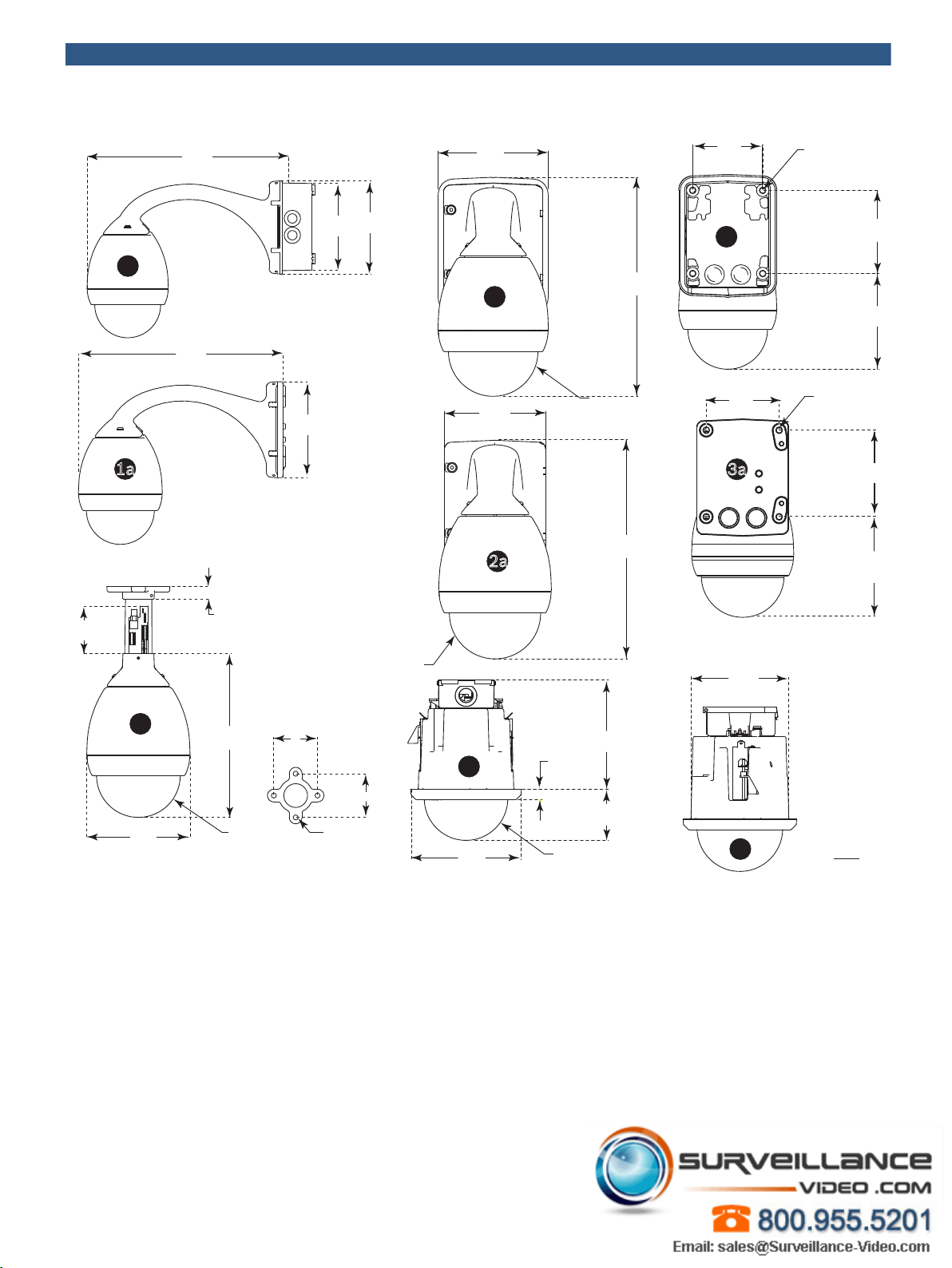

Dimensions See dimensional drawings

Weight

• In-ceiling 2.66 kg (5.86 lb)

• Indoor Pendant 2.88 kg (6.3 lb)

• Outdoor Pendant 3.32 kg (7.3 lb)

Bubble Size 153.1 mm diameter (6.03 in.)

Construction Material

• Housing Cast aluminum

Tinted rugged polycarbonate VGA-BUBBLE-PTIR

Clear high-resolution acrylic VGA-BUBBLE-PCLA

Tinted high-resolution acrylic VGA-BUBBLE-PTIA

Pendant Arm Mounts

Wall Arm (No Transformer) VG4-A-PA0

Wall Arm (120/230 VAC Transformer) VG4-A-PA1 /

Pendant Arm with Wiring VGA-PEND-ARM

Mounting plate for VGA-PEND-ARM VGA-PEND-WPLATE

Trim skirt for AutoDome Power Supplies VG4-A-TSKIRT

Optional Mounting Plates for Arm Mounts

Corner Mounting Plate VG4-A-9542

Mast (Pole) Mounting Plate VG4-A-9541

Pendant Pipe Mounts

Pipe Mount Cap VG4-A-9543

Pendant Roof Mounts

Roof (Parapet) Mount

(VG4-A-9543 Pipe Mount Cap required. Available separately.)

Optional Mounting Plates for Roof Mounts

Flat Roof Adapter for Parapet Mount LTC 9230/01

In-ceiling Support Kits

Bracket for suspended or drop ceilings VGA-IC-SP

Gasket kit for IP54 certification VGA-IP54K-IC

Power Supplies

Outdoor Power Supply Box, no transformer VG4-A-PSU0

Outdoor Power Supply Box (120/230 VAC
Transformer)

Fiber Optic Kit VGA-FIBER-AN

VG4-A-PA2

VGA-ROOF-MOUNT

VG4-A-PSU1 /
VG4-A-PSU2

• Bubble Pendant: Acrylic (high-resolution)
In-ceiling: Polycarbonate (rugged)

Standard Color White (RAL9003)

Standard Finish Powder coated, sand finish

Mounts/Accessories

Bubbles

In-ceiling

Clear rugged polycarbonate VGA-BUBBLE-CCLR

Tinted rugged polycarbonate VGA-BUBBLE-CTIR

Pendant

Clear rugged polycarbonate VGA-BUBBLE-PCLR

1.90

0.75

201.8

7.94

204.3

8.04

77.0

3.03

R

94.1

3.70

176.0

6.93

86.7

3.42

22.6

0.90

299.4

11.79

76.6

3.01

R

188.9

7.44

88.9

3.50

88.9

3.50

10.2

0.40

201.2

7.92

216.4

8.52

469.1

18.47

R

374.8

14.75

188.0

7.40

76.6

3.01

11.0

0.43

160.0

6.30

184.0

7.25

134.6

5.30

1

3

4

6

2

5

mm

in.

216.4

8.52

460.1

18.12

1a

134.6

5.30

(4)

11.0

0.43

160.0

6.30

185.7

7.31

169.5

6.67

366.4

14.43

R

76.6

3.01

2a

3a

5 | AutoDome 100 Series Analog Fixed Camera

Dimensions: Indoor AutoDomes

Indoor System Dimensions

Reference Description

1 Wall Mount – Side with power supply

1a Wall/Mast Mount – Side with VGA-PEND-WPLATE

2 Wall Mount – Front with power supply and trim skirt

2a Wall Mount – Front with power supply

3 Wall Mount – Back with power supply and trim skirt

3a Wall Mount – Back with power supply

4 Pipe Mount

5 In-ceiling Mount – Front

6 In-ceiling Mount – Side

3

6

2

76.6

3.01

R

374.8

14.75

188.0

7.40

134.6

5.30

(4)

11.0

0.43

160.0

6.30

184.0

7.25

175

6.9

193

7.6

5

236

9.3

203

8.0

133.4

5.25

133.4

5.25

219.1

8.63

178

7.0

38

1.5

mm

in.

152.4

6.0
1-1/2 NPT

69.9

2.75

101.6 Typ.

4.0

10.4
8 x 0.41

114.3

4.50 Typ.

228.6

9.0

279.4

11.0

1022.4

40.25

976.1

38.43

88.1

3.47

1190.8

46.88

616

24.25

346.2

13.63

549.6

21.64

235.8

9.28

224.0

8.82

58

2.3

1

22.9

0.90

86.7

3.42

299.4

11.79

224.0

8.82

4

7

8

Ø

11.0

04.3

216.4

8.52

170.0

6.69

134.6

5.30

160.0

6.30

50.8

2.00

105.0

4.13

9

Ø 10.4

0.41

16.0 Typ.

0.63

111 Typ.

4.37

6.35 Typ.

0.25

279.4

11.00

6.35

0.25

378

14.88

254

10.00

477.6

18.80

216.4

8.52

224.0

8.82

134.6

5.30

160.0

6.30

185.7

7.31

(4)

11.0

0.43

169.5

6.67

366.4

14.43

76.6

3.01

R

1a

2a

3a

6 | AutoDome 100 Series Analog Fixed Camera

Dimensions: Outdoor AutoDomes

Outdoor System Dimensions

Reference Description

1 Wall Mount – Side with power supply and trim skirt

1a Wall/Mast Mount – Side with VGA-PEND-WPLATE

2 Wall Mount – Front with power supply and trim skirt

2a Wall Mount – Front with power supply

3 Wall Mount – Back with power supply and trim skirt

3a Wall Mount – Back with power supply

4 Pipe Mount

5 Mast Mount

6 Corner Mount

7 Roof Mount

8 Roof Mount Adapter

9 Power Supply for Pipe and Roof Mounts

7 | AutoDome 100 Series Analog Fixed Camera

Ordering Information

VG5-161-CT0 AutoDome 100 Series Color NTSC In-ceil­ing Camera

Analog 1/3-inch 2.7-13.5 mm color CCD NTSC camera,
in-ceiling housing with a tinted polycarbonate bubble

Order number VG5-161-CT0

VG5-162-CT0 AutoDome 100 Series Day/Night NTSC In­ceiling Camera

Analog 1/3-inch 2.7-13.5 mm day/night CCD NTSC
camera, in-ceiling housing with a tinted polycarbonate
bubble

Order number VG5-162-CT0

VG5-163-CT0 AutoDome 100 Series Color NTSC In-ceil­ing Camera

Analog 1/3-inch 5-50 mm color CCD NTSC camera, in­ceiling housing with a tinted polycarbonate bubble

Order number VG5-163-CT0

VG5-164-CT0 AutoDome 100 Series Day/Night NTSC In­ceiling Camera

Analog 1/3-inch 5-50 mm day/night CCD NTSC camera,
in-ceiling housing with a tinted polycarbonate bubble

Order number VG5-164-CT0

VG5-161-PT0 AutoDome 100 Series Color NTSC Indoor
Pendant Camera

Analog 1/3-inch 2.7-13.5 mm color CCD NTSC camera,
indoor pendant housing with a tinted acrylic bubble

Order number VG5-161-PT0

VG5-162-PT0 AutoDome 100 Series Day/Night NTSC In­door Pendant Camera

Analog 1/3-inch 2.7-13.5 mm day/night CCD NTSC
camera, indoor pendant housing with a tinted acrylic
bubble

Order number VG5-162-PT0

VG5-163-PT0 AutoDome 100 Series Color NTSC Indoor
Pendant Camera

Analog 1/3-inch 5-50 mm color CCD NTSC camera, in­door pendant housing with a tinted acrylic bubble

Order number VG5-163-PT0

VG4-A-PA1 Pendant Arm Mount with 120 VAC Trans­former

Pendant arm mount with power supply box for Auto­Dome Series cameras with a 120 VAC transformer,
white

Order number VG4-A-PA1

VG4-A-PA2 Pendant Arm Mount with 230 VAC Trans­former

Pendant arm mount with power supply box for Auto­Dome Series cameras with a 230 VAC transformer,
white

Order number VG4-A-PA2

VGA-PEND-ARM Pendant Arm with Wiring

Compatible with an AutoDome Series pendant housing

Order number VGA-PEND-ARM

VGA-PEND-WPLATE Mounting Plate

Mounting plate for VGA-PEND-ARM, compatible with
an AutoDome Series camera

Order number VGA-PEND-WPLATE

VGA-ROOF-MOUNT Roof Mount

Roof parapet mount, white
(VG4-A-9543 Pipe Mount Cap required. Available sepa­rately.)

Order number VGA-ROOF-MOUNT

LTC 9230/01 Flat Roof Mount Adapter

For mounting a unit in an upright position on a flat sur­face for roof parapet mount VGA-ROOF-MOUNT

Order number LTC 9230/01

VG4-A-9541 Pole Mount Adapter

Pole mount adapter for a for an AutoDome Series
pendant arm or a VEI-30 or NEI-30 Dinion Infrared Im­ager, designed for poles with a diameter of
100‑380 mm (4‑15 in.), white

Order number VG4-A-9541

VG4-A-9542 Corner Mount Adapter

Corner mount adapter for an AutoDome Series pend­ant arm or a VEI-30 or NEI-30 Dinion Infrared Imager

Order number VG4-A-9542

VG5-164-PT0 AutoDome 100 Series Day/Night NTSC In­door Pendant Camera

Analog 1/3-inch 5-50 mm day/night CCD NTSC camera,
indoor pendant housing with a tinted acrylic bubble

Order number VG5-164-PT0

VG5-164-EC0 AutoDome 100 Series Day/Night NTSC
Outdoor Pendant Camera

Analog 1/3-inch 5-50 mm day/night CCD NTSC camera,
outdoor pendant housing with a clear acrylic bubble

Order number VG5-164-EC0

Accessories

VG4-A-PA0 Pendant Arm Mount

Pendant arm mount with power supply box for a Auto­Dome Series cameras, no transformer, white

Order number VG4-A-PA0

VG4-A-9543 Pipe Mount

Pipe mount, white, for an AutoDome Series pendant
housing

Order number VG4-A-9543

VGA-IP54K-IC IP54 In-ceiling Gasket Kit for AutoDome
100/600 Series

Gasket kit for AutoDome 100 and 600 Series Auto­Dome In-ceiling mounts required for IP54 environmen­tal rating

Order number VGA-IP54K-IC

VGA-IC-SP In-ceiling Support Kit for AutoDome 100/600
Series

Suspended ceiling support kit for AutoDome 100 and
600 Series AutoDome In-ceiling mounts

Order number VGA-IC-SP

8 | AutoDome 100 Series Analog Fixed Camera

VG4-A-PSU0 24 VAC Power Supply Unit

24 VAC, 100 W, NEMA-rated, white, for an AutoDome
Series camera

Order number VG4-A-PSU0

VG4-A-PSU1 120 VAC Power Supply Unit

120 VAC, 100 W, NEMA-rated, white, for an AutoDome
Series camera

Order number VG4-A-PSU1

VG4-A-PSU2 230 VAC Power Supply Unit

230 VAC, 100 W, NEMA-rated, white, for an AutoDome
Series camera

Order number VG4-A-PSU2

VGA-SBOX-COVER Cover for AutoDome Power Supply
Boxes

Order number VGA-SBOX-COVER

VGA-FIBER-AN Analog Multimode Fiber Optic Kit

Analog multimode video transmitter/data receiver fiber
optic kit

Order number VGA-FIBER-AN

VG4-A-TSKIRT Trim Skirt for AutoDome Power Supply
Boxes

Trim skirt for the following AutoDome Series power
supply boxes:
VG4-A-PSU0F, VG4-A-PSU1, VG4-A-PSU1F, VG4-A­PSU2, VG4-A-PSU2F,
VG4-SBOX-24VAC, VG4-SBOX-120VAC, and VG4­SBOX-230VAC

Order number VG4-A-TSKIRT

VG4-MTRN-E1 AutoDome TCP/IP Communications Mod­ule

H.264 TCP/IP (Ethernet) communications module for
AutoDome 100, 200, 300 and 500i Series products

Order number VG4-MTRN-E1

VG4-SHTR-XT Heating Module

Extended temperature heater module extends temper­ature range to –60°C (–76°F) for EnviroDomes and Au­toDome 600 Series Outdoor Pendants only

Order number VG4-SHTR-XT

Software Options

VP-CFGSFT Configuration Tool for Imaging Devices

Camera configuration software for use with Bilinx cam­eras

Order number VP-CFGSFT

VGA-BUBBLE-CCLR Clear Rugged Bubble for an In-ceil­ing Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-CCLR

VGA-BUBBLE-CTIR Tinted Rugged Bubble for an In-ceil­ing Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-CTIR

VGA-BUBBLE-PCLR Clear Rugged Bubble for a Pendant
Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-PCLR

VGA-BUBBLE-PTIR Tinted Rugged Bubble for a Pendant
Housing

Impact resistant polycarbonate bubble

Order number VGA-BUBBLE-PTIR

VGA-BUBBLE-PCLA Clear High-resolution Bubble for a
Pendant Housing

Low-impact acrylic bubble

Order number VGA-BUBBLE-PCLA

VGA-BUBBLE-PTIA Tinted High-resolution Bubble for a
Pendant Housing

Low-impact acrylic bubble

Order number VGA-BUBBLE-PTIA
