Ú Table of contents
[en]Instruction manual
Safety precautions..................................................................... 4
Your new appliance ................................................................... 6
Accessories .........................................................................................6
Gas burners................................................................................ 6
Switching on manually .......................................................................6
Switching on automatically................................................................7
Safety system ......................................................................................7
Switching off a burner........................................................................7
Power levels.........................................................................................7
Main switch/Hob lock (Main Switch)...............................................7
Warnings...............................................................................................7
Cooking guidelines.............................................................................8
Electric hob ................................................................................ 8
Before using for the first time...........................................................8
Operation..............................................................................................8
Precautions for use ............................................................................8
Cooking guidelines.............................................................................8
: Safety precautions
The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with.
Read these instructions carefully. You will only be able to use your appliance safely and effectively when you have read them. These operating and installation instructions should be retained, and passed onto the buyer if the appliance is sold.
The images shown in these instructions are for guidance only.
Do not remove the appliance from its protective packaging until it is installed in the unit. Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service.
This appliance is class 3 type, according to the EN 30-1-1 regulation for gas appliances: built-in appliance.
Before installing your new hob, ensure that it is being installed according to the assembly instructions.
This appliance cannot be installed on yachts or in caravans.
This appliance must only be used in well ventilated places.
This appliance is not intended for operation with an external clock timer or a remote control.
All operations relating to installation,
connection, regulation and conversion to
Cooking pans ............................................................................. 9
Suitable pans.......................................................................................9
Precautions for use ............................................................................9
Cleaning and maintenance ....................................................... 9
Cleaning................................................................................................9
Maintenance ........................................................................................9
Trouble shooting...................................................................... 10
Technical Assistance Service................................................. 10
Warranty conditions......................................................................... 10
Used appliances and packaging ............................................ 11
Environmentally-friendly disposal.................................................. 11
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at www.bosch-home.com and
in the online shop www.bosch-eshop.com
other gas types must be performed by an
authorised technician, respecting all
applicable regulations, standards and the
specifications of the local gas and
electricity suppliers. Special attention
shall be paid to ventilation regulations.
This appliance leaves the factory set to the
gas type that is indicated on the
specifications plate. If this needs to be
changed, please consult the assembly
instructions. It is recommended you contact
the Technical Assistance Service to change
to another gas type.
This appliance has been designed for home
use only, not for commercial or professional
use. This appliance is only intended for
cooking purposes, not as a heating system.
The warranty will only be valid if the
appliance is used for the purpose for which
it was designed.
Never leave the appliance unattended during operation.
Do not use lids or protective barriers for children which are not recommended by the hob manufacturer. They may cause accidents such as those due to the overheating, ignition or detachment of fragments of materials.
This appliance may be used by children
8 years old and older and by persons with
reduced physical, sensory or mental
capacity or a lack of experience or
knowledge if they are supervised or they
4
have been instructed about the safe use of
the appliance and have understood the
associated dangers.
Never let children play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children.
Risk of deflagration!
Accumulation of unburned gas in an enclosed area carries a risk of deflagration. Do not subject the appliance to draughts. These might blow out the burners. Carefully read the instructions and warnings on the operation of gas burners.
Risk of poisoning!
The kitchen will become hot and humid and
combustion products produced when this
gas appliance is used. Make sure the
kitchen is well ventilated, particularly when
the hob is in operation: either keep the
natural ventilation apertures open, or install
a ventilation system (extractor hood).
Intense prolonged use of the appliance may
require additional or more effective
ventilation: open a window or increase the
power of the ventilation system.
■
The pan may suddenly jump due to the
presence of liquid between the base of the
pan and the hotplate. Always ensure that
the hotplate and the bottom of the pan are
kept dry.
Risk of injuries!
■
In the event of a malfunction, turn off the
appliance’s gas and electricity supply. For
repairs, call our Technical Assistance
Service.
Risk of injuries!
■
Do not tamper with the appliance's
interior. If necessary, call our Technical
Assistance Service.
Risk of injuries!
■
If one of the control knobs will not turn, do
not force it. Call the Technical Assistance
Service immediately so that they can
repair or replace them.
Risk of electric shock!
Do not clean the appliance using steam cleaners.
Risk of burns!
The hotplates and their immediate vicinity get very hot. Never touch the hot surfaces. Keep children under 8 years old well away from this appliance.
Risk of fire!
■
The hotplates get very hot. Do not rest
inflammable objects on the hob. Do not
store objects on the hob.
Risk of fire!
■
Do not store or use corrosive chemicals,
products which produce fumes,
inflammable materials or non-food
products below or near this domestic
appliance.
Risk of fire!
■
Fat or oil which is overheated can catch
fire easily. Never leave fat or oil to heat up
unattended. If oil or fats do catch fire,
never use water to put the fire out. Put the
fire out by covering the pan with a lid and
switch off the hotplate.
Risk of injuries!
■
Pans which are damaged, are not the right
size, hang over the edge of the hob or are
not positioned correctly can cause serious
injuries. Follow the advice and warnings
provided relating to the cooking pans.
Risk of injuries!
5
Your new appliance
Page 2 shows an overall view of your new appliance as well as
the burner power.

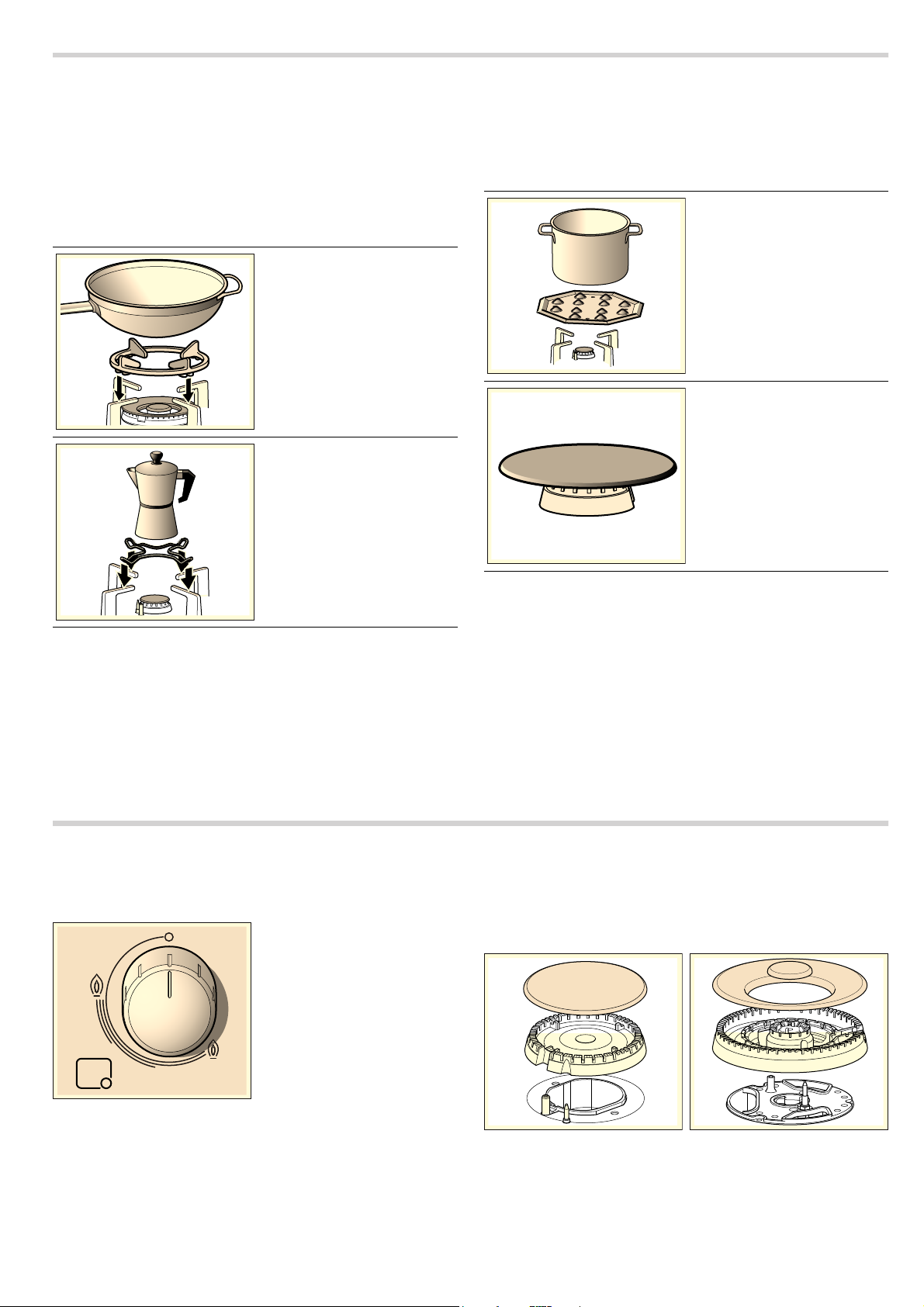

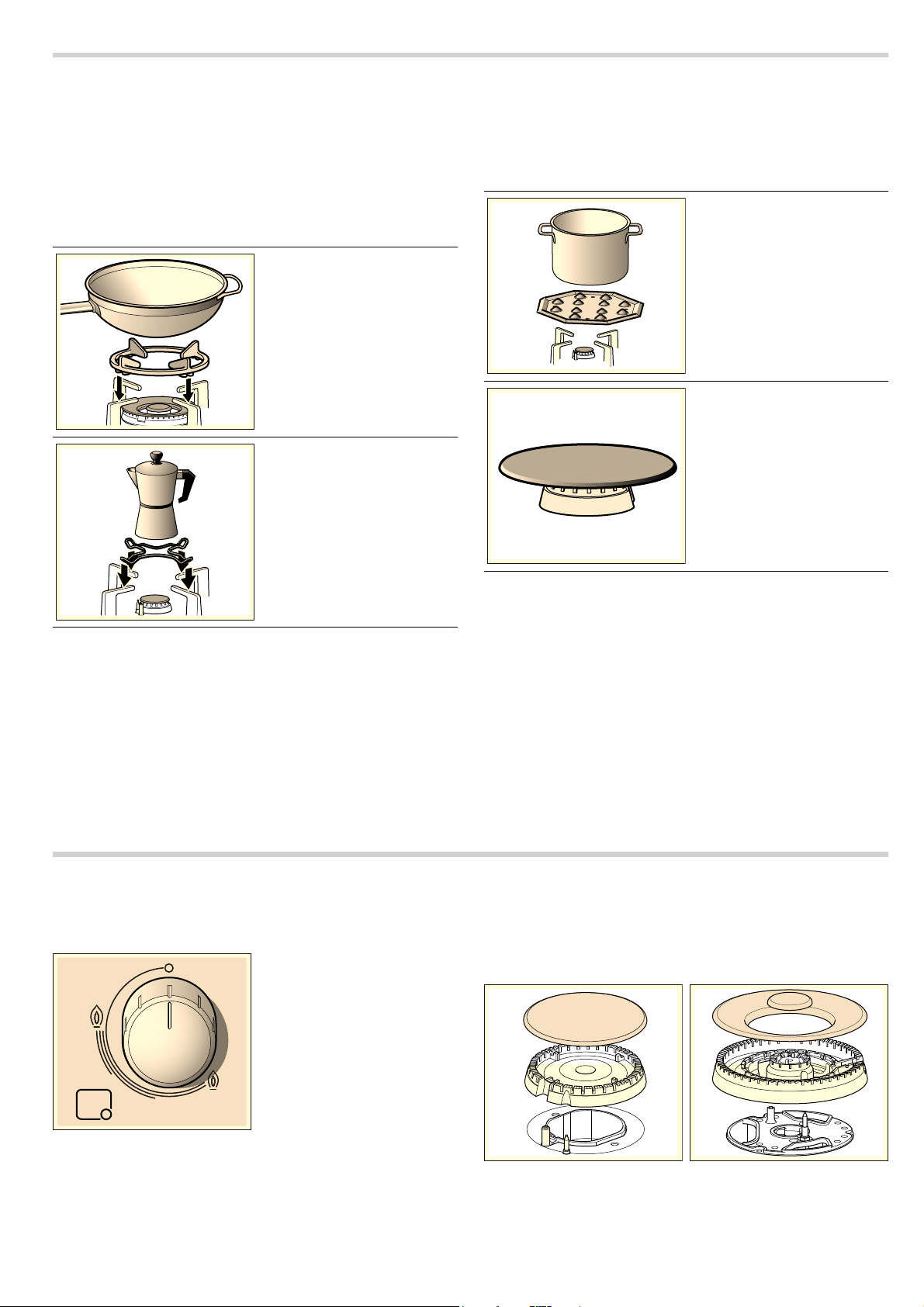

Accessories
Depending on the model, the hob may include the following
accessories. These can also be acquired from the Technical
Assistance Service.
Additional wok pan support
Only for use on wok burners
with pans with a round base.
Using these pans may cause
some temporary deformation
of the grease drip tray. This is
normal and does not affect
the operation of the appliance.
Additional coffee maker
support
Only for use on the auxiliary
burner with pans which are no
more than 12 cm in diameter.
Simmer Plate
This accessory has been
designed to reduce the level
of heat at the lowest power
setting.
Place the accessory directly
on the pan support with the
cones facing upwards, never
directly over the burner. Centre the pan over the accessory.
Simmer Cap
Burner specially designed to
cook at minimum power. In
order to use it, remove the
auxiliary burner and replace it
with the Simmer Cap burner.
Gas burners
There are indications to show which burner each control knob
operates.
--------
Code
HEZ298107 Additional wok pan support: cast iron (4-5 kW)
HEZ298108 Additional wok pan support: cast iron (3.3 kW)
HEZ298110 Additional wok pan support: steel enamel
HEZ298115 Additional coffee maker support: cast iron
HEZ298114 Additional coffee maker support: steel enamel
HEZ298105 Simmer Plate
HEZ298104 Simmer Cap
The manufacturer accepts no liability if these accessories are
not used or are used incorrectly.
It is essential to ensure that all the burner parts and pan
supports are correctly installed for the appliance to work
correctly. Do not swap the burner caps around.
Switching on manually
1. Press the chosen burner control knob and turn it
anticlockwise to the required setting.
2. Use any type of lighter or flame (cigarette lighter, matches,
etc.) and bring it close to the burner.
6
Switching on automatically
If your hob can be switched on automatically (ignition sparkers):
1. Press the chosen burner control knob and turn it
anticlockwise to the maximum power setting.
While the control knob is still pressed down, sparks are
produced on all burners. The flame ignites.
2. Release the control knob.
3. Turn the control knob to the required setting.
If it does not come on, turn the control knob to the off setting
and repeat the steps above. This time, press and hold the
control knob for longer (up to 10 seconds).
Inner flame on full power.
Inner flame on minimum
power.
: Risk of deflagration!
If after 15 seconds the flame does not ignite, switch off the
burner and open a nearby window or door. Wait at least one
minute before trying to switch the burner back on.
Safety system
Depending on the model, your hob may have a safety system
(thermocouple) that prevents the flow of gas if the burners
accidentally switch off.
LJQLWLRQVSDUNHU
To ensure that this device is active:
1. Switch on the burner as usual.
2. Without releasing the control knob, press and hold it down
firmly for 4 seconds after lighting the flame.
Switching off a burner
Turn the corresponding control knob clockwise to the 0 setting.
Power levels
The progressive control knobs can be used to control the
power needed, from minimum to maximum power.
WKHUPRFRXSOH
Main switch/Hob lock (Main Switch)
The hob may have a main switch to cut off the mains gas
supply and switch off all the burners at the same time. This
switch is very practical if there are children in the house or, if for
any reason, all the burners must be switched off quickly.
To lock the hob:
Press the main switch.
This switches off all the burners which are on. The hob is locked.
$ %
To unlock the hob:
1. Turn all the control knobs to the "off" position.
2. Press the main switch and turn it fully clockwise.
$
%
Setting
High flame
Low flame
For dual double-flame burners, the inner and outer flames can be
controlled separately. The available power levels are as follows:
Control knob off
Û
Maximum capacity or aperture and elec-
—
tricity on
Minimum capacity or aperture
˜
Inner and outer flame on full
power.
Outer flame on minimum, inner
flame on full power.
The mains gas supply is turned on. You can now use your hob
normally.
Warnings
It is normal to hear a soft whistling noise while the burner is
operating.
When first used, it is normal for the burner to give off odours.
This does not pose any risk and does not indicate a
malfunction. They will disappear in time.
An orange-coloured flame is normal. This is caused by the
presence of dust in the atmosphere, spilt liquids, etc.
If the burner flames are accidentally blown out, switch off the
burner operating control knob and do not try to relight it for at
least 1 minute.
A few seconds after the burner is switched off, a sound (thud)
will be produced. This is not a fault - this means that the safety
device is no longer operating.
Keep the burner as clean as possible. If the ignition sparkers
are dirty they will not light properly. Clean them periodically
using a small non-wire brush. Bear in mind that the ignition
sparkers must not suffer any serious impacts.
7
Cooking guidelines
Burner Very high - High Medium Low
Wok burner Boiling, steam-
Rapid burner Escalopes,
Semi-rapid
burner
Auxiliary
burner
ing, griddling,
toasting, paellas,
Asian food (wok).
steaks, omelettes, frying
Steamed potatoes, fresh vegetables, vegetable
stews, pasta
Cooking: casseroles, rice pudding, caramel
Reheating and keeping
things hot: cooked and precooked dishes
Rice, white
sauce, ragout
Reheating, keeping things
hot and making tasty casseroles
Defrosting
and slow
cooking: vegetables, fruit
and frozen
products
Steaming:
fish, vegetables
Melting: butter, chocolate, jelly
Electric hob
Before using for the first time
To remove the new smell, switch on the electric hob to
maximum power for five minutes without any pan on it. At this
point it is normal to notice smoke and odours, but these will
disappear over time.
Caution!
Do not operate the hotplates without placing pans on top,
except during this initial heating phase.
Operation
The electric hob is controlled by a control knob, which can be
used to choose the power required for the food you are
cooking.
Switching on
Turn the control knob anticlockwise to the required setting. The
operation indicator will light up.
Setting 1: low power.
Setting 9: full power.
Note: It is recommended to start cooking on full power and
then to use intermediate power levels after a few minutes.
Switching off
Turn the control knob clockwise to the off setting. The operation
indicator will switch off.
Precautions for use
The following advice is intended to help you save energy and
prevent cookware damage:
■ Use a pan with thick flat base.
■ Use pans which are suitably sized for the hotplate. The
diameter of the base of the pan should match that of the
hotplate, and should not be smaller.
■ Do not allow liquids to be spilt on the surface of the electric
hob. Use deep pans when cooking with large quantities of
liquid.
■ The hob must be kept dry. Salt water and wet pans can
damage the hob. Do not cook with wet pans.
Cooking guidelines
The following suggestions are intended as a guide only.
Increase the power for:
■ large quantities of liquid,
■ preparation of large dishes,
■ uncovered pans.
Cooking: Setting
Melting: chocolate, butter, gelatine. 1-2
Cooking: rice, white sauce and ragout. 2-3
Cooking: potatoes, pasta, vegetables. 4-5
Light frying: stews, roast joints. 4-5
Steaming: fish. 5
Heating, keeping things warm: ready
meals.
Grilling: escalopes, steaks, omelettes. 6-7-8
Cooking and browning 9
2-3-4-5
Residual heat
The electric hob can be switched off slightly before the end of
the cooking time. The residual heat will enable you to continue
cooking for several minutes, thus saving energy.
8
Cooking pans
Suitable pans
Burner Minimum pan
diameter
Wok burner 22 cm Rapid burner 22 cm 26 cm
Semi-rapid burner 14 cm 20 cm
Auxiliary burner 12 cm 16 cm
Electric hob 14 cm 18 cm
Maximum pan
diameter
Precautions for use
The following advice is intended to help you save energy and
prevent pan damage:
Use pans which are the right
size for each burner.
Do not use small pans on
large burners. The flame must
not touch the sides of the pan.
Do not use damaged pans,
which do not sit evenly on the
hob. Pans may tip over.
Only use pans with a thick, flat
base.
Do not cook without using a lid
and make sure the lid is
properly fitted. This wastes
energy.
Always centre the pan over the
burner, not to one side.
Otherwise it could tip over.
Do not place large pans on the
burners near the control
knobs. These may be
damaged by the very high
temperatures.
Place the pans on the pan
supports, never directly on the
burner.
Make sure that the pan
supports and burner caps are
correctly positioned before
using the appliance.
Pans should be placed on the
hob carefully.
Do not strike the hob and do
not place excessive weight on
it.
Cleaning and maintenance
Cleaning
Once the appliance is cool, use a sponge to clean it with soap
and water.
After each use, clean the surface of the respective burner parts
once they have cooled down. If any residue is left (baked-on
food, drops of grease etc.), however little, it will become stuck
to the surface and more difficult to remove later. The holes and
grooves must be clean for the flame to ignite properly.
The movement of some pans may leave metal residue on the
pan supports.
Clean the burners and pan supports using soapy water and
scrub with a non-wire brush.
If the pan supports are fitted with rubber rests, ensure that
these are also cleaned. The rests may come loose and the pan
support may scratch the hob.
Always dry the burners and pan supports completely. Water
droplets or damp patches on the hob at the start of cooking
may damage the enamel.
After cleaning and drying the burners, make sure the burner
caps are correctly positioned on the diffuser.
Caution!
■ Do not use steam cleaners. This could damage the hob.
■ If your hob is fitted with a glass or aluminium panel, never use
a knife, scraper or similar implement to clean the point where
it joins the metal.
Maintenance
Always clean off any liquid as soon as it is spilt. This will
prevent food remains from sticking to the hob surface and you
will save yourself any unnecessary effort.
Do not leave acidic liquids (e.g. lemon juice, vinegar, etc.) on
the hob.
To protect the surface of the electric hob, treat it with oil or any
protective product available on the market.
Avoid spilling salt on the surface of the electric hob.
Due to the high temperatures endured, the wok burner and the
stainless steel zones (grease drip tray, burner outline, etc.) can
change colour. This is normal. After each use, clean these
areas with a product that is suitable for stainless steel.
It is recommended that the cleaning product available from our
Technical Assistance Service (code 464524) is used regularly.
Caution!
The stainless steel cleaner must not be used in the area around
the controls. The (printed) symbols may be wiped off.
9
Trouble shooting
Sometimes certain faults detected can be easily resolved.
Before calling the Technical Assistance Service, bear in mind
the following advice:
Fault Possible cause Solution
The general electrical system is malfunctioning.
The automatic switching
on function does not work.
The burner flame is not uniform.
The gas flow is not normal
or there is no gas.
The kitchen smells of gas. A gas tap has been left on. Turn off the taps.
The burner immediately
switches off after releasing
the control knob.
Defective fuse. Check the fuse in the main fuse box and change it
The automatic safety switch or circuit breaker has
tripped.
There may be food or cleaning products stuck
between the ignition sparkers and the burners.
The burners are wet. Dry the burner caps carefully.
The burner caps are not correctly positioned. Check that the burner caps are correctly posi-
The appliance is not earthed, is poorly connected
or the earthing is faulty.
The burner components are not correctly positioned.
The grooves on the burner are dirty. Clean the grooves on the burner.
The gas supply is blocked by gas taps. Open all gas taps.
If the gas is supplied from a gas cylinder, check
that it is not empty.
Incorrect coupling of gas cylinder. Check that the coupling is sound.
Possible gas leak. Shut off the gas supply, ventilate the premises and
The control knob was not held down for long
enough.
The grooves on the burner are dirty. Clean the grooves on the burner.
if it is damaged.
Check the main control panel to see if the auto-
matic safety switch or circuit breaker has tripped.
The space between the ignition sparker and the
burner must be clean.
tioned.
Contact the installation technician.
Correctly place the parts on the appropriate
burner.
Change the gas cylinder.
immediately notify an authorised installation technician to check and certify the installation. Do not
use the appliance until ensuring that there is no
gas leak in the installation or appliance itself.
Once the burner is on, hold the control knob down
a few seconds longer.
Technical Assistance Service
When contacting our Technical Assistance Service, please
provide the product number (E-Nr.) and production number
(FD) of the appliance. This information is given on the
specifications plate located on the lower section of the hob and
on the label in the user manual.
Please find the contact data of all countries in the enclosed
customer service list.
To book an engineer visit and product advice
GB 0844 8928979
Calls from a BT landline will be charged at up to 3
pence per minute. A call set-up fee of up to 6 pence may
apply.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 € per
minute.
Trust the expertise of the manufacturer, and rest assured that
the repair will be carried out by trained service technicians
using original spare parts for your domestic appliance.
Warranty conditions
In the unlikely event that the appliance is damaged or does not
meet your expectations in terms of quality, please inform us as
soon as possible. For the warranty to be valid, the appliance
must not have been tampered with, or used inappropriately.
The applicable warranty conditions are those set out by the
company's representative office in the country of purchase.
Detailed information is available from retail outlets. Proof of
purchase must be presented to obtain the benefits of the
warranty.
We reserve the right to introduce changes.
10
Used appliances and packaging
If the ) symbol is shown on the specifications plate, bear in
mind the following instructions:
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance is labelled in accordance with European
Directive 2012/19/EU concerning used electrical and
electronic appliances (waste electrical and electronic
equipment - WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
The packaging of your appliance has been manufactured using
only the materials which are strictly necessary to guarantee
efficient protection during transport. These materials are 100%
recyclable, thus reducing the environmental impact. You can
also contribute to caring for the environment by following the
advice below:
■ Dispose of the packaging in the appropriate recycling bin.
■ Before you get rid of an old appliance, make sure you disable
it. Contact your local authority to find out the address of your
nearest recycling centre to dispose of your appliance.
■ Do not pour used oil down the sink. Collect it in a sealed
container and take it to an appropriate collection point or,
failing that, place it in the rubbish bin (it will end up in a
controlled dump; this is probably not the best option, but it
will avoid contaminating ground water)
11
Û Índice
[es]Instrucciones de uso
Indicaciones de seguridad...................................................... 12
Su nuevo aparato..................................................................... 14
Accesorios ........................................................................................14
Quemadores de gas ................................................................ 14
Encendido manual........................................................................... 14
Encendido automático....................................................................15
Sistema de seguridad.....................................................................15
Apagar un quemador...................................................................... 15
Niveles de potencia......................................................................... 15
Interruptor principal / Bloqueo de la placa de cocción (Main
Switch) ...............................................................................................15
Advertencias ..................................................................................... 15
Consejos de cocinado....................................................................16
Placa eléctrica.......................................................................... 16
Antes del primer uso....................................................................... 16
Funcionamiento................................................................................16
Advertencias de uso .......................................................................16
Consejos de cocinado....................................................................16
: Indicaciones de seguridad
Recipientes de cocinado......................................................... 17
Recipientes apropiados.................................................................. 17
Advertencias de uso .......................................................................17
Limpieza y mantenimiento...................................................... 17
Limpieza.............................................................................................17
Mantenimiento ..................................................................................17
Solucionar anomalías.............................................................. 18
Servicio de asistencia técnica................................................ 18
Condiciones de garantía ................................................................ 18
Embalaje y aparatos usados................................................... 19
Eliminación de residuos respetuosa con el medio ambiente. 19
Produktinfo
Encontrará más información sobre productos, accesorios,
piezas de repuesto y servicios en internet:
www.bosch-home.com y también en la tienda online:
www.bosch-eshop.com
El fabricante queda exento de toda responsabilidad si no se cumplen las disposiciones de este manual.
Lea atentamente estas instrucciones. Solo entonces podrá manejar su aparato de manera efectiva y segura. Conserve las instrucciones de uso e instalación y entréguelas con el aparato si este cambia de dueño.
Las imágenes representadas en estas instrucciones tienen carácter orientativo.
No saque el aparato del embalaje protector hasta el momento del encastre. Si observa algún daño en el aparato, no lo conecte. Póngase en contacto con nuestro Servicio Técnico.
Este aparato corresponde a la clase 3, según la norma EN 30-1-1 para aparatos a gas: aparato encastrado en un mueble.
Antes de instalar su nueva placa de cocción asegúrese de que la instalación se realiza siguiendo las instrucciones de montaje.
Este aparato no puede ser instalado en yates o caravanas.
Este aparato se debe utilizar únicamente en lugares suficientemente ventilados.
Este aparato no está previsto para el funcionamiento con un reloj temporizador externo o un mando a distancia.
Todos los trabajos de instalación,
conexión, regulación y adaptación a otros
tipos de gas deben ser realizados por un
técnico autorizado, respetando toda la
normativa y legislación aplicables y las
prescripciones de las compañías locales
proveedoras de gas y electricidad. Se
pondrá especial atención a las
disposiciones aplicables en cuanto a la
ventilación.
Este aparato sale de fábrica adaptado al
tipo de gas que indica la placa de
características. Si fuera necesario
cambiarlo, consulte las instrucciones de
montaje. Se recomienda llamar a nuestro
Servicio Técnico para la adaptación a otros
tipos de gas.
Este aparato ha sido diseñado solo para
uso doméstico, no está permitido su uso
comercial o profesional. Utilice el aparato
únicamente para cocinar, nunca como
calefacción. La garantía únicamente tendrá
validez en caso de que se respete el uso
para el que fue diseñado.
Durante el funcionamiento, el aparato no debe dejarse sin vigilancia.
No use tapas o barreras de protección para
niños que no estén recomendadas por el
fabricante de la placa de cocción. Pueden
provocar accidentes, p. ej. debido al
sobrecalentamiento, ignición o
12
desprendimiento de fragmentos de
materiales.
Este aparato puede ser utilizado por niños
a partir de 8 años y personas que
presenten limitaciones en sus facultades
físicas, sensoriales o psíquicas o que
carezcan de experiencia y conocimientos si
son supervisados o han sido instruidos
respecto al uso seguro del aparato y son
conscientes de los peligros que conlleva su
uso.
No dejar que los niños jueguen con el aparato. La limpieza y el mantenimiento rutinario no debe encomendarse a los niños a menos que estén supervisados.
¡Peligro de deflagración!
La acumulación de gas sin quemar en un
recinto cerrado conlleva peligro de
deflagración. No someta el aparato a
corrientes de aire. Los quemadores podrían
apagarse. Lea atentamente las
instrucciones y advertencias relativas al
funcionamiento de los quemadores de gas.
¡Peligro de intoxicación!
El uso de un aparato de cocción a gas
produce calor, humedad y productos de
combustión en el local donde está
instalado. Asegure una buena ventilación
de la cocina, especialmente mientras la
placa de cocción esté en funcionamiento:
mantenga abiertos los orificios de
ventilación natural o instale un dispositivo
de ventilación mecánica (campana
extractora). La utilización intensa y
prolongada del aparato puede necesitar
una ventilación complementaria o más
eficaz: abra una ventana o aumente la
potencia de la ventilación mecánica.
■
Las grasas o aceites sobrecalentados se
inflaman fácilmente. No se ausente
mientras caliente grasa o aceite. Si se
inflaman, no apague el fuego con agua.
Cubra el recipiente con una tapa para
sofocar el fuego y desconecte la zona de
cocción.
¡Peligro de lesiones!
■
Los recipientes que presenten daños,
tengan un tamaño inadecuado, rebasen
los bordes de la placa de cocción o estén
mal situados pueden provocar lesiones
graves. Observe los consejos y
advertencias relativos a los recipientes de
cocinado.
¡Peligro de lesiones!
■
Los recipientes pueden saltar de forma
repentina por la presencia de líquido entre
la base del recipiente y la zona de
cocción. Mantenga siempre secas la zona
de cocción y la base del recipiente.
¡Peligro de lesiones!
■
En caso de avería, corte la alimentación
eléctrica y de gas del aparato. Para la
reparación, llame a nuestro servicio
técnico.
¡Peligro de lesiones!
■
No manipule el interior del aparato. Si
fuera necesario, llame a nuestro servicio
técnico.
¡Peligro de lesiones!
■
Si alguno de los mandos no se puede
girar, no lo fuerce. Llame inmediatamente
al servicio técnico para que proceda a su
reparación o sustitución.
¡Peligro de descarga eléctrica!
No utilice máquinas de limpieza a vapor para limpiar el aparato.
¡Peligro de quemaduras!
Las zonas de cocción y adyacentes se calientan mucho. No toque nunca las superficies calientes. Mantenga alejados a los niños menores de 8 años.
¡Peligro de incendio!
■
Las zonas de cocción se calientan mucho.
No coloque objetos inflamables sobre la
placa de cocción. No almacene objetos
sobre la placa de cocción.
¡Peligro de incendio!
■
No almacene ni utilice productos químicos
corrosivos, vapores, materiales
inflamables ni productos no alimenticios
debajo de este electrodoméstico ni cerca
de él.
¡Peligro de incendio!
13
Su nuevo aparato
En la página 2 encontrará una vista general de su aparato así
como la potencia de los quemadores.
Accesorios
Según modelo, la placa de cocción puede incluir los siguientes
accesorios. Estos también se pueden adquirir en el Servicio
Técnico.
Parrilla supletoria wok
Para utilizar exclusivamente
en quemadores wok con recipientes de base cóncava.
El uso de estos recipientes
puede causar cierta deformación temporal en la grasera.
Esto es normal y no tiene
influencia en el funcionamiento del aparato.
Parrilla supletoria cafetera
Para utilizar exclusivamente
en el quemador auxiliar con
recipientes de diámetro inferior a 12 cm.
Simmer Plate
Este accesorio ha sido diseñado para reducir el nivel de
calor en la potencia mínima.
Colocar el accesorio directamente sobre la parrilla con
los volcanes hacia arriba,
nunca directamente sobre el
quemador. Colocar el recipiente centrado sobre el
accesorio.
Simmer Cap
Quemador exclusivamente
indicado para cocinar en la
potencia mínima. Para su utilización es preciso extraer el
quemador auxiliar y sustituirlo
por el quemador Simmer
Cap.
Quemadores de gas
Cada mando de accionamiento tiene señalado el quemador
que controla.
--------
Código
HEZ298107 Parrilla supletoria wok: hierro fundido (4-5 kW)
HEZ298108 Parrilla supletoria wok: hierro fundido (3,3 kW)
HEZ298110 Parrilla supletoria wok: acero esmaltada
HEZ298115 Parrilla supletoria cafetera: hierro fundido
HEZ298114 Parrilla supletoria cafetera: acero esmaltada
HEZ298105 Simmer Plate
HEZ298104 Simmer Cap
El fabricante no asume responsabilidad si no se utilizan o se
utilizan incorrectamente estos accesorios.
Para un correcto funcionamiento del aparato es imprescindible
asegurarse de que las parrillas y todas las piezas de los
quemadores estén bien colocadas. No intercambie las tapas
de los quemadores.
14
Encendido manual
1. Presione el mando del quemador elegido y gírelo hacia la
izquierda hasta la posición deseada.
2. Acerque algún tipo de encendedor o llama (mecheros,
cerillas, etc.) al quemador.
Loading...
