Bosch NETP069SUC Product Specifications - Download

30" Electric Cooktop

Benchmark® Series – Black with Stainless Steel Frame NETP069SUC

NETP069SUC

Black with Stainless

Steel Frame

The Benchmark® series
electric cooktop is sleek
in design, and features
AutoChef® technology
which maintains precise
cooking temperatures.

Features & Benefits

Five element cooktop
features a 3,600 Watt
dual-zone center element.

AutoChef® maintains exact
cooking temperatures for
consistent results.

The smooth ceramic glass
surface makes cooking and
cleaning especially easy.

SpeedBoost® offers
shorter heat-up times
for liquids.

PreciseSelect® offers 17
different direct cooking
level settings.

Element Performance

Power of Front Left

2,000 / 800 W

heating element

Power of Back Left

1,200 W

heating element

Power of Center

3,600 / 1,400 W

heating element

Power of Back Right

1,200 W

heating element

Power of Front Right

1,500 W

heating element

Element Size

Dimension of Front

7", 5"

Left heating element

Dimension of Back

6"

Left heating element

Dimension of Center

9", 6"

heating element

Dimension of Back

6"

Right heating element

Dimension of Front

7"

Right heating element

Technical Details

Watts 9,000 W

Circuit breaker 40 A

Volts 208-240 V

Frequency 60 Hz

Plug type No plug

Energy source Electric

Dimensions & Weight

Overall appliance
dimensions (HxWxD)

Required cutout size

1/4" +4" x 31" x
21 1/4"

4" x 28 7/8" x 20"

(HxWxD)

Minimum distance from

2 1/4"

counter front

Minimum distance from

2"

rear wall

Net weight 27 lbs

Accessories — Optional

HEZ390210

8" AutoChef® pan

HEZ390230

10" AutoChef® pan

HEZ390220

9" AutoChef® pan

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without

notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.

Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904

© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.

3/22

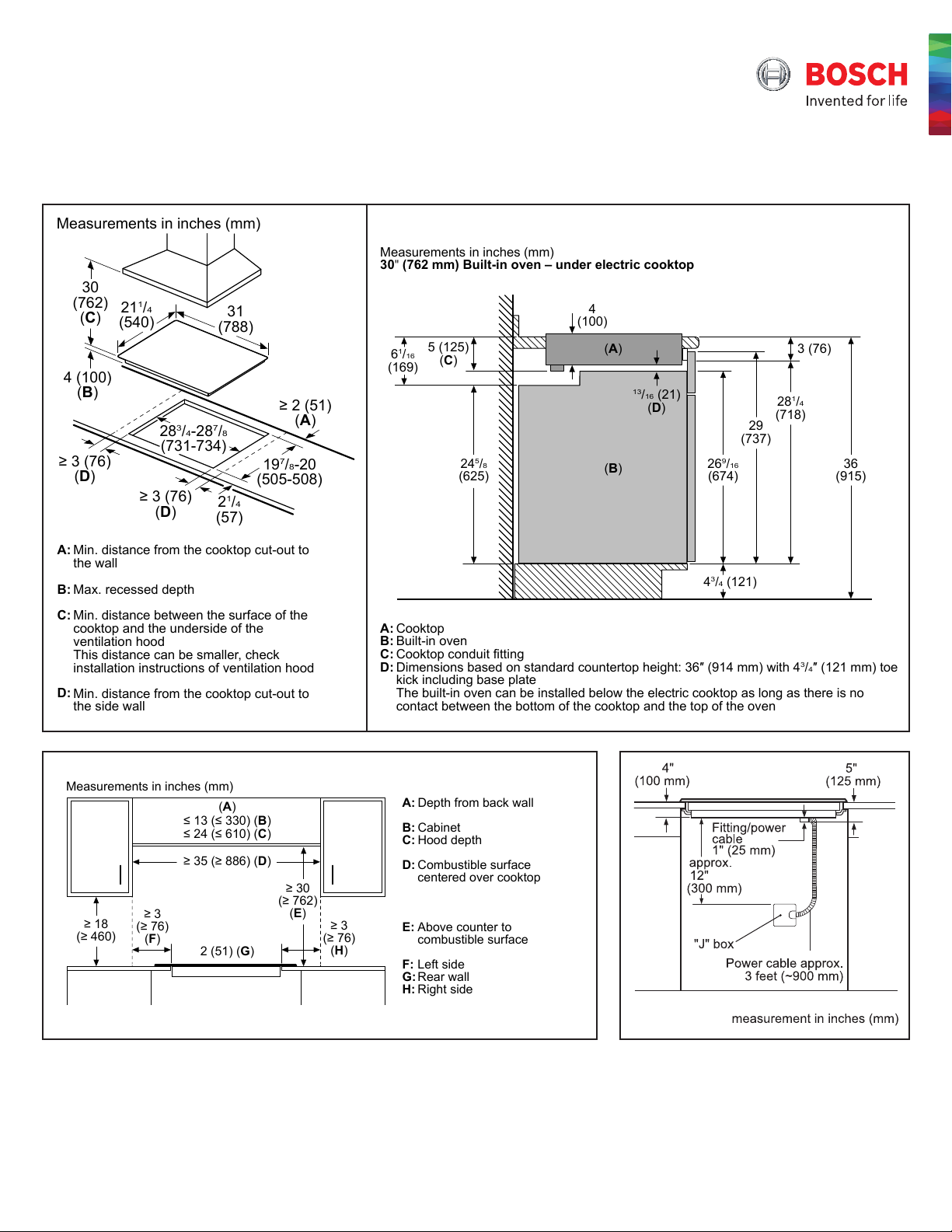

30" Electric Cooktop

D:C:B:

A:

The built-in oven can be installed below the electric cooktop as long as there is no

contact between the bottom of the cooktop and the top of the oven

Dimensions based on standard countertop height: 36″ (914 mm) with 4

3

/4″ (121 mm) toe

kick including base plate

Cooktop conduit fitting

Built-in oven

Cooktop

30" (762 mm) Built-in oven – under electric cooktop

Measurements in inches (mm)

(A)

5 (125)

(C)4(100)

61/16(169)

281/4(718)

43/4 (121)

245/8(625)

269/16(674)36(915)

29

(737)

3 (76)

13

/16 (21)

(D)

(B)

C:

D:B:A:

This distance can be smaller, check

installation instructions of ventilation hood

Min. distance from the cooktop cut-out to

the side wall

Min. distance between the surface of the

cooktop and the underside of the

ventilation hood

Max. recessed depth

Min. distance from the cooktop cut-out to

the wall

Measurements in inches (mm)

31

(788)

≥ 2 (51)

(A)

≥ 3 (76)

(D)

≥ 3 (76)

(D)

211/4(540)

21/4(57)

283/4-287/8(731-734)

197/8-20

(505-508)

30

(762)

(C)

4 (100)

(B)

C:

D:

B:

A:

This distance can be smaller, check

installation instructions of ventilation hood

Min. distance from the cooktop cut-out to

the side wall

Min. distance between the surface of the

cooktop and the underside of the

ventilation hood

Max. recessed depth

Min. distance from the cooktop cut-out to

the wall

H:

G:

F:

E:

D:

C:

B:

A:

Right side

Rear wall

Left side

Above counter to

combustible surface

Combustible surface

centered over cooktop

Hood depth

Cabinet

Depth from back wall

Measurements in inches (mm)

(A)

≤ 13 (≤ 330) (

B

)

≥ 35 (≥ 886) (

D

)

≥ 30

(≥ 762)

(E)

≥ 3

(≥ 76)

(F)

≥ 3

(≥ 76)

(H)

2 (51) (

G

)

≥ 18

(≥ 460)

≤ 24 (≤ 610) (

C

)

Benchmark® Series – Black with Stainless Steel Frame NETP069SUC

Installation Details

Installation above Wall Ovens
