Bosch NDN-265-PIO Specsheet

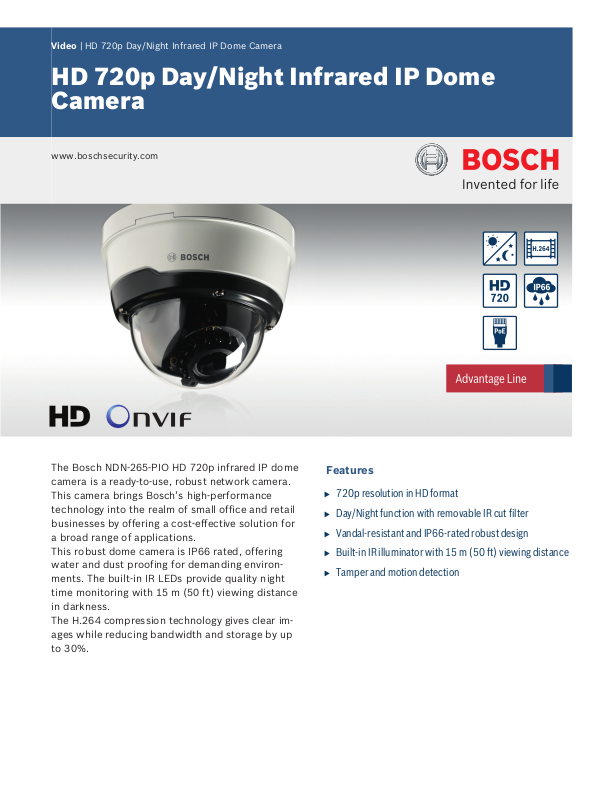

Video | HD 720p Day/Night Infrared IP Dome Camera

HD 720p Day/Night Infrared IP Dome
Camera

www.boschsecurity.com

The Bosch NDN-265-PIO HD 720p infrared IP dome

Features

camera is a ready-to-use, robust network camera.
This camera brings Bosch’s high-performance
technology into the realm of small office and retail

u 720p resolution in HD format

u Day/Night function with removable IR cut filter

businesses by offering a cost-effective solution for
a broad range of applications.
This robust dome camera is IP66 rated, offering
water and dust proofing for demanding environ­ments. The built-in IR LEDs provide quality night

u Vandal-resistant and IP66-rated robust design

u Built-in IR illuminator with 15 m (50 ft) viewing distance

u Tamper and motion detection

time monitoring with 15 m (50 ft) viewing distance
in darkness.
The H.264 compression technology gives clear im­ages while reducing bandwidth and storage by up
to 30%.

2 | HD 720p Day/Night Infrared IP Dome Camera

Represented by:

Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security Sys­tems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2013 | Data subject to change without notice

7272980491 | en, V6, 01. Oct 2013

Technical specifications

Power

Input voltage +12 VDC or

Power-over-Ethernet (48 VDC nominal)

Power consumption 6.72 W (max)

Video

Sensor type ¼-inch CMOS
Sensor pixels 1280 x 800
Sensitivity 0.3 lx (IR off)

0 lx (IR on)
Video resolution 720p, 480p, 240p
Video compression H.264 MP (Main Profile); H.264 BP+ (Baseline Pro-

Max. frame rate 30 fps

Night vision

Distance 15 m (50 ft)
LED 15 LED high efficiency array, 850 nm

Lens

Lens type Varifocal 2.7 to 9 mm, DC Iris F1.2 to close, D/N

Lens mount Board mounted

Connection

Analog video out BNC connector
Alarm input Short or DC 5V activation
Relay out Input rating Maximum 1 A 24 VAC/VDC

Audio

Audio input Line in jack connector
Audio output Line out jack connector
Audio communication Two-way, full duplex
Audio compression G.711, L16 (live and recording)

Local Storage

Memory card slot Supports up to 32 GB microSDHC card

Recording Continuous recording, ring recording. alarm/events/

Software Control

Unit configuration Via web browser or PC surveillance software

Network

Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP

Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE IEEE 802.3af compliant

Mechanical

Dimensions (H x W x D) Diameter: 145 mm (5.72 in)

Weight 1.07 kg (2.36 lb) approx.

Environmental

file Plus); M-JPEG

switch

(An SD card of Class 6 or higher is recommended for

HD recording)

schedule recording

V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP,

SNMP (V1, MIB‑II), 802.1x, SMTP, iSCSI, UPnP

(SSDP)

Height: 118 mm (4.66 in))

Operating temperature -20 ºC to +50 ºC (-4 ºF to +122 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity Less than 90% relative humidity (non condensing)

Certifications and approvals

Region Certification

Europe CE

Standards
EN 60950-1
UL 60950-1
UL 60950-22
CAN/CSA-C22.2 NO. 60950-1
CAN/CSA-C22.2 N0. 60950-22
EN 50130-4:1995 + A1:1998 + A2:2003
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022/24 class B
EN 61000-3-2 :2006
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
VCCI J55022 V2 / V3
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
EN 50121-4:2006
IEC 60825-1
Product certifications CE, FCC, UL, cUL, C-tick, CB, VCCI
Ingress protection IP66
Impact protection IK10

Ordering information

NDN-265-PIO HD 720p Day/Night Infrared
Dome Camera

Accessories

NDA-WMT-DOME Dome Wall Mount NDA-WMT-DOME

NDN-265-PIO
