Bosch NDC-455V03-21P User Manual

FlexiDome IP Camera

NDC-455

en Installation and Operation Manual

FlexiDome IP Camera Table of Contents | en 3

Table of Contents

1Safety 8

1.1 Safety precautions 8

1.2 Important safety instructions 9

1.3 Connection in applications 10

1.4 FCC & ICES compliance 11

1.5 UL certification 13

1.6 Bosch notices 14

1.7 Copyrights 15

2 Introduction 16

2.1 Features 16

3 System Information 18

3.1 Overview of functions 18

3.1.1 Progressive scan 18

3.1.2 Tri-streaming 18

3.1.3 ONVIF (Open Network Video Interface Forum) 18

3.1.4 Audio 18

3.1.5 Alarm I/O 18

3.1.6 Tamper detection and motion detectors 19

3.1.7 Impact-resistant dome with tamper-resistant housing 19

3.1.8 Video encoding 19

3.1.9 Multicast 19

3.1.10 Power-over-Ethernet 19

3.1.11 Encryption 19

3.1.12 Receiver 20

3.1.13 Recording 20

3.1.14 Snapshots 20

3.1.15 Backup 20

3.1.16 Configuration 20

3.2 Operation with external systems 21

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

4 en | Table of Contents FlexiDome IP Camera

4 Planning 23

4.1 Unpacking 23

4.2 System requirements 24

4.3 Install players 25

5 Installation 26

5.1 Disassembly 26

5.1.1 Surface mount version 26

5.1.2 Flush mount version 27

5.2 Mounting the unit 28

5.2.1 Surface mount 29

5.2.2 Flush mount 30

5.2.3 Make the connections 31

5.2.4 Indication LED 33

5.2.5 Reset button 33

5.2.6 Mount the camera 33

5.3 Camera positioning 34

5.3.1 Focal length and focus 35

5.3.2 Closing the unit 36

6 Camera set-up 37

6.1 Camera menu navigation 37

6.2 Install menu 38

6.2.1 Network submenu 39

6.2.2 Defaults submenu 39

6.2.3 Lens Wizard submenu 40

7 Browser connection 41

7.1 System requirements 41

7.2 Establishing the connection 42

7.2.1 Password protection in camera 42

7.3 Protected network 42

7.4 Connecting to a hardware decoder 43

7.4.1 Alarm connection 43

7.5 Connection established 44

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Table of Contents | en 5

7.5.1 LIVEPAGE 44

7.5.2 RECORDINGS 44

7.5.3 SETTINGS 44

8 Basic Mode 46

8.1 Basic Mode menu tree 46

8.2 Device Access 47

8.2.1 Camera name 47

8.2.2 Password 47

8.3 Date/Time 48

8.4 Network 49

8.5 Encoder Profile 50

8.6 Audio 50

8.7 Recording 50

8.7.1 Storage medium 50

8.8 System Overview 50

9 Advanced Mode 51

9.1 Advanced Mode menu tree 51

9.2 General 53

9.2.1 Identification 53

9.2.2 Password 53

9.2.3 Date/Time 54

9.2.4 Display Stamping 56

9.3 Web Interface 58

9.3.1 Appearance 58

9.3.2 LIVEPAGE Functions 59

9.3.3 Logging 60

9.4 Encoder 61

9.4.1 Privacy Masks 61

9.4.2 Encoder Profile 61

9.4.3 Encoder Streams 65

9.5 Audio 66

9.6 Camera 67

9.6.1 ALC 67

9.6.2 Enhance 68

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

6 en | Table of Contents FlexiDome IP Camera

9.6.3 Color 68

9.6.4 Installer Options 69

9.7 Recording 70

9.7.1 Storage Management 70

9.7.2 Recording Profiles 73

9.7.3 Retention Time 74

9.7.4 Recording Scheduler 75

9.7.5 Recording Status 76

9.8 Alarm 77

9.8.1 Alarm Connections 77

9.8.2 Video Content Analyses (VCA) 80

9.8.3 VCA configuration- Profiles 81

9.8.4 VCA configuration - Scheduled 87

9.8.5 VCA configuration - Event triggered 89

9.8.6 Audio Alarm 90

9.8.7 Alarm E-Mail 91

9.8.8 Alarm Task Editor 93

9.9 Interfaces 94

9.9.1 Alarm input 94

9.9.2 Relay 94

9.10 Network 96

9.10.1 Network 96

9.10.2 Advanced 100

9.10.3 Multicasting 101

9.10.4 JPEG Posting 102

9.10.5 Encryption 103

9.11 Service 104

9.11.1 Maintenance 104

9.11.2 Licenses 106

9.11.3 System Overview 106

10 Operation via the browser 107

10.1 Livepage 107

10.1.1 Processor load 107

10.1.2 Image selection 108

10.1.3 Digital I/O 108

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Table of Contents | en 7

10.1.4 System Log / Event Log 108

10.1.5 Saving snapshots 108

10.1.6 Recording video sequences 108

10.1.7 Running recording program 109

10.1.8 Audio communication 109

10.2 Recordings page 110

10.2.1 Controlling playback 110

11 Troubleshooting 112

11.1 Function test 112

11.2 Resolving problems 113

11.3 Customer service 115

12 Maintenance 116

12.1 Testing the network connection 116

12.2 Repairs 116

12.2.1 Transfer and disposal 116

13 Technical Data 117

13.1 Specifications 117

13.1.1 Dimensions 120

13.1.2 Accessories 122

Glossary 123

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

8 en | Safety FlexiDome IP Camera

1Safety

1.1 Safety precautions

DANGER!

High risk: This symbol indicates an imminently hazardous
situation such as "Dangerous Voltage" inside the product.
If not avoided, this will result in an electrical shock, serious
bodily injury, or death.

WARNING!

Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily
injury.

CAUTION!

Low risk: Indicates a potentially hazardous situation.
If not avoided, this could result in property damage or risk of
damage to the unit.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Safety | en 9

1.2 Important safety instructions

Read, follow, and retain for future reference all of the following
safety instructions. Follow all warnings on the unit and in the
operating instructions before operating the unit.

1. Clean only with a dry cloth. Do not use liquid cleaners or
aerosol cleaners.

2. Do not install unit near any heat sources such as radiators,
heaters, stoves, or other equipment (including amplifiers)
that produce heat.

3. Never spill liquid of any kind on the unit.

4. Take precautions to protect the unit from power and
lightning surges.

5. Adust only those controls specified in the operating
instructions.

6. Operate the unit only from the type of power source
indicated on the label.

7. Unless qualified, do not attempt to service a damaged unit
yourself. Refer all servicing to qualified service personnel.

8. Install in accordance with the manufacturer's instructions
in accordance with applicable local codes. Use only
attachments/accessories specified by the manufacturer.
Equipment change or modification could void the user's
guarantee or authorization agreement.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

10 en | Safety FlexiDome IP Camera

1.3 Connection in applications

Power lines: An outdoor system should not be located in the

vicinity of overhead power lines, electrical lights, or power
circuits, or where it may contact such power lines or circuits.
When installing an outdoor system, extreme care should be
taken to keep from touching power lines or circuits, as this
contact may be fatal.
U.S.A. models only - refer to the National Electrical Code Article
820 regarding installation of CATV systems.
12 VDC / 24 VAC power source: This unit is intended to
operate with a limited power source. The unit is intended to
operate at either 12 VDC or 24 VAC (if PoE is not available).
User supplied wiring must be in compliance with electrical
codes (Class 2 power levels). If 24 VAC is used, do not ground
the 24 VAC supply at the terminals or at the unit's power supply
terminals.
PoE: Use only approved PoE devices. Power-over-Ethernet can
be connected at the same time as a 12 VDC or 24 VAC power
supply.

Earth connection: The unit must be connected to earth.
Connection: The unit has connection terminals on flying leads.

In wet or outdoor installations make use of a field wiring box
and cable conduit with Nema3 or IP55 protection level or
better. Make the connections inside the water tight
compartment. After connections are made ensure that the
watertight compartment is tightly closed and cables and
conduits are properly sealed to prevent ingress of water.

CAUTION!

The Low Voltage power supply unit must comply with EN/UL

60950. The power supply must be a SELV-LPS unit or a SELV ­Class 2 unit (Safety Extra Low Voltage - Limited Power Source).

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Safety | en 11

1.4 FCC & ICES compliance

FCC & ICES Information

(U.S.A. and Canadian Models Only)

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and

receiver;

– connect the equipment into an outlet on a circuit different

from that to which the receiver is connected;

– consult the dealer or an experienced radio/TV technician

for help.

Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult
the dealer or an experienced radio/television technician for
corrective action.
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office,
Washington, DC 20402, Stock No. 004-000-00345-4.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

12 en | Safety FlexiDome IP Camera

Informations FCC et ICES

(modèles utilisés aux États-Unis et au Canada uniquement)

Suite à différents tests, cet appareil s'est révélé conforme aux
exigences imposées aux appareils numériques de classe B, en
vertu de la section 15 du règlement de la Commission fédérale
des communications des États-Unis (FCC), et en vertu de la
norme ICES-003 d'Industrie Canada. Ces exigences visent à
fournir une protection raisonnable contre les interférences
nuisibles lorsque l'appareil est utilisé dans le cadre d'une
installation résidentielle. Cet appareil génère, utilise et émet
de l'énergie de radiofréquences et peut, en cas d'installation ou
d'utilisation non conforme aux instructions, engendrer des
interférences nuisibles au niveau des radiocommunications.
Toutefois, rien ne garantit l'absence d'interférences dans une
installation particulière. Il est possible de déterminer la
production d'interférences en mettant l'appareil
successivement hors et sous tension, tout en contrôlant la
réception radio ou télévision. L'utilisateur peut parvenir à
éliminer les interférences éventuelles en prenant une ou
plusieurs des mesures suivantes:
– Modifier l'orientation ou l'emplacement de l'antenne

réceptrice;
– Éloigner l'appareil du récepteur;
– Brancher l'appareil sur une prise située sur un circuit

différent de celui du récepteur;
– Consulter le revendeur ou un technicien qualifié en radio/

télévision pour obtenir de l'aide.
Toute modification apportée au produit, non expressément
approuvée par la partie responsable de l'appareil, est
strictement interdite. Une telle modification est susceptible
d'entraîner la révocation du droit d'utilisation de l'appareil.
La brochure suivante, publiée par la Commission fédérale des
communications (FCC), peut s'avérer utile : Comment identifier
et résoudre les problèmes d’interférences de radio et de télévision.
Cette brochure est disponible auprès du U.S. Government
Printing Office, Washington, DC 20402, États-Unis, sous la
référence n° 004-000-00345-4.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Safety | en 13

1.5 UL certification

Disclaimer

Underwriter Laboratories Inc. ("UL") has not tested the
performance or reliability of the security or signaling aspects of
this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Information
Technology Equipment, UL 60950-1. UL Certification does not
cover the performance or reliability of the security or signaling
aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR
CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR
SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.

Disposal - Your Bosch product was developed and
manufactured with high-quality material and components that
can be recycled and reused. This symbol means that
electronic and electrical appliances, which have reached the
end of their working life, must be collected and disposed of
separately from household waste material. Separate collecting
systems are usually in place for disused electronic and
electrical products. Please dispose of these units at an
environmentally compatible recycling facility, per European

Directive 2002/96/EC

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

14 en | Safety FlexiDome IP Camera

1.6 Bosch notices

Video loss

Video loss is inherent to digital video recording; therefore,
Bosch Security Systems cannot be held liable for any damage
that results from missing video information. To minimize the
risk of lost digital information, Bosch Security Systems
recommends multiple, redundant recording systems, and a
procedure to back up all analog and digital information.

Copyright

This manual is the intellectual property of Bosch Security
Systems and is protected by copyright.
All rights reserved.

Trademarks

All hardware and software product names used in this
document are likely to be registered trademarks and must be
treated accordingly.

Note

This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was complete and correct at the time of printing. The ongoing
development of the products may mean that the content of the
user guide can change without notice. Bosch Security Systems
accepts no liability for damage resulting directly or indirectly
from faults, incompleteness or discrepancies between the user
guide and the product described.

More information

For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Safety | en 15

1.7 Copyrights

The firmware 4.1 uses the fonts "Adobe-Helvetica-Bold-R­Normal--24-240-75-75-P-138-ISO10646-1" and "Adobe­Helvetica-Bold-R-Normal--12-120-75-75-P-70-ISO10646-1" under
the following copyright:
Copyright 1984-1989, 1994 Adobe Systems Incorporated.
Copyright 1988, 1994 Digital Equipment Corporation.
Permission to use, copy, modify, distribute and sell this
software and its documentation for any purpose and without
fee is hereby granted, provided that the above copyright
notices appear in all copies and that both those copyright
notices and this permission notice appear in supporting
documentation, and that the names of Adobe Systems and
Digital Equipment Corporation not be used in advertising or
publicity pertaining to distribution of the software without
specific, written prior permission.

This software is based in part on the work of the Independent
JPEG Group.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

16 en | Introduction FlexiDome IP Camera

2 Introduction

2.1 Features

The integrated unit is mounted to a wall or ceiling. The sturdy
construction and high impact-resistant polycarbonate dome
protect the camera module from damage.
The camera uses H.264 compression technology to give clear
images while reducing bandwidth and storage requirements. It
is also ONVIF compliant to improve compatibility during system
integration.
The camera operates as a network video server and transmits
video and control signals over data networks, such as Ethernet
LANs and the Internet. The camera is easy to install and ready
to use.
Features include:
– Progressive scan
– Color performance with NightSense
– 1/3-inch CCD sensor
– Tri-streaming (two H.264 streams and one M-JPEG stream)
– Complies with the ONVIF standard for wide compatibility
– Two-way audio and audio alarm
– Alarm input and alarm output to external devices
– Impact-resistant dome (> IK10)
– Tamper-resistant housing
– Enhanced video motion detection
– Video and data transmission over IP data networks
– Multicast function for simultaneous picture transmission to

multiple receivers
– Integrated Ethernet interface (10/100 Base-T)
– Power-over-Ethernet (PoE)
– Remote control of all built-in functions via TCP/IP
– Password protection to prevent unauthorized connection

or configuration changes
– Event-driven, automatic connection (for example, at

switch-on and for alarms)

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Introduction | en 17

– Fast, convenient configuration using the integrated Web

server and a browser
– Firmware update through flash memory
– Convenient upload and download of configuration data

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

18 en | System Information FlexiDome IP Camera

3 System Information

3.1 Overview of functions

The camera incorporates a network video server. Its primary
function is to encode video and control data for transmission
over an IP network. With its H.264 encoding, it is ideally suited
for IP communication and for remote access to digital video
recorders and IP systems. The use of existing networks means
that integration with CCTV systems or local networks can be
achieved quickly and easily. Video images from a single camera
can be simultaneously received on several receivers.

3.1.1 Progressive scan

The camera captures and processes progressively scanned
images. When there is fast motion in a scene, progressively
scanned images are generally sharper than interlaced images.

3.1.2 Tri-streaming

Tri-streaming allows the data stream to be encoded
simultaneously according to three different, individually
customized profiles. This creates two full H.264 streams that
can serve different purposes and an additional M-JPEG stream.

3.1.3 ONVIF (Open Network Video Interface Forum)

The camera complies to the ONVIF standard which means that
it is easier to install and integrate into larger systems. The
ONVIF standard is a global standard for the interface of network
video products.

3.1.4 Audio

Two-way duplex audio is available in the unit for live voice
communications or audio recording.

3.1.5 Alarm I/O

The alarm input can be used to control the functionality of the
unit. An alarm output can control external devices.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera System Information | en 19

3.1.6 Tamper detection and motion detectors

The camera offers a wide range of configuration options for
alarm signaling in the event of tampering with the camera. An
algorithm for detecting movement in the video image is also
part of the scope of delivery and can optionally be extended to
include special video analysis algorithms.

3.1.7 Impact-resistant dome with tamper-resistant
housing

To protect the camera from damage, the impact-resistant dome
and protective mechanics can withstand an impact greater than
50 Joules. The tamper-resistant housing stops unwanted
interference with the camera.

3.1.8 Video encoding

The camera uses the H.264 compression standards. Thanks to
efficient encoding, the data rate remains low even with high
image quality and can also be adapted to local conditions
within wide limits.

3.1.9 Multicast

In suitably configured networks, the multicast function enables
simultaneous, real time transmission to multiple receivers. The
prerequisite for this is that the UDP and IGMP V2 protocols are
implemented on the network.

3.1.10 Power-over-Ethernet

Power for the camera can be supplied via a Power-over­Ethernet compliant network cable connection. With this
configuration, only a single cable connection is required to
view, power, and control the camera.

3.1.11 Encryption

The unit offers a variety of options for protection against
unauthorized reading. Web browser connections can be
protected using HTTPS. Protect the control channels via the
SSL encryption protocol. With an additional license, the user
data itself can be encrypted.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

20 en | System Information FlexiDome IP Camera

3.1.12 Receiver

H.264 compatible hardware decoders can be used as a
receiver. Computers with decoding software such as VIDOS, or
computers with the Microsoft Internet Explorer web browser
installed, can also be used as receivers.

3.1.13 Recording

The camera can be used with an iSCSI server connected via the
network to store long-term recordings.

3.1.14 Snapshots

Individual video frames (snapshots) can be called up as JPEG
images, stored on the hard drive, or displayed in a separate
browser window.

3.1.15 Backup

The browser application has an icon for saving the video images
provided by the unit as a file on your computer's hard drive.
Clicking this icon stores the video sequences and they can be
replayed with the Player from Bosch Security Systems included
with the package.

3.1.16 Configuration

The camera can be configured using a browser on the local
network (Intranet) or from the Internet. Similarly, firmware
updates and rapid loading of device configurations are also
possible. Configuration settings can be stored as files on a
computer and copied from one camera to another.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera System Information | en 21

3.2 Operation with external systems

The camera can be used with a variety of Bosch software and
hardware systems:
– Bosch Video Management System
– VIDOS video management software
– DiBos 900 Series digital video recorder
– Divar 700 Series digital video recorder

Note:

When connected to any of these systems, many of the camera
configuration parameters are controlled by the system and not
by the settings made via a web browser connected to the
camera.

Bosch Video Management System

The Bosch Video Management System is a unique enterprise IP
video surveillance solution that provides seamless management
of digital video, audio, and data across any IP network. It is
designed to work with Bosch CCTV products as part of a total
video surveillance management system. Integrate your existing
components into one easy-to-manage system, or use Bosch’s
full-line capabilities and benefit from a complete surveillance
solution based on cutting-edge technology and years of
experience.

VIDOS

The camera video server and VIDOS software combine to
provide a high-performance system solution. VIDOS is software
for operating, controlling, and administering CCTV installations
(such as surveillance systems) at remote locations. It runs
under Microsoft Windows operating systems. Its main job is
decoding video, audio, and control data from a remote
transmitter. There are many options available for operation and
configuration when using a camera with VIDOS.

DiBos 900 Series

The camera is also designed for use with DiBos 900 Series
Video Recorders. DiBos can record up to 32 video and audio

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

22 en | System Information FlexiDome IP Camera

streams, and is available as software or as a hybrid DVR with
additional analog camera and audio inputs. DiBos supports
various functions of the camera, such as controlling relays,
remote control of peripheral devices, and remote configuration.
DiBos can use alarm inputs to trigger actions and, when motion
detection Motion+ is active, can record the relevant cells,
making intelligent motion detection possible.

Divar 700 Series

The Divar 700 Series of digital video recorders can view and
record images from the camera via a network connection. The
Divar 700 Series controls the camera so that the correct
settings are used.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Planning | en 23

4 Planning

4.1 Unpacking

Unpack carefully and handle the equipment with care. The
packaging contains:
– Integrated FlexiDome IP camera unit
– Mounting hardware kit
– Special screwdriver bit for tamper-resistant screws
– Lens adjustment cap
– RJ45 female-to-female network cable connector
– Template for flush mount
– DVD ROM (mini)

–Manual
– System requirements
– Configuration Manager
–BVIP Lite Suite
–MPEG ActiveX control
–DirectX control
– Microsoft Internet Explorer
– Sun JVM
– Player and Archive Player

– Adobe Acrobat Reader
– Quick install instructions
– Safety instructions
If equipment has been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

24 en | Planning FlexiDome IP Camera

4.2 System requirements

– Computer with Windows XP/Vista operating system,

network access, and Microsoft Internet Explorer web
browser version 7.0 or later
or

– Computer with Windows XP/Vista operating system,

network access and reception software, for example
VIDOS, Bosch VMS, or DIBOS 900 Series
or

– H.264 compatible hardware decoder from

Bosch Security Systems (such as VIP XD) as a receiver and
a connected video monitor
or

– Divar 700 Series Digital Video Recorder

The minimum PC requirements are:
– Operating platform: A PC running Windows XP or

Windows Vista with IE 7.0
– Processor: Dual core, 3.0 GHz
– RAM memory: 256 MB
– Monitor resolution: 1024 x 768
– Network interface: 100-BaseT
– DirectX: 9.0c
Make sure the graphics card is set to 16-bit or 32-bit color
depth and that Sun JVM is installed on your PC. To play back
live video images, an appropriate ActiveX must be installed on
the computer. If necessary, install the required software and
controls from the product DVD provided. For further assistance,
contact your PC system administrator.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Planning | en 25

4.3 Install players

Play back saved-video sequences using the Player from
Bosch Security Systems. This can be found on the DVD-ROM
supplied.
to play back saved sequences using the Player, suitable ActiveX
software must be installed on the computer.

1. Insert the DVD into the DVD-ROM drive of the computer. If
the DVD does not start automatically, open the DVD in
Windows Explorer and double-click the index.html file to
start the installation.

2. Select a language from the list box at the top.

3. Click Tools in the menu.

4. Click Archive Player; the installation starts.

5. Follow the instructions in the installation program. The
Archive Player is installed together with the Player.

6. After a successful installation, two new icons for the Player
and the Archive Player appear on the desktop.

7. Double-click the Player icon to start the Player.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

26 en | Installation FlexiDome IP Camera

5 Installation

CAUTION!

Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.

5.1 Disassembly

5.1.1 Surface mount version

The camera/housing unit consists of the following parts:

1. Surface mount box

2. Camera module and mounting base

3. Inner liner (with sealing ring)

4. Dome

5. Trim ring

To disassemble the unit proceed as follows:

1. Using the special screwdriver bit, loosen the three tamper­resistant screws in the trim ring (the screws remain in
place).

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Installation | en 27

2. Remove the trim ring with dome by pulling it off of the
base.

3. Remove the inner liner by pulling it off of the base.

4. Remove the pink protection foam.

5. Loosen the three Phillips screws. Remove the single screw
holding the camera module in place (no keyhole).

6. Rotate the camera module to remove it from the remaining
two screws.

5.1.2 Flush mount version

The camera/housing unit consists of the following parts:

1. Camera module and mounting base

2. Inner liner (with sealing ring)

3. Dome

4. Trim ring

To disassemble the unit proceed as follows:

1. Using the special screwdriver bit, loosen the three tamper­resistant screws in the trim ring (the screws remain in
place).

2. Remove the trim ring with dome by pulling it off of the
base.

3. Remove the inner liner by pulling it off of the base.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

28 en | Installation FlexiDome IP Camera

5.2 Mounting the unit

There are several ways to mount the unit. The method of
mounting depends on the type of surface and whether other
mounting hardware, such as an electrical box, a surface box or
other accessories are used.

Note:

If the unit is to be surface mounted, then use the Surface Mount
Box (SMB). The SMB is sold as a separate item (VDA-455SMB)
but the inner plastic cover should be removed as it is only
needed for analog cameras.
Certain versions of the FlexiDome are supplied with the Surface
Mount Box already included; please check the ordering number.

Other mounting accessories are also sold separately.

Refer to the dimensions drawing to find the exact position of
the screw holes and the entry hole for the wires. Use the
surface mount box as a template for surface installation; use
the paper template for flush installation.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Installation | en 29

5.2.1 Surface mount

Figure 1 Surface mounting

When using the surface mount box:

1. With a side connection, remove the cap covering the side
entrance.
With a rear connection, leave the cap in place.

2. Attach the conduit to the surface mount box.

3. Attach the surface mount box to the surface.

4. Suspend the camera base from the plastic hook inside the
surface mount box until the connections are made.

Note:

The surface mount box can be attached to a 4S box if required.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

30 en | Installation FlexiDome IP Camera

Ø 8 mm

5.2.2 Flush mount

3x

PCD: 133 (5.25)

Ø 8 mm

57.6

(2.27)

(2.27)

95 (3.74)

57.6

33.3

(1.31)

66.5

(2.62)

3x

Figure 1 Flush mounting

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Installation | en 31

5.2.3 Make the connections

The unit has connection terminals on flying leads. In wet or
outdoor installations make use of a field wiring box with Nema3
or IP55 protection level or better. Make the connections inside
the water tight compartment. After connections are made
ensure that the watertight compartment is tightly closed and
cables and conduits are properly sealed to prevent ingress of
water.

Cable tree

Use the following table to identify the wires in the cable tree:

Wire color Signal

Red +12 VDC / 24 VAC
Brown GND DC / 24 VAC
Yellow / Green

Black / Orange Alarm Out A
White / Orange Alarm Out B
Violet Alarm In
White / Violet Ground (Alarm In)
White Audio In
(Shield) Ground (Audio In)
Black Audio Out
(Shield) Ground (Audio Out)

Earth

Power connection

1. Use a class 2 power supply 24 VAC or +12 VDC.

2. Connect the power wires (red+ , brown-) to the power
supply connector.

3. Connect the earth wire (yellow/green) from the
camera to the system earth of the installation to ensure
correct EMC/RFI and safety protection.

Note:

For a DC supply the polarity is important. Incorrect polarity
does not damage the camera but it will not switch on.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

32 en | Installation FlexiDome IP Camera

Network (and PoE) connection

1. Use an unshielded twisted pair (UTP) or shielded twisted
pair (STP) Category 5e cable, maximum length 100 meters.

2. Use the RJ45 female-to-female network cable connector to
connect the network cable of the system to the RJ45
connector of the camera (Auto MDIX compliant).

By default, power is supplied to the camera via the Ethernet
cable, compliant with the Power-over-Ethernet standard.

Note:

The RJ45 female-to-female network cable connector supplied
with the camera is unshielded and is appropriate for all
applications that use unshielded twisted pair (UTP) network
cable (most types). For applications that use shielded twisted
pair (STP) connection cable and need to meet the EMC Alarm
immunity standard (EN50130-4) or the EMC Railway imunity
standard (EN50121-4), a shielded RJ45 female-to-female
network cable connector (not supplied) shall be used.

Alarm input/output

Use the alarm input to connect external alarm devices such as
door contacts or sensors. A zero potential make-contact or
switch can be used as the actuator (use a bounce-free contact
system).

Alarm input: TTL logic +5 V nominal; 40 VDC maximum; DC
coupled with 22 kOhm pull-up to +3.3 V.
Alarm output: Maximum voltage 30 VAC or 40 VDC; maximum

0.5 A continuous, 10 VA. Use the alarm relay output for

switching external devices such as lamps or sirens.

1. Refer to the cable tree table to identify the wire colors for
connecting the alarm input and output.

2. In the menu system, configure the alarm input as active
low or active high.

3. In the menu system, configure the relay output to operate
as either normally open (NO) or normally closed (NC).

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Installation | en 33

Audio in / Audio out

The unit has full-duplex mono audio. The two-way
communication can be used to connect a speaker or door
intercom system. The audio input signal is transmitted in sync.
with the video signal. Refer to the cable tree table to identify
the wire colors for connecting the audio input and output.
Audio input: Line input level (not suitable for direct
microphone signal); impedance 9 kOhm typical; 5.5 Vpp
maximum input voltage.
Audio output: Line output level (not suitable for direct speaker
connection); impedance 16 Ohm minimum; 3 Vpp maximum
output voltage.
Wiring: Shielded audio connection cable is advised. Observe
maximum cable lengths for audio line input and output levels.

5.2.4 Indication LED

The multicolored LED beside the navigation buttons indicates
Power (red), IP connection (green) and IP traffic (green
flashing). It can be disabled in the Settings/Camera/Installer
Options menu.

5.2.5 Reset button

With the power on, use a small pointed object to press and hold
the reset button beside the navigation buttons for more than 10
seconds to restore the factory defaults. This is useful if you
wish to restore the default IP address or to restore a previous
version of the firmware if uploading a new version fails.

5.2.6 Mount the camera

1. Secure all cables.

2. Route the cable tree from the camera around the rear of
the camera module mounting base.

3. For surface mounted units, secure the camera module
mounting base to the surface mounting box with the three
supplied screws.

4. For flush mounted units, secure the camera module
mounting base to the ceiling or wall.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

34 en | Installation FlexiDome IP Camera

5.3 Camera positioning

To help set up the camera, connect a monitor to the miniature

2.5 mm jack socket on the printed circuit board using the
optional monitor cable (S1460). This monitor jack socket
provides a composite video signal (with sync) for installation
purposes only.

A

C

B

1. Heater

2. Monitor jack socket

3. Thumbwheels

4. Navigation buttons (5), indication LED and reset button

5. Focal length

6. Focus
A. Pan-axis rotation
B. Tilt-axis rotation
C. Twist-axis rotation

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Installation | en 35

The physical default position of the camera is that the bottom
of the image corresponds to the indication BOTTOM on the
housing.
The camera module position can be adjusted along three axes.
When adjusting the camera position ensure that the picture
display on the monitor is level. Set the camera to the desired
position by performing the following steps:
– For horizontal adjustment (pan), rotate the camera module

in the base. Do not rotate more than 360°.

– For vertical adjustment (tilt), loosen thumbscrews,

position camera, then gently tighten thumbscrews to
secure camera. Do not rotate more than 90°.

– To obtain a horizontal horizon (for tilted ceilings or

sidewall mounting), rotate the base of the lens as
necessary to align the picture shown on the monitor. Do
not rotate more than 340°.

CAUTION!

The CCD image sensors are highly sensitive and require special
care for proper performance and extended lifetime. Do not
expose them to direct sunlight.

5.3.1 Focal length and focus

Before adjusting, place the adjustment cap on the lens to
ensure that the image sharpness is the same as when the dome
is in place.

1. Press and hold the menu/select (center) button until the
Install menu appears.
– Select the Set Back Focus Now item. Do not change

this selection as the camera is now in a special mode
for adjusting focus.

2. To set the field of view of the varifocal lens, loosen the
focal length screw and turn the mechanism until the
required view is displayed on the monitor (Image goes out
of focus.)

3. Focus the image on the monitor by loosening the focus
screw and turning the mechanism until the image is in
focus.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

36 en | Installation FlexiDome IP Camera

4. Readjust the focal length if necessary.

5. Repeat these two adjustments until the desired view is in
focus.

6. Tighten both screws.

7. Use the up/down navigation buttons to move to Exit and
press the center button until the menu disappears.

8. Remove the adjustment cap from the lens.

5.3.2 Closing the unit

When the camera position is set and all adjustments have been
made, close the unit.

1. If necessary, remove the monitor cable (S1460) from the
monitor jack socket.

2. Place the inner liner in position aligning its fin with the
bracket on the base.

3. Place the dome onto the base and rotate until it clips into
place. (If necessary, clean its surface with a soft cloth.)

4. Place the sealing ring and the trim ring over the dome.

5. Align the tamper-resistant screws in the trim ring with the
threaded ends in the mounting base.

6. Use the supplied special screwdriver bit to tighten the
three tamper-resistant screws.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Camera set-up | en 37

6 Camera set-up

The camera normally provides an optimal picture without the
need for further adjustments. Configuration of the camera is
carried out remotely via the network using a web browser.
However, the camera also has a set-up menu in which basic
installation settings (lens wizard, IP address) can be accessed.
To view this menu, connect a monitor to the composite video
output of the camera.

6.1 Camera menu navigation

Five keys are used for navigating through menu system.

Up key
Menu/Select key (center)

Right key

Down key
Left key

Figure 6.1 Navigation

– To open the install menu and enable the analog video

output, press and hold the center key for approximately

two seconds. This turns off the IP video stream.
– Use the up or down keys to scroll through a menu.
– Use the left or right keys to move through options or to set

parameters.
– When in a menu, quickly double-press the menu/select key

to restore the selected item to its factory default.
– To close all menus at once hold down the menu/select key

until the menu display disappears or continually select the

Exit item. (This turns the IP video stream back on.)

Some menus automatically close after about two minutes; other
menus have to be closed manually.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

38 en | Camera set-up FlexiDome IP Camera

6.2 Install menu

When the Install menu is opened, the MAC address of the unit
is shown. This is factory set and cannot be changed. (To ensure
that the correct MAC address is displayed, wait 20 seconds
after power-up before opening the Install menu.)

The items in the Install menu include the Mode selection, the
Lens Wizard submenu, the Network submenu, and the Defaults
submenu.

Note:

Camera parameter set-up is done via IP. See
Section 9.6 Camera for the specific camera menus.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Camera set-up | en 39

6.2.1 Network submenu

To operate the camera in your network, a network-valid IP
address must be assigned. The factory default IP address is

192.168.0.1

Function Selection Description

IP Address Enter an IP address for the camera. Use

LEFT/RIGHT to change position in the
address, use UP/DOWN to select the digit.
Use SELECT to exit the address edit
screen.

Subnet
Mask

Gateway Enter a Gateway address.
DHCP If the network has a DHCP server for

Exit Return to the Install menu.

Enter the Subnet mask (default

255.255.255.0).

dynamic IP address allocation, set this
parameter to On to activate the automatic
acceptance of DHCP-assigned IP
addresses.

The new IP address, subnet mask, and gateway address are set
when leaving the menu. The camera reboots internally and the
new values are set after a few seconds.

6.2.2 Defaults submenu

Item Selection Description

Restore All? No, Yes Restores all settings of the six modes

to their default (factory) values. Select
YES then press the Menu/Select
button to restore all values.
When completed the message
RESTORED! is shown.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

40 en | Camera set-up FlexiDome IP Camera

6.2.3 Lens Wizard submenu

Item Selection Description

Set Backfocus
now

Select to fully open the iris. Follow the

instructions for setting the backfocus
for your particular lens type.
After focusing the object of interest
remains in focus under bright and low
light conditions.

EXIT Returns to Install menu.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Browser connection | en 41

7 Browser connection

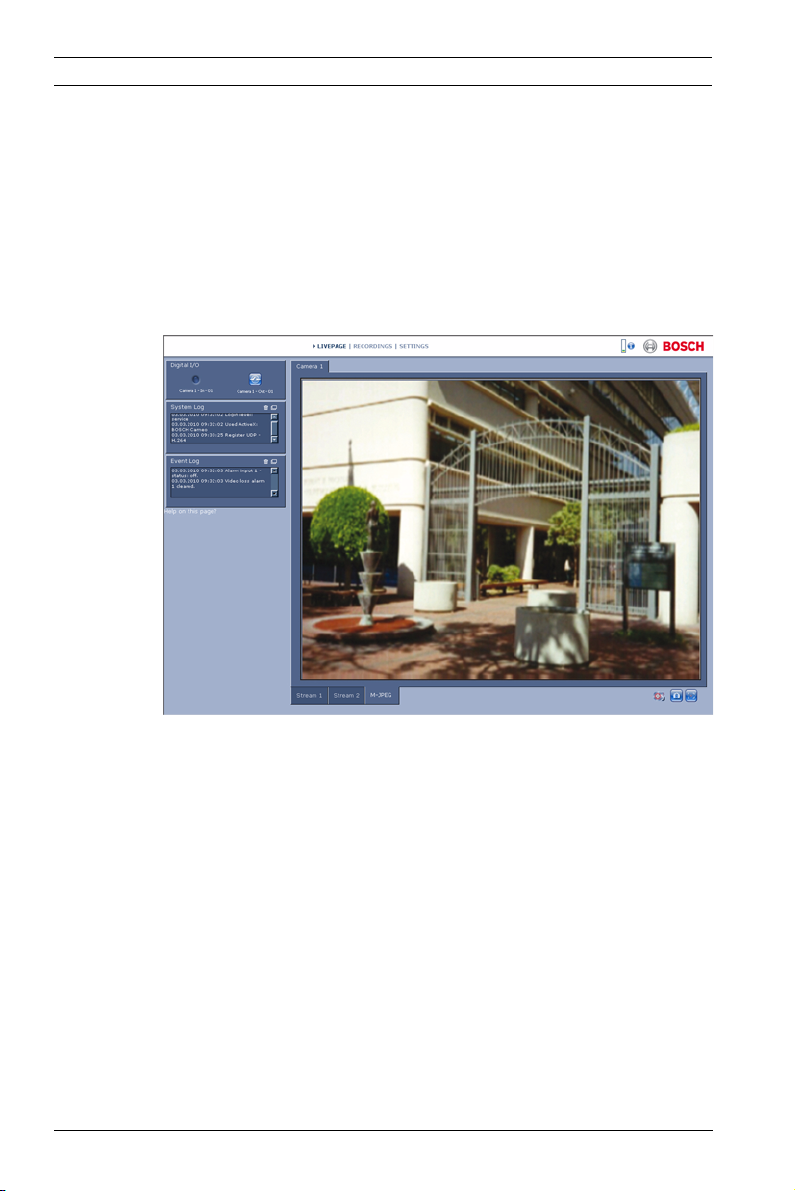

A computer with Microsoft Internet Explorer can be used to
receive live images from the camera, control cameras, and
replay stored sequences. The camera is configured over the
network using the browser (or via the supplied Configuration
Manager). The configuration options using the menu system of
the camera itself are limited to setting up the lens and network.

Note:

The camera can also be connected to DIBOS 900 Series,
VIDOS, Bosch Video Management System, and Divar 700 Series
Digital Video Recorder, as well as third party video management
systems.

7.1 System requirements

– Microsoft Internet Explorer version 7.0 or higher
– Monitor: resolution at least 1024 × 768 pixels, 16 or 32 bit

color depth
– Sun JVM installed
– Intranet or Internet network access
The Web browser must be configured to enable Cookies to be
set from the IP address of the unit.
In Windows Vista, deactivate protected mode on the Security
tab under Internet Options.
Read the information in the System Requirements document
on the product DVD supplied and, if necessary, install the
required programs and controls.

To play back live video images, an appropriate ActiveX must be
installed on the computer. If necessary, the required software
and controls can be installed from the product DVD provided.

a. Insert the mini-DVD into the DVD-ROM drive of the

computer. If the DVD does not start automatically,
open the root directory of the DVD in Windows
Explorer and double click MPEGAx.exe.

b. Follow the on-screen instructions.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

42 en | Browser connection FlexiDome IP Camera

7.2 Establishing the connection

The camera must be assigned a valid IP address to operate on
your network. The default address pre-set at the factory is

192.168.0.1

1. Start the Web browser.

2. Enter the IP address of the camera as the URL.

Note:

If the connection is not established, the maximum number of
possible connections may already have been reached.
Depending on the device and network configuration, up to 25
web browsers, or 50 VIDOS or Bosch VMS connections are
supported.

7.2.1 Password protection in camera

A camera offers the option of limiting access across various
authorization levels. If the camera is password-protected, a
message to enter the password appears.

1. Enter the user name and the associated password in the
appropriate fields.

2. Click OK. If the password is correct, the desired page is
displayed.

7.3 Protected network

If a Radius server is used for network access control (802.1x
authentication), the camera must be configured first. To
configure the camera for a Radius network, connect it directly
to a PC via a crossed network cable and configure the two
parameters, Identity and Password. Only after these have been
configured can communication with the camera via the network
occur.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Browser connection | en 43

7.4 Connecting to a hardware decoder

A compatible H.264 hardware decoder with a monitor can be
connected to the camera using an Ethernet network
connection. Cameras are designed to automatically connect
with other BVIP devices with the correct configuration. The
units only need to be part of the same closed network. In this
way it is possible to cover large distances with little installation
or cabling effort.

7.4.1 Alarm connection

With the appropriate configuration, a connection between
camera and decoder is established automatically when an alarm
is triggered. After a short time, the live video image from the
transmitter is shown on the connected monitor. In this case, no
computer is needed to establish the connection

Note:

Make sure the devices are configured for the network
environment and that the correct IP address for the remote
location is set on the Alarm connections configuration page.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

44 en | Browser connection FlexiDome IP Camera

7.5 Connection established

When a connection is established, the LIVEPAGE is initially
displayed. The application title bar displays three items:

LIVEPAGE, RECORDINGS, SETTINGS.

Note:

The RECORDINGS link is only visible if a storage medium is
available.

Figure 7.1 Livepage

7.5.1 LIVEPAGE

The LIVEPAGE is used to display and control the video stream.
Refer to Section 10 Operation via the browser, page 107 for more
information.

7.5.2 RECORDINGS

Click RECORDINGS in the application title bar to open the
playback page. Refer to Section 10 Operation via the browser,
page 107 for more information.

7.5.3 SETTINGS

Click SETTINGS in the application title bar to configure the
camera and the application interface. A new page containing

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Browser connection | en 45

the configuration menu is opened. All settings are stored in the
camera memory so that they are retained, even if the power is
interrupted.
Changes that influence the fundamental functioning of the unit
(for example, firmware updates) can only be made using the
configuration menu.
The configuration menu tree allows all parameters of the unit to
be configured. The configuration menu is divided into Basic
Mode and Advanced Mode.
Refer to Section 8 Basic Mode, page 46 for more information on
basic settings; refer to Section 9 Advanced Mode, page 51 for
more information on advanced settings.

Note:

It is recommended that only expert users or system
administrators use the Advanced Mode.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

46 en | Basic Mode FlexiDome IP Camera

8Basic Mode

8.1 Basic Mode menu tree

The basic mode configuration menu allows a set of basic
camera parameters to be configured.

Basic Mode
> Device Access
> Date/Time
>Network
>Encoder Profile
>Audio
>Recording
>System Overview

To view the current settings:

1. If necessary, click the Basic Mode menu to expand it. The
sub-menus are displayed.

2. Click a sub-menu. The corresponding page is opened.

The settings are changed by entering new values or by selecting
a pre-defined value in a list field.

Saving changes

After making changes in a window, click Set to send the new
settings to the device and save them there.
Clicking Set saves only the settings in the current window.
Changes in any other windows are ignored.
Click SETTINGS in the applications title bar to close the
window without saving the changes.

Note:

Device time settings are lost after 1 hour without power if no
central time server is selected.

Note:

When entering names do not use any special characters, for
example &. Special characters are not supported by the internal
recording management system.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Basic Mode | en 47

8.2 Device Access

8.2.1 Camera name

Assign a name to assist in identification. This name simplifies
the management of multiple devices in more extensive systems.
The name is used for remote identification, for example, in the
event of an alarm. Enter a name that makes it as easy as
possible to identify the location unambiguously.

8.2.2 Password

A password prevents unauthorized access to the device. The
device recognizes three authorization levels: service, user, and
live.
– service is the highest authorization level. Entering the

correct password gives access to all the functions of the
camera and allows all configuration settings to be
changed.

– user is the middle authorization level. This user can

operate the device, play back recordings, and also control
a camera but cannot change the configuration.

– live is the lowest authorization level. It can only be used to

view the live video image and switch between the different
live image displays.

Use the various authorization levels to limit access. Proper
password protection is only guaranteed if all higher
authorization levels are also protected with a password. For
example, if a live password is assigned, a service and a user
password should also be set. When assigning passwords,
always start from the highest authorization level, service, and
use different passwords.

Password

Define and change a separate password for each level while
logged in as service or if the device is not protected by a
password. Enter the password for the selected level.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

48 en | Basic Mode FlexiDome IP Camera

Confirm password

Re-enter the new password to ensure that there are no typing
mistakes.
The new password is only saved after clicking Set. Therefore,
click Set immediately after entering and confirming the
password, even if assigning a password at another level.

8.3 Date/Time

Device date, time and zone

If there are multiple devices operating in the system or
network, it is important to synchronize their internal clocks. For
example, it is only possible to identify and correctly evaluate
simultaneous recordings when all devices are operating on the
same time.
As the device time is controlled by the internal clock, it is not
necessary to enter the day or date of the week. These are set
automatically. The time zone in which the system is located is
also set automatically.

1. Click Sync to PC to apply the system time from your
computer to the device.

Time server IP address

The camera can receive the time signal from a time server using
various time server protocols and then use it to set the internal
clock. The device polls the time signal automatically once every
minute. Enter the IP address of a time server.

Time server type

Select the protocol that is supported by the selected time
server. It is recommended to select the SNTP server protocol.
This protocol provides high accuracy and is required for special
applications and future function extensions. Select Time server
if the server uses the RFC 868 protocol.

Note:

It is important to ensure that the date/time is correct for
recording. An incorrect date/time setting could prevent correct
recording.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Basic Mode | en 49

8.4 Network

Use the settings on this page to integrate the device into a
network. Some changes only take effect after a reboot. In this
case, the Set button changes to Set and Reboot.

1. Make the desired changes.

2. Click Set and Reboot.
– The device is rebooted and the changed settings are

activated. If the IP address, subnet mask, or gateway
address is changed, then the device is only available
under the new addresses after the reboot.

DHCP

If the network has a DHCP server for dynamic IP address
allocation, set this parameter to On to activate the automatic
acceptance of DHCP-assigned IP addresses.

Note:

Certain applications (for example, Bosch Video Management
System) use the IP address for the unique assignment of the
device. If using these applications, the DHCP server must
support the fixed assignment between IP address and MAC
address, and must be appropriately set up so that, once an IP
address is assigned, it is retained each time the system is
rebooted.

IP address

Enter the desired IP address for the camera. The IP address
must be valid for the network.

Subnet mask

Enter the appropriate subnet mask for the set IP address.

Gateway address

Enter the IP address of the gateway to establish a connection to
a remote location in a different subnet. Otherwise, this field can
remain empty (0.0.0.0).

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

50 en | Basic Mode FlexiDome IP Camera

8.5 Encoder Profile

Select a profile for encoding the video signal. Pre-programmed
profiles are available that give priority to different parameters.
When a profile is selected, its details are displayed.

8.6 Audio

Switch the camera audio On or Off. Adjust the input and output
levels with the sliders.

8.7 Recording

Record the images from the camera to a storage medium. For
long-term authoritative images, it is essential to use a
Divar 700 Series Digital Video Recorder or an appropriately
sized iSCSI system.

8.7.1 Storage medium

1. Select the required storage medium from the list.

2. Click Start to start recording or Stop to end recording.

8.8 System Overview

This page provides general information on the hardware and
firmware system, including version numbers. No items can be
changed on this page but they can be copied for information
purposes when troubleshooting.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 51

9 Advanced Mode

9.1 Advanced Mode menu tree

The advanced mode configuration menu contains all camera
parameters that can be configured.

Advanced Mode
> General
>Web Interface
>Encoder
>Camera
>Recording
>Alarm
> Interfaces
>Network
> Service

To view the current settings:

1. Click the Advanced Mode menu to expand it. The
associated menu sub-headings are displayed.

2. Click a menu sub-heading to expand it.

3. Click a sub-menu. The corresponding page is opened.

The settings are changed by entering new values or by selecting
a pre-defined value in a list field.

Saving changes

After making changes in a window, click Set to send the new
settings to the device and save them there.
Clicking Set saves only the settings in the current window.
Changes in any other windows are ignored.

Click SETTINGS in the applications title bar to close the
window without saving the changes made.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

52 en | Advanced Mode FlexiDome IP Camera

Note:

Device time settings are lost after 1 hour without power if no
central time server is selected.

Note:

When entering names do not use any special characters, for
example &. Special characters are not supported by the internal
recording management system.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 53

9.2 General

General
> Identification
> Password
> Date/Time
> Display Stamping

9.2.1 Identification

Camera ID

Each device should be assigned a unique identifier that can be
entered here as an additional means of identification.

Camera name

Assign a name to assist in identification. This name simplifies
the management of multiple devices in more extensive systems.
The name is used for remote identification, for example, in the
event of an alarm. Enter a name that makes it as easy as
possible to identify the location unambiguously.

Initiator extension

Add text to an initiator name to make identification easier in
large iSCSI systems. This text is added to the initiator name,
separated from it by a full stop.

9.2.2 Password

A password prevents unauthorized access to the device. The
device recognizes three authorization levels: service, user, and
live.
– service is the highest authorization level. Entering the

correct password gives access to all the functions of the
camera and allows all configuration settings to be
changed.

– user is the middle authorization level. This user can

operate the device, play back recordings, and also control
a camera but cannot change the configuration.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

54 en | Advanced Mode FlexiDome IP Camera

– live is the lowest authorization level. It can only be used to

view the live video image and switch between the different
live image displays.

Use the various authorization levels to limit access. Proper
password protection is only guaranteed if all higher
authorization levels are also protected with a password. For
example, if a live password is assigned, a service and a user
password should also be set. When assigning passwords,
always start from the highest authorization level, service, and
use different passwords.

Password

Define and change a separate password for each level while
logged in as service or if the device is not protected by a
password. Enter the password for the selected level.

Confirm password

Re-enter the new password to ensure that there are no typing
mistakes.
The new password is only saved after clicking Set. Therefore,
click Set immediately after entering and confirming the
password, even if assigning a password at another level.

9.2.3 Date/Time

Date format

Select the required date format.

Device date / Device time

If there are multiple devices operating in your system or
network, it is important to synchronize their internal clocks. For
example, it is only possible to identify and correctly evaluate
simultaneous recordings when all devices are operating on the
same time.

1. Enter the current date. Since the device time is controlled
by the internal clock, it is not necessary to enter the day of
the week – it is added automatically.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 55

2. Enter the current time or click Sync to PC to apply the
system time from your computer to the device.

Note:

It is important to ensure that the date/time is correct for
recording. An incorrect date/time setting could prevent correct
recording.

Device time zone

Select the time zone in which the system is located.

Daylight saving time

The internal clock can switch automatically between normal
and daylight saving time (DST). The device already contains the
data for DST switch-overs up to the year 2015. Use this data or
create alternative time saving data, if required.

Note:

If a table is not created, there is no automatic switching. When
editing the table, note that values occur in linked pairs (DST
start and end dates).

First, check the time zone setting. If it is not correct, select the
appropriate time zone for the system:

1. Click Set.

2. Click Details. A new window opens showing an empty
table.

3. Click Generate to fill the table with the preset values from
the camera.

4. Select the region or the city which is closest to the
system's location from the list box below the table.

5. Click one of the entries in the table to make changes. The
entry is highlighted.

6. Click Delete to remove the entry from the table.

7. Choose other values from the list boxes under the table, to
change the selected entry. Changes are immediate.

8. If there are empty lines at the bottom of the table, for
example after deletions, add new data by marking the row
and selecting values from the list boxes.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

56 en | Advanced Mode FlexiDome IP Camera

9. When finished, click OK to save and activate the table.

Time server IP address

The camera can receive the time signal from a time server using
various time server protocols and then use it to set the internal
clock. The device polls the time signal automatically once every
minute. Enter the IP address of a time server.

Time server type

Select the protocol that is supported by the selected time
server. It is recommended to select the SNTP server protocol.
This protocol provides high accuracy and is required for special
applications and future function extensions. Select Time server
if the server uses the RFC 868 protocol.

9.2.4 Display Stamping

Various overlays or stamps in the video image provide
important supplementary information. These overlays can be
enabled individually and arranged on the image in a clear
manner.

Camera name stamping

This field sets the position of the camera name overlay. It can
be displayed at the Top, at the Bottom, or at a position of
choice using the Custom option, or it can be set to Off for no
overlay information.
If the Custom option is selected, enter values in the X and Y
position fields.

Time stamping

This field sets the position of the time and date overlay. It can
be displayed at the Top, at the Bottom, or at a position of
choice using the Custom option, or it can be set to Off for no
overlay information.
If the Custom option is selected, enter values in the X and Y
position fields.

Display milliseconds

If necessary, display milliseconds for Time stamping. This
information can be useful for recorded video images; however,

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 57

it does increase the processor's computing time. Select Off if
displaying milliseconds is not needed.

Alarm mode stamping

Select On for a text message to be overlaid in the event of an
alarm. It can be displayed at a position of choice using the
Custom option, or it can be set to Off for no overlay
information.
If the Custom option is selected, enter values in the X and Y
position fields.

Alarm message

Enter the message to be displayed on the image in the event of
an alarm. The maximum text length is 31 characters.

Video watermarking

Select On for the transmitted video images to be watermarked.
After activation, all images are marked with a green W. A red W
indicates that the sequence (live or saved) has been
manipulated.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

58 en | Advanced Mode FlexiDome IP Camera

9.3 Web Interface

Web Interface
>Appearance
> LIVEPAGE Functions
> Logging

9.3.1 Appearance

Adapt the appearance of the web interface and change the
website language to meet your requirements. If necessary,
replace the company's logo (top right) and the device name
(top left) in the top part of the window with individual graphics.
Either GIF or JPEG images can be used. The file paths must
correspond to the access mode (for example,
C:\Images\Logo.gif for access to local files or http://
www.myhostname.com/images/logo.gif for access via the
Internet/Intranet). For access via the Internet/Intranet, there
must be a connection in order to display the image. The image
files are not stored on the camera.
To restore the original graphics, delete the entries in the
Company logo and Device logo fields.

Website language

Select the language for the user interface here.

Company logo

Enter the path to a suitable image in this field. The image can
be stored on a local computer, a local network, or at an Internet
address.

Device logo

Enter the path for a suitable image for the device logo in this
field. The image can be stored on a local computer, a local
network, or at an Internet address.

JPEG interval

Specify the interval at which the individual images should be
generated for the M-JPEG image on the Livepage.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 59

9.3.2 LIVEPAGE Functions

In this window, adapt the Livepage functions to meet your
requirements. Choose from a variety of different options for
displaying information and controls.

1. Mark the check boxes for the functions to be displayed on
the Livepage. The selected elements are checked.

2. Check the Livepage to see how the desired items are
available.

Transmit audio

When selected, the audio from the camera (if on) is sent to the
computer.

Show alarm inputs

The alarm inputs are displayed next to the video image as icons
along with their assigned names. If an alarm is active, the
corresponding icon changes color.

Show relay outputs

The relay output is shown next to the video image as an icon
along with its assigned name. If a relay is switched, the icon
changes color.

Show VCA trajectories

The trajectories (motion lines of objects) from the video
content analysis are displayed in the live video image if a
corresponding analysis type is activated.

Show VCA metadata

When video content analysis (VCA) is activated, additional
information is displayed in the live video stream. For example,
in Motion+ mode, the sensor areas for motion detection are
marked.

Show event log

The event messages are displayed with the date and time in a
field next to the video image.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

60 en | Advanced Mode FlexiDome IP Camera

Show system log

The system messages are displayed with the date and time in a
field next to the video image and provide information about the
establishment and termination of connections, etc.

Allow snapshots

Specify whether the icon for saving individual images should be
displayed below the live image. Individual images can only be
saved if this icon is visible.

Allow local recording

Specify whether the icon for saving video sequences on the
local memory should be displayed below the live image. Video
sequences can only be saved if this icon is visible.

Path for JPEG and video files

Enter the path for the storage location of individual images and
video sequences saved from the Livepage. If necessary, click

Browse to find a suitable folder.

9.3.3 Logging

Save event log

Select this option to save event messages in a text file on the
local computer. This file can be viewed, edited, and printed
with any text editor or standard office software.

File for event log

Enter the path for saving the event log here. If necessary, click

Browse to find a suitable folder.

Save system log

Select this option to save system messages in a text file on the
local computer. This file can be viewed, edited, and printed
with any text editor or standard office software.

File for system log

Enter the path for saving the system log here. If necessary, click
Browse to find a suitable folder.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 61

9.4 Encoder

Encoder
> Privacy Masks
>Encoder Profile
>Encoder Streams
>Audio

9.4.1 Privacy Masks

Four privacy mask areas can be defined. The activated masked
areas are filled with the selected pattern in live view.

1. Select the pattern to be used for all masks (Gray).

2. Check the box of the mask you wish to activate.

3. Use the mouse to define the area for each of the masks.

9.4.2 Encoder Profile

Adapt the video data transmission to the operating environment
(network structure, bandwidth, data structures). The camera
simultaneously generates two H.264 video streams and an
M-JPEG stream (Tri-streaming). Select the compression
settings of these streams individually, for example, one setting
for transmissions to the Internet and one for LAN connections.
The settings are made individually for each stream.

Define profiles

Eight definable profiles are available. The pre-programmed
profiles give priority to different parameters.
– High resolution 1

High resolution (4CIF/D1) for high bandwidth connections

– High resolution 2

High resolution (4CIF/D1) with lower data rate

– Low bandwidth

High resolution (4CIF/D1) for low bandwidth connections

– DSL

High resolution (4CIF/D1) for DSL connections at
500 kbps maximum

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

62 en | Advanced Mode FlexiDome IP Camera

– ISDN (2B)

CIF resolution for ISDN connections at 100 kbps maximum

– ISDN (1B)

CIF resolution for ISDN connections at 50 kbps maximum

– MODEM

CIF resolution for analog modem connections at 22 kbps
maximum

– GSM

CIF resolution for GSM connections

Profile Configuration

Profiles can be configured for use with the H.264 settings of
encoder streams. Select a profile by clicking the appropriate
tab. Change the name of a profile and individual parameter
values within a profile.
Profiles are rather complex. They include a number of
parameters that interact with one another, so it is generally
best to use the default profiles. Only change a profile if
completely familiar with all the configuration options.
The parameters as a group constitute a profile and are
dependent on one another. If a setting outside the permitted
range for a parameter is entered, the nearest valid value is
substituted when the settings are saved.

Profile name

Enter a new name for the profile here.

Target data rate

To optimize utilization of the bandwidth in the network, limit
the data rate for the camera. The target data rate should be set
according to the desired picture quality for typical scenes with
no excessive motion.
For complex images or frequent changes of image content due
to frequent movements, this limit can temporarily be exceeded
up to the value entered in the Maximum data rate field.

Maximum data rate

This maximum data rate is not exceeded under any
circumstances. Depending on the video quality settings for the

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 63

I-frames and P-frames, this can result in individual images being
skipped.
The value entered here must be at least 10% higher than the
value entered in the Target data rate field. If the value entered
here is too low, it is automatically adjusted.

Encoding interval

The Encoding interval slider determines the interval at which
images are encoded and transmitted. This can be particularly
advantageous with low bandwidths. The image rate in ips
(images per second) is displayed next to the slider.

Video resolution

Select the desired resolution for the video image. The following
resolutions are available:
– CIF

352 × 288/240 pixels

– 4CIF/D1

704 × 576/480 pixels

Expert Settings

if necessary, use the expert settings to adapt the I-frame quality
and the P-frame quality to specific requirements. The setting is
based on the H.264 quantization parameter (QP).

I-frame quality

This setting adjusts the image quality of the I-frames. The basic
setting Auto automatically adjusts the quality to the settings for
the P-frame video quality. Alternatively, use the slider to set a
value between 9 and 51. The value 9 represents the best image
quality with, if necessary, a lower frame refresh rate depending
on the settings for the maximum data rate. A value of 51 results
in a very high refresh rate and lower image quality.

P-frame quality

This setting adjusts the maximum image quality of the P-frames.
The basic setting Auto automatically adjusts to the optimum
combination of movement and image definition (focus).
Alternatively, use the slider to set a value between 9 and 51.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

64 en | Advanced Mode FlexiDome IP Camera

The value 9 represents the best image quality with, if necessary,
a lower frame refresh rate depending on the settings for the
maximum data rate. A value of 51 results in a very high refresh
rate and lower image quality.

Default

Click Default to return the profile to the factory default values.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 65

9.4.3 Encoder Streams

Select H.264 Settings

1. Select the codec algorithm for streams 1 and 2. The
following algorithms are available
– H.264 BP+ (HW decoder)
– H.264 MP Low Latency

2. Select the default profile for streams 1 and 2 from the
eight profiles that have been defined.

The algorithm properties have the following settings:

H.264 BP+

(HW decoder)

H.264 MP

Low Latency

CABAC off on
CAVLC on off
GOP structure IP IP
I-frame distance 15 30
Deblocking filter on on
Recommended for Hardware

decoders,
Divar 700 Series

Software decoders,
PTZ and rapid
image movements

Preview >>

Previews of streams 1 and 2 can be shown.

1. Click Preview >> to display a preview of the video for
streams 1 and 2. the current profile is shown above the
preview.

2. Click 1:1 Live View below a preview to open a viewing
window for that stream. Various additional items of
information are shown across the top of the window.

3. Click Preview << to close the preview displays.

Note:

Deactivate the display of the video images if the performance of
the computer is adversely affected by the decoding of the data
stream.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

66 en | Advanced Mode FlexiDome IP Camera

JPEG stream

Set the parmeters for the M-JPEG stream.
– Select the Max. frame rate in images per second (IPS).
– The Picture quality slider allows adjustment of the

M-JPEG image quality from Low to High.

Note:

The JPEG resolution follows the highest resolution setting
either in stream 1 or stream 2. For example, if stream 1 is 4CIF/

D1 and stream 2 is CIF, the JPEG resolution will be 4CIF/D1.

9.5 Audio

Switch the camera audio On or Off. Adjust the input and output
levels with the sliders.

Note:

The audio signals are sent in a separate data stream parallel to
the video data, and so increase the network load. The audio
data requires an additional bandwidth of approximately
80 kbps for each connection. If you do not want any audio data
to be transmitted, select Off.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 67

9.6 Camera

Camera
>ALC
> Enhance
>Color
> Installer Options

If the camera is in monochrome mode, all color-related menu
items are disabled and cannot be accessed.

9.6.1 ALC

ALC level

Adjust the video output level (-15 to 0 to +15).

Shutter

– Fixed - fixed mode is used with manual iris lenses. The

shutter speed is set to 1/50 [1/60].

– AES (auto-shutter) - the camera automatically sets the

optimum shutter speed. The camera tries to maintain the
selected shutter speed (1/60 [1/50], 1/100, 1/120, 1/250,
1/500, 1/1000, 1/2000, 1/5000, 1/10K) as long as the light
level of the scene permits.

– FL - flickerless mode avoids interference from light sources

(recommended for video iris or DC iris lenses only).

Actual shutter

Displays the actual shutter value from the camera to help
compare lighting levels and optimum shutter speed during set­up.

Gain

When the gain mode is On, the camera automatically sets the
gain to the lowest possible value needed for a good picture.

Actual gain

Displays the actual gain value from the camera to help compare
gain level with lighting levels and picture performance.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

68 en | Advanced Mode FlexiDome IP Camera

NightSense

NightSense extends the low-light performance of the camera.
–In Auto mode, the camera automatically moves slowly to

monochrome in low-light conditions.

–In Forced mode, the camera remains in high-sensitivity

monochrome operation.
If NightSense is active, some noise or spots may appear in the
picture. This is normal camera behavior. NightSense may cause
some motion blur on moving objects.

9.6.2 Enhance

Back Light Compensation (Auto black)

When ON, the video level is optimized for the center of the
image. Parts outside this area may be underexposed or
overexposed (this is normal).

Auto black

Auto black ON automatically increases the visibility of details.

9.6.3 Color

White balance

– ATW: Auto tracking white balance allows the camera to

continually adjust for optimal color reproduction.
– AWB hold: Puts ATW on hold and saves the color settings.

Red Gain

Offsets factory white point alignment (reducing red introduces
more cyan).

Blue Gain

Offsets factory white point alignment (reducing blue introduces
more yellow).

It is only necessary to change the white point offset for special
scene conditions.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 69

9.6.4 Installer Options

Synchronization

Select the Synchronization method for the camera:
– Line lock to lock to the power supply frequency;
– Internal for free running camera operation.

Ticker bar

Switches a ticker bar on the live image on or off.

Camera buttons

Disable the Camera buttons on the camera to prevent
unauthorized change of the camera settings.

Camera LED
Disable the Camera LED on the camera to switch it off.

Show test pattern
Select On to show a video test signal.

Pattern

Select the desired test pattern to help with installation and
fault-finding.

Restore all defaults

Click Restore all defaults to restore the factory defaults for the
camera. A confirmation screen appears. Allow 5 seconds for the
camera to optimize the picture after a mode reset.

Note:

The default IP address is restored. Connect to the camera again
using this address.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

70 en | Advanced Mode FlexiDome IP Camera

9.7 Recording

Recording
> Storage Management
> Recording Profiles
>Retention Time
> Recording Scheduler
> Recording Status

Record the images from the camera to an appropriately
configured iSCSI system. For long-term authoritative images
use an appropriately sized iSCSI system.
A Video Recording Manager (VRM) can control all recording
when accessing an iSCSI system. The VRM is an external
program for configuring recording tasks for video servers. For
further information, contact your local customer service at
Bosch Security Systems.

9.7.1 Storage Management

Device manager

If the VRM option is activated, the VRM Video Recording
Manager manages all recording and no further settings can be
configured here.

Note:

Activating or deactivating VRM causes the current settings to be
lost; they can only be restored through reconfiguration.

Recording media

Select the required recording media to activate them and then
configure the recording parameters.

iSCSI Media

If an iSCSI system is selected as the storage medium, a
connection to the desired iSCSI system is needed to set the
configuration parameters.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 71

The storage system selected must be available on the network
and completely set up. Amongst other things, it must have an IP
address and be divided into logical drives (LUN).

1. Enter the IP address of the required iSCSI destination in
the iSCSI IP address field.

2. If the iSCSI destination is password protected, enter this
into the Password field.

3. Click the Read button. The connection to the IP address is
established. The Storage overview field displays the
logical drives.

Activating and Configuring Storage Media

The storage overview displays the available storage media.
Select individual media or iSCSI drives and transfer these to the
Managed storage media list. Activate the storage media in this
list and configure them for storage.

Note:

Each storage medium can only be associated with one user. If a
storage medium is already being used by another user,
decouple the user and connect the drive to the camera. Before
decoupling, make absolutely sure that the previous user no
longer needs the storage medium.

1. In the Storage overview section, double-click the required
storage medium, an iSCSI LUN or one of the other
available drives. The medium is then added to the
Managed storage media list. Newly added media is
indicated in the Status column by the status Not active.

2. Click Set to activate all media in the Managed storage
media list. These are indicated in the Status column by the
status Online.

3. Check the box in the Rec. 1 or Rec. 2 column to specify
which data stream should be recorded on the storage
media selected. Rec. 1 stores stream 1, Rec. 2 stores
stream 2.

4. Check the boxes for the Overwrite older recordings
option to specify which older recordings can be

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

72 en | Advanced Mode FlexiDome IP Camera

overwritten once the available memory capacity has been
used. Recording 1 corresponds to stream 1, Recording 2
corresponds to stream 2.

Note:

If older recordings are not allowed to be overwritten when the
available memory capacity has been used, the recording in
question is stopped. Specify limitations for overwriting old
recordings by configuring the retention time.

Formatting Storage Media

Delete all recordings on a storage medium at any time. Check
the recordings before deleting and back up important
sequences on the computer's hard drive.

1. Click a storage medium in the Managed storage media list
to select it.

2. Click Edit below the list. A new window opens.

3. Click Formatting to delete all recordings in the storage
medium.

4. Click OK to close the window.

Deactivating Storage Media
Deactivate any storage medium from the Managed storage
media list. It is then no longer used for recordings.

1. Click a storage medium in the Managed storage media list
to select it.

2. Click Remove below the list. The storage medium is
deactivated and removed from the list.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 73

9.7.2 Recording Profiles

Define up to ten different recording profiles here, then assign
these to individual days or times of day on the Recording
Scheduler page. Modify the names of the recording profiles on
the tabs in the Recording Scheduler page.

1. Click a tab to edit the corresponding profile.

2. If necessary, click Default to return all settings to their
defaults.

3. Click Copy Settings to copy the currently visible settings
to other profiles. A window opens to select the target
profiles for the copied settings.

4. For each profile, click Set to save.

Stream profile settings

Select the profile setting that is to be used for each data stream
when recording. This selection is independent of the selection
for live data stream transmission. (The properties of the
profiles are defined on the Encoder Profile page.)

Recording includes

Specify whether, in addition to video data, audio or metadata
(for example alarms or VCA data) should also be recorded.
Including metadata could make subsequent searches of
recordings easier but it requires additional memory capacity.
Without metadata, it is not possible to include video content
analysis in recordings.

Standard recording

Select the mode for standard recordings:
– Continuous: the recording proceeds continuously. If the

maximum memory capacity is reached, older recordings
will automatically be overwritten.

– Pre-alarm: recording takes place in the pre-alarm time,

during the alarm and during the post-alarm time only.

– Off: no automatic recording takes place.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

74 en | Advanced Mode FlexiDome IP Camera

Stream

Select the data stream to be used for standard recordings. (You
can select the data stream for alarm recordings separately and
independently of this setting.)

Alarm recording

Select the Pre-alarm time from the list box.
Select the Post-alarm time from the list box.
Select the Alarm stream to use for alarm recording. The
encoding interval for alarm recording can be selected from the
predefined profiles.

Alarm triggers
Select the alarm type (Alarm input/ Motion/Audio alarm /
Video loss alarm) that is to trigger a recording. Select the
Virtual alarm sensors that are to trigger a recording, via RCP+

commands or alarm scripts, for example.

9.7.3 Retention Time

Specify the retention times for recordings. If the available
memory capacity of a medium has been used, older recordings
are only overwritten if the retention time entered here has
expired.
Make sure that the retention time corresponds with the
available memory capacity. A rule of thumb for the memory
requirement is as follows: 1 GB per hour retention time with
4CIF for complete frame rate and high image quality.
Enter the required retention time in hours or days for each
recording. Recording 1 corresponds to Stream 1, Recording 2
corresponds to Stream 2.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 75

9.7.4 Recording Scheduler

The recording scheduler allows you to link the created
recording profiles to the days and times at which the camera's
images are to be recorded in the event of an alarm. Schedules
can be defined for weekdays and for holidays.

Weekdays

Assign as many time periods (in 15-minute intervals) as needed
for any day of the week. Move the mouse cursor over the table —
the time is displayed.

1. Click the profile to be assigned in the Time periods box.

2. Click a field in the table and, while holding down the left
mouse button, drag the cursor across all of the fields to be
assigned to the selected profile.

3. Use the right mouse button to deselect any of the intervals.

4. Click Select All to select all of the intervals to be assigned
to the selected profile.

5. Click Clear All to deselect all of the intervals.

6. When finished, click Set to save the settings to the device.

Holidays

Define holidays whose settings will override the settings for the
normal weekly schedule.

1. Click the Holidays tab. Days that have already been
defined are shown in the table.

2. Click Add. A new window opens.

3. Select the desired date from the calendar. Drag the mouse
to select a range of dates. These are handled as a single
entry in the table.

4. Click OK to accept the selection(s). The window closes.

5. Assign the defined holidays to the recording profile as
described above.

Delete user-defined holidays at any time.

1. Click Delete in the Holidays tab. A new window opens.

2. Click the date to be deleted.

3. Click OK. The selection is removed from the table and the
window is closed.

4. Repeat for any other dates to be deleted.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

76 en | Advanced Mode FlexiDome IP Camera

Profile names

Change the names of the recording profiles listed in the Time
periods box.

1. Click a profile.

2. Click Rename.

3. Enter the new name and click Rename again.

Activate recording

After completing configuration, activate the recording schedule
and start recording. Once activated, the Recording Profiles and
the Recording Scheduler are deactivated and the configuration
cannot be modified. Terminate recording at any time to modify
the configuration.

1. Click Start to activate the recording schedule.

2. Click Stop to deactivate the recording schedule.
Recordings that are currently running are interrupted and
the configuration can be modified.

Recording status

The graphic indicates the recording activity. An animated
graphic is seen when recording is taking place.

9.7.5 Recording Status

Details of the recording status are displayed here for
information. These settings cannot be changed.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 77

9.8 Alarm

Alarm
> Alarm Connections
>VCA
>Audio Alarm
> Alarm E-Mail
> Alarm Task Editor

9.8.1 Alarm Connections

Select the response of the camera when an alarm occurs. In the
event of an alarm, the device can automatically connect to a
pre-defined IP address. The device can contact up to ten IP
addresses in the order listed until a connection is established.

Connect on alarm

Select On so that the camera automatically connects to a pre-
defined IP address in the event of an alarm. Select Follows
input 1 so that the device maintains the connection for as long
as an alarm exists.

Number of destination IP address

Specify the numbers of the IP addresses to be contacted in the
event of an alarm. The device contacts the remote locations one
after the other in the numbered sequence until a connection is
made.

Destination IP address

For each number, enter the corresponding IP address for the
desired remote station.

Destination password

If the remote station is password protected, enter the
password here.
Only ten passwords can be defined here. Define a general
password if more than ten connections are required, for
example, when connections are initiated by a controlling

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

78 en | Advanced Mode FlexiDome IP Camera

system such as VIDOS or Bosch Video Management System.
The camera connects to all remote stations protected by the
same general password. To define a general password:

1. Select 10 in the Number of destination IP address list
box.

2. Enter 0.0.0.0 in the Destination IP address field.

3. Enter the password in the Destination password field.

4. Set the user password of all the remote stations to be
accessed using this password.

Setting destination 10 to the IP-address 0.0.0.0 overrides its
function as the tenth address to try.

Video transmission
If the device is operated behind a firewall, select TCP (HTTP
port) as the transfer protocol. For use in a local network, select
UDP.

Please note that in some circumstances, in the event of an
alarm, a larger bandwidth must be available on the network for
additional video images (if Multicast operation is not possible).
To enable Multicast operation, select the UDP option for the

Video transmission parameter here and on the Network page.

Remote port

Select a browser port, depending on the network configuration.
The ports for HTTPS connections are only available if the On
option in SSL encryption is selected.

Video output

If it is known which device is being used as the receiver, select
the analog video output to which the signal should be switched.
If the destination device is unknown, it is advisable to select the
First available option. In this case, the image is placed on the
first free video output. This is an output on which there is no
signal. The connected monitor only displays images when an
alarm is triggered. If a particular video output is selected and a
split image is set for this output on the receiver, select the
decoder from Decoder in the receiver that is to be used to
display the alarm image. Refer to the destination device

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 79

documentation concerning image display options and available
video outputs.

Decoder

Select a decoder of the receiver to display the alarm image. The
decoder selected has an impact on the position of the image in
a split screen.

SSL encryption

SSL encryption protects data used for establishing a
connection, such as the password. By selecting On, only
encrypted ports are available for the Remote port parameter.
SSL encryption must be activated and configured on both sides
of a connection. The appropriate certificates must also have
been uploaded. Configure and activate encryption for media
data (video, metadata) on the Encryption page.

Auto-connect

Select On to automatically re-established a connection to one
of the previously specified IP addresses after each reboot,
connection breakdown, or network failure.

Audio

Select On to transmit the audio stream with an alarm
connection.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

80 en | Advanced Mode FlexiDome IP Camera

9.8.2 Video Content Analyses (VCA)

The camera has integrated VCA which can detect and analyze
changes in the signal using image processing algorithms. Such
changes can be due to movements in the camera's field of view.
Select various VCA configurations and adapt these to your
application, as required. The Silent MOTION+ configuration is
active by default. In this configuration, metadata is created to
facilitate searches of recordings, however, no alarm is
triggered.

1. Select a VCA configuration and make the required settings.

2. If necessary, click the Default button to return all settings
to their default values.

Note:

If there is not enough computing power, priority is given to live
images and recordings. This can lead to impairment of the VCA
system. Observe the processor load and optimize the encoder
settings or the VCA settings if necessary, or turn off VCA
completely.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 81

9.8.3 VCA configuration- Profiles

Configure two profiles with different VCA configurations. Save
profiles on your computer's hard drive and load saved profiles
from there. This can be useful if testing a number of different
configurations. Save a functioning configuration and test new
settings. Use the saved configuration to restore the original
settings at any time.

1. Select a VCA profile and enter the required settings.

2. If necessary, click Default to return all settings to default
values.

3. Click the Save... to save the profile settings to another file.
A new window opens in which to specify the file name and
where to save it.

4. Click Load... to load a saved profile. A new window opens
in which to select the profile file and specify where to save
the file.

To rename a profile:

1. To rename the file, click the icon to the right of the list field
and enter the new profile name in the field.

2. Click the icon again. The new profile name is saved.

The current alarm status is displayed for information purposes.

Aggregation time (s)

Set an aggregation time of between 0 and 20 seconds. The
aggregation time always starts when an alarm event occurs. It
extends the alarm event by the value set. This prevents alarm
events that occur in quick succession from triggering several
alarms and successive events in a rapid sequence. No further
alarm is triggered during the aggregation time.
The post-alarm time set for alarm recordings only starts once
the aggregation time has expired.

Analysis type

Select the required analysis algorithm. By default, only Motion+
is available — this offers a motion detector and essential
recognition of tampering.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

82 en | Advanced Mode FlexiDome IP Camera

Metadata is always created for a video content analysis, unless
this was explicitly excluded. Depending on the analysis type
selected and the relevant configuration, additional information
overlays the video image in the preview window next to the
parameter settings. With the Motion+ analysis type, for
example, the sensor fields in which motion is recorded are
marked with rectangles.

Note:

Additional analysis algorithms with comprehensive functions,
such as IVMD and IVA, are available from Bosch Security
Systems.

Motion detector

Motion detection is available for the Motion+ analysis type. For
the detector to function, the following conditions must be met:
– Analysis must be activated.
– At least one sensor field must be activated.
– The individual parameters must be configured to suit the

operating environment and the desired responses.

– The sensitivity must be set to a value greater than zero.

Note:

Reflections of light (from glass surfaces, etc.), lights switching
on and off, or changes in the light level caused by cloud
movement on a sunny day can trigger unintended responses
from the motion detector and generate false alarms. Run a
series of tests at different times of the day and night to ensure
that the video sensor is operating as intended. For indoor
surveillance, ensure constant lighting of the areas during the
day and at night.

Sensitivity

Sensitivity is available for the Motion+ analysis type. The basic
sensitivity of the motion detector can be adjusted for the
environmental conditions to which the camera is subject. The
sensor reacts to variations in the brightness of the video image.
The darker the observation area, the higher the value that must
be selected.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 83

Minimum object size

Specify the number of sensor fields that a moving object must
cover to generate an alarm. This setting prevents objects that
are too small from triggering an alarm. A minimum value of 4 is
recommended. This value corresponds to four sensor fields.

Debounce time 1 s

The debounce time prevents very brief alarm events from
triggering individual alarms. If the Debounce time 1 s option is
activated, an alarm event must last at least 1 second to trigger
an alarm.

Selecting the area

Select the areas of the image to be monitored by the motion
detector. The video image is subdivided into square sensor
fields. Activate or deactivate each of these fields individually. To
exclude particular regions of the camera's field of view from
monitoring due to continuous movement (by a tree in the wind,
for example), the relevant fields can be deactivated.

1. Click Select Area to configure the sensor fields. A new
window opens.

2. If necessary, click Clear All first to clear the current
selection (fields marked red).

3. Left-click the fields to be activated. Activated fields are
marked red.

4. If necessary, click Select All to select the entire video­frame for monitoring.

5. Right-click any fields to deactivate.

6. Click OK to save the configuration.

7. Click the close button (X) in the window title bar to close
the window without saving the changes.

Tamper detection

Detect tampering of cameras and video cables by means of
various options. Run a series of tests at different times of the
day and night to ensure that the video sensor is operating as
intended.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

84 en | Advanced Mode FlexiDome IP Camera

Sensitivity and Trigger delay (s) can only be changed if
Reference check is selected.

Sensitivity

The basic sensitivity of the tamper detection can be adjusted
for the environmental conditions to which the camera is
subject. The algorithm reacts to the differences between the
reference image and the current video image. The darker the
observation area, the higher the value that must be selected.

Trigger delay (s)

Set delayed alarm triggering here. The alarm is only triggered
after a set time interval in seconds has elapsed and then only if
the triggering condition still exists. If the original condition has
been restored before this time interval elapses, the alarm is not
triggered. This avoids false alarms triggered by short-term
changes, for example, cleaning activities in the direct field of
vision of the camera.

Global change (slider)

Set how large the global change in the video image must be for
an alarm to be triggered. This setting is independent of the
sensor fields selected under Select Area. Set a high value if
fewer sensor fields need to change to trigger an alarm. With a
low value, it is necessary for changes to occur simultaneously in
a large number of sensor fields to trigger an alarm. This option
allows detection, independently of motion alarms, manipulation
of the orientation or location of a camera resulting from turning
the camera mount bracket, for example.

Global change

Activate this function if the global change, as set with the
Global change slide control, should trigger an alarm.

Scene too bright

Activate this function if tampering associated with exposure to
extreme light (for instance, shining a flashlight directly on the
objective) should trigger an alarm. The average brightness of
the scene provides a basis for recognition.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 85

Scene too dark

Activate this function if tampering associated with covering the
objective (for instance, by spraying paint on it) should trigger
an alarm. The average brightness of the scene provides a basis
for recognition.

Scene too noisy

Activate this function if tampering associated with EMC
interference (noisy scene as the result of a strong interference
signal in the vicinity of the video lines) should trigger an alarm.

Reference check

Save a reference image that can be continuously compared with
the current video image. If the current video image in the
marked areas differs from the reference image, an alarm is
triggered. This detects tampering that would otherwise not be
detected, for example, if the camera is turned.

1. Click Reference to save the currently visible video- image
as a reference.

2. Click Select Area and select the areas in the reference
image that are to be monitored.

3. Check the box Reference check to activate the on-going
check. The stored reference image is displayed in black
and white below the current video image, and the selected
areas are marked in yellow.

4. Select the Disappearing edges or Appearing edges option
to specify the reference check once again.

Disappearing edges

The area selected in the reference image should contain a
prominent structure. If this structure is concealed or moved,
the reference check triggers an alarm. If the selected area is too
homogenous, so that concealing and moving the structure
would not trigger an alarm, then an alarm is triggered
immediately to indicate the inadequate reference image.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

86 en | Advanced Mode FlexiDome IP Camera

Appearing edges

Select this option if the selected area of the reference image
includes a largely homogenous surface. If structures appear in
this area, then an alarm is triggered.

Selecting the area

Select the image areas in the reference image that are to be
monitored. The video image is subdivided into square fields.
Activate or deactivate each of these fields individually.
Select only those areas for reference monitoring in which no
movement takes place and that are always evenly lit, as false
alarms could otherwise be triggered.

1. Click Select Area to configure the sensor fields. A new
window opens.

2. If necessary, click Clear All first to clear the current
selection (fields marked yellow).

3. Left-click the fields to be activated. Activated fields are
marked yellow.

4. If necessary, click Select All to select the entire video­frame for monitoring.

5. Right-click any fields to deactivate.

6. Click OK to save the configuration.

7. Click the close button (X) in the window title bar to close
the window without saving the changes.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 87

9.8.4 VCA configuration - Scheduled

A scheduled configuration allows you to link a VCA profile with
the days and times at which the video content analysis is to be
active. Schedules can be defined for weekdays and for holidays.

Weekdays

Link any number of 15-minute intervals with the VCA profiles for
each day of the week. Moving the mouse cursor over the table
displays the time below it. This aids orientation.

1. Click the profile to link in the Time periods field.

2. Click in a field in the table, hold down the mouse button
and drag the cursor over all the periods to be assigned to
the selected profile.

3. Use the right mouse button to deselect any of the intervals.

4. Click Select All to link all time intervals to the selected
profile.

5. Click Clear All to deselect all of the intervals.

6. When finished, click Set to save the settings in the device.

Holidays

Define holidays on which a profile should be active that are
different to the standard weekly schedule.

1. Click the Holidays tab. Any days that have already been
selected are shown in the table.

2. Click Add. A new window opens.

3. Select the desired date from the calendar. Select several
consecutive calendar days by holding down the mouse
button. These will later be displayed as a single entry in the
table.

4. Click OK to accept the selection. The window closes.

5. Assign the individual holidays to the VCA profiles, as
described above.

Deleting Holidays

Delete defined holidays at any time:

1. Click Delete. A new window opens.

2. Click the date to delete.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

88 en | Advanced Mode FlexiDome IP Camera

3. Click OK. The item is deleted from the table and the
window closes.

4. The process must be repeated for deleting additional days.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 89

9.8.5 VCA configuration - Event triggered

This configuration allows you to stipulate that the video content
analysis is only to be activated when triggered by an event. As
long as no trigger is activated, the Silent MOTION+
configuration in which metadata is created is active; this
metadata facilitates searches of recordings, but does not
trigger an alarm.

Trigger

Select a physical alarm or a virtual alarm as a trigger. A virtual
alarm is created using software, with RCP+ commands or alarm
scripts, for example.

Trigger active

Select the VCA configuration here that is to be enabled via an
active trigger. A green check mark to the right of the list field
indicates that the trigger is active.

Trigger inactive

Select the VCA configuration here that is to be activated if the
trigger is not active. A green check mark to the right of the list
field indicates that the trigger is inactive.

Delay (s)

Select the delay period for the reaction of the video content
analysis to trigger signals. The alarm is only triggered after a set
time interval in seconds has elapsed and then only if the
triggering condition still exists. If the original condition has
been restored before this time interval elapses, the alarm is not
triggered. A delay period may be useful in avoiding false alarms
or frequent triggering. During the delay period, the Silent
MOTION+ configuration is always enabled.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

90 en | Advanced Mode FlexiDome IP Camera

9.8.6 Audio Alarm

Create alarms based on audio signals. Configure signal
strengths and frequency ranges so that false alarms, for
example, machine noise or background noise, are avoided.
Set up normal audio transmission before configuring the audio
alarm.

Audio alarm
Select On for the device to generate audio alarms.

Name

The name makes it easier to identify the alarm in extensive
video monitoring systems, for example with the VIDOS and
Bosch Video Management System programs. Enter a unique and
clear name here.

Signal Ranges

Exclude particular signal ranges in order to avoid false alarms.
For this reason the total signal is divided into 13 tonal ranges
(mel scale). Check or uncheck the boxes below the graphic to
include or exclude individual ranges.

Threshold

Set up the threshold on the basis of the signal visible in the
graphic Set the threshold using the slide control or,
alternatively, move the white line directly in the graphic using
the mouse.

Sensitivity

Use this setting to adapt the sensitivity to the sound
environment and effectively suppress individual signal peaks. A
high value represents a high level of sensitivity.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 91

9.8.7 Alarm E-Mail

As an alternative to automatic connecting, alarm states can also
be documented by e-mail. This makes it possible to notify a
recipient who does not have a video receiver. In this case, the
camera automatically sends an e-mail to a user-defined e-mail
address.

Send alarm e-mail

Select On for the device to automatically send an alarm e-mail
in the event of an alarm.

Mail server IP address

Enter the IP address of a mail server that operates on the SMTP
standard (Simple Mail Transfer Protocol). Outgoing e-mails are
sent to the mail server via the address entered. Otherwise,
leave the box blank (0.0.0.0).

SMTP user name

Enter a registered user name for the chosen mail server.

SMTP password

Enter the required password for the registered user name.

Format

Select the data format of the alarm message.
– Standard (with JPEG): e-mail with JPEG image file

attachment.

– SMS: e-mail in SMS format to an e-mail-to-SMS gateway

(for example, to send an alarm by cellphone) without an

image attachment.
When a cellphone is used as the receiver, make sure to activate
the e-mail or SMS function, depending on the format, so that
these messages can be received. Obtain information on
operating your cellphone from your cellphone provider.

Attach JPEG from camera

Check the box to specify that JPEG images are sent from the
camera.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

92 en | Advanced Mode FlexiDome IP Camera

Destination address

Enter the e-mail address for alarm e-mails here. The maximum
address length is 49 characters.

Sender name

Enter a unique name for the e-mail sender, for example, the
location of the device. This makes it easier to identify the origin
of the e-mail.

Test e-mail

Click Send Now to test the e-mail function. An alarm e-mail is
immediately created and sent.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 93

9.8.8 Alarm Task Editor

Editing scripts on this page overwrites all settings and entries
on the other alarm pages. This procedure cannot be reversed.
To edit this page, you should have programming knowledge and
be familiar with the information in the Alarm Task Script
Language document and the English language. The document
can be found on the product DVD supplied.

As an alternative to the alarm settings on the various alarm
pages, enter the desired alarm functions in script form here.
This will overwrite all settings and entries on the other alarm
pages.

1. Click Examples under the Alarm Task Editor field to see

some script examples. A new window opens.

2. Enter new scripts in the Alarm Task Editor field or change

existing scripts in line with your requirements.

3. When finished, click Set to transmit the scripts to the

device. If the transfer was successful, the message Script

successfully parsed. is displayed over the text field. If it

was not successful, an error message is displayed with

further information.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

94 en | Advanced Mode FlexiDome IP Camera

9.9 Interfaces

Interfaces
> Alarm input
>Relay

9.9.1 Alarm input

Configure the alarm triggers for the camera.
Select N.C. (Normally Closed) if the alarm is to be triggered by
closing the contact.
Select N.O. (Normally Open) if the alarm is to be triggered by
opening the contact.

Name

Enter a name for the alarm input. This is then displayed below
the icon for the alarm input on the LIVEPAGE (if configured).

Action

Select the camera mode to switch to when alarm input 1 is
triggered. See Section 9.8.8 Alarm Task Editor, page 93, for
information on alarm actions based on alarm inputs.

9.9.2 Relay

Configure the switching behavior of the relay output.
Select different events that automatically activate an output.
For example, turn on a floodlight by triggering a motion alarm
and then turn the light off again when the alarm has stopped.

Idle state

Select Open for the relay to operate as an N.O. contact, or
select Closed if the relay is to operate as an N.C. contact.

Select
Select External device or Motion+/IVA to trigger the relay.

Relay name

The relay can be assigned a name here. The name is shown on
the button next to Trigger relay. The LIVEPAGE can also be
configured to display the name next to the relay icon.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 95

Trigger relay

Click the button to switch the relay manually (for example, for
testing purposes or to operate a door opener).

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

96 en | Advanced Mode FlexiDome IP Camera

9.10 Network

Network
>Network
> Advanced
> Multicasting
> JPEG Posting
>Encryption

9.10.1 Network

The settings on this page are used to integrate the device into a
network. Some changes only take effect after a reboot. In this
case Set changes to Set and Reboot.

1. Make the desired changes.

2. Click Set and Reboot.
The device is rebooted and the changed settings are activated.
If the IP address, subnet mask, or gateway address is changed,
then the device is only available under the new addresses after
the reboot.

Automatic IP assignment

If a DHCP server is employed in the network for the dynamic
assignment of IP addresses, activate acceptance of IP
addresses automatically assigned to the device.
Certain applications (VIDOS, Bosch Video Management System,
Archive Player, Configuration Manager) use the IP address for
the unique assignment of the device. If using these
applications, the DHCP server must support the fixed
assignment between IP address and MAC address, and must be
appropriately set up so that, once an IP address is assigned, it
is retained each time the system is rebooted.

IP address

Enter the desired IP address for the camera. The IP address
must be valid for the network.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 97

Subnet mask

Enter the appropriate subnet mask for the set IP address.

Gateway address

For the device to establish a connection to a remote location in
a different subnet, enter the IP address of the gateway here.
Otherwise, this field can remain empty (0.0.0.0).

DNS server address

The device is easier to access if it is listed on a DNS server. For
example, to establish an Internet connection to the camera, it is
sufficient to enter the name given to the device on the DNS
server as a URL in the browser. Enter the DNS server's IP
address. Servers are supported for secure and dynamic DNS.

Details >>

Video transmission

If the device is used behind a firewall, TCP (Port 80) should be
selected as the transmission protocol. For use in a local
network, choose UDP.
Multicast operation is only possible with the UDP protocol. The
TCP protocol does not support multicast connections. The MTU
value in UDP mode is 1514 bytes.

HTTP browser port

Select a different HTTP browser port from the list if required.
The default HTTP port is 80. To limit connection to HTTPS,
deactivate the HTTP port. To do this, activate the Off option.

HTTPS browser port

To limit browser access to encrypted connections, choose an
HTTPS port from the list. The standard HTTPS port is 443.
Select the Off option to deactivate HTTPS ports and limit
connections to unencrypted ports.
The camera uses the TLS 1.0 protocol. Ensure that the browser
has been configured to support this protocol. Also ensure that
Java application support is activated (in the Java Plug-in
Control Panel of the Windows Control Panel).

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

98 en | Advanced Mode FlexiDome IP Camera

To limit connections to SSL encryption, set the Off option in
the HTTP browser port, the RCP+ port, and Telnet support. This
deactivates all unencrypted connections allowing connections
on the HTTPS port only.
Configure and activate encryption for media data (video, audio,
metadata) on the Encryption page.

RCP+ port 1756

Activating RCP+ port 1756 allows unencrypted connections on
this port. To allow only encrypted connections, set the Off
option to deactivate the port.

Telnet support

Activating Telenet support allows unencrypted connections on
this port. To allow only encrypted connections, set the Off
option to deactivate telnet support, making telnet connections
impossible.

Interface mode ETH

If necessary, select the Ethernet link type for interface ETH.
Depending on the device connected, it may be necessary to
select a special operation type.

Network MSS (Byte)

Set the maximum segment size for the IP packet's user data
here. This gives the option to adjust the size of the data packets
to the network environment and to optimize data transmission.
Please comply with the MTU value of 1,514 bytes in UDP mode.

iSCSI MSS (Byte)

Specify a higher MSS value for a connection to the iSCSI
system than for the other data traffic via the network. The
potential value depends on the network structure. A higher
value is only useful if the iSCSI system is located in the same
subnet as the camera.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems

FlexiDome IP Camera Advanced Mode | en 99

Enable DynDNS

DynDNS.org is a DNS hosting service that stores IP addresses in
a database ready for use. It allows selecting the device via the
Internet using a host name, without having to know the current
IP address of the device. Enable this service here. To do this,
obtain an account with DynDNS.org and register the required
host name for the device on that site.

Note:

Information about the service, registration process and
available host names can be found at DynDNS.org.

Host name

Enter the host name registered on DynDNS.org for the device
here.

User name

Enter the user name registered at DynDNS.org here.

Password

Enter the password registered at DynDNS.org here.

Force registration now

Force the registration by transferring the IP address to the
DynDNS server. Entries that change frequently are not provided
in the Domain Name System. It is a good idea to force the
registration when setting up the device for the first time. Only
use this function when necessary and no more than once a day,
to avoid the possibility of being blocked by the service provider.
To transfer the IP address of the device, click the Register
button.

Status

The status of the DynDNS function is displayed here for
information purposes; these settings cannot be changed.

Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06

100 en | Advanced Mode FlexiDome IP Camera

9.10.2 Advanced

The settings on this page are used to set advanced settings the
network. Some changes only take effect after a reboot. In this
case Set changes to Set and Reboot.

1. Make the desired changes.

2. Click Set and Reboot.
The device is rebooted and the changed settings are activated.

SNMP

The camera supports the SNMP V2 (Simple Network
Management Protocol) for managing and monitoring network
components, and can send SNMP messages (traps) to IP
addresses. It supports SNMP MIB II in the unified code.
If On is selected for the SNMP parameter and a SNMP host
address is not entered, the device does not send the traps
automatically and will only reply to SNMP requests. If one or
two SNMP host addresses are entered, SNMP traps are sent
automatically. Select Off to deactivate the SNMP function.

1. SNMP host address / 2. SNMP host address

To send SNMP traps automatically, enter the IP addresses of
one or two target devices here.

SNMP traps

To choose which traps are sent:

1. Click Select. A dialog box appears.

2. Click the check boxes of the appropriate traps.

3. Click Set to close the window and send all of the checked
traps.

Authentication (802.1x)

To configure Radius server authentication, connect the camera
directly to a computer using a network cable. If a Radius server
controls access rights over the network, select On to activate
authentication to communicate with the device.

1. Enter the user name that the Radius server uses for the
camera in the Identity field.

2. Enter the Password that the Radius server expects from
the camera.

AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems
