Bosch MBA534BS0A Specifications Sheet

Serie | 4

The built-in double oven with 3D hot air:
achieve perfect baking and roasting results
on multiple levels simultaneously.

●

3D Hotair: perfect results thanks to optimal distribution of
heat on up to 3 levels simultaneously.

●

Pop-out controls: for an easy to clean front.

●

EcoClean Direct: almost no cleaning is necessary thanks to
a special coating of the rear wall that automatically absorbs
grime.

●

Easy to clean grey enamel interior

Technical Data

Color / Material Front : Stainless steel
Built-in / Free-standing : Built-in
Integrated Cleaning system : No
Dimensions of the product (mm) : 888 x 594 x 550
Dimensions of the packed product (HxWxD) (mm) :

960 x 690 x 660
Control Panel Material : Stainless steel
Door Material : Glass
Net weight (kg) : 52.8
Usable volume of cavity (l) : 71
Cooking method : Bottom heat, Conventional heat, Full
width grill, Heißluft sanft, Hot Air, Hot air grilling, Pizza setting
Temperature control : No control of the temperature
Number of interior lights : 1
Approval certificates : CE, VDE
EAN code : 4242005034468
Energy efficiency class (2010/30/EC) : A
Energy consumption per cycle conventional (2010/30/EC) :

1.02
Energy consumption per cycle forced air convection (2010/30/
EC) : 0.81
Energy efficiency class (2010/30/EC) - cavity 2 : B
Energy consumption per cycle conventional - cavity 2 (2010/30/
EC) : 0.83
Energy efficiency index (2010/30/EC) : 95.3
Energy efficiency index cavity 2 (2010/30/EC) : 120.3
Electrical connection rating (W) : 5900
Current (A) : 32
Voltage (V) : 220-240
Frequency (Hz) : 50
Plug type : fixed connection, no plug

'!2E20AF-adeegi!

MBA534BS0A
Double Oven

Included accessories

2 x combination grid
1 x universal pan

Optional accessories

HEZ327000 : Pizza stone
HEZ625071 : Grill tray, anthracite enamelled
HEZ633001 : Lid for professional pan, enamelled anth
HEZ634000 : Baking and roasting grid (standard)
HEZ636000 : Glass pan

1/3

Serie | 4 Double Ovens

MBA534BS0A
Double Oven

The built-in double oven with 3D hot air:
achieve perfect baking and roasting results
on multiple levels simultaneously.

Heating Functions

Top Oven

Oven with 3 heating methods: Top/bottom heating, Full width

-

grill, Small area grill

Temperature range 50 °C - 275 °C

-

Cavity volume: 34 l

-

Main Oven

Oven with 7 heating methods: 3D Hotair, Top/bottom heating,

-

Hot air grilling, Full width grill, Pizza setting, Bottom heating,
Hotair gentle

Temperature range 50 °C - 275 °C

-

Cavity volume: 71 net usable litres

-

Hook-in racks / rails

Main Oven

Available as an additional accessory

-

Accessories

2 x combination grid, 1 x universal pan

-

Safety and Environment

Top Oven

Maximum door temperature 40 °C

-

Main Oven

Maximum door temperature 40° C

-

Child lock function

-

2 year warranty

Technical Info

Nominal voltage: 220 - 240 V

-

Total connected load electric: 5.9 KW

-

Number of cavities: 2

-

Heat source: electrical
Top Cavity Volume: 34 l
Main Cavity volume: 71 net usable litres

Dimensions

Appliance dimensions (HxWxD): 888 mm x 594 mm x 550 mm

-

Installation dimensions (HxWxD): 875 mm - 888 mm x 560

-

mm - 568 mm x 550 mm

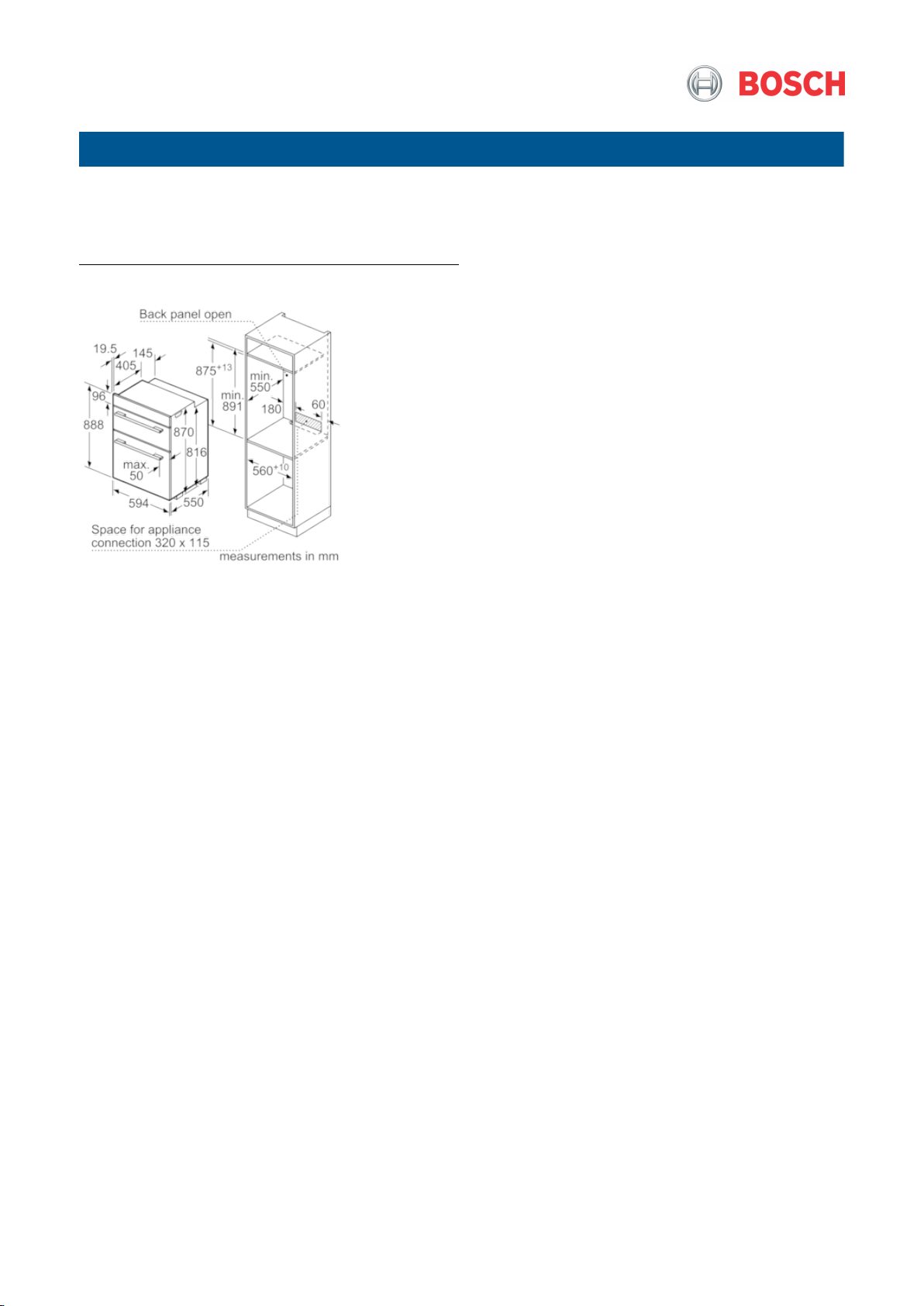

Please reference the built-in dimensions provided in the

-

installation drawing

Design

Top Oven

Rotary control knobs, Retractable control knobs

-

Number of shelf levels: 3 PC

-

Cavity (inner surface) top: Enamel grey

-

Main Oven

Enamel grey with 5 shelf positions

-

Extra large capacity oven with grey enamel

-

Cleaning

Top Oven

Full glass inner door

-

Main Oven

EcoClean Direct : back panel

-

Full glass inner door

-

Convenience

LED-display control (red)

-

Drop down door

-

Halogen lighting

-

Cooling fan

-

Bar handle

-

2/3
