Video | LTC 9303 Series Indoor Housings

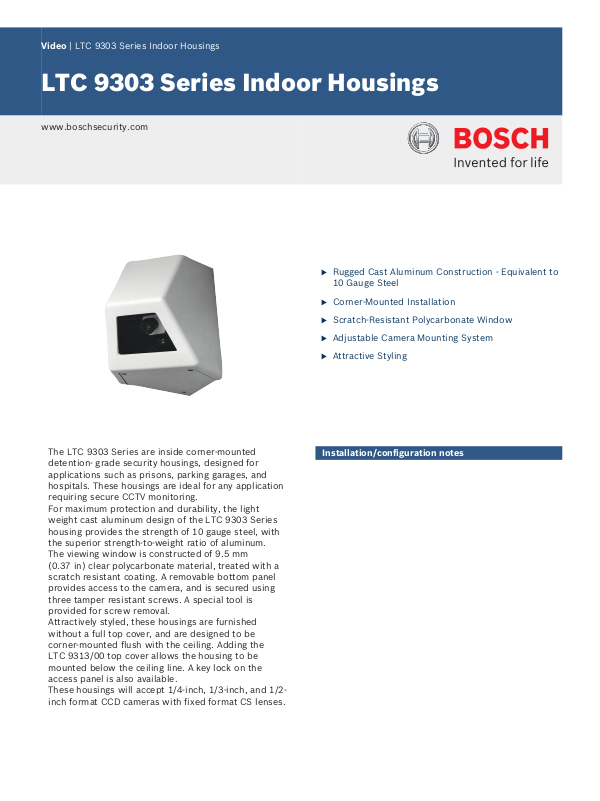

LTC 9303 Series Indoor Housings

www.boschsecurity.com

u Rugged Cast Aluminum Construction - Equivalent to

10 Gauge Steel

u Corner-Mounted Installation

u Scratch-Resistant Polycarbonate Window

The LTC 9303 Series are inside corner-mounted
detention- grade security housings, designed for
applications such as prisons, parking garages, and
hospitals. These housings are ideal for any application
requiring secure CCTV monitoring.
For maximum protection and durability, the light
weight cast aluminum design of the LTC 9303 Series
housing provides the strength of 10 gauge steel, with
the superior strength-to-weight ratio of aluminum.
The viewing window is constructed of 9.5 mm
(0.37 in) clear polycarbonate material, treated with a
scratch resistant coating. A removable bottom panel
provides access to the camera, and is secured using
three tamper resistant screws. A special tool is
provided for screw removal.
Attractively styled, these housings are furnished
without a full top cover, and are designed to be
corner-mounted flush with the ceiling. Adding the
LTC 9313/00 top cover allows the housing to be
mounted below the ceiling line. A key lock on the
access panel is also available.
These housings will accept 1/4-inch, 1/3-inch, and 1/2­inch format CCD cameras with fixed format CS lenses.

u Adjustable Camera Mounting System

u Attractive Styling

Installation/configuration notes

217

8.6

165

6.5
428

16. 9

336

13. 2

108

4.3

361

14. 2

251

9.9

234

9.2
110

4.3

161

6.3

307

12. 1

mm

in

2 | LTC 9303 Series Indoor Housings

Connectors

Dimensional Outline

Parts included

QuantityComponent

1 LTC 9303 Series Indoor Housing

Technical specifications

Models

LTC 9303/00 Clear 9.5 mm (0.37 in) viewing window.

LTC 9303/01 Clear 9.5 mm (0.37 in) viewing window with

key lock controlled access.

LTC 9303/02 Tinted 9.5 mm (0.37 in) viewing window.

LTC 9303/03 Clear 12.7 mm (0.50 in) viewing window.

LTC 9303/04 Tinted 9.5 mm (0.37 in) viewing window with

key lock controlled access.

LTC 9303/05 Clear 12.7 mm (0.5 in) viewing window with

key lock controlled access.

Mechanical

Maximum Camera/
Lens Size

Housing accepts camera/lens combinations up
to 267 L x 102 W x 76 H mm
(10.5 x 4.0 x 3.0 in) when using 1/4-inch, 1/3­inch and 1/2- inch format CCD cameras.
Dimensions include standard

Cable Entry Wiring access through a PG 21 (3/4 inch)

conduit knockout located on both sides of the
rear of the housing. Cable entry also available
through top of the housing.

Window 9.5 mm (0.37 in) thick polycarbonate treated

with a scratch-resistant coating. Design allows
for easy replacement.

Housing Mounting Protected rear panel contains eight 10 mm

(0.406 in) holes for easy installation.

Camera Mounting Removable three piece fully adjustable

mounting system.

Construction 6.3 mm (0.25 in) cast aluminum front cover

mounted to a steel rear panel and assembled
using high strength steel hardware. Access
panel secured using three security screws.

Finish Light gray

Dimensions See Dimensional Outline

Weight 7.7 kg (17 lb)

Ordering information

LTC 9303/00 Indoor Housing

Max. security, corner mounting, clear 9.5 (0,37 inch)
viewing window

Order number LTC9303/00

LTC 9303/01 Indoor Housing

Max. security, corner mounting, clear window with key
lock

Order number LTC9303/01

LTC 9303/02 Indoor Housing

Max. security, corner mounting, tinted 9.5 mm (0,37
inch), viewing window

Order number LTC9303/02

LTC 9303/03 Indoor Housing

Max. security, corner mounting, clear 12.7 mm (0.50
inch) viewing window

Order number LTC9303/03

LTC 9303/04 Indoor Housing

Max. Security, corner mounting, tinted 9.5 mm (0,37
inch) viewing window

Order number LTC9303/04

LTC 9303/05 Indoor Housing

max. security, corner mounting, clear 12,7 mm (0,5
inch) viewing window

Order number LTC9303/05

Accessories

LTC 9313/00 Sloped Top Cover

for LTC 9303 Series Housing

Order number LTC9313/00
