Bosch LTC 8600, LTC 8800 User Manual

Download
Page 1

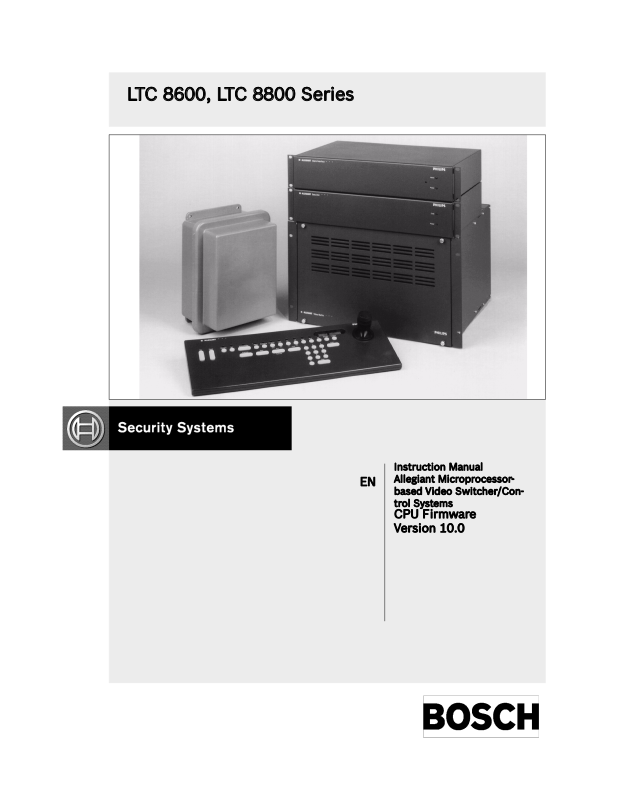

LTC 8600, LTC 8800 Series
EN
Instruction Manual Allegiant Microprocessor­based Video Switcher/Con­trol Systems
CPU Firmware Version 10.0
Page 2
Page 3
Table of Contents
1 Safety ..................................................................................................................................................... 1
2 Unpacking .............................................................................................................................................. 9
2.1 Parts List ................................................................................................................................................ 9
3 Service ................................................................................................................................................. 10
4 Description .......................................................................................................................................... 11
5 Allegiant Feature Summary Table ....................................................................................................... 13
6 System Components ............................................................................................................................ 15
6.1 LTC 8601 Series Systems..................................................................................................................... 15
6.2 LTC 8800 Series Systems..................................................................................................................... 15
7 System Accessory Components .......................................................................................................... 17
7.1 LTC 8540/00 Alarm Interface Unit........................................................................................................ 17
7.2 LTC 8568 and LTC 8768 Signal Distribution Units ............................................................................... 17
7.3 IntuiKey Series KBD-Universal Keyboard .............................................................................................. 17
7.4 KBD-Rack Keyboard Mounting Kit......................................................................................................... 17
7.5 LTC 8555 Series Keyboards.................................................................................................................. 18
7.6 LTC 8558/00 Keyboard Extension Cable .............................................................................................. 18
7.7 LTC 8557 Series Keyboard Extension Kits............................................................................................ 18
7.8 LTC 8560 and LTC 8561 Series Receiver/Driver Units ......................................................................... 18
7.9 AutoDome Series.................................................................................................................................. 18
7.10 LTC 8569, LTC 8570, LTC 8571, LTC 8572 Series Code Merger Units ................................................ 19
7.11 LTC 8770 Switcher Follower Series ..................................................................................................... 19
7.12 LTC 8712 Series Console Port Expander Units .................................................................................... 19
7.13 LTC 8713 Alarm Port Expander Units ................................................................................................... 19
7.14 LTC 8714, LTC 8715 Series Keyboard Port Expander Units................................................................. 19
7.15 LTC 8780 Series Data Converter Units................................................................................................. 20
7.16 LTC 8781 Series Data Converter Units................................................................................................. 20
7.17 LTC 8016/90 Bilinx™ Data Interface Unit ............................................................................................. 20
7.18 LTC 8785 Series Code Converters ....................................................................................................... 20
7.19 LTC 8782 Series Code Translator Units ............................................................................................... 21
7.20 LTC 8808/00 Series Video Interconnect Panel..................................................................................... 21
7.21 LTC 8059/00 Master Control Software ................................................................................................ 21
7.22 LTC 8850/00 Windows Based Graphical User Interface Software ....................................................... 21
7.23 SFT-INTSRV Allegiant Integration Software .......................................................................................... 21
7.23.1 Integration Server ................................................................................................................................. 22
7.23.2 Virtual Allegiant Satellite Application Software .................................................................................... 22
7.23.3 Allegiant Satellite SDK .......................................................................................................................... 22
7.24 LTC 8506/00 PC-to-Console Port RS-232 Cable................................................................................... 23
7.25 LTC 8508/01 Ribbon-to-BNC Interface Cable....................................................................................... 23
7.26 Logging Printer ..................................................................................................................................... 23
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 4
iv en | LTC 8600 | LTC 8800 Series
8 Installation Procedure ......................................................................................................................... 28
8.1 Main CPU Bay Installation .................................................................................................................... 28
8.2 Video Input Modules............................................................................................................................. 28
8.3 Video Output Modules.......................................................................................................................... 29
8.4 CPU Module.......................................................................................................................................... 29
8.5 Camera and Monitor Video Connections.............................................................................................. 30
8.5.1 LTC 8600 Series and LTC 8800 Series Video Input Connections .........................................................30
8.6 Termination Practices........................................................................................................................... 31
8.6.1 LTC 8600 Series or LTC 8800 Series Video Input Terminations ........................................................... 32
8.6.2 LTC 8802 Series Monitor Expansion Bay Video Input Connections ..................................................... 32
8.6.3 LTC 8802 Series Monitor Expansion Bay Data Connections ................................................................33
8.6.4 Monitor Output Video Connections ...................................................................................................... 33
9 Optional Accessories Installation ....................................................................................................... 34
9.1 General Accessory Installation ............................................................................................................. 34
9.2 Logging Printer Option Installation ...................................................................................................... 34
9.3 Computer Interface Installation............................................................................................................ 34
10 Satellite Configuration Installations ................................................................................................... 36
10.1 Satellite Site “Trunk Line” Monitor Outputs......................................................................................... 36
10.2 Main Site “Trunk Line” Video Inputs..................................................................................................... 37
10.3 Control Data Lines in Satellite Systems ............................................................................................... 37
10.4 Satellite Site Programming Requirements............................................................................................ 37
10.5 Main Site Programming Requirements ................................................................................................. 38
10.6 Special Programming for “Cascaded” Satellite System Configurations ............................................... 40
10.7 Alarm Inputs in Satellite Systems......................................................................................................... 41
11 Feature Selection ................................................................................................................................. 42
12 Main Power Connections .................................................................................................................... 43
13 Video Monitor Display .........................................................................................................................45
13.1 Time/Date............................................................................................................................................. 45
13.2 Monitor Title/System Status Display .................................................................................................... 46
13.2.1 System Status Display .......................................................................................................................... 46
13.2.2 Locations 1, 2, and 3 - Alarm Indication ...............................................................................................46
13.2.3 Location 4 - Monitor Arm Status Indication .......................................................................................... 46
13.2.4 Location 5 - Camera Arm Status Indication ..........................................................................................46
13.2.5 Location 6 - Error Indication ................................................................................................................. 46
13.2.6 Location 7 - Remote Lock Indication .................................................................................................... 47
13.2.7 Location 8 - Monitor Lock Indication .................................................................................................... 47
13.2.8 Location 9 - Sequence Type Indication .................................................................................................47
13.2.9 Locations 10 and 11 - Sequence Number ............................................................................................. 47
13.2.10 Location 12 - Sequence Status Indication ............................................................................................ 48
13.3 Monitor Title ......................................................................................................................................... 48
13.4 Broadcast Message............................................................................................................................... 48
13.5 Program Prompts ................................................................................................................................. 48
13.6 Camera Number.................................................................................................................................... 49
13.7 Camera Title ......................................................................................................................................... 49
13.8 Video Loss Detection............................................................................................................................ 49
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 5
LTC 8600 | LTC 8800 Series | en v
14 Factory Default Settings ...................................................................................................................... 50
14.1 User Selectable DIP Switch Settings for Main CPU Bay....................................................................... 50
14.1.1 Upper CPU DIP Switch S1 .................................................................................................................... 50
14.1.2 Middle CPU DIP Switch S2 ................................................................................................................... 51
14.1.3 Lower CPU DIP Switch S3 ....................................................................................................................53
14.2 User Selectable DIP Switch Settings for LTC 8816/00 Data Receiver Modules used in
LTC 8802 Series Monitor Expansion Bays ............................................................................................ 54
14.2.1 Upper Data Receiver DIP Switch S1 ..................................................................................................... 54
14.2.2 Middle Data Receiver DIP Switch S2 .................................................................................................... 55
14.2.3 Lower Data Receiver DIP Switch S3 ..................................................................................................... 55
15 User Information .................................................................................................................................. 56
15.1 User Priority Levels............................................................................................................................... 56
15.2 User Priority Access Table.................................................................................................................... 57
16 Alarm Information ................................................................................................................................ 58
16.1 General ................................................................................................................................................. 58
16.2 Basic Alarm Response Mode ................................................................................................................ 58
16.3 Auto Build Alarm Response Mode ........................................................................................................ 58
16.4 Sequence and Display Alarm Response Mode...................................................................................... 58
16.5 Alarm Activated Pre-position ................................................................................................................ 59
16.6 Sample Alarm Responses ..................................................................................................................... 59
16.7 Alarm Relay Response .......................................................................................................................... 61
17 Keyboard Operation ............................................................................................................................ 62
17.1 General ................................................................................................................................................. 62
17.2 System Commands............................................................................................................................... 62
17.2.1 Keyboard Log-in Procedure .................................................................................................................. 62
17.2.2 Keyboard Log-off Procedure ................................................................................................................. 63
17.3 Switcher Commands ............................................................................................................................ 63
17.4 Controlling Camera Movement............................................................................................................. 63
17.4.1 Focus and Iris Lens Control .................................................................................................................. 63
17.4.2 Lock or Unlock Control of a Camera .................................................................................................... 63
17.4.3 Lock or Unlock Control of a Monitor .................................................................................................... 64
17.4.4 Recording a Camera Pre-position Scene .............................................................................................. 64
17.4.5 Recalling a Camera Pre-position Scene ................................................................................................ 64
17.4.6 Activate/Deactivate Auxiliary Function ................................................................................................. 64
17.5 Alarm Commands ................................................................................................................................. 65
17.5.1 Arm/Disarm Individual Alarms .............................................................................................................. 65
17.5.2 Arm/Disarm All Alarms .......................................................................................................................... 66
17.5.3 Arm/Disarm Monitor ............................................................................................................................. 66
17.5.4 Alarms Acknowledgement .................................................................................................................... 66
17.6 Sequence Control................................................................................................................................. 66
17.6.1 Load/Clear a Sequence ........................................................................................................................ 66
17.6.2 Run a Sequence .................................................................................................................................... 67
17.6.3 Stop a Running Sequence .................................................................................................................... 67
17.6.4 Controlling Sequence Direction ........................................................................................................... 67
17.7 Sequence Programming ....................................................................................................................... 68
17.7.1 Programming a Simple Camera Sequence ........................................................................................... 68
17.7.2 Programming a SalvoSwitching Camera Sequence .............................................................................. 70
18 Keyboard User Functions .................................................................................................................... 71
18.1 General Information ............................................................................................................................. 71
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 6
vi en | LTC 8600 | LTC 8800 Series
19 Maintenance Information .................................................................................................................... 83
19.1 Cleaning the Keyboard ......................................................................................................................... 83
19.2 AC Line Voltage Input Selection ........................................................................................................... 83
19.3 AC Line Fuse Replacement................................................................................................................... 84
19.4 Power Supply Fuse Replacement ......................................................................................................... 84
19.5 Replacement of Memory Backup Batteries........................................................................................... 84

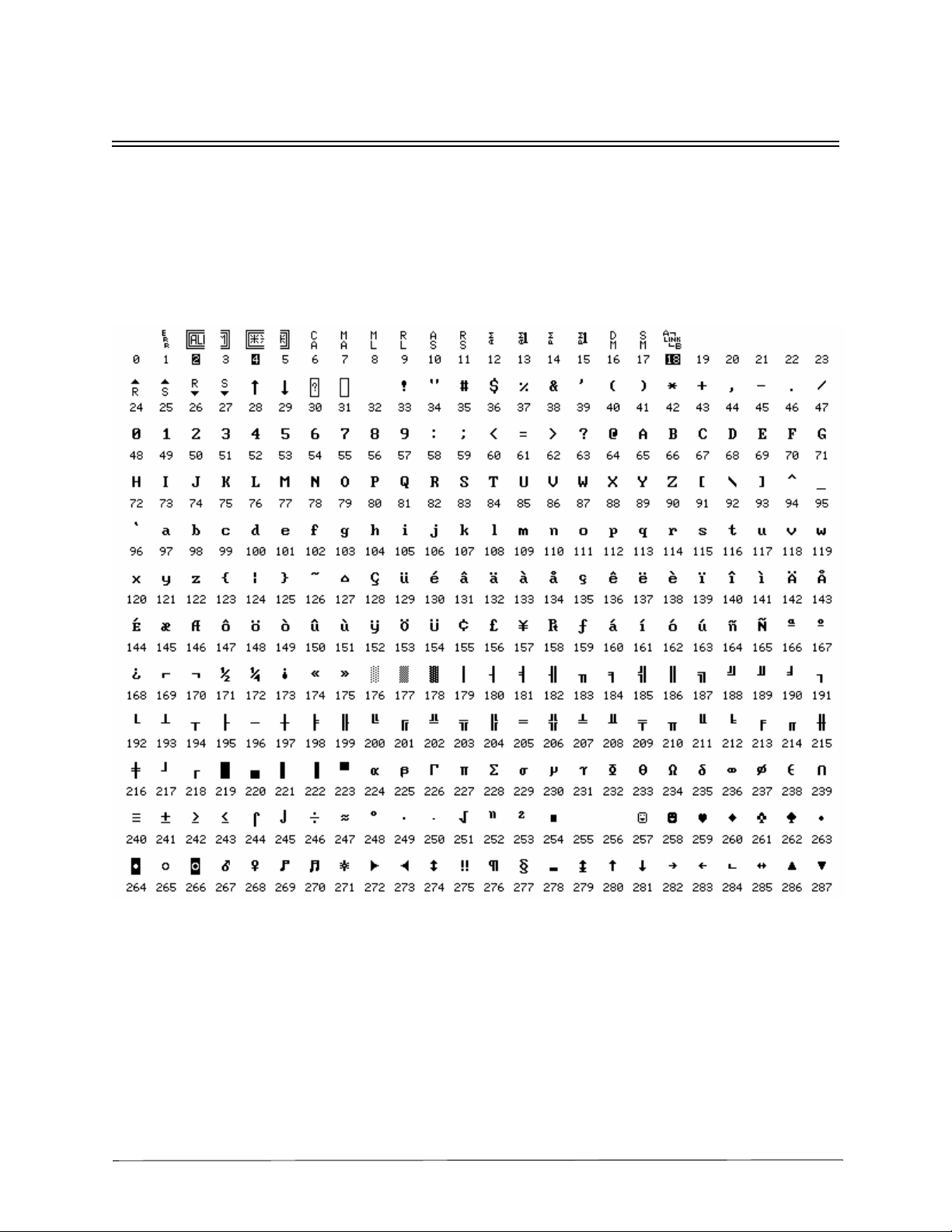

20 Character ROM Tables for LTC 8600 and LTC 8800 ........................................................................... 86
21 ERROR MESSAGES .............................................................................................................................. 99
22 Troubleshooting Guide ...................................................................................................................... 102
22.1 Main Bay Checkout............................................................................................................................. 102
22.2 Keyboard Checkout ............................................................................................................................ 103
22.3 Video Monitor Display Checkout ........................................................................................................ 103
22.4 Remote Receiver/Driver Functions Inoperative .................................................................................. 104
22.5 No Alarm Response ............................................................................................................................ 104
22.6 CPU Software Version Numbers......................................................................................................... 104
23 GLOSSARY OF TERMS .......................................................................................................................105
Appendix A Satellite Systems ............................................................................................................................. 107
Appendix B Installation Checklists .................................................................................................................... 114
Appendix C Quick Reference Cable Interconnections ...................................................................................... 115
Appendix D Main Bay Rear Panel Connector Pin-outs ...................................................................................... 117
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 7
LTC 8600 | LTC 8800 Series | 1
1Safety
Important Safety Instructions
Read, follow, and retain for future reference all of the following safety instructions. Heed all warnings on the unit and in the operating instructions before operating the unit.
1. Cleaning - Unplug the unit from the outlet before cleaning. Follow any instructions provided with the unit. Generally, using a dry cloth for cleaning is sufficient, but a moist fluff-free cloth or leather shammy may also be used. Do not use liquid cleaners or aerosol cleaners.
2. Heat Sources - Do not install the unit near any heat sources such as radiators, heaters, stoves, or other equipment (including amplifiers) that produce heat.
3. Ventilation - Any openings in the unit enclosure are provided for ventilation to prevent overheating and ensure reliable operation. Do not block or cover these openings. Do not place the unit in an enclosure unless proper ventilation is provided, or the manufacturer's instructions have been adhered to.
4. Water - Do not use this unit near water, for example near a bathtub, washbowl, sink, laundry basket, in a damp or wet basement, near a swimming pool, in an outdoor installation, or in any area classified as a wet location. To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.
5. Object and liquid entry - Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electrical shock. Never spill liquid of any kind on the unit. Do not place objects filled with liquids, such as vases or cups, on the unit.
6. Lightning - For added protection during a lightning storm, or when leaving this unit unattended and unused for long periods, unplug the unit from the wall outlet and disconnect the cable system. This will prevent damage to the unit from lightning and power line surges.
7. Controls adjustment - Adjust only those controls specified in the operating instructions. Improper adjustment of other controls may cause damage to the unit. Use of controls or adjustments, or performance of procedures other than those specified, may result in hazardous radiation exposure.
8. Overloading - Do not overload outlets and extension cords. This can cause fire or electrical shock.
9. Power cord and plug protection - Protect the plug and power cord from foot traffic, being pinched by items placed upon or against them at electrical outlets, and its exit from the unit. For units intended to operate with 230 VAC, 50 Hz, the input and output power cord must comply with the latest versions of IEC Publication 227 or IEC Publication
245.
10. Power disconnect - Units with or without ON/OFF switches have power supplied to the unit whenever the power cord is inserted into the power source; however, the unit is operational only when the ON/OFF switch is in the ON position. The power cord is the main power disconnect device for switching off the voltage for all units.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 8
2 | LTC 8600 | LTC 8800 Series
11. Power sources - Operate the unit only from the type of power source indicated on the label. Before proceeding, be sure to disconnect the power from the cable to be installed into the unit. – For battery powered units, refer to the operating instructions. – For external power supplied units, use only the recommended or approved power
supplies.
– For limited power source units, this power source must comply with EN60950.
Substitutions may damage the unit or cause fire or shock.
– For 24 VAC units, voltage applied to the unit's power input should not exceed ±10%,
or 28 VAC. User-supplied wiring must comply with local electrical codes (Class 2 power levels). Do not ground the supply at the terminals or at the unit's power supply terminals.
– If unsure of the type of power supply to use, contact your dealer or local power
company.
12. Servicing - Do not attempt to service this unit yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
13. Damage requiring service - Unplug the unit from the main AC power source and refer servicing to qualified service personnel when any damage to the equipment has occurred, such as: – the power supply cord or plug is damaged; – exposure to moisture, water, and/or inclement weather (rain, snow, etc.); – liquid has been spilled in or on the equipment; – an object has fallen into the unit; – unit has been dropped or the unit cabinet is damaged; – unit exhibits a distinct change in performance; – unit does not operate normally when the user correctly follows the operating
instructions.
14. Replacement parts - Be sure the service technician uses replacement parts specified by the manufacturer, or that have the same characteristics as the original parts. Unauthorized substitutions may cause fire, electrical shock, or other hazards.
15. Safety check - Safety checks should be performed upon completion of service or repairs to the unit to ensure proper operating condition.
16. Installation - Install in accordance with the manufacturer's instructions and in accordance with applicable local codes.
17. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority
to operate the equipment.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 9
LTC 8600 | LTC 8800 Series | 3
!
!
i
Safety Precautions
DANGER! High risk: This symbol indicates an imminently hazardous situation such as “Dangerous Voltage” inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death.
WARNING! Medium risk: Indicates a potentially hazardous situation. If not avoided, this could result in serious bodily injury or death.
CAUTION! Medium risk: Indicates a potentially hazardous situation. If not avoided, this may result in minor or moderate injury. Alerts the user to important instructions accompanying the unit.
CAUTION! Low risk: (without safety alert symbol) Indicates a potentially hazardous situation. If not avoided, this may result in property damage or risk of damage to the unit.
NOTICE!
This symbol indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property.
Important Notices
Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious injury and/or serious damage to the unit. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer. When a cart is used, use caution and care when moving the cart/apparatus combination to avoid injury from tip-over. Quick stops, excessive force, or uneven surfaces may cause the cart/unit combination to overturn. Mount the unit per the manufacturer's instructions. All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at least 3 mm in each pole, into the electrical installation of the building. If it is needed to open the housing for servicing and/or other activities, use this all-pole switch as the main disconnect device for switching off the voltage to the unit. Camera grounding - For mounting the camera in potentially damp environments, ensure to ground the system using the ground connection of the power supply connector (see section: Connecting external power supply). Camera lens - An assembled camera lens in the outdoor housing must comply and be tested in accordance with UL/IEC60950. Any output or signal lines from the camera must be SELV or Limited Power Source. For safety reasons the environmental specification of the camera lens assembly must be within the environmental specification of -10 °C (14 °F) to 50 °C (122 °F). Camera signal - Protect the cable with a primary protector if the camera signal is beyond 140 feet, in accordance with NEC800 (CEC Section 60).
Coax grounding:
– Ground the cable system if connecting an outside cable system to the unit. – Connect outdoor equipment to the unit's inputs only after this unit has had its grounding
plug connected to a grounded outlet or its ground terminal is properly connected to a ground source.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 10
4 | LTC 8600 | LTC 8800 Series
i
– Disconnect the unit's input connectors from outdoor equipment before disconnecting
the grounding plug or grounding terminal.
– Follow proper safety precautions such as grounding for any outdoor device connected to
this unit.
U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides information regarding proper grounding of the mount and supporting structure, grounding of the coax to a discharge unit, size of grounding conductors, location of discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
NOTICE!
This device is intended for use in public areas only. U.S. federal law strictly prohibits surreptitious recording of oral communications.
Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. Separate collecting systems are usually in place for disused electronic and electrical products. Please dispose of these units at an environmentally compatible recycling facility, per European Directive 2002/96/EC. Environmental statement - Bosch has a strong commitment towards the environment. This unit has been designed to respect the environment as much as possible. Electrostatic-sensitive device - Use proper CMOS/MOS-FET handling precautions to avoid electrostatic discharge. NOTE: Wear required grounded wrist straps and observe proper ESD safety precautions when handling the electrostatic-sensitive printed circuit boards. Fuse rating - For security protection of the device, the branch circuit protection must be secured with a maximum fuse rating of 16A. This must be in accordance with NEC800 (CEC Section 60). Grounding and polarization - This unit may be equipped with a polarized alternating current line plug (a plug with one blade wider than the other blade). This safety feature allows the plug to fit into the power outlet in only one way. If unable to insert the plug fully into the outlet, contact a locally certified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternately, this unit may be equipped with a 3-pole grounding plug (a plug with a third pin for earth grounding). This safety feature allows the plug to fit into a grounded power outlet only. If unable to insert the plug into the outlet, contact a locally certified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the grounding plug. Moving - Disconnect the power before moving the unit. Move the unit with care. Excessive force or shock may damage the unit and the hard disk drives. Outdoor signals - The installation for outdoor signals, especially regarding clearance from power and lightning conductors and transient protection, must be in accordance with NEC725 and NEC800 (CEC Rule 16-224 and CEC Section 60). Permanently connected equipment - Incorporate a readily accessible disconnect device in the building installation wiring. Pluggable equipment - Install the socket outlet near the equipment so it is easily accessible. PoE - Never supply power via the Ethernet connection (PoE) when power is already supplied via the power connector. Power disconnect - Units have power supplied whenever the power cord is inserted into the power source. The power cord is the main power disconnect for all units.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 11
LTC 8600 | LTC 8800 Series | 5
i
Power lines - Do not locate the camera near overhead power lines, power circuits, or electrical lights, nor where it may contact such power lines, circuits, or lights.
SELV
All the input/output ports are Safety Extra Low Voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Because the ISDN circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the Telephone Network Voltage (TNV) circuits. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
NOTICE!
This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
FCC & ICES INFORMATION
(U.S.A. and Canadian Models Only, CLASS A)
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: – this device may not cause harmful interference, and – this device must accept any interference received, including interference that may cause
undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and radiates radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his expense. Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made. Any such modifications could void the user's authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
INFORMATIONS FCC ET ICES (commercial applications)
(modèles utilisés aux États-Unis et au Canada uniquement, CLASSE A)
Ce produit est conforme aux normes FCC partie 15. la mise en service est soumises aux deux conditions suivantes: – cet appareil ne peut pas provoquer d'interférence nuisible et – cet appareil doit pouvoir tolérer toutes les interférences auxquelles il est soumit, y
compris les interférences qui pourraient influer sur son bon fonctionnement. AVERTISSEMENT: Suite à différents tests, cet appareil s’est révélé conforme aux exigences imposées aux appareils numériques de Classe A en vertu de la section 15 du règlement de la Commission fédérale des communications des États-Unis (FCC). Ces contraintes sont
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 12
6 | LTC 8600 | LTC 8800 Series
i
destinées à fournir une protection raisonnable contre les interférences nuisibles quand l'appareil est utilisé dans une installation commerciale. Cette appareil génère, utilise et émet de l'energie de fréquence radio, et peut, en cas d'installation ou d'utilisation non conforme aux instructions, générer des interférences nuisibles aux communications radio. L’utilisation de ce produit dans une zone résidentielle peut provoquer des interférences nuisibles. Le cas échéant, l’utilisateur devra remédier à ces interférences à ses propres frais. Au besoin, l’utilisateur consultera son revendeur ou un technicien qualifié en radio/télévision, qui procédera à une opération corrective. La brochure suivante, publiée par la Commission fédérale des communications (FCC), peut s’avérer utile : « How to Identify and Resolve Radio­TV Interference Problems » (Comment identifier et résoudre les problèmes d’interférences de radio et de télévision). Cette brochure est disponible auprès du U.S. Government Printing Office, Washington, DC 20402, États-Unis, sous la référence n° 004-000-00345-4. AVERTISSEMENT: Ce produit est un appareil de Classe A. Son utilisation dans une zone résidentielle risque de provoquer des interférences. Le cas échéant, l’utilisateur devra prendre les mesures nécessaires pour y remédier.
Disclaimer
Underwriter Laboratories Inc. (“UL”) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested fire, shock and/or casualty hazards as outlined in UL's Standard(s) for Safety for Closed Circuit Television Equipment, UL
2044. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.
Disclaimer
Underwriter Laboratories Inc. (“UL”) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested fire, shock and/or casualty hazards as outlined in UL's Standard(s) for Safety for Information Technology Equipment, UL 60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING­RELATED FUNCTIONS OF THIS PRODUCT.
Copyright
This user guide is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
NOTICE!
This user guide has been compiled with great care and the information it contains has been thoroughly verified. The text was complete and correct at the time of printing. The ongoing development of the products may mean that the content of the user guide can change without notice. Bosch Security Systems accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between the user guide and the product described.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 13
LTC 8600 | LTC 8800 Series | 7
Customer Support and Service
If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions.
Service Centers USA Repair Center
Telephone: 800-566-2283 Fax: 800-366-1329 E-mail: repair@us.bosch.com
Customer Service
Telephone: 888-289-0096 Fax: 585-223-9180 E-mail: security.sales@us.bosch.com
Technical Support
Telephone: 800-326-1450 Fax: 585-223-3508 or 717-735-6560 E-mail: technical.support@us.bosch.com
Canada
Telephone: 514-738-2434 Fax: 514-738-8480
Europe, Middle East, Africa Region Repair Center
Telephone: 31 (0) 76-5721500 Fax: 31 (0) 76-5721413 E-mail: RMADesk.STService@nl.bosch.com
Asia Region Repair Center
Telephone: 65 63522776 Fax: 65 63521776 E-mail: rmahelpdesk@sg.bosch.com
Customer Service
Telephone: 86 (0) 756 7633117 or 86 (0) 756 7633121 Fax: 86 (0) 756 7631710 E-mail: customer.service@cn.bosch.com
Warranty and more information
For additional information and warranty queries, please contact your Bosch Security Systems representative or visit our website at www.boschsecurity.com.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 14
8 | LTC 8600 | LTC 8800 Series
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 15
LTC 8600 | LTC 8800 Series en | 9
2Unpacking
This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper. Verify that all parts shown in the Parts List have been included. If any items are missing, notify your Bosch Secu­rity Systems Sales or Customer Service Representative.
The original packing carton is the safest container in which to transport the unit. Save it for possible future use.
2.1 Parts List
The following table lists the components:
Qty Item
1 LTC 8601 Series or LTC 8801 Series Main CPU card cage 1 LTC 8610/01 CPU module or LTC 8810/01 CPU module 1 LTC 8805 Series Power Supply 1 AC power cord (either for 120 VAC or 220 - 240 VAC) 1Fuse kit 1 This installation manual
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 16
10 | en LTC 8600 | LTC 8800 Series
3Service
If the unit needs repair, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions.
Service Centers
•USA
• Repair Center
Telephone: 800-566-2283 Fax: 800-366-1329 E-mail: repair@us.bosch.com
•Customer Service
Telephone: 888-289-0096 Fax: 585-223-9180 E-mail: security.sales@us.bosch.com
• Technical Support
Telephone: 800-326-1450 Fax: 585-223-3508 or 717-735-6560 E-mail: technical.support@us.bosch.com
•Canada Telephone: 514-738-2434
Fax: 514-738-8480
• Europe, Middle East, Africa Region
• Repair Center
Telephone: 31 (0) 76-5721500 Fax: 31 (0) 76-5721413 E-mail: RMADesk.STService@nl.bosch.com
• Asia Region
• Repair Center
Telephone: 65 63522776 Fax: 65 63521776 E-mail: rmahelpdesk@sg.bosch.com
•Customer Service
Telephone: 86 (0) 756 7633117 or 86 (0) 756 7633121 Fax: 86 (0) 756 7631710 E-mail: customer.service@cn.bosch.com
For additional information, see www.boschsecurity.com.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 17
LTC 8600 | LTC 8800 Series en | 11
4Description
These Allegiant video switcher/control systems combine both switching and com­puter technology to provide powerful performance and unique system features for the security user. Offering full matrix switching capability, these systems can be programmed to display the video from any camera on any monitor, either manually or via independent automatic switching sequences.
The LTC 8600 Series Allegiant system can handle up to 128 cameras and 16 moni­tors in a full crosspoint configuration. It can also accommodate 512 alarm points, up to 16 keyboards, a computer system console port, and a logging printer port.
The LTC 8800 Series Allegiant system can handle up to 256 cameras and 64 moni­tors in a full crosspoint configuration. It can also accommodate 1024 alarm points, up to 32 keyboards, a computer system console port, and a logging printer port.
These systems can be programmed with up to 60 sequences that can be run inde­pendently of each other, in either a forward or reverse direction. Any of the sequences can utilize the SalvoSwitching capability where any number of system monitors may be selected to switch as a synchronized group. Using the optional LTC 8059/00 Master Control Software (MCS) package or the LTC 8850/00 Bosch Graph­ical User Interface (GUI), sequences can be made to activate and deactivate auto­matically, based upon the time of day and the day of week.
The series supports variable speed control and full programming functions of Aut­oDome
provide operators with control of pan, tilt, zoom, multiple pre-positions, four (4) auxiliaries, autopan, and random scan using conventional camera/lens/housings.
With the addition of an external LTC 8540/00 Alarm Interface unit, an external con­tact closure or logic level can be used to automatically display any camera. Any mon­itor or group of monitors can be set to display cameras under alarm conditions. The base system contains three (3) built-in alarm response modes: basic, auto-build, and sequence and display. In addition to these three (3) modes, the PC based soft­ware packages offer the ability to combine any or all three (3) standard modes. Alarm video may be selected to reset either manually or automatically. In addition, a 16-character alarm title can be selected to appear instead of the camera title during alarm conditions.
System operation and programming is accomplished using a full-function, ergonom­ically designed keyboard. Multiple keyboards may be used in the system. Built-in operator priority levels and the ability to restrict certain operators from controlling designated functions provide maximum flexibility.
These systems include a 48-character on-screen display for time-date, camera num­ber, camera ID (16 characters), and monitor (12 characters) or status information. A user selectable option provides the ability to display a 3rd line of on-screen text. This 3rd line can be configured to display up to 24 additional camera title charac­ters (40 characters total) or a 12-character monitor title.
The on-screen display is also user selectable to operate in “6-digit Camera ID” mode. When enabled, 2-digit “site numbers” are displayed in addition to the 4-digit camera number. The 2-digit site number feature is especially useful when groups of cameras are located in separate buildings, floors, or other common areas.
When programming camera ID and monitor titles, over 1000 different characters are available.
Enhanced programming and switching features can be obtained by utilizing a stan­dard Windows
8850/00 GUI Software. A user friendly spreadsheet format provides the ability to enter camera titles, enter operator names, schedule up to 64 timed events, change
®
Series dome cameras. In addition, support for on-site receiver/driver units
®
equipped PC and the optional LTC 8059/00 MCS package or the LTC
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 18
12 | en LTC 8600 | LTC 8800 Series
system parameters, program camera sequences, install lockouts, and access the advanced alarm handling screens with speed and efficiency. The programmed infor­mation may then be transferred into the Allegiant system, stored on disk, or printed from a PC.
The LTC 8850/00 Bosch GUI Software is designed around an intuitive graphic-based interface. This software provides high performance programming, control, and mon­itoring of all system functions by using on-screen icons to reflect real time status of the devices controlled by the system.
The LTC 8850/00 GUI Software also provides the ability to monitor system status events. System alarms, switching functions, sequence events, and keyboard actions, and video loss information can be viewed in real time on the PC screen and, if desired, logged to the PC hard drive. The LTC 8850/00 GUI Software can also be used to enable a special on-screen icon for identifying controllable cameras.
The CPU inside these matrix switchers supports powerful macro capabilities. The macros can be activated using system keyboards, system time event functions, alarm activations, and via special function icons in the LTC 8850/00 GUI Software.
These systems can serve as the master switcher in a SatelliteSwitch configuration. This innovative feature enables a single master Allegiant system to communicate with remotely located “Satellite” systems. Any Allegiant system model can serve as a remote Satellite switcher. This powerful feature permits the design of a distributed matrix video switching system with control at one central location and individual control at the local sites. The main control site can view/control local cameras plus cameras located at any of the remotely distributed Satellite sites. The Satellite sites can view/control only cameras associated with their own site.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 19
LTC 8600 | LTC 8800 Series en | 13
5Allegiant Feature Summary Table
These Allegiant Series systems are available in two (2) operating configurations: a base system and the base system with an optional PC based software package. The base system includes features required for most switching/controller systems.
The addition of the optional LTC 8059/00 MCS or optional LTC 8850/00 GUI Soft­ware package enables the user to customize the system's configuration using a
menu driven program run on any personal computer using Microsoft Windows 2000 or Windows XP.
The following TABLE lists available features.
Feature
1. Full camera switching/control on all monitors Y Y
2. Multiple keyboards (up to 16 with LTC 8600; 32 with LTC 8800)
3. Multiple alarm inputs (up to 512 with LTC 8600; 1024 with LTC
8800)
4. Three (3) user-selectable pre-defined alarm response modes Y Y
5. Full control of on-site receiver/drivers Y Y
6. SalvoSwitching feature Y Y
7. 60 Programmable sequences Y Y
8. Alarm call-up of pre-position scenes Y Y
9. RS-232 Interface ports for computer, logging printer, etc. Y Y
10. Keyboard log-on/log-off function Y Y
11. User-selectable password security Y Y
12. 16-Character camera titles and 12-character monitor titles Y Y
13.User-selected 40 character camera titles using third line of on­screen text
14.User-selectable 2-digit site plus 4-digit camera mode Y Y
15. Format selection time/date format Y Y
16. Local keyboard test function Y Y
17. Table and sequence printout feature Y Y
18. Parameter designation for RS-232 communication Y Y
19. Integral video loss detection N Y
20. Satellite configurations N Y
21. Restrict user/keyboard access to cameras N Y
22. Restrict user/keyboard access to receiver/drivers N Y
23. Restrict user access to keyboard N Y
24. Restrict user/keyboard access to monitors N Y
25. Designate user name and ID number N Y
26. Designate zoned alarm call-ups N Y
27. Powerful alarm response features N Y
28. Designate displayed camera number N Y
29. Designate receiver/driver functions on alarm N Y
30. Program 64 time activated events N Y
31. Designate receiver/driver functions in sequences N Y
32. Broadcast monitor messages N Y
33. Alarm title designation N Y
34. Personal computer displayed monitoring of system status N Y
Base System
Y Y
Y Y
YN
®
Windows NT®,
With Optional Allegiant PC­Based Software
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 20
14 | en LTC 8600 | LTC 8800 Series
In addition, these systems provide the capability to control on-site receiver/driver units and the AutoDome Series of integral pan/tilt/zoom/cameras.
These systems contain a logging printer output port, so an inexpensive RS-232 serial printer or some other form of logging software can be used to capture log data. This provides a permanent record showing time and date of changes to system status, such as:
• Incoming alarms
• Acknowledgment of alarms by users
• Loading sequences
• User log-on to keyboard or console port
• Console broadcast message
• Console transfer of system tables
• Activation of time event functions
• Power up reset message
• Video loss message The printer may also be used to provide a hard copy of all system configuration
Tables and Sequences.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 21
LTC 8600 | LTC 8800 Series en | 15
6System Components
6.1 LTC 8601 Series Systems
• LTC 8601 Series Main CPU Bay A modular equipment bay which contains the system's microprocessor module
(LTC 8610/01), the power supply module (LTC 8805 Series), and several video input and video output modules (see below).
• LTC 8621/00 Video Input Module Individual cards placed in LTC 8601 Series bays to accept inputs from cameras
and other video sources. Each card provides 16 video input channels with switch selectable terminations.
• LTC 8834/00 Video Output Modules Individual cards placed in LTC 8601 Series bays to provide video outputs to
monitors and DVRs. Each card provides four (4) video output channels.
• LTC 8600 Series System Capacities Up to eight (8) video input modules; 16 inputs per module.
Up to four (4) video output modules; four (4) outputs per module. Total: 128 inputs and 16 outputs. Satellite configuration input capacity: 1152.
6.2 LTC 8800 Series Systems
• LTC 8801 Series Main CPU Bay A modular equipment bay which contains the system's microprocessor module
(LTC 8810/01), the power supply module (LTC 8805 Series), and several video input and video output modules (see below).
• LTC 8802 Series Monitor Expansion Bay A modular equipment bay which contains a Data Receiver module
(LTC 8816/01), the power supply module (LTC 8805 Series), and several video input and video output modules (see below). The Monitor Expansion bay is required in system configurations having more than 32 monitors. The Monitor Expansion bay can also accommodate up to eight (8) additional keyboards.
• LTC 8821/00 Video Input Module Individual cards placed in LTC 8801 Series or LTC 8802 Series bays to accept
inputs from cameras and other video sources. Each card provides 32 video input channels with switch selectable terminations.
• LTC 8834/00 Video Output Modules Individual cards placed in LTC 8801 Series or LTC 8802 Series bays to provide
outputs to monitors and DVRs. Each card provides four (4) video output chan­nels.
• LTC 8800 Series System Capacities
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 22
16 | en LTC 8600 | LTC 8800 Series
• LTC 8801 Main Bay:
Up to eight (8) video input modules; 32 inputs per module. Up to eight (8) video output modules; four (4) outputs per module. Subtotal: 256 inputs and 32 outputs on main bay.
• Monitor Expansion Bay:
Up to eight (8) video input modules (duplicating modules on main bay). Up to eight (8) extra output modules (providing four (4) additional outputs
each). Subtotal: 32 extra outputs added on to the main bay's outputs.
• Total:
256 maximum inputs; 64 maximum outputs. Satellite configuration input capacity: 2304.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 23
LTC 8600 | LTC 8800 Series en | 17
7 System Accessory Components
The Allegiant Series accessory products provide many optional features to the base system. A brief description of accessory products is provided below. Complete specification information can be found in respective product data sheets. Applica­ble accessories are designed to be compatible throughout the Allegiant Series.
7.1 LTC 8540/00 Alarm Interface Unit
The LTC 8540/00 is an alarm gathering unit which accepts up to 64 dry contact clo­sures or logic level inputs from remote sensing devices such as door contacts, PIRs, etc. and then reports this alarm information to the main CPU bay. Alarm inputs may be configured in groups of 32 to accept either normally open or normally closed contacts. The LTC 8540/00 unit provides eight (8) relay outputs which can be used to drive external alerting devices, DVR's, and other devices.
7.2 LTC 8568 and LTC 8768 Signal Distribution Units
The signal distribution is a main site control code distribution and line driver units are available for communicating to receiver/drivers, switcher followers, and Alle­giant Satellite systems. The LTC 8568/00 Signal Distribution Unit provides 32 sepa­rate outputs for driving up to 256 remote devices. Either “star” or “daisy chain” wiring configurations may be used. The LTC 8768/00 Signal Distribution unit is sim­ilar to the LTC 8568/00, except that it provides 64 separate outputs for driving up to 512 remote devices.
7.3 IntuiKey Series KBD-Universal Keyboard
The IntuiKey KBD-UNIVERSAL is a full function keyboard used for control and pro­gramming of the Allegiant Series matrix switchers. Backlit LCD screens provide multi-language display of softkey menus and status information. Integral variable speed joystick and zoom lens controls are standard for operating fixed or variable speed pan/tilt/zoom equipped cameras. Both Allegiant RS-485 and Allegiant RS-232 keyboard protocols are supported.
In addition to the Allegiant Series, the KBD-UNIVERSAL model IntuiKey can be used to simultaneously control Divar Series DVRs, System4 Series multiplexers, and access ADIM based DVR control screens.
7.4 KBD-Rack Keyboard Mounting Kit
Rack-mounting kit designed to provide vertical, horizontal, or inclined mounting for IntuiKey keyboards.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 24
18 | en LTC 8600 | LTC 8800 Series
7.5 LTC 8555 Series Keyboards
The LTC 8555 Series keyboards are compact, full function keyboards for use with Allegiant Series matrix switchers. LED readouts display real time system status information. Includes variable speed joystick and zoom lens controls for operating fixed or variable speed pan/tilt/zoom equipped cameras. The keyboards are avail­able in the following configurations:
Model Number Top Bezel Graphics Communication Protocol
LTC 8555/00 English RS-485 LTC 8555/01 Icons RS-485 LTC 8555/02 English RS-232 LTC 8555/03 Icons RS-232
The RS-232 model keyboards connect to an Allegiant's console port or to a port pro­vided by an LTC 8712 Console Expander accessory unit. Up to four (4) may be con­nected to a single LTC 8712 unit. When used with dial-up type phone modems, these keyboards provide rudimentary dialing capability.
7.6 LTC 8558/00 Keyboard Extension Cable
The LTC 8558/00 keyboard extension cable has a six-conductor extension cable that carries data/power for remote keyboards up to 30 m (100 ft) away from the main CPU bay.
7.7 LTC 8557 Series Keyboard Extension Kits
The LTC 8557 Series keyboard extension cable is an interface kit used to remote the IntuiKey Series or LTC 8555 Series keyboards up to 1.5 km (5000 ft) away from the
main CPU bay. Customer supplied 0.5 mm 9841 or equivalent) required between the main CPU bay site and keyboard site. Kit provides two (2) junction boxes, interface cable, and appropriate keyboard power supply.
2
(24 AWG) shielded-twisted pair (Belden
7.8 LTC 8560 and LTC 8561 Series Receiver/Driver Units
These series of on-site receiver/drivers are designed to receive biphase control code and convert this data into signals for controlling conventional pan/tilt, zoom lenses, and auxiliary functions. Supplied in an environmentally rated enclosure, these series of receiver/drivers are available in both basic and full-featured models. This unit contains integral local test feature, autopan or random scanning, and is available in several input and output drive voltage versions.
7.9 AutoDome Series
The AutoDome Series comprise an integral camera, a high speed pan/tilt mecha­nism, a zoom lens, and a receiver/driver system in a compact dome enclosure. Vari­ous enclosure mounting options are available for indoor and outdoor applications.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 25
LTC 8600 | LTC 8800 Series en | 19
7.10 LTC 8569, LTC 8570, LTC 8571, LTC 8572 Series Code Merger Units
These series are control code merger and line driver units used to combine Allegiant biphase control code from two (up to four with LTC 8570 and LTC 8572 versions) systems for communicating to AutoDome Series cameras, receiver/drivers, switcher/followers, and Allegiant Satellite systems. The LTC 8569, LTC 8570 Series provides 32 separate outputs capable of driving up to 256 remote devices. The LTC 8571, LTC 8572 Series provides 64 separate outputs capable of driving up to 512 remote devices. Either “star” or “daisy chain” wiring configurations may be used. The unit will accept signal input either from an Allegiant main CPU bay, LTC 8568/00 output, LTC 8780 biphase output, or an output from another LTC 8569, LTC 8570 Series or LTC 8571, LTC 8572 Series unit. Multiple units may be cascaded to obtain additional outputs.
7.11 LTC 8770 Switcher Follower Series
The LTC 8770 Series is an accessory unit which provides relay contact closures cor­responding to cameras displayed on system monitors. The LTC 8770 may be config­ured to follow manual activations, non-alarmed video, alarmed video, or both. Each unit provides 24 relay contact outputs. In addition, six (6) functional operating modes are available, including one user activated test mode.
7.12 LTC 8712 Series Console Port Expander Units
The LTC 8712 Series “expands” an Allegiant system's console port to permit up to four external computing devices to communicate with the system via RS-232 proto­col. Any computing device that can normally communicate directly with an Allegiant via its RS-232 console port can be used with these port expanders. The external devices may consist of PCs running the Allegiant system's MCS package, the Alle­giant GUI, access control systems, Allegiant RS-232 protocol keyboards, or other devices utilizing the Allegiant system's Command Console Language (CCL).
7.13 LTC 8713 Alarm Port Expander Units
The LTC 8713 Series interfaces to the alarm port of an Allegiant system to permit additional LTC 8540/00 Alarm Interface units to be connected. In a LTC 8500 sys­tem, two (2) LTC 8540/00 units can be connected to a LTC 8713 Series unit provid­ing up to 128 alarm inputs. In LTC 8600 systems, up to eight (8) LTC 8540 Series units can be connected to three (3) LTC 8713 Series unit providing up to 512 alarm inputs. In LTC 8800 systems, up to sixteen LTC 8540 Series units can be connected to five (5) LTC 8713 Series unit providing up to 1024 alarm inputs.
7.14 LTC 8714, LTC 8715 Series Keyboard Port Expander Units
The LTC 8714 Series and the LTC 8715 Series are port expander accessory units used to provide additional keyboard capacity for LTC 8600 and LTC 8800 Series Alle­giant systems. A single LTC 8714 Series unit can be used to interface up to eight (8) additional keyboards in an LTC 8600 series Allegiant system. In LTC 8800 systems, up to three (3) LTC 8714 Series units can be connected to a single LTC 8715 Series to provide a quantity of 24 “port expanded” keyboards for a total of 32 system key­boards. Alternatively, all 32 system keyboards can be connected using four(4) LTC 8714 Series units and a single LTC 8715 Series unit.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 26
20 | en LTC 8600 | LTC 8800 Series
7.15 LTC 8780 Series Data Converter Units
The LTC 8780 Series are accessory units that convert the Allegiant system's biphase control code into RS-232, or converts RS-232 back to biphase code. This provides the capability of transmitting the control code over conventional RS-232 transmis­sion mediums such as phone modems, fiber optics, microwaves, etc. The unit will accept the biphase control code generated by an Allegiant main CPU bay, an LTC 8568/00 Signal Distribution unit, or an output from an LTC 8569, an LTC 8570, an LTC 8571, or an LTC 8572 Series Code Merger unit.
7.16 LTC 8781 Series Data Converter Units
The LTC 8781 Series are accessory units that decode the Allegiant system's encoded time/date information generated on the biphase control code line and con­vert it into an RS-422 GPS format. This time/date information can be used to inter­face into external time/date inserter products (such as the Kalatel KTS-53-16), which are designed to be synchronized via a GPS signal.
7.17 LTC 8016/90 Bilinx™ Data Interface Unit
The LTC 8016/90 Allegiant Bilinx Data Interface unit is an accessory used for com­municating over-the-coax, with up to 16 Bilinx-capable AutoDome and/or Dinion™ Series cameras. The LTC 8016 provides complete control of pan/tilt/zoom, auxilia­ries, and pre-position functions of Bilinx enabled AutoDome Series cameras. In addition, complete programming of Dinion Series cameras and AutoDomes via their on-screen menus is supported. Bilinx technology also supports camera-generated event reporting to the Allegiant. This connection allows remote alarm inputs and motion event data to be sent by the camera to the Allegiant without the need for additional wiring between the camera site and the main control location. The LTC 8016 can also be used to transmit Bilinx communications over a number of video transmission systems. Example devices include fiber optic links and external balun devices that use CAT5 twisted pair cables for video communication.
7.18 LTC 8785 Series Code Converters
The LTC 8785 Series code converter units are designed for use in older Allegiant systems that have been upgraded to support 'variable speed' control code protocol. The LTC 8785 units are used to provide a source of 'fixed speed' control code when the system is generating the newer 'variable speed' control code preferred by the AutoDome Series of PTZ cameras. The LTC 8785 would receive the variable speed control code from the Allegiant via its LTC 8568/00 Signal Distribution unit and con­vert it into the appropriate fixed speed control code. The 'fixed speed' control code outputs from the LTC 8785 Series connect to the older TC8561 Series receiver/driv­ers using the existing field cabling.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 27
LTC 8600 | LTC 8800 Series en | 21
7.19 LTC 8782 Series Code Translator Units
The LTC 8782 Series code translators are accessory units that convert biphase code to other manufacturers’ control codes, or convert other manufacturers’ codes to
biphase. Many of the most popular protocol codes are supported, including Pelco
®
, American Dynamics®, Sensormatic®, Kalatel®, Diamond Electronics®, and
Vicon
®
Javelin
. Fixed and variable speed codes are supported where applicable.
®
7.20 LTC 8808/00 Series Video Interconnect Panel
The LTC 8808/00 Series video interconnect panel is an optional accessory item which provides certain Allegiant system models the ability to loop their video inputs. This patch panel contains 32 BNC connectors on front for external video connections, and two 16-contact ribbon connectors on the rear. Two (2) 16-conduc­tor ribbon cables are included for interfacing the patch panel to the video looping connectors found on the rear panel of the equipment bays. The patch panel is one standard EIA 19-inch rack unit high, and one unit wide.

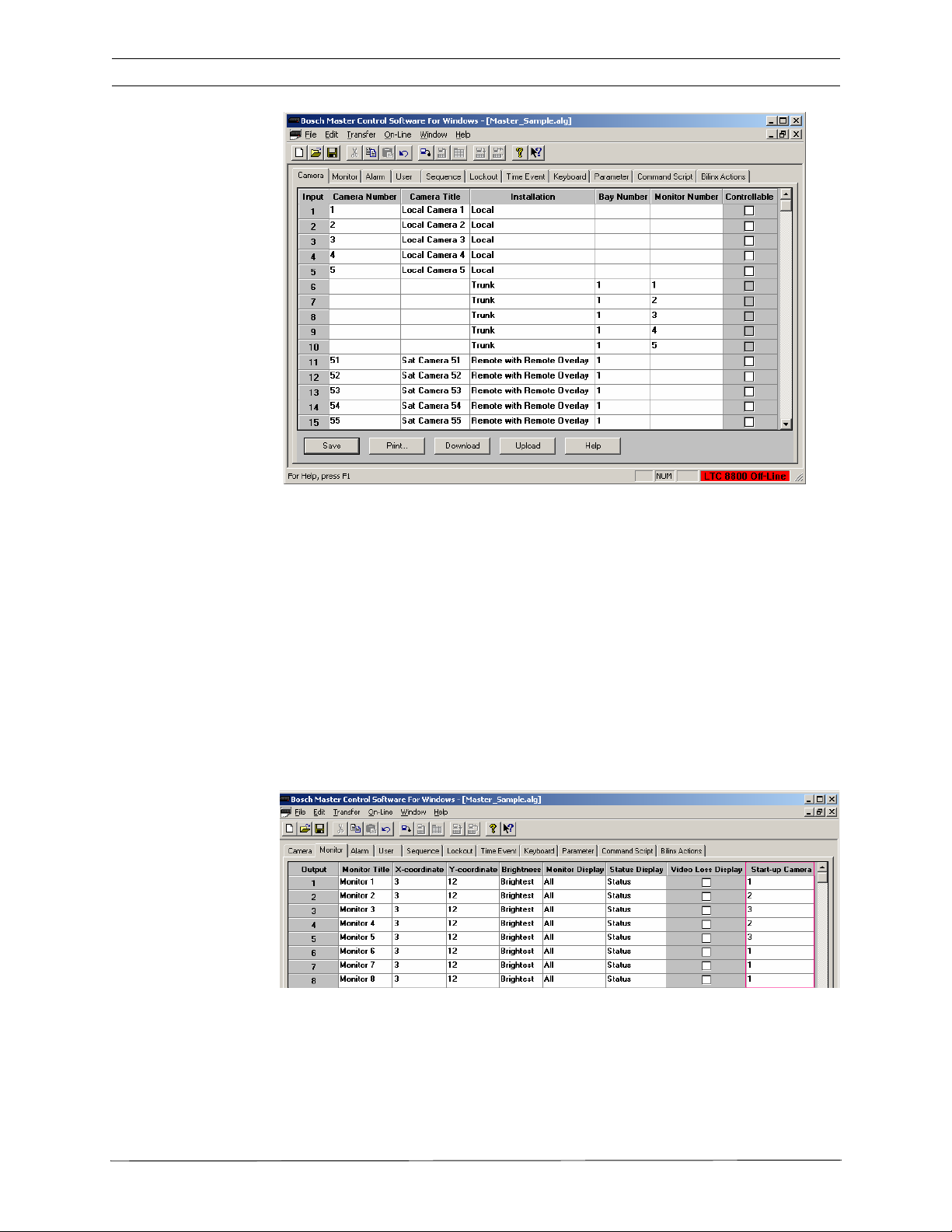

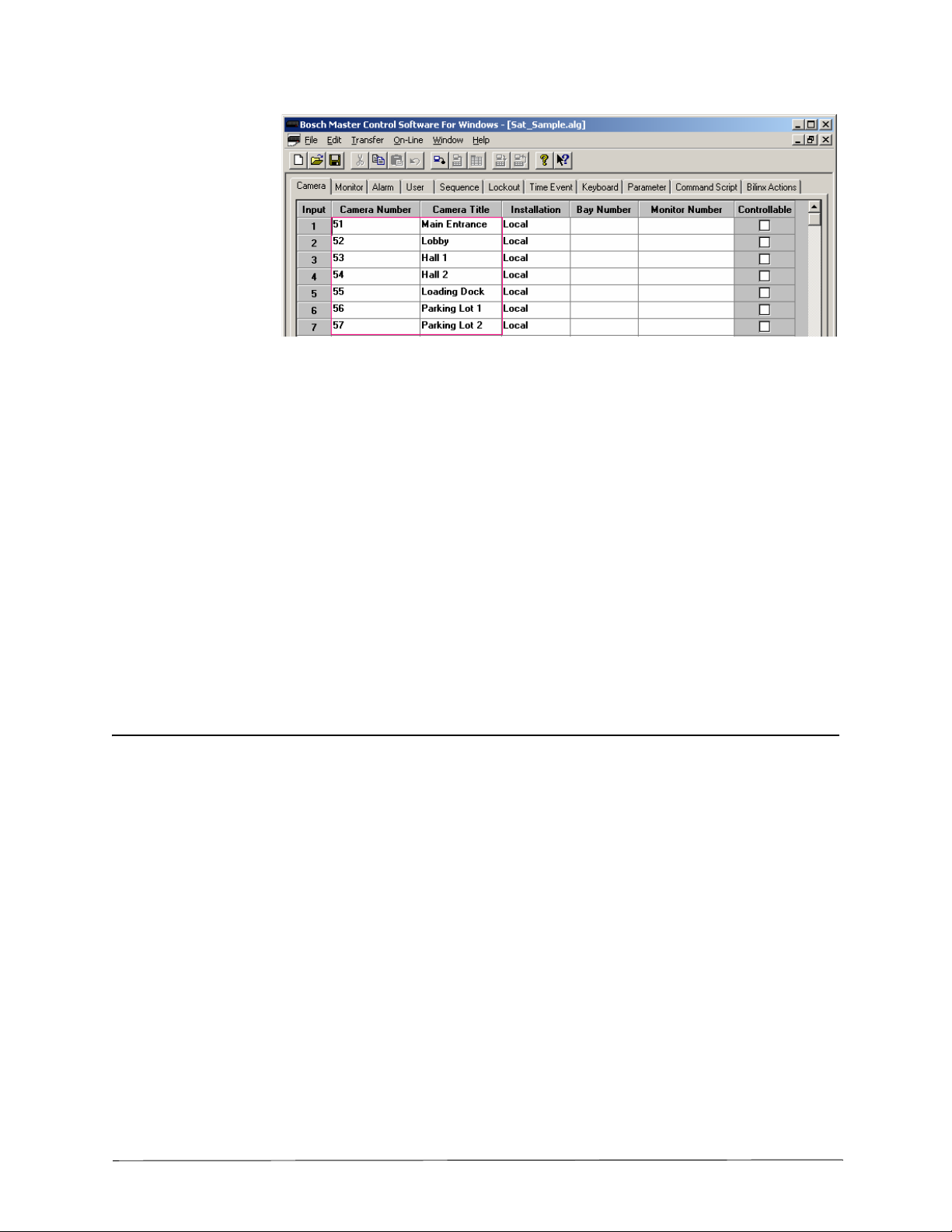

7.21 LTC 8059/00 Master Control Software
,
The Allegiant LTC 8059/00 MCS brings the familiarity of the personal computer to those who supervise closed circuit television systems. Running on a Windows based compatible computer, this software is the human interface that makes it quick and easy to configure an entire Allegiant system.
With the MCS package, users can set and change an Allegiant's system parameters; program camera sequences; lock cameras, monitors, remotes, and keyboards from certain users; and perform many other system control features. Users can also view system activity with real time monitoring of the system status, and if desired, log this information to a file stored on the hard drive.
7.22 LTC 8850/00 Windows Based Graphical User Interface Software
The LTC 8850/00 GUI Software is a PC-based program designed for complete con­trol and programming of the Allegiant Series of matrix switchers. With a mouse click on an icon, operators can easily take control of system hardware devices, including cameras, monitors, and alarms. Jumping from one map to another is easily accom­plished using special link icons. System Administrators can easily call-up the included Allegiant LTC 8059/00 MCS module for entering the Allegiant system's camera titles, sequences, alarm responses, and many other configuration features. Communication between the GUI workstations and an Allegiant system can be made using an RS-232 link, or via a Windows based-PC network.
7.23 SFT-INTSRV Allegiant Integration Software
The SFT-INTSRV software CD contains three (3) distinct software packages that can be used to integrate external devices with an Allegiant system matrix switcher. Please refer to the following sections for details:
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 28
22 | en LTC 8600 | LTC 8800 Series
7.23.1 Integration Server
The Integration Server is a versatile software package used to integrate multiple systems that are not ordinarily compatible with each other. These systems can include video switchers, point of sale systems, fire/burglar alarms, access control, or HVAC systems. Devices can be interfaced using any of the following three (3) methods: serial RS-232 connection, digital I/O card, or directly to an Allegiant Switcher via the LTC 8059 MCS program. The Integration Server software is pro­grammed to recognize events as they occur in real time from one or more systems, based upon one of the three (3) integration methods mentioned above. It then reacts to those events by sending commands to another system or systems.
7.23.2 Virtual Allegiant Satellite Application Software
The Virtual Allegiant Satellite Application (VASA) is Bosch's strategic product that allows existing Allegiant customers to transition gradually to pure IP technologies rather than a total and instantaneous replacement. VASA acts as the integration bridge between an existing Allegiant and the new digital based CCTV system (the 'satellite') that uses digital video encoders and decoders. With VASA, the new IP technology is totally transparent to the existing Allegiant users who continue to use their Intuikey CCTV keyboards for video switching and PTZ control on classic analog monitors.
VASA supports the Allegiant LTC 8100 through the LTC 8900 Series matrix switch­ers. In addition to PTZ control, VASA provides auxiliary and preposition control of the IP-based cameras. VASA improves the ROI on existing capital assets, removes the need for training, and reduces the risk for adopting new technology by incre­mentally adding to the system. The integration is seamless and the transition is designed to be imperceptible.
7.23.3 Allegiant Satellite SDK
The Allegiant Satellite Software Development Kit (SDK) is a fully supported set of libraries, documentation, and samples targeted at PC-based application software that is used to control 3rd party CCTV matrix systems or manage IP-based digital video networks. Since the SDK can be used to create customized solutions for unique, specific problems, customers looking to integrate an Allegiant matrix sys­tem with products offered by other manufacturers is readily accomplished. For the thousands of existing Allegiant customers, it also provides a bridge to integrate or expand their systems with IP based products gradually rather than a total and instantaneous replacement.
When operating in an Allegiant satellite system configuration, an Allegiant master generates switching and PTZ data that is typically used to control a remote Allegiant satellite matrix. Using the SDK, the video switching commands and PTZ data from the master system are converted into an ActiveX interface allowing developers to easily translate this information into formats used to control other original equip­ment manufacturer's (OEM) systems. The SDK also supports an ability to translate repetitive type Allegiant PTZ commands to their indefinite equivalents, resulting in reduced interface traffic and lower bandwidth demands when controlling IP based networks.
The level of integration available with the SDK results in a robust interface that pro­vides transparent operation to the existing Allegiant operators. Operators continue to use their existing CCTV keyboards for selecting video and control of PTZ devices on the Allegiant monitors. This type of solution improves the return of investment on existing capital assets, removes the need for training, and reduces the risk for adopting new technology by incrementally adding to the system.
The SDK is compatible with all models of the Allegiant Series switchers. In addition to video switching commands and PTZ control, auxiliaries and prepositions are also supported. The SDK is supplied with five sample applications. Three (3) applica­tions use C++ to demonstrate incorporating the SDK in a console, an ATL, and an
MFC application. In addition, samples using Visual Basic Framework are included.
®
, and Microsoft's .NET
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 29
LTC 8600 | LTC 8800 Series en | 23
7.24 LTC 8506/00 PC-to-Console Port RS-232 Cable
The LTC 8506/00 is an RS-232 grade cable with 9-pin D-connectors on each end that is used to connect an Allegiant's system's console port to a standard PC COM port. This cable is included in the Allegiant LTC 8059 MCS and the LTC 8850 Allegiant GUI packages. Length is approximately 3 m (10 ft).
7.25 LTC 8508/01 Ribbon-to-BNC Interface Cable
The LTC 8508/01 is a 1 m (3 ft) video interface cable with a 34-pin ribbon cable on one end and 16 male BNC connectors on the other end. This cable can be used to loop up to 16-channels of video signals from digital video recorders such as the Divar, Dibos, and DesaXL, or other BNC equipped devices to the ribbon cable con­nectors located on the rear panels of the LTC 8600 and LTC 8800 Series bays.
7.26 Logging Printer
An optional RS-232 serial printer may be connected to these systems to provide a permanent record of significant system status changes. Time and date is printed for system events such as alarms, start-up after power failure, sequence loading, opera­tor log-on/log-off to keyboards, and download of information from the optional MCS. The printer may also be used to obtain hard copies of all system tables and sequences.
NOTE The printer port does not provide a standardized pin-out connection. If desired, a
cable can be made up at installation, by following the cable pin-out information pro­vided at the end of this manual.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 30
24 | en LTC 8600 | LTC 8800 Series
Maximum of 16 Allegiant Keyboards, up to 1.5 km (5000 ft) away using Optional Remote Hookup Kit
Main CPU Bay
Supports up to 128 Video Inputs
Supports up to 16 Monitor Outputs
LTC 8600 Series Video Switching System
Figure 1: LTC 8600 Series Basic Video Switching Configuration
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 31
LTC 8600 | LTC 8800 Series en | 25
Main CPU Bay
Supports up to 32 Monitor Out­puts
Maximum of 32 Allegiant Keyboards, up to 1.5 km (5000 ft)
away using Optional Remote Hookup Kit
Supports up to 64 Video Inputs
LTC 8800 Series Single Bay System (256 by 32 Configuration)
Figure 2: LTC 8800 Series Single Bay Video Switching Configuration
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 32
26 | en LTC 8600 | LTC 8800 Series
Supports up to 256 Video Inputs
Coax Ribbon Jumper Cables Supplied
Supports up to 64 Monitor Outputs
Maximum of 32 Allegiant Keyboards, up to 1.5 km (5000 ft) away using Optional Remote Hookup Kit
Control Data
Monitor Expansion Bay
Main CPU Bay
LTC 8800 Series Dual Bay System (256 by 64 Configuration)
Figure 3: LTC 8800 Series Dual Bay Video Switching Configuration
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 33
LTC 8600 | LTC 8800 Series en | 27
Typical AutoDome Camera
Optional LTC 8859 MCS or GUI Soft­ware Package can be Run on IBM or IBM Compatible Computer
Main Bay can Operate up to 8 Keyboards
3 m (10 ft) Interconnect Cable Supplied with Keyboa rd
Video Coax
Video Coax
Video Coax
256 Camera Inputs Tot al
32 Separate Outputs
Control Code Line
Twi sted Pai r Typ ic al
Contact Closure or Logic Level Inputs
Additional System Cameras
RS-232
RS-232 Data
Up to 256 Alarm Inputs Maximum
Up to 256 Receiver/Driver Units
Up to 1.5 km (5000 ft) using 18 g Shielded Twisted Pair Cable (Belden 8760 or Equiv.)
Serial Logging Printer Capability
12 VDC
LTC 8808 Interconnect Panel
Video Ribbon Jumper Cables Supplied with LTC 8802
Port Expa nder Accessories
Keyboa rd Expan der Uni ts used for System Keyboards above 16
Monitor Expansion Bay can Operate up to 8 Keyboa rds
LTC 8540 Alarm Interface Unit
LTC 8540 Alarm Interface Unit
LTC 8540 Alarm Interface Unit
LTC 8540 Alarm Interface Unit
Port Expa nder Accessory
Receiver/Driver
LTC 8568 Signal Distribution Unit
132
33
64
System Monitors 33 to 64
System Monitors 1 to 32
8 Pairs of Relay
12
Up to 64 Alarm Inputs to each LTC 8540 Unit
Maximum of 32 LTC 8550, LTC 8551, or LTC 8553 Full Function Keyboards up to 1.5 km (5000 ft) away using an Optional Remote Hookup Kit
LTC 8800 Series Full Capacity Configuration
Figure 4: LTC 8800 Series Full Capacity Video Switching Configuration
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 34
28 | en LTC 8600 | LTC 8800 Series
8 Installation Procedure
8.1 Main CPU Bay Installation
Before discarding the shipping cartons, verify that the various pieces of equipment have no evidence of carrier damage.
CAUTION Do not apply power to the equipment until instructed to do so.
1. Remove the front panel of the main CPU bay and the front panels of any sup-
plied expansion bay (LTC 8802 Series) by loosening the four (4) corner fasten­ers.
2. Install the power supply in far right position of the main CPU bay insuring proper alignment and seating of the module into the rear mating connector. Ver­ify that the power supply ON/OFF switch is in the OFF position. Repeat this procedure for any supplied LTC 8802 Series Monitor Expansion bay.
3. Install the four screws and star washers (supplied) on the rear panel of the bay(s) surrounding the power supply line cord to fasten the power supply securely in place.
CAUTION If the allegiant card cage is to be transported, the main power supply should be
removed to prevent possible damage to the bay's internal parts.
4. If the bay(s) are to be installed into a standard 19-inch EIA rack, remove the four (4) rubber bumper foot pads found on the bottom of the bay before install­ing the unit in the rack. Four (4) holes are provided for mounting the bay(s) in the rack. If any LTC 8802 Series Monitor Expansion bay is supplied, it should be located as close as possible to the LTC 8801 Series Main CPU bay to facilitate cable interconnections.
5. Install the LTC 8600 Series, the LTC 8800 Series, and the LTC 8802 Series Moni­tor Expansion bays so that there is at least 9 cm (3.5 in.) of clearance above and below the bay. This clearance is necessary to allow for proper cooling of the system. Failure to provide proper clearance may cause the equipment to exceed its recommended operating temperature range.
NOTE An LTC 8802 Series Monitor Expansion bay should be located close enough to the
TC8801 so that you can connect the units with the supplied 2 m (6 ft) data intercon­nect cable
8.2 Video Input Modules
Termination switches on the Video Input Modules (VIM) must be set to the correct position prior to installation. If necessary, see Section 8.6 “Termination Practices,” on page 31 prior to actually installing the VIM on these systems.
The appropriate number of VIMs should be installed in the main bay starting with the left most slot. If the LTC 8802 Series Monitor Expansion Bay is being used, it should receive the same number of VIMs as the main bay. If less than full capacity is
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 35
LTC 8600 | LTC 8800 Series en | 29
being used, the modules should be inserted in a left-to-right manner so that the lower camera numbers are used first.
Figure 5: Typical Video Input Module Insertion
The VIMs are identical and are interchangeable within the designated VIM slots without having to make any changes to the module.
8.3 Video Output Modules
Counting from left to right beginning with slot 9, install the appropriate number of Video Output Modules (VOM) into these slots. If fewer than the maximum number of VOMs are installed, there will be empty slots between the Input and the Output Modules, so make sure that the VOMs are inserted into the correct slots.
If the LTC 8802 Series Monitor Expansion Bay is being used, it should be loaded with VIMs in the same fashion. The Main CPU Bay should be FULLY loaded with 8 output modules before putting output modules into the Monitor Expansion Bay. Remaining output modules are inserted into the Monitor Expansion Bay starting at slot 9. If fewer than the maximum number of outputs are being used, the Monitor Expansion Bay may contain fewer Output Modules than the Main CPU Bay.
All VIMs are identical and are interchangeable within the designated VOM slots.
8.4 CPU Module
The slot to the left of the power supply in the main CPU bay is reserved for the sys­tem CPU module.
NOTE The CPU module contains two (2) lithium batteries mounted on the component side
of the printed circuit board. A red rectangular insulating tag may be installed in between the top of the batteries and the battery holder clip. This tag prevents bat­tery drainage during stocking. Remove tag if so equipped.
Figure 6: Typical Video Output Module Insertion
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 36
30 | en LTC 8600 | LTC 8800 Series
Figure 7: Typical CPU Module Insertion
If an LTC 8802 Series Monitor Expansion is supplied, it will contain an LTC 8816/01 Data Receiving Module in this slot. Install the main bay CPU or data receiver module at this time.
The circuit board contains three (3) 8-position DIP switches for system configura­tion options. The DIP switches can be used to modify certain system operating con­ditions. Review the Factory Default Settings Section to determine if it is necessary to change the DIP switches from the factory default positions. For reference, the factory default settings are:
Bay Type Module DIP Setting
LTC 8601 Series LTC 8610/01 CPU S1 and S3, All OFF
LTC 8801 Series LTC 8810/01 CPU S1 and S3, All OFF
LTC 8802 Series LTC 8816/01 S1 and S3, All OFF
S2, Switch 5, 7, and 8 ON; All others OFF
S2, Switch 5, 7, and 8 ON; All others OFF
S2, Switch 3 and 7 ON; All others OFF
8.5 Camera and Monitor Video Connections
Refer to “Figure 14:” on page 43 for the next series of steps. Connect the system cameras to the appropriate video inputs, but as a minimum
connect one known operating camera to video input #1 on the rear of the main CPU bay. Use only those inputs that correspond to an installed VIM. Special instructions concerning the LTC 8600 Series or the LTC 8800 Series systems, termination, and expansion bays are given in the sections below. Also connect desired monitors to the rear of the main CPU bay, ensuring to connect at least one monitor to video out­put #1. The video outputs are the left-most column of BNC connectors on the rear of the bay. Use only those outputs that correspond to an installed Video Output Module (VOM).
8.5.1 LTC 8600 Series and LTC 8800 Series Video Input Connections
The LTC 8601 Series and the LTC 8801 Series main bays have 96 direct BNC connectors available for video input. Cameras above 96 require the use of the LTC 8808/00 Video Interconnect (“Patch”) Panel. Each patch panel provides 32 additional BNC connectors for video input.
Patch panels are connected to the rear of the main bay using the supplied ribbon cables. Each cable can carry video for up to 16 cameras. Two (2) cables can be attached to each patch panel to support up to 32 cameras per panel. Each ribbon cable should be attached to the appropriate “VIDEO” connector on the rear of the main bay. The ribbon cable connectors contain a small “key” protrusion formed into one side of the connector to assure proper placement into the mating connectors. Be careful not to force the cables into the mating connectors backwards. For exam­ple, the two (2) ribbon cables from the first patch panel (supporting the 32 cam-
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 37
LTC 8600 | LTC 8800 Series en | 31
eras, numbers 97 through 128) should be attached to the main bay connectors labeled “VIDEO 97-112” and “VIDEO 113-128.” Extra connectors are provided on the main bay for “looping” purposes. If camera inputs are not being looped to other equipment, only one connector for each range of cameras (e.g., “VIDEO 97-112”) needs to be connected.
The LTC 8600 Series system is supplied with one LTC 8808/00 (patch panel plus two (2) TC8809 ribbon cables). This should be installed on the rear of the racking equipment to permit immediate or future connections of camera inputs 97 through
128.
A LTC 8808/00 Patch Panel must be ordered separately for each group of 32 cam­eras above 96 that will be connected to an LTC 8800 Series system.
Figure 8: Typical Use of LTC 8808/00 Video Interconnect Panel
Install any supplied LTC 8808/00 Patch Panel on the rear of the racking equipment. Note that additional VIMs ordered in the future may also require the use of LTC 8808/00 Patch Panels. It is recommended to order the appropriate quantities at the time the VIMs are ordered.
8.6 Termination Practices
Video from every video input signal must be “terminated” with a 75 ohm resistance. Each video line should be terminated exactly once. If video from a given camera is going to several different devices, only the last piece of equipment on the video line should be terminated. See the section below for special termination instructions when using a monitor expansion bay. The following sections detail the ways that various Allegiant systems terminate video inputs.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 38
32 | en LTC 8600 | LTC 8800 Series
KEYBOARD
VIDEO IN
1
3
5
7
2
4
6
8
CONSOLE
ALARM
PRINTER
SDA
COMM PORT 1
COMM PORT 2
1
3
VIDEO OUT
2
4
9
1011
12
17
1819
20
25
26
2728
33
3435
36
41
4243
44
49
5051
52
57
58
60
65
66
6768
73
7475
76
81
8283
84
89
90
92
93
94
96
85
8687
88
77
7879
80
69
70
7172
61
62
64
53
5455
56
45
4647
48
37
3839
40
29
30
3132
21
2223
24
13
1415
16
5
6
78
1
SYNC
32 25 18 6
7
8
9
10
11
122431
2330
2229
2128
20
27
19
26
5
4
3
2
17
16
15
14
13
LOOP 1-16
LOOP 17-32
LOOP 33-48
LOOP 49-64
LOOP 65-80
LOOP 81-96
INPUT 97-1 12
LOOP 97-112
INPUT 113-128
LOOP 113-128
INPUT 129-144
LOOP 129-144
INPUT 145-160
LOOP 145-160
LOOP 241-256
INPUT 241-256
INPUT 225-240
LOOP 225-240
LOOP 209-224
INPUT 209-224
LOOP 193-208
INPUT 193-208
LOOP 177-192
INPUT 177-192
LOOP 161-176
INPUT 161-176
59
9195
63
KEYBOARD
VIDEO IN
1
3
5
7
2
4
6
8
CONSOLE
COMM PORT 2
1
3
VIDEO OUT
2
4
9
1011
12
17
1819
20
25
26
2728
33
3435
36
41
4243
44
49
5051
52
57
58
60
65
66
6768
73
7475
76
81
8283
84
89
90
92
93
94
96
85
8687
88
77
7879
80
69
70
7172
61
62
64
53
5455
56
45
4647
48
37
3839
40
29
30
3132
21
2223
24
13
1415
16
5
6
78
1
SYNC
32 25 18 6
7
8
9
10
11
122431
2330
2229
2128
20
27
19
26
5
4
3
2
17
16
15
14
13
LOOP 1-16
LOOP 17-32
LOOP 33-48
LOOP 49-64
LOOP 65-80
LOOP 81-96
INPUT 97-1 12
LOOP 97-112
INPUT 113-128
LOOP 113-128
INPUT 129-144
LOOP 129-144
INPUT 145-160
LOOP 145-160
LOOP 241-256
INPUT 241-256
INPUT 225-240
LOOP 225-240
LOOP 209-224
INPUT 209-224
LOOP 193-208
INPUT 193-208
LOOP 177-192
INPUT 177-192
LOOP 161-176
INPUT 161-176
59
9195
63
LTC 8801
LTC 8802
LTC 8809/00
COM
8.6.1 LTC 8600 Series or LTC 8800 Series Video Input Terminations
Each VIM card for an LTC 8600 Series or an LTC 8800 Series system has DIP switches for selecting the termination of each individual video line. To terminate an input line, make sure that the appropriate DIP switch on the VIM card is ON. If non­terminated operation is required for looping purposes, turn the switch OFF (Switch 1 corresponds to the first video input channel of the card).
If looping video inputs are desired, the LTC 8600 Series and the LTC 8800 Series systems may utilize the LTC 8808/00 Video Interconnect Panel. Both bays provide video looping connections which interface to the LTC 8808/00 using coax type rib­bon cables supplied with the patch panel. Each LTC 8808/00 provides looping capa­bility for up to 32 video inputs.
8.6.2 LTC 8802 Series Monitor Expansion Bay Video Input Connections
If an LTC 8802 Series monitor expansion bay is supplied, each video input signal that is connected to the LTC 8801 Series main CPU bay must also be connected to the same numbered input on the monitor expansion bay.
With the LTC 8802 Series monitor expansion bay, ribbon cable connectors are pro­vided for the video inputs. Video is to be looped from the main bay into the expan­sion bay through 16 LTC 8809/00 ribbon cables. Connect all LTC 8809/00 ribbon cables from the appropriate “VIDEO” ribbon cable connector on the main bay to the corresponding “VIDEO” ribbon cable connector on the monitor expansion bay. The ribbon cable connectors contain a small “key” protrusion formed into one side of the connector to assure proper placement into the mating connectors. Be careful not to force the cables into the mating connectors backwards.
IMPORTANT The Termination DIP switches on the VIM cards installed in the main bay must be
turned OFF. This will make the main bay inputs non-terminated, and the expansion bay will provide the termination for the video inputs.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Figure 9: Typical LTC 8809/00 Cable Connections
Page 39
LTC 8600 | LTC 8800 Series en | 33
8.6.3 LTC 8802 Series Monitor Expansion Bay Data Connections
The LTC 8802 Series Monitor Expansion Bay is supplied with a 1 m (3 ft) data com­munication interconnect cable. Install this cable between the Comm1 port on the LTC 8801 Series Main CPU bay, and the Comm1 port on the LTC 8802 Series Moni­tor Expansion Bay.
8.6.4 Monitor Output Video Connections
Just like camera inputs, monitor outputs on the Allegiant system are designed to be terminated. Each monitor output expects to be connected to a 75 ohm load. This is the regular load typically provided by a normal monitor. If a monitor output line is “looped” through several monitors or other equipment, the system installer should make sure that only the last unit on the line is terminated.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 40
34 | en LTC 8600 | LTC 8800 Series
9 Optional Accessories Installation
9.1 General Accessory Installation
There are many accessory products available for the Allegiant Series, including key­boards, alarm interface units, control code signal distribution units, etc. If applica­ble, these products can be installed at the same time as the main CPU bay installation, or postponed until later. In some cases, products are designed to be racked in close proximity to the main CPU bay, so appropriate rack space should be reserved.
Please refer to the instructions supplied with the specific accessory product for complete installation details.
9.2 Logging Printer Option Installation
NOTE Although the exact installation procedure for each printer varies, the following steps
are generally required. Be sure to save the printer reference manual for procedures not covered.
1. Switch the main power OFF to the printer.
2. Install the ribbon cartridge and paper if necessary.
3. Set any configuration switches for your particular printer to match the format
provided by the Allegiant system. Note that the system communication protocol can be changed using the Keyboard User Functions (described later in this man­ual) or with the optional Allegiant LTC 8059 MCS package. The factory default values are as follows:
Baud rate -- 115200 Stop bits -- 1 Data bits -- 8 Parity -- None
NOTE The required interconnect cable utilizes a custom pinout. Refer to the Appendix
Section of this manual for wiring details.
4. Attach the 25-pin male D-type connector side of the RS-232 cable to the con­nector on the printer.
5. Attach the 9-pin male connector side of the cable to the Allegiant CPU bay con­nector marked “PRINTER”.
6. Apply power to the printer.
7. Verify logging printer action by ‘loading’ a previously stored sequence into a
monitor, activating an alarm, or performing a system reset. Any of these actions should cause printouts to occur.
9.3 Computer Interface Installation
NOTE Although the exact installation procedure for each computer varies, the following
steps are generally required. Be sure to save the computer reference manual for pro­cedures not covered here. Switch the main power OFF to the computer.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 41
LTC 8600 | LTC 8800 Series en | 35
1. If using an Allegiant software package, attach the PC security key provided with the software to an available port on the computer.
The supplied interconnect cable utilizes a custom pinout. If it ever becomes necessary to replace the cable, it can be ordered separately using part number: LTC 8506/00. Alternatively, a cable can be configured using the information found in the Appendix Section of this manual.
2. Attach one end of the supplied RS-232 interface cable to the main Allegiant CPU bay connector marked Console (or another port that has been configured to operate as a Console port).
3. Attach the other end of the cable to an available serial port (COMM PORT 1 or COMM PORT 2) on the rear of the computer.
4. Apply power to the computer and allow it to boot up its operating system before inserting the software disc.
5. Refer to the applicable Allegiant software manual for complete programming instructions.
6. The communication settings of the PC must match those of the Allegiant. The Allegiant communication settings can be changed using Keyboard User Func­tion 30 (described later in this manual), or may have been previously set using
the Master Control Software. The factory default values are as follows:
Baud Rate 115200 Stop Bits 1 Data Bits 8 Parity None
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 42
36 | en LTC 8600 | LTC 8800 Series
Central Control Station
Satellite
System
#1
Satellite
System
#6
Satellite
System
#2
Satellite
System
#3
Satellite
System
#4
Satellite
System
#5
V
i
d
e
o
V
i
d
e
o
V
i
d
e
o
V
i
d
e
o
Vi
d
e
o
The central station can view/control cameras located at any site. The satellite sites can view/ control cameras located only within their own site.
V
i
d
e
o
D
a
t
a
D
a
t
a
Data
D
a t
a
D
a
t
a
D
a
t
a
10 Satellite Configuration Installations
Due to the many variations possible, only general guidelines can be covered for installing satellite systems. Refer to the Appendix Section of this manual, the LTC 8850/00 GUI Software manual, or the LTC 8059/00 MCS package manual for additional configuration and programming information on satellite systems.
10.1 Satellite Site “Trunk Line” Monitor Outputs
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
At each of the remote satellite sites, a desired number of monitor outputs from the switcher must be assigned as trunk lines. The number of trunk lines can range from 1 to the maximum number of monitor outputs provided by the switcher. Note that the number of trunk lines coming from a satellite site determines the maximum number of cameras from that site which may be viewed simultaneously at the main site. If operators will be stationed at the satellite site, they should be prevented from accessing the monitor outputs designated as trunk lines. This prevention can be accomplished via the Monitor Lockout Tables in either the LTC 8059/00 MCS or the LTC 8850/00 GUI Software (see below).
Figure 10: Satellite Concept Configuration
Page 43
LTC 8600 | LTC 8800 Series en | 37
10.2 Main Site “Trunk Line” Video Inputs
At the main site, video trunk line connections coming from each of the remote site(s) should be connected (and properly terminated) using an available video input at the main bay. There are no programming restrictions concerning their con­nections, but a sense of order can be maintained if a group of video inputs are used at the upper end of the system’s designed capacity. This technique allows the main system to be more easily expanded in the future with additional local cameras or trunk lines. As an example, assume there are a total of eight (8) trunk lines coming from all satellite sites which are connected to a main site system designed for 32 inputs. Inputs 25 to 32 can be reserved for the trunk lines, leaving inputs 1 to 24 for local camera connections. If there will be no local camera inputs, the trunk lines can start at the first video input.
10.3 Control Data Lines in Satellite Systems
Each satellite site must be provided with an Allegiant biphase control data line com­ing from the Signal Distribution located at the main site. This data line carries all pan/tilt/zoom control commands, in addition to the switching commands generated by the main site switcher. The control data line should be connected to a LTC 8780 Series Data Converter unit, which provides address decoding functions for the sat­ellite site. An LTC 8780 Series is required for each satellite site, and must be given a unique site address number. If operators stationed at the satellite site are permitted to control pan/tilt/zoom-equipped cameras, an LTC 8569 Series Code Merger unit must be installed at the satellite site. In order for each site to have control over pan/ tilt/zoom-equipped cameras, the Code Merger combines code generated by the main and satellite sites. The LTC 8780 Series can then be connected to one of the data outputs of the LTC 8569 Series unit.
10.4 Satellite Site Programming Requirements
The optional LTC 8059/00 MCS or the optional LTC 8850/00 GUI Software is required to properly program a satellite system.
Programming the satellite sites is usually limited to designating their logical camera numbers to appropriate values via the Camera ID Table of the MCS or GUI Software. Note that no duplicate logical camera numbers are permitted anywhere in the sys­tem. Allegiant logical camera designations can be renumbered to any four-digit num­ber on all Allegiant Series systems, except the LTC 8500 Series, which is limited to three (3) digits. Few other restrictions exist. These camera numbers are the num­bers entered at both the satellite and the main site keyboards when camera selec­tions are made. On any AutoDome Series camera or conventional pan/tilt/zoom­equipped camera, this logical number must also be entered as the receiver/driver's site address number.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 44
38 | en LTC 8600 | LTC 8800 Series
Figure 11: Satellite Site Sample Program Showing Logical Camera Numbers and Titles
To maintain a sense of order, it is preferable to program a satellite for a range of camera numbers. For example, in a three (3) Allegiant type satellite system, the first satellite can be programmed for camera numbers 51 to 100. Satellite two can be programmed for camera numbers 101 to 131, and satellite three can use numbers 151 to 185.
If necessary, the Keyboard-to-Monitor Lockout Table in the LTC 8059/00 MCS or the LTC 8850/00 GUI Software can be programmed in the satellite switcher to prevent any local operators from inadvertently accessing the satellite's monitor outputs being used as trunk lines.
If operators will be stationed at the satellite site, camera titles should be entered into the switcher. If desired, these titles can be selected (explained below) to appear at the main site.
The only other requirement is to ensure that the console ports of all Allegiant type satellites have been set to the correct baud rate and the handshake option disabled (CTS = off). This is done via a system keyboard (see Keyboard User Function 30), the Parameters-System screen of the LTC 8059/00 MCS or the LTC 8850/00 GUI Software (make sure CPU DIP Switch S2 is set to the ON position).
10.5 Main Site Programming Requirements
At the main site, the Camera ID Table must be programmed to ensure proper satel­lite operation. It is easiest to start with the trunk line inputs. For each trunk line, the satellite's monitor output number and its bay address must be entered (same num­ber as the satellite's LTC 8780 address).
Camera numbers should be programmed next. No duplicate logical camera numbers are allowed anywhere in the entire system. If the system will include many local cameras, it is recommended to designate remote cameras (i.e., those located at sat­ellite sites) using numbers above the main bay's physical video inputs (9+ on LTC 8100 Series, 17+ on LTC 8200 Series, 33+ on LTC 8300 Series, 65+ on LTC 8500, 129+ on LTC 8600, 257+ on LTC 8800 Series, 4097+ on LTC 8900 Series). Enter the desired camera number, (the satellite bay that it is actually connected to), and select if either a local title will be used, or if the remotely generated title will be used.
For satellite camera entries, only those numbers representing actual cameras need to be entered. For example, all 16 cameras associated with a LTC 8200 switcher do not need to be entered if only five cameras are actually connected to the switcher. If desired, a few extra camera number lines in the table may be reserved at this time for future expansion. If a local title is specified, the camera's title can also be entered at this time. Designate any local camera numbers appropriately, and enter their corresponding titles.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 45
LTC 8600 | LTC 8800 Series en | 39
Figure 12: Main Site Sample Program Showing Local Cameras, Trunk Lines and Remote Cam-
eras
NOTE Either a local camera, or a remote camera programmed with a local title, will need
to be selected to view certain on-screen prompts or data during programming of the main site via a system keyboard.
Once the system is programmed and configured, any unused monitor outputs located at the main site should be selected to display a local camera via the system keyboard. This prevents unused monitor outputs from using up trunk lines which may result in some confusing operational responses.
The “Start-up” camera numbers listed in the Monitor Table of the LTC 8059/00 soft­ware should be programmed to specify locally connected cameras or a local unused input (i.e., the raster generator will be displayed when called up). This table defines the camera numbers that will automatically be switched to an operator's monitor in the event the trunk line being used to display their original satellite camera is 'sto­len' by an operator with a higher priority.
Figure 13: Main Site Sample Program Showing Monitor Start-Up Camera Numbers
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 46
40 | en LTC 8600 | LTC 8800 Series
10.6 Special Programming for “Cascaded” Satellite System Configurations
In a 3-tier cascaded satellite system, it is highly recommended for the system design to have more trunks lines between the intermediate master/satellite system and the 3rd level satellite system than there are between the top level master system and the intermediate system. In systems where this is not the case, it is likely that oper­ators at top level master and the intermediate master/satellite will end up fighting for trunk lines coming from the 3rd level satellite system.
There are two user configuration options available (starting in CPU firmware version
8.70) to eliminate or at least significantly reduce conflicts between operators when this type of system is being used.
Option 1: Using Factory default settings, previously selected satellite cameras remain on trunk lines even after the operator switches back to a local camera view. Although this mode of operation is more desirable in standard systems because it minimizes delays when previous satellite cameras are reselected, it is not advanta­geous to use in cascaded systems. In cascaded systems, all available trunk lines coming from the 3rd level satellite system may become used up, making them unavailable to the operators at the intermediate system.
In this situation, keyboard User Function 41 should be set to the NO REM CAM CACHE option at the master site location. In this mode, after the top level operator selects a locally connected camera, the trunk line between the top level and the intermediate level system will immediately be reset to its Start-up camera (as defined in the Monitor Table of the LTC 8059/00 MCS). This action frees the trunk line between the intermediate level system and the 3rd level system so it will be available if needed by an operator at the intermediate level system.
For the monitors being used as trunk lines in the intermediate system, it is important for the “Start-up” camera numbers listed in the Monitor Table of the LTC 8059/00 software to be programmed to specify cameras connected locally or a local unused input (i.e., the raster generator will be displayed when called up). This action ensures that no trunk line is used when a monitor switches to the Start-up camera.
Option 2: If the top level master system and intermediate level system in a cascade configuration can or will be set to operate as “Dual Master” systems, a priority based satellite camera feature can be configured.
In default cascaded satellite system configurations, satellite switching commands are not associated with a user priority level. When a switching command sent from a master site is received by a satellite, the switch selection can immediately be over­ridden by operators at the satellite location who have any priority level. This situa­tion is more likely to be encountered in 3-tier Satellite systems that do not have a good distribution of trunk lines (i.e., more between the top level system and the intermediate level system than there are between the intermediate system and the 3rd tier satellite).
Since dual master configurations support bi-directional communications, it is possi­ble to set keyboard User Function 41 to use the SAT nnn PRIORITY option for both the top level and intermediate level master systems. The satellite number assigned to the system that is currently being programmed must be specified here. This fea­ture will enable use of the operator’s user priority to determine if access to a desired satellite camera is provided or not. For instance, if no trunk lines are avail­able and an operator requesting a satellite camera has a higher priority than at least 1 of the existing operators, the requested camera will be switched. If the operator does not have sufficient priority, they will receive an error message (i.e., error 81) via the satellite communication path, and their camera will switch to the Start-up camera specified in the Monitor Table.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 47
LTC 8600 | LTC 8800 Series en | 41
10.7 Alarm Inputs in Satellite Systems
Any alarm inputs to the main site, which have been programmed to activate cameras located at satellites, will operate normally except when limited by the number of trunk lines available. The software automatically determines trunk usage depending on the priority level of operators currently viewing satellite cameras. Alarm inputs applied at a satellite site will not activate the alarm video at the main site. If the application requires alarms located at a satellite to activate video at the main site, the remote alarms must be brought back to the main site. If necessary, the main site's LTC 8540/00 Alarm Interface unit can be remotely located via an RS-232 link. Since the Alarm Interface capability is an integral part of the LTC 8100, LTC 8200, and LTC 8300 Series, this is not possible if an LTC 8100, LTC 8200, or LTC 8300 Series system is being used as the main site system. If more than one satellite site contains alarms, multiple LTC 8540/00 Alarm Interfaces can be remotely located. The number of alarm interfaces which can be remoted is limited only by the capac­ity of the main site system to support this capability.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 48
42 | en LTC 8600 | LTC 8800 Series
11 Feature Selection
Certain user-selectable features can provide enhanced Allegiant system operation capabilities. Any desired changes can be made now or delayed until specific system requirements become more apparent. Refer to the Factory Default Settings Section for a full description of these features and selection instructions.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 49
LTC 8600 | LTC 8800 Series en | 43
12 Main Power Connections
1. Attach the supplied AC power cord(s) between the bay(s) and appropriate AC
power source. Verify that power supply is configured for desired voltage input. If necessary, instructions for changing the input voltage selection can be found in the Maintenance section of this manual (See Chapter 19, “Maintenance Infor­mation,” on page 83) Switch power ON to the bay(s). In multibay systems, the bays can be powered up in any order.
NOTE The system may require several seconds to fully initialize after a power-up reset.
NOTE Upon power-up, the system monitors may momentarily display video output module
NOTE All cameras should be phased properly with each other before the EXTERNAL SYNC
Up to one (1) minute may be required before a LTC 8802 Series Monitor Expan­sion bay fully initializes. This time can vary based on the activity and general size of the system.
2. Verify that the LEDs associated with the fuses are lit on all of the applicable power supplies.
software version information.
Installations having cameras powered from an AC phase different than that of the Allegiant system may utilize the built in EXTERNAL SYNC input or vertical PHASE ADJUST.
or PHASE ADJUST feature is implemented.
The EXTERNAL SYNC input will accept composite video, composite sync, or out­put from a Master Sync generator. Any one of the phased cameras may be used as a master sync source to the system using the EXTERNAL SYNC input. To implement this feature, simply connect the incoming video source (using a BNC “T” connector) to both the appropriate camera BNC input and the EXTERNAL SYNC input which is found on the rear of the Allegiant CPU bay. The front panel illuminates the EXT SYNC LED. Alternatively, the PHASE ADJ on the front panel of the power supply may be adjusted until the vertical interval switching is achieved. The PHASE ADJUST has a range of about 130 degrees.
3. Reattach the front panel(s) to the bay(s).
Figure 14: LTC 8600 Series Rear Panel
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 50
44 | en LTC 8600 | LTC 8800 Series
CONSOLE
ALARM
PRINTER
SDA
COMM PORT 2
AUXILIARY
Figure 15: LTC 8808/00 Video Interconnect Panel
Figure 16: LTC 8801 Series Main CPU Bay Rear Panel
Figure 17: LTC 8802 Series Monitor Expansion Rear Panel
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 51
LTC 8600 | LTC 8800 Series en | 45
XXXX Status/Title 12:00:00 Camera Title 11-26-90
Extended Camera Title/Monitor Title
xx
User-selectable 2-digit “Site” Number Mode
12-character System
Status Display or
Monitor Title
Camera Number
12- or 24-hour
Time Display
16-character Camera Title
User-selectable Third Line Mode
3 Selectab Formats: (MM-DD-Y DD-MM-Y YY-MM-D
PM
13 Video Monitor Display
The Allegiant Series systems feature an integral text overlay with two or three rows of 24 characters each. There are over 2000 different characters that can be dis­played. See Chapter 20, “Character ROM Tables for LTC 8600 and LTC 8800,” on page 86
NOTE If no video signal is present, a new line will appear stating: VIDEO NOT PRESENT.
The display is broken down into seven areas as shown in the figure
Figure 18: Monitor Overlay Display
NOTE The Monitor Overlay Display shows all six digits including leading zeros for a camera
number in 6-digit mode. In 4 digit mode, the camera number display depends on the setting of the Miscellaneous Parameter option as set in the Master Control Soft­ware.
13.1 Time/Date
The time/date display is generated by the system CPU microprocessor module. It is crystal controlled and battery protected for one year (minimum) without power. The display is updated once per second and all monitors update simultaneously. The time/date message is always on the right side of the video display with the time on the top line. Time displays hours, minutes, and seconds, and can be set to either 12­hour or 24-hour operation. The date is available in three (3) user-selectable formats:
1. U.S. Format - The order for the American date display is: MM/DD/YY. (Default for 120 VAC systems)
2. International Format - The order for the international date display is: DD/MM/YY (Default for 220-240 VAC systems)
3. Asian Format - The order for the Asian date display is: YY/MM/DD
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 52
46 | en LTC 8600 | LTC 8800 Series
13.2 Monitor Title/System Status Display
The monitor title/system status display area is a 12-column display to the right of the camera number. It is unique on each of the monitors. It has different uses, some of which may be selected by the user at a keyboard location. The various uses are described below.
13.2.1 System Status Display
If this display is selected (factory default), it allows the Allegiant system to dynami­cally inform the user of the system status. The 12-column display is divided into smaller message columns (see figure below), in which special characters inform the user of the following:
• if the switcher is running or stopped
• the switcher’s direction
• if a monitor or remote camera is locked
• the alarm status of the camera and monitor.
13.2.2 Locations 1, 2, and 3 - Alarm Indication
When the monitor overlay is in the status display mode, locations 1 through 3 indi­cate if a camera on the monitor is in the alarm mode. If the on-screen camera is cur­rently in alarm mode, an ALM message will flash in a box at this location mode. If no cameras are currently in alarm mode on this monitor, these spaces are blank. Note that when a monitor has cameras in alarm mode, pressing [NEXT], [RUN], or [PRE­VIOUS] on the keyboard will move you through the alarm sequencer rather than the regular camera sequencer. The alarm switcher status will be displayed in location 6 using described symbols.
13.2.3 Location 4 - Monitor Arm Status Indication
In the MONITOR ARMED location, the characters SM or DM will appear if the moni­tor is armed for alarm. SM means that the monitor is a “step” or “sequence” moni­tor, and will automatically step through multiple alarm videos. DM indicates that the monitor is a “display” or “review” monitor, which will collect alarm videos from one or more step monitors.
When an alarm occurs, the alarmed camera's video will replace the current display of the monitor. If the monitor is not armed, this location will be blank.
13.2.4 Location 5 - Camera Arm Status Indication
In the CAMERA ARMED location characters CA are displayed if the camera being viewed is armed for alarm on that monitor. If the alarm signal associated with this camera becomes active, the camera will be displayed on the appropriate armed monitors.
13.2.5 Location 6 - Error Indication
This location is used to indicate an error on the part of the user. When a user error occurs, this location will display an ERR symbol. The specific error number will appear in locations 7 and 8. The error number will also appear in the Camera Num­ber Display field on the keyboard. The display will return to normal after a few sec­onds have passed, or if the user presses [Enter] on the keyboard.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 53
LTC 8600 | LTC 8800 Series en | 47
Location 6 is also used to indicate the sequencing direction when alarms occur. One of four of the following character combinations will be displayed:
^
indicates the alarms are sequencing in a forward direction.
a.
R
R
indicates the alarms are sequencing in a reverse direction.
b.
V
^
indicates the sequencing of alarms has stopped, but if started again
c.
S
would sequence in a forward direction.
S
indicates the sequencing of alarms has stopped, but if started again
d.
V
would sequence in a reverse direction.
Location 6 can also be used to display a symbol to indicate pan/tilt/zoom equipped cameras. Using the keyboard (see User Function 35), or the optional LTC 8059/00 MCS, controllable cameras can be individually selected to display a “” symbol in location 6 whenever they are viewed on a system monitor.
13.2.6 Location 7 - Remote Lock Indication
This location will display characters RL to indicate that control over the movements of the camera being viewed have been “locked” by a user. Control over this camera is now possible only by the user who locked the camera or by a user with higher pri­ority. If the camera is not locked, the icon will not be displayed. If a user error has occurred, this location will temporarily hold part of the error number.
13.2.7 Location 8 - Monitor Lock Indication
This location will display characters ML to indicate that the monitor has been “locked” by a user. The camera currently being viewed can not be changed except by the user who locked the monitor or one with higher priority. If the monitor is not locked, the icon will not be displayed. If a user error has occurred, this location will temporarily hold part of the error number.
13.2.8 Location 9 - Sequence Type Indication
This location is used to display the type of sequence currently “loaded” on the mon­itor. An “absolute sequence” is indicated by the characters monitors programmed in the sequence program refer to the exact monitor(s) from
which the sequence may be run. Sequences created using the system keyboards are always of this type, so absolute sequences are the only type possible in a base sys­tem. Sequences designated as “relative sequences” are designated by the charac­ters RS in this location. These sequences run on any monitor or group of monitors and can be programmed only using the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package with a personal computer.
13.2.9 Locations 10 and 11 - Sequence Number
The sequence number currently active for the monitor is displayed in these two locations. This number is between 1 and 60, or 00 to indicate that no sequence is loaded.
A
which means that the
S
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 54
48 | en LTC 8600 | LTC 8800 Series
13.2.10 Location 12 - Sequence Status Indication
This location indicates the status of the sequence “active” in the monitor. There are four possible character combinations:
^
indicates the current sequence is sequencing in a forward direction.
a.
R
R
indicates the current sequence is sequencing in a reverse direction.
b.
V
^
c.
indicates the sequence is stopped, but if started again would sequence
S
in a forward direction.
S
indicates the sequence is stopped, but if started again would sequence
d.
V
in a reverse direction.
13.3 Monitor Title
The monitor message is a stationary 12-character title which may be placed on a monitor instead of the system status display. A specific monitor message can be programmed using the keyboard (see User Function 17), the optional LTC 8059/00 MCS package, or the optional LTC 8850/00 GUI Software package.
123456789101112 AAAMCERMASSS llloareobeee aaanmrmnsqqq rrr o / mmmA A r L L R NN S
rr/ooeuut mmD c c l mma
lkk R vw
Table 1: Format of Monitor Overlay's System Status Display
13.4 Broadcast Message
The operator of the personal computer can send a message using the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package to all the monitors in the system. This message may be up to 24 characters long, and can be used to notify all users at all monitor locations of important information. The mes­sage, along with its beginning and ending time and date, is also printed out on the logging printer, if one is connected; and any acknowledgment from users is also recorded. The broadcast duration may be set for 1 to 60 seconds. The message is displayed on a line by itself.
13.5 Program Prompts
During entry of sequence programming using the keyboard, the Allegiant system prompts the user on the monitor his keyboard is currently “controlling”. The display will return to its previous form when the user leaves the programming mode.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 55
LTC 8600 | LTC 8800 Series en | 49
13.6 Camera Number
The left-most display on the top line shows the camera number. This number is gen­erated by the system and is always displayed. Each number is unique and identifies this camera when using the keyboard for video call-ups.
In base systems, this number is the same as the numbered BNC connector that the camera is plugged into on the rear of the bay (physical camera number). However, the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package can be used to change this number to any unique number between 1 and
9999.
The option to display a 2-digit site number above the 4-digit camera number is user­selectable. This “6-digit Camera ID” mode is especially useful when groups of cam­eras are located in separate buildings, floors, or other common areas.
13.7 Camera Title
The camera identification display is the first 16 characters of the lower line. These 16 characters label each camera. Each camera has its own title, which is displayed whenever that camera is called-up for viewing. The characters can be entered from the keyboard (see User Function 9) or may be entered from the personal computer keyboard using the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package. A user selectable option provides the ability to display a 3rd line of on-screen text. This third line can be configured to display up to 24 additional camera title characters (40 characters total) or a 12-character monitor title. There are over 4000 different characters that can be displayed. See Chapter 20, “Charac­ter ROM Tables for LTC 8600 and LTC 8800,” on page 86.
13.8 Video Loss Detection
The Allegiant system is capable of detecting loss of video. When the unit detects lost video, the respective monitor display a VIDEO NOT PRESENT message.
NOTE It may take up to five (5) seconds for the unit to display the video loss message
when a video source is disconnected.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 56
50 | en LTC 8600 | LTC 8800 Series
14 Factory Default Settings
As the Allegiant system is shipped from the factory, certain features are placed in a default configuration. The installer can select some of these features at the time of system installation/configuration. Generally the default configuration represents the simplest mode of operation, allowing the user to become familiar with the system before any advanced features are selected. The default settings are described in the sections below.
14.1 User Selectable DIP Switch Settings for Main CPU Bay
NOTE After changing any of the following switches, the system must either be powered
OFF and ON or reset using the keyboard (see user function 15).
14.1.1 Upper CPU DIP Switch S1
System CPU modules contain three (3) 8-position DIP switches. The settings of the upper DIP switch do not need to be changed from their factory default positions except when using a Console Port Expander accessory unit or if a problem is encountered when downloading new firmware into the CPU. For reference, the functions are as follows:
DIP Switch Number Factory Default Setting “Upper” S1 DIP Switch Function
1OFF Not Used 2OFF Not Used 3 OFF Console Expander Use 4 OFF Console Expander Mode 5OFF Boot Mode 6OFF Not Used 7OFF Not Used 8OFF Not Used
• Switch 1 and 2 of S1 These switches are not used in these systems and should be left OFF.
• Switch 3 of S1 This switch should be set to ON if an LTC 8712 Series Console Port Expander is
connected to the Allegiant’s console port. This selection can also be set using either the MCS or the PC-based GUI Software package.
• Switch 4 of S1 Use this switch to set the communication baud rate that the Allegiant will use
when connected to a LTC 8712 Series Console Port Expander. It is only applica­ble when DIP switch 3 is in the ON position. When set to ON, the baud rate will be 57,600 bps (recommended setting). When OFF, the baud rate follows the setting determined via DIP switch 8 of the lower CPU DIP switch. If switch 8 of the lower DIP switch is OFF, the baud rate defaults to 19,200 bps. If switch 8 of the lower DIP switch is ON, the user programmed baud setting is used, but the user setting must be 19,200 baud or higher in order to operate.
• Switch 5 of S1 In the ON position, this switch is used to force the CPU into a “boot” mode so it
is ready to accept a download of an operating system program via its console port. This setting should not be changed unless a problem has been encoun­tered while attempting to download a new operating system program. When this mode is enabled, the baud rate is fixed to 115200 and hardware handshake is ON.
• Switch 6, 7, and 8 of S1 These switches do not currently provide user selectable options and should be
left OFF.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 57
LTC 8600 | LTC 8800 Series en | 51
14.1.2 Middle CPU DIP Switch S2
The middle DIP switch provides several user-selectable options. These options are as follows:
DIP Switch Number Factory Default Setting “Middle” S2 DIP Switch Function
1OFF Reserved 2OFF Alarm Port Mode 3 OFF Old Keyboard Modes 4OFF Printer Port Mode 5 ON Security Feature 6OFF Not Used 7 ON Keyboard Protocol Mode 8 ON Communication Parameters
• Switch 1 of S2 This switch is not used in these systems and should be left OFF.
• Switch 2 of S2 If switch 2 is turned ON, the alarm port on the rear of the main Allegiant bay is
configured as an auxiliary console port. This auxiliary port allows the alarm port (in addition to the regular console port) to communicate with the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package.
The port can also be used to control the Allegiant system via the Console Com­mand Language (documented in the optional CCL manual). The normal console port and the alarm port (when switch 2 is on) may be used to control the Alle­giant system simultaneously. Communications parameters (baud & handshake) for the alarm port can be set using the keyboard (see User Function 32), with the optional LTC 8059/00 MCS package or with the optional LTC 8850/00 GUI Software package.
Note that the pin-out of the alarm port differs from that of the console port, so the cable supplied with the optional LTC 8059/00 MCS package or with the optional LTC 8850/00 GUI Software package can not be used when interfacing with the alarm port. If necessary, See Chapter Appendix D, “Main Bay Rear Panel Connector Pin-outs,” on page 117 for the alarm port pin-outs.
• Switch 3 of S2 This switch setting is ignored if DIP switch 7 (described below) is set to ON.
Current systems utilize a “variable speed” keyboard communication protocol. Older systems and keyboards were limited to using “fixed speed” keyboard communication protocols. In addition, there were two types of fixed speed pro­tocols available. By default, newer CPUs are set to operate using “six poll byte” variable speed mode, but if a newer CPU is installed into an older system, the existing keyboards would not operate with this format. This option switch is provided to support backward compatibility with the older style keyboards.
When this switch is set to OFF, the CPU in an LTC 8600 Series system communi- cates with the system keyboards using a “four poll byte” protocol when this switch is OFF. When it is on, the keyboard communication uses an “eight poll byte” protocol. For LTC 8800 Series systems, the settings are reversed: “eight poll bytes” when OFF, “four poll bytes” when ON.
This option is a global system setting that determines the communication pro­tocol that will be used for all keyboards connected to the system.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 58
52 | en LTC 8600 | LTC 8800 Series
For reference, the following table lists the Allegiant Series keyboard models and the protocol supported by each:
Keyboard model Supported protocols
TC8550KB 4 poll byte TC8550KB-8 8 poll byte TC8550 4 or 8 poll byte TC8550A, TC8551A, TC8553 4, 6, or 8 poll byte TC8554, TC8555 4, 6, or 8 poll byte LTC 8553 Series 4, 6, or 8 poll byte LTC 8555 Series 4, 6, or 8 poll byte IntuiKey KBD-Universal 6 poll byte
• Switch 4 of S2 This switch allows the printer port on the rear of the main Allegiant bay to be
configured as an auxiliary console port when it is turned ON. See the descrip­tion above regarding switch 2 for information on using an auxiliary console port. The printer port has the same pin-out as the normal console port, so the con­sole cable supplied with the optional LTC 8059/00 MCS package or with the optional LTC 8850/00 GUI Software package may be used to interface with the printer port when switch 4 is ON. Communication parameters (baud & hand­shake) for the printer port can be set using a keyboard (see User Function 31), or with the optional LTC 8059/00 MCS package or with the optional LTC 8850/00 GUI Software package.
NOTE This feature can also be implemented via the PRT2CON CCL command using an
external PC, dumb terminal or other computing device. Refer to the Allegiant Com­mand Console Language (CCL) manual for complete information about using CCL commands.
• Switch 5 of S2 This switch controls the system security modes. When this switch is set to ON,
the system log-in features can be controlled using keyboard User Function 27 and User Function 28 (refer to the section on Keyboard User Functions for com­plete information). Users with Priority 1 can access keyboard User Function 27 to select if the system keyboard log-in feature is enabled or disabled. When enabled, the system keyboards require each user to log-in to the system and to log-off the system. All users are required to enter a user number and the correct password before the system permits interaction.
Users with Priority 1 can also access User Function 28 to select if the console port log-in feature is enabled or disabled. When enabled, any external PC or other computing device is required to log-in to the system and to log-off the sys­tem. All users are required to enter a user number and the correct password before the system permits interaction
If this switch is turned OFF or if the features are disabled using User Functions 27 and 28, the system keyboards and the console port are always online with the system.
NOTE When changing from the no 'log-on' mode to the 'log-on' mode, all system keyboards
are initially 'logged-off'.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 59
LTC 8600 | LTC 8800 Series en | 53
• Switch 6 of S2 This switch is currently not used and should be left OFF.
• Switch 7 of S2 This switch controls the system keyboard polling mode. When switch 7 is ON
(factory default), the CPU communicates with all system keyboards via a “6 poll byte” communication protocol. This format provides variable speed pan/tilt control for AutoDome-equipped camera sites. Refer to the information for Switch 3, above, for more details.
NOTE The variable speed mode is not compatible with the pre-1996 TC8561 receiver/driv-
ers without using an LTC 8785 Series code converter unit.
Dip switch 7 can be turned OFF (usually at system installation) to allow opera­tion with the older fixed speed-only type keyboards that are able to communi­cate only using the older format. In this mode, the system can communicate with the older TC8561 Series of receiver/drivers without using the LTC 8785 code converter unit. Note that the fixed speed keyboard mode allows access to only the first 63 auxiliary and pre-position functions. This is not an issue on older receiver/driver versions, but may pose a problem if the system must be expected to access all functions available in the AutoDome Series of pan/tilt/ zoom dome cameras or the higher preposition numbers in current versions of Allegiant receiver/drivers.
• Switch 8 of S2 This switch controls the protocol settings of the external RS-232 port which
connect to the Console, Printer, and Alarm. If the switch is turned OFF, the system uses the factory default settings for the
RS-232 data communication protocols as listed below. With switch 8 ON, any RS-232 port protocols changed using the keyboard (see
User Function 30), the optional LTC 8059/00 MCS package, or the optional LTC 8850/00 GUI Software package are active.
Users with Priority Level 1 can also use the keyboard (see User Function 29) to reset any changed protocols back to the default settings (see below).
Switch 8 also controls the activation of a “boot screen” Command Script pro­gram previously downloaded into the CPU's memory. Command Scripts are user-defined programs designed to provide special system functions or features at system startup or reset. If the switch setting is OFF, any existing boot screen function will not be activated.
The default (DIP switch 8 OFF or after activation of Keyboard User Function 29) data communication settings for the Allegiant system are listed below.
Settings Console Port Printer Port Alarm Port Keyboard Ports
Baud Rate 115200 115200 19,200 9600 Stop Bits 1 1 1 -­Data Bits 8 8 8 -­Parity None None None -­Handshake Yes No No --
14.1.3 Lower CPU DIP Switch S3
The lower CPU dip switch does not currently provide any user selectable options, and all settings should be left in their OFF position.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 60
54 | en LTC 8600 | LTC 8800 Series
14.2 User Selectable DIP Switch Settings for LTC 8816/00 Data Receiver Modules used in LTC 8802 Series Monitor Expansion Bays
NOTE After changing any of the following switches, the system must be powered off and
on using the LTC 8802 Series monitor expansion main power switch.
14.2.1 Upper Data Receiver DIP Switch S1
LTC 8816/00 data receiver modules supplied in the LTC 8802 Series bays contain three (3) 8-position DIP switches. The settings of the upper DIP switch do not need to be changed from their factory default positions except when it is necessary to change the factory default format for the internal raster generator or if a problem occurs downloading new firmware into the data receiver module. The following table list these functions:
DIP Switch Number Factory Default Setting “Upper” S1 DIP Switch Function
1 ON/OFF Raster Generator Mode 2OFF Not Used 3OFF Not Used 4OFF Not Used 5OFF Boot Mode 6OFF Not Used 7OFF Not Used 8OFF Not Used
• Switch 1 of S1 This switch selects the frequency of the internal raster generator used for dis-
play of on-screen text during video loss conditions. When set to OFF, the raster is generated at 60 Hz (default for 120 VAC models). When ON, the raster is gen­erated at 50 Hz (default for 220-240 VAC models). To set the DIP switch changes. power the unit OFF and then turn the unit ON.
• Switch 2, 3, and 4 of S1 These switches are not used in these systems and should be left OFF.
• Switch 5 of S1 In the ON position, this switch forces the data receiver into a “boot” mode so it
can accept a download of an operating system program via its console port. When this mode is enabled, the baud rate is fixed to 115200 and hardware handshake is ON.
• Switch 6, 7, and 8 of S1 These switches do not currently provide user selectable options and should be
left OFF.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 61
LTC 8600 | LTC 8800 Series en | 55
14.2.2 Middle Data Receiver DIP Switch S2
The lower DIP switch provides certain user-selectable options. These options are as follows:
DIP Switch Number Factory Default Setting S2 DIP Switch Function
1OFF Reserved 2 OFF Keyboard Group 3 ON Keyboard Group 4OFF Reserved 5OFF Reserved 6 ON Keyboard Mode 7 ON Operational Mode 8 OFF Operational Mode
• Switch 1 of S2 This switch is reserved and should be left OFF.
• Switch 2 and Switch 3 of S2 Up to eight (8) system keyboards can be connected to the rear panel of the
LTC 8802 Series Monitor Expansion Bay. DIP switches 2 and 3 determine the system keyboard group that can be assigned. Follow the table below to select the desired group.
Switch 2 Switch 3 Keyboard Group
Off Off Reserved Off On Keyboards 9-16 (Default) On Off Keyboards 17-24 On On Keyboards 25-32
• Switch 4 and Switch 5 of S2 These switches are reserved and should always be left OFF.
• Switch 6 of S2 When switch 6 is ON, the LTC 8816/00 data receiver module communicates
with system keyboards using the newer “6 poll byte” protocol. This format is required to provide variable speed pan/tilt control capability for AutoDome equipped camera sites. If it is necessary to communicate to older system key­boards that are only compatible with fixed speed keyboard protocols, place the switch in the OFF position.
• Switch 7 of S2 This switch determines the operational mode of the LTC 8816/00 and must
always be left ON.
• Switch 8 of S2 This switch determines the operational mode of the LTC 8816/00 and must
always be left OFF.
14.2.3 Lower Data Receiver DIP Switch S3
• The lower DIP switch does not currently provide any user-selectable options, and all settings should be left in their OFF position.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 62
56 | en LTC 8600 | LTC 8800 Series
15 User Information
15.1 User Priority Levels
There are eight (8) levels of user priority in the Allegiant system. Each of the 32 users in the Allegiant system has a default priority level assignment. These user lev­els determine access to various system functions and provide a means to prioritize user control of monitors and pan/tilt/zoom equipped camera sites. Generally, users with higher priority (highest = 1) can regain control over monitors or pan/tilt/zoom cameras 'locked' by another user.
User Number Default Password Priority Level Default Keyboard
1 11 1 2 22 2 3 32 3 4 42 4 5 58 5 6 68 6 7 78 7 8 82 8 9 929 10 10 2 10 11 11 2 11 12 12 2 12 13 13 2 13 14 14 2 14 15 15 2 15 16 16 2 16 17 17 2 17 18 18 2 18 19 19 2 19 20 20 2 20 21 21 8 21 22 22 8 22 23 23 8 23 24 24 8 24 25 25 8 25 26 26 8 26 27 27 8 27 28 28 8 28 29 29 8 29 30 30 8 30 31 31 8 31 32 32 8 32
The table above shows the default values of a base system. The 8 priority level user assignments can be changed using the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package. Note that in base systems where the keyboard log-in feature has not been selected, a user number is automatically assigned to a specific keyboard port. In this mode, setting the priority of the default user essentially determines the priority level of the keyboard during operation. Also shown in the table is the default user passwords assigned to each user as the sys­tem is shipped from the factory. Once a user is logged into the system, the pass-
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 63
LTC 8600 | LTC 8800 Series en | 57
word can be changed using the keyboard (see User Function number 10). Refer to the specific section of the operation instructions for exact procedures of using key­board User Functions. Although the table indicates 32 possible users, only 16 key­boards are supported in LTC 8600 Series systems.
15.2 User Priority Access Table
The following table shows system function access as it applies to the eight (8) levels of users.
Priority Level
System Function 1 2 to 7 8
Switch Video On Monitors Yes Yes Yes Control Pan/Tilt/Zoom Camera Yes Yes Yes Lock Monitor Yes Yes Yes Lock Pan/Tilt/Zoom Camera Yes Yes Yes Acknowledge Alarms Yes Yes Yes Perform Keyboard Test Yes Yes Yes Show Keyboard Number Yes Yes Yes Activate Keyboard Beeper Yes Yes Yes Change User Password Yes Yes Yes Program Sequences Yes Yes No Position Video Overlay Display Yes Yes No Set Overlay Display Brightness Yes Yes No Select Overlay Display Type Yes Yes No Set System Time/Date Yes Yes No Program Pre-positions Yes Yes No Set Time/Date Format Yes No No Set Camera and Monitor Titles Yes No No Enable 3-Line Title Mode Yes No No Enable 6-Digit Camera ID Mode Yes No No Camera Vertical Phase Set Yes No No Enable Time Events Yes No No Reset System Yes No No Printout Tables and Sequences Yes No No Default Monitor Overlay Yes No No Select Alarm Response Mode Yes No No Select Printer Mode Yes No No Designate Alarm Monitor Type Yes No No Select Keyboard Log-in Yes No No Select Console Log-in Yes No No Configure/Reset RS-232 Ports Yes No No
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 64
58 | en LTC 8600 | LTC 8800 Series
16 Alarm Information
16.1 General
The ability to automatically switch video in response to an external signal (usually a contact closure) is a necessary feature in any video switching system. The Allegiant system permits users with Priority Level 1 to select any 1 of 3 predefined alarm response modes (via keyboard User Function 19). A description of these three (3) modes appears below. Pictorial examples of the three (3) alarm responses are also shown on the following pages.
The system can also be programmed with a wide variety of alarm response charac­teristics using the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package.
16.2 Basic Alarm Response Mode
In the Basic alarm response mode, any or all of the monitors can be selected as alarm display monitors. Each alarm can then be armed to display its camera(s) on any set of armed monitors. Multiple alarms, on the same monitor, will sequence at a 1 second rate. Note that monitors and alarms can be armed and disarmed individu­ally as required. Alarmed video automatically clears when the alarm input signal is reset.
16.3 Auto Build Alarm Response Mode
This mode uses a set of monitors as alarm display monitors. All system monitors may be armed if desired. Each triggered alarm will display its alarm video on a dif­ferent monitor, starting with the lowest numbered armed monitor. If all the armed monitors are already displaying alarm video, subsequent alarms will build on the existing alarmed monitors; and each monitor will sequence through its alarm videos at a 1 second rate. Note that monitors and alarms can be armed and disarmed indi­vidually as required. Alarmed video will automatically clear when the alarm input signal is reset.
16.4 Sequence and Display Alarm Response Mode
This mode designates two monitors as alarm response monitors. Monitor #1 is the DISPLAY monitor (also called a REVIEW monitor) and monitor #2 is the SEQUENCE (or STEP) monitor. The first alarm appears on both monitors and additional alarms begin to sequence at a 1 second rate on the SEQUENCE monitor. The DISPLAY monitor holds the first alarmed camera video until manually acknowledged through the keyboard. When the first video is cleared from the DISPLAY monitor, the next alarmed video (“next” meaning the camera that enters an alarmed state second) is displayed until cleared; operation continues in this manner. Note that alarms can be armed and disarmed individually as required. Note also that all alarms must be man­ually cleared; the presence of alarm video is not dependent upon the duration of the alarm input signal to the system.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 65
LTC 8600 | LTC 8800 Series en | 59
Basic Mode
In the Basic alarm response mode, cam­eras are individually armed for each alarm monitor.
Monitors and their respectively armed cameras are programmed individually.
Multiple alarms on monitors are sequenced automatically.
Alarmed video remains on monitors for duration of alarm input signal.
Auto-Build Mode
In the Auto-Build alarm response mode, alarms “build-up” on armed monitors as new alarms are received.
Any number of monitors may be armed. Multiple alarms on monitors are
sequenced automatically. Alarm video remains on monitors for duration of alarm input signal.
Alarm Status Alarm Station Display
1
st
Alarm Video associated with 1
st
alarm is displayed on any or all appropriately armed monitors.
2
nd
Alarm Video associated with 2
nd
alarm is displayed on any or all appropriately armed monitors.
3
rd
Alarm Video associated with 3rd
alarm is displayed on any or all appropriately armed monitors.
Alarm Status Alarm Station Display
1
st
Alarm
Video associated with 1
st
alarm is displayed on monitor # 1 (if armed).
2
nd
Alarm
Video associated with 2
nd
alarm is displayed on monitor # 2 (if armed).
3
rd
Alarm
Video associated with 3
rd
alarm is displayed on monitor # 3 (if armed).
. . .
8
th
Alarm
Video associated with 8
th
alarm is displayed on monitor # 8 (if armed).
9
th
Alarm
Video associated with 9
th
alarm is sequenced with video of 1st alarm on monitor # 1.
16.5 Alarm Activated Pre-position
Alarm activated pre-position capability exists in each of the three (3) alarm response modes. This enables a pan/tilt/zoom equipped camera to automatically position itself to a preprogrammed scene as a result of an alarm signal. When using conventional pan/tilt equipped devices and zoom lenses, they must have the neces­sary options for pre-position control. The system default is to activate pre-position #16 of the system camera receiving an alarm. Using the optional LTC 8059/00 MCS package or the optional LTC 8850/00 GUI Software package, the user can configure a response to alarms as required.
16.6 Sample Alarm Responses
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 66
60 | en LTC 8600 | LTC 8800 Series
Display Monitor
Sequence Monitor
Monitor Actions Keyboard
Operator Action
1st Alarm Occurs
D = Video associated with 1st alarm is displayed.
NONE
S = Video associated with 1st alarm is displayed.
D = Video associated with 1st alarm is displayed.
NONE
2nd Alarm Occurs
S = Video associated with 1st and 2nd alarm is displayed.
D = Video associated with 1st alarm is displayed.
NONE
3rd Alarm Occurs
S = Video associated with 1st, 2nd and 3rd alarm is displayed.
D = 1st alarm video is removed. 2nd alarm video is now displayed.
1st Alarm Acknowledged
S = Video associated with 2nd and 3rd alarms continue to sequence.
D = 2nd alarm video is removed. 3rd alarm video is now displayed.
2nd Alarm Acknowledged
S = Only video associated with 2nd alarm remains.
Since all alarms have been acknowledged, both monitors return to normal operator control.
3rd Alarm Acknowledged
Sequence & Display Mode
In the Sequence & Display mode alarm response mode, a monitor pair is used to display alarmed video.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 67
LTC 8600 | LTC 8800 Series en | 61
16.7 Alarm Relay Response
Allegiant alarm responses include the ability to trigger isolated alarm relay outputs from an LTC 8540/00 Alarm Interface unit. An alarm output is typically used to acti­vate the alarm input of a security Digital Video Recorder (DVR) or other alerting device. In this type of scenario, a DVR is programmed to change recording speeds from a slower rate to a faster rate upon alarm activation. Operation of the relay out­puts from the LTC 8540 Alarm Interface unit depends on the system configuration for responding to alarm events. The alarm output relays behave according to the fol­lowing conditions:
1. Relay 1 activates if the system uses the Basic alarm response mode and an alarm occurs on any system monitor. Relay 1 deactivates after all alarms have been removed from the inputs. Relay 1 also deactivates if the system (monitor or alarms) is disarmed by an operator via the keyboard. Pressing [Acknowledge] on the system keyboard does not deactivate Relay 1 since the alarm video fol­lows the contact applied to the unit in this alarm response mode. Other relays are not used in this mode.
2. Relay 1 activates if the base system is set to use the Sequence & Display alarm response mode and an alarm occurs on any system monitor. Relay 1 deactivates after all alarm videos have been acknowledged (by pressing the [Acknowledge] key) via system operator(s) from all system monitors. Relay 1 also deactivates if the system is disarmed (either the monitor or the alarm(s)) by an operator via the keyboard. Removal of the alarm input does not deactivate Relay 1 since the alarm video(s) are not dependent on duration of the contact applied to the unit in this alarm response mode. Other relays are not used in this mode.
3. If the base system uses the Autobuild alarm response mode and an alarm occurs on system monitors, the relay corresponding to the monitor number acti­vates for the duration that the corresponding alarm input is applied to the unit. The relay deactivates if the monitor associated with the relay or if the alarm(s) being displayed on the monitor is disarmed by an operator via the keyboard. Pressing [Acknowledge] on the system keyboard does not deactivate the relays since the alarm video follows the contact applied to the unit in this alarm response mode.
4. If the Alarm Group table screen, in the PC- based LTC 8059/00 MCS package or the LTC 8850/00 GUI Software, contains an alarm group that includes monitors and the monitor option has been selected in the Relay Action column, the corre­sponding relay activates for the duration the alarm video remains on the moni­tor. The relay deactivates if the associated monitor (or the alarm(s) being displayed on the monitor) is disarmed by an operator via the keyboard. Pressing [Acknowledge] on the system keyboard does not deactivate the relay unless this feature has been selected for the associated alarm group. If the Monitor option has been set to 1 in the group table, only Relay 1 activates when monitors in that alarm group become alarmed.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 68
62 | en LTC 8600 | LTC 8800 Series
17 Keyboard Operation
17.1 General
Primary operation of an Allegiant switcher is controlled via the system keyboard. The two types of keyboards currently available are:
• Conventional LTC 8555 Series (incorporates LEDs and pushbuttons).
• IntuiKey model (uses dynamic LCD menu screens).
General operation steps for both keyboard models follows. Refer to the individual instruction manuals supplied with the keyboard for additional information.
As the system is supplied from the factory, various user selectable features are set to a default state. See Chapter 14, “Factory Default Settings,” on page 50 for com­plete feature descriptions. Since these features are user selectable and can have a significant effect on the operation of the system, it is important to take note of any changes that may be in effect.
17.2 System Commands
17.2.1 Keyboard Log-in Procedure
Keyboard modes:
• Factory default, a keyboard is ready for use as soon as power is applied to the system.
• System operator must log-on to a keyboard to access the system. When a sys­tem is configured to use the keyboard log-on, operators must be pre-assigned a user number and password. Up to 32 user numbers are available, each having default priority level. User specific priority levels can be changed only via the optional PC-based LTC 8059/00 MCS package or the LTC 8850/00 GUI Soft­ware. Refer to the software manual for complete details.
If the log-on feature is enabled and an operator is not logged-in, LED keyboards show flashing dashes in their display. IntuiKey keyboards prompt for entry of a user number when attempting to enter the main Allegiant softscreen menu.
Enter your assigned user number via the numeric keypad and press [Enter]. When prompted, enter the password. Invalid passwords cause the keyboard to revert to its initial state. Once the log-in is successful, the keyboard will show camera and monitor numbers in its display.
Upon logging in, the monitor controlled by the keyboard may automatically switch to a pre-assigned camera number. This function is only applicable if enabled by the system administrator (via the optional MCS package) and may not function if the monitor is running a sequence and/or in an alarm condition.
NOTE The information below applies to both IntuiKey keyboards and the LTC 8555 Series
keyboards. Where applicable, button designations specific to IntuiKey keyboards are shown in plain text. Equivalent button designations that apply to the LTC 8555 Series keyboards are placed in brackets ([ ]) immediately after the IntuiKey button text.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 69
LTC 8600 | LTC 8800 Series en | 63
17.2.2 Keyboard Log-off Procedure
If the log-in feature has not been enabled, this action is not applicable. If the feature has been enabled, press: User Log-off [User, then OFF].
Any priority based remote control or monitor locks made by the user will automati­cally be released at time of log-off.
17.3 Switcher Commands
• Camera Selection: Enter a camera number for viewing and press [Enter]. (The keyboard default mode is the camera mode).
• If the Allegiant is configured to operate in “6-digit Camera ID” mode, up to 6 digits can be entered. If the new camera is at the same “site” as the current camera, simply enter 1 to 4 camera number digits.
If the desired camera is at a different “site”, 5 or 6 digits must be entered. The first and second digits would be the site number and the remaining 4 digits, including any leading zeros would be the camera number at that site.
• Monitor Selection: Press MON [Monitor], enter a monitor number and press [Enter].
17.4 Controlling Camera Movement
Camera positioning is controlled via an eight-way joystick on the right-hand side of the keyboard. This joystick controls the camera pan/tilt (if equipped), moves the camera up, down, left, right, or diagonally. Moving the joystick up and to the right simultaneously moves the camera in a diagonal direction.
Rotate the joystick knob to control the zoom lens in or out. The direction of its response depends on the camera/lens model and certain system configuration set­tings that are determined at installation. Up to four pan/tilt/zoom commands may be sent to a remote camera site at a time (Example - Zoom In, Focus Far, Pan Left, and Tilt Down). All three (3) zoom lens functions can also be sent simultaneously (Example - Zoom Out, Focus Near, Iris Open).
17.4.1 Focus and Iris Lens Control
The lens control buttons are on the right side of the keyboard. The camera's zoom lens (if equipped) is controlled to focus near or far, and open or close the iris (if the lens supports manual iris operation).
17.4.2 Lock or Unlock Control of a Camera
When using IntuiKey keyboards, press [Device Lockout], located on the main Alle­giant menu screen to enter a menu screen for these options. With the LTC 8555 Series keyboards, press [Lock], then [ON] to lock a camera. To unlock a camera, press [OFF]. If the camera to be locked is not the one currently being viewed, enter the camera number via the numeric keyboard (but do not press [Enter]) before pressing [Lock].
If the Status option is enabled, the section of the onscreen overlay between the camera number and the time shows RL, indicating the camera is locked. Activating a camera lock immediately prevents other operators (unless they have a higher prior­ity) from controlling the locked pan/tilt/zoom camera. Remember to unlock the camera when finished so other operators can access it.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 70
64 | en LTC 8600 | LTC 8800 Series
17.4.3 Lock or Unlock Control of a Monitor
• When using IntuiKey keyboards, press [Device Lockout], located on the main Allegiant menu screen for these options.
• With LTC 8555 Series keyboards, press [Monitor], [Lock], then [ON] to lock a mon­itor or [OFF] to unlock the monitor. If the monitor to be unlocked is not the one currently being controlled by the keyboard, enter the monitor number (but do not press [Enter]) after you press [Monitor].
If the Status option is enabled, the section of the on-screen overlay between the camera number and the time shows prevents other operators from changing the video on the monitor being used
(unless they have a higher priority). Remember to unlock the monitor when finished so other operators can access it. If an operator with a higher priority accesses a locked monitor and switches to a different camera, the lock is automatically removed.
M
indicating the monitor is locked. This status
L
17.4.4 Recording a Camera Pre-position Scene
Select a camera with pan/tilt/zoom control and with preposition options. Using the joystick and lens controls, adjust the camera to view the scene you wish to store. When using IntuiKey keyboards, press [Camera Control], located on the main Alle­giant menu screen to enter a menu screen with this option. Press Set Shot [Set], then select the scene number via the numeric keypad, and press [Enter]. The camera position is stored for recall later.
If an AutoDome Series camera is being used, certain pre-position commands are also used to activate operational features/functions. Refer to the AutoDome opera­tion manual for complete information.
If an Allegiant conventional receiver/driver is being controlled, the pan/tilt and zoom lens must have the necessary options for pre-position operation. On certain models of AutoDomes and Allegiant Receiver/Driver Series, it is possible to disable a previously stored pre-position, or remove it from a pre-position tour, by pressing Set Shot [Set], the digit 9, followed by the 2-digit pre-position number. Refer to infor­mation supplied with the device to determine if it supports this feature.
NOTE Alarm activations are defaulted to call preposition scene 16.
17.4.5 Recalling a Camera Pre-position Scene
Select the camera to be activated. Press [Shot], enter a previously stored camera position number via the numeric keypad, then press [Enter]. The camera automati- cally returns to the previously stored position. If a second pre-position is called prior to the completion of the first, the camera will move directly to the second shot.
If the AutoDome Series camera is being used, certain pre-position commands are also used to activate operational features/functions. Refer to the AutoDome opera­tion manual for complete information.
17.4.6 Activate/Deactivate Auxiliary Function
When using IntuiKey keyboards, press [Camera Control], on the main Allegiant menu screen to enter a menu containing these options. To turn on an auxiliary function of a remote camera device, press Aux ON [ON], enter the number of the auxiliary you would like to activate and then press [Enter]. Holding the [Enter] key down causes the auxiliary function to be sent repeatedly. This capability is useful when the auxiliary is activating a housing window washer function, or a temporary light source.
To t urn OFF an auxiliary function of a remote camera device, press Aux OFF [OFF], enter the number of the auxiliary you would like to deactivate and then press [Enter].
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 71
LTC 8600 | LTC 8800 Series en | 65
With the AutoDome Series of cameras, auxiliary commands are used to activate/ deactivate certain operational features/functions. Refer to the AutoDome camera manual for complete information on features supported by the model.
In the Allegiant Receiver/Driver Series, the first four auxiliaries correspond to relay outputs. Option switches in the receiver/driver can configure these to operate as either latching or momentary type functions. If configured for the latching type, the auxiliary stays on once it is activated until it is turned OFF. If configured as momen- tary, the auxiliary remains on only as long as the [Enter] key is pressed. Auxiliary out­puts 2 through 4 can also be configured as a contact closure, 24 VAC, or as line voltage. Auxiliary number 5 controls the DITHER function, detailed below. Auxiliary number 6 corresponds to an internal receiver/driver AUTOPANNING feature, previ- ously enabled by an option switch inside the receiver/driver.
DITHER is a legacy Allegiant receiver/driver feature designed to extend the life of tube-based low-light level cameras. Its function was to prevent bright lights in the scene from burning a spot on the camera imager. When this feature is active and the pan/tilt is not moved for a period of about two minutes, the receiver/driver automat­ically pans right for approximately 0.5 seconds. Two minutes later, a pan left occurs, and the cycle continues until disabled. The feature is enabled by an option switch in the receiver/driver, and is controlled by the auxiliary 5 function. To activate the DITHER function, turn [ON] auxiliary 5. To deactivate the feature, turn OFF auxiliary
5. When first enabled, the pan/tilt unit makes one short left/right cycle to indicate
that the DITHER function has been activated. Note that a camera in the DITHER mode will accumulate a viewing error if left unattended for a long period of time, so occasionally a manual adjustment of the pan/tilt may be required.
17.5 Alarm Commands
17.5.1 Arm/Disarm Individual Alarms
Alarm commands control the system's automatic video switching capabilities, in response to alarm signals.
When using IntuiKey keyboards, press [Alarm Control], located on the main Allegiant menu screen, to enter a menu screen with these options. To arm an individual alarm on the monitor currently controlled by the IntuiKey, press [Arm Alarm], enter the alarm number to be armed via the numeric keypad, then press [Enter]. To disarm an individual alarm when using the IntuiKey, press [Disarm Alarm], enter the alarm num­ber to be disarmed via the numeric keypad, then press [Enter].
To arm/disarm an individual alarm when using an LTC 8555 Series keyboard, press Alarm, enter in the alarm number to be armed via the numeric keypad, and then press [ON] to arm the alarm, or [OFF] to disarm it. The camera number activated by an alarm, by default, is the same as the alarm number, although this relationship can be changed via the optional Allegiant PC-based MCS package. When the alarm num­ber does not match the camera number, it is important to specify the alarm number when using this command. The monitor status display (if enabled) shows CA (cam­era/alarm armed) whenever an armed camera is selected.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 72
66 | en LTC 8600 | LTC 8800 Series
17.5.2 Arm/Disarm All Alarms
Press [Alarm Control], located on the main Allegiant menu screen to enter the menu screen containing these options. When using the IntuiKey keyboard:
• To arm all alarms currently controlled on the monitor, press [Arm All Alarms].
• To disarm all alarms, press [Disarm All Alarms].
When using the LTC 8555 Series keyboard:
• To arm all alarms, press [User]. Then, press [Alarm] and then press [ON].
• To disarm all alarms, press [OFF].
17.5.3 Arm/Disarm Monitor
When using the IntuiKey keyboard:
• Press [Alarm Control], located on the main Allegiant menu screen to enter the screen with these options.
• To arm the monitor currently controlled, press [Arm Monitor].
• To disarm the monitor, press [Disarm Monitor].
When using the LTC 8555 Series keyboard:
• To arm the monitor, press [User]. Then, press [Monitor] and then press [ON] to arm all alarms.
• To disarm all alarms, press [OFF].
NOTE Alarm video appears on a monitor only if the monitor is armed and the alarm is
armed for that monitor. The monitor status display (if enabled) will show tor armed).
M
(moni-
A
17.5.4 Alarms Acknowledgement
Bell [Ack] is provided so system operators can respond to alarms from the keyboard. Press Bell [Ack] when the keyboard is beeping (due to an alarm condition) to silence the beeper. Depending on alarm configuration programming, subsequent pressing of Bell [Ack] either clears an alarm video from the monitors or has no effect.
17.6 Sequence Control
17.6.1 Load/Clear a Sequence
To load a previously programmed sequence to run on your monitor, press Load Sequence [Seq], enter the desired sequence number (1 to 60), then press [Enter]. Note that loading a sequence does not automatically start the sequence running. Since sequences may be programmed to use more than one monitor, all required monitors must be available. If a sequence is already on a monitor, the operator who loaded it originally (or an operator with a higher priority) is permitted to load a new sequence on the monitor(s). Others will receive an error message.
To clear a monitor sequence, press Load sequence [Seq], then press [Enter]. Only the operator who originally loaded it (or an operator with a higher priority) is permitted to clear a monitor sequence. Others will receive an error message. If enabled, the status display area of the monitor indicates the sequence number in the appropriate location. If no sequence is currently loaded, 00 is displayed.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 73
LTC 8600 | LTC 8800 Series en | 67
17.6.2 Run a Sequence
To run a sequence currently loaded on a monitor, press Start Sequence [Run]. If the sequence is stopped, the command starts sequencing. Direction of the sequencing is indicated in the monitor status display (if enabled), by a directional arrow and the letter R to the right of the sequence number. If Start Sequence [Run] is pressed while a sequence is already running, the switcher goes immediately to the next step in the sequence. Holding down Start Sequence [Run] produces a quick-scan effect. If Start Sequence [Run] is depressed when no sequence is loaded, an error results. If the monitor is in alarm, Start Sequence [Run] controls switching of alarm video rather than a loaded sequence.
17.6.3 Stop a Running Sequence
To stop a sequence that is currently running, press Hold Sequence [Hold]. The moni­tor status display shows a S to the right of the sequence number. If the sequence is already stopped, pressing Hold Sequence [Hold] has no effect. If no sequence is cur- rently loaded, pressing Hold Sequence [Hold] results in an error condition. If the mon­itor is in alarm, Hold Sequence [Hold] stops the alarm switcher rather than a loaded sequence.
17.6.4 Controlling Sequence Direction
The direction of a sequence can be set to run either forward or reverse. It is also possible to manually step forward or reverse through a stopped sequence.
These actions work as follows: If Next Sequence Step [Next] is pressed with the sequence in the stop state, the
sequence switches forward and remains stopped. If the sequence is running when Next Sequence Step [Next] is pressed, it immediately goes to the next step and con­tinues to run. The same is true for the Previous Sequence Step [Prev] button, but in the reverse direction. If either Next Sequence Step [Next] or Previous Sequence Step [Prev] is held down, quick-scan switching at a rate of approximately two steps per second will take place. When sequences are first loaded, their direction defaults to forward.
If Previous Sequence Step [Prev] is pressed while a camera sequence is running, it reverses the sequence. If Previous Sequence Step [Prev] is pushed while in a hold mode, and the display is showing the forward prompt, the first push changes the direction only, and a second push then switches to the previous step.
The same is true for Next Sequence Step [Next] in the opposite direction. The monitor status display shows an arrow pointing either up or down to indicate the sequence direction. The arrow will be to the right of the sequence number, either above or below the sequence run R or stopped S indicator. If the monitor is in alarm, Previous Sequence Step [Prev] and Next Sequence Step [Next] control the alarm switcher rather than the loaded sequence.
If no sequence is loaded, pressing Next Sequence Step [Next] or Previous Sequence Step [Prev] automatically steps the switcher through the camera numbers in numeri­cal order.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 74
68 | en LTC 8600 | LTC 8800 Series
17.7 Sequence Programming
17.7.1 Programming a Simple Camera Sequence
The Allegiant system has powerful sequencing capabilities. Using a system key­board, it is possible to enter sequences to run on a single or on multiple monitors. As long as valid camera and monitor numbers are used, they can be entered into a sequence randomly. More powerful features are available when sequences are pro­grammed via the PC-based LTC 8059 MCS, including receiver/driver activation as part of a sequence step.
Sequence programming is limited only by the amount of CPU memory reserved for storing the sequence steps.
The current limit for these Allegiant models is 3000 steps. Comparing a sequence to a spreadsheet, a simple sequence would consist of three (3) columns as follows:
CAMERA MONITOR DWELL
1 1 2 2 1 2 3 1 2 4 1 2 5 1 2
Sequence programming is best described by going through the above example. To enter the programming mode, press Program Sequence [Prog]. Enter an available sequence number (1 to 60 for these Allegiant models), then press [Enter]. The on- screen monitor display changes to the following format:
1st Line = Site ** S0001 L0001 Time(Ignore) 2nd Line = >C0001< M001 D02 Date(Ignore) ** 2-digit site number will be displayed only if 6-digit camera ID is mode is enabled. The top line of the display always indicates the current step being viewed in the
S0001 section. The total length of the sequence is displayed in the L0001 section. When programming a new sequence, the camera number that was being viewed before entering the programming mode is automatically placed between the > < prompts, as in the example C0001 above. Now enter the 1st camera of the sequence into this position. If 6-digit camera ID mode is enabled, five or six digits must be entered. If the camera number is correct, no action is necessary. If not, enter the desired camera number via the keypad and press [Enter].
Using the joystick, move RIGHT one step. The prompts will shift over to the monitor number shown in the example M001. The monitor that was being controlled by the keyboard before entering the programming mode is defaulted to this position. If cor­rect, no action is necessary. If not, enter the desired monitor number via the key­pad, and press [Enter].
Move RIGHT again. The prompts now shift over to the dwell time shown in the example D02. The default dwell time for a new sequence is always two (2) seconds. If a different dwell period is desired, change the value to any number between 1 and
60. One line is now complete. Press Next Step [Next] to add a second line. The cam-
era number increments automatically, while the monitor number and dwell remain the same as the first line. Since this line is correct, no change is necessary and Next Step [Next] may be pressed three (3) more times until line five (5) is reached. The joystick can be used to move around within the spreadsheet, but only the Next Step [Next] key can add new lines.
Continue entering camera, monitor, and dwell times in this fashion until finished. If you only want to store the sequence for future use and then exit the programming
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 75
LTC 8600 | LTC 8800 Series en | 69
mode, press Exit/Save [Prog]. Press Exit/Run [Run], to exit the programming mode, store the sequence into memory, and start the sequence running. The switcher steps through the five (5) steps in the order shown, and repeats the sequence when it reaches the last step.
To program a sequence to run once through all its steps and then stop, enter the value 62 for the dwell time in the last step and press [Enter]. The dwell display will change to STP, meaning stop. To program a sequence to run once through all its steps and then unload itself, enter the value 63 for the dwell time in the last step, and press [Enter]. The dwell display will change to ULD, meaning unload.
To edit an existing sequence, press Program Sequence [Prog], enter the existing sequence number, then press [Enter]. You can insert a line into a sequence by navi­gating down to the line where inserting a new line, and press Insert Step [ON]. A new line identical to the one you are on is added to the next step. To delete a step, navi­gate to the line to be deleted, and press Delete Current Step [OFF]. To delete all steps below the line you are viewing, press Delete From Here To End [Lock]. (Be careful with this feature!)
It is also possible to erase a sequence: Press Delete From Here To End [Lock] while on the first line of the sequence. Then press Delete Current Step [OFF]. The sequence will be erased, and the programming mode is automatically exited.
Sequence Function Summary
All programming key functions for the LTC 8555 Series are summarized in the fol­lowing table:
Key Description
PROG Selects or terminates program mode CLEAR Clears current entry ENTER Stores current entry PREV Stores entry and move up one step NEXT Stores entry and move down one step; add new step if necessary ON Insert step before current step OFF Delete current step UP Move up one step DOWN Move down one step, if step already exists LEFT Move prompt left one cell RIGHT Move prompt right one cell LOCK Erase all steps after current step RUN Exit, store, load, and run current sequence
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 76
70 | en LTC 8600 | LTC 8800 Series
17.7.2 Programming a SalvoSwitching Camera Sequence
A SalvoSwitching sequence can be used to switch a group of monitors simultane­ously as a synchronized group. To program a Salvo sequence, enter the program­ming mode as described above for a simple camera sequence. By definition, Salvo sequencing involves more than one monitor. An example of a simple Salvo sequence that switches cameras on three (3) monitors simultaneously is shown below:
CAMERA MONITOR DWELL
1 1 SLV 2 2 SLV 3 3 2 7 1 SLV 8 2 SLV 9 3 2 21 1 SLV 22 3 SLV 23 3 2
In general, follow the instructions used for the simple camera sequence (described above), but instead of entering a number of seconds for steps that must switch instantly, enter 61 and press [Enter]. This causes the switcher to automatically change to the salvo abbreviation SLV. Dwell time (in seconds) is entered only when you reach the step containing the last monitor that will be switched within the syn­chronized group.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 77
LTC 8600 | LTC 8800 Series en | 71
18 Keyboard User Functions
18.1 General Information
User functions are keyboard operations which are used infrequently, but provide important system options.
NOTE: Certain functions are restricted to certain user priority levels. Additional information on user priority levels can be found in the See Chapter 15, “User Infor­mation,” on page 56. To execute these user functions, select the desired function, and follow the general steps below.
For IntuiKey keyboards, User Functions are accessed using the following procedure:
1. From the main Allegiant screen, press [User Functions] (softkey).
2. Use Previous or Next to navigate to the desired function or press the [Enter User
Command] key and enter the desired number.
3. Press the desired softkey.
For LTC 8555 Series keyboards, User Functions are accessed using the following procedure:
1. Press [User] and verify the indicator lights.
2. Using the numeric keypad, enter the desired User Function number.
3. Press [Enter]. Note that the keyboard camera display shows F followed by the
selected function number.
4. Follow the directions for the specific user function (described in its section, herein). In many cases, the joystick is used to select options
5. Press [User] to exit back to normal mode.
USER 2 ENTER
The above example accesses User Function #2 as described below.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 78
72 | en LTC 8600 | LTC 8800 Series
These functions are listed in the table shown below.
Joystick
Fn#
Up/Down 12-78 1 n/a n/a Local keyboard test Y Y Y 2 n/a n/a Show keyboard port number Y Y Y 3 n/a n/a Select keyboard beeper ON/OFF Y Y Y 4 Up/Down Left/Right Adjust position of monitor display Y Y N 5 Brightness Msg vs. Stat Monitor display brightness/status selection Y Y N 6 Time/Date ON/OFF Overlay ON/OFF Select monitor display option Y Y N 7 Set Select Set time Y Y N 8 Set Select Set date Y Y N 9 Set Select Set camera ID Y N N 10 n/a n/a Change user password Y Y Y Y 11 Select n/a Select time/date format Y N N 12 n/a n/a Default all monitor overlays Y N N 13 Select n/a Print configuration tables to system printer Y N N 14 n/a n/a Reserved - - ­15 n/a n/a Reset system Y Y N N 16 Select Enable/Disable Time event enable/disable Y N N 17 Set Select Set monitor ID Y N N 18 Select n/a Print sequence Y N N 19 Select n/a Select alarm response Y Y N N 20 Select n/a Select printer verbosity Y N N 21 Select n/a Designate alarm monitor type Y Y N N 22 Select n/a Select control code format (fixed/variable) Y N N 23 n/a n/a Display CPU software version number Y Y Y 24 Up/Down Left/Right Set positions on all monitor displays Y Y N 25 Brightness Msg. vs. Stat. Brightness/Status select on all monitor displays Y Y N 26 Time/Date Overlay Set display option on all monitors Y Y N 27 Keyboard Log-in Select Select keyboard log-in Y Y N N 28 Console Log-in Select Select console log-in Y Y N N 29 Default Parameters Select Default RS-232 parameters Y Y N N 30 Console Parameters Select Set console RS-232 parameters Y Y N N 31 Printer Parameters Select Set printer RS-232 parameters Y Y N N 32 Alarm Parameters Select Set Alarm RS-232 parameters Y Y Y Y 33 n/a n/a Display user number and priority Y Y Y 34 Select n/a Camera indicator Y N N 35 Camera No. Enable/Disable Controllable cameras Y N N 36 Select Enable/Disable Select crosspoint data Y N N 37 Select n/a R/D addresses mode Y N N 38 Select n/a Printer port mode Y Y N N 39 Select n/a Select DIU interface port Y Y N N 40 n/a n/a Reserved - - ­41 Select n/a Set Satellite Communication Format Y Y N N 42 Select n/a Keyboard log-in auto-off mode Y Y N N 43 n/a n/a CPU battery status Y Y Y 44 Select n/a Camera vertical phase set Y Y N N 45 n/a n/a CPU temperature status N N N 46 Select n/a Two/Three Line Titles Y Y N N 47 Select n/a Six-Digit Camera ID Y Y N N 99 Select n/a Use functions index Y Y Y
Joystick Left/Right Function Description
Pass­word Re. Access Level
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 79
LTC 8600 | LTC 8800 Series en | 73
User Function 1 - Local Keyboard Test
User Function 1 can be used as a local test to ensure that all the keyboard LEDs and switches are working. This function automatically calibrates the center position of the analog joystick on LTC 8555 keyboards. Upon entering this test, the keyboard will beep and all LEDs will light for about two (2) seconds. The USER should note if there are any LED failures.
Each key may be pressed to display a unique code number associated with that key. Follow the table below to ensure that all keys are properly being processed by the keyboard. Push [USER] last, as this causes the keyboard to exit the test mode. If the log-on system feature has been selected by the system installer, the same local test may be initiated while the keyboard is not ON LINE by pressing * (STAR).
Key No.
IRIS UP 044 IRIS DOWN 045 FOCUS UP 042 FOCUS DOWN 043
ZOOM CLOCKWISE ZOOM COUNTERCLOCKWISE
ALARM 004 USER 000 SEQUENCE 032 HOLD 036 RUN 033 PREVIOUS 035 NEXT 034 #1 010 #2 018 #3 026 #4 011 #5 019 #6 027 CAMERA 024 MONITOR 008 ACKNOWLEDGE 005 PROGRAM 002 SET 001 SHOT 009 OFF 025 ON 017 * (STAR) 016 LOCK 003 #7 012 #8 020 #9 028 CLEAR 037 #0 013 ENTER 029
1
UP
1
RIGHT
1
DOWN
1
LEFT
1
Keyboard tests show a speed indicator value in the first digit position when per-
forming pan, tilt, or zoom actions.
1
041
1
040
052 051 050 053
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 80
74 | en LTC 8600 | LTC 8800 Series
User Function 2 - Show Keyboard Port Number
User Function 2 may be used to identify which port a keyboard is plugged into. After entering User Function 2, read the keyboard port number from the monitor display on the keyboard. If using the LTC 8555 Series keyboard, press [User] to exit.
User Function 3 - Select Keyboard Beeper ON/OFF
When User Function 3 is selected, the keyboard user may enable/disable the key­board audio beeper. If using the LTC 8555 Series keyboard, press [ON] to enable the beeper or [OFF] to disable it. Press [User] to exit. Upon power up of the keyboard and whenever the Allegiant system undergoes a reset, this setting is set to [ON].
User Function 4 - Adjust Position of Monitor Overlay
User Function 4 allows the characters on the video monitor display to be positioned from the keyboard. Only the display on the monitor that the keyboard is currently connected to is affected. If using the LTC 8555 Series keyboard, use the joystick to position the display as required. Press [Enter] to store the position. Press [User] to exit.
User Function 5 - Monitor Display Brightness/Status Selection
The white portion of the characters on the video monitor display may be made brighter or dimmer by the User Function 5. Only the display on the monitor that the keyboard is currently connected to is affected. After entering the mode, there are four possible settings. If using the LTC 8555 Series keyboard, moving the joystick up increases the brightness, and moving it down decreases the brightness.
The User Function 5 also permits selection of either the status display or a 12-char­acter monitor message to appear in the first line of the monitor display. The status display indicates alarm, sequence, and lockout information regarding the monitor. The monitor message is a stationary display. This means the display will not change as video is switched from camera to camera on the monitor. After entering the mode, move the joystick left to select monitor message format, and right to select status format. If using LTC 8555 Series keyboard, to exit the mode, press [User].
User Function 6 - Select Monitor Display Option
User Function 6 allows the user to remove the time and date (the left side of the dis­play), or the entire display from the individual monitor. If using the LTC 8555 Series keyboard, move the joystick down to blank the time and date from the screen. This is sometimes desirable when a signal from a DVR with its own time and date is being used. Move the joystick up to add the time and date back. Move the joystick left to blank the left side portion of the display from the monitor, and right to return it. Refer to User Function 5 to verify brightness level. Press [User] to exit the mode.
User Function 7 - Set Time
User Function 7 enables user setting of the time displayed on all system monitors. After entering the mode, use the joystick to select hours, minutes, or seconds in an edit line (displayed on the monitor screen). If using the LTC 8555 Series keyboard, moving the joystick up or down counts the data item up or down; moving right or left selects between data items. NEXT is used to set the seconds to zero. If [NEXT] is pressed when the seconds are over 30, the minute count (shown on the operating clock display) is incremented. If [NEXT] is pressed when the seconds are under 30, the minutes are left unaffected. Press [Enter] to update the time displayed on all sys­tem monitors, and press [User] to exit the mode.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 81
LTC 8600 | LTC 8800 Series en | 75
User Function 8 - Set Date
User Function 8 enables the user to set the date displayed on all system monitors. If using the LTC 8555 Series keyboard, use the joystick to select the day, month, or year in an edit line (displayed on the monitor screen). Move the joystick up or down to count the data item up or down; move right or left selects between the data items. If using the LTC 8555 Series keyboard, press [Enter] to update the date dis­played on all system monitors. Press [User] to exit the mode.
User Function 9 - Set Camera ID
User Function 9 permits entry of a 16-character camera identification message. This message appears on the video monitor display whenever the specific camera is called up for viewing. If desired, this message can be used to identify the particular scene being viewed. See Chapter 20, “Character ROM Tables for LTC 8600 and LTC 8800,” on page 86 for the various characters available. After entering the mode, users with priority level 1 can use the joystick to move right or left to select the character to be changed. The selected character will be identified by a box with a question mark inside it. The first line of the video monitor screen indicates the code number of the character selected. Move the joystick up or down to step through the Character ROM Table, or enter the character's number (as identified in the tables) via the numeric keypad, and press [Enter]. Once the title has been set, press [Enter] to store it to memory. If using the LTC 8555 Series keyboard, press [User] to exit the mode.
User Function 10 - Change USER Password
User Function 10 is used to change an operator's keyboard log-on access password. This feature is only required in systems where the system installer has enabled the keyboard log-in security feature. After entering the mode, the video monitor display prompts for the current password OLD PASSWORD. Enter the current user pass- word via the numeric keypad, and press [Enter]. If the system does not accept the old password, the system remains at this prompt. If the entered password is valid, the display changes to the NEW PASSWORD prompt for entry of the new password (up to six (6) numerals) via the numeric keypad, then press [Enter]. Leave this step blank if no password is desired. If none is used, at log-on, press [Enter] at the P prompt. To safeguard against typographical errors, the system prompts VERIFY PASSWORD requiring reentry of the new password. If the entered passwords do not agree, the system prompts for reentry and verification of the new password. If the two password entries agree, the video monitor prompt indicates PASSWORD UPDATED.
Press [User] to exit the mode.
User Function 11 - Select Time/Date Format
User Function 11 is used to set the time and date format used throughout the sys­tem. The two (2) formats of time available are - 12-hour mode and 24-hour mode. The date is available in a MM-DD-YY format (U.S.), a DD-MM-YY format (Interna­tional), and a YY-MM-DD format (Asian). After entering the mode, move the joystick up or down to select the desired format. If using the LTC 8555 Series keyboard, press [Enter] to converts the system to the format chosen, then press [User] to exit the mode.
User Function 12 - Default All Monitor Overlays
User Function 12 is used to reset all monitor overlays to default characteristics; bot­tom center of screen, and full brightness. After entering the mode, press [Enter] to reset all monitor overlays. If using the LTC 8555 Series keyboard, press [User] to exit.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 82
76 | en LTC 8600 | LTC 8800 Series
User Function 13 - Print System Configuration Tables
Use this function to print the contents of the various system configuration tables. Move the joystick up and down to select a table, then press [Enter] to send it to the printer port. If using the LTC 8555 Series keyboard, press [User] to exit.
User Function 14 - Reserved Function
User Function 15 - System Reset
The system may be reset from the keyboard. After entering this mode, the video monitor screen indicates RESET SYSTEM. Enter the password via the numeric key- pad, and press [Enter]. The system will then reset. If using the LTC 8555 Series key­board, press [User] to exit the mode without resetting the system.
NOTE: The system should be reset whenever a change is made on the main CPU module's DIP switches. Alternatively, the main power to the CPU bay may be switched off for ten (10) seconds, then restored. Depending on the size and com­plexity of the system, several seconds may be required before operation is restored. This time is due to the amount of initialization tasks being performed, and is consid­ered normal.
User Function 16 - Time Event Enable/Disable
Use this function to enable or disable any of the programmed time event functions. Up to 64 time event functions can be programmed with the optional LTC 8059/00 MCS, or the LTC 8850/00 GUI Software. Moving the joystick up and down steps through a table of the 64 time events. If an event has been programmed, moving the joystick to the right enables the event, and to the left disables it. The current status of an enabled time event is displayed by this user function.
User Function 17 - Set Monitor ID
User Function 17 is used to enter a (12-character) monitor identification message for display in the top line of the monitor overlay display on any system monitor(s). This monitor title will be visible on the display regardless of the camera currently being viewed. This message can be used to identify the particular monitor or a group of cameras assigned to this monitor. See Chapter 20, “Character ROM Tables for LTC 8600 and LTC 8800,” on page 86 for the available characters.
After entering the mode, the joystick is moved right or left to select the character to be changed. The selected character is identified by a box with a question mark inside it. The first line of the video monitor display indicates the code number of the character selected. Move the joystick up or down to step through the Character ROM Table, or enter the character's number identified in the Tables via the numeric keypad, then press [Enter]. Once the monitor title has been set, press [Enter] to store it to memory. If using the LTC 8555 Series keyboard, press [User] to exit the mode. The user may select between this monitor message and the status display by using the User 5 Function described above.
User Function 18 - Print Sequence
Use this function to print the contents of a programmed sequence. Use the joystick to select the desired sequence, then press [Enter] to print it to the printer port. Only those sequences currently existing in memory will be shown in the list. If using the LTC 8555 Series keyboard, press [User] to exit.
User Function 19 - Select Alarm Response
Use this function to reset the system alarm configuration tables to one of these pre­defined alarm response modes: BASIC, AUTOBUILD, or SEQUENCE & DISPLAY. Move the joystick up or down to select the desired mode, then enter your user pass­word on the numeric keypad. Press [Enter] to update the alarm system. If using the LTC 8555 Series keyboard, press [User] to exit.
NOTE Existing alarm configuration data will be lost when mode is changed.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 83
LTC 8600 | LTC 8800 Series en | 77
User Function 20 - Select Printer Verbosity
Use this function to select between print modes; Limited Printing and Full Printing. This selection determines the amount of information printed during alarm process­ing. Both modes print alarm activation and deactivation messages, but Full Printing goes into much more detail. Use the joystick to select the desired mode, then press [Enter]. If using the LTC 8555 Series keyboard, press [User] to exit without changing the print mode.
User Function 21 - Designate Alarm Monitor Type
Use this function to designate the monitor currently controlled by the keyboard as either a STEP monitor or a REVIEW monitor. This function can only be used in the predefined SEQUENCE & DISPLAY alarm response mode (see ALARM INFORMA- TION section) to select which monitor is the STEP (also called SEQUENCE) moni­tor, and which is the REVIEW (also called DISPLAY) monitor. To designate a monitor as the STEP or REVIEW monitor, enter User Function 21, then move the joystick up or down to select the monitor type. Enter your password on the keyboard and press [Enter]. If using the LTC 8555 Series keyboard, press [User] to exit. After selecting new STEP and REVIEW monitors, the previous ones may be disarmed (Arm/Disarm Monitor instructions).
User Function 22 - Select Control Code Format
This function designates whether variable speed pan/tilt and zoom commands are enabled (Factory Default Setting). In most cases, there is no need to disable this function. Move the joystick up or down to select the desired setting, then press [Enter]. If using the LTC 8555 Series keyboard, press [User] to exit.
User Function 23 - Display CPU Software Version Number
Use this function to display the revision number of the Allegiant's CPU software on the monitor screen.
User Function 24 - Set Positions on All Monitor Displays
This function is similar to User Function 4, except it changes the monitor display positions of all monitors in the system. After entering User Function 24, use the joy­stick to position the display as required on the monitor controlled by the keyboard. Press [Enter] to store and change all system monitor displays to this position. If using the LTC 8555 Series keyboard, press [User] to exit.
User Function 25 - Set Brightness on All Monitor Displays
This function is similar to User Function 5, except it changes the monitor display brightness of all monitors in the system. The white portion of the characters on the video monitor displays may be made brighter or dimmer via the User Function 25. Move the joystick up to increase brightness, or down to decrease brightness. Once the display on the monitor that the keyboard is currently controlling is adjusted, press [Enter] to change all system monitors to the same setting. Press [User] to exit the mode.
The User Function 25 mode can also select either the status display or a 12-charac­ter monitor message to appear in the first line of the monitor display. The status dis­play indicates alarm, sequence, and lockout information regarding the monitor. The monitor message is a stationary display; the display will not change as video is switched from camera to camera on the monitor. After entering the mode, move the joystick left to select the monitor message format, or right to select the status for­mat on the monitor the keyboard is controlling. Press [Enter] to change all system monitors to the same setting. If using the LTC 8555 Series keyboard, press [User] to exit.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 84
78 | en LTC 8600 | LTC 8800 Series
User Function 26 - Set Display Option On All Monitors
This function is similar to User Function 6, except it selects the monitor display option of all monitors in the system. The User Function 26 mode allows removal of the time and date, the left side of the display, or to remove the entire display from the system monitors. Move the joystick down to blank the time and date from the screen. This is sometimes desirable when a DVR with its own time and date is being used as a video source. Move the joystick up to add the time and date back again. Move the joystick left to blank the left side of the display from the monitor and right to return it. Refer to User Function 5 or 25 to verify brightness level. Press [Enter] to update all system monitors to the selected format. If using the LTC 8555 Series key­board, press [User] to exit.
User Function 27 - Select Keyboard Log-in
This function controls the system's keyboard log-in feature. Move the joystick up or down to select the mode for the system to function in. If the log-in feature is enabled (MUST USE KBD PWD is selected), the system keyboards require each user to log-in and log-off the system. All users are required to enter a user number and correct password to interact with the system. If the log-in feature is disabled (NO KBD PWD LOGIN is selected), system keyboards are always online with the system. Once selection is made, exit the User Function mode and reset the system either via keyboard User Function 15, or by removing and restoring the main AC power to the system. Once the system has been reset, the keyboard log-in function will be active and all system keyboards will need to be logged-in to access the system.
User Function 28 - Select Console Log-in
This function controls the system's external console port log-in feature. After enter­ing the mode, move the joystick up or down to select the mode in which the system should function. If the log-in feature is enabled (MUST USE CON PWD is selected), any external PC or other computing device will be required to log-in to communicate with the system. External computing devices are required to enter a user number and correct password. If the console log-in feature is disabled (NO CON PWD LOGIN is selected), the console port is available for communication.
Once the selection is made, exit the User Function mode and reset the system, either via keyboard User Function 15 or by removing and restoring the main AC power to the system. Once the system has been reset, the console log-in function is active, and all external computing devices need to log-in to access the system.
User Function 29 - Reset RS-232 Parameters to Default
This function returns the system's external RS-232 ports to a known default state. After entering the mode, enter a valid password. The system will reset after placing the RS-232 protocols back to the default state. See Chapter 14, “Factory Default Settings,” on page 50 for additional information.
User Function 30 - Set Console RS-232 Parameters
This function is used to set the RS-232 baud rate and handshake options for the sys­tem's console port. Upon entry to this mode, the current settings are displayed. Move the joystick up/down to select the baud rate, and left/right to select the hand­shake option. After being changed, the port is also automatically set to eight data bits, no parity, and one stop bit. Once new settings have been selected, enter the user password and press [Enter]. If using the LTC 8555 Series keyboard, press [User] to exit.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 85
LTC 8600 | LTC 8800 Series en | 79
User Function 31 - Set Printer RS-232 Parameters
This function is used to set the RS-232 baud rate and handshake options for the sys­tem's printer port. Upon entry to the mode, the current settings are displayed. Move the joystick up/down to select the baud rate, and left/right to select the handshake option. After being changed, the port is also automatically set to eight data bits, no parity, and one stop bit. Once new settings have been selected, enter the user pass­word and press [Enter]. If using the LTC 8555 Series keyboard, press [User] to exit.
User Function 32 - Set Alarm RS-232 Parameters
Use this function to select the RS-232 baud rate and handshake options for the sys­tem's alarm port. Upon first entering the mode, the current settings will be dis­played. Moving the joystick up/down selects the baud rate. Moving the joystick left/ right selects the handshake option. After being changed, the port is also automati­cally set to eight (8) data bits, no parity, and one stop bit. Once the new settings have been selected, enter the user password and press [Enter]. Press [User] to exit the mode.
User Function 33 - Display User Number and Priority
This function displays the current user's number and priority level on the monitor screen. The user number will be displayed on the top line and the user's priority level will be displayed on the bottom line of the monitor screen. If using the LTC 8555 Series keyboard, press [User] to exit.
User Function 34 - Camera Indicator
This function is used to enable an onscreen indicator to identify a pan/tilt equipped camera. Move the joystick up or down to select DISP CAM CONTROL or NO CAM CONTL DISPL. Press [Enter] to activate your selection. When enabled, cameras iden­tified as controllable (via User Function 35 or the optional LTC 8059/00 MCS pack­age), show a in the middle of the first line of monitor text.
User Function 35 - Controllable Cameras
Priority 1 users can use this function to select camera sites equipped with pan/tilt devices. Move the joystick up or down to select the camera number, and left or right to select FIXED or MOVABLE. User Function 34 or the optional PC software package enables or disables the display of the controllable camera indicators on the system monitor displays.
User Function 36 - Select Crosspoint Data
Use this function to select options for accessory device data that can be sent out the biphase control port. Move the joystick up or down to select XPOINT DATA, ALARM XPOINT, or PHYSICAL CAMERA NUMBER, and left or right to enable/disable the selected option. These options are typically applicable only when LTC 8770 Series Switcher Follower accessory devices are being used in the system.
User Function 37 - R/D Address Mode
Priority 1 users can use this function to select whether the biphase control data commands will be addressed using the cameras' logical numbers or physical num­ber indexes in the Camera Table. Move the joystick up or down to select LOGICAL or
PHYSICAL and press [Enter] to activate your selection. If this option is set to LOGI­CAL, AutoDome Series cameras and Allegiant Series receiver/drivers should be
addressed using the cameras' logical identification number. If it is set to PHYSICAL, the devices should be addressed using the cameras' physical port number.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 86
80 | en LTC 8600 | LTC 8800 Series
User Function 38 - Printer Port Mode
This function allows configuration of the system's PRINTER port for use with a LTC 8712 Series Console Port Expander accessory device. Move the joystick up or down to select the printer port function; NORMAL or EXPANDED. Press [Enter] to activate your selection. Reset the system for this setting to take effect.
User Function 39 - Select DIU Interface Port
Use this function to select the switcher's interface port to be connected to an exter­nal LTC 8016/90 Allegiant Bilinx Data Interface accessory unit. Move the joystick up or down until the desired port for use as a data interface (DIU) is displayed. Press [Enter] to configure the port. If using the LTC 8555 keyboard, press [User] to exit the mode.
User Function 40 - Reserved Function
User Function 41 - Set Satellite Communication Format
This function provides three (3) configuration options that determine the behavior and content of the data commands issued by a master system to a satellite system. In most cases, it is only necessary to change the default setting if using a multi-level cascaded Allegiant satellite system configuration. (see Section Appendix A “Satel­lite Systems,” on page 107 for more information on satellite system configurations.)
Detailed descriptions of these options are listed below. After entering the mode, move the joystick up or down to select the desired option.
Enter a valid user password, and press [Enter].
• CACHE REM CAM option (default factory setting). In this mode, satellite com­mands are issued repetitively, regardless of whether the satellite camera is still being viewed by an operator. This mode of operation is more desirable in stan­dard systems because it minimizes delays when previous satellite cameras are reselected. It is not recommended for use in cascaded systems. In cascaded systems, this mode could result in all available trunk lines coming from the 3rd level satellite system to become used up, making them unavailable to the opera­tors at the intermediate system.
• NO REM CAM CACHE option. In this mode, after the top level operator selects a locally connected camera, the trunk line between the top level and the interme­diate level system will immediately be reset to its start-up camera (as defined in the Monitor Table of the LTC 8059/00 MCS). This in turn frees up the trunk line between the intermediate level system and the 3rd level system so it will be available if needed by an operator at the intermediate level system.
In addition, this option changes the behavior of how the system determines which trunk line to use. When this option is not used, a new trunk line (if avail­able) will be used for each camera selection. When this option is enabled, an operator's monitor will use the same trunk from the same bay as different cam­eras are selected, as long as no other operator is viewing the same satellite camera. In 3-tier cascaded satellite systems, this feature minimizes the use of trunk lines by the top level Master system. This is especially advantageous when the operator at the Master site is viewing cameras from the 3rd level satellite. Since this will result in less trunk lines being used up, the intermediate Master/ Satellite system will have more access to trunk lines from the 3rd level satellite.
• SAT nnn PRIORITY option. If the top level master system and intermediate level system in a cascade configuration can or will be set to operate as “Dual Master” systems, a priority based satellite camera selection feature can be configured. In a default cascaded satellite system configuration, satellite switching com­mands are not associated with a user priority level. When a switching command sent from a master site is received by a satellite, the switch selection can imme-
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 87
LTC 8600 | LTC 8800 Series en | 81
diately be overridden by operators at the satellite location having any priority level. This situation is more likely to be encountered in 3-tier satellite systems that do not have a good distribution of trunk lines (i.e., more between the top level system and the intermediate level system than there are between the inter­mediate system and the 3rd tier satellite).
Since dual master configurations support bi-directional communications, selecting the SAT nnn PRIORITY option for both the top level and intermediate level master systems will result in the generation of priority based satellite com­mands.
The satellite number assigned to the system that is currently being programmed must be specified for the nnn value. This feature will enable use of the opera­tor's user priority to determine if access to a desired satellite camera is pro­vided or not. For instance, if no trunk lines are available and an operator requesting a satellite camera has higher priority than at least 1 of the existing operators, the requested camera will be switched. If the operator does not have sufficient priority, they will receive an error message (i.e., error 81) via the sat­ellite communication path, and their camera will switch to the start-up camera specified in the Monitor Table.
In addition, the same behavior for selecting trunk lines as described in the NO REM CAM CACHE option is applicable to this option. An operator's monitor will use the same trunk from the same bay as different cameras are selected, as long as no other operator is viewing the same satellite camera.
User Function 42 - Keyboard Log-in Auto-off Mode
Priority 1 users can use this function to select a keyboard log-off feature to automat­ically log a keyboard off after a pre-selected time of inactivity. After entering the mode, move the joystick up or down to select the desired time period. Enter a valid password, and press [Enter]. If using the LTC 8555 keyboard, press [User] to exit the mode.
User Function 43 - CPU Battery Status
Use this function to view the condition of the batteries used to backup CPU mem­ory. Once the function is entered, the condition is displayed on the monitor text dis­play. If using the LTC 8555 keyboard, press [User] to exit the mode.
User Function 44 – Camera Vertical Phase Set
NOTE: This feature requires the following:
1. LTC 8621 or LTC 8821 video input modules having firmware 5.30 or later.
2. Dinion series of cameras using Bilinx communications.
3. AutoDome series of cameras using either Bilinx or Biphase data communica-
tions.
4. LTC 8016/90 Bilinx Data Interface unit having firmware 1.01 or later.
5. All cameras configured to use Line Lock mode.
Priority 1 users can use this function to automatically adjust the phase interval delay of compatible cameras connected to the system. This will result in roll-free switching as the cameras are manually selected or automatically sequenced on sys­tem monitors.
After entering the function, the joystick down/up is used to select either an individ­ual camera to adjust or all cameras. Enter a valid user password number and press [Enter] to activate the adjustment process.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 88
82 | en LTC 8600 | LTC 8800 Series
Some minor disturbance of the video images may be visible for 1 or 2 seconds while the cameras are being adjusted. If no changes are noticed, check to make sure that you have compatible devices in your system.
If using an LTC 8555 keyboard, press [User] to exit the mode.
User Function 45 – CPU Temperature Status
Use this function to view the condition of the CPU temperature. Once the function is entered, the condition is displayed on the monitor text display.
If using the LTC 8555 keyboard, press [User] to exit the mode.
User Function 46 – Two/Three Line Titles
Use this function to enable a third line of on-screen text. This new line can be used to display up to 24 additional camera title characters, providing a total of 40 charac­ters (or 20 'double width' characters) for each camera. Alternatively, this line can be used to display the 12-character Monitor title.
Once the function is entered, move the joystick up/down to select the desired option. Enter a valid user password, and press [Enter]. The on-screen display of some system monitors may take up to 1 minute before changing.
After enabling/disabling this feature, it is recommended to enter User Function 24 (see above) to adjust vertical height of the on-screen text to the desired position.
Note: At time of this publication, the available version of the PC-based LTC 8059 Master Control Software only supports user programming of the standard 16 char­acters of the camera titles. The additional 24 characters can only be programmed using User Function 9 (see above) or via third party RS-232 serial interface utilizing the Allegiant Command Console Language (CCL) commands.
User Function 47 – Six-digit Camera ID
Use this function to enable/disable “6-digit Camera ID” mode. When enabled, 2­digit “site numbers” are displayed in addition to the 4-digit camera number. The 2­digit site number feature is especially useful when groups of cameras are located in separate buildings, floors, or other common areas.
By default, all 6-digit camera numbers are assigned to site “00” and the remaining digits correspond to the standard 4-digit camera numbers. Use the PC-based LTC 8059 Master Control Software to enter unique 6-digit camera numbers for each sys­tem camera. When enabled, all keyboard based camera selections and Sequence programming must be done using the 6-digit number.
Once the function is entered, move the joystick up/down to select the desired option. Enter a valid user password, and press [Enter]. The on-screen display of some system monitors may take up to 1 minute before changing.
Note: This feature requires firmware versions released for certain system compo­nents in March 2009. If necessary, compare firmware versions against the list of components below to determine if the feature is available in your system:
COMPONENT Firmware Version
LTC 8x10/01 series CPU/Data Receiver modules 10.05 or later Intuikey keyboard firmware 1.93 or later LTC 8555 keyboard firmware 5.90 or later LTC 8834/00 Video Output Module 3.30 LTC 8059/00 Master Control Software 2.90
User Function 99 – User Function Index
This function is an index listing of all Keyboard User Functions. Move the joystick up or down to view an abbreviated description of the function number currently shown in the first line of the monitor display. Only those functions available to the user (based on their priority level) will be displayed.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 89
LTC 8600 | LTC 8800 Series en | 83
Line Voltage Selector Removal
Line Voltage Selector Removal
19 Maintenance Information
The Allegiant system has been designed to perform for long periods of time with lit­tle or no maintenance. Occasionally the need will arise to clean the keyboard, or replace a fuse. Follow the instructions below if any of these items are required.
19.1 Cleaning the Keyboard
The keyboard may be cleaned whenever deemed necessary simply by temporarily removing it from the system and wiping it with a damp cloth. If a conventional spray type cleaner is required, spray the cloth first, then wipe off the surfaces. Do not use petroleum based cleaners or cleaners containing benzene, triclorethylene, ammonia or acetone, as these cleaners could damage the plastic surfaces.
19.2 AC Line Voltage Input Selection
The AC line voltage input selector is found on the rear of the equipment bay inside the line cord connector housing. The present input voltage selection will be shown in the window of the connector housing. Remove AC line cord if the setting is incor­rect. To change the setting, insert a flat blade screwdriver into the slot located at one end of the connector housing as indicated in the drawing and rotate the screw­driver until the door to the housing opens.
Figure 19: AC line voltage input connector
Remove the voltage selector wheel from the connector housing and rotate until the desired voltage is visible.
Figure 20: Line voltage selector
Reinsert the wheel back into the connector housing so that the selected voltage is facing out. Snap door closed and verify that the correct voltage selection is visible through the window. Reattach AC line cord.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 90
84 | en LTC 8600 | LTC 8800 Series
Fuse Removal
Fuse Removal
19.3 AC Line Fuse Replacement
The AC line fuse on Allegiant power supply models is found on the rear of the equip­ment bay near the line cord connector. Power supply models for 220-240 VAC input version may contain a circuit breaker equipped power switch which can be reset directly from the front. If the line fuse needs to be replaced in a 120 VAC model power supply, remove the line cord from the system. Insert a flat blade screwdriver into the slot located at one end of the connector housing and rotate the screwdriver until the door to the housing opens. Remove fuse holder from housing as shown in drawing.
Figure 21: Allegiant power supply AC line fuse
Remove fuse from holder and replace with fuse of same rating for continued protec­tion. Reinstall fuse holder into connector housing in the same orientation as indi­cated by the arrow on the door cover. Snap door closed. After replacing fuse, verify system start-up and operation.
19.4 Power Supply Fuse Replacement
The main power supply is located in the far right side of the equipment bay. Remove the front panel of the bay by loosening the four fasteners. Locate the fuse to be replaced by observing the green LED indicators. Note which LED indicators are not lit, then turn OFF the main power switch located on the power supply. Replace fuses associated with LEDs which were not lit. Switch on the main power switch and verify that all LEDs are now lit. Replace front panel.
19.5 Replacement of Memory Backup Batteries
General operational notes
• Low battery conditions are indicated by LED on CPU and on-screen flashing “?? ?? ??” of time/date fields.
• Battery status can be check by keyboard operator using Keyboard User Func­tion 43.
• Batteries are checked by CPU once per day at midnight, upon power up, and after system reset.
• If batteries are replaced without power off/on (of at least 10 seconds) or reset of CPU, LED and on-screen indicators will not display normal until next mid­night is reached.
CAUTION Lithium batteries should be replaced by qualified service personnel only.
The memory backup batteries are located on the main CPU card located next to the power supply module in the main CPU bay. The batteries provide RAM memory backup for a period of at least one year. They are only active when main AC power to the system has been lost. The RAM memory is used to store system operational data
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 91
LTC 8600 | LTC 8800 Series en | 85
which is frequently changing, including time/date and system crosspoint data (i.e., which camera is currently being displayed on which monitor). More vital system data such as camera titles, alarm settings, user information and passwords, etc. is stored in non-volatile memory that is not affected by the condition of the batteries or the main AC power.
Remove the front panel of the main CPU bay by loosening the four fasteners. The two batteries are mounted on the front edge of the CPU card and are about 25 mm (1 in.) in diameter. Insert a small flat blade screwdriver into the slot on one of the battery holder sockets and gently pry the battery from the holder until it can be removed by your fingers. Replace old battery with new battery by lifting the retain­ing clip up while inserting the battery into the socket. Insure that the negative side of the battery contacts the socket by seating the battery until it is somewhat flush with the level of the battery holder. Repeat procedure for other battery.
Verification of the system's time and date and sequence programming should be made to insure no information was lost. Refer to the appropriate section of the instruction manual if any reprogramming is required.
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 92
86 | en LTC 8600 | LTC 8800 Series
20 Character ROM Tables for LTC 8600 and LTC 8800
The characters used in generating the video monitor displays are shown in the table on the following pages. Note that in some cases, a single character may be com­prised of two (2) parts. Such characters must be entered so that the left half of the character always begins in an odd numbered column of the display title. The code numbers of these double-width characters are shown in black boxes in the table below. Refer to the section of the operating instructions covering “User Functions” for title programming procedures.
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 93
LTC 8600 | LTC 8800 Series en | 87
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 94
88 | en LTC 8600 | LTC 8800 Series
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 95
LTC 8600 | LTC 8800 Series en | 89
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 96
90 | en LTC 8600 | LTC 8800 Series
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 97
LTC 8600 | LTC 8800 Series en | 91
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 98
92 | en LTC 8600 | LTC 8800 Series
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
Page 99
LTC 8600 | LTC 8800 Series en | 93
F.01U.127.393 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Page 100
94 | en LTC 8600 | LTC 8800 Series
Bosch Security Systems, Inc. Instruction Manual F.01U.127.393 | 2.0 | 2009.03
