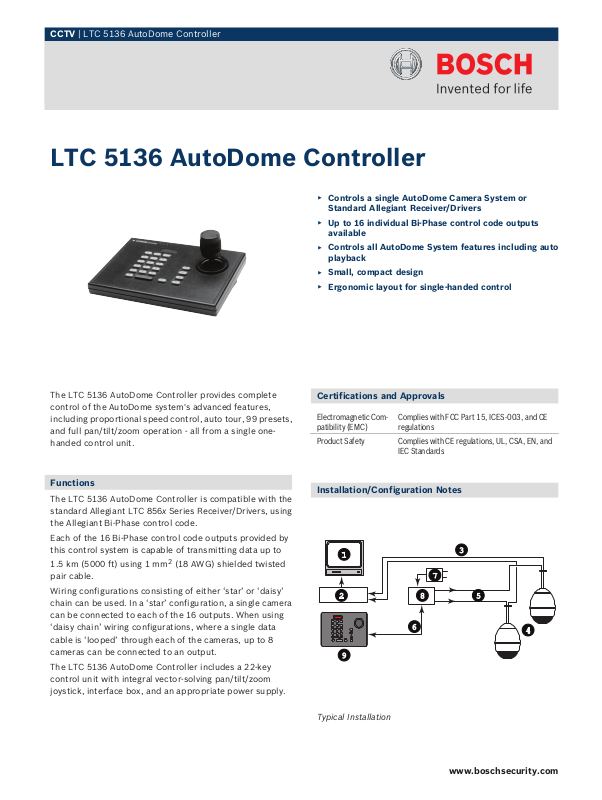

LTC 5136 AutoDome Controller
Controls a single AutoDome Camera System or
Standard Allegiant Receiver/Drivers
Up to 16 individual Bi-Phase control code outputs
available
Controls all AutoDome System features including auto
playback
Small, compact design
Ergonomic layout for single-handed control
The LTC 5136 AutoDome Controller provides complete control of the AutoDome system's advanced features, including proportional speed control, auto tour, 99 presets, and full pan/tilt/zoom operation - all from a single one­handed control unit.

Functions

The LTC 5136 AutoDome Controller is compatible with the standard Allegiant LTC 856x Series Receiver/Drivers, using the Allegiant Bi-Phase control code.
Each of the 16 Bi-Phase control code outputs provided by this control system is capable of transmitting data up to
1.5 km (5000 ft) using 1 mm2 (18 AWG) shielded twisted pair cable.
Wiring configurations consisting of either ‘star’ or ‘daisy’ chain can be used. In a ‘star’ configuration, a single camera can be connected to each of the 16 outputs. When using ‘daisy chain’ wiring configurations, where a single data cable is ‘looped’ through each of the cameras, up to 8 cameras can be connected to an output.
The LTC 5136 AutoDome Controller includes a 22-key control unit with integral vector-solving pan/tilt/zoom joystick, interface box, and an appropriate power supply.

Certifications and Approvals

Electromagnetic Com­patibility (EMC)
Product Safety Complies with CE regulations, UL, CSA, EN, and
Complies with FCC Part 15, ICES-003, and CE regulations
IEC Standards

Installation/Configuration Notes

Typical Installation
www.boschsecurity.com
2 | LTC 5136 AutoDome Controller
1
2
3
4
5
6
7
8
9
1 Video Monitor
2 DVR or Video Switcher
3 Video Coax Cable
4 Typical AutoDome Camera or Allegiant Receiver/Driver Units
5 Up to 16 Bi-Phase Control Code Outputs
6 RS-232 Data and Power
7 Power Supply Adapter (Supplied)
8 Data Converter Unit
9 AutoDome Controller
Typical Multiple Camera Sites using Daisy Chain Bi-Phase Control Code Wiring Configuration
1 Video Monitor
2 DVR or Video Switcher
3 Video Coax Cable
4 Typical AutoDome Cameras or Allegiant Receiver/Driver Units
5 Typical Bi-Phase Control Code Output
6 RS-232 Data and Power
7 Power Supply Adapter (Supplied)
8 Data Converter Unit
9 AutoDome Controller

Technical Specifications

Electrical
Includes Control Unit and Interface Box with applicable power supply.
Model No. Rated
Voltage
LTC 5136/51 230 VAC
Voltage Range Power at
Rated Voltage
195.5 to 253 6 W
50/60 Hz
LTC 5136/61 120 VAC
105 to 132 6 W
50/60 Hz
Transmission Distance
1.5 km (5000 ft) using 1 mm2 (18 AWG) shielded twisted pair cable (Belden 8760 or equivalent)
Control Unit
Indicators Camera/entry data; 4-digit 7-segment LED display
Controls Set, User, Camera, Shot, On, Off, Enter, Clear, Fo-
cus, Iris, 10-Digit Numeric Keypad, Joystick
Connector RJ-11
Finish Charcoal
Dimensions (W x D x H)
220 x 155 x 101 mm (8.67 x 6.11 x 4.00 in.)
Weight 0.55 kg (1.2 lb)
Interface Box
Indicator Green data LED
Connectors
Data In 9-pin D connector
Bi-Phase Output Removable terminal blocks with three connections:
"+", "-", and "S" (Shield) for each of the sixteen Bi­Phase code outputs
Control Unit
RJ-11
Connection
Control Unit to Inter-
3 m (10 ft) with RJ-11 connector
face Box Cable
Power Connector Bayonet type
Case Black plastic with metal mounting flanges
Dimensions - Overall (W x D x H)
154 x 132 x 38 mm (6.08 x 5.25 x 1.5 in.)
Weight 0.132 kg (0.7 lb)
Environmental
Operating
0°C to 40°C (32°F to 104°F)
Temperature
Storage
–10°C to 50°C (14°F to 122°F)
Temperature
Humidity 10%–90%, non-condensing
