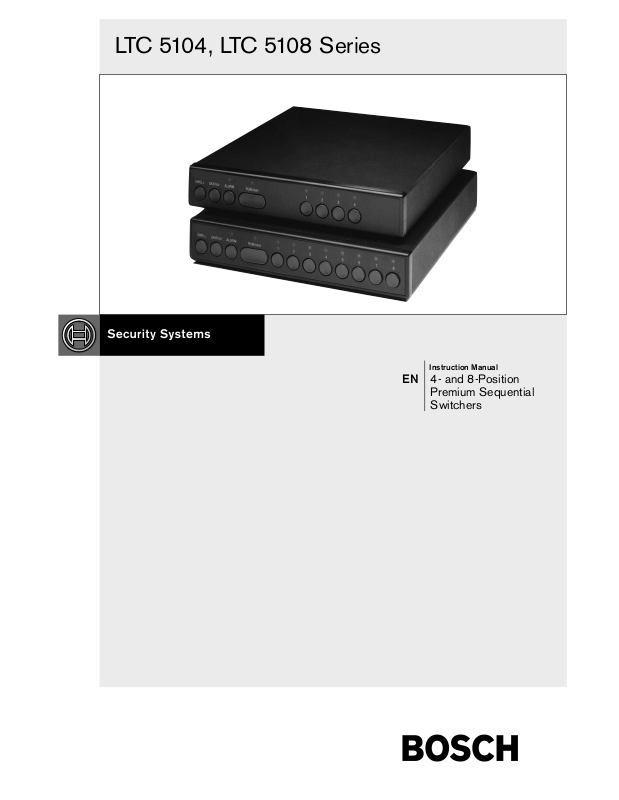

Bosch LTC 5108, LTC 5104 User Manual

Instruction Manual

EN 4- and 8-Position

Premium Sequential
Switchers

LTC 5104, LTC 5108 Series

LT C 5104, LTC 5108 Series | Instruction Manual | Important Safeguards

EN

|

2

Bosch Security Systems | 7 April 2004

Important Safeguards

1. Read, Follow, and Retain Instructions - All safety
and operating instructions should be read and
followed before operating the unit. Retain instructions
for future reference.

2. Heed Warnings – Adhere to all warnings on the unit
and in the operating instructions.

3. Attachments - Attachments not recommended by the
product manufacturer should not be used, as they
may cause hazards.

4. Installation Cautions - Do not place this unit on an
unstable stand, tripod, bracket, or mount. The unit
may fall, causing serious injury to a person and
serious damage to the unit. Use only manufacturer­recommended accessories, or those sold with the
product. Mount the unit per the manufacturer's
instructions. Appliance and cart combination should
be moved with care. Quick stops, excessive force, or
uneven surfaces may cause the appliance and cart
combination to overturn.

5. Cleaning - Unplug the unit from the outlet before
cleaning. Follow any instructions provided with the
unit. Generally, using a damp cloth for cleaning is
sufficient. Do not use liquid cleaners or aerosol
cleaners.

6. Servicing - Do not attempt to service this unit
yourself. Opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.

7. Damage Requiring Service - Unplug the unit from
the main AC power source and refer servicing to
qualified service personnel under the following
conditions:

•When the power supply cord or plug is damaged.

• If liquid has been spilled or an object has fallen

into the unit.

• If the unit has been exposed to water and/or

inclement weather (rain, snow, etc.).

• If the unit does not operate normally, when

following the operating instructions. Adjust only
those controls specified in the operating
instructions. Improper adjustment of other controls
may result in damage, and require extensive work
by a qualified technician to restore the unit to
normal operation.

• If the unit has been dropped or the cabinet

damaged.

• If the unit exhibits a distinct change in

performance, this indicates that service is needed.

8. Replacement Parts - When replacement parts are
required, the service technician should use
replacement parts specified by the manufacturer, or
that have the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electrical shock, or other hazards.

9. Safety Check - Upon completion of servicing or
repairs to the unit, ask the service technician to
perform safety checks to ensure proper operating
condition.

10. Power Sources - Operate the unit only from the type
of power source indicated on the label. If unsure of
the type of power supply to use, contact your dealer
or local power company.

•For units intended to operate from battery power,

refer to the operating instructions.

•For units intended to operate with External Power

Supplies, use only the recommended approved
power supplies.

•For units intended to operate with a limited power

source, this power source must comply with
EN60950. Substitutions may damage the unit or
cause fire or shock.

•For units intended to operate at 24 VAC, normal

input voltage is 24 VAC. Voltage applied to the
unit's power input should not exceed 30 VAC.
User-supplied wiring, from the 24 VAC supply to
unit, must be in compliance with electrical codes
(Class 2 power levels). Do not ground the 24 VAC
supply at the terminals or at the unit's power
supply terminals.

11. Coax Grounding - If an outside cable system is
connected to the unit, ensure that the cable system is
grounded. U.S.A. models only--Section 810 of the
National Electrical Code, ANSI/NFPA No. 70,
provides information regarding proper grounding of
the mount and supporting structure, grounding of the
coax to a discharge unit, size of grounding
conductors, location of discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode.

12. Grounding or Polarization - This unit may be
equipped with a polarized alternating current line
plug (a plug with one blade wider than the other).
This safety feature allows the plug to fit into the
power outlet in only one way. If unable to insert the
plug fully into the outlet, try reversing the plug. If the
plug still fails to fit, contact an electrician to arrange
replacement of the obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
Alternately, this unit may be equipped with a
3-wire grounding plug (a plug with a third pin, for
grounding). This safety feature allows the plug to fit
into a grounding power outlet only. If unable to insert
the plug into the outlet, contact an electrician to
arrange replacement of the obsolete outlet. Do not
defeat the safety purpose of the grounding plug.

13. Lightning - For added protection during a lightning
storm, or when this unit is left unattended and unused
for long periods of time, unplug the unit from the
wall outlet and disconnect the cable system. This will
prevent damage to the unit due to lightning and
power line surges.

LT C 5104, LTC 5108 Series | Instruction Manual | Safety Precautions

EN

|

3

Bosch Security Systems | 7 April 2004

For Indoor Product

1. Water and Moisture - Do not use this unit near
water - for example, in a wet basement, in an
unprotected outdoor installation, or in any area
classified as a wet location.

2. Object and Liquid Entry - Never push objects of
any kind into this unit through openings, as they
may touch dangerous voltage points or short out
parts that could result in a fire or electrical shock.
Never spill liquid of any kind on the unit.

3. Power Cord and Power Cord Protection - For
units intended to operate with 230 VAC, 50 Hz,
the input and output power cord must comply
with the latest versions of IEC Publication 227 or
IEC Publication 245.
Power supply cords should be routed so they are
not likely to be walked on or pinched. Pay
particular attention to location of cords and plugs,
convenience receptacles, and the point of exit
from the appliance.

4. Overloading - Do not overload outlets and
extension cords; this can result in a risk of fire or
electrical shock.

For Out

door Product

Power Lines - An outdoor system should not be
located in the vicinity of overhead power lines,
electric lights, or power circuits, or where it may
contact such power lines or circuits. When
installing an outdoor system, extreme care should
be taken to keep from touching power lines or
circuits, as this contact might be fatal. U.S.A.
models only - refer to the National Electrical
Code Article 820 regarding installation of CATV
systems.

For Rack-Mount Product

1. Ventilation - This unit should not be placed in
a built-in installation or rack, unless proper
ventilation is provided, or the manufacturer’s
instructions have been adhered to. The
equipment must not exceed its maximum
operating temperature requirements.

2. Mechanical Loading - Mounting of the
equipment in a rack shall be such that a
hazardous condition is not achieved due to
uneven mechanical loading.

Safety Precautions

Attention: Installation should be performed by
qualified service personnel only in accordance
with the National Electrical Code or applicable
local codes.

Power Disconnect. Units with or without ON­OFF switches have power supplied to the unit
whenever the power cord is inserted into the
power source; however, the unit is operational
only when the ON-OFF switch is in the ON
position. The power cord is the main power
disconnect for all units.

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with an arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.

The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

LT C 5104, LTC 5108 Series | FCC & ICES Information

EN

|

4

Bosch Security Systems | 7 April 2004

Sécurité

Attention : L’installation doit être exclusivement
effectuée par un technicien spécialisé
conformément à la réglementation du code
national de l’électricité des États-Unis (NEC) ou à
la réglementation locale.

Coupure de l’alimentation. Les appareils avec ou
sans commutateur ON-OFF (marche-arrêt) sont
alimentés dès que le cordon d’alimentation est
branché à la source d’alimentation ; toutefois, les
appareils disposant d’un commutateur de
marche-arrêt ne fonctionnent que lorsque celui-ci
est sur la position ON (marche). Le cordon
d’alimentation est l’organe de coupure principal
de l’alimentation pour tous les appareils.

ATTENTION : POUR ÉVITER TOUT RISQUE
D’ÉLECTROCUTION, NE PAS OUVRIR LE
BOÎTIER. IL N’Y A PAS DE PIÈCES
REMPLAÇABLES À L’INTÉRIEUR. POUR
TOUTE INTERVENTION, S’ADRESSER À UN
RÉPARATEUR PROFESSIONNEL COMPÉTENT.

L’éclair fléché dans un triangle équilatéral
avertit l’utilisateur de la présence d’une
« tension dangereuse » non isolée à
l’intérieur de l’appareil et d’une valeur
suffisante pour constituer un risque
d’électrocution.

Le point d’exclamation contenu dans un
triangle équilatéral avertit l’utilisateur de
la présence, dans la documentation qui
accompagne l’appareil, d’importantes
consignes d’utilisation et de maintenance.

FCC & ICES INFORMATION

(U.S.A. and Canadian Models Only)

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules and
ICES-003 of Industry Canada. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated
in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.

• Consult the dealer, or an experienced radio/TV
technician for help.

Intentional or unintentional changes or modifications,
not expressly approved by the party responsible for
compliance, shall not be made. Any such changes or
modifications could void the user’s authority to
operate the equipment.
The user may find the following booklet, prepared by
the Federal Communications Commission, helpful:
H

ow to Identify and Resolve Radio-TV Interference
Problems. This booklet is available from the U.S.
Government Printing Office, Washington, DC 20402,
Stock No. 004-000-00345-4.

LT C 5104, LTC 5108 Series | Instruction Manual | Safety Precautions

EN

|

5

Bosch Security Systems | 7 April 2004

Sicherheitshinweise

Achtung: Die Installation darf nur von
qualifiziertem Wartungspersonal gemäß dem
National Electrical Code oder den gültigen
örtlichen Vorschriften durchgeführt werden.

Abtrennen der Spannungsversorgung: Die
Spannungsversorgung zu Geräten mit und ohne
Ein/Aus-Schalter ist hergestellt, wenn das
Netzkabel an eine Netzsteckdose angeschlossen
ist. Das Gerät ist jedoch nur betriebsbereit, wenn
der Ein/Aus-Schalter eingeschaltet ist. Bei allen
Geräten erfolgt das Abtrennen der
Spannungsversorgung über das Netzkabel.

VORSICHT: DAS GEHÄUSE ZUR
VERMEIDUNG VON ELEKTRISCHEN
SCHLÄGEN NICHT ÖFFNEN. DAS GERÄT
ENTHÄLT KEINE VOM BENUTZER ZU
WARTENDEN TEILE. REPARATUREN NUR
VON FACHPERSONAL AUSFÜHREN LASSEN.

Das Blitzsymbol im gleichseitigen Dreieck
soll den Benutzer auf nicht isolierte
“gefährliche Spannung” im Produkt
hinweisen, die ausreichend stark sein kann,
um die Gefahr von elektrischen Schlägen
für Menschen darzustellen.

Das Ausrufungszeichen im gleichseitigen
Dreieck soll den Benutzer auf wichtige
Bedienungs- und Wartungsanweisungen
in der Dokumentation hinweisen, die
dem Gerät beiliegt.

Precauciones de Seguridad

Atención: La instalación debe realizarla
personal cualificado en cumplimiento estricto
del código eléctrico nacional (en el caso de los
EE.UU.) o de los códigos locales aplicables.

Para Desconectar la Alimentación: Unidades
no equipadas con interruptores ON/OFF, son
alimentadas cuando el cable de alimentación es
conectado a la corriente eléctrica. Las unidades
equipadas con interruptores son alimentadas de
igual forma, pero adicionalmente requieren que
el interruptor esté posicionado en ON. El cable
de alimentación es el medio principal de
desconexión del equipo.

PRECAUCIÓN: PARA REDUCIR EL RIESGO
DE DESCARGA ELÉCTRICA, NO ABRA LAS
TAPAS. EN EL INTERIOR NO HAY NINGÚN
COMPONENTE REPARABLE POR EL
USUARIO. LAS REPARACIONES DEBE
REALIZARLAS PERSONAL CUALIFICADO.

El símbolo de flecha en forma de rayo
situado dentro de un triángulo equilátero
pretende alertar al usuario de la presencia
de “voltaje peligroso” sin aislamiento
dentro de la caja del producto, el cual
podría resultar de una magnitud
suficiente como para presentar un riesgo
de descarga eléctrica para las personas.

El punto de exclamación dentro de un
triángulo equilátero pretende alertar al
usuario de la existencia de instrucciones de
funcionamiento y mantenimiento
(reparación) en la documentación
suministrada con el aparato.

LT C 5104, LTC 5108 Series | Instruction Manual | Safety Precautions

EN

|

6

Bosch Security Systems | 7 April 2004

Veiligheidsmaatregelen

Attentie: De installatie dient alleen te worden
uitgevoerd door gekwalificeerd servicepersoneel
en in overeenstemming met de plaatselijk
geldende installatievoorschriften.

Onderbreken van de spanning. Units met of
zonder AAN/UIT-schakelaar, staan onder
spanning zolang het netsnoer is verbonden met
de wandcontactdoos. De unit is echter alleen
bedrijfsklaar als de AAN/UIT-schakelaar in de
AAN-stand staat. Losnemen van het netsnoer is
voor alle units de belangrijkste manier om de
spanning te onderbreken.

GEVAAR: OPEN DEZE BEHUIZING NIET,
TENEINDE HET RISICO VAN ELEKTRISCHE
SCHOKKEN TE VOORKOMEN. BINNENIN
BEVINDEN ZICH GEEN DOOR DE
GEBRUIKER TE REPAREREN
ONDERDELEN. RAADPLEEG VOOR
REPARATIE GEKWALIFICEERD
SERVICEPERSONEEL.

Het symbool van een bliksem met pijlpunt
in een gelijkzijdige driehoek is bedoeld om
de gebruiker te waarschuwen voor de
aanwezigheid van een niet geïsoleerde
‘gevaarlijke spanning’ binnen in de
behuizing van het product, die voldoende
sterk kan zijn om personen het risico van
een elektrische schok te geven.

Het symbool van een uitroepteken in een
gelijkzijdige driehoek is bedoeld om de
gebruiker te waarschuwen voor de
aanwezigheid van belangrijke bedienings­en onderhouds- (service-) instructies in de
documentatie die met het product zijn
meegeleverd.

Sicurezza

Precauzione: affidare l’installazione al solo
personale qualificato e nel rispetto del Codice
elettrico nazionale (USA) o dei codici locali
pertinenti.

Scollegamento dell’alimentazione. Gli apparecchi
con o senza commutatori ON-OFF ricevono
corrente tutte le volte che il cavo di
alimentazione è inserito nella presa di forza;
tuttavia, gli apparecchi muniti di commutatore
ON-OFF funzionano solo se quest’ultimo è in
posizione ON. Il cavo di alimentazione serve a
scollegare dalla corrente tutti gli apparecchi.

AT TE NZ IONE: PER RIDURRE IL PERICOLO
DI SCOSSA ELETTRICA, NON APRIRE LE
COPERTURE. L’INTERNO NON CONTIENE
COMPONENTI CHE L’UTENTE PUÒ
RIPARARE PERSONALMENTE. RIVOLGERSI
AL PERSONALE DI ASSISTENZA
QUALIFICATO PER QUALSIASI INTERVENTO
DI RIPARAZIONE.

Il simbolo triangolare di un fulmine con
la punta a freccia intende mettere in
allerta l’utente riguardo alla presenza di
tensioni pericolose non isolate all’interno
del guscio dell’unità, che potrebbero
essere di intensità sufficiente per
costituire pericolo di elettrocuzione.

Il punto esclamativo racchiuso in un
triangolo equilatero intende avvisare
l’utente in merito alla presenza di
importanti istruzioni operative e di
manutenzione nella documentazione di
accompagnamento all’unità.
