Bosch DVR-630-08A, DVR-650-08A200, DVR-650-08A100, DVR-650-08A050, DVR-650-08A Specsheet

Video | DVR 630/650 Series

DVR 630/650 Series

www.boschsecurity.com

u 8/16-Channel real-time recording with CIF

resolution

u Flexible viewing with two monitor outputs

u Remote viewing, playback, control, and

configuration

The Bosch Video Recorder 630/650 Series is an 8/16
channel digital recorder that uses the latest H.264
compression technology. With the supplied PC
software and built-in web server, the 630/650 Series is
a fully integrated, stand-alone video management
solution that's ready to go, straight out of the box.
Available with a variety of storage capacities, the
630/650 Series features a highly reliable embedded
design that minimizes maintenance and reduces
operational costs. The recorder is also available with a
built-in DVD writer.

System overview

The 630/650 Series takes advantage of H.264 video
compression technology to dramatically reduce the
amount of storage and bandwidth needed while still
producing a better image quality. The 630/650 Series
records multiple video and audio signals while
simultaneously providing live multi-screen viewing and
playback. Comprehensive search and playback
functions provide quick recall and viewing of recorded
video.

u Easy Pan/Tilt/Zoom camera control

u DVR viewer iPhone App

Recording

Ease of use is a key feature of the 630/650 Series
design. Simply connect the cameras, apply power, and
the unit begins recording automatically. All recording
takes place in the background with no operator
intervention required.
The use of H.264 compression reduces the file size of
recordings by as much as 30% compared to standard
MPEG-4, without sacrificing image quality. The
630/650 Series can record at up to 25 (PAL) /
30 (NTSC) images per second, per channel at CIF
resolution. Recording at 2CIF and 4CIF resolution is
also possible by reducing the recording image rate
settings. The recording rate and quality are individually
configurable per channel for maximum flexibility.
If required, alarm recordings (input and motion) and
continuous recordings can be split over two partitions.
An overwrite mode can then be selected separately for
each partition.

Dome Control

The 630/650 Series can control pan/tilt/zoom (PTZ)
equipment via RS‑485 serial communications. PTZ
devices, including the Bosch AutoDome and a number
of third party domes, are supported.

2 | DVR 630/650 Series

Alarms

All models have extensive alarm handling functions
and telemetry control. Alarm functions include local
inputs and relay outputs as well as motion detection in
user-defined areas. In addition, the 630/650_Series
can send an e-mail notification with a short video clip
on alarm.

Local control and operation

The unit can be easily operated and programmed via
the on-screen display menu system using the front
panel control keys, the mouse, an IntuiKey Series
keyboard or the supplied remote control. Two monitor
outputs provide full-screen, quad, multi-screen and
sequenced viewing.
Looping auto-terminating video inputs and outputs,
audio inputs and output, and alarm inputs and outputs
are located on the rear panel.
Two VGA connectors provide an output for monitor A
(main monitor) and monitor B (spot monitor).
Monitor A displays live and playback in full-screen,
quad or multi-screen pictures that can be frozen and
zoomed. Monitor B displays live full-screen, quad or
multi-screen pictures.

Remote control and operation

Use the PC software or built-in web application via a
network for live viewing, playback, and configuration.
The PC application software can also be used with
other Bosch products including the 400 Series and the
700 Series. Four users can control the 630/650 Series
simultaneously.
The 630/650 Series includes an authenticity check for
both local and remote playback, ensuring recording
integrity. The 630/650 Series Archive Player is
provided for playback of secure video files.

Mobile Devices

A Bosch DVR viewer App for Apple iOS devices is
available for live viewing and PTZ control. This App lets
you watch live video from cameras connected to the
DVR from anywhere in the world. If a PTZ camera is
connected, you can control focus, pan, tilt and zoom.
Additionally, Real Time Streaming Protocol (RTSP) is
supported in the 630/650 Series. This means that live
video streamed from the unit over the internet can be
displayed by suitably configured mobile devices.

Functions

The 630/650 Series has the following features:

• 8 or 16 looped-through, auto-terminating camera
inputs

• 4 audio inputs and 2 audio outputs

• Simultaneous live viewing, recording, playback, and
remote streaming

• 10/100Base-T Ethernet port for local or wide area
network connection

• RS485 serial port for serial communication to control
movable cameras

• IntuiKey Series keyboard support for Bosch dome
control including loop-through to a maximum of 16
other 600 Series or 700 Series recorders

• VGA monitor outputs for main and spot monitors

• 16:9, 16:10 and 4:3 aspect ratio displays for main
monitor

• 4:3 aspect ratio display for spot monitor

• Full-screen, quad and multi-screen display capabilities
in live and playback modes for main monitor

• Spot monitor output with sequencing and full-screen,
quad and multi-screen views

• Alarm picture pop-up on full-screen or sequence by
multiple alarms simultaneously

• E-mail notification with 10-second video clip on alarm

• Playback one or more channels while showing live
pictures of the other channels

• Motion detection

• Multiple search modes including smart search (search
for motion within recorded images)

• 8 or 16 switching (alarm) inputs and 4 alarm outputs

• Video loss detection

• Audible alarm

• Bosch DVR viewer App for live and PTZ control on
iPhone/iPad/iPod touch devices

• Live display support on mobile devices via RTSP

• Pan/tilt/zoom camera control via RS485

• Supports Bosch and Pelco protocols

• Local archiving via USB

• Local archiving via built-in DVD burner (specific
models)

Certifications and approvals

Standards

FCC Part 15, Class B

EMC Directive 2004/108/EC

Immunity: EN50130-4

Emission: EN55022 Class B

Harmonics: EN61000-3-2

Voltage fluctuations: EN61000-3-3

UL60950‑1

LV Directive 2006/95/EC, EN60950-1

CAN/CSA—C22.2 no. 60950‑1

C-Tick

Region Certification

Europe CE

USA UL

FCC

Canada CSA

IN

AUDIO

OUT

12VDCKEYBOARD

IN

1615141312111098765

16151413121110

IN OUT

98765

5 6 7 8 9 10 11 12 1314 15 16

1

+ -

2

1 2

3 4

3 | DVR 630/650 Series

Installation/configuration notes

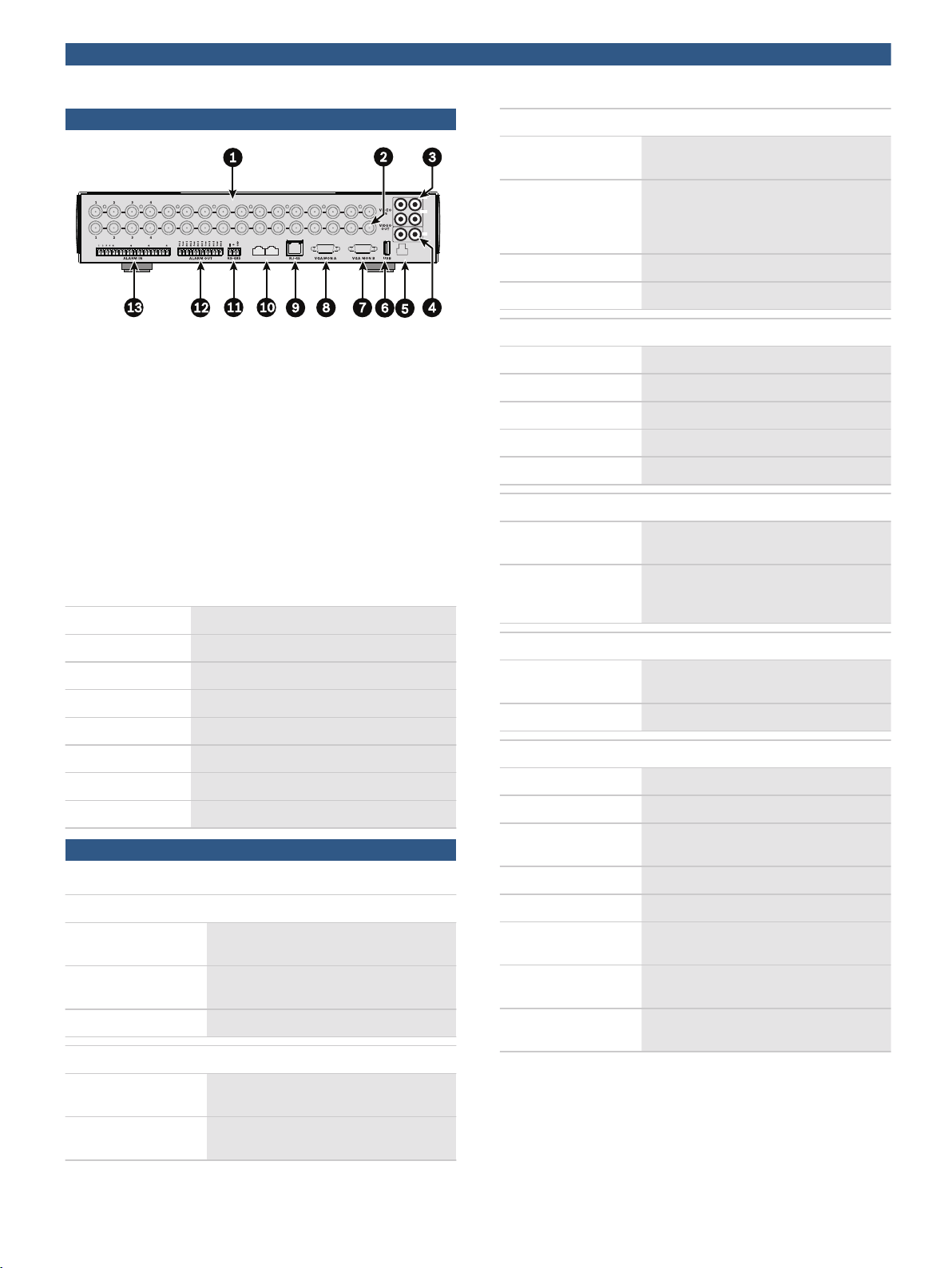

Connections on back of DVR 630/650 (16-channel
version)

1 Camera inputs 8 Monitor A VGA output

2 Camera outputs 9 RJ45 network connector

3 Audio inputs 10 RJ11 connectors for IntuiKey

keyboard

4 Audio outputs 11 RS485 connector for Dome

control

5 Power connector 12 Alarm outputs

6 USB connector 13 Alarm inputs

7 Monitor B VGA output

Recommended PC requirements for Web support

Operating system Windows XP, Windows Vista or Windows 7

Web browser Internet Explorer 7, 8 or 9

Processor Intel Core Duo 2.0 GHz or comparable

RAM memory 2048 MB

Free disk space 10 MB

Graphics card NVIDIA GeForce 8600 or better

Video memory 256 MB

Network interface 10/100-BaseT

Technical specifications

Electrical

Video outputs

Outputs Monitor A: VGA RGB

Monitor B: VGA RGB

Live Resolution
(Mon.A)

800x600 (4:3), 1024x768 (4:3)
1280x1024 (5:4)
1366x768 (16:9)
1440x900 (16:10)

Digital Zoom 2 times

Streaming video H.264 compression

Audio

Inputs Mono RCA, 1.0 Vpp

Output Mono RCA, 1.0 Vpp

Compression ADPCM

Sample rate 16 kHz per channel

Bit rate 8-bit

Alarm Handling

Inputs 8 or 16 inputs configurable NO/NC, max.

input voltage 15 VDC

Outputs 4 Relay outputs, configurable NO/NC, max.

rated 30 VAC, 40 VDC 0.5 A continuous or
10 VA

Control

RS485 Output signals according to RS485, max.

signal voltage -8 to +12 V

RS485 Support Bosch domes, and Pelco P and D

Connectors

Video Inputs 8 or 16 looping BNC, auto termination

Monitor 2 VGA D-SUB

Alarm connectors Screw terminal inputs, cable diameter

AWG26‑16 (0.13-1.5 mm)

Audio Inputs 4 RCA (CINCH)

Rated Voltage and Power

External power adapter

110–240 VAC; 50/60 Hz; 1.8 A

AC input

External power adapter

12 VDC; 5 A

DC output

DVR Power input 12 VDC; 3.5 A; 145 BTU/h

Video Inputs

Inputs Composite video 1 Vpp, 75 ohm, automatic

termination; PAL / NTSC auto-detect

AGC Automatic gain adjustment for each video

input

Audio Output 2 RCA (CINCH)

Ethernet RJ45, 10/100 BaseT according to

IEEE802.3

RS485 Screw terminal output, cable diameter

AWG28‑16 (0.08-1.5 mm)

USB 2.0 One front and one rear USB connector for

mouse or USB memory device

4 | DVR 630/650 Series

Storage

Hard Disks Supports up to 2 SATA hard drives

*Bosch cannot be held liable for any loss or damages or system malfunction resulting from

the use of non-Bosch drives in DVR recorders.

maximum 2TB each
(Third party hard disks are supported from
firmware version 2.0.6 onwards. A list of
tested disks is available in the instruction
manual.)*

Video recording

Record Rate (IPS)

NTSC Max. 30 IPS per channel, configurable: 30,

PAL Max. 25 IPS per channel, configurable: 25,

Recording Quality Best, High, Normal, Low, Lowest

Average Recording Capacity (16 channels, 500 GB)

CIF, Normal,
25/30 IPS

CIF, Normal,

6.25/7.5 IPS

2CIF, Normal,

12.5/15 IPS

4CIF, Normal,

6.25/7.5 IPS

15, 7.5, 5, 3, 1

12.5, 6.25, 5, 2.5, 1

PAL: 138 hours, NTSC: 170 hours

PAL: 350 hours, NTSC: 425 hours

PAL: 115 hours, NTSC: 144 hours

PAL: 93 hours, NTSC: 115 hours

Display Modes

Monitor A Full, quad, multi-screen (live and playback),

full sequence, alarm call-up (live)

Monitor B Full, quad, multi-screen, full sequence,

alarm call-up (live)

Recording Modes

Normal partition Continuous recording (with or without

overwriting)

Event partition Input and motion recording (with or without

overwriting)

Mechanical

Dimensions (WxDxH) 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in)

excluding cabling

Weight 4.3 kg (9.46 lb) approx.

Environmental

Temperature

- Operating +0°C to +40°C (+32°F to +104°F)

- Storage -40°C to +70°C (-40°F to +158°F)

Humidity

- Operating <93% non-condensing

- Storage <95% non-condensing

Maximum recording rates per channel

Local 16 channels

4CIF PAL: 6 IPS, NTSC: 7.5 IPS

2CIF PAL: 12.5 IPS, NTSC: 15 IPS

CIF PAL: 25 IPS, NTSC: 30 IPS

Local 8 channels

4CIF PAL: 12.5 IPS, NTSC: 15 IPS

2CIF PAL: 25 IPS, NTSC: 30 IPS

CIF PAL: 25 IPS, NTSC: 30 IPS

Local 4 channels

4CIF PAL: 25 IPS, NTSC: 30 IPS

2CIF PAL: 25 IPS, NTSC: 30 IPS

CIF PAL: 25 IPS, NTSC: 30 IPS

Remote (network) 16 channels

CIF PAL: 6.75 IPS, NTSC: 7.5 IPS

Remote (network) 8 channels

CIF PAL: 12.5 IPS, NTSC: 15 IPS

Ordering information

DVR-630-08A 630 Series DVR

630 Series DVR, 8‑channel, base unit

Order number DVR-630-08A

DVR-630-16A 630 Series DVR

630 Series DVR, 16‑channel, base unit

Order number DVR-630-16A

DVR-650-08A 650 Series DVR

650 Series DVR, DVD, 8‑channel, base unit

Order number DVR-650-08A

DVR-650-16A 650 Series DVR

650 Series DVR, DVD, 16‑channel, base unit

Order number DVR-650-16A

DVR‑630‑08A050 630 Series DVR

630 Series DVR, 8‑channel, 500 GB

Order number DVR‑630‑08A050

DVR‑630‑16A050 630 Series DVR

630 Series DVR, 16‑channel, 500 GB

Order number DVR‑630‑16A050

DVR‑650‑08A050 650 Series DVR

650 Series DVR, 8‑channel, DVD writer, 500 GB

Order number DVR‑650‑08A050

5 | DVR 630/650 Series

Represented by:

Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2013 | Data subject to change without notice
1973821835 | en, V5, 04. Oct 2013

DVR‑650‑16A050 650 Series DVR

650 Series DVR, 16‑channel, DVD writer, 500 GB

Order number DVR‑650‑16A050

DVR‑630‑08A100 630 Series DVR

630 Series DVR, 8‑channel, 1 TB

Order number DVR‑630‑08A100

DVR‑630‑16A100 630 Series DVR

630 Series DVR, 16‑channel, 1 TB

Order number DVR‑630‑16A100

DVR‑650‑08A100 650 Series DVR

650 Series DVR, 8‑channel, DVD writer, 1 TB

Order number DVR‑650‑08A100

DVR‑650‑16A100 650 Series DVR

650 Series DVR, 16‑channel, DVD writer, 1 TB

Order number DVR‑650‑16A100

DVR‑630‑08A200 630 Series DVR

630 Series DVR, 8‑channel, 2 TB

Order number DVR‑630‑08A200

DVR‑630‑16A200 630 Series DVR

630 Series DVR, 16‑channel, 2 TB

Order number DVR‑630‑16A200

DVR‑650‑08A200 650 Series DVR

650 Series DVR, 8‑channel, DVD writer, 2 TB

Order number DVR‑650‑08A200

DVR‑650‑16A200 650 Series DVR

650 Series DVR, 16‑channel, DVD writer, 2 TB

Order number DVR‑650‑16A200

Accessories

DVR-XS050-A Storage Expansion Kit

DVR 600 Series storage expansion 500 GB

Order number DVR-XS050-A

DVR-XS100-A Storage Expansion Kit

DVR 600 Series storage expansion 1 TB

Order number DVR-XS100-A

DVR-XS200-A Storage Expansion Kit

DVR 600 Series storage expansion 2 TB

Order number DVR-XS200-A

KBD‑Digital Keyboard

IntuiKey Digital Keyboard for use with Divar Digital
Video Recorders, System4 Multiplexers, Bosch VMS,
and VIDOS

Order number KBD-DIGITAL
